ECO mode INFINITI QX60 2023 Owners Manual

For descriptions specified for all-wheel drive
models, anAWDmark is placed at the begin-
ning of the applicable sections/items.
As with other vehicles with features for off-
road use, failure to operate all-wheel drive
models correctly may result in loss of control
or an accident. For additional information,
see “Driving safety precautions” (P. 5-10).
ON-PAVEMENT AND OFF-ROAD DRIVING
This vehicle will handle and maneuver dif-
ferently from an ordinary passenger car be-
cause it has a higher center of gravity for
off-road use. As with other vehicles with
features of this type, failure to operate this
vehicle correctly may result in loss of con-
trol or an accident.
For additional information, see “On- pave-
ment and off-road driving precautions”
(P. 5-8), “Avoiding collision and rollover”
(P. 5-8) and “Driving safety precautions”
(P. 5-10).
MODIFICATION OF YOUR VEHICLE
This vehicle should not be modified. Modi-
fication could affect its performance,
safety, emissions or durability and may
even violate governmental regulations. In
addition, damage or performance problems
resulting from modifications may not be
covered under INFINITI warranties.
WARNING
Installing an aftermarket On-Board Diag-
nostic (OBD) plug-in device that uses the
port during normal driving, for example re-
mote insurance company monitoring, re-
mote vehicle diagnostics, telematics or en-
gine reprogramming, may cause
interference or damage to vehicle systems.
We do not recommend or endorse the use
of any aftermarket OBD plug-in devices,
unless specifically approved by INFINITI.
The vehicle warranty may not cover dam-
age caused by any aftermarket plug-in
device. This manual includes information for all fea-
tures and equipment available on this model.
Features and equipment in your vehicle may
vary depending on model, trim level, options
selected, order, date of production, region or
availability. Therefore, you may find informa-
tion about features or equipment that are not
included or installed on your vehicle.
All information, specifications and illustra-
tions in this manual are those in effect at the
time of printing. INFINITI reserves the right
to change specifications, performance, de-
sign or component suppliers without notice
and without obligation. From time to time,
INFINITI may update or revise this manual to
provide Owners with the most accurate in-
formation currently available. Please care-
fully read and retain with this manual all revi-
sion updates sent to you by INFINITI to
ensure you have access to accurate and up-
to-date information regarding your vehicle.
Current versions of vehicle Owner's Manuals
and any updates can also be found in the
Owner section of the INFINITI website at
https://owners.infinitiusa.com/iowners/
navigation/manualsAndGuides. If you have
questions concerning any information in your
Owner's Manual, contact INFINITI Con-
sumer Affairs. See the INFINITI CUSTOMER
CARE PROGRAM page in this Owner’s
Manual for contact information.
WHEN READING THE MANUAL

IMPORTANT INFORMATION
ABOUT THIS MANUAL
You will see various symbols in this manual.
They are used in the following ways:
WARNING
This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the risk,
the procedures must be followed precisely.
CAUTION
This is used to indicate the presence of a
hazard that could cause minor or moderate
personal injury or damage to your vehicle.
To avoid or reduce the risk, the procedures
must be followed carefully. If you see this symbol, it means
“Do not do
this” or“Do not let this happen.”
If you see a symbol similar to these in an
illustration, it means the arrow points to the
front of the vehicle.
Arrows in an illustration that are similar to
these indicate movement or action.
Arrows in an illustration that are similar to
these call attention to an item in the
illustration.
CALIFORNIA PERCHLORATE
ADVISORY
Some vehicle parts, such as lithium batteries,
may contain perchlorate material. The follow-
ing advisory is provided: “Perchlorate Mate-
rial – special handling may apply. For addi-
tional information, refer to
www.dtsc.ca.gov/
hazardouswaste/perchlorate/”.
© 2022 NISSAN NORTH AMERICA, INC.
All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a
retrieval system, or transmitted in any form,
or by any means, electronic, mechanical, pho-
tocopying, recording or otherwise, without
the prior written permission of Nissan Motor
Co., Ltd.
APD1005

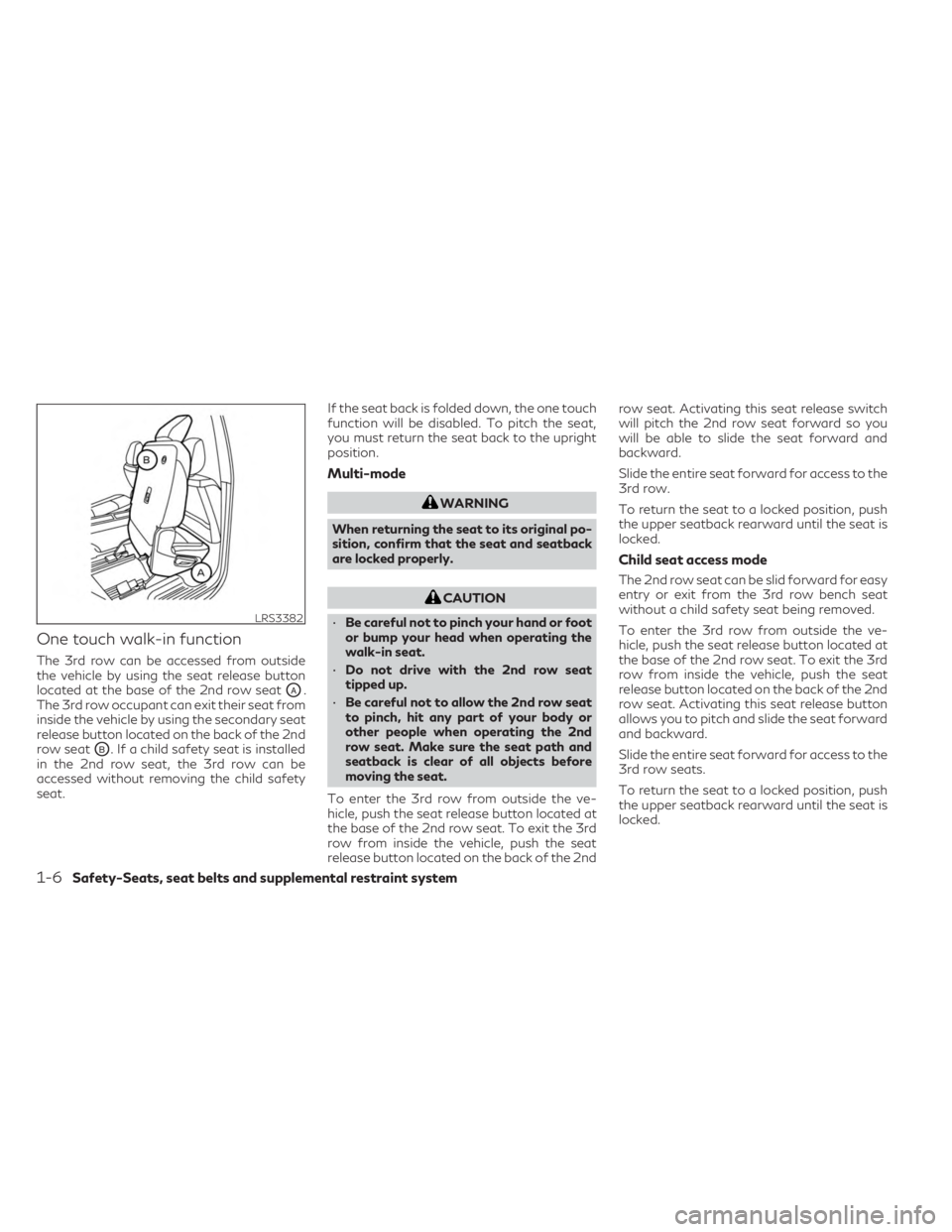

One touch walk-in function
The 3rd row can be accessed from outside
the vehicle by using the seat release button
located at the base of the 2nd row seat
OA.
The 3rd row occupant can exit their seat from
inside the vehicle by using the secondary seat
release button located on the back of the 2nd
row seat
OB. If a child safety seat is installed
in the 2nd row seat, the 3rd row can be
accessed without removing the child safety
seat. If the seat back is folded down, the one touch
function will be disabled. To pitch the seat,
you must return the seat back to the upright
position.
Multi-mode
WARNING
When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.
CAUTION
• Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
• Do not drive with the 2nd row seat
tipped up.
• Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path and
seatback is clear of all objects before
moving the seat.
To enter the 3rd row from outside the ve-
hicle, push the seat release button located at
the base of the 2nd row seat. To exit the 3rd
row from inside the vehicle, push the seat
release button located on the back of the 2nd row seat. Activating this seat release switch
will pitch the 2nd row seat forward so you
will be able to slide the seat forward and
backward.
Slide the entire seat forward for access to the
3rd row.
To return the seat to a locked position, push
the upper seatback rearward until the seat is
locked.
Child seat access mode
The 2nd row seat can be slid forward for easy
entry or exit from the 3rd row bench seat
without a child safety seat being removed.
To enter the 3rd row from outside the ve-
hicle, push the seat release button located at
the base of the 2nd row seat. To exit the 3rd
row from inside the vehicle, push the seat
release button located on the back of the 2nd
row seat. Activating this seat release button
allows you to pitch and slide the seat forward
and backward.
Slide the entire seat forward for access to the
3rd row seats.
To return the seat to a locked position, push
the upper seatback rearward until the seat is
locked.
LRS3382
1-6Safety-Seats, seat belts and supplemental restraint system

The motor also retracts the seat belt when
the seat belt is fastened or unfastened. When
the seat belt is fastened, the motor tightens
the seat belt for a snug fit. When the seat belt
is unfastened, the motor retracts the seat
belt. If the seat belt is not fully retracted, the
motor retracts the seat belt when the door is
opened.
Always wear your seat belt correctly and sit
upright and well back.
If the motor cannot retract the seat belt when
the seat belt is fastened or unfastened, it may
indicate the pre-crash seat belt system has a
malfunction. It is recommended that you visit
an INFINITI retailer to check and repair the
system.
When the seat belt is retracted repeatedly in
a short period of time, the motor may not be
able to retract the seat belt. After a few
minutes, the motor reactivates and retracts
the seat belt. If the seat belt still cannot be
retracted by the motor, the pre-crash seat
belt system has a malfunction. It is recom-
mended that you visit an INFINITI retailer to
check and repair the system.THREE-POINT TYPE SEAT BELT
WITH RETRACTOR
WARNING
• Every person who drives or rides in this
vehicle should use a seat belt at all times.
Children should be in the rear seats and in
an appropriate restraint.
• Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.
• For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat belt properly. •
Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the seat
belt becomes wrapped around a child’s
neck with the ALR mode activated, the
child can be seriously injured or killed if
the seat belt retracts and becomes tight.
This can occur even if the vehicle is
parked. Unbuckle the seat belt to release
the child. If the seat belt cannot be un-
buckled or is already unbuckled, release
the child by cutting the seat belt with a
suitable tool (such as a knife or scissors)
to release the seat belt.
Fastening the seat belts
1. Adjust the seat. For additional informa- tion, see “Seats” (P. 1-2).
Safety-Seats, seat belts and supplemental restraint system1-21

Seat belt extenders are available for the:
• Driver and front passenger seating position
• 2nd and 3rd row seating position
It is recommended that you visit an INFINITI
retailer for assistance with purchasing an ex-
tender if an extender is required.
WARNING
• Only INFINITI seat belt extenders, made
by the same company which made the
original equipment seat belts, should be
used with INFINITI seat belts.
• Adults and children who can use the
standard seat belt should not use an ex-
tender. Such unnecessary use could re-
sult in serious personal injury in the event
of an accident.
• Never use seat belt extenders to install
child restraints. If the child restraint is
not secured properly, the child could be
seriously injured or killed in a collision or
a sudden stop.
SEAT BELT MAINTENANCE
• To clean the seat belt webbing, apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpet.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are com-
pletely dry.
• If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.
• Periodically check to see that the seat belt
and the metal components, such as buck-
les, tongues, retractors, flexible wires and
anchors, work properly. If loose parts, de-
terioration, cuts or other damage on the
webbing is found, the entire seat belt as-
sembly should be replaced.WARNING
Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child’s neck with the
ALR mode activated, the child can be seri-
ously injured or killed if the seat belt re-
tracts and becomes tight. This can occur
even if the vehicle is parked. Unbuckle the
seat belt to release the child. If the seat belt
cannot be unbuckled or is already unbuck-
led, release the child by cutting the seat
belt with a suitable tool (such as a knife or
scissors) to release the seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices,
and community organizations. Every child is
different, so be sure to learn the best way to
transport your child.
CHILD SAFETY
Safety-Seats, seat belts and supplemental restraint system1-25

–Even with the INFINITI Advanced Air
Bag System, never install a rear-
facing child restraint in the front seat.
An inflating air bag could seriously in-
jure or kill a child. A rear-facing child
restraint must only be used in the rear
seat.
– Be sure to purchase a child restraint
that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle. –
Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchorage,
and a child could be seriously injured
or killed in a collision.
– Never use the anchor points for adult
seat belts, or other items.
– A child restraint with a top tether
strap should not be used in the front
passenger seat.
– Keep seatbacks as upright as possible
after fitting the child restraint.
– Infants and children should always be
placed in an appropriate child re-
straint while in the vehicle.
• When the child restraint is not in use,
keep it secured with the LATCH system
or a seat belt. In a sudden stop or colli-
sion, loose objects can injure occupants
or damage the vehicle.
CAUTION
• A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.
• 2nd row one touch function should not
be used when a child restraint is
occupied.
• The 2nd row one touch button is enabled
when the vehicle is stopped. If the button
is pressed the seat will unlatch and may
move.
• To prevent personal injury supervise
children occupying the 2nd and 3rd rows
and prevent them from operating child
seat access mode.
This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for
CHildren) system. Some child restraints in-
clude rigid or webbing-mounted attachments
that can be connected to these anchors. For
additional information, see “LATCH (Lower
Anchors and Tethers for CHildren) system”
(P. 1-30).
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
WRS0256
Safety-Seats, seat belts and supplemental restraint system1-29

1Top tether strap
2Anchor point
3rd row bench seat
First, secure the child restraint with the
LATCH lower anchors, as applicable.
1. Position the top tether strap
O1as shown.
2. Secure the tether strap to the tether an- chor point
O2as shown. 3. Tighten the tether strap according to the
manufacturer's instructions to remove
any slack. Make sure the head restraint/
headrest does not contact the top tether
strap.
If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
WARNING
Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.
FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS
WARNING
The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision. Also, it can change the operation
of the front passenger air bag. For addi-
tional information, see “Front passenger
air bag and status light” (P. 1-65).
LRS3544
3rd row bench seat
Safety-Seats, seat belts and supplemental restraint system1-45

9. Check to make sure the child restraint isproperly secured prior to each use. If the
seat belt is not locked, repeat steps 2
through 8.
10. If the child restraint is installed in thefront passenger seat, place the ignition
switch in the ON position. The front pas-
senger air bag status light
should
illuminate. If this light is not illuminated,
see “Front passenger air bag and status
light” (P. 1-65). Move the child restraint
to another seating position. Have the
system checked. It is recommended that
you visit an INFINITI retailer for this
service.
After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.
Installing top tether strap
1Top tether strap
2Anchor point
The child restraint top tether strap must be
used when installing the child restraint with
seat belts.
First, secure the child restraint with the seat
belt.
LRS0865
Forward-facing – step 10
LRS3040
2nd row bench seat (if so equipped)
Safety-Seats, seat belts and supplemental restraint system1-49

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in
mind:
• Choose only a booster seat with a labelcertifying that it complies with Federal Mo-
tor Vehicle Safety Standard 213 or Cana-
dian Motor Vehicle Safety Standard 213.
• Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat
and seat belt system. • Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat is chosen, the vehicle
seatback must be at or above the center of
the child’s ears. If the seatback is lower than
the center of the child’s ears, a high back
booster seat should be used.
• If the booster seat is compatible with your vehicle, place the child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with the
child. Always follow all recommended
procedures. All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is be-
ing operated.
The instructions in this section apply to
booster seat installation in the rear seats or
the front passenger seat.
Booster seat installation
WARNING
To avoid injury to child, do not use the lap/
shoulder belt in the Automatic Locking Re-
tractor (ALR) mode when using a booster
seat with the seat belts.
For additional information, see “Child safety”
(P. 1-25), “Child restraints” (P. 1-28) and
“Booster seats” (P. 1-51) before installing a
child restraint.
Follow these steps to install a booster seat in
the 2nd or 3rd rows or in the front passenger
seat:
LRS0453LRS0464
1-52Safety-Seats, seat belts and supplemental restraint system

CONDITIONDESCRIPTION PASSENGER AIR BAG
STATUS LIGHT () FRONT PASSENGER AIR BAG AND FRONT PASSENGER
SUPPLEMENTAL KNEE AIR BAG STATUS
Empty Empty front passenger seat ON (illuminated) INHIBITED
Nobody/Somebody Bag or Child or Child Restraint or
Small Adult in front passenger seat ON (illuminated)
INHIBITED
Adult Adult in the front passenger seat OFF (dark) ACTIVATED
In addition to the above, certain objects
placed on the front passenger seat may also
cause the light to operate as described above
depending on their weight.
For additional information, see “Normal opera-
tion” (P. 1-67) and “Troubleshooting” (P. 1-68).
Front passenger air bag
The front passenger air bag and front pas-
senger supplemental knee air bag are de-
signed to automatically turn OFF when the
vehicle is operated under some conditions as
described below in accordance with U.S.
regulations. If the front passenger air bag and
front passenger supplemental knee air bag
are OFF, they will not inflate in a crash. The
driver air bag and other air bags in your ve-
hicle are not part of this system.
The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air
bag to certain front passenger seat occupants,
such as children, by requiring the air bags to beautomatically turned OFF. Certain sensors are
used to meet the requirements.
The occupant classification sensor in this ve-
hicle is a weight sensor. It is designed to
detect an occupant and objects on the seat
by weight. For example, if a child is in the
front passenger seat, the INFINITI Advanced
Air Bag System is designed to turn the front
passenger air bag and front passenger
supplemental knee air bag OFF in accor-
dance with the regulations. Also, if a child
restraint of the type specified in the regula-
tions is on the seat, its weight and the child’s
weight can be detected and cause the air
bags to turn OFF.
Front passenger seat adult occupants who
are properly seated and using the seat belt as
outlined in this manual should not cause the
front passenger air bag and front passenger
supplemental knee air bag to be automati-
cally turned OFF. For small adults it may be
turned OFF, however, if the occupant takes
his/her weight off the seat cushion (for ex-ample, by not sitting upright, by sitting on an
edge of the seat, or by otherwise being out of
position), this could cause the sensor to turn
the air bags OFF. Always be sure to be
seated and wearing the seat belt properly for
the most effective protection by the seat belt
and supplemental air bag.
INFINITI recommends that pre-teens and
children be properly restrained in a rear seat.
INFINITI also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible,
the occupant classification sensor is designed
to operate as described above to turn the
front passenger air bag and front passenger
supplemental knee air bag OFF for specified
child restraints as required by the regulations.
Failing to properly secure child restraints and
to use the ALR mode may allow the restraint
to tip or move in a collision or sudden stop.
This can also result in the front passenger air
bag and front passenger supplemental knee
air bag inflating in a crash instead of being
1-66Safety-Seats, seat belts and supplemental restraint system
