0 Illustrated table of contents
Air bags, seat belts and child restraints........... 0-2
Exterior front ................................... 0-3
Exterior rear .................................... 0-4
Passenger compartment ........................ 0-5 Instrument panel
................................ 0-6
Engine compartment check locations ............ 0-8
Warning and indicator lights ..................... 0-9

1. Engine hood (P. 3-21)
2. Wiper and washer switch (P. 2-73)Wiper blades (P. 8-18) 3. Windshield (P. 8-18)
4. Power windows (P. 2-108) 5. Door locks/Front and rear door
capacitive lock/unlock sensors (P. 3-4)
INFINITI Intelligent Key (P. 3-6)
Remote Engine Start (if so equipped)
(P. 3-18)
Keys (P. 3-2)
6. Mirrors (P. 3-33) Side camera (if so equipped) (P. 4-10)
7. Tire pressure (P. 8-28) Flat tire (P. 6-3)
Tire chains (P. 8-38)
8. Replacing bulbs (P. 8-26) Headlight and turn signal switch (P. 2-77)
LED Daytime Running Lights (DRL)
system (P. 2-82)
9. Sonar sensors (if so equipped) (P. 5-172)
10. Front camera (if so equipped) (P. 4-10)
See the page number indicated in parenthe-
ses for operating details.
LII2709
EXTERIOR FRONT
Illustrated table of contents0-3

3.5L 6 cylinder (VQ35DD engine model)
1. Engine coolant reservoir (P. 8-4)
2. Drive belt location (P. 8-15)
3. Engine oil filler cap (P. 8-6)4. Brake fluid reservoir (P. 8-11)
5. Air cleaner (P. 8-17)
6. Fuse box (P. 8-20)
7. Fuse/Fusible link box (P. 8-20)8. Battery (P. 8-13)
9. Engine oil dipstick (P. 8-6)
10. Radiator cap (P. 8-4)
11. Windshield-washer fluid reservoir
(P. 8-11)
Refer to the page number indicated in paren-
theses for operating details.
NOTE:
Your vehicle may not be equipped with an
engine cover.
LDI3632
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warning/Indicator
light (red) Name Page
or
Brake warning
light 2-14
Charge warning
light 2-15
Electric shift con-
trol system
warning light (if so equipped) 2-15
or
Electronic parking
brake indicator light 2-15
Warning/
Indicator
light (red) Name Page
Engine oil pressure
warning light (if so equipped) 2-15
Master warning
light (if soequipped) 2-16
Seat belt warning
light (if soequipped) 2-16
Steering Assist
Hands Off
warning light (if so equipped) 2-16
Supplemental air
bag warning light 2-16
Warning/
Indicator light
(yellow) Name Page
or
Anti-lock Braking
System (ABS)warning light 2-17
Electric power
steering warning light 2-17
Electronic parking
brake warning light (if soequipped) 2-17
Forward Emer-
gency Braking
(FEB) with Pedes- trian Detection
system warning light 2-17

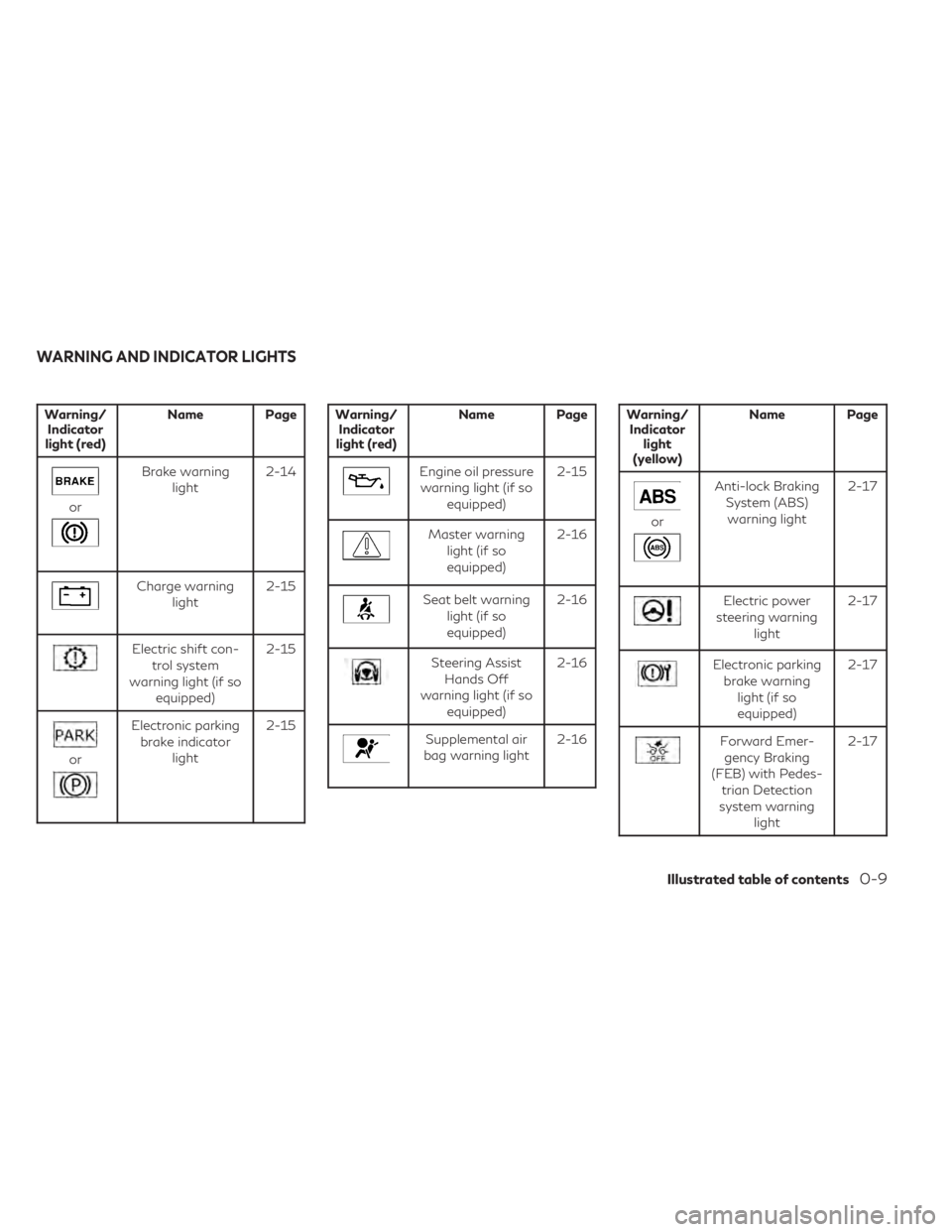

WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

FRONT POWER SEAT
ADJUSTMENT
Operating tips
• The power seat motor has an auto-resetoverload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
• Do not operate the power seat switch for a long period of time when the engine is off.
This will discharge the battery.
For additional information, see “Memory
seats” (P. 3-43).
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, see
“Precautions on seat belt usage” (P. 1-17).
Also, the seatback can be reclined to allow
occupants to rest when the vehicle is parked.
LRS3599LRS3600
Safety-Seats, seat belts and supplemental restraint system1-3

2 Instruments and controls
Instrument panel.................................2-4
Meters and gauges ..............................2-6
Speedometer and odometer ...................2-6
Tachometer ..................................2-8
Engine coolant temperature gauge ............2-9
Fuel gauge ................................. 2-10
Distance To Empty (DTE) ...................2-10
Warning lights, indicator lights and audible
reminders ....................................... 2-12
Checking lights .............................. 2-14
Warning/Indicator lights (red) ...............2-14
Warning/Indicator lights (yellow) ............2-16
Warning/Indicator lights (other) ..............2-21
Audible reminders ........................... 2-22
Vehicle information display 7 inch (18 cm) Type
A (if so equipped) .............................. 2-22
How to use the vehicle information
display ...................................... 2-23
Startup display .............................. 2-23
Trip computer .............................. 2-24
Oil control system (if so equipped) ...........2-27
Settings .................................... 2-27
Vehicle information display warnings and
indicators ................................... 2-37
Vehicle information display 12.3 inch (31 cm)
Type B (if so equipped) ......................... 2-44How to use the vehicle information
display
...................................... 2-44
Startup display .............................. 2-45
Trip computer .............................. 2-46
Changing the meter screen view .............2-49
Oil control system (if so equipped) ...........2-49
Settings .................................... 2-50
Vehicle information display warnings and
indicators ................................... 2-60
Security systems ................................ 2-71
Vehicle security system .......................2-71
INFINITI Vehicle Immobilizer System .........2-72
Wiper and washer switch ......................2-73
Switch operation ............................ 2-73
Rain-sensing auto wiper system .............2-75
Rear switch operation ....................... 2-76
Rear
window and outside mirror
(if so equipped) defroster switch .................2-77
Headlight and turn signal switch .................2-77
Headlight control switch .....................2-77
LED Daytime Running Lights (DRL)
system ..................................... 2-82
Instrument brightness control ................2-83
Turn signal switch ........................... 2-83
Horn .......................................... 2-84

1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Twin trip odometer 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
SPEEDOMETER AND
ODOMETER
This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side of the meter cluster (if so
equipped) or the right side of the vehicle in-
formation display. The odometer is located
within the vehicle information display.
LIC4666
METERS AND GAUGES
2-6Instruments and controls

Odometer
The odometerO1is displayed in the vehicle
information display when the ignition switch
is placed in the ON position.
The odometer records the total distance the
vehicle has been driven.TACHOMETER
The tachometer indicates engine speed in
revolutions per minute (rpm). Do not rev the
engine into the red zone
O1.
CAUTION
When engine speed approaches the red
zone, reduce engine speed. Operating the
engine in the red zone may cause serious
engine damage.
LIC4732LIC4854
7 inch (18 cm) Type A (if so equipped)
LIC4859
12.3 inch (31 cm) Type B (if so equipped)
2-8Instruments and controls

ENGINE COOLANT
TEMPERATURE GAUGE
The gauge indicates the engine coolant tem-
perature. The engine coolant temperature is
within the normal range
O1when the gauge
needle points within the zone shown in the
illustration.
The engine coolant temperature varies with
the outside air temperature and driving
conditions.
CAUTION
If the gauge indicates coolant temperature
near the hot (H) end of the normal range,
reduce vehicle speed to decrease tempera-
ture. If the gauge is over the normal range,
stop the vehicle as soon as safely possible.
If the engine is overheated, continued op-
eration of the vehicle may seriously dam-
age the engine. For additional information,
see “If your vehicle overheats” (P. 6-14).
LIC4860
12.3 inch (31 cm) Type C (if so equipped)
LIC3538
7 inch (18 cm) Type A (if so equipped)
LIC4916
12.3 inch (31 cm) Type B (if so equipped)
Instruments and controls2-9
