odometer INFINITI QX60 HYBRID 2014 Owner's Manual

INFINITI CARES...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your INFINITI retailer are
our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your INFINITI
retailer cannot assist you with or you would like to
provide INFINITI directly with comments or ques-
tions, please contact our (INFINITI’s) Consumer
Affairs Department using our toll-free number:
For U.S. customers1-800-662-6200
For Canadian customers 1-800-361-4792 The Consumer Affairs Department will ask for the
following information:
– Your name, address, and telephone number
– Vehicle identification number (on dash panel)
– Date of purchase
– Current odometer reading
– Your INFINITI retailer’s name
– Your comments or questions
OR You can write to INFINITI with the information on
the left at:
For U.S. customers
INFINITI Division
Nissan North America, Inc. Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada. com
If you prefer, visit us at:
www.infinitiUSA.com (for U.S. customers)
or
www.infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.
INFINITI CUSTOMER CARE PROGRAM

1. Tachometer
2. Warning/indicator lights
3. Vehicle Information Display
4. Speedometer
5. Fuel gauge
6. Odometer/Twin trip odometer7. Power meter
POWER METER
The power meter indicates the condition of the
electric motor. When the needle is between the
center and “charge” (
1range) , this indicates
that the electric motor is generating power to
recharge the Li-ion battery.
When the needle is between the center and the
PWR side, this indicates that the electric motor is
powering the drive wheels and the Li-ion battery
is discharging.
LIC2537
LIC2544
METERS AND GAUGES
2-2Instruments and controls

INFINITI CARES...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your INFINITI retailer are
our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your INFINITI
retailer cannot assist you with or you would like to
provide INFINITI directly with comments or ques-
tions, please contact our (INFINITI’s) Consumer
Affairs Department using our toll-free number:
For U.S. customers
1-800-662-6200
For Canadian customers
1-800-361-4792The Consumer Affairs Department will ask for the
following information:
– Your name, address, and telephone number
– Vehicle identification number (on dash panel)
– Date of purchase
– Current odometer reading
– Your INFINITI retailer’s name
– Your comments or questions
ORYou can write to INFINITI with the information on
the left at:
For U.S. customers
INFINITI Division
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers
INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada. com
If you prefer, visit us at:
www.infinitiUSA.com (for U.S. customers)
or
www.infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.
INFINITI CUSTOMER CARE PROGRAM

1. Vent (P. 4-46)
2. Headlight/fog light/turn signal switch
(P. 2-30)
3. Instrument brightness control (P. 2-34)4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-7, 2-14)
5. Driver supplemental air bag/Horn
(P.1-53, P. 2-35)6. Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-32)
7. Twin trip odometer reset switch (P. 2-5)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-26, P. 2-29)
9. Vent (P. 4-46)
10. Rear window and outside mirror
defroster switch (P. 2-30)
11. Center display (P. 4-11,
4-4)/Navigation system*
(if so equipped)
12. Automatic heater and air conditioning
controls (P. 4-47)
13. Vent (P. 4-46)
14. Front passenger supplemental air bag
(P. 1-53)
15. Vent (P. 4-46)
16. Glove box (P. 2-46)
17. Center multi-function control buttons
(P. 4-11, 4-4)
18. Power outlet (P.2-41)
19. Audio system controls (P. 4-54)
20. Shift lever (P.5-17)
21. Front passenger air bag status light
(P. 1-63)
22. Hazard warning flasher switch (P. 6-2)
LIC2290
INSTRUMENT PANEL
0-6Illustrated table of contents

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges................................2-4
Speedometer and odometer . ....................2-4
Tachometer....................................2-5
Engine coolant temperature gauge...............2-5
Fuel gauge....................................2-6
Warning/indicator lights and audible reminders.......2-7
Checking bulbs................................2-7
Warning lights.................................2-7
Indicator lights................................2-11
Audible reminders.............................2-13
Vehicle Information Display........................2-14
How to use the vehicle information display.......2-15
Startup display................................2-15
Settings......................................2-15
Vehicle information display warnings and
indicators.....................................2-21
Security systems.................................2-24
Vehicle security system.........................2-24
INFINITI vehicle immobilizer system..............2-25
Windshield wiper and washer switch...............2-26
Switch operation..............................2-27Rain-sensing auto wiper system
(if so equipped)...............................2-28
Rear window wiper and washer switch..............2-29
Rear window and outside mirror defroster switch.....2-30
Headlight and turn signal switch....................2-30
Xenon headlights..............................2-30
Headlight control switch........................2-31
Daytime running light system (Canada only)......2-33
Instrument brightness control...................2-34
Turn signal switch.............................2-34
Fog light switch...............................2-34
Horn............................................2-35
Heated front seats (if so equipped).................2-35
Heated rear seats (if so equipped)..................2-36
Climate control seat switch (if so equipped).........2-38
Heated steering wheel (if so equipped).............2-39
Warning systems switch (if so equipped)............2-40
Vehicle Dynamic Control (VDC) off switch...........2-40
Power inverter switch (if so equipped)..............2-41
Power outlets....................................2-41
12v outlets...................................2-41
120v outlet (if so equipped)....................2-43

1. Vent (P. 4-46)
2. Headlight/fog light/turn signal switch
(P. 2-30)
3. Instrument brightness control (P. 2-34)4. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-4, 2-7, 2-14)
5. Driver supplemental air bag/Horn
(P.1-53, P. 2-35)6. Back-up Collision Intervention (BCI)
system switch (if so equipped) (P.5-32)
7. Twin trip odometer reset switch (P. 2-5)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-26, P. 2-29)
9. Vent (P. 4-46)
10. Rear window and outside mirror
defroster switch (P. 2-30)
11. Center display (P. 4-11,
4-4)/Navigation system*
(if so equipped)
12. Automatic heater and air conditioning
controls (P. 4-47)
13. Vent (P. 4-46)
14. Front passenger supplemental air bag
(P. 1-53)
15. Vent (P. 4-46)
16. Glove box (P. 2-46)
17. Center multi-function control buttons
(P. 4-11, 4-4)
18. Power outlet (P.2-41)
19. Audio system controls (P. 4-54)
20. Shift lever (P.5-17)
21. Front passenger air bag status light
(P. 1-63)
22. Hazard warning flasher switch (P. 6-2)
LIC2290
INSTRUMENT PANEL
2-2Instruments and controls

1. Tachometer
2. Warning/indicator lights
3. Vehicle Information Display
4. Speedometer
5. Fuel gauge
6. Odometer/Twin trip odometer7. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer1and the twin trip odometer2
are displayed below the Vehicle Information Dis-
play when the ignition switch is placed in the ON
position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.LIC2217
LIC2218
METERS AND GAUGES
2-4Instruments and controls

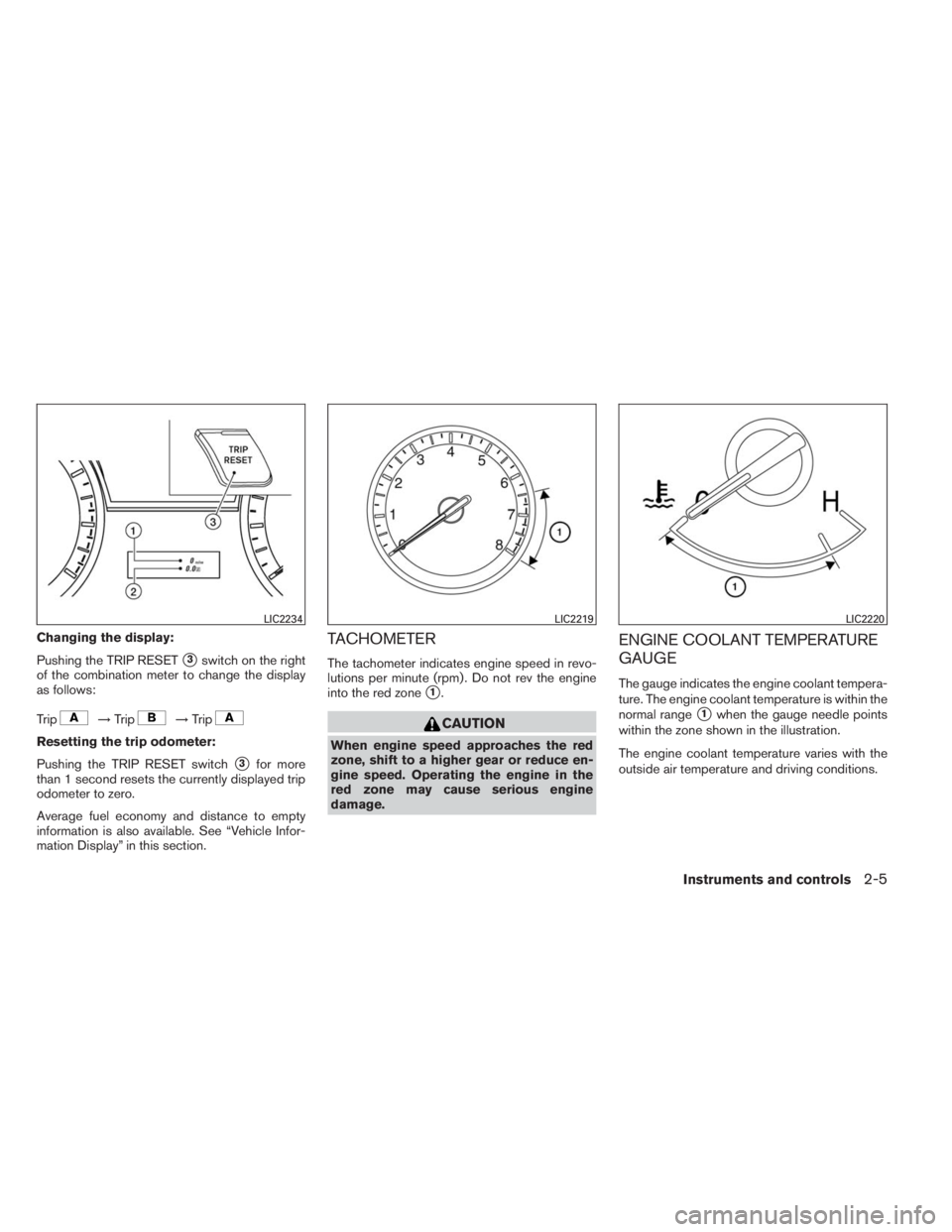

Changing the display:
Pushing the TRIP RESET
3switch on the right
of the combination meter to change the display
as follows:
Trip
→Trip→Trip
Resetting the trip odometer:
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently displayed trip
odometer to zero.
Average fuel economy and distance to empty
information is also available. See “Vehicle Infor-
mation Display” in this section.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) . Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature is within the
normal range
1when the gauge needle points
within the zone shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
LIC2234LIC2219LIC2220
Instruments and controls2-5

G
Garage door opener, HomeLink® Universal
Transceiver....................2-57
Gascap .....................3-24
Gauge
Engine coolant temperature gauge.....2-5
Fuel gauge...................2-6
Odometer...................2-4
Speedometer.................2-4
Tachometer..................2-5
Trip odometer.................2-4
Generalmaintenance...............8-2
Glovebox.....................2-46
Gloveboxlock..................2-46
H
Hands-free phone system,
Bluetooth®...............4-109, 4-123
Hazard warning flasher switch..........6-2
Headlightandturnsignalswitch........2-30
Headlightcontrolswitch ............2-31
Headlights....................8-25
Headlights,aimingcontrol............2-33
Heated seats............2-35,2-36,2-38
Heated steering wheel.............2-39
Heater
Heater and air conditioner controls.....4-48
Heater operation...............4-48
HomeLink® Universal Transceiver.......2-57
Hood release...................3-20
Hook
Luggage hook................2-48Horn .......................2-35
I
Ignition Switch
Push-Button Ignition Switch........5-12
Image viewer...................4-22
Immobilizer system.............3-4,5-15
Important vehicle information label.......9-10
In-cabin microfilter................8-18
Increasing fuel economy.............5-90
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).....................2-7
INFINITI vehicle immobilizer
system................2-25,3-4,5-15
Inside automatic anti-glare mirror........3-29
Instrument brightness control..........2-34
Instrument panel...............0-6,2-2
Instrument panel dimmer switch........2-34
Intelligent cruise control (ICC) system
Brake assist.................5-53
Intelligent Key system
Key operating range..............3-9
Key operation................3-10
Mechanicalkey ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide............3-17
Warning signals...............3-17
Interiorlight....................2-55
iPod® Player...................4-87
ISOFIX child restraints.............1-34J
Jump starting...................6-10
K
Keyfob battery replacement...........8-23
Keyless entry
With Intelligent Key system
(See Intelligent Key system).........3-13
Keys, For Intelligent Key system.......3-2,3-7
L
Labels
Air conditioner specification label.....9-11
C.M.V.S.S. certification label........9-10
Emission control information label.....9-10
Engine serial number
............9-10
F.M.V.S.S. certification label.........9-10
Tire and Loading Information label.....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS)..........1-68
LATCH (Lower Anchors and Tethers for CHildren)
System......................1-34
License plate
Installing the license plate..........9-12
Liftgate......................3-20
Lift gate release.................3-23
Light
Airbagwarninglight.........1-69, 2-11
Brake light (See stop light).........8-26
Bulb check/instrument panel.........2-7
Bulbreplacement..............8-26
10-3

Chargewarninglight.............2-8
Foglightswitch ...............2-34
Headlight and turn signal switch......2-30
Headlightcontrolswitch ..........2-31
Headlights..................8-25
Interiorlight..................2-55
Lightbulbs..................8-25
Low tire pressure warning light........2-8
Low windshield-washer fluid warning
light......................2-23
Passenger air bag and status light.....1-62
Security indicator light............2-13
Warning/indicator lights and audible
reminders...................2-7
Lights
Maplights ..................2-56
Lock
Child safety rear door lock..........3-7
Door locks...................3-4
Gloveboxlock................2-46
Lift gate release...............3-23
Power door locks...............3-6
Loose fuel cap warning.............2-24
Lowfuelwarninglight ..........2-10,2-22
Low tire pressure warning light..........2-8
Low windshield-washer fluid warning light . . .2-23
Luggage hook..................2-48
Luggage rack (see roof rack)..........2-49
Luggage (See vehicle loading information) . .9-13
Luggage storage
(seevehicleloadinginformation)........2-48M
Maintenance
Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenance precautions...........8-5
Outside the vehicle..............8-2
Seatbeltmaintenance............1-30
Underthehoodandvehicle .........8-4
Malfunction indicator light............2-12
Maplights ....................2-56
Map pocket....................2-43
Meters and gauges................2-4
Instrument brightness control........2-34
Mirror
Automatic anti-glare inside mirror......3-29
Outside mirror control............3-30
Outside mirrors...............3-30
Vanity mirror.................3-29
Moonroof.....................2-52
N
NISSAN voice recognition system......4-134
O
Octane rating (See fuel octane rating)......9-4
Odometer.....................2-4
Oil
Capacities and recommended
fuel/lubricants.................9-2
Changingengineoil.............8-10
Changing engine oil filter..........8-11Checking engine oil level...........8-9
Engine oil...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity..............9-5
Outside mirror control..............3-30
Outside mirrors.................3-30
Overheat
If your vehicle overheats...........6-12
Owner’s manual order form...........9-32
Owner’s manual/service manual order
information....................9-32
P
Parking
Parking brake operation...........5-21
Parking/parking on hills...........5-93
Phone, Bluetooth® hands-free
system.................4-109, 4-123
Power
Power door locks...............3-6
Power outlet
..............2-41,2-43
Power rear windows.............2-51
Power steering fluid.............8-12
Power steering system...........5-94
Power windows...............2-50
Rear power windows............2-51
Power inverter switch..............2-41
Precautions
Maintenanceprecautions...........8-5
On-pavement and off-road driving
precautions ..................5-8
Precautions on child
restraints.........1-32,1-40,1-44,1-49
Precautions on seat belt usage.......1-23
10-4
