INFINITI QX60-HYBRID 2014 Repair Manual

Fluid leaksCheck under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if gasoline fumes are evident,
check for the cause and have it corrected imme-
diately.
Power steering fluid level* and lines Check
the level when the fluid is cold, with the engine
off. Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances from the
underbody, otherwise rust may form on the floor
pan, frame, fuel lines and exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, in those areas
where mud and dirt may have accumulated. See
the “Appearance and care” section of this
manual.
Windshield-washer fluid* Check that there is
adequate fluid in the reservoir.
QR25DER ENGINE
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Drive belt location
4. Fuse box 5. Engine oil filler cap
6. Inverter coolant reservoir
7. Brake fluid reservoir
8. Air cleaner
9. Fusible link box and remote positive
battery terminal
NJE0001
ENGINE COMPARTMENT CHECK
LOCATIONS
8-4Maintenance and do-it-yourself

10. Fuse box
11. Fuse box/fusible links
12. Fuse box/fusible links
13. Battery
14. Engine oil dipstick
15. Radiator cap
16. Windshield-washer fluid reservoir
NOTE:
Hybrid system engine compartment cov-
er(s) removed for clarity.The inverter cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze and
coolant protection. The anti-freeze solution con-
tains rust and corrosion inhibitors. Additional in-
verter cooling system additives are not neces-
sary.WARNING
●
Never remove the coolant reservoir cap
when the engine and inverter are hot.
Wait until the engine and inverter cool
down. Serious burns could be caused
by high pressure fluid escaping from
the reservoir.
● The inverter reservoir is equipped with a
pressure type cap. To prevent engine
and inverter damage, use only a genu-
ine NISSAN inverter reservoir cap.
CAUTION
● Never use any additives in the coolant
such as radiator sealer in the cooling
system. This may cause damage to elec-
trical equipment such as the motor and
inverter, as well as the engine and
transmission. ●
When adding or replacing coolant, be
sure to use only a Genuine NISSAN
Long Life Antifreeze/Coolant (blue) or
equivalent. Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is pre-diluted
to provide antifreeze protection to -34°
F (-37° C) . If additional antifreeze pro-
tection is needed due to weather where
you operate your vehicle, add Genuine
NISSAN Long Life Antifreeze/Coolant
(blue) . The use of other types of coolant
solutions other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue) or
equivalent, may damage the inverter
cooling system.
● The life expectancy of the factory-fill
coolant is 125,000 miles (200,000 km) or
15 years. Mixing any other type of cool-
ant other than Genuine NISSAN Long
Life Antifreeze/ Coolant (blue) , includ-
ing Genuine NISSAN Long Life
Antifreeze/ Coolant (green) , or the use
on non-distilled water will reduce the
life expectancy of factory-fill coolant.
Refer to the INFINITI Service and Main-
tenance Guide for more details.
INVERTER COOLING SYSTEM
Maintenance and do-it-yourself8-5

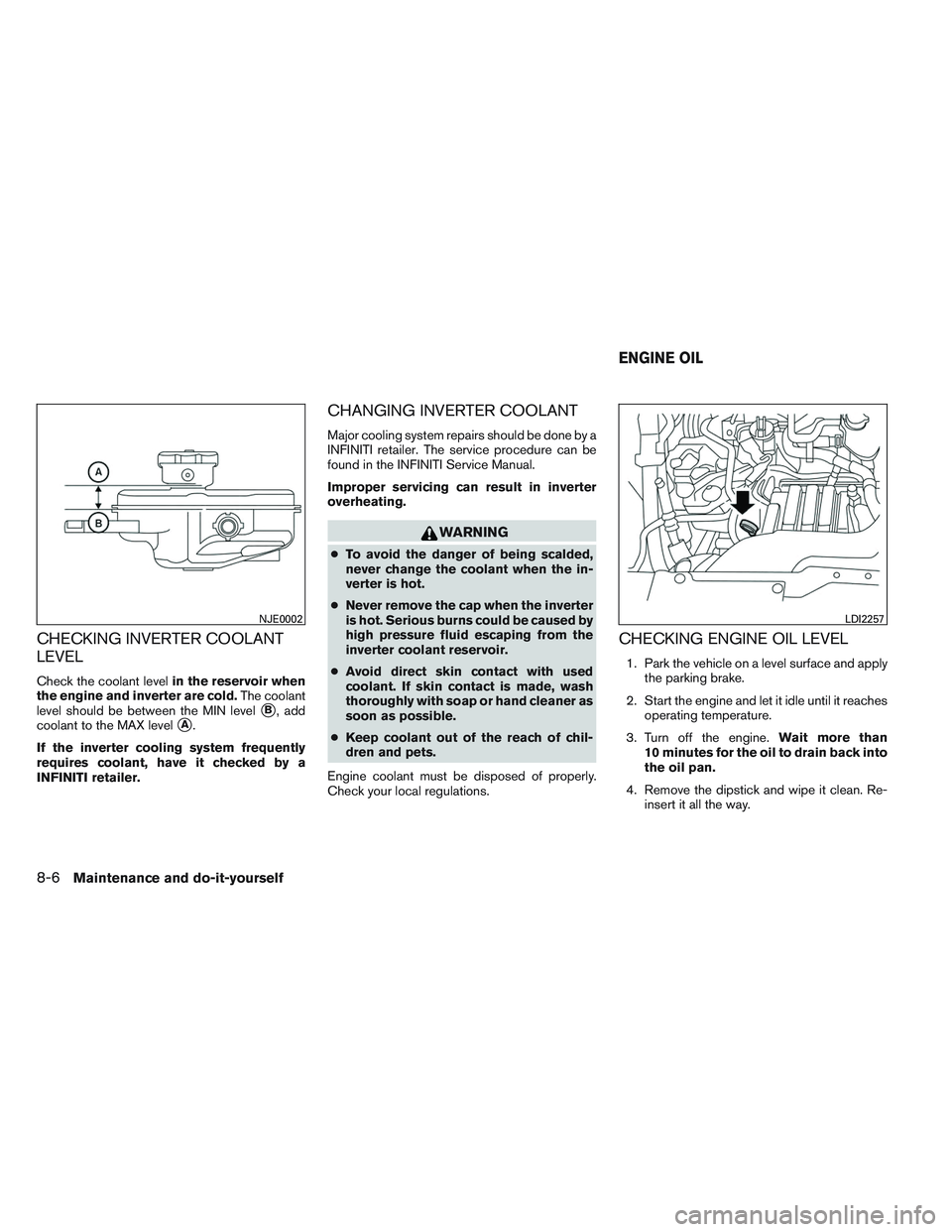

CHECKING INVERTER COOLANT
LEVEL
Check the coolant levelin the reservoir when
the engine and inverter are cold. The coolant
level should be between the MIN level
B, add
coolant to the MAX level
A.
If the inverter cooling system frequently
requires coolant, have it checked by a
INFINITI retailer.
CHANGING INVERTER COOLANT
Major cooling system repairs should be done by a
INFINITI retailer. The service procedure can be
found in the INFINITI Service Manual.
Improper servicing can result in inverter
overheating.
WARNING
● To avoid the danger of being scalded,
never change the coolant when the in-
verter is hot.
● Never remove the cap when the inverter
is hot. Serious burns could be caused by
high pressure fluid escaping from the
inverter coolant reservoir.
● Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
● Keep coolant out of the reach of chil-
dren and pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and apply the parking brake.
2. Start the engine and let it idle until it reaches operating temperature.
3. Turn off the engine. Wait more than
10 minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick and wipe it clean. Re- insert it all the way.
NJE0002LDI2257
ENGINE OIL
8-6Maintenance and do-it-yourself

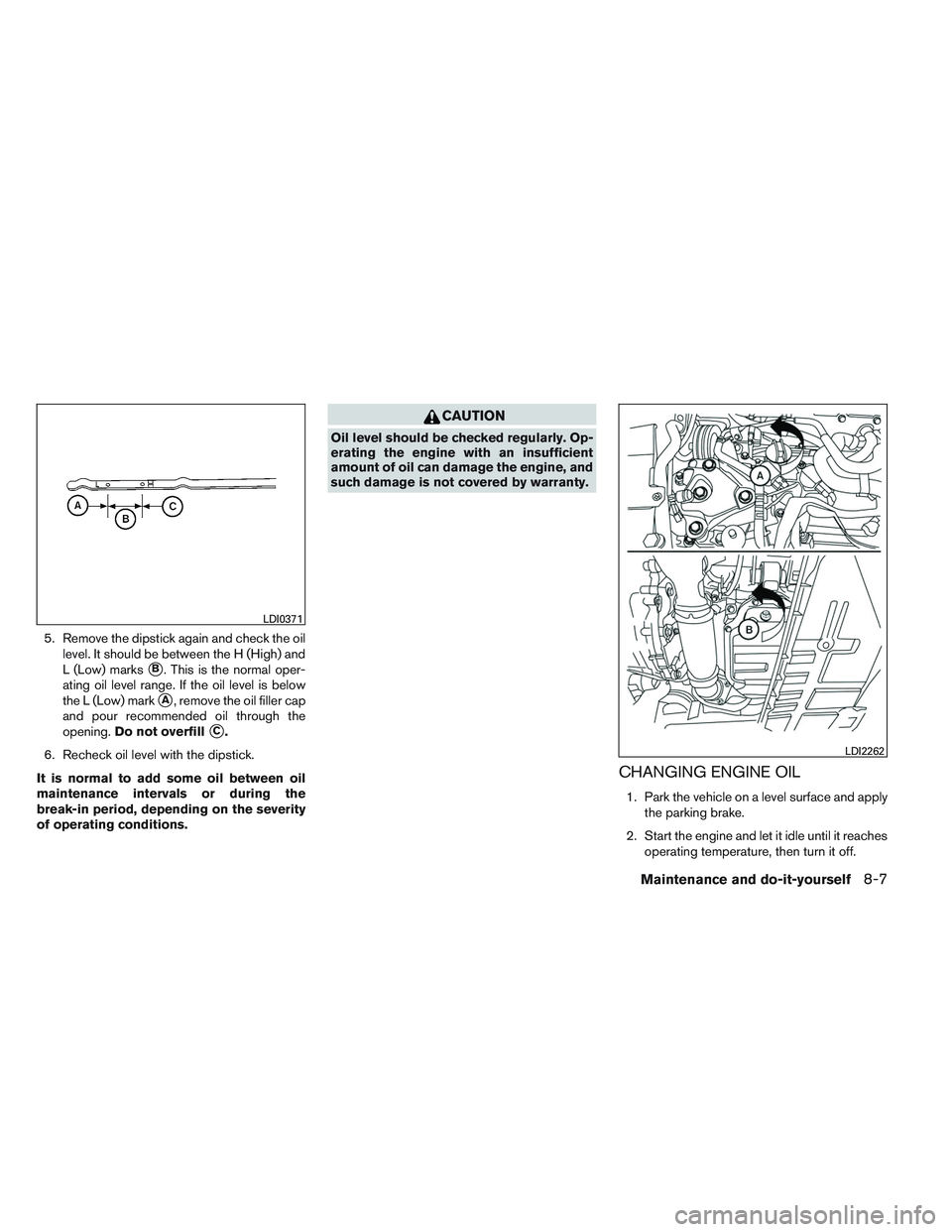

5. Remove the dipstick again and check the oillevel. It should be between the H (High) and
L (Low) marks
B. This is the normal oper-
ating oil level range. If the oil level is below
the L (Low) mark
A, remove the oil filler cap
and pour recommended oil through the
opening. Do not overfill
C.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the
break-in period, depending on the severity
of operating conditions.
CAUTION
Oil level should be checked regularly. Op-
erating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by warranty.
CHANGING ENGINE OIL
1. Park the vehicle on a level surface and apply the parking brake.
2. Start the engine and let it idle until it reaches operating temperature, then turn it off.
LDI0371
LDI2262
Maintenance and do-it-yourself8-7

3. Remove the oil filler capAby turning it
counterclockwise.
4. Place a large drain pan under the drain plug
B.
5. Remove the drain plug
Bwith a wrench by
turning it counterclockwise and completely
drain the oil.
If the oil filter is to be changed, remove and
replace it at this time. See “Changing engine
oil filter” in this section.
● Waste oil must be disposed of prop-
erly.
● Check your local regulations.
WARNING
●Prolonged and repeated contact with
used engine oil may cause skin cancer.
● Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
● Keep used engine oil out of reach of
children.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
6. Clean and reinstall the drain plug and a new washer. Securely tighten the drain plug with
a wrench. Do not use excessive force.
Drain plug tightening torque: 22 - 29 ft-lb (29 - 39 N·m)
7. Refill engine with recommended oil through the oil filler opening, then install the oil filler
cap securely.
See “Capacities and recommended
fuel/lubricants” in the “Technical and con-
sumer information” section of this manual for
drain and refill capacity.
The drain and refill capacity depends on the
oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine when the proper
amount of oil is in the engine.
8. Start the engine. Check for leakage around the drain plug and oil filter. Correct as re-
quired.
9. Turn the engine off and wait more than 10 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and apply
the parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
A.
LDI2263
8-8Maintenance and do-it-yourself

4. Loosen the oil filterAwith an oil filter
wrench by turning it counterclockwise. Then
remove the oil filter by turning it by hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
5. Wipe the engine oil filter sealing surface with a clean rag.
CAUTION
●Be sure to remove any old gasket
material remaining on the sealing
surface of the engine. Failure to do
so could lead to an oil leak and en-
gine damage.
● The dipstick must be inserted in
place to prevent oil spillage from the
dipstick hole when filling the engine
with oil.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw on the oil filter until a slight resistance is felt, then tighten an additional 2/3 turn.
8. Start the engine and check for leakage around the oil filter. Correct as required. 9. Turn the engine off and wait more than
10 minutes. Check the oil level. Add engine
oil if necessary. ●
Keep the 12–volt battery surface clean and
dry. Clean the battery with a solution of bak-
ing soda and water.
● Make certain the terminal connections are
clean and securely tightened.
● If the vehicle is not to be used for 30 days or
longer, disconnect the negative (-) battery
terminal cable to prevent discharge.
12-VOLT BATTERY
Maintenance and do-it-yourself8-9

NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electronic
accessories that consume battery power
when the engine is not running (Phone
chargers, GPS, DVD players, etc.)
2. Vehicle is not driven regularly and/or
only driven short distances. In these cases,
the battery may need to be charged to
maintain battery health.
WARNING
●Do not expose the 12–volt battery to
flames, an electrical spark or a ciga-
rette. Hydrogen gas generated by the
12–volt battery is explosive. Explosive
gases can cause blindness or injury. Do
not allow battery fluid to contact your
skin, eyes, fabrics or painted surfaces.
Sulfuric acid can cause blindness or in-
jury. After touching a 12–volt battery or
battery cap, do not touch or rub your
eyes. Thoroughly wash your hands. If
the acid contacts your eyes, skin or
clothing, immediately flush with water
for at least 15 minutes and seek medical
attention. ●
If the 12-volt battery needs to be re-
placed, use a battery of the same de-
sign. Using the wrong battery can cause
hydrogen gas to build up in the vehicle ,
which could lead to explosion and per-
sonal injury.
● When working on or near a 12–volt bat-
tery, always wear suitable eye protec-
tion and remove all jewelry.
● Battery posts, terminals and related ac-
cessories contain lead and lead com-
pounds. Wash hands after handling.
● Keep 12–volt battery out of the reach of
children.CAUTION
● Do not ground accessories directly to
the battery terminal. Doing so will by-
pass the variable-voltage control sys-
tem and the vehicle battery may not
charge completely.
● Use electrical accessories with the en-
gine running to avoid discharging the
vehicle battery.
Your vehicle is equipped with a variable-voltage
control system. This system measures the
amount of electrical discharge from the battery
and controls voltage generated by the generator.
LDI2259
VARIABLE-VOLTAGE CONTROL
SYSTEM
8-10Maintenance and do-it-yourself

The current sensor is located near the battery
along the negative battery cable. If you add elec-
trical accessories to your vehicle, be sure to
ground them to a suitable body ground such as
the frame or engine block area.
1. Super charger pulley
2. Idler pulley
3. Water pump pulley
4 Crankshaft pulley
5. Drive belt automatic tensioner
6. A/C pulley
WARNING
Be sure the ignition key is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.1. Visually inspect the belt for signs of unusual
wear, cuts, fraying or looseness. If the belt is
in poor condition or is loose, have it replaced
or adjusted by an INFINITI retailer.
2. Have the belt checked regularly for condi- tion and tension in accordance with the
maintenance schedule found in your
“INFINITI Service and Maintenance Guide”.
NJE0005
DRIVE BELT
Maintenance and do-it-yourself8-11

ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF.
2. Open the engine hood. 3. Remove the fuse box cover by pushing the
tab and lifting the cover up.
4. Remove the fuse with the fuse puller. The fuse puller is located in the fuse block in the
passenger compartment.
NJE0004
8-12Maintenance and do-it-yourself

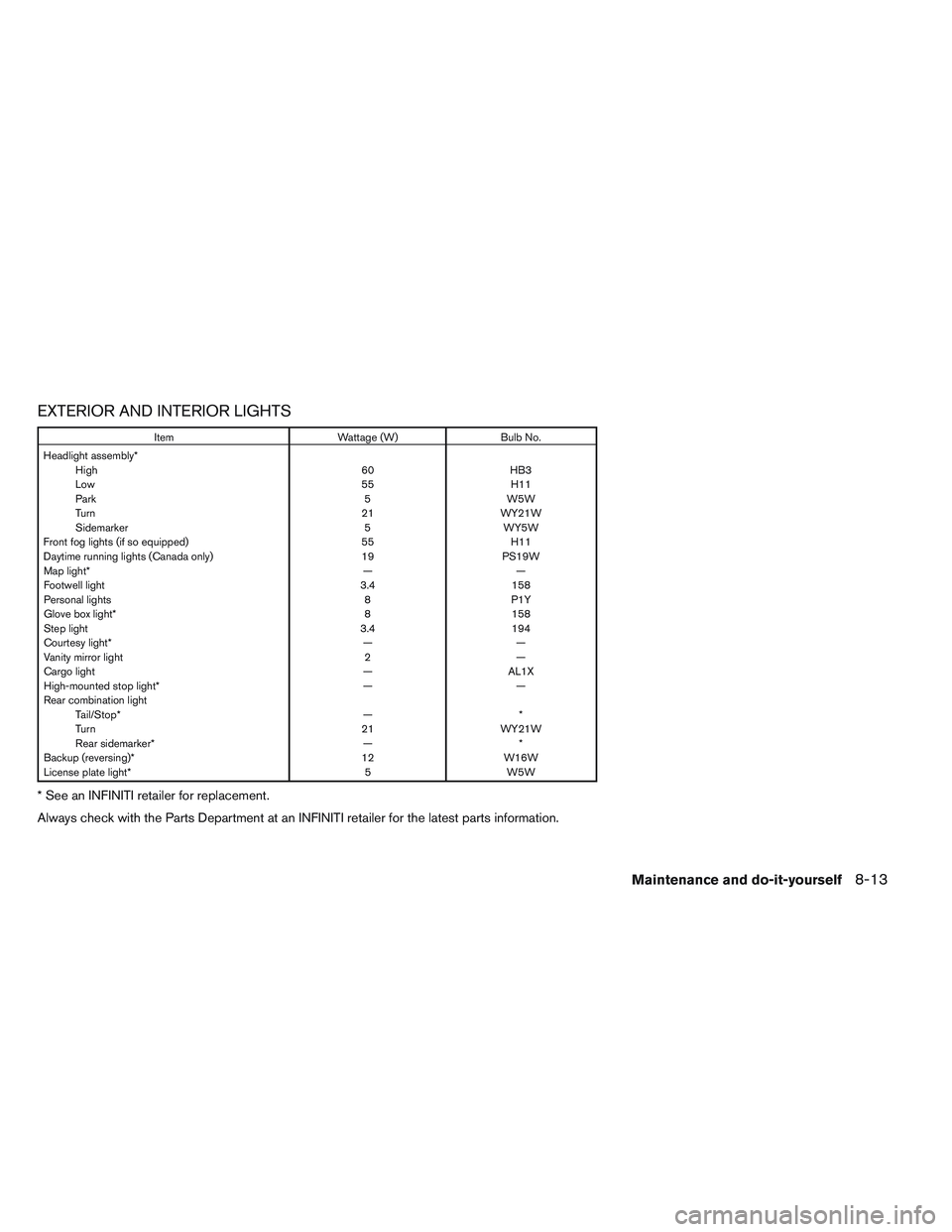

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly* High 60HB3
Low 55H11
Park 5W5W
Turn 21WY21W
Sidemarker 5WY5W
Front fog lights (if so equipped) 55H11
Daytime running lights (Canada only) 19PS19W
Map light* ——
Footwell light 3.4158
Personal lights 8P1Y
Glove box light* 8158
Step light 3.4194
Courtesy light* ——
Vanity mirror light 2—
Cargo light —AL1X
High-mounted stop light* ——
Rear combination light Tail/Stop* —*
Turn 21WY21W
Rear sidemarker* —*
Backup (reversing)* 12W16W
License plate light* 5W5W
* See an INFINITI retailer for replacement.
Always check with the Parts Department at an INFINITI retailer for the latest parts information.
Maintenance and do-it-yourself8-13
