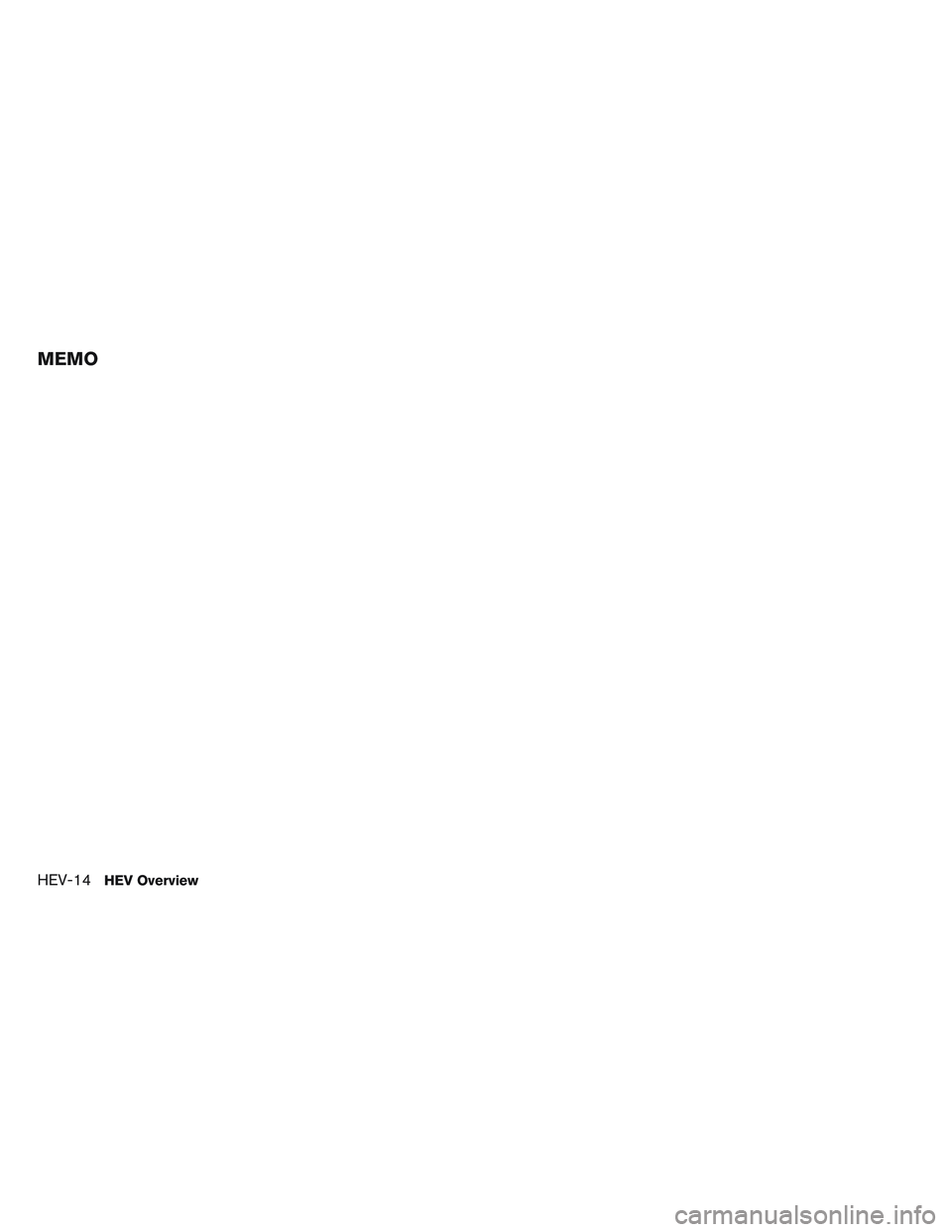

MEMO
HEV-14HEV Overview

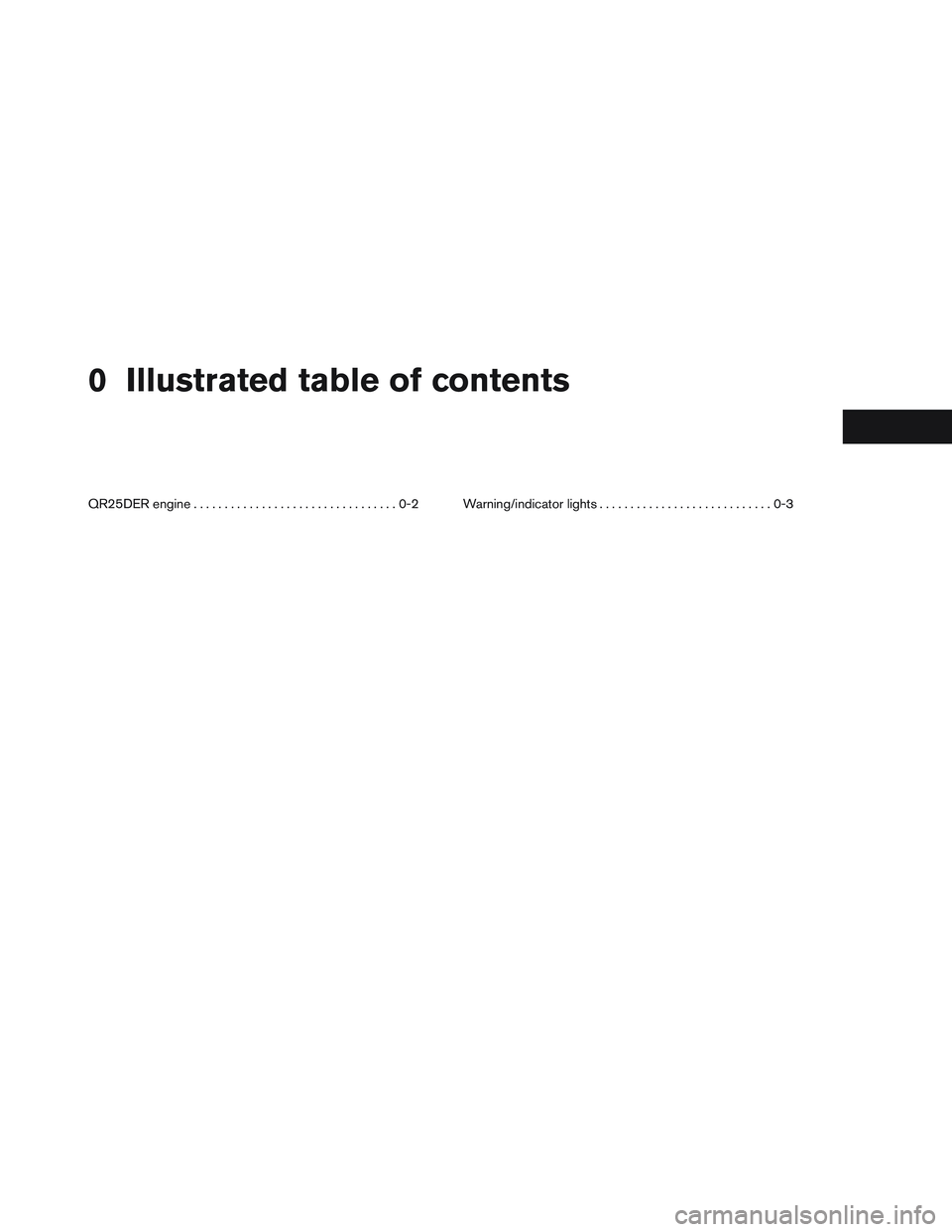

0 Illustrated table of contents
QR25DER engine.................................0-2 W arning/indicator lights............................0-3

1. Power steering fluid reservoir(See Owner’s Manual)
2. Engine coolant reservoir (See Owner’s
Manual)
3. Drive belt location (P. 8-11)
4. Fuse box (P. 8-12) 5. Engine oil filler cap (P. 8-6)
6. Inverter coolant reservoir (P. 8-5)
7. Brake fluid reservoir (See Owner’s
Manual)
8. Air cleaner (See Owner’s Manual) 9. Fusible link box (P. 8-12) and remote
positive battery terminal
10. Fuse box (P. 8-12)
11. Fuse box/Fusible links (P. 8-12)
12. Fuse box/Fusible links (P. 8-12)
13. Battery (P. 8-9)
14. Engine oil dipstick (P. 8-6)
15. Radiator cap (See Owner’s Manual)
16. Windshield-washer fluid reservoir
(See Owner’s Manual)
See the page number indicated in paren-
theses for operating details.
NOTE:
Hybrid system engine compartment
cover(s) removed for clarity.
NJE0001
QR25DER ENGINE
0-2Illustrated table of contents

Warninglight Name Page
Anti-lock Braking
System (ABS) warn-
ing light 2-3
or
Brake warning lights
(red)
2-3
12–volt battery
charge warning light2-4
Hybrid system warn-
ing light2-5
Brake system warn-
ing light (yellow)2-5
Indicator
light Name Page
Approaching Ve-
hicle Sound for Pe-
destrians (VSP)
OFF indicator light 2-5
EV indicator light 2-5
READY to drive indi-
cator light
2-5
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-3

MEMO
0-4Illustrated table of contents

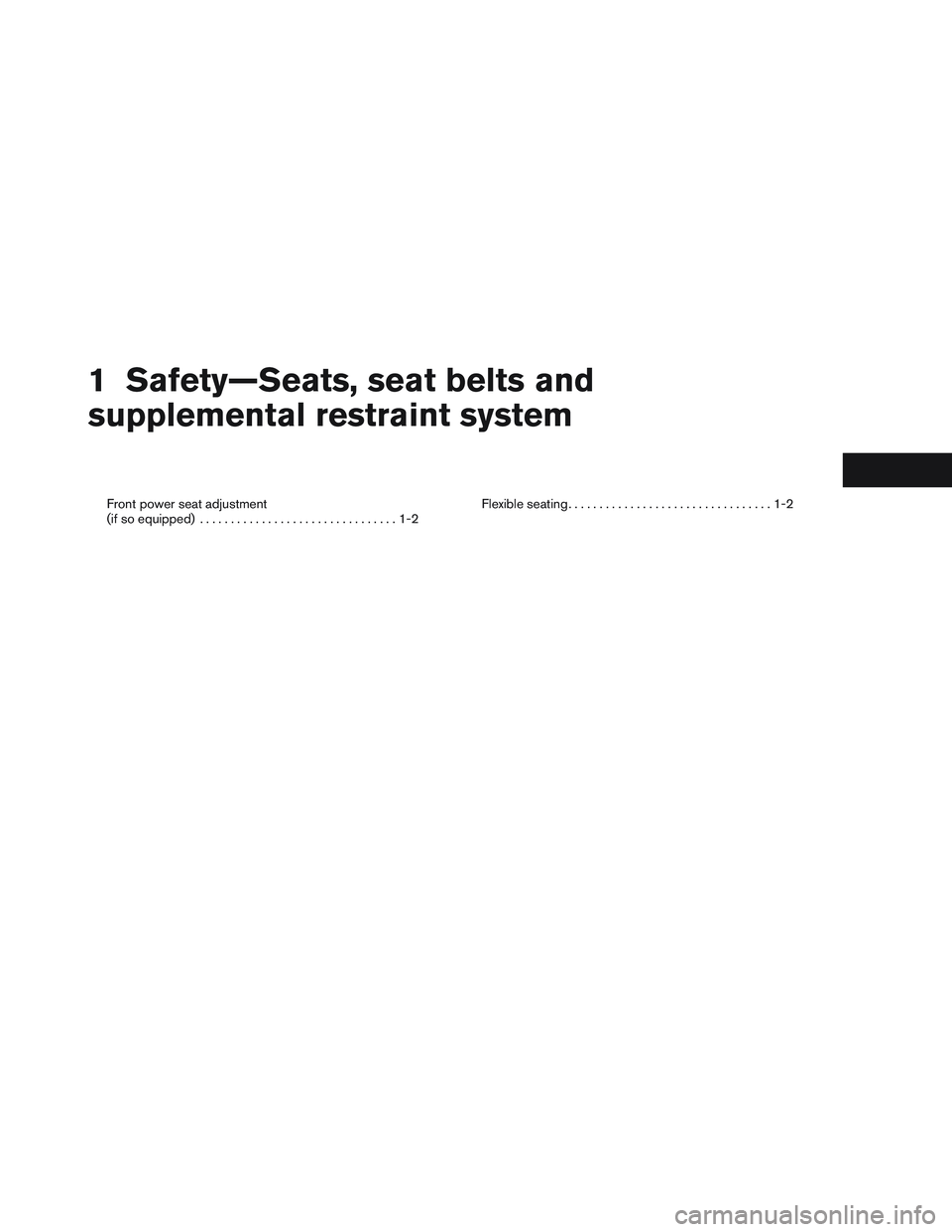

1 Safety—Seats, seat belts and
supplemental restraint system
Front power seat adjustment
(if so equipped)................................1-2 Flexible seating
.................................1-2

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Do not operate the power seat switch for a long
period of time when the hybrid system is not
running. This will discharge the 12–volt battery.
See “Automatic drive positioner” in “Pre-driving
checks and adjustments” for automatic drive po-
sitioner operation.
FLEXIBLE SEATING
WARNING
●Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
● Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats. ●
Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been re-
moved for any reason.
● If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
● Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
Folding the 3rd row seats
To fold the 3rd row seats flat for maximum cargo
capacity:
1. Pull the strap
1to release the head
restraint/headrest forward.
2. Stow the 3rd row seat belts in the seat belt hooks
4found on the sides of the cargo
area.
3. Pull up on the latch
2located in the upper
corner of each seatback and lower the seat-
back forward over the seat base.
LRS2145
1-2Safety—Seats, seat belts and supplemental restraint system

To return the 3rd row seats to a seating position:1. Use the pull straps
3to raise each seat-
back. Pull back until the seatback latches
into position. Make sure to properly raise
each seatback to an upright and se-
cured position.
2. Do not use the pull strap to return the head restraint/headrest to the upright position.
Pull back on the head restraint/headrest until
it latches in the upright position.
WARNING
When the seat is returned to the normal
seating position, the head
restraints/headrests must be returned to
the upright position to properly protect
vehicle occupants.
Safety—Seats, seat belts and supplemental restraint system1-3

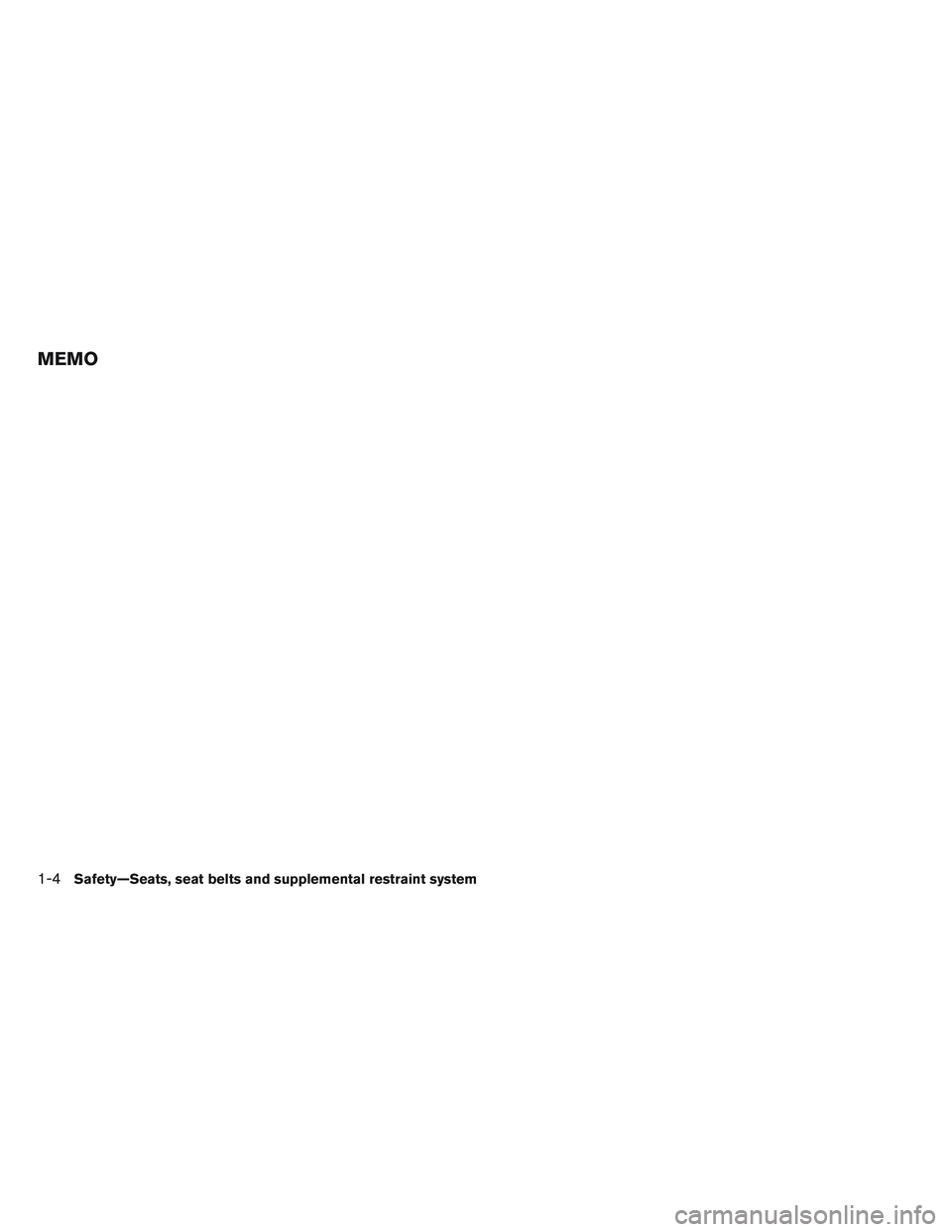

MEMO
1-4Safety—Seats, seat belts and supplemental restraint system

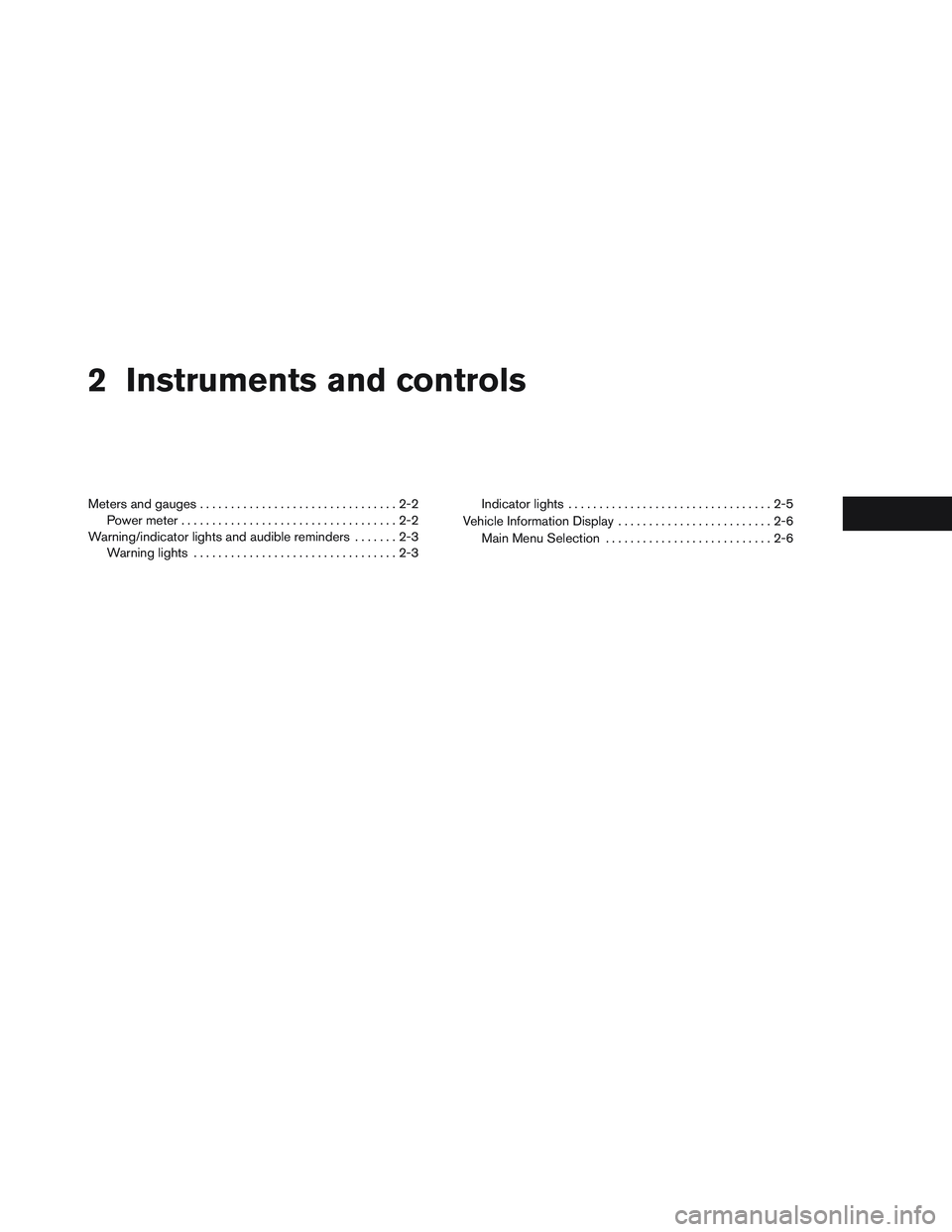

2 Instruments and controls
Meters and gauges................................2-2
Power meter ...................................2-2
Warning/indicator lights and audible reminders .......2-3
Warning lights .................................2-3 Indicator lights
.................................2-5
Vehicle Information Display .........................2-6
Main Menu Selection ...........................2-6
