ad blue INFINITI QX60 HYBRID 2014 Quick Reference Guide

23
24
26
25
292827
17181920
21
121315
22
*See your Owner’s Manual for information.
01 INSTRUMENT BRIGHTNESS
CONTROL SWITCHES*
02 BACKUP COLLISION INTERVENTION
(BCI) SWITCH*
03 TWIN TRIP ODOMETER RESET SWITCH*
04 VEHICLE INFORMATION DISPLAy
05 HEADLIGHT AND TURN SIGNAL SWITCH
06 EV INDICATOR LIGHT
07 LOW TIRE PRESSURE WARNING LIGHT
08 WINDSHIELD WIPER AND
WASHER SWITCH
09 VEHICLE INFORMATION
DISPLAy SWITCH
10 STEERING WHEEL SWITCHES FOR
AUDIO*/BLUETOOTH®/NAVIGATION
11 INTELLIGENT CRUISE CONTROL
12 VEHICLE DyNAMIC CONTROL
(VDC) OFF SWITCH*
13 POWER LIFTGATE SWITCH
14 POWER LIFTGATE MAIN SWITCH

01
04
070605
09
08
02
03
15 DyNAMIC DRIVER ASSISTANCE
CONTROL SWITCH*
16 TILT/TELESCOPIC STEERING
WHEEL SWITCH*
17 HEADLIGHT AIMING
CONTROL SWITCH*
18 WARNING SySTEMS SWITCH
19 HEATED STEERING WHEEL SWITCH*
20 POWER INVERTER SWITCH
21 HOOD RELEASE*
22 CONTROL PANEL DISPLAy SCREEN*
23 CLIMATE CONTROL SySTEM
24 AUDIO SySTEM
25 FRONT PASSENGER AIR BAG
STATUS LIGHT*
26 POWER OUTLET
27 DRIVER’S CLIMATE CONTROLLED
SEAT SWITCH*
28 INFINITI DRIVE MODE SELECTOR*
29 PASSENGER’S CLIMATE
CONTROLLED SEAT SWITCH*
1110
Behind
steering wheel
Behind
steering wheel Behind
steering wheel
16
14
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 39/24/13 11:43 AM

table of contents
Additional information about your vehicle is also available
in your Owner’s Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.
new system features INFINITI Connection™ System (if so equipped) ......................2
Around View® Monitor (AVM) with Moving Object Detection (MOD)
(if so equipped) ................................................ 4
Warning Systems Switch (if so equipped) ........................... 6
Approaching Vehicle Sound for Pedestrians (VSP) System .............6
essential information Hybrid System Warning Light ..................................... 7
Hybrid Awareness .............................................. 7
Tire Pressure Monitoring System (TPMS) with Tire Inflation Indicator .....7
Loose Fuel Cap ................................................. 8
Fuel-filler Door ................................................. 8
Accessing the Front Cup Holders .................................. 8
Front Armrest/Center Console Storage Box .......................... 8
Clock Set/Adjustment ........................................... 9
first drive features INFINITI Intelligent Key System .................................. 10
Power Liftgate ................................................. 11
Power Seat Adjustments ........................................ 12
2
ND Row Seats ................................................. 12
3RD Row Manual Reclining Seatback ............................... 13
Automatic Drive Positioner (if so equipped) ........................ 13
Outside Mirror Control Switch .................................... 13
Assist Charge Gauge ........................................... 14
Starting/Stopping the Hybrid System ..............................14
Headlight Control Switch ........................................ 15
Windshield Wiper and Washer Switch ............................. 16
Automatic Climate Controls ...................................... 17
Rear Climate Controls .......................................... 19
FM/AM/XM Satellite Radio with CD/DVD Player (if so equipped) ........19
USB/iPod
® Interface ........................................... 20
Conventional (Fixed Speed) Cruise Control ......................... 20
Intelligent Cruise Control (ICC) System (if so equipped) ..............21
Power Outlets ................................................. 22
system guide Vehicle Information Display ..................................... 23
Bluetooth® Hands-free Phone System ............................. 24
System Operating Tips ....................................... 24
Bluetooth
® System without Navigation (if so equipped) .............. 25
Bluetooth® System with Navigation (if so equipped) ................. 26
Navigation System (if so equipped) ............................... 29
Theater Package (if so equipped) ................................. 30
HomeLink
® Universal Transceiver ................................. 31
Please see your Owner’s Manual for important safety
information and system operation limitations.
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secur\
ed
in child restraints or seat belts according to their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)”, “Monitor, climate,
audio, phone and voice recognition systems (section 4)” and
“Starting and driving (section 5)” of your Owner’s Manual.
To view detailed
instructional videos, go to
www.infinitiownersinfo.mobi/2014/qx60 or snap this barcode with an appropriate barcode reader.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 49/24/13 11:43 AM

02
03
The colored guide lines on the display screen indicate vehicle width and\
approximate
distances to objects with reference to the vehicle body line.
• Red 1.5 ft (0.5 m); yellow 3 ft (1 m); Green 7 ft (2 m) and 10 ft (3 m).

There are some areas where the system will not show objects.
• When in the front or the rear view display, an
object below the bumper or on the ground may
not be viewed

02.
• When in the bird’s-eye view, a tall object near
the seam of the camera viewing areas

03
will not appear in the monitor.

The distance between objects viewed on the
AVM differs from the actual distance.

Objects in the bird’s-eye view will appear further
than the actual distance.
MOVING OBJECT DETECTION (MOD)

If the MOD system detects moving objects
surrounding the vehicle, a yellow frame

01 will be
displayed on the camera image and a
chime sounds.

In the bird’s-eye view, a yellow frame is displayed
on those camera images (front, rear, right, left)
where moving objects are detected.

When the following are displayed:
• Blue MOD icon

02; the system is operative in this view.
• Gray MOD icon

03; the system is not operative in this view.
• No MOD icon; the system is off.

To temporarily turn the system on or off, touch the MOD key
04.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (secti\
on 4)” of your
Owner’s Manual.
5
010203
04
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 59/24/13 11:43 AM

15
Headlight Control Switch
HEADLIGHT CONTROL


Turn the headlight control switch to the
position
01 to turn on the front parking, tail, license plate and

instrument panel lights. Turn the switch to the
position 02 to turn on the headlights.
AUTOLIGHT SySTEM


The autolight system will automatically turn the headlights on when it i\
s dark and off when
it is light. The system will keep the headlights on for a period of time\
after you turn the
ignition off and all doors are closed.


To activate the autolight system, turn the headlight control switch to t\
he AUTO position
03
then push the ignition switch to ON. To deactivate the autolight system, turn the headlight
control switch to the OFF,
position
01 or
position
02.
HIGH BEAM SELECT


Push the headlight control switch forward
04 to
select the high beam function. The blue indicator
light
illuminates in the instrument panel.
Pull the headlight switch back to the original
position to select the low beam. The blue
indicator light goes off.


Pull and release the headlight control switch
05 to
flash the headlight high beams on and off.
FOG LIGHT SWITCH


The headlights must be in auto, or the low
beams

selected for the fog lights to operate.


Turn the switch (inside collar) to the
position
06
to turn the fog lights on.


Turn the switch (inside collar)
to the OFF position to
turn the fog lights off.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
03
04
06
01
05
02
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 159/24/13 11:43 AM

system guide
24
Bluetooth® Hands-free Phone System
A cellular telephone should not be used while
driving so full attention may be given to
vehicle operation.*
SySTEM OPERATING TIPS

Press the or button to interrupt the voice
prompts at any time and speak a command after
the tone.

The “Help” command can be used to hear a list of
available commands at any time.

Reduce background noise as much as possible by
closing windows and pointing HVAC vents away from
the ceiling.

Speak naturally without long pauses and without
raising your voice.

When speaking Phonebook names, please be
aware some phones require the last name to be
spoken before the first name. For example,
“Michael Smith” may be spoken as “Smith Michael”.

To cancel a voice recognition session, say “Cancel” or
“Quit” or press and hold the

or
button for 5 seconds.

To go back to the previous command, say “Go back” or “Correctio\
n”.

If the Voice Recognition system does not recognize your voice commands, \
train the system
using the Speaker Adaptation Mode. See your Owner’s Manual for detail\
ed information.

For more detailed information and instructions, refer to your cellular p\
hone
Owner’s Manual and visit ww.InfinitiUSA.com/bluetooth.
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
Bluetooth® Controls
Microphone
SETTINGS
The setting mode allows you to change the information displayed in the v\
ehicle
information display:

Driver Assistance (if so equipped)

Vehicle settings

Main Menu Selection

Body Color

Maintenance

Alarms

Language

Unit

Welcome Effects

Factory Reset
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 249/24/13 11:43 AM

25
Bluetooth® System without Navigation (if so equipped)
CONNECTING PROCEDURE
1. Press the
button on the steering wheel. The
system announces the available commands.
2. Say “Connect Phone”. The system acknowledges
the command and announces the next set of
available commands.
3. Say “Add Phone”. The system acknowledges
the command and asks you to initiate
connecting from the phone handset.
4. Initiate connecting from the phone.
• The connecting procedure varies according
to each cellular phone model. For detailed connecting instructions and a\
list of
compatible phones, please visit www.InfinitiUSA.com/bluetooth.
• When prompted for a PIN code, enter “1234” from the handset. (The\
PIN code is
assigned by INFINITI and cannot be changed.)
5. Say the name of the phone when the system asks you to provide one. you can give the
phone a name of your choice.
PHONEBOOK

Depending on the phone, the system may automatically download the entire phonebook.
For more information, please visit www.InfinitiUSA.com/bluetooth or the phone’s
user guide.

If the phonebook does not download automatically, 40 entries can be
individually downloaded.

To manually download entries:
1. Push the
button on the steering wheel.
2. After the tone, say “Phonebook”.
3. After the next tone, say “Transfer Entry”.
4. Using the phone, select an entry to send to the vehicle. Please consult t\
he website
above or your phone’s User Guide for specific steps of the phone.
5. The system will speak the transferred entry. Confirm the entry by saying\
“yes” after the tone.
MAKING A CALL By PHONEBOOK ENTRy

In some cases, names stored using all UPPERCASE letters may not be recognized by the
voice recognition system.
1. Press the
button.
2. After waiting for the tone, say “Call”.
3. After the next tone, speak a name of a phonebook entry. For example “\
Michael Smith”.
4. Confirm the correct name is recognized by saying “Dial” after the \
tone.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 259/24/13 11:43 AM

system guide
26 MAKING A CALL By PHONE NUMBER
1. Press the
button.
2. After waiting for the tone, say “Call”.
3. After the next tone, say “Phone Number”.
4. After the next tone, say “123-456-7890”.

you may also say the digits in groups of 3, 3 and 4, respectively. To use\
this group dialing
method, say only the first 3 digits of the phone number instead of all 1\
0 digits. After the
system recognizes the digits, it will request the next 3 digits and fina\
lly the last 4 digits.
5. After the system speaks the correct number and sounds the tone, say “\
Dial.”
RECEIVING/ENDING A CALL

To accept the call, press the button on the steering wheel.


To reject the call, press the
button.


To hang-up, press the
button.
Bluetooth® System with Navigation
(if so equipped)
CONNECTING PROCEDURE

The vehicle must be stationary when connecting
the phone.
1. Press the SETTING button on the instrument panel
and select the “Bluetooth” key on the display.
2. Select the “Connect Bluetooth” key.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 269/24/13 11:43 AM

27

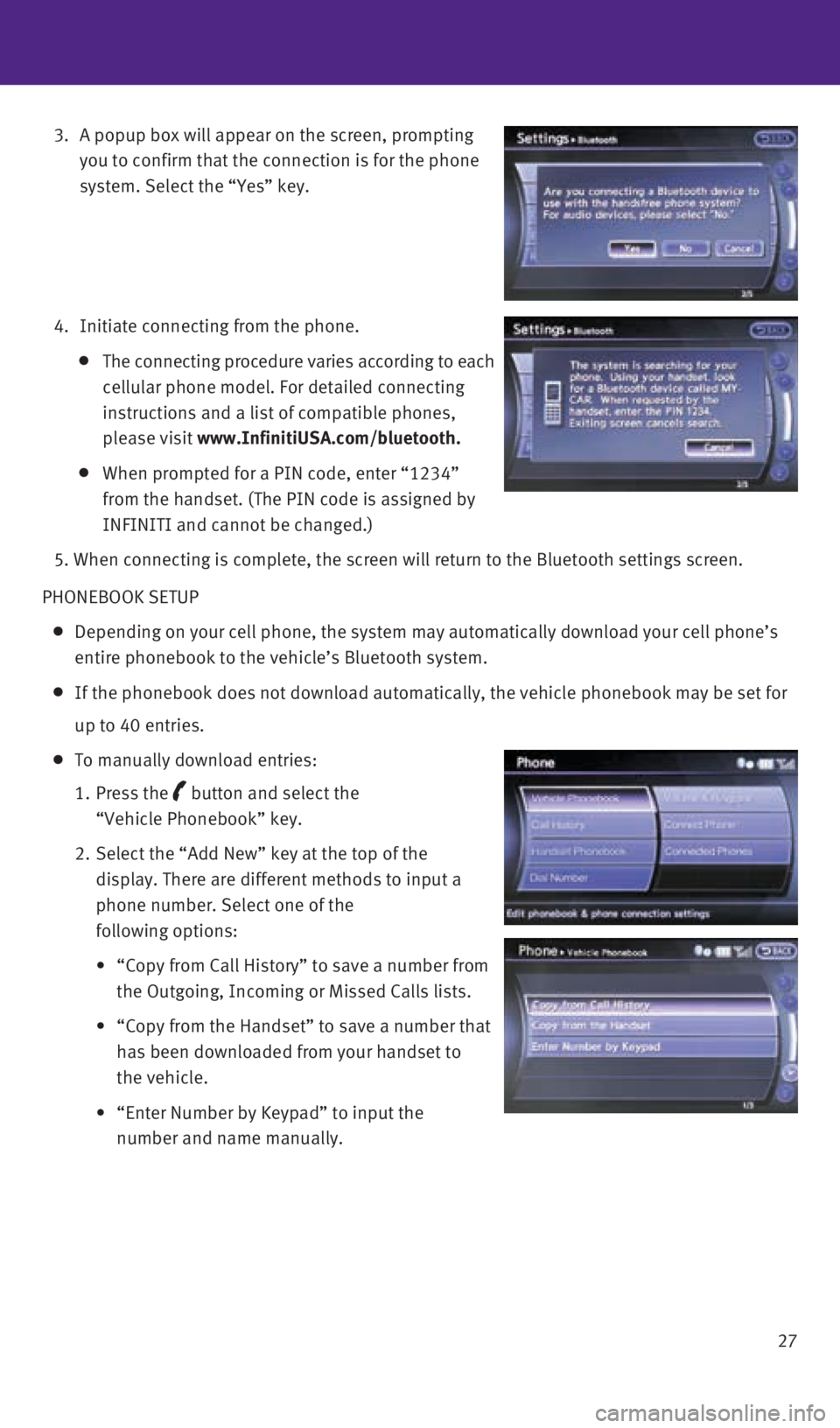

3.

A popup box will appear on the screen, prompting
you to confirm that the connection is for the phone
system. Select the “yes” key.
4. Initiate connecting from the phone.

The connecting procedure varies according to each
cellular phone model. For detailed connecting
instructions and a list of compatible phones,
please visit www.InfinitiUSA.com/bluetooth.

When prompted for a PIN code, enter “1234”
from the handset. (The PIN code is assigned by
INFINITI and cannot be changed.)
5. When connecting is complete, the screen will return to the Bluetooth \
settings screen.
PHONEBOOK SETUP

Depending on your cell phone, the system may automatically download your cell phone’s
entire phonebook to the vehicle’s Bluetooth system.

If the phonebook does not download automatically, the vehicle phonebook may be set for
up to 40 entries.

To manually download entries:
1. Press the

button and select the
“Vehicle Phonebook” key.
2. Select the “Add New” key at the top of the
display. There are different methods to input a
phone number. Select one of the
following options:
• “Copy from Call History” to save a number from
the Outgoing, Incoming or Missed Calls lists.
• “Copy from the Handset” to save a number that
has been downloaded from your handset to
the vehicle.
• “Enter Number by Keypad” to input the
number and name manually.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 279/24/13 11:44 AM

system guide
28 MAKING A CALL
To make a call, follow this procedure:
1. Press the

button on the steering wheel. The
“Phone” menu will appear on the control
panel display.
2. Select the “Vehicle Phonebook”, “Call History”,
“Handset Phonebook” or “Dial Number” key.
3. Select the desired entry from the list.
4.
Dialing begins when the entry is selected or when
the “OK” key is selected.
RECEIVING/ENDING A CALL

To accept the call, press the button on the
steering wheel or touch the “Answer” key.


To reject the call, touch the “Reject Call” key.


To hang up, press the button or touch the

“Hang Up” key.
For more information, refer to the “Monitor, climate, audio, phone and
voice recognition systems (section 4)” of your Owner’s Manual or please
visit www.InfinitiUSA.com/bluetooth.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 289/24/13 11:44 AM
