buttons INFINITI QX60 HYBRID 2014 Quick Reference Guide

17

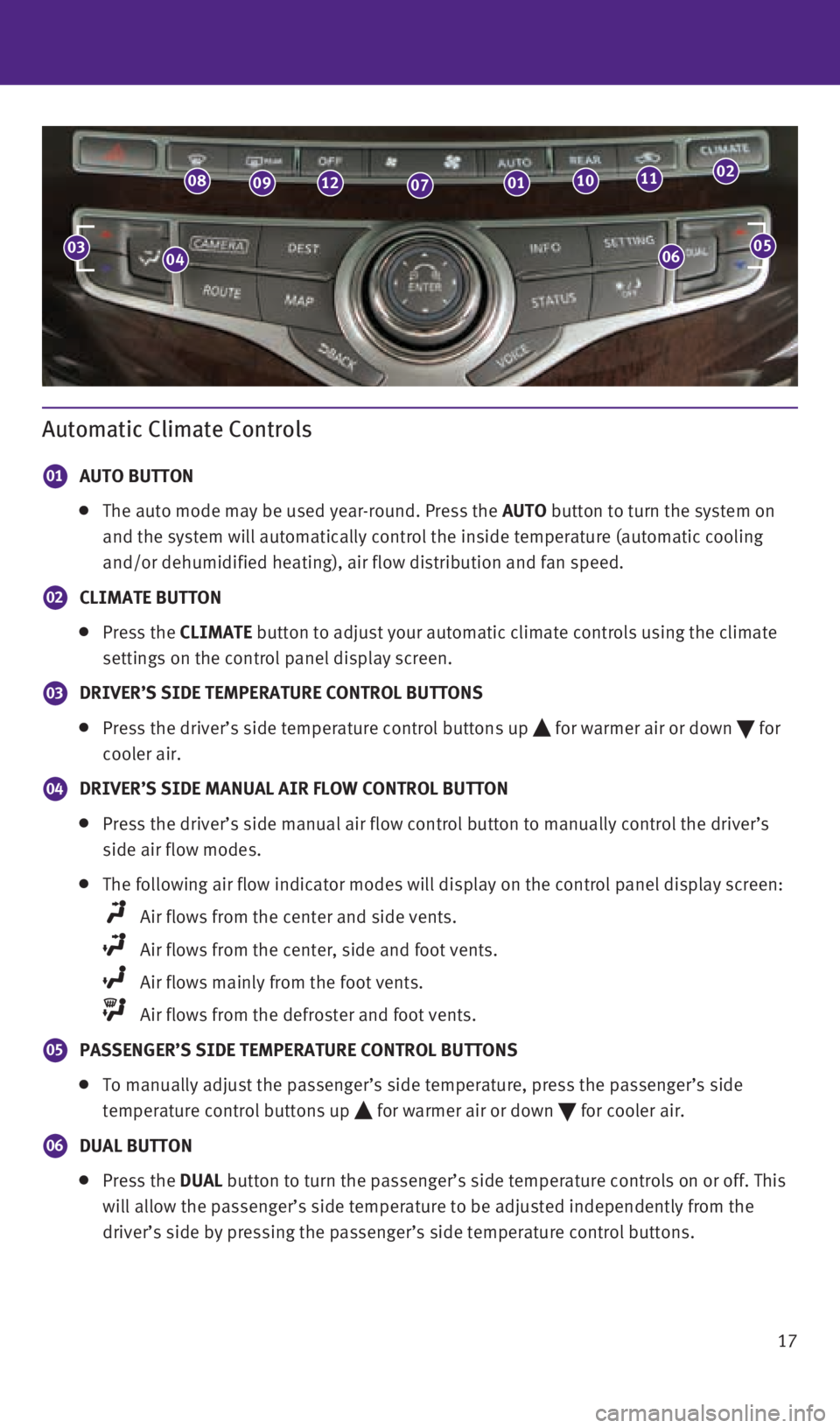

Automatic Climate Controls
01 AUTO BUTTON

The auto mode may be used year-round. Press the AUTO button to turn the system on
and the system will automatically control the inside temperature (autom\
atic cooling
and/or dehumidified heating), air flow distribution and fan speed.
02 CLIMATE BUTTON

Press the CLIMATE button to adjust your automatic climate controls using the climate
settings on the control panel display screen.
03 DRIVER’S SIDE TEMPERATURE CONTROL BUTTONS

Press the driver’s side temperature control buttons up for warmer air or down
for
cooler air.
04 DRIVER’S SIDE MANUAL AIR FLOW CONTROL BUTTON

Press the driver’s side manual air flow control button to manually con\
trol the driver’s
side air flow modes.

The following air flow indicator modes will display on the control panel\
display screen:

Air flows from the center and side vents.

Air flows from the center, side and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.
05 PASSENGER’S SIDE TEMPERATURE CONTROL BUTTONS

To manually adjust the passenger’s side temperature, press the passen\
ger’s side
temperature control buttons up
for warmer air or down
for cooler air.
06 DUAL BUTTON

Press the DUAL button to turn the passenger’s side temperature controls on or off. This
will allow the passenger’s side temperature to be adjusted independen\
tly from the
driver’s side by pressing the passenger’s side temperature control\
buttons.
0406
0809120701101102
0305
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 179/24/13 11:43 AM

first drive features
18
07 FAN SPEED CONTROL BUTTONS


Press the left button to decrease the fan speed or press the right
button to
increase the fan speed.
08 DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS


Press the defroster control button
to turn the system on. The A/C automatically turns
on when the defroster mode is selected. This feature removes humidity fr\
om the air.


To defrost the front and side windows, set the temperature controls
03 and fan
speed controls 07 to their maximum settings.
09
DEFROSTING REAR WINDOW AND OUTSIDE MIRRORS

Push the rear window defroster switch
REAR to turn the system on or off.
This function automatically turns off after approximately 15 minutes.
10 REAR AIR CONDITIONER


To control the rear automatic air conditioning
system with the front air conditioner control
panel, press the REAR button.


When the rear automatic air conditioning system
is on, the indicator light on the REAR button will
illuminate and the front display will switch to the
rear air conditioner screen. Use the driver
temperature and fan speed buttons to adjust settings.

To adjust the front air conditioning system, press the REAR button again.

To turn off the rear automatic air conditioning system from the front co\
ntrols, press the
REAR button until the Rear Air-conditioning screen is displayed. Then, press the
OFF button
12.

The rear passenger controls are unavailable when Rear Air-conditioning screen is
shown on the front display.
11 INTAKE AIR CONTROL BUTTON


Press the intake air control button to recirculate interior air inside the vehicle. The
indicator light on the button will illuminate. This system is used to a\
void certain
outside odors and helps to adjust the inside vehicle temperature more ef\
fectively.


The air recirculation mode cannot be activated when the climate control \
system is in the
front defrost mode

or front defrost and foot vent mode
.


Press the intake air control button again to change the air circulation from the
intake air to the outside air. The
indicator light on the button will turn off.
12 OFF BUTTON


Press the OFF button to turn the climate control system off.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4\
) ” of your
Owner’s Manual.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 189/24/13 11:43 AM

19
0201
030506
04
FM/AM/XM* Satellite Radio with CD/DVD Player (if so equipped)
01 VOLUME/ON•OFF CONTROL KNOB
Press the VOL/ON•OFF control knob to turn the system on or off. Turn the knob right or
left to increase or decrease the volume.
02 TUNE/FOLDER/AUDIO CONTROL KNOB
To manually tune the radio, turn the TUNE/FOLDER/AUDIO knob left or right.
03 SEEK•CAT/TRACK BUTTONS

To scan quickly and stop at the previous or next broadcast station, pres\
s the or
end of the SEEK•CAT/TRACK button.


For XM Satellite Radio, press the or end of the SEEK•CAT/TRACK button to switch
to the first channel of the previous or next category.

To change tracks on a CD, press the or end of the SEEK•CAT/TRACK button.

To fast forward or rewind a track on a CD, press and hold the or end of the
SEEK•CAT/TRACK button.
*XM Satellite Radio is only available on vehicles equipped with optional\
XM Satellite Radio subscription service.
Rear Climate Controls

To activate the system:
1. Press the REAR button

01 on the front control panel

until Rear Air-conditioning screen is displayed.
• The indicator light will illuminate.
• The Fan Speed, Temperature, AUTO, and
OFF buttons will now control the
Rear Air-conditioning system.
2. Press the REAR button

01 again, and the screen
will return to what was previously displayed.
• The indicator light will stay illuminated to
indicate that the Rear Air-conditioning system is active.

OFF button
02 – Turns off the rear climate control system, and REAR button indicator light.
Fan speed control buttons
03 – Press
or

to increase or decrease fan speed.

Temperature increase and decrease buttons 04 – Adjusts the rear temperature
up
or down
.

AUTO button
05 – System automatically works to keep flow and fan speed at a
constant temperature.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (secti\
on 4)” of your
Owner’s Manual.
01
02
05
0304
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 199/24/13 11:43 AM

first drive features
20
Conventional (Fixed Speed) Cruise Control
The cruise control system enables you to set a
constant cruising speed once the vehicle has
reached 25 MPH (40 km/h).

The system will automatically maintain the set
speed until you tap the brake pedal, accelerate,
cancel or turn the system off.

To activate the cruise control, push the
CRUISE

ON/OFF switch
01. The
CRUISE
indicator light in the instrument panel will illuminate.

To set cruising speed, accelerate the vehicle to the desired speed, push\
the COAST/SET
switch
02 and release. The
SET indicator light
in the instrument panel will illuminate. Take
your foot off the accelerator pedal. your vehicle will maintain the set speed.

To reset at a faster cruising speed, push and hold the ACCEL/RES switch 03. When the
vehicle attains the desired speed, release the switch.

To reset at a slower cruising speed, push and hold the COAST/SET switch 02. Release the
switch when the vehicle slows to the desired speed.

To cancel the preset speed, push the CANCEL switch
04.

To turn off cruise control, push the CRUISE
ON/OFF switch
01. Both the
CRUISE indicator
light and the SET indicator light in the instrument panel will turn off.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
0102
03
04
USB/iPod® Interface

The USB jack
01 is located in the center
console under the arm rest.

When a compatible USB memory device or
iPod® is plugged into the USB jack, compatible
audio and video files stored on the device can be
played through the vehicle’s audio system and
front display.
For more information, refer to the “Monitor, climate, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.
01
04 STATION PRESET BUTTONS

Twelve stations can be set for the FM band, six for the AM band and eigh\
teen for XM
Satellite Radio.

To store a station in a preset, you must first select a radio band by pr\
essing the FM•AM

05 or XM
06 button, then tune to the desired FM, AM or XM Satellite Radio station.
Then press and hold the desired station preset button (1-6) until the preset number is
updated on the display and the sound is briefly muted. The channel indic\
ator will then
display and the sound will resume. Programming is now complete.

To retrieve a previously set station, select the radio band where the pr\
eset was stored
then press the corresponding station select button (1-6).
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (secti\
on 4)” of your
Owner’s Manual.
1591600_14b_Infiniti_QX60_HEV_QRG_092413.indd 209/24/13 11:43 AM

31
HomeLink® Universal Transceiver The HomeLink system can learn and consolidate the functions of up to 3 d\
ifferent
hand-held transmitters, operating items such as garage doors, property g\
ates, outdoor and
indoor lights or alarm systems.

To program the HomeLink® Universal Transceiver:
• Position the handheld transceiver 1-3 in (26-76 mm) away from the Home\
Link surface,
keeping the HomeLink indicator light in view.
• Press and hold the desired HomeLink button and the handheld transmitter \
button
simultaneously until the HomeLink indicator light flashes slowly and the\
n rapidly.
• Both buttons may be released when the indicator light flashes rapidly.

To verify the programing is complete, press and hold the HomeLink and ob\
serve the
indicator light:
• A solid continuous light indicates the programing is complete and the Ho\
meLink button
will activate your device.
• A blinking light that turns to a solid continuous light after 2 seconds \
indicates
additional steps are required to complete the programing.

An additional person may make the remaining steps easier. To complete th\
e
programing process:
• At the receiver of the device that you are programing to the HomeLink, p\
ress and release
the “learn” or “smart” button (the name may vary by manufac\
turer but it is usually
located near where the hanging antenna wire is attached to the unit). you have
approximately 30 seconds to initiate the following step.
• Press and hold the programmed HomeLink button for 2 seconds and release.\

Repeat the previous 2 steps up to 3 times to complete the programming pr\
ocess.
HomeLink should now activate your device.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual, the HomeLink website at
www.homelink.com or call 1-800-355-3515.
