remote start INFINITI QX60-HYBRID 2015 User Guide

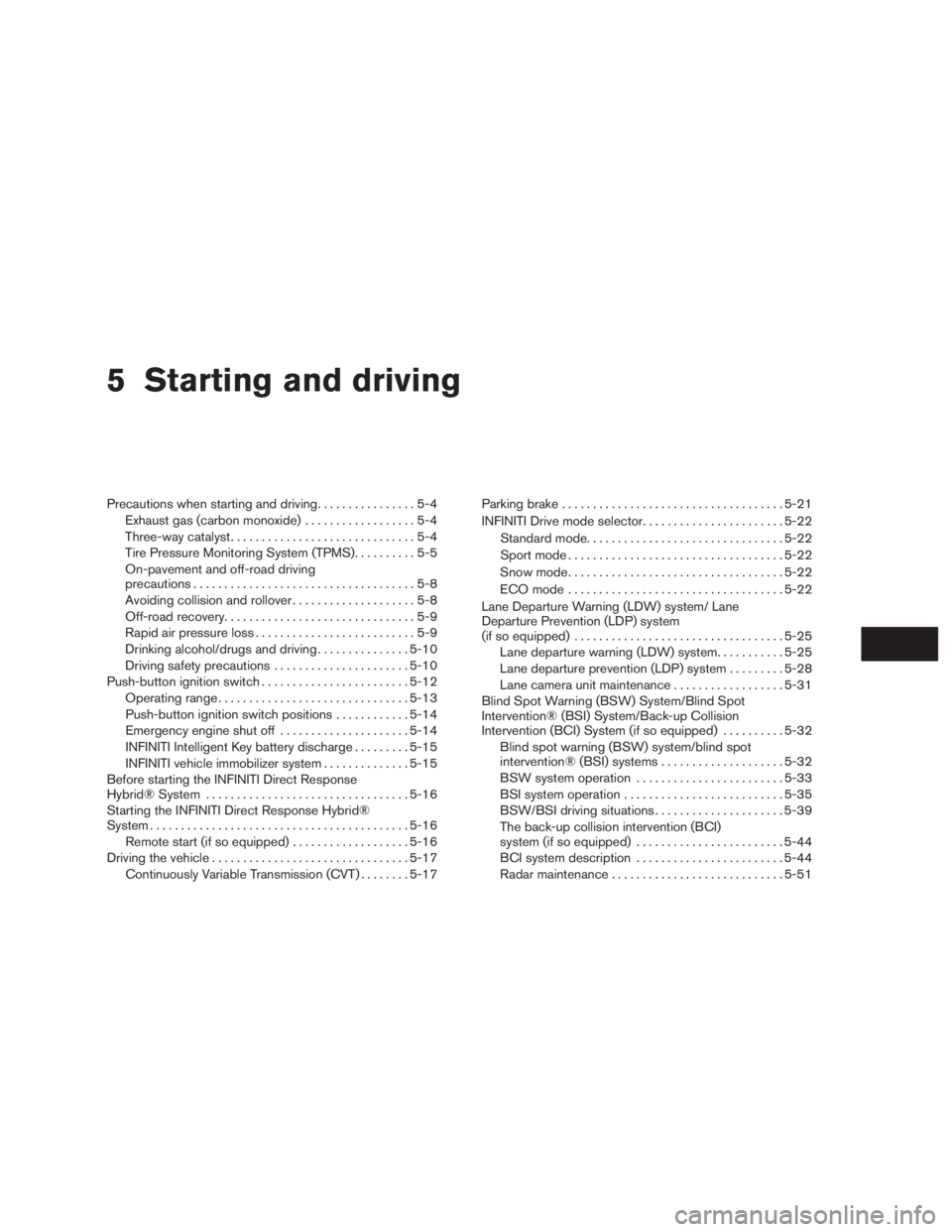

5 Starting and driving
Precautions when starting and driving................5-4
Exhaust gas (carbon monoxide) ..................5-4
Three-way catalyst ..............................5-4
Tire Pressure Monitoring System (TPMS) ..........5-5
On-pavement and off-road driving
precautions ....................................5-8
Avoiding collision and rollover . . ..................5-8
Off-road recovery ...............................5-9
Rapid air pressure loss ..........................5-9
Drinking alcohol/drugs and driving ...............5-10
Driving safety precautions ......................5-10
Push-button ignition switch ........................5-12
Operating range ............................... 5-13
Push-button ignition switch positions . . . .........5-14
Emergency engine shut off .....................5-14
INFINITI Intelligent Key battery discharge .........5-15
INFINITI vehicle immobilizer system ..............5-15
Before starting the INFINITI Direct Response
Hybrid® System ................................. 5-16
Starting the INFINITI Direct Response Hybrid®
System .......................................... 5-16
Remote start (if so equipped) ...................5-16
Driving the vehicle ................................ 5-17
Continuously Variable Transmission (CVT) ........5-17 Parking brake
.................................... 5-21
INFINITI Drive mode selector .......................5-22
Standard mode ................................ 5-22
Sport mode ................................... 5-22
Snow mode ................................... 5-22
ECO mode ................................... 5-22
Lane Departure Warning (LDW) system/ Lane
Departure Prevention (LDP) system
(if so equipped) .................................. 5-25
Lane departure warning (LDW) system ...........5-25
Lane departure prevention (LDP) system .........5-28
Lane camera unit maintenance ..................5-31
Blind Spot Warning (BSW) System/Blind Spot
Intervention® (BSI) System/Back-up Collision
Intervention (BCI) System (if so equipped) ..........5-32
Blind spot warning (BSW) system/blind spot
intervention® (BSI) systems ....................5-32
BSW system operation ........................ 5-33
BSI system operation .......................... 5-35
BSW/BSI drivingsituations ..................... 5-39
The

back-up collision intervention (BCI)
system (if so equipped) ........................ 5-44
BCI system description ........................ 5-44
Radar maintenance ............................ 5-51

●Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid, and windshield-washer fluid
as frequently as possible, or at least when-
ever you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Check that all doors are closed.
● Position seat and adjust head
restraints/headrests.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is placed in the ON posi-
tion. For additional information, refer to
“Warning/indicator lights and audible re-
minders” in the “Instruments and controls”
section of this manual. 1. Apply the parking brake.
2. Move the shift lever to P (Park) or N (Neu-
tral) . P (Park) is recommended.
The INFINITI Direct Response Hybrid®
System is designed not to operate if
the shift lever is in any of the driving
positions.
3. Depress the brake pedal and push the igni- tion switch to start the hybrid system. The
READY to drive indicator will illuminate on
the meter.
When starting the hybrid system at
very low outside temperatures, the
READY to drive indicator light will flash
and it may take longer for the READY
to drive indicator light to illuminate.
When the READY to drive indicator
light is flashing, it cannot be shifted
out of P (Park) .
NOTE:
Do not start the vehicle in the N (Neutral)
position (cold conditions only) . ● The hybrid system may not start even with
the READY to drive indicator light illumi-
nated. Once the READY to drive indicator
light is illuminated you may begin driving the
vehicle. NOTE:
Care should be taken to avoid situations
that can lead to potential 12-volt battery
discharge and potential no-start conditions
such as:
1. Installation or extended use of elec-
tronic accessories that consume bat-
tery power when the engine is not run-
ning (Phone chargers, GPS, DVD
players, etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain 12-volt battery health.
REMOTE START (if so equipped)
Vehicles started with the remote start require the
ignition switch to be placed in the ON position
before the shift lever can be moved from the P
(Park) position. To place the ignition switch to the
ON position, follow the steps: 1. Make sure that the Intelligent Key is on you.
2. Apply the brake.
3. Press the ignition switch once to the ON position.
For additional information, refer to “INFINITI Intel-
ligent Key” in the “Pre-driving checks and adjust-
ments” section of this manual.
BEFORE STARTING THE INFINITI
DIRECT RESPONSE HYBRID®
SYSTEM STARTING THE INFINITI DIRECT
RESPONSE HYBRID® SYSTEM
5-16Starting and driving

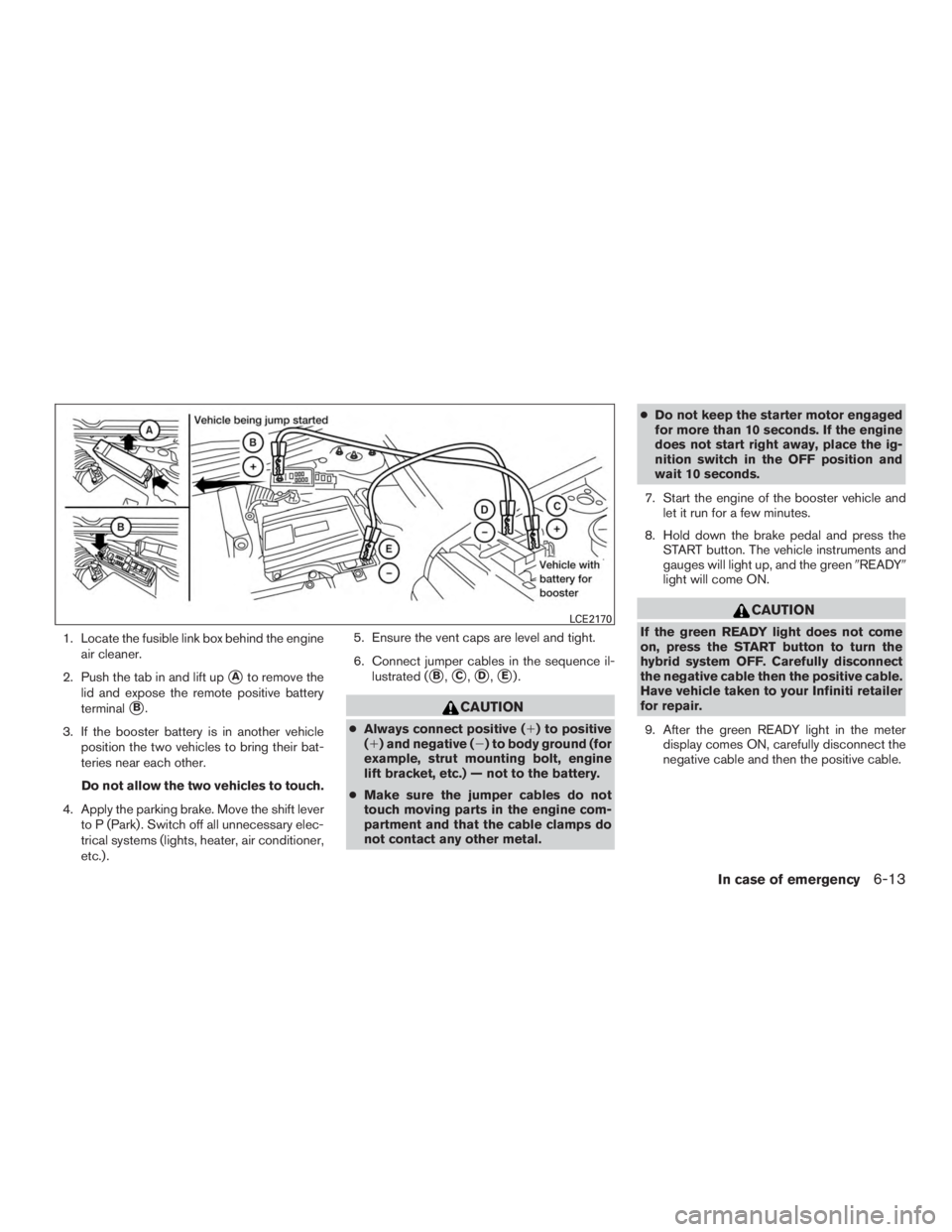

1. Locate the fusible link box behind the engineair cleaner.
2. Push the tab in and lift up
Ato remove the
lid and expose the remote positive battery
terminal
B.
3. If the booster battery is in another vehicle position the two vehicles to bring their bat-
teries near each other.
Do not allow the two vehicles to touch.
4. Apply the parking brake. Move the shift lever to P (Park) . Switch off all unnecessary elec-
trical systems (lights, heater, air conditioner,
etc.) . 5. Ensure the vent caps are level and tight.
6. Connect jumper cables in the sequence il-
lustrated (
B,C,D,E).
CAUTION
●Always connect positive () to positive
() and negative () to body ground (for
example, strut mounting bolt, engine
lift bracket, etc.) — not to the battery.
● Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal. ●
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the ig-
nition switch in the OFF position and
wait 10 seconds.
7. Start the engine of the booster vehicle and let it run for a few minutes.
8. Hold down the brake pedal and press the START button. The vehicle instruments and
gauges will light up, and the green READY
light will come ON.
CAUTION
If the green READY light does not come
on, press the START button to turn the
hybrid system OFF. Carefully disconnect
the negative cable then the positive cable.
Have vehicle taken to your Infiniti retailer
for repair.
9. After the green READY light in the meter display comes ON, carefully disconnect the
negative cable and then the positive cable.LCE2170
In case of emergency6-13

Intelligent cruise control (ICC) systemBrake assist .................5-54
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interiorlight....................2-62
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ............8-9
iPod®Player ...............4-82,4-85
ISOFIX child restraints .............1-27
J
Jump starting ...................6-11
K
Key.........................3-2
Key fob battery replacement ..........8-24
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-7
L
Labels Air conditioner specification label .....9-12C.M.V.S.S. certification label
........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-66
Lane Departure Prevention (LDP) system . . .5-25
Lane Departure Warning (LDW) system ....5-25
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-27
License plate Installing the license plate ..........9-13
Liftgate ......................3-22
Liftgaterelease.................3-25
Light Air bag warning light .........1-66,2-13
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-9
Bulbreplacement..............8-27
Charge warning light .............2-9
Foglights...................8-26
Foglightswitch ...............2-40
Headlight and turn signal switch ......2-35
Headlight control switch ..........2-36
Headlights..................8-26
Interiorlight..................2-62
Lightbulbs..................8-26
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ..................2-12,2-28
Passenger air bag and status light .....1-57
Security indicator light ............2-15
Warning/indicator lights and audible
reminders ...................2-8 Lights
Maplights ..................2-63
Lock Child safety rear door lock ..........3-7
Door locks ...................3-4
Gloveboxlock................2-53
Lift gate release ...............3-25
Power door locks ...............3-6
Loose fuel cap warning .............2-29
Low fuel warning light .......2-10,2-12,2-27
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning
light ....................2-12,2-28
Luggage hook.................. 2

-55
Luggage rack (see roof rack) ..........2-56
Luggage (See vehicle loading information) . .9-14
Luggage storage
(see vehicle loading information) ........2-55
M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-14
Maplights ....................2-63
Mappocket....................2-50
Memory Seat ...................3-33
Meters and gauges ................2-4
Instrument brightness control ........2-39
10-4

MirrorAutomatic anti-glare inside mirror ......3-31
Outside mirror control ............3-31
Outside mirrors ...............3-31
Vanity mirror .................3-30
Moonroof .....................2-59
N
NISSAN voice recognition system ......4-134
O
Octanerating(Seefueloctanerating)......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-12
Changing engine oil filter ..........8-13
Checking engine oil level ..........8-10
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Oneshotcall..............4- 111, 4-123
Outside mirror control ..............3-31
Outside mirrors .................3-31
Owner’s manual order form ...........9-33
Owner’s manual/service manual order
information ....................9-33 P
Parking Parking brake operation ...........5-21
Parking/parking on hills ...........5-96
Phone, Bluetooth® hands-free system . . .4-107, 4-121
Power Power door locks ...............3-6
Power outlet ..............2-48,2-50
Power rear windows .............2-58
Power steering fluid .............8-14
Power steering system ...........5-97
Power windows ...............2-57
Rear power windows ............2-58
Power inverter switch ..............2-45
Power meter ....................2-4
Power outlet ................2-48,2-50
Power steering ..................5-97
Power steering fluid ...............8-14
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-8
Precautions on booster
seats...........1-25,1-32,1-39,1-45
Precautions on child
restraints .........1-25,1-32,1-39,1-45
Precautions on seat belt usage .......1-15
Precautions on supplemental restraint
system ....................1-48
Precautions when starting and driving ....5-4
Pre-tensioner seat belt system .........1-65
Push starting ...................6-14 R
Radio CarphoneorCBradio...........4-106
FM/AM/SAT radio with compact disc (CD)
player .....................4-65
Steering wheel audio control switch . . . .4-92
Rainsensor....................2-33
Readiness for inspection maintenance (I/M)
test ........................9-32
Rear power windows ..............2-58
RearView Monitor .............
4-
20,4-22
Rear window defroster switch .........2-35
Rear window wiper and washer switches . . .2-34
Recorders Eventdata..................9-32
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote Start ...............3-19,5-16
Reporting safety defects (US only) .......9-31
Roadside assistance program ..........6-2
Roof rack .....................2-56
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-25,1-32,1-39,1-45
Reporting safety defects (US only) .....9-31
Seat adjustment Front power seat adjustment .........1-3
Secondrowbenchseats........1-5,1-7
Seatbackpockets................2-51
10-5
