●If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not avail-
able to ensure that all methanol blends
are suitable for use in INFINITI ve-
hicles.
If any driveability problems such as engine stall-
ing and difficult hot-starting are experienced after
using oxygenate-blend fuels, immediately
change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.
E–15 fuel
E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-15
fuel. Do not use E-15 in your vehicle. U.S. gov-
ernment regulations require fuel ethanol dispens-
ing pumps to be identified with small, square, orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
E–85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square, orange
and black label with the common abbreviation or
the appropriate percentage for that region.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (for example, fuel injec-
tor cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum, varnish
or deposit removal may contain active solvents or
similar ingredients that can be harmful to the fuel
system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock.” (“Spark
knock” is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If youdetect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have an INFINITI retailer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which INFINITI
is not responsible.
Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have your vehicle checked at an
INFINITI retailer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
Technical and consumer information9-5

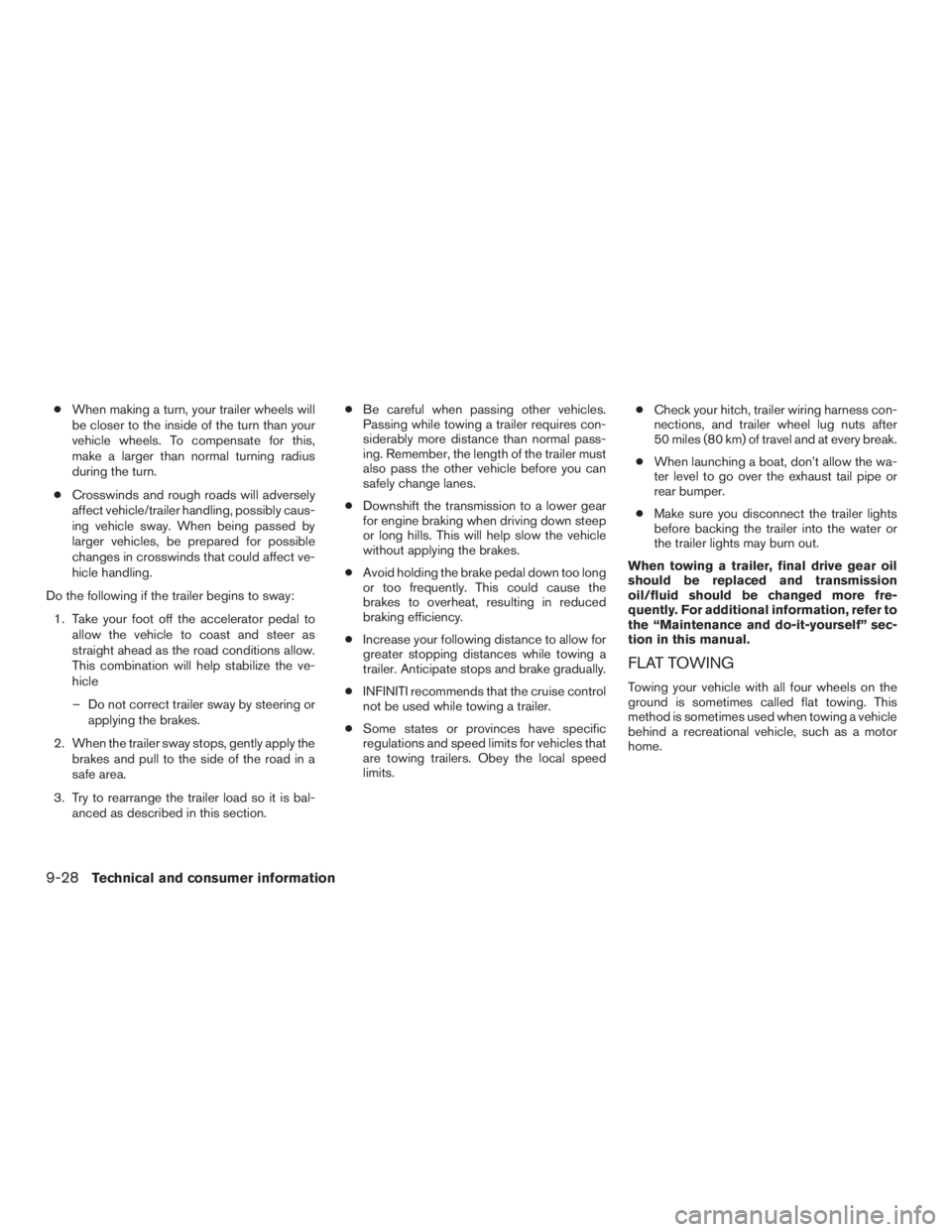

●When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling.
Do the following if the trailer begins to sway: 1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the ve-
hicle
– Do not correct trailer sway by steering or applying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road in a
safe area.
3. Try to rearrange the trailer load so it is bal- anced as described in this section. ●
Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer must
also pass the other vehicle before you can
safely change lanes.
● Downshift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
● Avoid holding the brake pedal down too long
or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
● Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
● INFINITI recommends that the cruise control
not be used while towing a trailer.
● Some states or provinces have specific
regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits. ●
Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after
50 miles (80 km) of travel and at every break.
● When launching a boat, don’t allow the wa-
ter level to go over the exhaust tail pipe or
rear bumper.
● Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, final drive gear oil
should be replaced and transmission
oil/fluid should be changed more fre-
quently. For additional information, refer to
the “Maintenance and do-it-yourself” sec-
tion in this manual.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
9-28Technical and consumer information

WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing) , or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer.
Using the wrong test equipment may re-
sult in transmission damage or unex-
pected vehicle movement which could re-
sult in serious vehicle damage or personal
injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle. If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20 sec-
onds and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not blink
after 20 seconds, the I/M test condition is
“ready”. Contact an INFINITI retailer to set the
“ready condition” or to prepare the vehicle for
testing.
This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
9-32Technical and consumer information

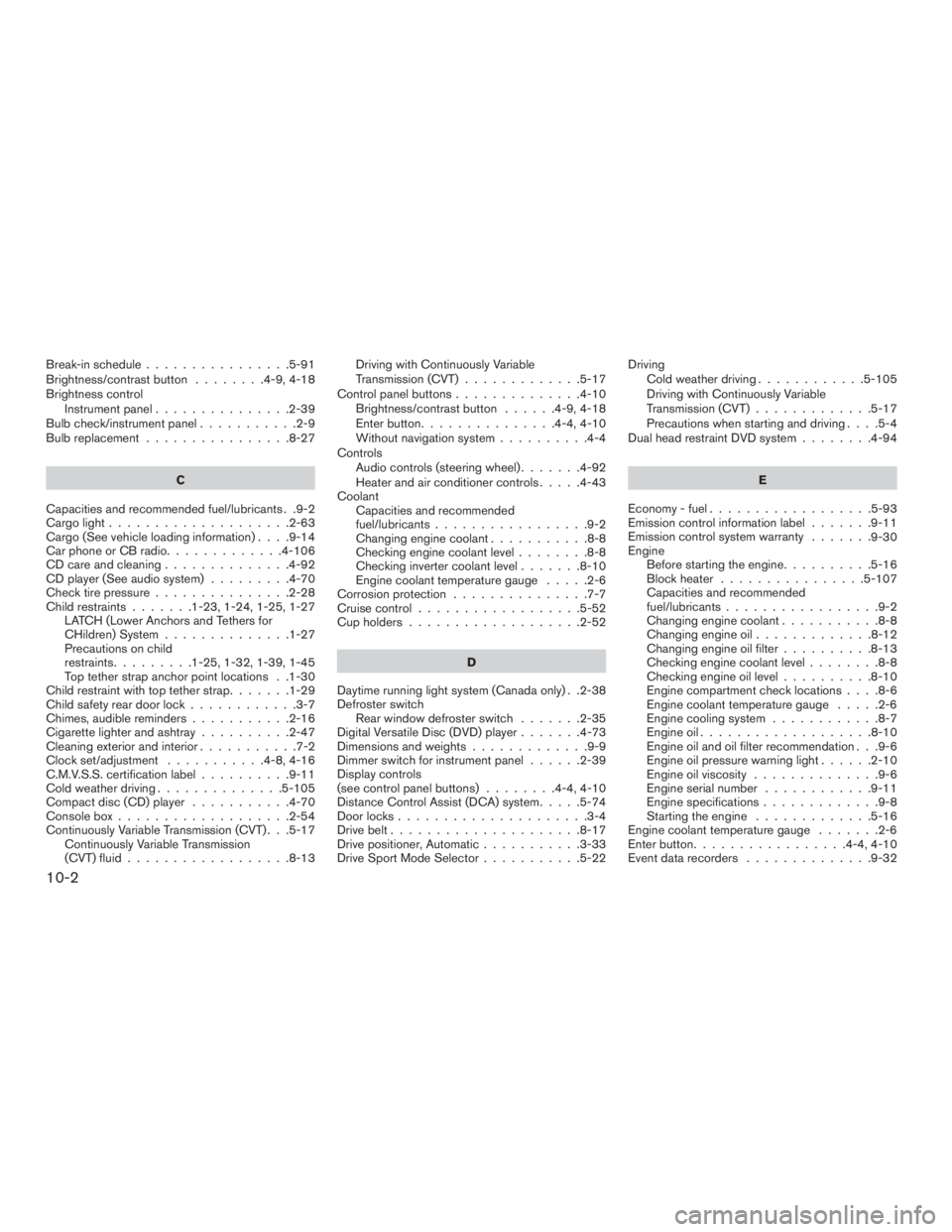

Break-in schedule................5-91
Brightness/contrastbutton ........4-9,4-18
Brightness control Instrument panel ...............2-39
Bulb check/instrument panel ...........2-9
Bulb replacement ................8-27
C
Capacities and recommended fuel/lubricants . .9-2
Cargolight....................2-63
Cargo(Seevehicleloadinginformation)....9-14
Car phone or CB radio .............4-106
CD care and cleaning ..............4-92
CD player (See audio system) .........4-70
Check tire pressure ...............2-28
Child restraints .......1-23,1-24,1-25,1-27
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-27
Precautions on child
restraints.........1-25,1-32,1-39,1-45
Top tether strap anchor point locations . .1-30
Child restraint with top tether strap .......1-29
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-16
Cigarette lighter and ashtray ..........2-47
Cleaningexteriorandinterior...........7-2
Clock set/adjustment ...........4-8,4-16
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-105
Compact disc (CD) player ...........4-70
Consolebox...................2-54
Continuously Variable Transmission (CVT) . . .5-17 Continuously Variable Transmission
(CVT) fluid ..................8-13 Driving with Continuously Variable
Transmission (CVT)
.............5-17
Control panel buttons ..............4-10
Brightness/contrast button ......4-9,4-18
Enterbutton...............4-4,4-10
Without navigation system ..........4-4
Controls Audio controls (steering wheel) .......4-92
Heater and air conditioner controls .....4-43
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changingenginecoolant...........8-8
Checking engine coolant level ........8-8
Checking inverter coolant level .......8-10
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-7
Cruisecontrol..................5-52
Cupholders...................2-52
D
Daytime running light system (Canada only) . .2-38
Defroster switch Rear window defroster switch .......2-35
Digital Versatile Disc (DVD) player .......4-73
Dimensionsandweights.............9-9
Dimmer switch for instrument panel ......2-39
Display controls
(seecontrolpanelbuttons) ........4-4,4-10
Distance Control Assist (DCA) system .....5-74
Door locks .....................3-4
Drive belt .....................8-17
Drive positioner, Automatic ...........3-33
Drive Sport Mode Selector ...........5-22Driving
Cold weather driving ............5-105
Driving with Continuously Variable
Transmission (CVT) .............5-17
Precautions when starting and driving ....5-4
Dual head restraint DVD system ........4-94
E
Economy-fuel..................5-93
Emission control information label .......9-11
Emission control system warranty .......
9-
30
Engine Before starting the engine ..........5-16
Blockheater ................5-107
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant ...........8-8
Changingengineoil.............8-12
Changing engine oil filter ..........8-13
Checking engine coolant level ........8-8
Checking engine oil level ..........8-10
Engine compartment check locations ....8-6
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-7
Engineoil...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure warning light ......2-10
Engine oil viscosity ..............9-6
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-16
Engine coolant temperature gauge .......2-6
Enter button .................4-4,4-10
Event data recorders ..............9-32
10-2

Intelligent cruise control (ICC) systemBrake assist .................5-54
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanicalkey ................3-3
Remote keyless entry operation.......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interiorlight....................2-62
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ............8-9
iPod®Player ...............4-82,4-85
ISOFIX child restraints .............1-27
J
Jump starting ...................6-11
K
Key.........................3-2
Key fob battery replacement ..........8-24
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-7
L
Labels Air conditioner specification label .....9-12C.M.V.S.S. certification label
........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-66
Lane Departure Prevention (LDP) system . . .5-25
Lane Departure Warning (LDW) system ....5-25
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-27
License plate Installing the license plate ..........9-13
Liftgate ......................3-22
Liftgaterelease.................3-25
Light Air bag warning light .........1-66,2-13
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-9
Bulbreplacement..............8-27
Charge warning light .............2-9
Foglights...................8-26
Foglightswitch ...............2-40
Headlight and turn signal switch ......2-35
Headlight control switch ..........2-36
Headlights..................8-26
Interiorlight..................2-62
Lightbulbs..................8-26
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ..................2-12,2-28
Passenger air bag and status light .....1-57
Security indicator light ............2-15
Warning/indicator lights and audible
reminders ...................2-8 Lights
Maplights ..................2-63
Lock Child safety rear door lock ..........3-7
Door locks ...................3-4
Gloveboxlock................2-53
Lift gate release ...............3-25
Power door locks ...............3-6
Loose fuel cap warning .............2-29
Low fuel warning light .......2-10,2-12,2-27
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning
light ....................2-12,2-28
Luggage hook.................. 2

-55
Luggage rack (see roof rack) ..........2-56
Luggage (See vehicle loading information) . .9-14
Luggage storage
(see vehicle loading information) ........2-55
M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-14
Maplights ....................2-63
Mappocket....................2-50
Memory Seat ...................3-33
Meters and gauges ................2-4
Instrument brightness control ........2-39
10-4

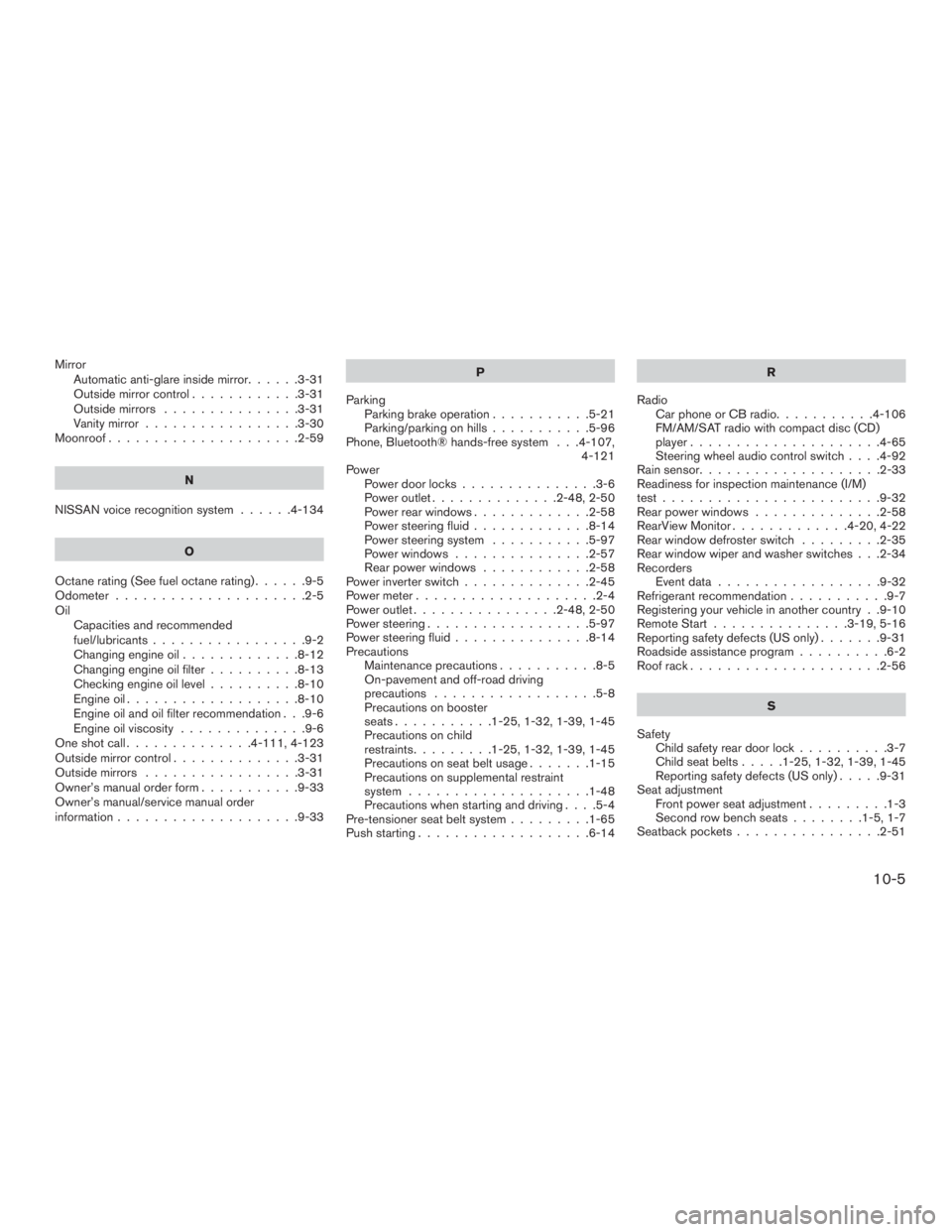

MirrorAutomatic anti-glare inside mirror ......3-31
Outside mirror control ............3-31
Outside mirrors ...............3-31
Vanity mirror .................3-30
Moonroof .....................2-59
N
NISSAN voice recognition system ......4-134
O
Octanerating(Seefueloctanerating)......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-12
Changing engine oil filter ..........8-13
Checking engine oil level ..........8-10
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Oneshotcall..............4- 111, 4-123
Outside mirror control ..............3-31
Outside mirrors .................3-31
Owner’s manual order form ...........9-33
Owner’s manual/service manual order
information ....................9-33 P
Parking Parking brake operation ...........5-21
Parking/parking on hills ...........5-96
Phone, Bluetooth® hands-free system . . .4-107, 4-121
Power Power door locks ...............3-6
Power outlet ..............2-48,2-50
Power rear windows .............2-58
Power steering fluid .............8-14
Power steering system ...........5-97
Power windows ...............2-57
Rear power windows ............2-58
Power inverter switch ..............2-45
Power meter ....................2-4
Power outlet ................2-48,2-50
Power steering ..................5-97
Power steering fluid ...............8-14
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-8
Precautions on booster
seats...........1-25,1-32,1-39,1-45
Precautions on child
restraints .........1-25,1-32,1-39,1-45
Precautions on seat belt usage .......1-15
Precautions on supplemental restraint
system ....................1-48
Precautions when starting and driving ....5-4
Pre-tensioner seat belt system .........1-65
Push starting ...................6-14 R
Radio CarphoneorCBradio...........4-106
FM/AM/SAT radio with compact disc (CD)
player .....................4-65
Steering wheel audio control switch . . . .4-92
Rainsensor....................2-33
Readiness for inspection maintenance (I/M)
test ........................9-32
Rear power windows ..............2-58
RearView Monitor .............
4-
20,4-22
Rear window defroster switch .........2-35
Rear window wiper and washer switches . . .2-34
Recorders Eventdata..................9-32
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote Start ...............3-19,5-16
Reporting safety defects (US only) .......9-31
Roadside assistance program ..........6-2
Roof rack .....................2-56
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-25,1-32,1-39,1-45
Reporting safety defects (US only) .....9-31
Seat adjustment Front power seat adjustment .........1-3
Secondrowbenchseats........1-5,1-7
Seatbackpockets................2-51
10-5
