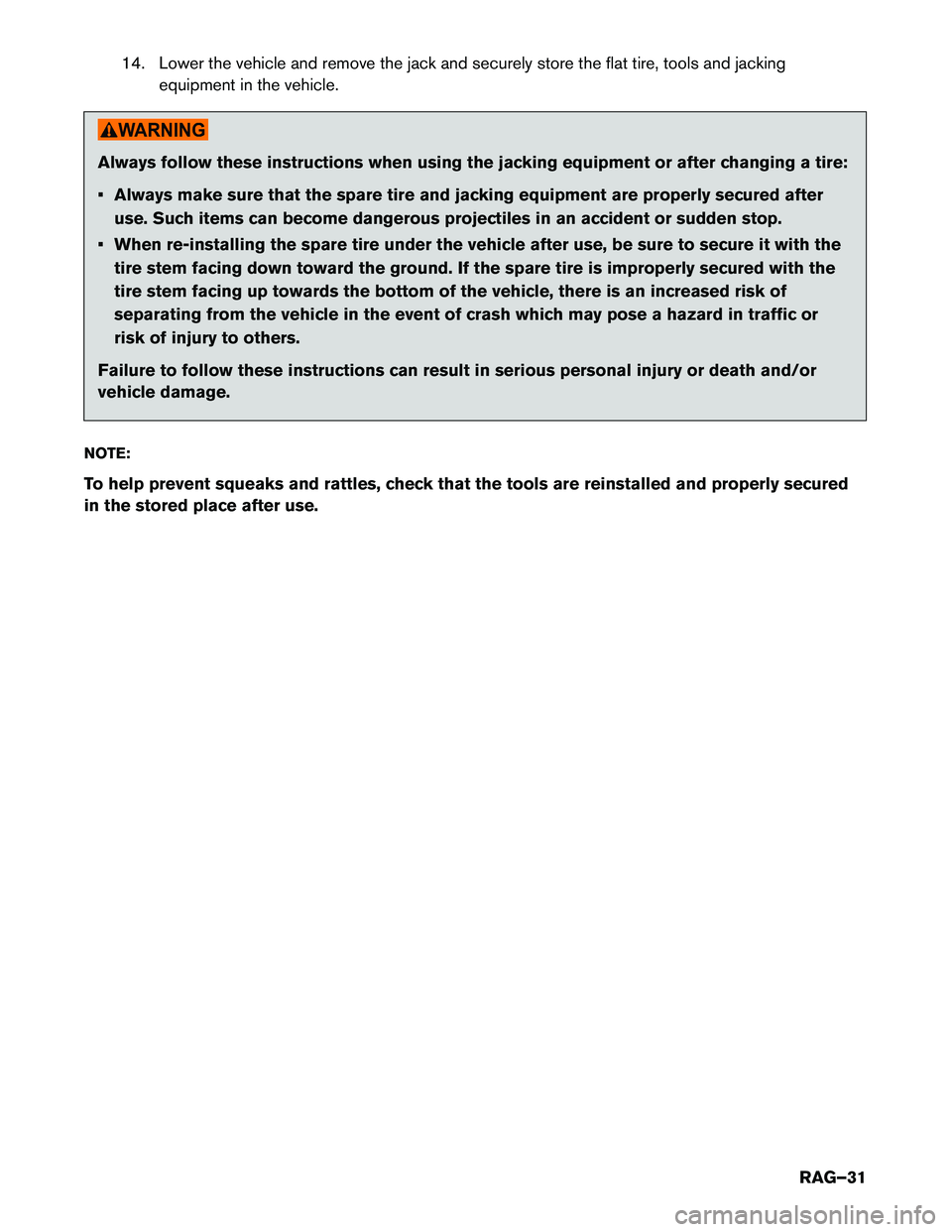

14. Lower the vehicle and remove the jack and securely store the flat tire, tools and jackingequipment in the vehicle.
Always follow these instructions when using the jacking equipment or after changing a tire:
• Always make sure that the spare tire and jacking equipment are properly secured after
use. Such items can become dangerous projectiles in an accident or sudden stop.
• When re-installing the spare tire under the vehicle after use, be sure to secure it with the tire stem facing down toward the ground. If the spare tire is improperly secured with the
tire stem facing up towards the bottom of the vehicle, there is an increased risk of
separating from the vehicle in the event of crash which may pose a hazard in traffic or
risk of injury to others.
Failure to follow these instructions can result in serious personal injury or death and/or
vehicle damage.
NOTE:
To help prevent squeaks and rattles, check that the tools are reinstalled and properly secured
in the stored place after use.
RAG–31

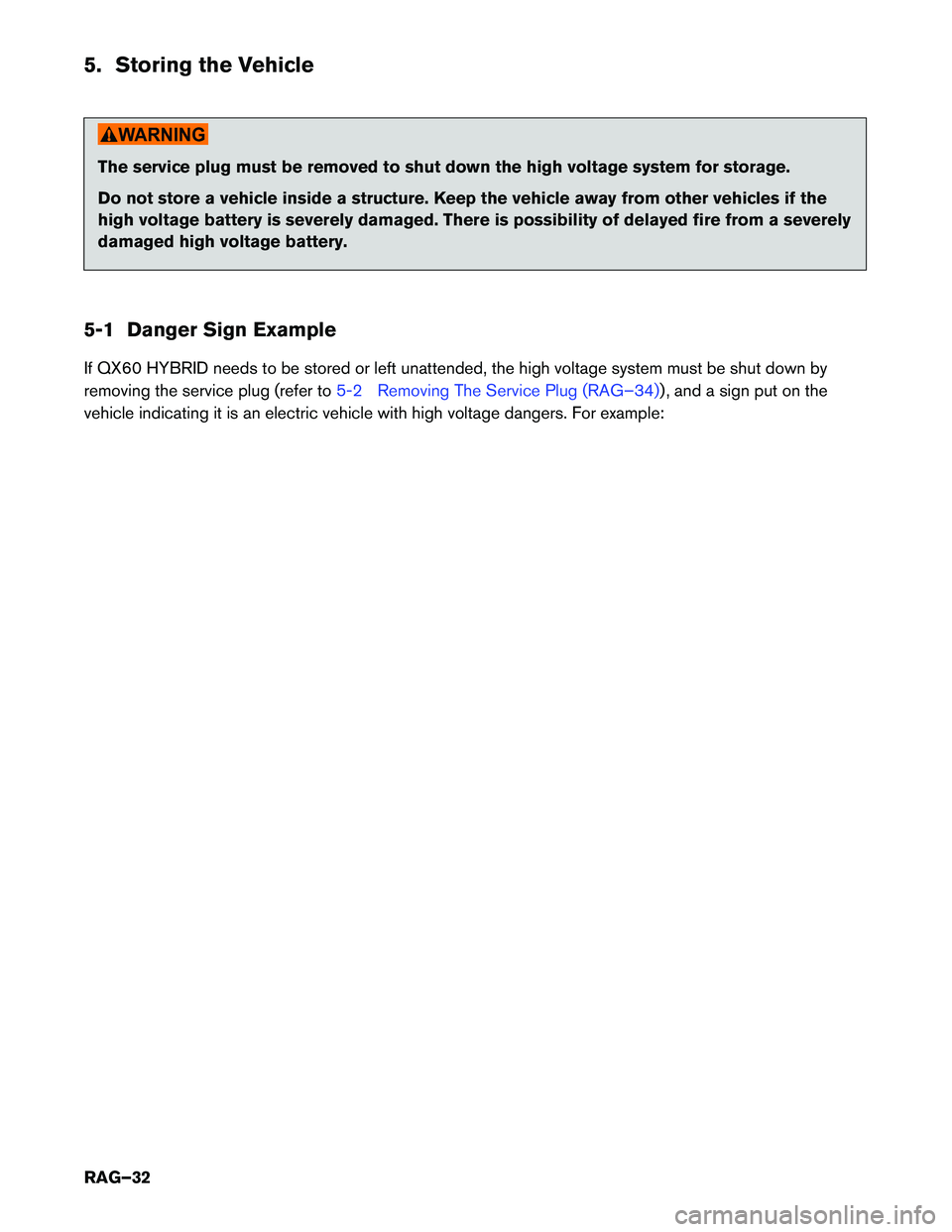

5. Storing the Vehicle
The service plug must be removed to shut down the high voltage system for storage.
Do not store a vehicle inside a structure. Keep the vehicle away from other vehicles if the
high voltage battery is severely damaged. There is possibility of delayed fire from a severely
damaged high voltage battery.
5-1 Danger Sign Example
If QX60 HYBRID needs to be stored or left unattended, the high voltage system must be shut down by
removing the service plug (refer to
5-2 Removing The Service Plug (RAG–34)) , and a sign put on the

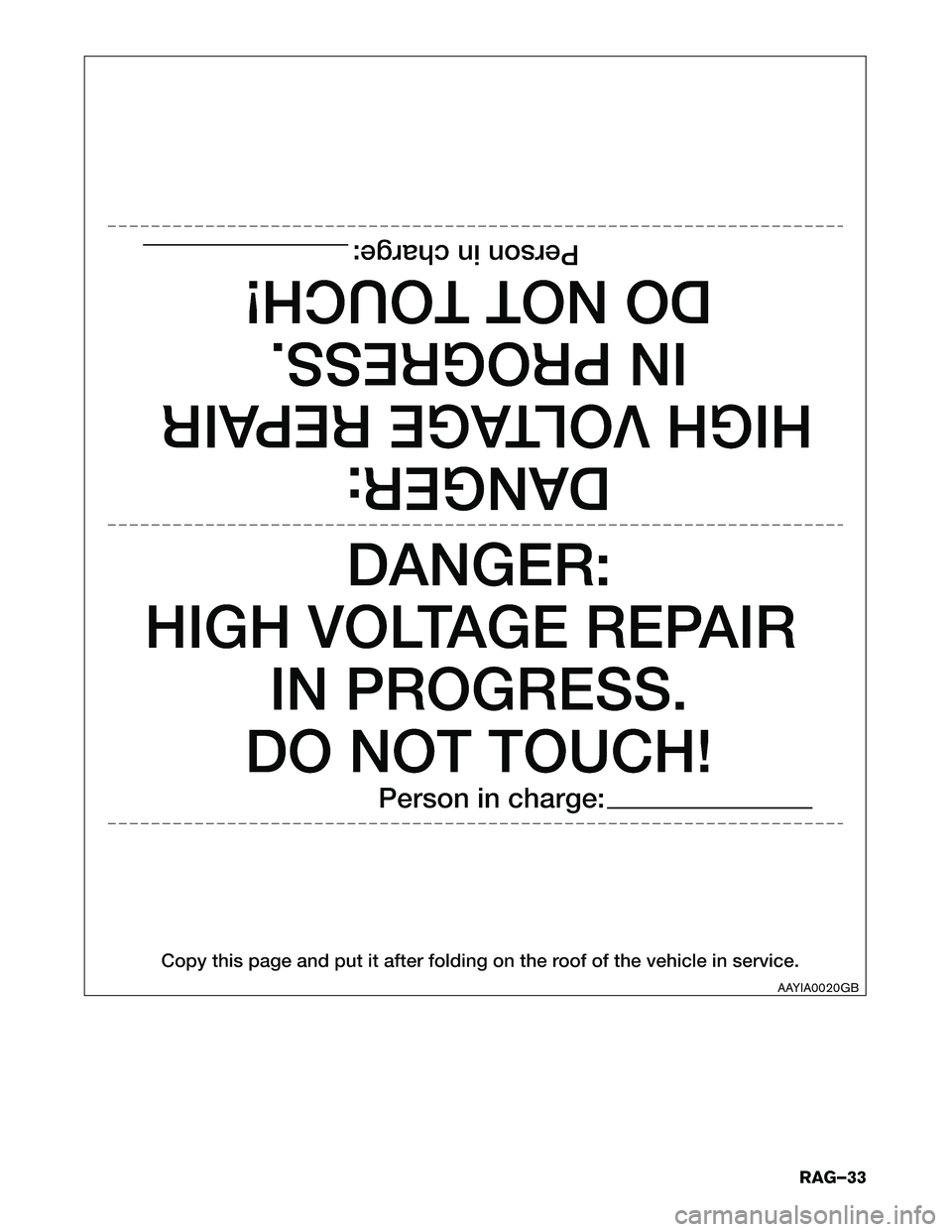

vehicle indicating it is an electric vehicle with high voltage dangers. For example: RAG–32

AAYIA0020GBRAG–33

5-2 Removing The Service Plug
DANGER
•Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the responder from serious injury or death
by electrical shock.
•
Immediately cover the service plug socket with insulated tape. The high voltage
battery retains high voltage power even when the service plug is removed. To avoid
electric shock, NEVER touch the terminals inside the socket.
To avoid unintended reinstallation and risk of electrical shock and severe personal injury
or death, the service plug should be securely stored away from the vehicle while the vehicle is
in storage.
1. If possible, check the READYindicator status in the instrument cluster. If it is on, the high
voltage system is active.
2. Place the shift selector in the Park (P) position.
3. Push the ignition switch once to turn OFF the high voltage system. Then verify whether the READY indicator
is off.
If the READY indicator does not turn off, continue to the
next steps.
AAYIA0191ZZ
ACC
LOCK
(OFF)
ON
AAYIA0271ZZ
RAG–34

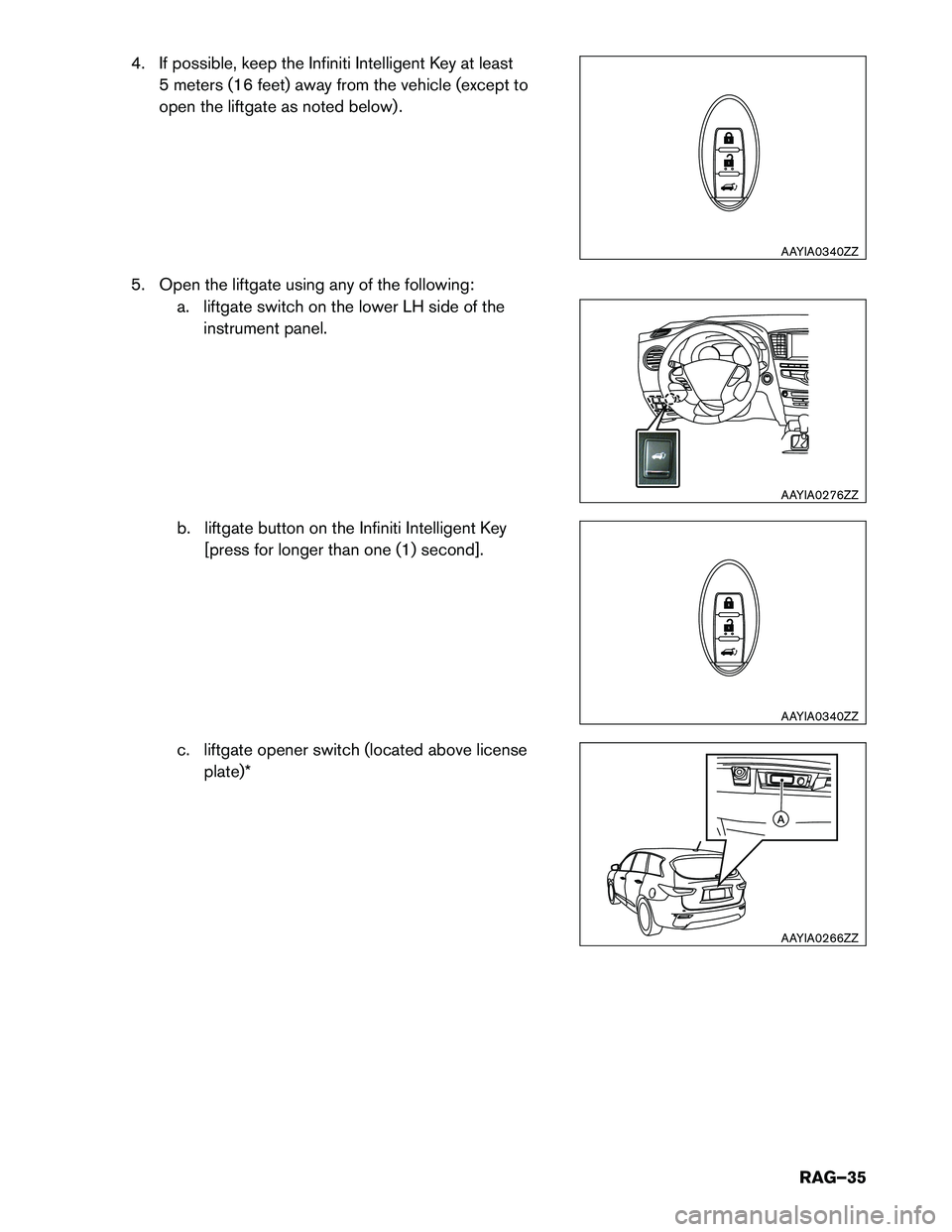

4. If possible, keep the Infiniti Intelligent Key at least5 meters (16 feet) away from the vehicle (except to
open the liftgate as noted below) .
5. Open the liftgate using any of the following: a. liftgate switch on the lower LH side of theinstrument panel.
b. liftgate button on the Infiniti Intelligent Key [press for longer than one (1) second].
c. liftgate opener switch (located above license plate)*
AAYIA0340ZZ
AAYIA0276ZZ
AAYIA0340ZZ
A
AAYIA0266ZZ
RAG–35

d. If the liftgate cannot be opened with theinstrument panel switch, liftgate opener switch, or
key fob due to a discharged battery, follow thesesteps:
• Remove the cover (A) on the inside of the
liftgate.
• Move the lever (B) as illustrated to open liftgate.
* You must have the Infiniti Intelligent Key within approximately 1 meter (3 feet) range of
liftgate opener switch to use the liftgate opener switch function.
6. Open luggage board.
7. Open service plug access cover.A
B
AAYIA0316ZZ
A
AAYIA0267ZZ
AAYIA0268ZZ
RAG–36

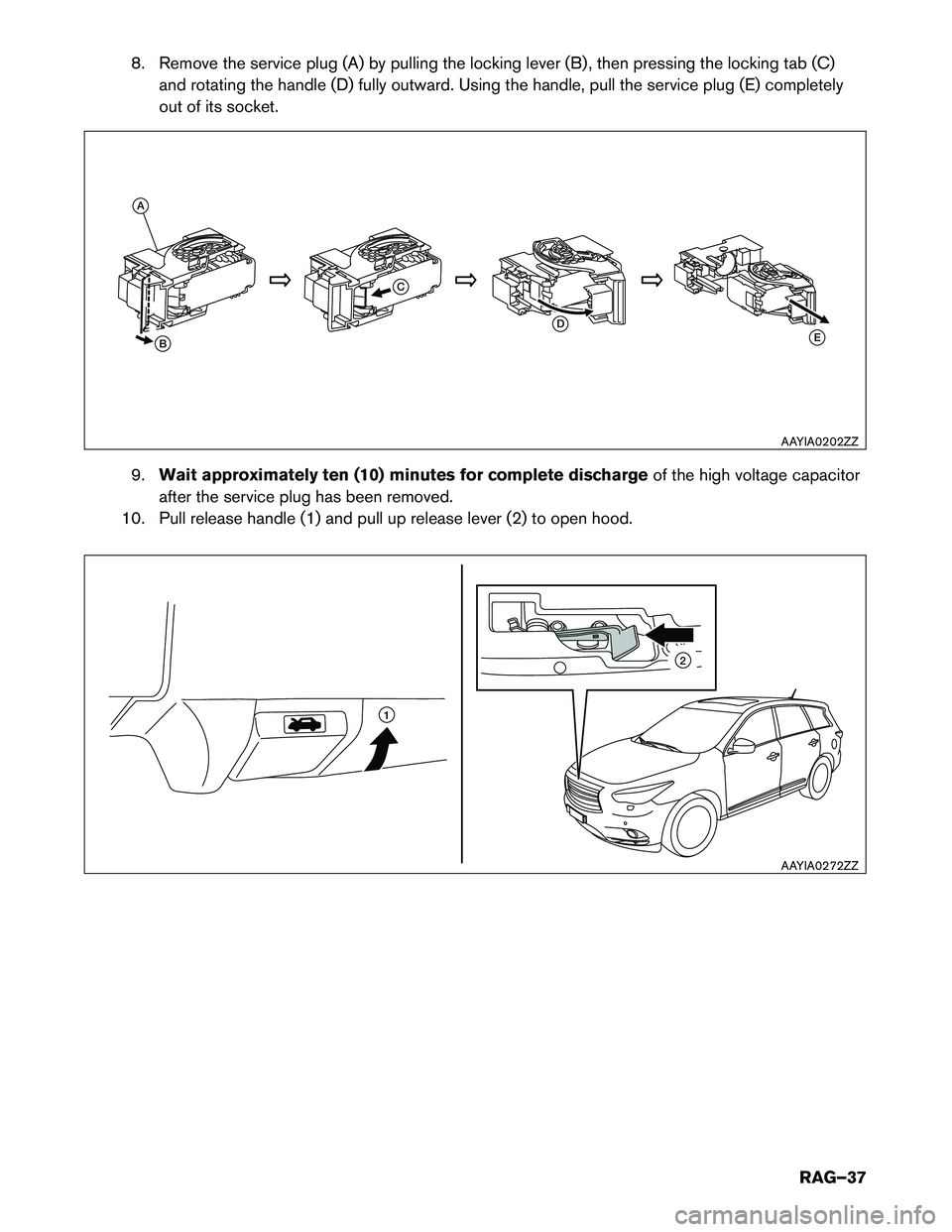

8. Remove the service plug (A) by pulling the locking lever (B) , then pressing the locking tab (C)and rotating the handle (D) fully outward. Using the handle, pull the service plug (E) completely
out of its socket.
9. Wait approximately ten (10) minutes for complete discharge of the high voltage capacitor
after the service plug has been removed.
10. Pull release handle (1) and pull up release lever (2) to open hood.
A
B
C
DE
AAYIA0202ZZ
1
2
AAYIA0272ZZ
RAG–37

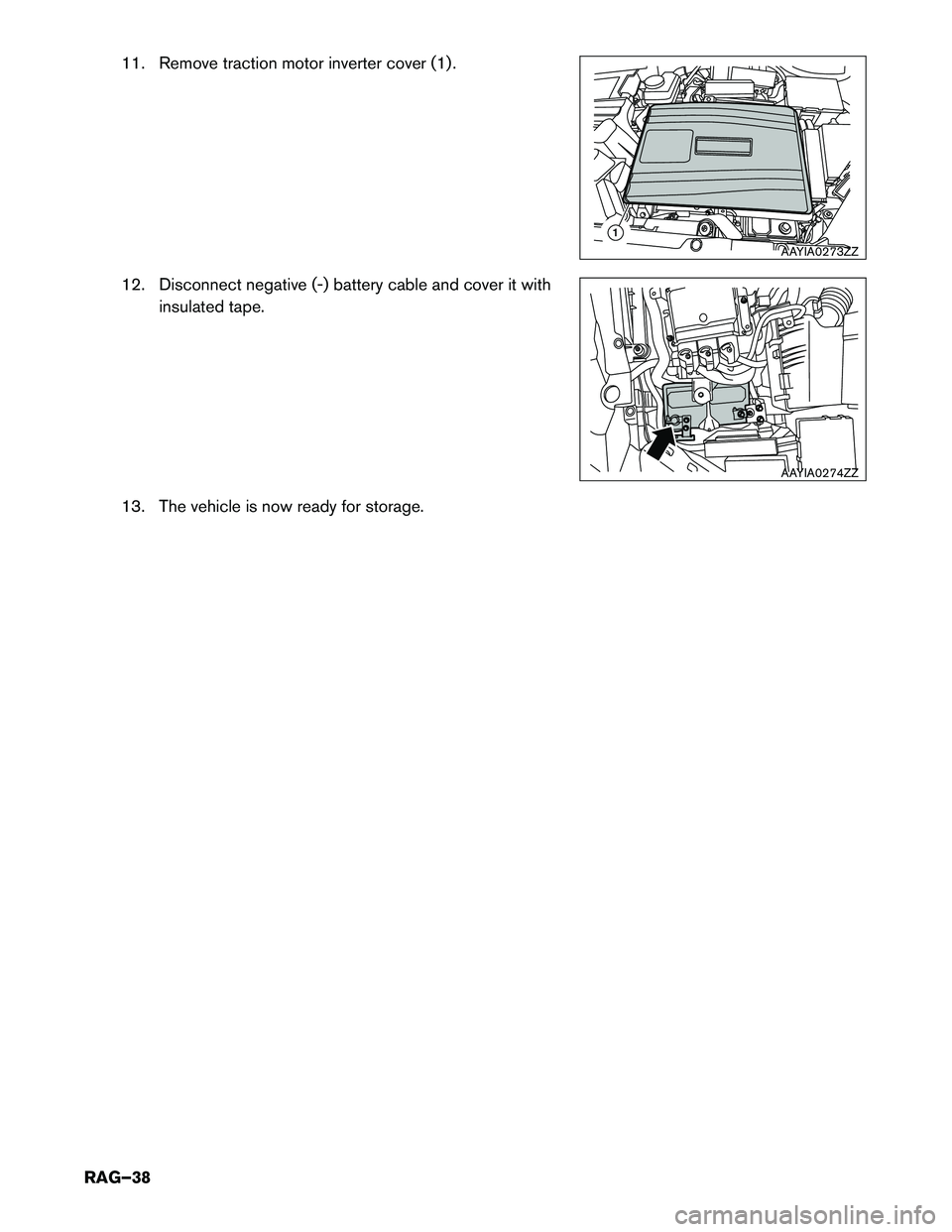

11. Remove traction motor inverter cover (1) .
12. Disconnect negative (-) battery cable and cover it withinsulated tape.
13. The vehicle is now ready for storage.
1
AAYIA0273ZZ
AAYIA0274ZZ
RAG–38
