6-2 High-Voltage Battery Pack Removal
6-2.1
Exploded Views
High-Voltage Battery Exploded View : Vehicle front
1.

Battery inlet duct 2. DC/DC converter inlet duct 3. 12-volt Battery positive terminal
4. High-voltage battery 5. DC/DC converter6. Battery inlet duct B
7. Battery outlet duct B 8. DC/DC converter bracket 9. Service plug
10. Battery outlet duct 11. DC/DC converter outlet duct7 4
10 9
11 8 51
3 2
6
AAYIA0395ZZ
DG–41

Rear Ducts Exploded View
1. Rear ventilator duct 1 2. Rear ventilator duct 2 3. Rear ventilator duct 3
4. Rear ventilator duct lower 5. Rear cooling unit assembly 6. Rear ventilator duct upper 1
2 3 4 56
AAYIA0310ZZ
DG–42

6-2.2 Removal Procedure
1. Discharge high-voltage battery. Refer to 3-3 Discharge Procedures (DG–18).
2.

Remove the service plug. Refer to Alternate Procedure 2 (Remove Service Plug) (DG–25).
3.

Release clips that retain the seat back board to the storage box lid.
4. Open the storage box lid.
5. Remove the BOSE subwoofer (2) (if equipped) from the storage box (5) using the following steps.a. Remove spare tire clamp (1) from bracket (4) .
b. Lift subwoofer (2) to disconnect harness (3) then remove subwoofer (2) from storage box (5) .
6. Remove back door kicking plate by releasing the back door kicking plate clips and pawls using a suitable tool. : Pawl
: Clip
7.

Remove storage box screws and storage box.
8. Release the storage box side finisher clips using a suitable tool, then remove.
9. Remove the third row seat front bolts covers and bolts (2) .
10. Pull the third row seatback release lever (1) and fold down the seatbacks (LH/RH) . 1
2
3
4 5
AAYIA0305ZZ AAYIA0306ZZ
1
2
AAYIA0307ZZ
DG–43

11. Remove bolts (A) and position storage box front
brackets (1) aside. Then remove seat rear bolts (B) and
the third row seat.
12. Partially remove the RH and LH rear door welt.
13. Remove the seat belt bolt cover and bolt from the RH and LH luggage side lower finisher.
14. Remove the seat belt from the RH and LH luggage side lower finisher.
15. Remove the RH and LH luggage side lower finisher coat hook bolt and coat hook.
16. Remove the RH and LH luggage side lower finisher cover, and then remove the RH and LH luggage side
lower finisher bolt (A) . : Vehicle front
17.

Disconnect the harness connector from the power
socket (LH only) .
18. Remove the luggage side lower finisher RH and LH.
19. Remove the rear ventilator ducts.
Use the following steps and refer to the 6-2.1 Exploded Views (DG–41).
a.

Remove the clips and rear ventilator duct 1 (1) .
b. Remove bolts securing the third row seat cross member and third row seat cross member
(1) .
c. Remove the clips and rear ventilator duct 2 (2) .
d. Remove the screws and the rear ventilator duct 3 (3) .
e. Remove the clips and rear ventilator duct upper (6) .
f. Remove the storage box bracket (RH) .
g. Remove the nut and rear ventilator duct lower (4) . 1
1
A
B
AAYIA0308ZZ A
AAYIA0309ZZ
1
AAYIA0313ZZ
DG–44

20. Disconnect harness connector (1) from high-voltage
battery . DANGER
Immediately protect the terminals of the disconnected
high-voltage

harness connector socket using insulated
tape so that they are not exposed. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
Follow the procedure shown below to disconnect the DC/DC converter harness connector.
21. Pull back the DC/DC converter 12-volt battery positive terminal cover. Remove nut (1) and disconnect DC/DC
converter 12-volt battery positive terminal (2) . DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. 1
AAYIA0387ZZ 1
32
AAYIA0394ZZ 1
2
AAYIA0388ZZ
DG–45

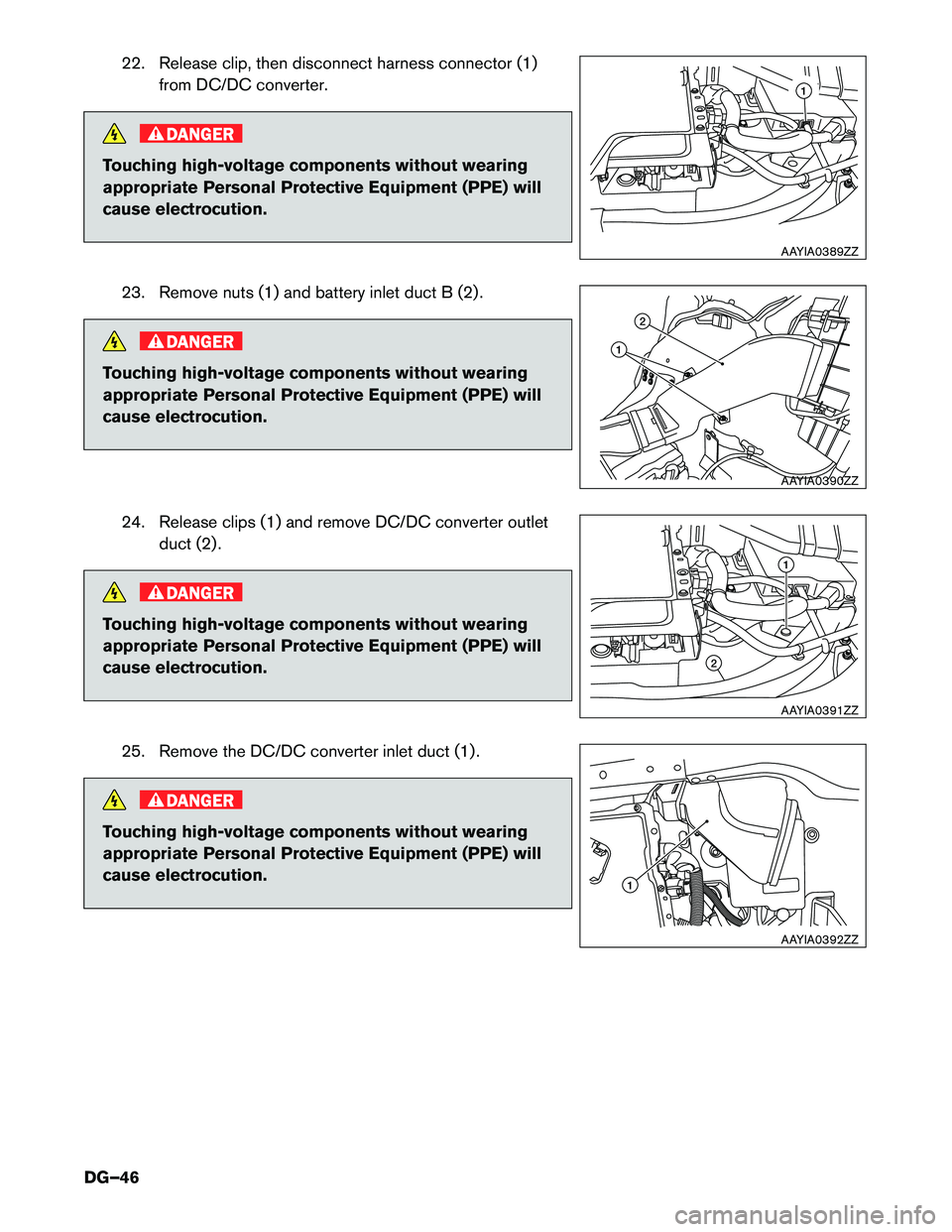

22. Release clip, then disconnect harness connector (1)
from DC/DC converter. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
23. Remove nuts (1) and battery inlet duct B (2) . DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
24. Release clips (1) and remove DC/DC converter outlet duct (2) . DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
25. Remove the DC/DC converter inlet duct (1) . DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. 1
AAYIA0389ZZ 1 2
AAYIA0390ZZ 1
2
AAYIA0391ZZ 1
AAYIA0392ZZ
DG–46

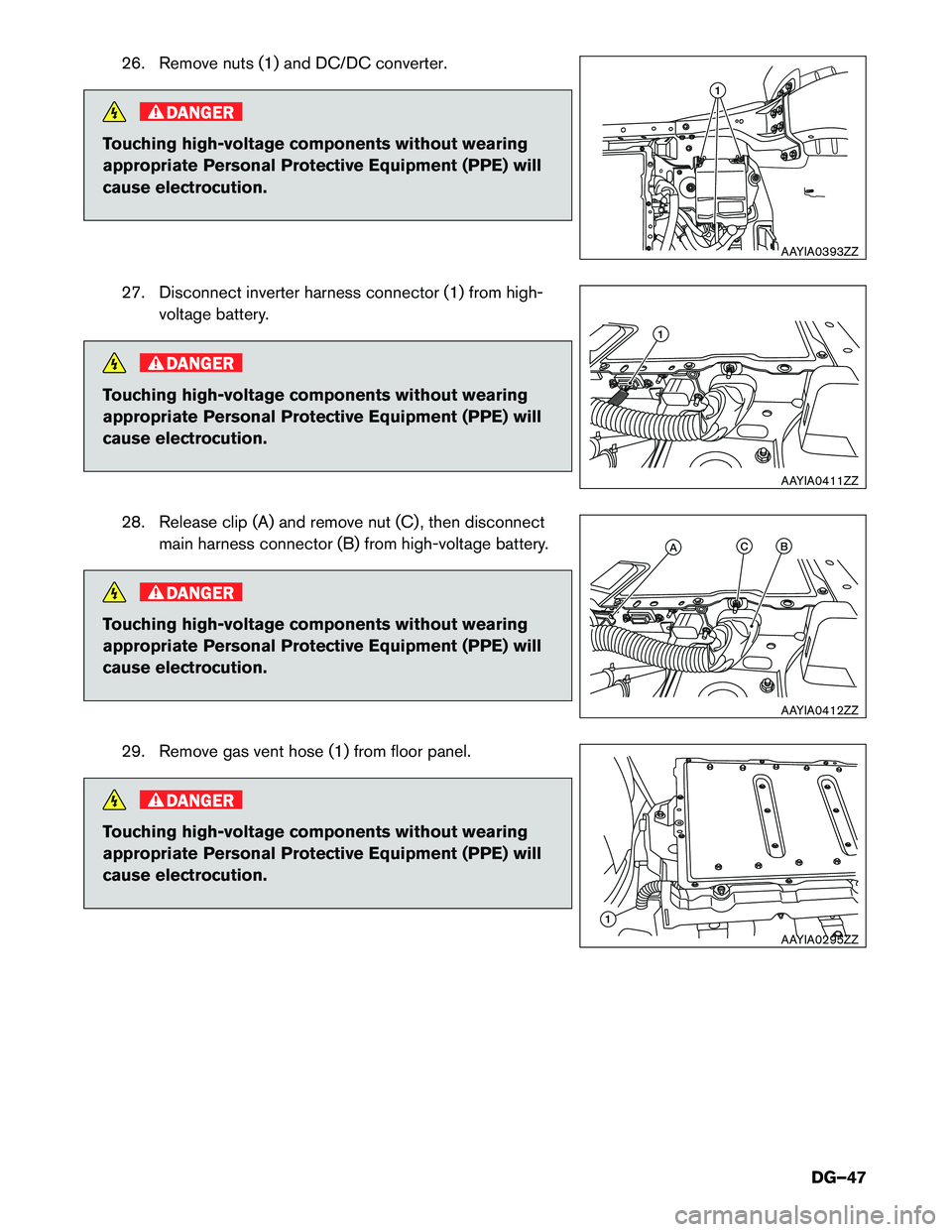

26. Remove nuts (1) and DC/DC converter.
DANGER
Touching high-voltage components without wearing
appropriate
Personal Protective Equipment (PPE) will
cause electrocution.
27. Disconnect inverter harness connector (1) from high- voltage battery. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
28. Release clip (A) and remove nut (C) , then disconnect main harness connector (B) from high-voltage battery. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
29. Remove gas vent hose (1) from floor panel. DANGER
Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution. 1
AAYIA0393ZZ 1
AAYIA0411ZZ B
A C
AAYIA0412ZZ 1
AAYIA0295ZZ
DG–47

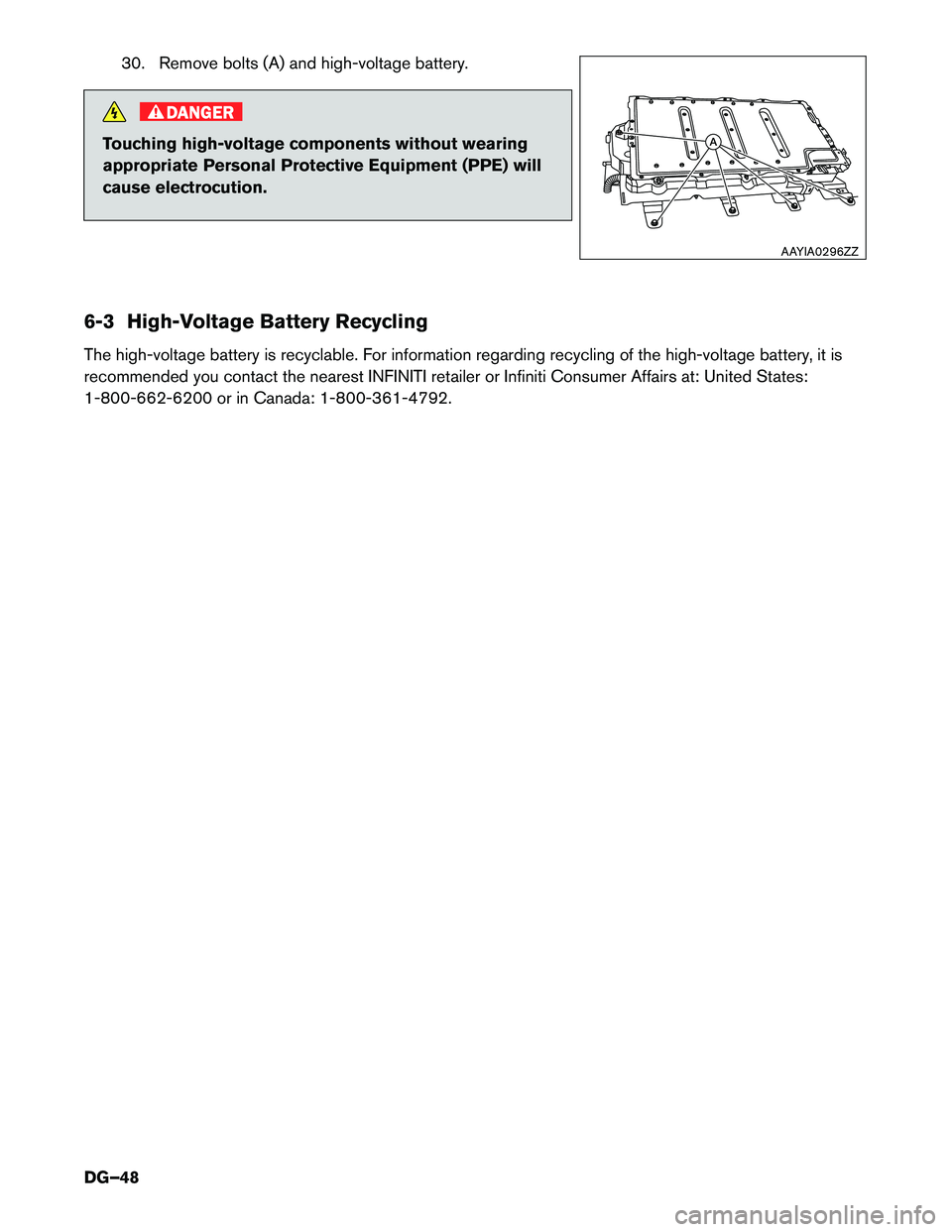

30. Remove bolts (A) and high-voltage battery.
DANGER
Touching high-voltage components without wearing
appropriate
Personal Protective Equipment (PPE) will
cause electrocution.
6-3 High-Voltage Battery Recycling
The high-voltage battery is recyclable. For information regarding recycling of the high-voltage battery, it is
recommended you contact the nearest INFINITI retailer or Infiniti Consumer Affairs at: United States:
1-800-662-6200 or in Canada: 1-800-361-4792. A
AAYIA0296ZZ
DG–48
