INFINITI QX60 HYBRID 2016 Quick Reference Guide

2016 Infiniti QX60
HybridQuick Reference Guide

*See your Owner’s Manual for information.
1 INSTRUMENT BRIGHTNESS
CONTROL SWITCHES*
2 BACKUP COLLISION INTERVENTION
(BCI) SWITCH*
3 TWIN TRIP ODOMETER RESET SWITCH*
4 VEHICLE INFORMATION DISPLAY
5 HEADLIGHT AND TURN SIGNAL SWITCH
6 EV INDICATOR LIGHT
7 LOW TIRE PRESSURE WARNING LIGHT
8 WIPER AND WASHER SWITCH
9 VEHICLE INFORMATION
DISPLAY SWITCH
10 STEERING WHEEL SWITCHES FOR
AUDIO*/BLUETOOTH®/NAVIGATION
11 INTELLIGENT CRUISE CONTROL
12 VEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH*
13 POWER LIFTGATE SWITCH
14 POWER LIFTGATE MAIN SWITCH
15 DYNAMIC DRIVER ASSISTANCE
CONTROL SWITCH*
16 TILT/TELESCOPIC STEERING
WHEEL SWITCH*
17 HEATED STEERING WHEEL SWITCH*
18 WARNING SYSTEMS SWITCH
19 HEADLIGHT AIMING
CONTROL SWITCH*
20 POWER INVERTER SWITCH
21 HOOD RELEASE*
22 CONTROL PANEL DISPLAY SCREEN*
23 HEATER AND AIR CONDITIONER (automatic)
24 AUDIO SYSTEM
25 FRONT PASSENGER AIR BAG
STATUS LIGHT*
26 POWER OUTLET
27 DRIVER’S CLIMATE-CONTROLLED
SEAT SWITCH*
28 INFINITI DRIVE MODE SELECTOR*
29 PASSENGER’S CLIMATE-CONTROLLED
SEAT SWITCH*
23
24
26
25
29282717181920
1213
15
22
1
4
65
987
2
3
1110
Behind
steering wheel
Behind
steering wheel Behind
steering wheel
16
14
21

16 TILT/TELESCOPIC STEERING
WHEEL SWITCH*
17 HEATED STEERING WHEEL SWITCH*
18 WARNING SYSTEMS SWITCH
19 HEADLIGHT AIMING
CONTROL SWITCH*
20 POWER INVERTER SWITCH
21 HOOD RELEASE*
22 CONTROL PANEL DISPLAY SCREEN*
23 HEATER AND AIR CONDITIONER (automatic)
24 AUDIO SYSTEM
25 FRONT PASSENGER AIR BAG
STATUS LIGHT*
26 POWER OUTLET
27 DRIVER’S CLIMATE-CONTROLLED
SEAT SWITCH*
28 INFINITI DRIVE MODE SELECTOR*
29 PASSENGER’S CLIMATE-CONTROLLED
SEAT SWITCH*
table of contents
new system features Warning Systems Switch (if so equipped) ...........................2 Approaching Vehicle Sound for Pedestrians (VSP) ....................2
essential information Direct Response Hybrid™ Warning Light and Hybrid Awareness..........3 Tire Pressure Monitoring System (TPMS) with Tire Inflation Indicator.....3 Loose Fuel Cap and Fuel-filler Door ................................4 Towing Your Vehicle.............................................5 Accessing the Front Cup Holders ..................................5 Front Armrest/Center Console Storage Box ..........................5 Clock Set/Adjustment ...........................................5

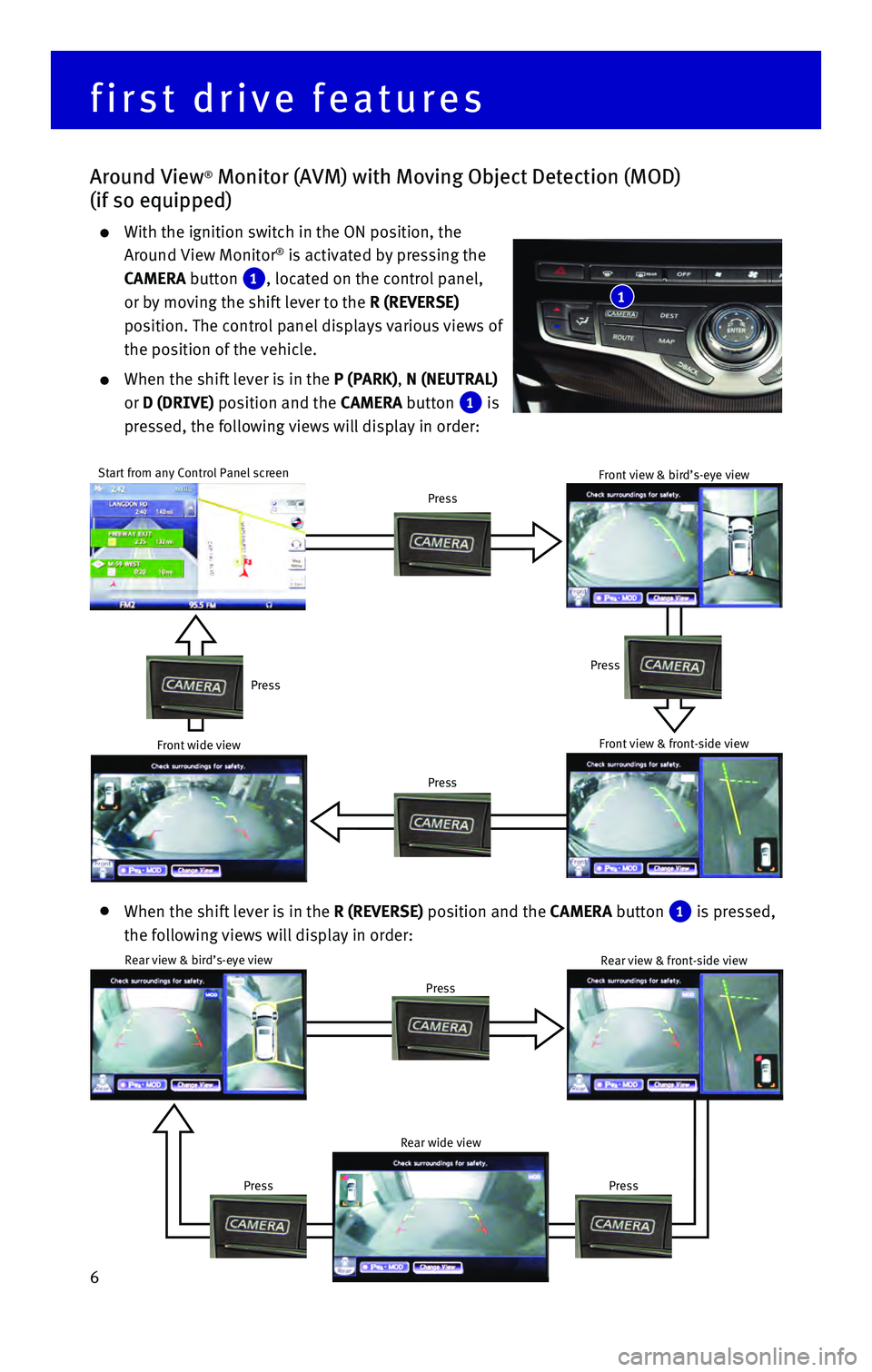

first drive features Around View® Monitor (AVM) with Moving Object Detection (MOD) (if so equipped) ................................................6 Infiniti Intelligent Key System.....................................8 Infiniti Connection™ (if so equipped)...............................9 INFINITI Mobile Entertainment System (MES) (if so equipped).........11 Power Liftgate.................................................12 Power Seat Adjustments ........................................13 2nd Row Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .13 3rd Row Manual Reclining Seatback ...............................14 3rd Row Manual Folding Seats ...................................14 Assist Charge Gauge ...........................................14 Automatic Drive Positioner (if so equipped) ........................15 Outside Mirror Control Switch....................................15 Starting/Stopping the Hybrid System..............................16 Headlight Control Switch........................................16 Wiper and Washer Switch .......................................17 Heater and Air Conditioner (automatic) ............................18 Rear Climate Controls ..........................................20 FM/AM/SiriusXM® Satellite Radio with CD/DVD Player (if so equipped)..20 Conventional (Fixed Speed) Cruise Control .........................21 Intelligent Cruise Control (ICC) (if so equipped).....................22 USB (Universal Serial Bus) Connection Port/iPod® Interface...........23 Power Outlets.................................................23
system guide Vehicle Information Display .....................................24 Bluetooth® Hands-free Phone System .............................25 System Operating Tips .......................................25 Bluetooth® System without Navigation (if so equipped) ..............26 Bluetooth® System with Navigation (if so equipped) .................27 Bluetooth® Streaming Audio with Navigation (if so equipped) .........30 Navigation System (if so equipped) ...............................31 HomeLink® Universal Transceiver.................................33
Additional information about your vehicle is also available in your Owne\
r’s
Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.
Please see your Owner’s Manual for important safety information
and system operation limitations.
•
A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
•
Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats, seat belts and supplemental
restraint system (section 1)”,

the “Monitor, climate, audio, phone and voice
recognition systems (section 4)” and the “Starting and driving (section 5)” of
your Owner’s Manual.
To view detailed instructional videos, go to
www.infinitiownersinfo.mobi/2016/qx60
or snap this barcode with an appropriate barcode reader.
29

2
Warning Systems Switch (if so equipped)
The warning systems switch 1 will turn on and
off the systems enabled in the vehicle information
display. The systems controlled by the warning
systems switch
1 include:
• Lane Departure Warning (LDW)
• Blind Spot Warning (BSW)
• Forward Collision Warning (FCW)
When the warning systems switch 1 is turned off,
the indicator
2 on the switch is off. If the warning
systems switch
1 is illuminated, the system is on.
The indicator
2 will also be off if all of the warning
systems are deactivated using the Settings menu.
To enable or disable these systems, perform the
following operation:
• Press the button 3 on the steering wheel
multiple times until you reach the Settings menu.
• Press up or down on the button 4 on the
steering wheel to select the “Driver Assistance”
5 and “Driving Aids” 6 menu items.
• Press the ENTER button 4 on the steering wheel
to change a menu item.
For more information, refer to the “Starting and driving (section 5)” of
your Owner’s Manual.
new system features
6
5
Approaching Vehicle Sound for Pedestrians (VSP)
The VSP system helps alert pedestrians to the presence of the vehicle wh\
en it is being
driven at a low-speed.
When the vehicle starts to move, it produces a sound. The sound stops wh\
en the vehicle
speed reaches approximately 19 mph (30 km/h) while accelerating.
This sound will activate again when decelerating to a speed of less than\

16 mph (25 km/h).
For more information, refer to the “HEV Overview (section HEV)” of your Owner’s Manual.
3
4
1
2

3
essential information
Tire Pressure Monitoring System (TPMS) with Tire Inflation Indicator
A Tire Pressure Low - Add Air warning message will
appear in the vehicle information display
1 and
the low tire pressure warning light
2 will illuminate
when one or more tires are low in pressure and air
is needed.
• The tire pressures should be checked when
the tires are cold. The tires are considered cold
after the vehicle has been parked for 3 hours
or more or driven less than 1 mi (1.6 km) at
moderate speeds.
When adding air to an under-inflated tire, the TPMS with Tire Inflation \
Indicator
provides visual and audible signals to help you inflate the tire to the \
recommended COLD
tire pressure.
To use the Tire Inflation Indicator:
1. Move the shift lever to the P (PARK) position and apply the parking brake.
2. Place the ignition switch in the ON position. Do not start the hybrid sy\
stem.
3. Add air to the under-inflated tire, and within a few seconds, the hazard\
warning lights will
start flashing.
Direct Response Hybrid™ Warning Light and Hybrid Awareness
DIRECT RESPONSE HYBRID WARNING LIGHT
This light will illuminate when the ignition switch is in the ON positio\
n
and will extinguish when the hybrid system is started.
The light will also illuminate when a malfunction occurs in the electric\

motor or hybrid system.
When this light illuminates while driving, immediately stop the vehicle \
in a safe location
and contact an INFINITI retailer.
If the hybrid system warning light blinks while driving, it may indicate\
that the Li-ion
battery charge is low and you cannot continue to drive.
HYBRID AWARENESS
Your vehicle is virtually silent in the electric mode. If you exit your \
vehicle while it is on but
the engine is not running, the engine will automatically start, informin\
g you that the car is
still on.
Do not store your Infiniti Intelligent Key within the detection range of\
the vehicle.
This may cause welcome lights and other functions to activate, creating \
unwanted
battery drain.
The hybrid system is designed for optimum efficiency and performance. Ac\
tivation of the
electric mode may vary with driving conditions and driver input. A full \
battery display does
not indicate the vehicle should be in the electric mode.
For more information, refer to the “HEV Overview (section HEV)” and the “Instruments and controls (section 2)” of your
Owner’s Manual.
1
2

4
essential information
Loose Fuel Cap and Fuel-filler Door
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will appear
in the vehicle information display
1 when the
fuel-filler cap is not tightened correctly.
To tighten, turn the cap clockwise until a single click
is heard.
The warning message will extinguish when the
vehicle detects the fuel-filler cap is properly
tightened and the reset button
2 on the steering wheel is pressed for about 1 second.
If the cap is not properly tightened, the Malfunction Indicator Light may illuminate.
FUEL-FILLER DOOR
The fuel-filler door is located on the driver’s side of
the vehicle.
The fuel-filler door automatically locks or unlocks
when the driver’s door is locked or unlocked.
To open the fuel-filler door, push the right side of
the fuel-filler door and release.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
1
4. When the designated tire pressure is reached, the horn will beep once an\
d the hazard
warning flashers will stop flashing.
5. Repeat this procedure for any additional under-inflated tires.
After tire pressures are adjusted, drive the vehicle at speeds above 16 \
mph (25 km/h). The
Tire Pressure Low - Add Air warning message and low tire pressure warning light
2
will extinguish.
When the low tire pressure warning light 2 flashes for approximately 1 minute and
then remains on, the TPMS is not functioning properly. Have the system c\
hecked. It is
recommended you visit an INFINITI retailer for this service.
Tire pressure rises and falls depending on the heat caused by the vehicl\
e’s operation and
the outside temperature. Low outside temperature can lower the temperatu\
re of the air
inside the tire, which can cause a lower tire inflation pressure. This m\
ay cause the low tire
pressure warning light
2 to illuminate. If the warning light illuminates, check the tire
pressure in your tires.
• Check the tire pressure (including the spare tire) often and always pr\
ior to long
distance trips.
The Tire and Loading Information label contains valuable information. Pl\
ease refer to the
“Technical and consumer information (section 9)” of your Owner’\
s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
2

5
Accessing the Front Cup Holders
To open the cup holders, push the lid 1 down
and release.
For more information, refer to the “Instruments and controls (section 2)” of
your Owner’s Manual.
Clock Set/Adjustment
To adjust the time and the appearance of the clock
on the display:
1. Press the SETTING

button on the control panel.
2. Select the “Others” key.
3. Select the “Clock” key.
The following settings can be adjusted:
• On-screen Clock: The clock in the upper right corner of the display can be turned
ON or OFF.
• Clock Format (24h): The clock can be set to 12 hours or 24 hours.
• Offset (hour): The time can be adjusted by increasing or decreasing per hour.
• Offset (min): The time can be adjusted by increasing or decreasing per minute.
• Daylight Savings Time: The application of Daylight Savings Time can be turned
ON or OFF.
• Time Zone

: Adjust the time zone. Choose a time zone from the available list.
Press the BACK button to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4\
) ” of your
Owner’s Manual.
Towing Your Vehicle
All-Wheel Drive (AWD) vehicle
• An all-wheel drive vehicle must be towed with all wheels off the ground \
even if the
vehicle is placed in the Front Wheel Drive (FWD) mode.
For proper towing and to avoid accidental damage to your vehicle, INFINI\
TI
recommends that a service operator tow your vehicle after carefully read\
ing the Owner’s
Manual precautions.
For more information, refer to the “In case of emergency (section 6)” of your Owner’s Manual.
1
Front Armrest/Center Console Storage Box
To access the top storage bin, pull up on the driver’s
side UPPER lever
1.
To access the bottom storage bin, pull up on the
passenger’s side LOWER lever
2.
For more information, refer to the “Instruments and controls (section 2)”
of your Owner’s Manual.12

6
When the shift lever is in the R (REVERSE) position and the CAMERA button 1 is pressed,
the following views will display in order:
Start from any Control Panel screen
Press
Press
Press
Press
Around View® Monitor (AVM) with Moving Object Detection (MOD)
(if so equipped)
With the ignition switch in the ON position, the
Around View Monitor® is activated by pressing the
CAMERA button
1, located on the control panel,
or by moving the shift lever to the R (REVERSE)
position. The control panel displays various views of
the position of the vehicle.
When the shift lever is in the P (PARK), N (NEUTRAL)
or D (DRIVE) position and the CAMERA button
1 is
pressed, the following views will display in order:
Rear view & bird’s-eye view
Press
PressPress Rear view & front-side view
Rear wide view
Front wide view Front view & bird’s-eye viewFront view & front-side view
first drive features
1

7
2
3
The colored guide lines on the display screen indicate vehicle width and\
approximate
distances to objects with reference to the vehicle body line.
• Red 1.5 ft (0.5 m); Yellow 3 ft (1 m); Green 7 ft (2 m) and 10 ft \
(3 m).
There are some areas where the system will not show objects.
• When in the front or the rear view display, an
object below the bumper or on the ground may
not be viewed
2.
• When in the bird’s-eye view, a tall object near
the seam of the camera viewing areas
3
will not appear in the monitor.
The distance between objects viewed on the Around
View Monitor differs from the actual distance.
Objects in the bird’s-eye view will appear further
than the actual distance.
MOVING OBJECT DETECTION (MOD)
If the MOD system detects moving objects
surrounding the vehicle, a yellow frame
1 will
be displayed on the camera image and a chime
will sound.
In the bird’s-eye view, a yellow frame is displayed on
those camera images (front, rear, right, left) where
moving objects are detected.
When the following are displayed:
• Blue MOD icon 2; the system is operative in this view.
• Gray MOD icon 3; the system is not operative in this view.
• No MOD icon; the system is off.
To temporarily turn the system on or off, touch the MOD key 4.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4\
) ” of your
Owner’s Manual.
123
4

8
Infiniti Intelligent Key System
The Infiniti Intelligent Key system allows you to lock or unlock your ve\
hicle, open your liftgate
and remotely start the hybrid system. It is important to make sure the I\
ntelligent Key is with
you (that is, in your pocket or purse).
LOCKING AND UNLOCKING THE VEHICLE
The lock and unlock operating range of the Intelligent Key is within 31.\
5 in (80 cm) from
each request switch.
To lock the vehicle, push either door handle request
switch
1 once or press the button 2 on the
key fob.
To unlock the vehicle, perform one of the
following procedures:
• Push either door handle request switch 1 once; the corresponding door will unlock.
Push the door handle request switch
1 again within 1 minute; all other doors will
unlock, or
• Press the button 4 on the key fob to unlock the driver’s side door. Press the button
4 again; all other doors will unlock.
REMOTE HYBRID SYSTEM START* (if so equipped)
The remote hybrid system start must be enabled in the vehicle
settings within the vehicle information display.
The remote hybrid system start operating range is approximately
200 ft (60 m) from the vehicle. The effective operating range may be
shorter due to environmental conditions or obstacles between you
and the vehicle.
For the remote hybrid system start to function, the vehicle must be
in the P (PARK) position with the ignition off and all the doors
closed and locked.
To start your vehicle remotely:
1. Press the button 2.
2. Within 5 seconds, press and hold the remote hybrid system start button 3 for at
least 2 seconds.
The hybrid system will start, and the parking lights will turn on.
Automatic climate control will begin heating or cooling the vehicle depe\
nding on the
outside ambient temperature.
The hybrid system will run for 10 minutes and then turn off.
Repeat steps 1 and 2 to extend the time for an additional 10-minute peri\
od.
• After two remote starts, the ignition switch must be cycled before the r\
emote start can be
used again.
To start driving, depress the brake pedal and press the ignition switch \
START/STOP button.
first drive features
3
2
4
5
6
1
*Laws in some communities may restrict the use of remote starters. Check\
local regulations before using this feature.
