INFINITI QX60 HYBRID 2016 First Responder´s

2-2 High-Voltage-Related and 12-Volt-Related Component Locations and
Descriptions
=
DANGER
NOTE:
Components with white number in black background are high-voltage components.No. Component
LocationDescription
DC/DC

Converter Cargo area floor(mounted right of
high-voltage battery) The DC/DC converter reduces the voltage of
the high-voltage battery to provide power to
the 12-volt battery in order to operate the vehi-
cle’s electric components (headlights, audio
system, etc.) . 1 3
4 5 7 2
6
AAYIA0490ZZ
FRG–11

No. Component
LocationDescription
Service
Plug Cargo area floor(inside storage bin
behind access door) This is used to disable the high-voltage system.
High-Voltage
Battery Cargo area floor
(under 3rd row
seating floor trim) The high-voltage battery stores and outputs
DC power (Maximum voltage 144V) needed to
propel the vehicle.
Traction Motor Engine compart-
ment (built-into the
transmission) Converts three-phase alternating current (AC)
power to drive power (torque) which propels
the vehicle.
Traction Motor
Inverter Engine compart-
ment (front driver
side) Converts the DC power stored in the high-
voltage battery to three-phase AC power and
controls motor torque (revolution) by regulating
the motor current. The inverter has a built in
high-voltage capacitor.
12-Volt Battery Front of the vehicle
on the left side of
the engine compart-
ment A lead-acid battery that supplies power to the
low voltage devices.
High-Voltage
Harness Cargo area (on
high-voltage bat-
tery) , under floor,
engine compartment Orange-colored power cables carry high DC
voltage between each of the high-voltage com-
ponents.
2-3 High-Voltage Battery Pack Specifications High-Voltage Battery Specifications
High-voltage

battery voltage 144V
Number of high-voltage battery modules in the
pack 3 modules (40 cells)
High-voltage battery module voltage 48V each
High-voltage battery dimensions 36.31 x 22.07 x 6.52 in. (922.3 x 560.5 x 165.6 mm)
High-voltage battery weight 62.4 lbs (28.3 kg)
FRG–12

2-4 High-Voltage Safety Measures
Circuit insulation
The high-voltage positive (+) and negative (-) circuits are insulated
from the metal chassis.
Reducing the risk of electrocution The high-voltage components and harnesses have insulated cases or orange-colored coverings which provide insulation and easy
identification.
The high-voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
emergency responders from high-voltage electrical shock.
Identification The high-voltage components are labeled “WARNING” similar to the
label shown below. All high-voltage harnesses are coated in orange.
2-4.1 Warning Label AAYIA0010ZZ
FRG–13

2-5 High-Voltage Safety System
The
high-voltage safety system is intended to help keep vehicle occupants and emergency responders safe
from high-voltage electricity. • A high-voltage fuse provides short circuit protection inside the high-voltage battery.
• The high-voltage safety system is insulated from the metal chassis.
• Positive and negative high-voltage power cables are connected to the high-voltage battery and arecontrolled by normally open system main relays (SMR1 and SMR2) . When the vehicle is shut off,
the relays stop electrical flow from leaving the high-voltage battery. However, it can take
approximately ten (10) minutes for the high-voltage capacitor to fully discharge. • The high-voltage system and high-voltage capacitor may remain powered for up to
approximately
10 minutes after the vehicle is shut off. Appropriate Personal Protective
Equipment (PPE) must always be worn when touching or working on high-voltage
components to avoid risk of electrical shock and severe personal injury or death.
• The high-voltage battery retains high-voltage at all times. Appropriate PPE must
always
be worn when touching or working on high-voltage components to avoid risk
of electrical shock and severe personal injury or death.
• A ground fault monitor continuously monitors for high-voltage leakage to the metal chassis while the vehicle is running. If a malfunction is detected, the HPCM (hybrid powertrain control module) will
illuminate the hybrid system warning lamp in the instrument cluster.
•

The high-voltage battery relays (SMR1 and SMR2) will automatically open to stop the electrical flow
in a front, side or certain rear collisions that are sufficient enough to activate the supplemental
restraint system (SRS) . HPCM
(Hybr

id Powertrain
Control Module) DC/DC
Converter
Service Plug
(With Fuse)
Traction Motor
Inverter
(With built in
High-Voltage capacitor)
Traction
Motor Junction Box
Transmission Engine Compartment
Cargo Area
High-Voltage Battery
System main relay 1
System main relay 2 AAYIA0166GB
FRG–14

2-6 High-Voltage Circuit Shut-Off System
This
vehicle is equipped with a system to shut off the current from the high-voltage battery by the following
methods: Service plug
Positioned in the right rear area of the high-voltage battery, this plug shuts off
the
output of high-voltage when manually removed.
System main relays
(located in the high-
voltage battery) Controlled by the ignition switch, these relays are powered by the 12-volt
system and shut off high-voltage from the high-voltage battery.
Emergency shut-off sys-
tem In the case of a collision (front and side collisions in which the air bags are
deployed, certain rear collisions) or certain system malfunctions this system
is designed to shut off the high-voltage from the high-voltage battery.
2-7 Preventing Electrical Shock 1. If it is necessary to touch any of the high-voltage harnesses or components, always wearappropriate Personal Protective Equipment (PPE) [refer to 3-1 Preparation Items (FRG–17)].
Shut

off the high-voltage system by referring to 3-3.1 High-Voltage System Shut-Down
Procedure

(FRG–20) .
2.

To avoid the risk of electrocution, NEVER touch the inside of the high-voltage battery with bare
hands after shutting off the high-voltage system. The high-voltage battery maintains charge even
though the high-voltage system is shut down. PPE must always be worn when touching or
working on high-voltage components.
3. Cover damaged high-voltage components with insulated tape.
2-8 Emergency Medical Equipment
The high voltage system should not interfere with emergency medical equipment which must be used in or
near the vehicle at an accident scene.
FRG–15

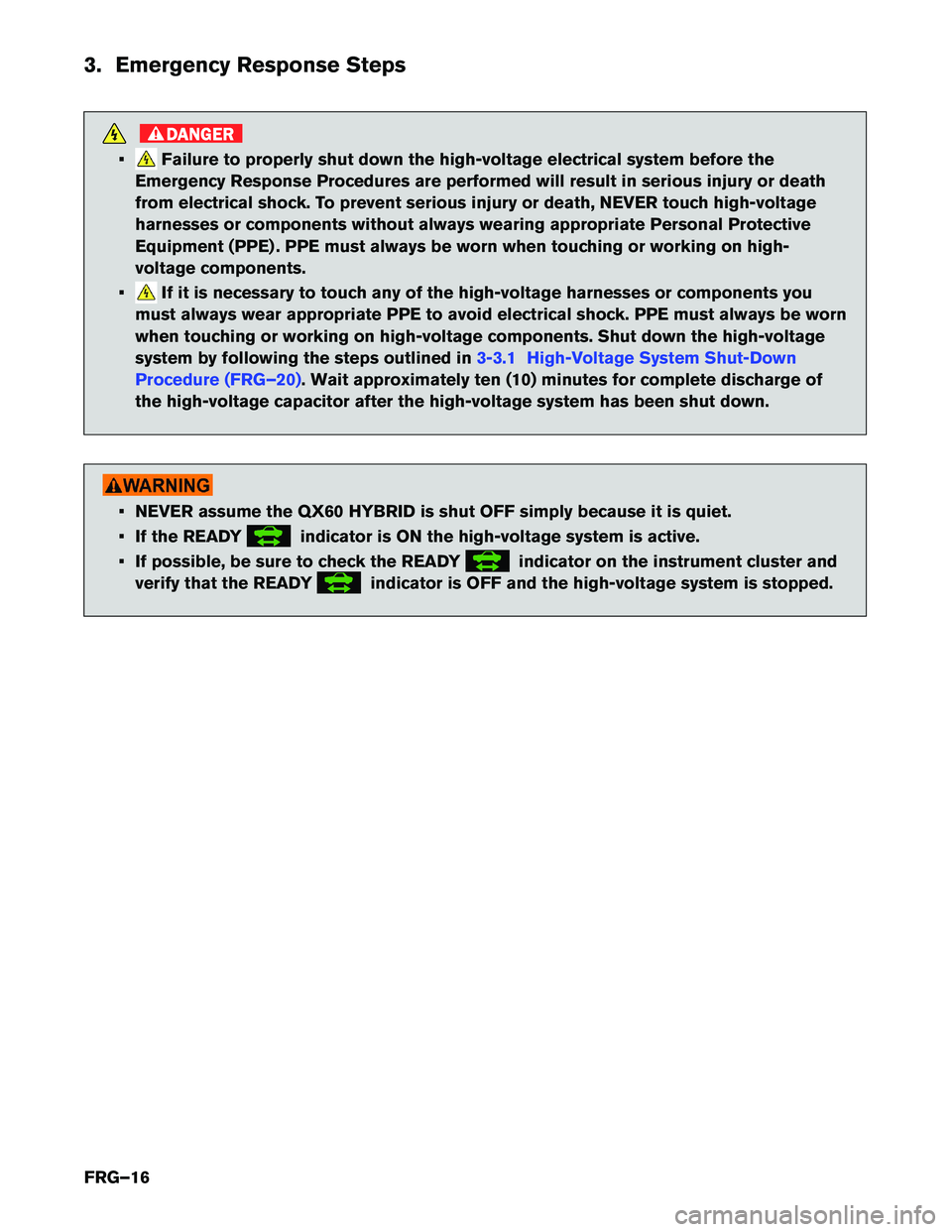

3. Emergency Response Steps
DANGER
• Failure to properly shut down the high-voltage electrical system before the
Emergency Response Procedures are performed will result in serious injury or death
from electrical shock. To prevent serious injury or death, NEVER touch high-voltage
harnesses or components without always wearing appropriate Personal Protective
Equipment (PPE) . PPE must always be worn when touching or working on high-
voltage components.
• If it is necessary to touch any of the high-voltage harnesses or components you
must
always wear appropriate PPE to avoid electrical shock. PPE must always be worn
when touching or working on high-voltage components. Shut down the high-voltage
system by following the steps outlined in 3-3.1 High-Voltage System Shut-Down
Procedure

(FRG–20) . Wait approximately ten (10) minutes for complete discharge of
the

high-voltage capacitor after the high-voltage system has been shut down. • NEVER assume the QX60 HYBRID is shut OFF simply because it is quiet.
•

If the READY indicator is ON the high-voltage system is active.
•

If possible, be sure to check the READY indicator on the instrument cluster and
verify

that the READY indicator is OFF and the high-voltage system is stopped.
FRG–16

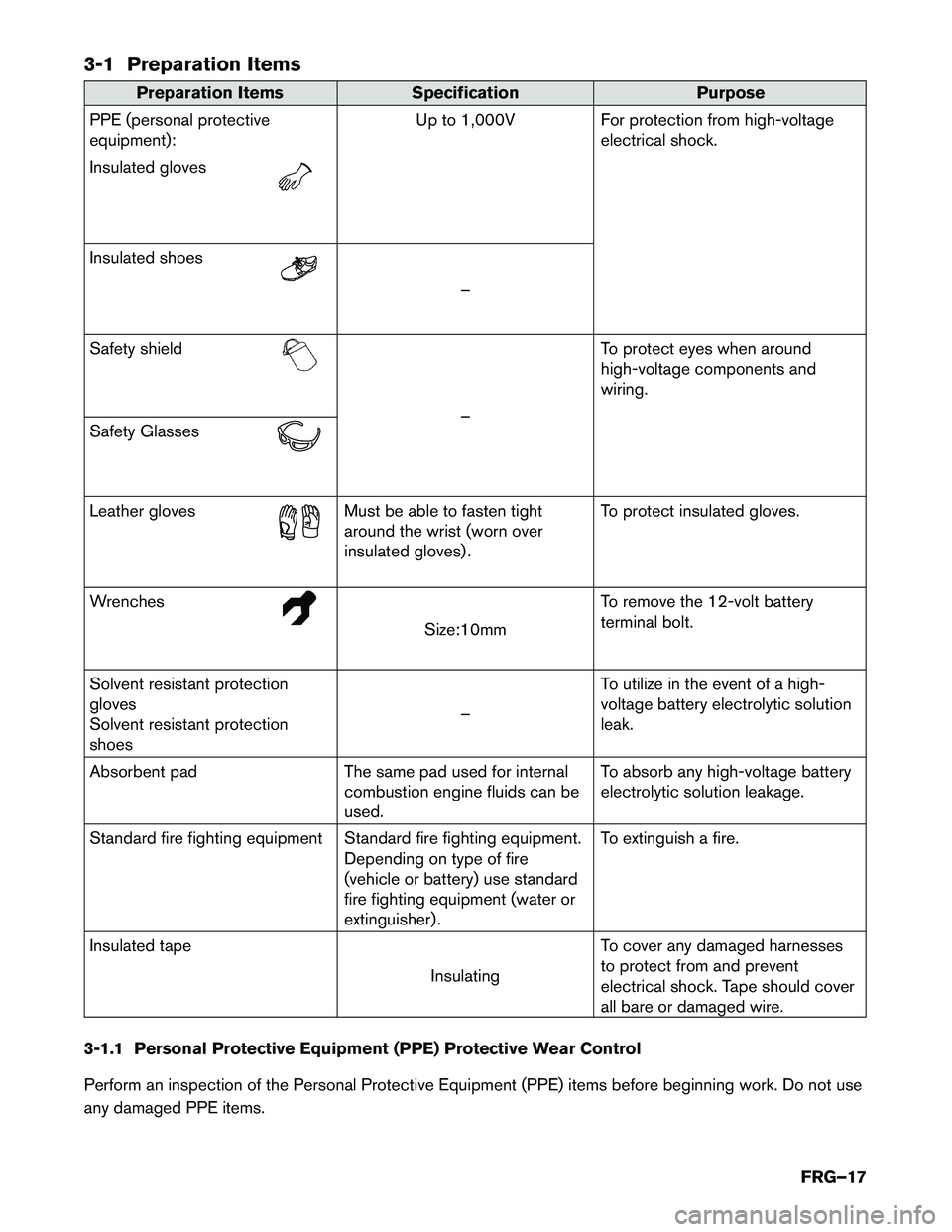

3-1 Preparation Items
Preparation Items
Specification Purpose
PPE
(personal protective
equipment): Up to 1,000V
For protection from high-voltage
electrical shock.
Insulated gloves Insulated shoes
–
Safety

shield –
T
o protect eyes when around
high-voltage components and
wiring.
Safety Glasses Leather gloves Must be able to fasten tight
around

the wrist (worn over
insulated gloves) . To protect insulated gloves.
Wrenches Size:10mm
T
o remove the 12-volt battery
terminal bolt.
Solvent resistant protection
gloves
Solvent resistant protection
shoes –To utilize in the event of a high-
voltage battery electrolytic solution
leak.
Absorbent pad The same pad used for internal
combustion engine fluids can be
used. To absorb any high-voltage battery
electrolytic solution leakage.
Standard fire fighting equipment Standard fire fighting equipment. Depending on type of fire
(vehicle or battery) use standard
fire fighting equipment (water or
extinguisher) . To extinguish a fire.
Insulated tape InsulatingTo cover any damaged harnesses
to protect from and prevent
electrical shock. Tape should cover
all bare or damaged wire.
3-1.1 Personal Protective Equipment (PPE) Protective Wear Control
Perform an inspection of the Personal Protective Equipment (PPE) items before beginning work. Do not use
any damaged PPE items.
FRG–17

3-1.2 Daily Inspection
This
inspection is performed before and after use. The responder who will be using the items should
perform the inspection and check for deterioration and damage. • Insulated rubber gloves should be inspected for scratches, holes and tears. (Visual check and airleakage test)
• Insulated safety boots should be inspected for holes, damage, nails, metal pieces, wear or other problems on the soles. (Visual check)
• Insulated rubber sheet should be inspected for tears. (Visual check)
3-1.3 Insulated Tools
When performing work at locations where high-voltage is applied (such as terminals) , use insulated tools
meeting 1,000V/300A specifications.
3-2 Vehicle Immobilization and Stabilization
If possible, immobilize the vehicle by turning the 12-volt system OFF and stabilize it with a wheel chock(s) .
Stabilize the vehicle with cribbing, by removing air from the tires, or utilize the Lift Airbag Equipment for rescue. To avoid electrical shock, do not put the Lift Airbag Equipment for rescue and wheel
chock(s)
under the high-voltage components and harnesses. =
AAYIA0486ZZ
FRG–18

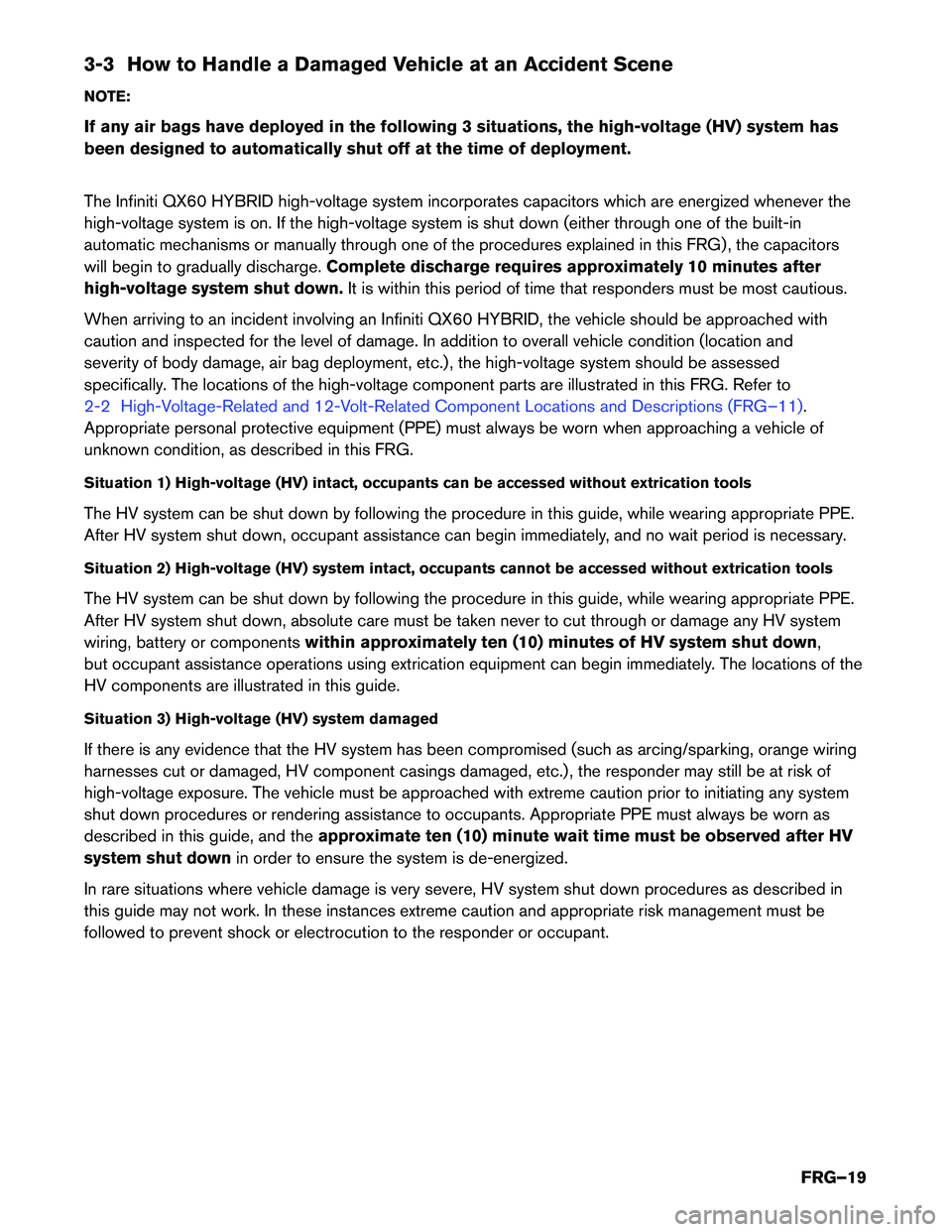

3-3 How to Handle a Damaged Vehicle at an Accident Scene
NO
TE:
If any air bags have deployed in the following 3 situations, the high-voltage (HV) system has
been designed to automatically shut off at the time of deployment.
The Infiniti QX60 HYBRID high-voltage system incorporates capacitors which are energized whenever the
high-voltage system is on. If the high-voltage system is shut down (either through one of the built-in
automatic mechanisms or manually through one of the procedures explained in this FRG) , the capacitors
will begin to gradually discharge. Complete discharge requires approximately 10 minutes after
high-voltage system shut down. It is within this period of time that responders must be most cautious.
When arriving to an incident involving an Infiniti QX60 HYBRID, the vehicle should be approached with
caution and inspected for the level of damage. In addition to overall vehicle condition (location and
severity of body damage, air bag deployment, etc.) , the high-voltage system should be assessed
specifically. The locations of the high-voltage component parts are illustrated in this FRG. Refer to
2-2 High-Voltage-Related and 12-Volt-Related Component Locations and Descriptions (FRG–11).
Appropriate

personal protective equipment (PPE) must always be worn when approaching a vehicle of
unknown condition, as described in this FRG.
Situation 1) High-voltage (HV) intact, occupants can be accessed without extrication tools
The HV system can be shut down by following the procedure in this guide, while wearing appropriate PPE.
After HV system shut down, occupant assistance can begin immediately, and no wait period is necessary.
Situation 2) High-voltage (HV) system intact, occupants cannot be accessed without extrication tools
The HV system can be shut down by following the procedure in this guide, while wearing appropriate PPE.
After HV system shut down, absolute care must be taken never to cut through or damage any HV system
wiring, battery or components within approximately ten (10) minutes of HV system shut down,
but occupant assistance operations using extrication equipment can begin immediately. The locations of the
HV components are illustrated in this guide.
Situation 3) High-voltage (HV) system damaged
If there is any evidence that the HV system has been compromised (such as arcing/sparking, orange wiring
harnesses cut or damaged, HV component casings damaged, etc.) , the responder may still be at risk of
high-voltage exposure. The vehicle must be approached with extreme caution prior to initiating any system
shut down procedures or rendering assistance to occupants. Appropriate PPE must always be worn as
described in this guide, and the approximate ten (10) minute wait time must be observed after HV
system shut down in order to ensure the system is de-energized.
In rare situations where vehicle damage is very severe, HV system shut down procedures as described in
this guide may not work. In these instances extreme caution and appropriate risk management must be
followed to prevent shock or electrocution to the responder or occupant.
FRG–19

3-3.1 High-Voltage System Shut-Down Procedure
Any
of the following procedures can shut down the high-voltage system. The first response operation
should only begin after shutting down the high-voltage system. If the vehicle is heavily damaged, for example
the high-voltage battery is deformed, broken or cracked, appropriate PPE must always be used and the
high-voltage battery and high-voltage components must not be touched. PPE must always be worn when
touching or working on high-voltage components. DANGER
• Failure to properly shut down the high-voltage system before the Emergency
Response
Procedures are performed will result in serious injury or death from
electrical shock. To prevent serious injury or death, NEVER touch high-voltage
harnesses or components without always wearing appropriate Personal Protective
Equipment (PPE) . Appropriate PPE must always be worn when touching or working on
high-voltage components.
• When contact with high-voltage components or high-voltage harnesses is
unavoidable,
or when there is risk of such contact, you must always wear appropriate
PPE. PPE must always be worn when touching or working on high-voltage
components. • The vehicle contains parts that contain powerful magnets. If a person who is wearing
a

pacemaker or other medical device is close to these parts, the medical device may be
affected by the magnets. Such persons must not perform work on the vehicle.
• Be sure to verify that the READY indicator is off (if possible) , and the high-voltage
system

is stopped.
• After the high-voltage system is shut down, please wait approximately ten (10) minutes for complete discharge of the high-voltage capacitor. While waiting, do not operate any
vehicle functions.
NOTE:
The high-voltage full discharge takes approximately ten (10) minutes.
• After shutting down the high-voltage system and removing the 12-volt battery negative (-) terminal, wait at least three (3) minutes to discharge the air bag capacitor. Even though
the 12-volt battery negative (-) is disconnected, the Supplemental Restraint System (SRS)
air bag maintains voltage at least three (3) minutes. During this time, there is a possibility
of sudden SRS air bag inflation due to harness short circuit or damage and it may cause
serious injuries.
• The 12-volt system will remain active even after the 12-volt battery negative (-) terminal is removed while the high-voltage system is active.This is because the charging system will
not shut down and power will be supplied to the 12-volt system and high-voltage system
continuously.
Before disconnecting the 12-volt battery terminal, if necessary, lower the windows, adjust the steering
column, adjust the seats, unlock the doors, open the liftgate, etc. as required. Once the 12-volt battery is
disconnected, power controls will not operate.
FRG–20
