4. Lower the vehicle slowly until the tiretouches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence illustrated (
A,B,C,D,
E) . Lower the vehicle completely.
WARNING
●Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.
● Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
● Retighten the wheel nuts when the ve-
hicle has been driven for 621 miles
(1,000 km) (also in cases of a flat tire,
etc.) .
As soon as possible, tighten the wheel nuts
to the specified torque with a torque
wrench.
Wheel nut tightening torque: 83 ft-lb (113 N·m)
The wheel nuts must be kept tightened to
specification at all times. It is recom-
mended that wheel nuts be tightened to
specifications at each lubrication interval. Adjust tire pressure to the COLD pressure.
COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km) .
COLD tire pressures are shown on the tire
and loading information label affixed to the
driver side center pillar.
5. Securely store the flat tire, tools and jacking equipment in the vehicle.
6. Close the liftgate.
WARNING
● Always make sure that the spare tire
and jacking equipment are properly se-
cured after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
● The spare tire is designed for emer-
gency use. For additional information,
refer to “Wheels and tires” in the “Main-
tenance and do-it-yourself” section of
this manual.
WARNING
●If the hybrid system stops operating
while driving, the power assist for the
brakes and steering will not work. Brak-
ing and steering will be harder.
● If the hybrid system stops operating
while driving, do not open any door until
the vehicle comes to a complete stop.
Opening a door will lock the steering
wheel. This may cause the driver to lose
control of the vehicle and could result in
serious vehicle damage or personal
injury.
The hybrid system may stop operating while driv-
ing if the high-voltage battery becomes dis-
charged, the 12-volt battery becomes dis-
charged or the fuel tank is empty. If the hybrid
system stops operating while driving, perform the
following: 1. Reduce your speed gradually. Pull to the side of the road to a safe area.
2. Turn on the hazard warning flashers.
3. Set the push-button ignition switch at ACC or OFF, and try to start the hybrid system.
4. If the hybrid system will not start, refer to the “If the vehicle does not start” section of this
manual.
HYBRID SYSTEM STOPS OPERATING
WHILE DRIVING
In case of emergency6-9

CAUTION
●CVT models cannot be push-started or
tow-started. Attempting to do so may
cause transmission damage.
● Do not push start this vehicle. The
three-way catalyst may be damaged.
WARNING
●Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
● To avoid the danger of being scalded,
never remove the radiator or coolant
reservoir cap while the engine is still
hot. When the radiator or coolant reser-
voir cap is removed, pressurized hot
water will spurt out, possibly causing
serious injury.
● Do not open the hood if steam is com-
ing out.
If your vehicle is overheating (indicated by the
“High Coolant Temp: See Owner’s Manual” ve-
hicle information display warning) , or if you feel a
lack of engine power, detect abnormal noise, etc.
take the following steps. 1. Move the vehicle safely off the road, apply the parking brake and move the shift lever to
P (Park) .
Do not turn the INFINITI Direct Re-
sponse Hybrid System off.
2. Turn off the air conditioner. Open all the windows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed. 3. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. If steam or coolant
is escaping, turn off the hybrid system. Do
not open the hood further until no steam or
coolant can be seen.
4. Open the engine hood.
WARNING
If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.
5. Also check if the cooling fan is running. The radiator hoses and radiator should not leak
water. If the coolant is leaking or the cooling
fan does not run, stop the hybrid system.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the en-
gine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-13

WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to re-
move the spark plugs. An incorrect socket
can damage the spark plugs.
If replacement is required, it is recommended that
you visit an INFINITI retailer for this service.
WARNING
● Operating the engine with the air
cleaner filter off can cause you or others
to be burned. The air cleaner filter not
only cleans the intake air, it also stops
the flame if the engine backfires. If the
air cleaner is not installed and the en-
gine backfires, you could be burned.
Never drive with the air cleaner filter off.
Be cautious working on the engine
when the air cleaner is off. ●
Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
To remove the filter from the air cleaner, push the
tabs
Aand pull the cover upward.
The viscous paper type filter element should not
be cleaned and reused. Replace the air filter
according to the maintenance log shown in the
“INFINITI Service and Maintenance Guide.”
When replacing the air filter, wipe the inside of
the air cleaner housing and the cover with a damp
cloth.
NOTE:
After installing a new air cleaner, make
sure the air cleaner cover is seated in the
housing and latch the clips
A.
IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry of air-
borne dust and pollen particles and reduces
some objectionable outside odors. The filter is
located behind the glove box. Refer to the
“INFINITI Service and Maintenance Guide” for
change intervals.
If replacement is required, it is recommended that
you visit an INFINITI retailer for this service.
LDI2730
AIR CLEANER
8-20Maintenance and do-it-yourself

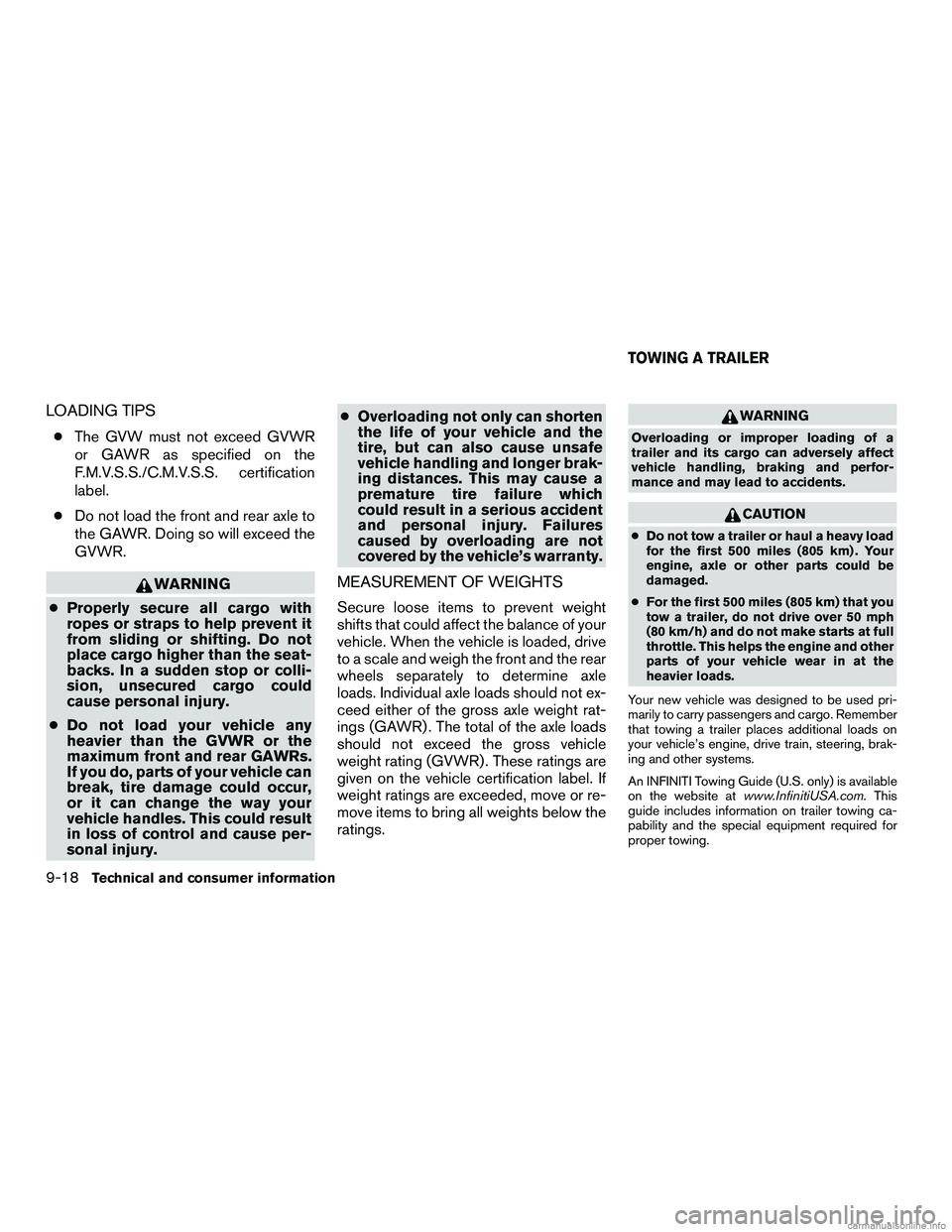

LOADING TIPS
●The GVW must not exceed GVWR
or GAWR as specified on the
F.M.V.S.S./C.M.V.S.S. certification
label.
● Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
● Properly secure all cargo with
ropes or straps to help prevent it
from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or colli-
sion, unsecured cargo could
cause personal injury.
● Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear GAWRs.
If you do, parts of your vehicle can
break, tire damage could occur,
or it can change the way your
vehicle handles. This could result
in loss of control and cause per-
sonal injury. ●
Overloading not only can shorten
the life of your vehicle and the
tire, but can also cause unsafe
vehicle handling and longer brak-
ing distances. This may cause a
premature tire failure which
could result in a serious accident
and personal injury. Failures
caused by overloading are not
covered by the vehicle’s warranty.MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the vehicle is loaded, drive
to a scale and weigh the front and the rear
wheels separately to determine axle
loads. Individual axle loads should not ex-
ceed either of the gross axle weight rat-
ings (GAWR) . The total of the axle loads
should not exceed the gross vehicle
weight rating (GVWR) . These ratings are
given on the vehicle certification label. If
weight ratings are exceeded, move or re-
move items to bring all weights below the
ratings.
WARNING
Overloading or improper loading of a
trailer and its cargo can adversely affect
vehicle handling, braking and perfor-
mance and may lead to accidents.
CAUTION
●Do not tow a trailer or haul a heavy load
for the first 500 miles (805 km) . Your
engine, axle or other parts could be
damaged.
● For the first 500 miles (805 km) that you
tow a trailer, do not drive over 50 mph
(80 km/h) and do not make starts at full
throttle. This helps the engine and other
parts of your vehicle wear in at the
heavier loads.
Your new vehicle was designed to be used pri-
marily to carry passengers and cargo. Remember
that towing a trailer places additional loads on
your vehicle’s engine, drive train, steering, brak-
ing and other systems.
An INFINITI Towing Guide (U.S. only) is available
on the website at www.InfinitiUSA.com. This
guide includes information on trailer towing ca-
pability and the special equipment required for
proper towing.
TOWING A TRAILER
9-18Technical and consumer information

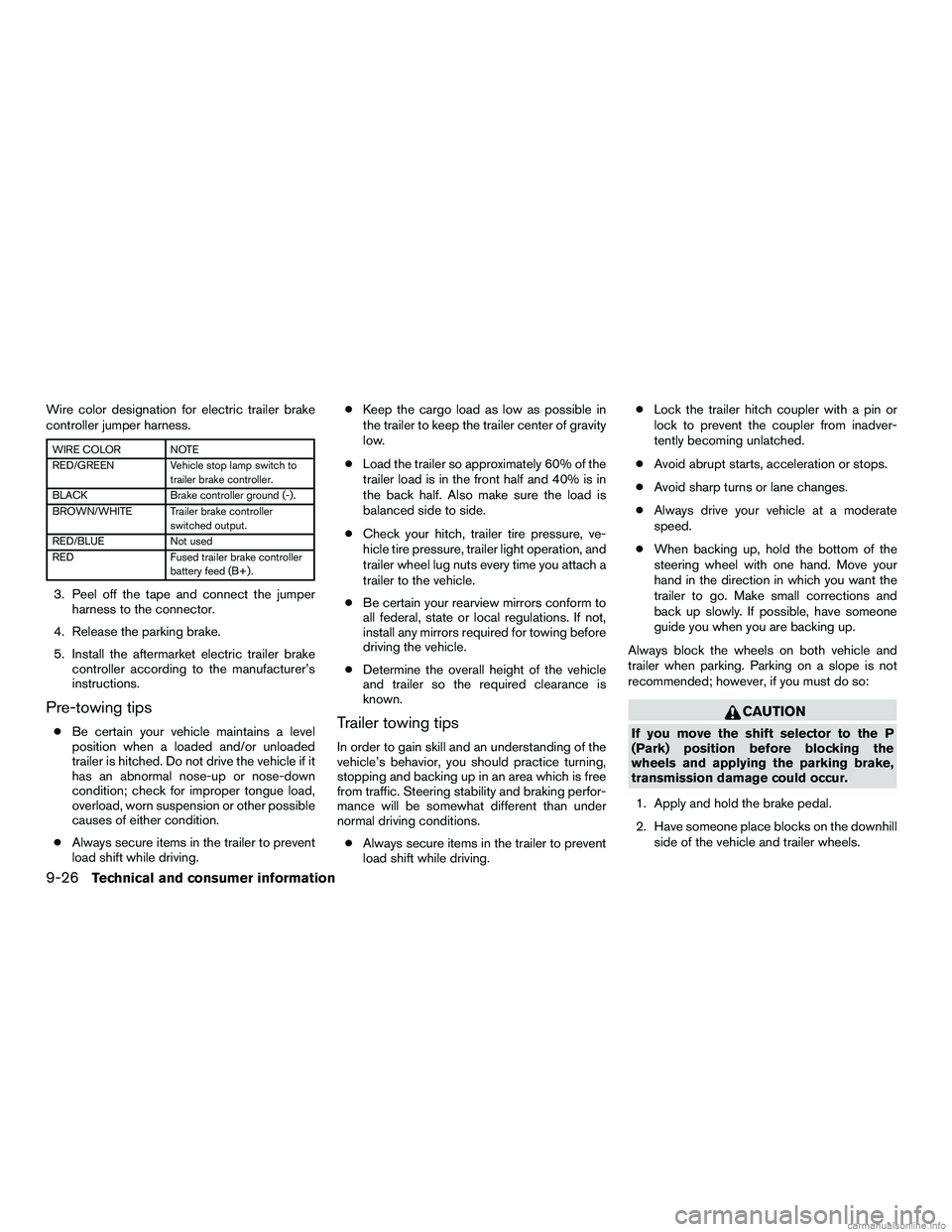

Wire color designation for electric trailer brake
controller jumper harness.
WIRE COLOR NOTE
RED/GREENVehicle stop lamp switch to
trailer brake controller.
BLACK Brake controller ground (-) .
BROWN/WHITE Trailer brake controller switched output.
RED/BLUE Not used
RED Fused trailer brake controller
battery feed (B+) .
3. Peel off the tape and connect the jumper
harness to the connector.
4. Release the parking brake.
5. Install the aftermarket electric trailer brake controller according to the manufacturer’s
instructions.
Pre-towing tips
●Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition.
● Always secure items in the trailer to prevent
load shift while driving. ●
Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving. ●
Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector to the P
(Park) position before blocking the
wheels and applying the parking brake,
transmission damage could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the downhill side of the vehicle and trailer wheels.
9-26Technical and consumer information

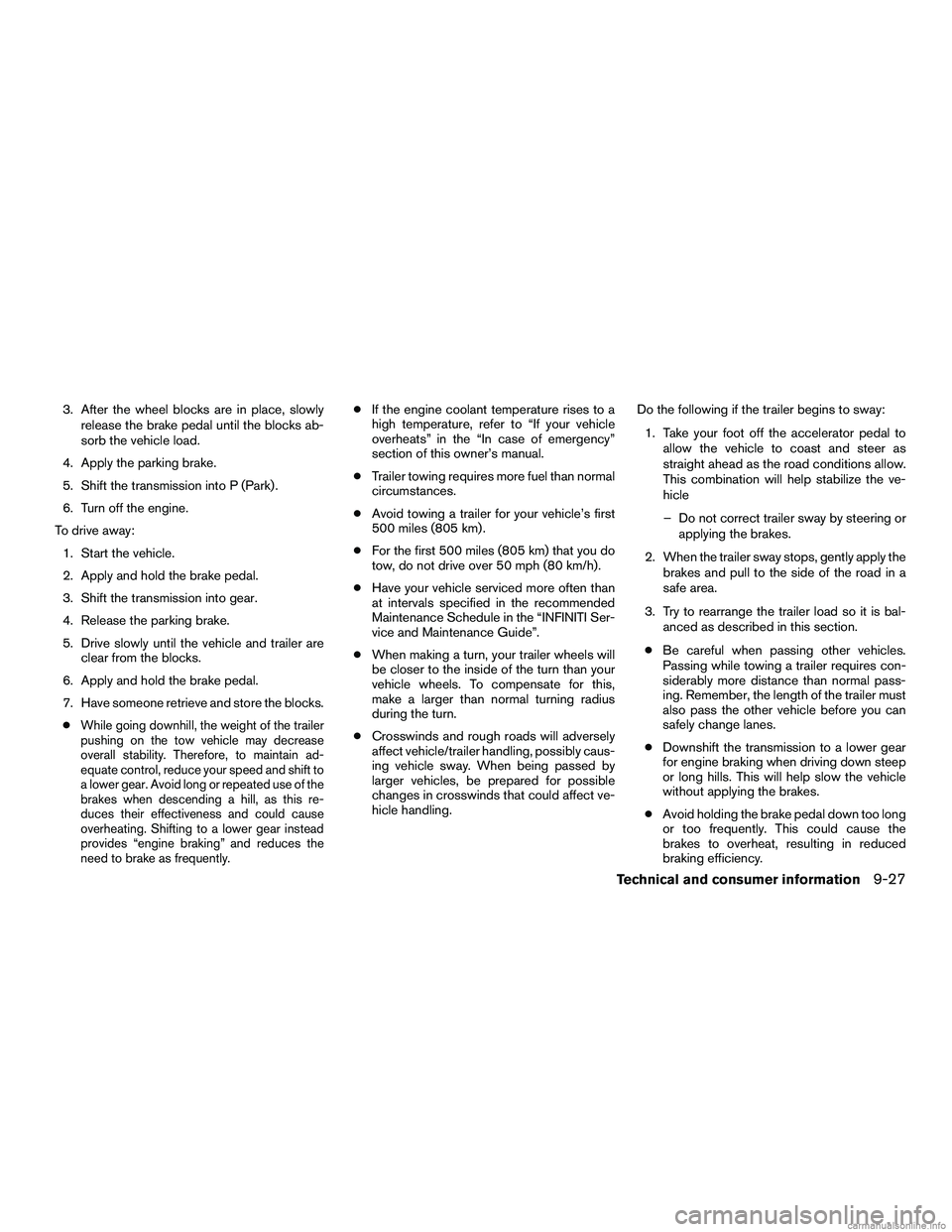

3. After the wheel blocks are in place, slowlyrelease the brake pedal until the blocks ab-
sorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park) .
6. Turn off the engine.
To drive away: 1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks. ●
While going downhill, the weight of the trailer
pushing on the tow vehicle may decrease
overall stability. Therefore, to maintain ad-
equate control, reduce your speed and shift to
a lower gear. Avoid long or repeated use of the
brakes when descending a hill, as this re-
duces their effectiveness and could cause
overheating. Shifting to a lower gear instead
provides “engine braking” and reduces the
need to brake as frequently.
● If the engine coolant temperature rises to a
high temperature, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this owner’s manual.
● Trailer towing requires more fuel than normal
circumstances.
● Avoid towing a trailer for your vehicle’s first
500 miles (805 km) .
● For the first 500 miles (805 km) that you do
tow, do not drive over 50 mph (80 km/h).
● Have your vehicle serviced more often than
at intervals specified in the recommended
Maintenance Schedule in the “INFINITI Ser-
vice and Maintenance Guide”.
● When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling. Do the following if the trailer begins to sway:
1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the ve-
hicle
– Do not correct trailer sway by steering or applying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road in a
safe area.
3. Try to rearrange the trailer load so it is bal- anced as described in this section.
● Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer must
also pass the other vehicle before you can
safely change lanes.
● Downshift the transmission to a lower gear
for engine braking when driving down steep
or long hills. This will help slow the vehicle
without applying the brakes.
● Avoid holding the brake pedal down too long
or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency.
Technical and consumer information9-27

10 Index
2nd row bench seat adjustment......1-5, 1-7
A
Active noise control ..............5-147
Aiming control, headlights ...........2-41
Air bag (See supplemental restraint
system) .....................1-48
Air bag system Front (See supplemental front impact air bag
system) ...................1-55
Air bag warning labels .............1-65
Air bag warning light ...........1-66, 2-12
Air bag warning light, supplemental . .1-66, 2-12
Air Cleaner ...................8-20
Air cleaner housing filter ............8-20
Air conditioner Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner (automatic)
(if so equipped) ...............4-49
Heater and air conditioner controls . . . .4-50
Servicing air conditioner ..........4-57
Alarm system
(See vehicle security system) .........2-32
Anchor point locations .............1-31
Antenna .....................4-99
Antifreeze ...................5-145
Anti-lock brake warning light ..........2-8
Anti-lock Braking System (ABS) .......5-136
Armrests .....................1-8 Around View® Monitor
.............4-31
Audible reminders ...............2-15
Audio system ..................4-57
AM radio reception .............4-58
Bluetooth® audio ..............4-94
Bluetooth® streaming audio ........4-94
Compact disc (CD) player .........4-76
Digital Versatile Disc (DVD) Player
Operation ..................4-80
FM/AM/SAT radio with compact disc
(CD) player .................4-72
FM radio reception .............4-57
iPod® Player .............4-88, 4-90
iPod® player operation .......4-88, 4-90
Radio ....................4-57
Steering wheelaudio

control switch . . .4-98
Autolight switch .................2-39
Automatic Automatic drive positioner .........3-34
Automatic power window switch .....2-61
Automatic anti-glare inside mirror .......3-32
Automatic door locks ..............3-6
Automatic drive positioner ...........3-34
B
Backup Collision Intervention (BCI) system. .5-56
Backup Collision Warning (BCW) system . .5-56
Battery .................5-145, 8-17
Charge warning light .............2-8
Battery replacement ..............8-25
INFINITI Intelligent Key ...........8-25 Keyfob ...................8-25
Before starting the engine ...........5-16
Belt (See drive belt) ..............8-19
Blind Spot Intervention (BSI) system .....5-45
Blind Spot Warning (BSW) warning
system ......................5-36
Block heater Engine ...................5-146
Bluetooth® audio ................4-94
Bluetooth® hands-free phone
system .................4-112, 4-126
Booster seats ..................1-45
Brake Anti-lock Braking System (ABS) .....5-136
Brake fluid ..................8-15
Brake light (See stop light) .........8-27
Brake system ...............5-135
Brake warning light ...........2-8, 2-9
Brake wear indicators ........2-15, 8-22
Parking brake operation ..........5-22
Self-adjusting brakes ............8-22
Brake fluid ....................8-15
Brakes ......................8-22
Brake system .................5-135
Break-in schedule ...............5-129
Brightness/contrast button .......4-11, 4-21
Brightness control Instrument panel ..............2-42
Bulb check/instrument panel ..........2-7
Bulb replacement ................8-27

F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-6
Fluid Brake fluid ..................8-15
Capacities and recommended
fuel/lubricants .................9-2
Continuously Variable Transmission (CVT)
fluid ......................8-14
Engine coolant .................8-8
Engine oil ...................8-11
Inverter coolant ............8-10, 8-11
Power steering fluid .............8-15
Windshield-washer fluid ...........8-16
F.M.V.S.S. certification label ...........9-11
Fog light switch .................2-43
Forward Emergency Braking (FEB) .......2-9
Front air bag system
(See supplemental restraint system) ......1-55
Front power seat adjustment ...........1-3
Front seats .....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-131
Fuel-filler door and cap ...........3-27
Fuel gauge ...................2-6
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ...........2-30
Fuel Cell Vehicle (FCV) System Tire pressure .................8-29
Fuel-filler door ..................3-27 Fuel gauge
.....................2-6
Fuses .......................8-23
Fusible links ...................8-24
G
Garage door opener, HomeLink® Universal
Transceiver .........2-68, 2-69, 2-71, 2-72
Gascap .....................3-27
Gauge Fuel gauge ...................2-6
Odometer ...................2-5
P ower meter .................

.2-6
Speedometer .................2-5
Tachometer ..................2-5
Trip odometer .................2-5
General maintenance ...............8-2
Glove box .....................2-54
Glove box lock ..................2-54
H
Hands-free phone system,
Bluetooth® ...............4-112, 4-126
Hazard warning flasher switch ..........6-2
Headlight aiming control ............2-41
Headlight and turn signal switch ........2-38
Headlight control switch ............2-39
Headlights ....................8-27
Headlights, aiming control ............2-41
Head restraints ..................1-10
Heated rear seats ................2-45
Heated seats ...............2-44, 2-46
Heated steering wheel .............2-47 Heater
Heater and air conditioner (automatic)
(if so equipped) ...............4-49
Heater and air conditioner controls .....4-50
Heater operation ...............4-50
Heater and air conditioner (automatic) .....4-49
High voltage components ..........HEV-11
HomeLink® Universal
Transceiver .........2-68, 2-69, 2-71, 2-72
Hood .......................3-21
Hook Luggage hook ................2-58
Horn .......................2-43
Hybrid System Stops operating while driving .........6-9
Vehicle does not start ............6-10
Hybrid vehicle characteristics ........HEV-12
I
Ignition Switch Push-Button Ignition Switch ........5-13
Image viewer .................. .4-22
Immobilizer

system ................5-16
Important vehicle information label .......9-11
In-cabin microfilter ................8-20
Increasing fuel economy ............5-131
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ..................2-7, 2-8
INFINITI Drive mode selector ..........5-23
INFINITI Intelligent Key System .......3-2, 3-7
INFINITI vehicle immobilizer
system ................2-34, 3-4, 5-16
INFINITI voice recognition system .......4-138
10-3

Information display................2-16
Inside automatic anti-glare mirror ........3-32
Instrument brightness control ..........2-42
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-42
Intelligent cruise control (ICC) system Brake assist .................5-75
Intelligent Key system Key operating range ..............3-8
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interior light ....................2-66
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ...........8-10
iPod® Player ...............4-88, 4-90
ISOFIX child restraints .............1-28
J
Jump starting ...............6-11, 8-18
K
Key.........................3-2
Key fob battery replacement ..........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13 L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-65
Lane Departure Prevention (LDP)
system ...............5-25, 5-30, 5-33
Lane Departure Warning (LDW)
system ...............5-25, 5-30, 5-33
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-28
License plate
Installing the

license plate..........9-13
Liftgate ......................3-22
Liftgate release ..................3-26
Light Air bag warning light .........1-66, 2-12
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-7
Bulb replacement ..............8-27
Charge warning light .............2-8
Exterior and Interior lights ..........8-27
Fog lights ...................8-27
Fog light switch ...............2-43
Headlight and turn signal switch ......2-38
Headlight control switch ..........2-39
Headlights ..................8-27
Interior light ..................2-66 Light bulbs
..................8-27
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ......................2-29
Passenger air bag and status light .....1-57
Personal lights ................2-67
Security indicator light ............2-14
Warning/indicator lights and audible
reminders .................2-7, 2-8
Lights .......................8-27
Map lights ..................2-67
Lock Child safety rear door lock ..........3-6
Glove box lock ................2-54
Liftgate release ................3-26
Power door locks ............3-5, 3-6
Loose fuel cap warning .............2-30
Low fuel warning light ........2-9, 2-11, 2-28
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning light . . .2-29
Luggage hook ..................2-58
Luggage rack (see

roof rack) ..........2-58
Luggage (See vehicle loading information) . .9-14
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-13
10-4

Seat adjustmentFront power seat adjustment .........1-3
Second row bench seats ........1-5, 1-7
Seatback pockets ................2-52
Seat belt Child safety ..................1-24
Infants and small children ..........1-24
Injured Person ................1-18
Larger children ................1-25
Precautions on seat belt usage .......1-15
Pregnant women ...............1-18
Seat belt extenders .............1-23
Seat belt maintenance ............1-23
Seat belts ................1-15, 7-6
Three-point type with retractor .......1-19
Seat belt extenders ...............1-23
Seat belt warning light ..........1-18, 2-12
Seats 2nd row bench seat adjustment . . . .1-5, 1-7
Adjustment ...................1-2
Armrests ....................1-8
Automatic drive positioner ..........3-34
Front seats ...................1-2
Heated seats .............2-44, 2-46
Seats/floor mats ..................7-5
Security indicator light ..............2-14
Security system (INFINITI vehicle immobilizer system) ,
engine start ...........2-34, 3-4, 5-16
Security systems Vehicle security system ...........2-32
Self-adjusting brakes ..............8-22
Service manual order form ...........9-33
Servicing air conditioner .............4-57
Spark plug replacement .............8-19
Spark plugs ...................8-19 Specifications
...................9-8
Speedometer ...................2-5
SRS warning label ................1-65
Stability control.................5-137
Starting Before

starting the engine ..........5-16
Jump starting .............6-11, 8-18
Precautions when starting and driving . . . .5-4
Push starting .................6-13
Starting the engine .............5-16
Starting the engine ...............5-16
Steering Heated steering wheel ...........2-47
Power steering fluid .............8-15
Power steering system ...........5-135
Steering wheel ..................3-29
Steering wheel audio control switch ......4-98
Stop light .....................8-27
Storage ......................2-52
Storage bin ....................2-57
Storage tray ...................2-53
Sunglasses case .................2-55
Sunglasses holder ................2-55
Sunroof .......................7-5
Sunroof (see Moonroof) .............2-62
Sun visors ....................3-31
Supplemental air bag warning labels ......1-65
Supplemental air bag warning light . . .1-66, 2-12
Supplemental front impact air bag system . . .1-55
Supplemental restraint system Information and warning labels .......1-65
Precautions on supplemental restraint
system ....................1-48
Supplemental restraint system
(Supplemental air bag system) .........1-48Switch
Autolight switch ...............2-39
Automatic power window switch ......2-61
Fog light switch ...............2-43
Hazard warning flasher switch ........6-2
Headlight aiming control ..........2-41
Headlight and turn signal switch ......2-38
Headlight control switch ..........2-39
Instrument brightness control ........2-42
P ower door

lock switch.........3-5, 3-6
Power inverter switch ............2-48
Rear window defroster switch .......2-38
Rear window wiper and washer
switches ...................2-37
Steering wheel switch for audio
control/Bluetooth® Hands-Free Phone
System ....................4-98
Turn signal switch ..............2-42
Vehicle dynamic control (VDC) off
switch .....................2-47
T
Tachometer ....................2-5
Theft (INFINITI vehicle immobilizer system) ,
engine start ...........2-34, 3-4, 5-16
Three-way catalyst ................5-4
Tire Flat tire .....................6-3
Spare tire ................6-4, 8-39
Tire and Loading Information label .....9-12
Tire chains ..................8-36
Tire pressure .................8-29
Tire rotation ..................8-37
10-6
