fuse box location INFINITI QX60 HYBRID 2016 Owner's Manual

QR25DER engine
1. Power steering fluid reservoir (P. 8-15)
2. Engine coolant reservoir (P. 8-8)
3. Drive belt location (P. 8-19)
4. Fuse box (P. 8-23)
5. Engine oil filler cap (P. 8-11)
6. Inverter coolant reservoir (P. 8-10)
7. Brake fluid reservoir (P. 8-15)
8. Air cleaner (P. 8-20)
9. Fuse/Fusible link box and remote posi-tive battery terminal (P. 8-23)
10. Fuse box(P. 8-23)
11. Fuse/Fusible link box (P. 8-23)
12. Fuse/Fusible link box (P. 8-23)
13. 12–volt battery (P. 8-17)
14. Engine oil dipstick (P. 8-11)
15. Radiator cap (P. 8-8)
16. Windshield-washer fluid reservoir
(P. 8-16)
Refer to the page number indicated in pa-
rentheses for operating details.
NOTE:
Hybrid system engine compartment cov-
er(s) removed for clarity.
LDI2514

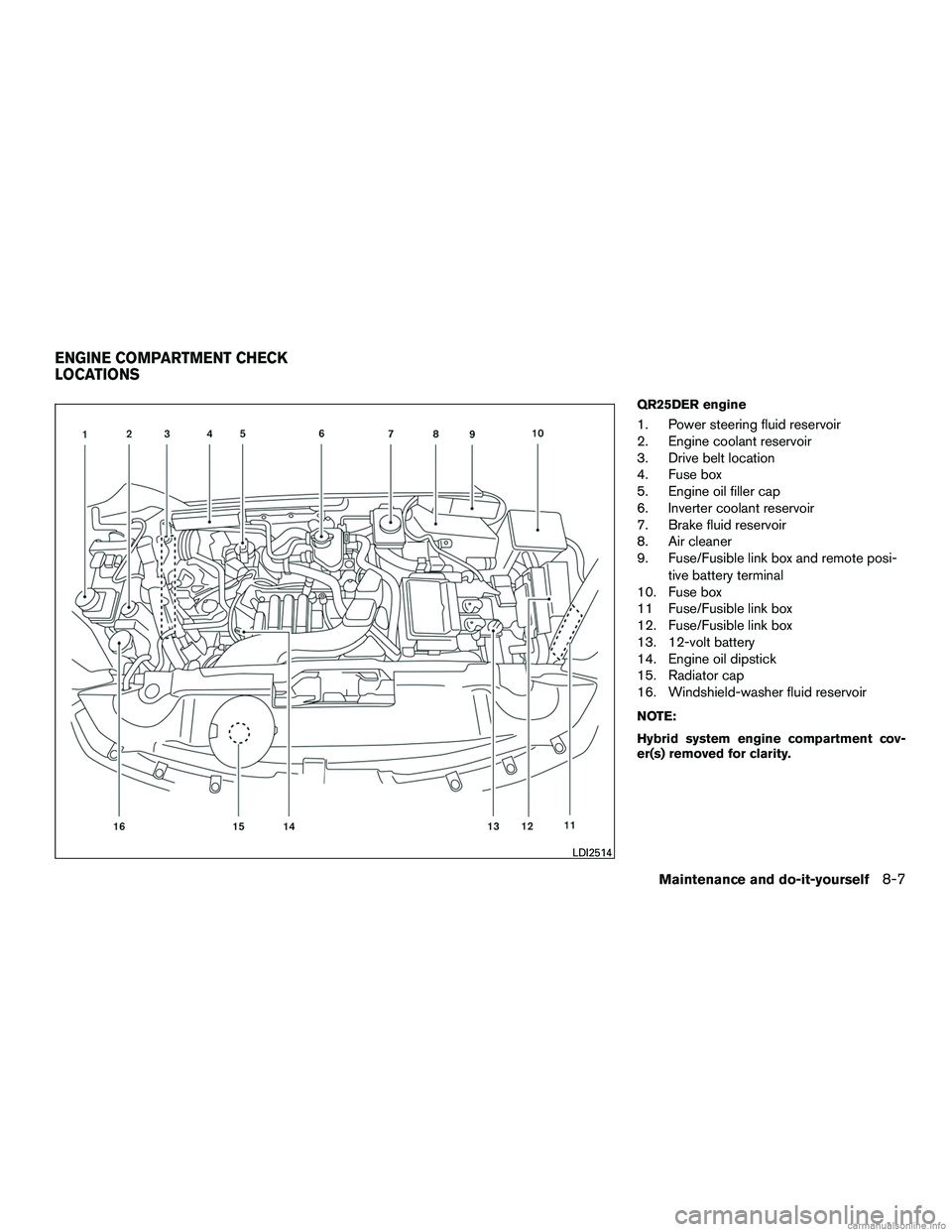

ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

QR25DER engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Drive belt location
4. Fuse box
5. Engine oil filler cap
6. Inverter coolant reservoir
7. Brake fluid reservoir
8. Air cleaner
9. Fuse/Fusible link box and remote posi-tive battery terminal
10. Fuse box
11 Fuse/Fusible link box
12. Fuse/Fusible link box
13. 12-volt battery
14. Engine oil dipstick
15. Radiator cap
16. Windshield-washer fluid reservoir
NOTE:
Hybrid system engine compartment cov-
er(s) removed for clarity.
LDI2514
ENGINE COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it-yourself8-7
