INFINITI QX60-HYBRID 2016 Owners Manual

System maintenance........................... 4-47
Vents ........................................... 4-48
Heater and air conditioner (automatic) ..............4-49
Automatic operation ........................... 4-50
Manual operation .............................. 4-50
Operating tips ................................. 4-51
CLIMATE setting screen ........................ 4-52
Rear automatic air conditioning system. . .........4-54
Servicing air conditioner ........................... 4-57
Audio system .................................... 4-57
Radio ........................................ 4-57
FM radio reception ............................ 4-57
AM radio reception ............................ 4-58
Satellite radio reception ........................ 4-58
Audio operation precautions ....................4-58
FM/AM/SAT radio with compact disc (CD)
player ........................................ 4-72
Digital Versatile Disc (DVD) Player
Operation (models with Navigation System)
(if so equipped) ............................... 4-80
USB (Universal Serial Bus) Connection Port
(models without Navigation System)
(if so equipped) ............................... 4-83USB (Universal Serial Bus) Connection Port
(models with Navigation System)
(if so equipped)
............................... 4-85
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-88
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-90
Bluetooth® streaming audio (if so equipped) .....4-94
CD care and cleaning .......................... 4-97
Steering wheel switch for audio control ..........4-98
Antenna ...................................... 4-99
INFINITI Mobile Entertainment System (MES)
(if so equipped) .................................. 4-99
System components .......................... 4-100
Before operating dual head restraint/
headrest DVD system ......................... 4-105
Playing a DVD (Digital Versatile Disc) ...........4-106
Operating tips ................................ 4-110
Care and maintenance ........................ 4-111
Car phone or CB radio ........................... 4-111
Bluetooth® Hands-Free

Phone System without
Navigation System (if so equipped) ................4-112
Regulatory Information ........................ 4-113

Using the system............................. 4-114
Control buttons .............................. 4-116
Getting started ............................... 4-116
List of voice commands ....................... 4-118
Voice Adaptation (VA) mode ...................4-122
Manual control ............................... 4-124
Troubleshooting guide ........................ 4-125
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ................4-126
Regulatory Information ........................ 4-128
Voice commands ............................. 4-128
Connecting procedure ........................ 4-129
Vehicle Phonebook ........................... 4-130
Handset phonebook .......................... 4-132
Making a call ................................. 4-133
Receiving a call .............................. 4-134During a call
................................. 4-135
Ending a call ................................. 4-135
Phone settings ............................... 4-136
Bluetooth® settings .......................... 4-136
Call volume .................................. 4-137
INFINITI Voice Recognition System
(if so equipped) ................................. 4-138
INFINITI Voice Recognition Standard Mode ......4-138
Using the system ............................. 4-141
Before starting . . ............................. 4-141
Giving voice commands ....................... 4-141
INFINITI Voice Recognition Alternate
Command Mode ............................. 4-146
Using the system ............................. 4-151
Speaker Adaptation function ...................4-153
Troubleshooting guide ........................ 4-155

WARNING
●Positioning of the heating or air condi-
tioning controls and display controls
should not be done while driving in or-
der that full attention may be given to
the driving operation.
● Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately. Ig-
noring such conditions may lead to ac-
cidents, fire or electrical shock. It is rec-
ommended that you visit an INFINITI
retailer for servicing.
1. INFO button (P. 4-7)
2. STATUS button (P. 4-7)
3. INFINITI controller (P. 4-5)
4. DISP (display) button (P. 4-8) 5. + (brightness control) button
6. – (brightness control) button
7.
OFF brightness control button
(P. 4-11)
8.
BACK (previous) button
LHA2110
CONTROL PANEL BUTTONS — COLOR
SCREEN WITHOUT NAVIGATION
SYSTEM (if so equipped)
4-4Monitor, climate, audio, phone and voice recognition systems

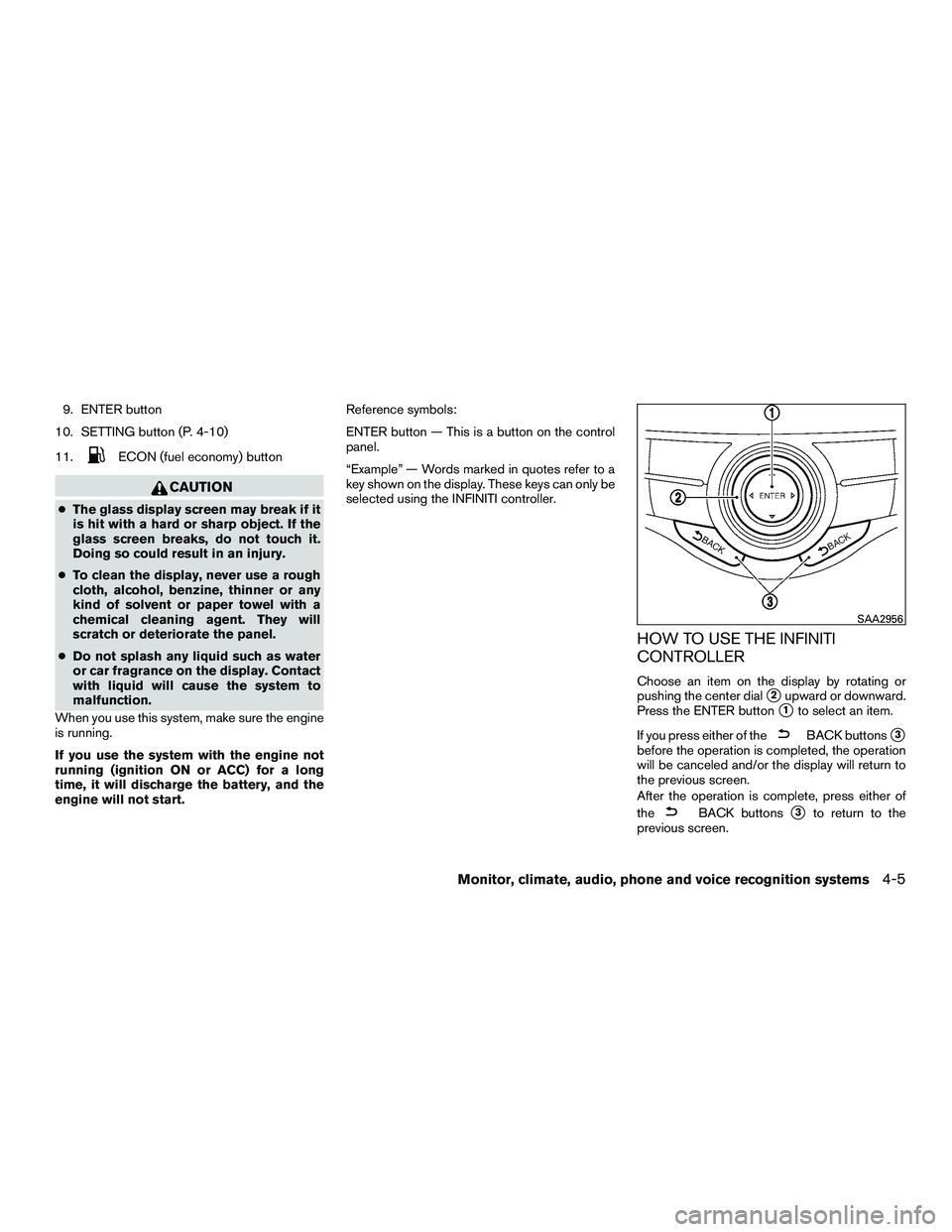

9. ENTER button
10. SETTING button (P. 4-10)
11.
ECON (fuel economy) button
CAUTION
● The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start. Reference symbols:
ENTER button — This is a button on the control
panel.
“Example” — Words marked in quotes refer to a
key shown on the display. These keys can only be
selected using the INFINITI controller.
HOW TO USE THE INFINITI
CONTROLLER
Choose an item on the display by rotating or
pushing the center dial
2upward or downward.
Press the ENTER button
1to select an item.
If you press either of the
BACK buttons3
before the operation is completed, the operation
will be canceled and/or the display will return to
the previous screen.
After the operation is complete, press either of
the
BACK buttons3to return to the
previous screen.
SAA2956
Monitor, climate, audio, phone and voice recognition systems4-5

HOW TO SELECT MENUS ON THE
SCREEN
Vehicle functions are viewed on the center dis-
play screen in menus. Whenever a menu selec-
tion is made or menu item is highlighted, different
areas on the screen provide you with important
information. See the following for details:1. Header: Shows the path used to get to the current
screen (for example, press the SETTING
button > then select the “Clock” key, then
select the “Time Zone” key) . 2. Menu Selections:
Shows the options to choose within that
menu screen (for example, Pacific time zone,
Mountain time zone, etc.) .
3. UP/DOWN Movement Indicator: Shows that the INFINITI controller may be
used to move UP/DOWN on the screen and
select more options.
4. Screen Count: Shows the number of menu selections avail-
able for that screen (for example, 1/9) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted (for example, manually set the time
zone) .
LHA1300
4-6Monitor, climate, audio, phone and voice recognition systems

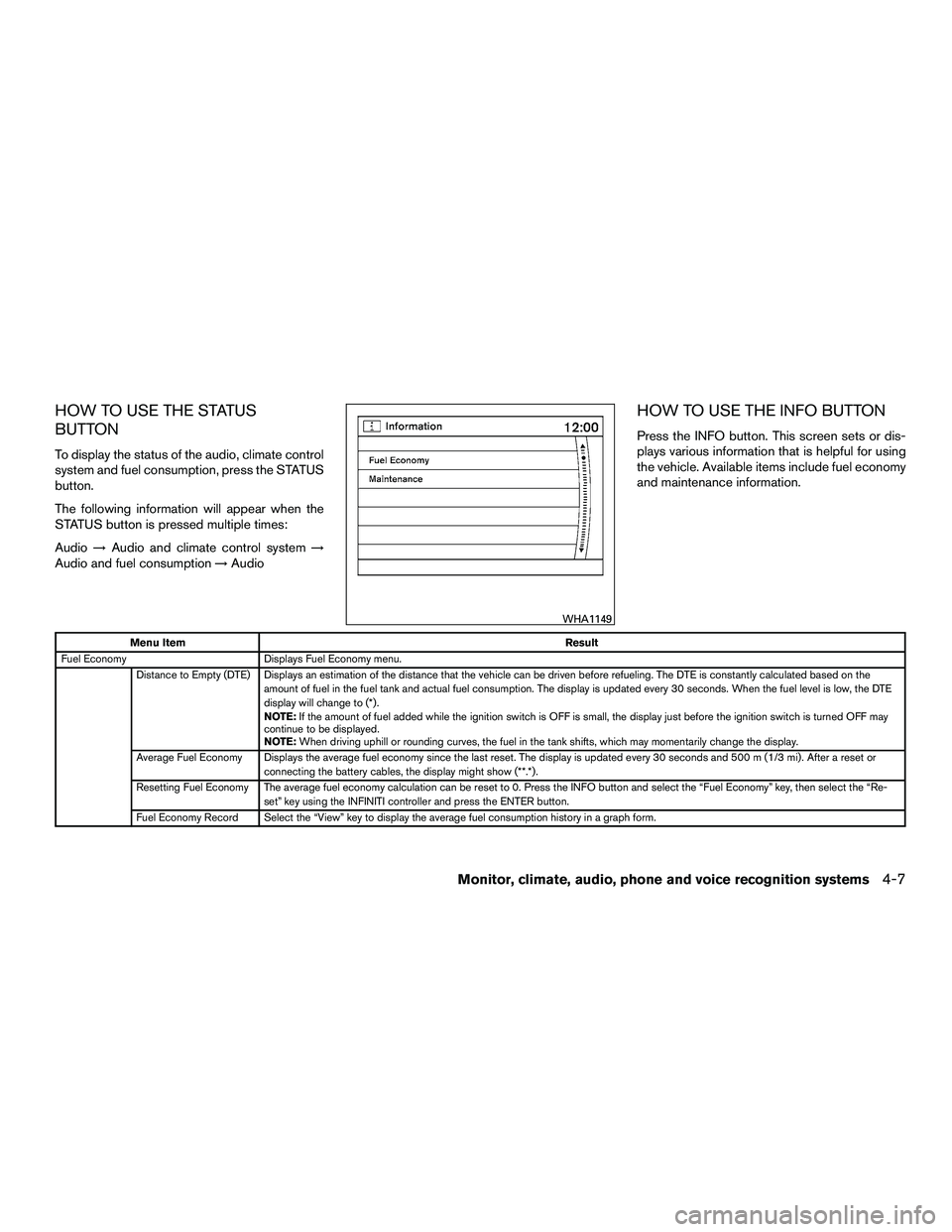

HOW TO USE THE STATUS
BUTTON
To display the status of the audio, climate control
system and fuel consumption, press the STATUS
button.
The following information will appear when the
STATUS button is pressed multiple times:
Audio→Audio and climate control system →
Audio and fuel consumption →Audio
HOW TO USE THE INFO BUTTON
Press the INFO button. This screen sets or dis-
plays various information that is helpful for using
the vehicle. Available items include fuel economy
and maintenance information.
Menu Item Result
Fuel Economy Displays Fuel Economy menu.
Distance to Empty (DTE) Displays an estimation of the distance that the vehicle can be driven before refueling. The DTE is constantly calculated based on the amount of fuel in the fuel tank and actual fuel consumption. The display is updated every 30 seconds. When the fuel level is low, the DTE
display will change to (*) .
NOTE:If the amount of fuel added while the ignition switch is OFF is small, the display just before the ignition switch is turned OFF may
continue to be displayed.
NOTE: When driving uphill or rounding curves, the fuel in the tank shifts, which may momentarily change the display.
Average Fuel Economy Displays the average fuel economy since the last reset. The display is updated every 30 seconds and 500 m (1/3 mi) . After a reset or connecting the battery cables, the display might show (**.*) .
Resetting Fuel Economy The average fuel economy calculation can be reset to 0. Press the INFO button and select the “Fuel Economy” key, then select the “Re- set” key using the INFINITI controller and press the ENTER button.
Fuel Economy Record Select the “View” key to display the average fuel consumption history in a graph form.
WHA1149
Monitor, climate, audio, phone and voice recognition systems4-7

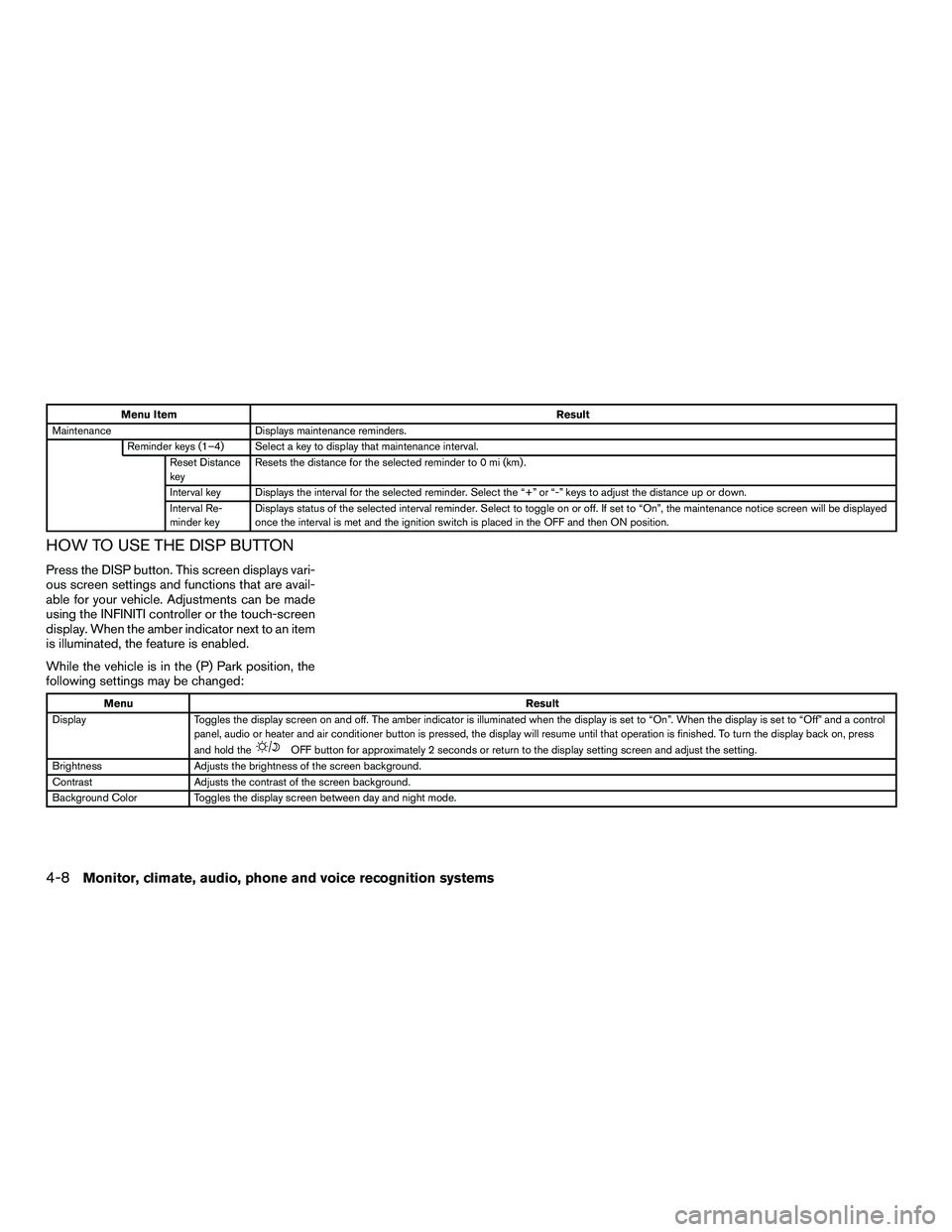

Menu ItemResult
Maintenance Displays maintenance reminders.
Reminder keys (1–4) Select a key to display that maintenance interval. Reset Distance
key Resets the distance for the selected reminder to 0 mi (km) .
Interval key Displays the interval for the selected reminder. Select the “+” or “-” keys to adjust the distance up or down.
Interval Re-
minder key Displays status of the selected interval reminder. Select to toggle on or off. If set to “On”, the maintenance notice screen will be displayed
once the interval is met and the ignition switch is placed in the OFF and then ON position.
HOW TO USE THE DISP BUTTON
Press the DISP button. This screen displays vari-
ous screen settings and functions that are avail-
able for your vehicle. Adjustments can be made
using the INFINITI controller or the touch-screen
display. When the amber indicator next to an item
is illuminated, the feature is enabled.
While the vehicle is in the (P) Park position, the
following settings may be changed:
Menu
Result
Display Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” and a control
panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display back on, press
and hold the
OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.
Brightness Adjusts the brightness of the screen background.
Contrast Adjusts the contrast of the screen background.
Background Color Toggles the display screen between day and night mode.
4-8Monitor, climate, audio, phone and voice recognition systems

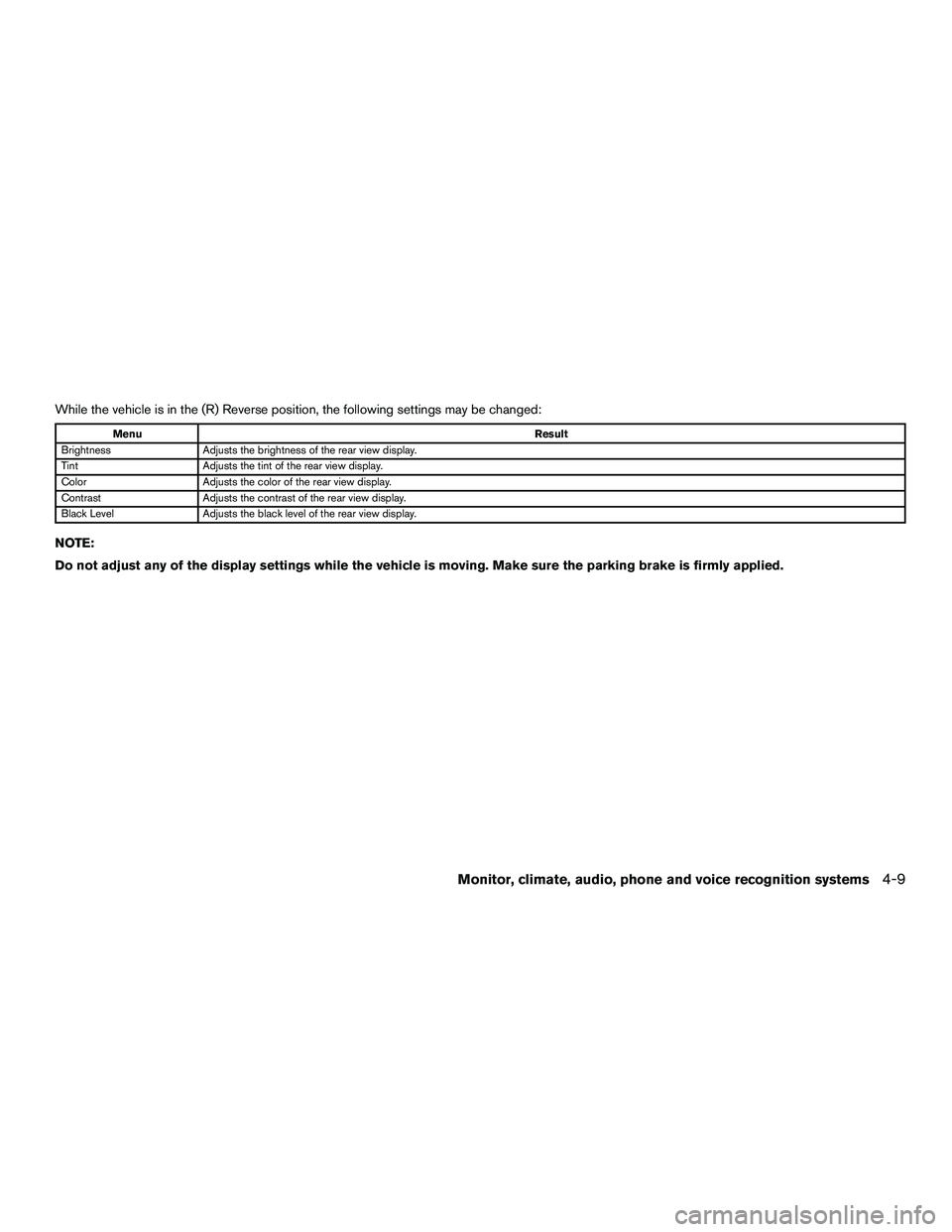

While the vehicle is in the (R) Reverse position, the following settings may be changed:
MenuResult
Brightness Adjusts the brightness of the rear view display.
Tint Adjusts the tint of the rear view display.
Color Adjusts the color of the rear view display.
Contrast Adjusts the contrast of the rear view display.
Black Level Adjusts the black level of the rear view display.
NOTE:
Do not adjust any of the display settings while the vehicle is moving. Make sure the parking brake is firmly applied.
Monitor, climate, audio, phone and voice recognition systems4-9

HOW TO USE THE SETTING
BUTTON
Press the SETTING button. This screen displays
and adjusts various settings and functions that
are available for your vehicle. Use the INFINITI
controller to select an item and then press the
ENTER button. When the amber indicator next to
an item is illuminated, the feature is enabled.
Menu ItemResult
Audio For additional information, refer to “Audio system” in this section.
Display Adjusts the settings for the display screen.
Brightness/Contrast Adjusts the brightness or contrast of the map background.
Display off Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” and a
control panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display
back on, press and hold the
OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.
Background Color Adjusts the display screen between day and night mode.
Switch Beeps Toggles on and off the beep sound that is heard when a control panel button is pressed.
Camera Toggles the predicted course lines on or off when the rear view camera is displayed on screen. For additional information, refer to “RearView
Monitor” in this section.
Clock Adjusts the clock settings.
LHA1304
4-10Monitor, climate, audio, phone and voice recognition systems

Menu ItemResult
On-screen Clock Toggles on or off the clock in the upper right corner of the display.
Clock Format Toggles between a 12–hour and 24–hour clock.
Daylight Savings Time Toggles on or off the daylight savings time.
Time Zone Adjusts the time zone. Choose a time zone from the available list.
Adjust Clock Manually adjusts the hours and minutes of the clock.
Language/Units Select which settings you want to change using the INFINITI controller.
Select Language Select to change language that will be shown on the display.
Select Units Select the “US” (mi, °F, MPG) key or the “Metric” (km, °C, L/100 km) key to change the units shown on the display.
ECON (fuel economy) BUTTON
Press theECON (fuel economy) button.
The screen will display fuel economy information
for the vehicle.
OFF BUTTON
To change the display brightness, press
the
OFF button. Pressing the button again
will change the display to the day
or the
night
display. The brightness can then be
adjusted using the INFINITI controller.
The display brightness can also be adjusted us-
ing the + (brighter) button or the (dimmer)
button. If no operation is done within 10 seconds, the
display will return to the previous display.
Press and hold the
OFF button for more
than 2 seconds to turn the display off. Press the
button again to turn the display on.
Monitor, climate, audio, phone and voice recognition systems4-11
