INFINITI QX60-HYBRID 2017 Owners Manual

The LightningTMconnector works with iPhone®
5, iPhone® 5S, iPod touch® (5th generation)
and iPod nano® (7th generation) .
The 30–pin connector works with iPhone® 4S,
iPhone® 4, iPhone® 3GS, iPhone® 3G,
iPhone®, iPod touch® (1st through 4th genera-
tion) , iPod classic® and iPod nano® (1st
through 6th generation) .
USB works with iPhone® 5, iPhone® 4S,
iPhone® 4, iPhone® 3GS, iPhone® 3G,
iPhone®, iPod touch® (1st through 5th genera-
tion) , iPod classic® and iPod nano® (1st
through 7th generation) .

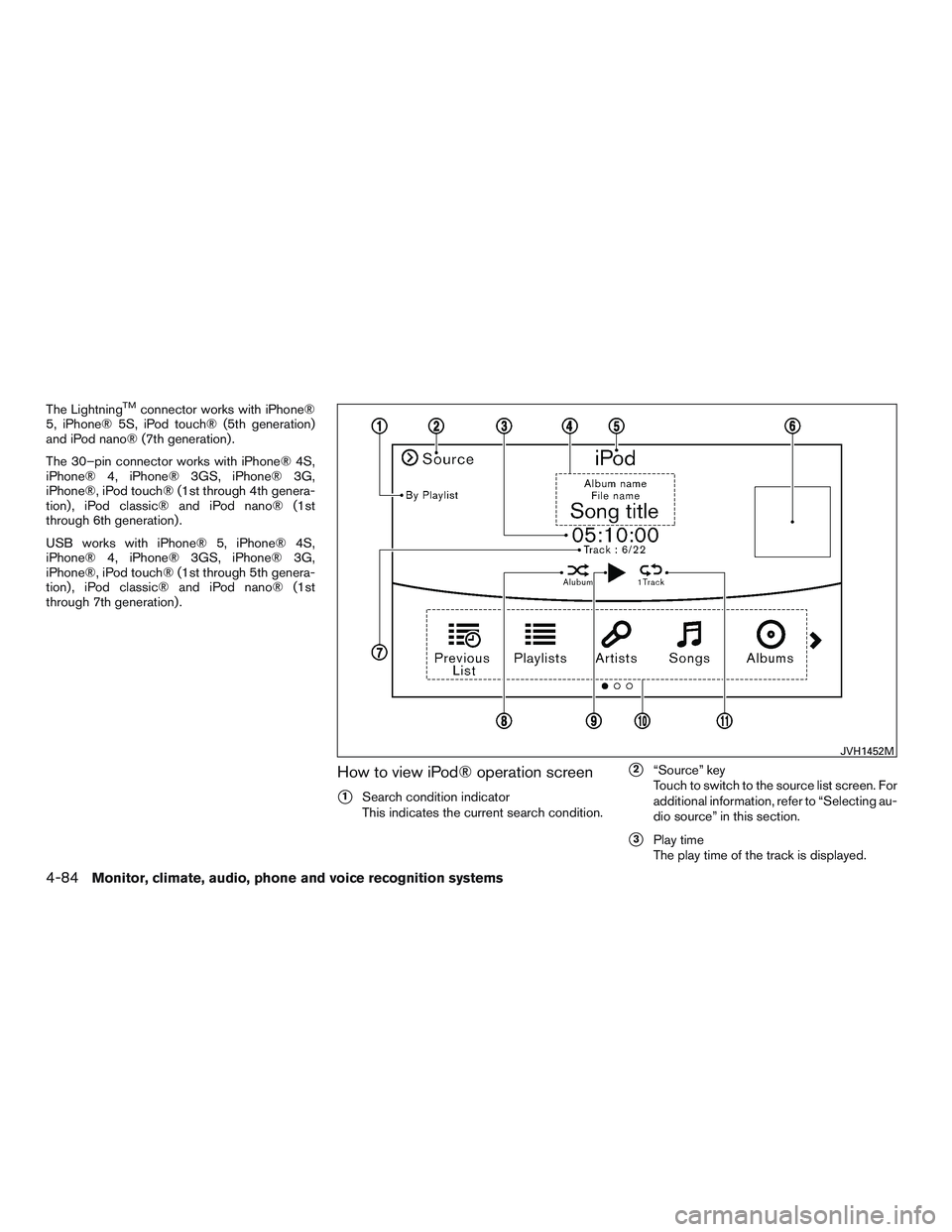

How to view iPod® operation screen
1Search condition indicator
This indicates the current search condition.
2“Source” key
Touch to switch to the source list screen. For
additional information, refer to “Selecting au-
dio source” in this section.
3Play time
The play time of the track is displayed.
JVH1452M
4-84Monitor, climate, audio, phone and voice recognition systems

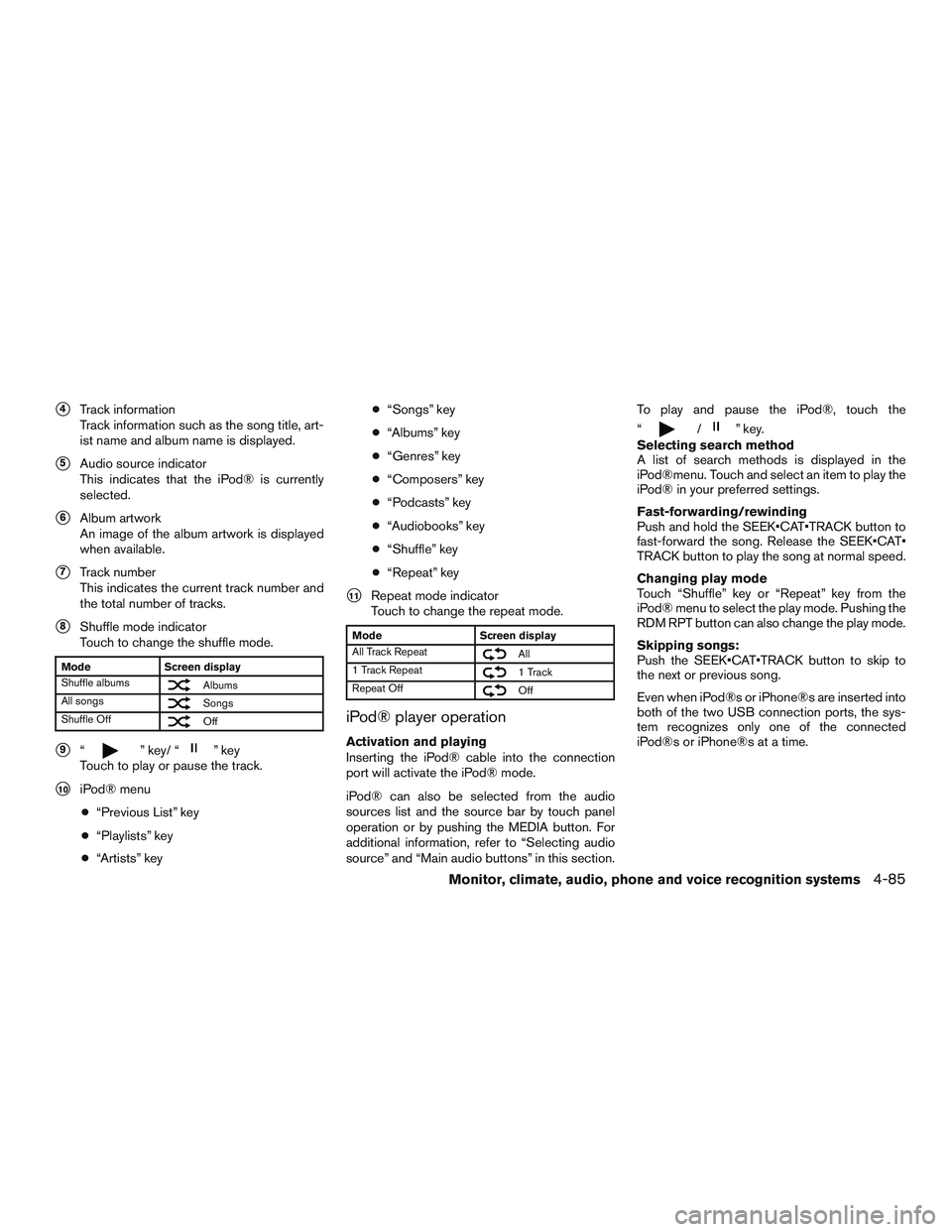

4Track information
Track information such as the song title, art-
ist name and album name is displayed.
5Audio source indicator
This indicates that the iPod® is currently
selected.
6Album artwork
An image of the album artwork is displayed
when available.
7Track number
This indicates the current track number and
the total number of tracks.
8Shuffle mode indicator
Touch to change the shuffle mode.
Mode Screen display
Shuffle albums
Albums
All songs
Songs
Shuffle Off
Off
9“” key/ “” key
Touch to play or pause the track.
10iPod® menu
● “Previous List” key
● “Playlists” key
● “Artists” key ●
“Songs” key
● “Albums” key
● “Genres” key
● “Composers” key
● “Podcasts” key
● “Audiobooks” key
● “Shuffle” key
● “Repeat” key
11Repeat mode indicator
Touch to change the repeat mode.
Mode Screen display
All Track Repeat
All
1 Track Repeat
1 Track
Repeat Off
Off
iPod® player operation
Activation and playing
Inserting the iPod® cable into the connection
port will activate the iPod® mode.
iPod® can also be selected from the audio
sources list and the source bar by touch panel
operation or by pushing the MEDIA button. For
additional information, refer to “Selecting audio
source” and “Main audio buttons” in this section. To play and pause the iPod®, touch the
“
/” key.
Selecting search method
A list of search methods is displayed in the
iPod®menu. Touch and select an item to play the
iPod® in your preferred settings.
Fast-forwarding/rewinding
Push and hold the SEEK•CAT•TRACK button to
fast-forward the song. Release the SEEK•CAT•
TRACK button to play the song at normal speed.
Changing play mode
Touch “Shuffle” key or “Repeat” key from the
iPod® menu to select the play mode. Pushing the
RDM RPT button can also change the play mode.
Skipping songs:
Push the SEEK•CAT•TRACK button to skip to
the next or previous song.
Even when iPod®s or iPhone®s are inserted into
both of the two USB connection ports, the sys-
tem recognizes only one of the connected
iPod®s or iPhone®s at a time.
Monitor, climate, audio, phone and voice recognition systems4-85

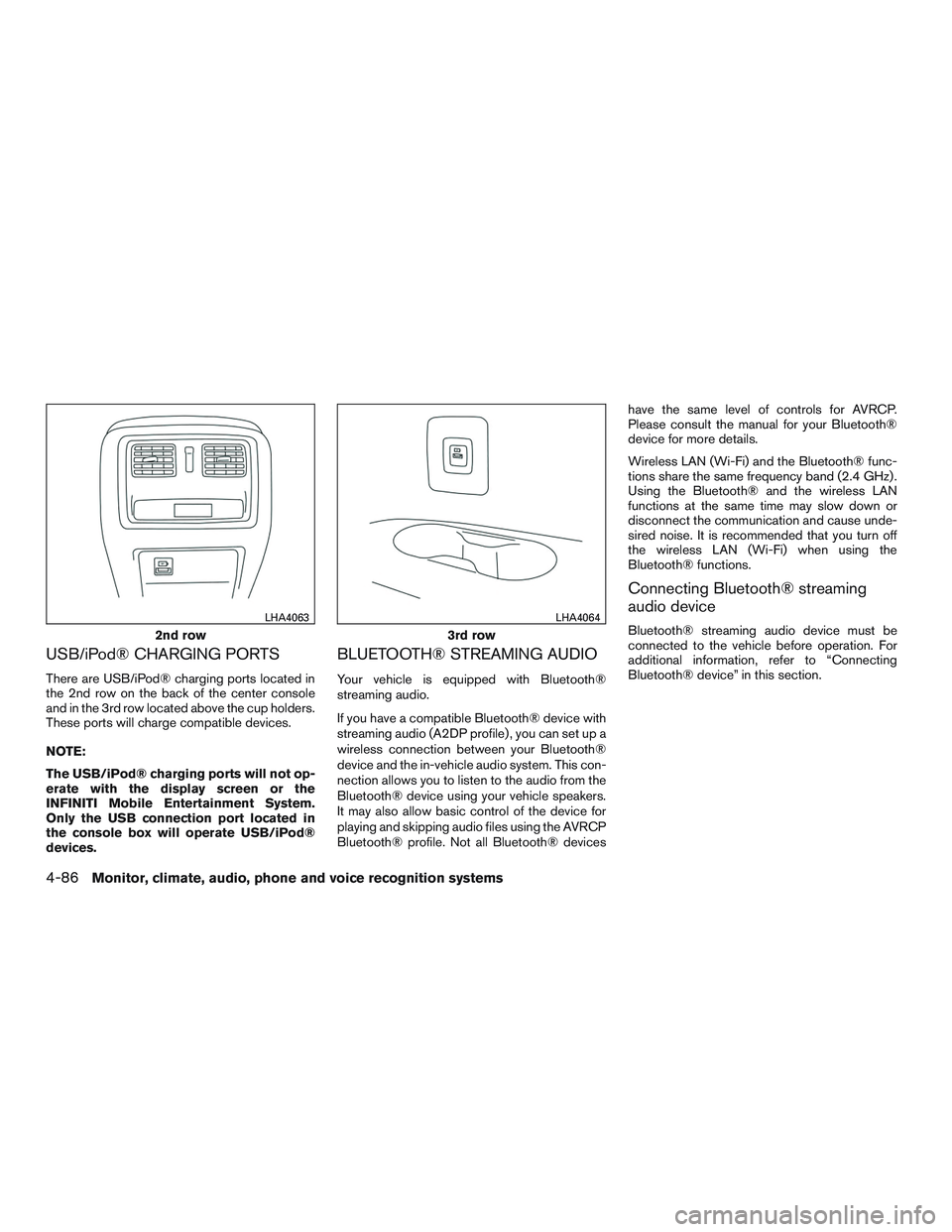

USB/iPod® CHARGING PORTS
There are USB/iPod® charging ports located in
the 2nd row on the back of the center console
and in the 3rd row located above the cup holders.
These ports will charge compatible devices.
NOTE:
The USB/iPod® charging ports will not op-
erate with the display screen or the
INFINITI Mobile Entertainment System.
Only the USB connection port located in
the console box will operate USB/iPod®
devices.
BLUETOOTH® STREAMING AUDIO
Your vehicle is equipped with Bluetooth®
streaming audio.
If you have a compatible Bluetooth® device with
streaming audio (A2DP profile) , you can set up a
wireless connection between your Bluetooth®
device and the in-vehicle audio system. This con-
nection allows you to listen to the audio from the
Bluetooth® device using your vehicle speakers.
It may also allow basic control of the device for
playing and skipping audio files using the AVRCP
Bluetooth® profile. Not all Bluetooth® deviceshave the same level of controls for AVRCP.
Please consult the manual for your Bluetooth®
device for more details.
Wireless LAN (Wi-Fi) and the Bluetooth® func-
tions share the same frequency band (2.4 GHz) .
Using the Bluetooth® and the wireless LAN
functions at the same time may slow down or
disconnect the communication and cause unde-
sired noise. It is recommended that you turn off
the wireless LAN (Wi-Fi) when using the
Bluetooth® functions.
Connecting Bluetooth® streaming
audio device
Bluetooth® streaming audio device must be
connected to the vehicle before operation. For
additional information, refer to “Connecting
Bluetooth® device” in this section.2nd row
LHA4063
3rd row
LHA4064
4-86Monitor, climate, audio, phone and voice recognition systems

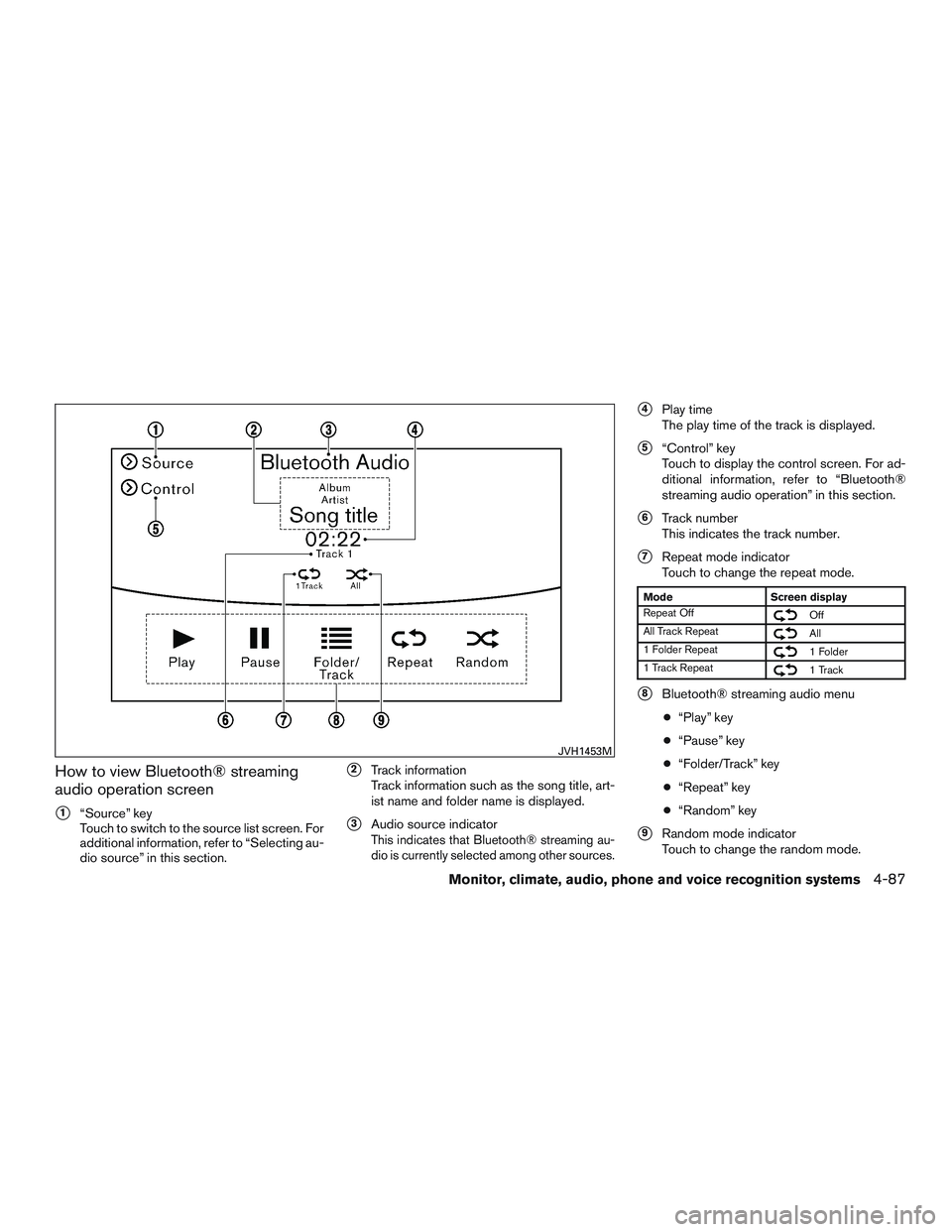

How to view Bluetooth® streaming
audio operation screen
1“Source” key
Touch to switch to the source list screen. For
additional information, refer to “Selecting au-
dio source” in this section.
2Track information
Track information such as the song title, art-
ist name and folder name is displayed.
3Audio source indicatorThis indicates that Bluetooth® streaming au-
dio is currently selected among other sources.
4Play time
The play time of the track is displayed.
5“Control” key
Touch to display the control screen. For ad-
ditional information, refer to “Bluetooth®
streaming audio operation” in this section.
6Track number
This indicates the track number.
7Repeat mode indicator
Touch to change the repeat mode.
Mode Screen display
Repeat Off
Off
All Track Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
8Bluetooth® streaming audio menu
● “Play” key
● “Pause” key
● “Folder/Track” key
● “Repeat” key
● “Random” key
9Random mode indicator
Touch to change the random mode.
JVH1453M
Monitor, climate, audio, phone and voice recognition systems4-87

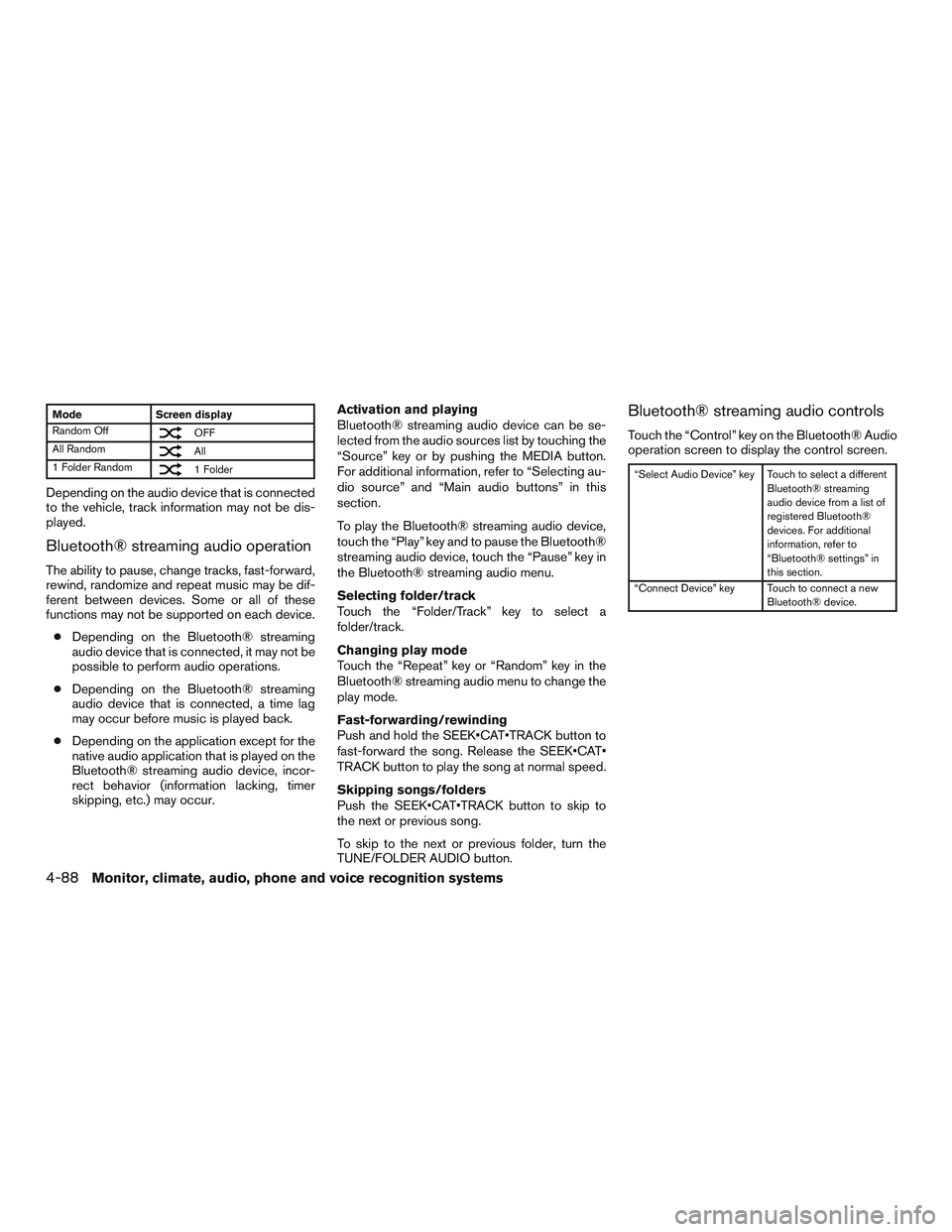

ModeScreen display
Random Off
OFF
All Random
All
1 Folder Random
1 Folder
Depending on the audio device that is connected
to the vehicle, track information may not be dis-
played.
Bluetooth® streaming audio operation
The ability to pause, change tracks, fast-forward,
rewind, randomize and repeat music may be dif-
ferent between devices. Some or all of these
functions may not be supported on each device.
● Depending on the Bluetooth® streaming
audio device that is connected, it may not be
possible to perform audio operations.
● Depending on the Bluetooth® streaming
audio device that is connected, a time lag
may occur before music is played back.
● Depending on the application except for the
native audio application that is played on the
Bluetooth® streaming audio device, incor-
rect behavior (information lacking, timer
skipping, etc.) may occur. Activation and playing
Bluetooth® streaming audio device can be se-
lected from the audio sources list by touching the
“Source” key or by pushing the MEDIA button.
For additional information, refer to “Selecting au-
dio source” and “Main audio buttons” in this
section.
To play the Bluetooth® streaming audio device,
touch the “Play” key and to pause the Bluetooth®
streaming audio device, touch the “Pause” key in
the Bluetooth® streaming audio menu.
Selecting folder/track
Touch the “Folder/Track” key to select a
folder/track.
Changing play mode
Touch the “Repeat” key or “Random” key in the
Bluetooth® streaming audio menu to change the
play mode.
Fast-forwarding/rewinding
Push and hold the SEEK•CAT•TRACK button to
fast-forward the song. Release the SEEK•CAT•
TRACK button to play the song at normal speed.
Skipping songs/folders
Push the SEEK•CAT•TRACK button to skip to
the next or previous song.
To skip to the next or previous folder, turn the
TUNE/FOLDER AUDIO button.
Bluetooth® streaming audio controls
Touch the “Control” key on the Bluetooth® Audio
operation screen to display the control screen.
“Select Audio Device” key Touch to select a different
Bluetooth® streaming
audio device from a list of
registered Bluetooth®
devices. For additional
information, refer to
“Bluetooth® settings” in
this section.
“Connect Device” key Touch to connect a new Bluetooth® device.
4-88Monitor, climate, audio, phone and voice recognition systems

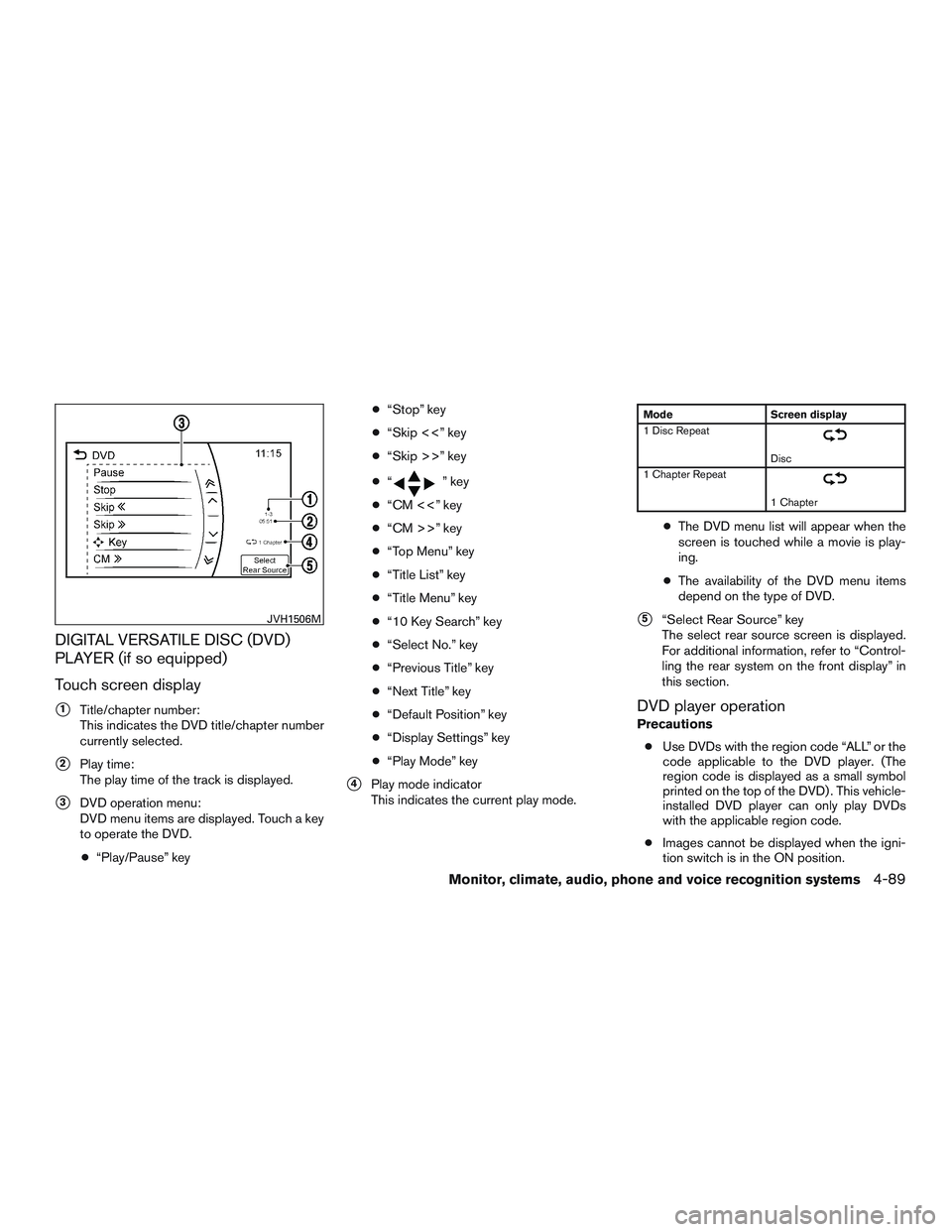

DIGITAL VERSATILE DISC (DVD)
PLAYER (if so equipped)
Touch screen display
1Title/chapter number:
This indicates the DVD title/chapter number
currently selected.
2Play time:
The play time of the track is displayed.
3DVD operation menu:
DVD menu items are displayed. Touch a key
to operate the DVD.
● “Play/Pause” key ●
“Stop” key
● “Skip <<” key
● “Skip >>” key
● “
” key
● “CM <<” key
● “CM >>” key
● “Top Menu” key
● “Title List” key
● “Title Menu” key
● “10 Key Search” key
● “Select No.” key
● “Previous Title” key
● “Next Title” key
● “Default Position” key
● “Display Settings” key
● “Play Mode” key
4Play mode indicator
This indicates the current play mode.
Mode Screen display
1 Disc Repeat
Disc
1 Chapter Repeat
1 Chapter
● The DVD menu list will appear when the
screen is touched while a movie is play-
ing.
● The availability of the DVD menu items
depend on the type of DVD.
5“Select Rear Source” key
The select rear source screen is displayed.
For additional information, refer to “Control-
ling the rear system on the front display” in
this section.
DVD player operation
Precautions
● Use DVDs with the region code “ALL” or the
code applicable to the DVD player. (The
region code is displayed as a small symbol
printed on the top of the DVD) . This vehicle-
installed DVD player can only play DVDs
with the applicable region code.
● Images cannot be displayed when the igni-
tion switch is in the ON position.
JVH1506M
Monitor, climate, audio, phone and voice recognition systems4-89

●Some VIDEO-CD functions may not be sup-
ported with this system.
● Displaying items may vary depending on the
type of disc.
Loading
Insert the DVD into the slot with the label side
facing up. The DVD will be guided automatically
into the slot and start playback.
When a DVD is loaded, the DVD operation
screen is displayed on the display.
Activation and playing
Inserting the DVD into the slot will activate the
DVD mode. The DVD mode can also be selected
from the source list by pushing the DISC button
with a DVD loaded. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section.
Touch the “Play” key in the DVD menu to start
playing. Touch the “Pause” key to pause and
touch the “Stop” key to stop playing the DVD.
Skipping
Touch the “Skip >>” key or “Skip <<” key in the
DVD menu to skip to the next or previous
track/chapter. Displaying keys
Touch the “Key” key in the DVD menu to display
operation keys such as the “Enter” key or “Re-
turn” key, etc.on the display.
Skipping commercial messages
Touch the “CM >>” key or “CM <<” key in the
DVD menu to skip commercials.
Displaying top menu
Touch the “Top Menu” key in the DVD menu to
display the top menu specific to each disc. For
additional information, refer to the disc instruc-
tions.
Displaying title list
Touch the “Title List” key in the DVD menu to
display the title list.
Displaying title menu
Touch the “Title Menu” key in the DVD menu to
display the title menu specific to each disc. For
additional information, refer to the disc instruc-
tions.
Selecting track/chapter
Touch the “10 Key Search” key in the DVD menu
to display the keyboard screen. Enter the
track/chapter you wish to play.
Selecting track/chapter/menu number
Touch the “10 Key Search” key or “Select No.”
key in the DVD menu to display the keyboard
screen. Enter the track/chapter or menu number
you wish to play.
Viewing from default list
Touch the “Default Position” key in the DVD menu
to view from the default list.
Adjusting the display
Touch the “Display Settings” key in the DVD
menu to adjust the display settings of the display.
“Brightness” key
Adjusts the display bright-
ness
“Contrast” key Adjusts the display con-
trast
“Black Level” key Adjusts the display black
level
“Tint” key Adjusts the tint level
“Color” key Adjusts the color
“Reset Settings” key Resets all the display set- tings to default
4-90Monitor, climate, audio, phone and voice recognition systems

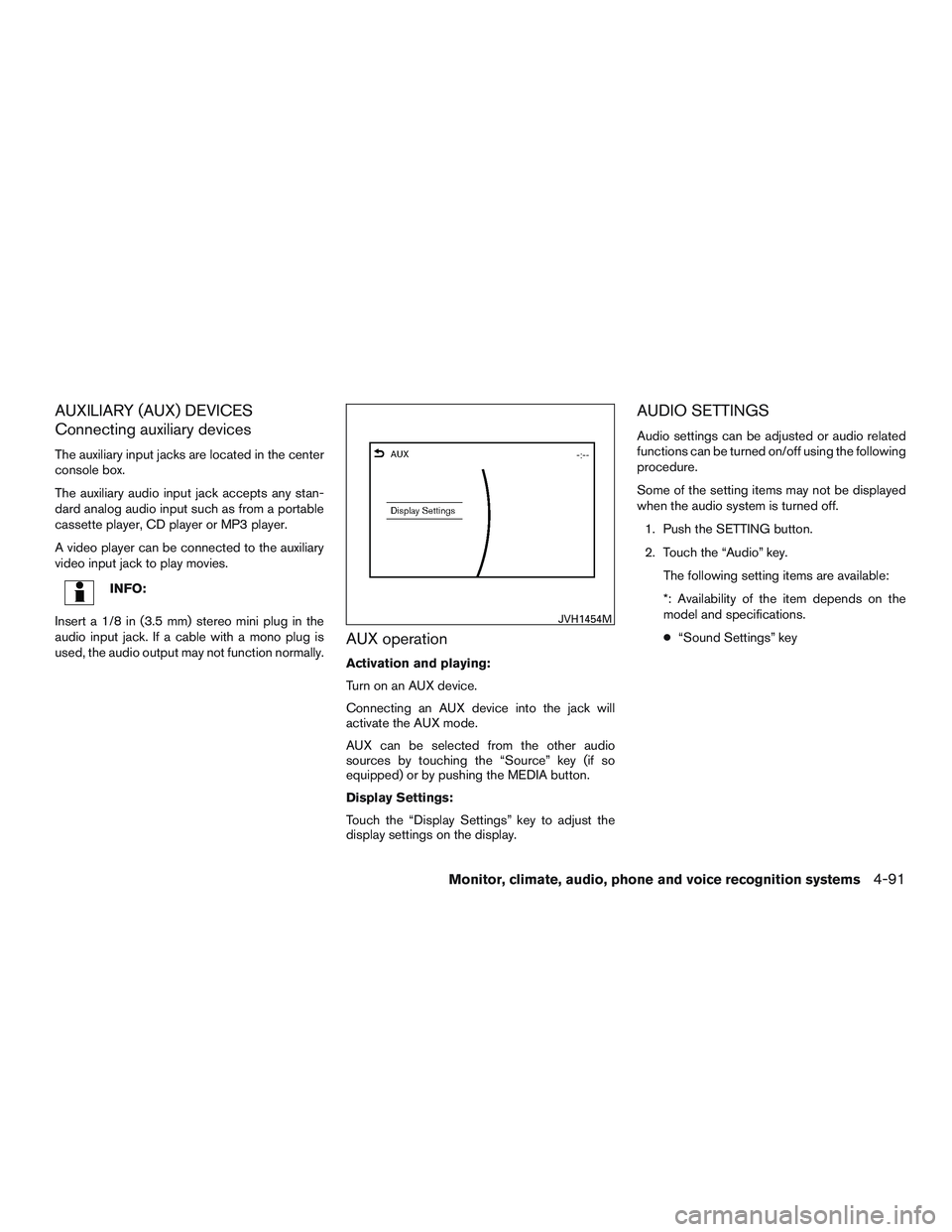

AUXILIARY (AUX) DEVICES
Connecting auxiliary devices
The auxiliary input jacks are located in the center
console box.
The auxiliary audio input jack accepts any stan-
dard analog audio input such as from a portable
cassette player, CD player or MP3 player.
A video player can be connected to the auxiliary
video input jack to play movies.
INFO:
Insert a 1/8 in (3.5 mm) stereo mini plug in the
audio input jack. If a cable with a mono plug is
used, the audio output may not function normally.
AUX operation
Activation and playing:
Turn on an AUX device.
Connecting an AUX device into the jack will
activate the AUX mode.
AUX can be selected from the other audio
sources by touching the “Source” key (if so
equipped) or by pushing the MEDIA button.
Display Settings:
Touch the “Display Settings” key to adjust the
display settings on the display.
AUDIO SETTINGS
Audio settings can be adjusted or audio related
functions can be turned on/off using the following
procedure.
Some of the setting items may not be displayed
when the audio system is turned off. 1. Push the SETTING button.
2. Touch the “Audio” key. The following setting items are available:
*: Availability of the item depends on the
model and specifications.
●“Sound Settings” key
JVH1454M
Monitor, climate, audio, phone and voice recognition systems4-91

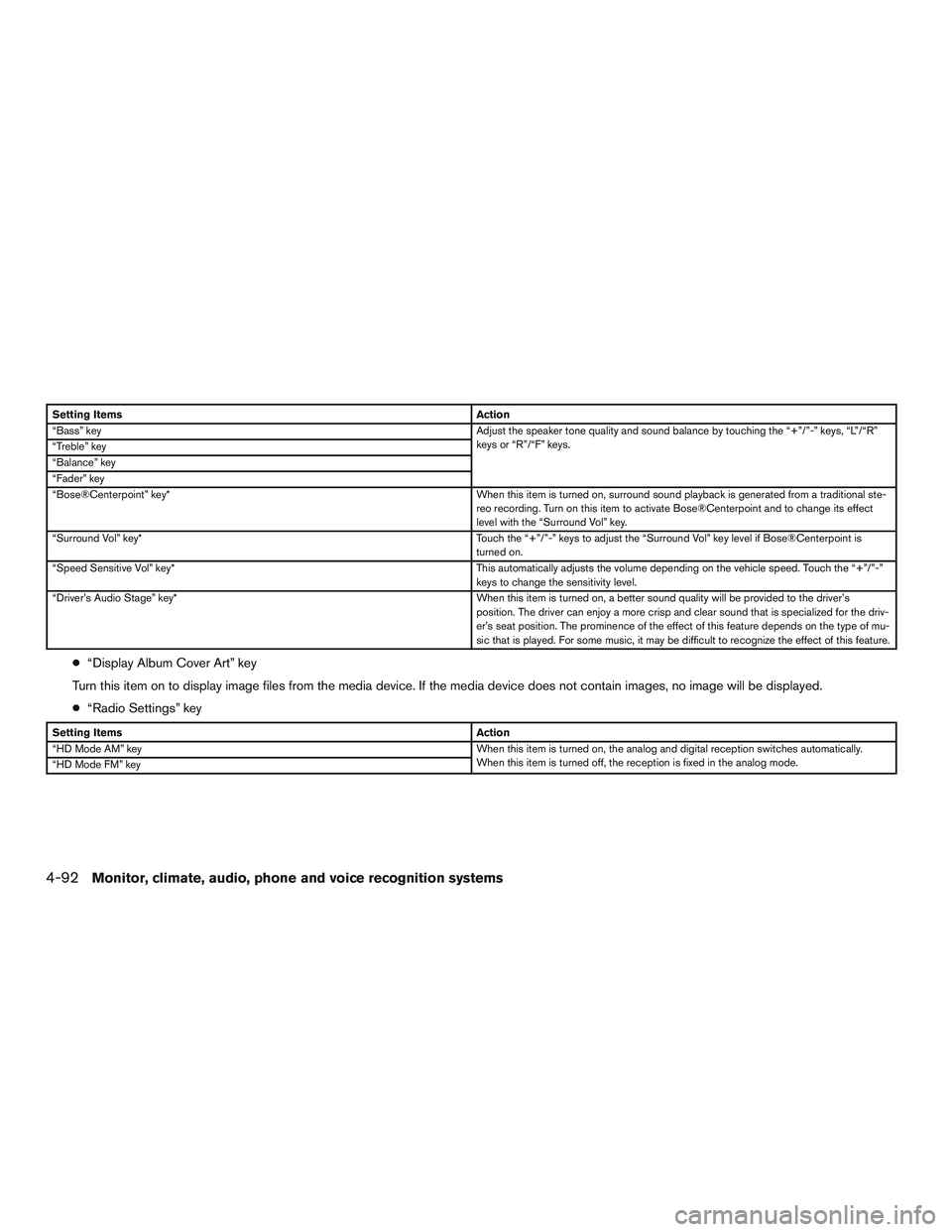

Setting ItemsAction
“Bass” key Adjust the speaker tone quality and sound balance by touching the “+”/”-” keys, “L”/“R”
keys or “R”/“F” keys.
“Treble” key
“Balance” key
“Fader” key
“Bose®Centerpoint” key* When this item is turned on, surround sound playback is generated from a traditional ste-
reo recording. Turn on this item to activate Bose®Centerpoint and to change its effect
level with the “Surround Vol” key.
“Surround Vol” key* Touch the “+”/”-” keys to adjust the “Surround Vol” key level if Bose®Centerpoint is
turned on.
“Speed Sensitive Vol” key* This automatically adjusts the volume depending on the vehicle speed. Touch the “+”/”-”
keys to change the sensitivity level.
“Driver’s Audio Stage” key* When this item is turned on, a better sound quality will be provided to the driver’s
position. The driver can enjoy a more crisp and clear sound that is specialized for the driv-
er’s seat position. The prominence of the effect of this feature depends on the type of mu-
sic that is played. For some music, it may be difficult to recognize the effect of this feature.
● “Display Album Cover Art” key
Turn this item on to display image files from the media device. If the media device does not contain images, no image will be displayed.
● “Radio Settings” key
Setting Items Action
“HD Mode AM” key When this item is turned on, the analog and digital reception switches automatically.
When this item is turned off, the reception is fixed in the analog mode.
“HD Mode FM” key
4-92Monitor, climate, audio, phone and voice recognition systems

●“DVD Settings” key*
Setting Items Action
“Angle” key Images and movies can be viewed in different angles if the DVD contains this data.
Switch the angle number by touching the “+”/“-” keys.
“CM Skip” key Select commercial skip length from 15, 30, and 60 seconds.
“DRC” key Select the DRC (Dynamic Range Compression) setting from OFF, 1 and 2. DRC allows
tuning of the dynamic range of sound recorded in the Dolby Digital format.
“Angle Mark” key Turn the angle mark display on/off. When this item is turned on, “Multi Angle” will be dis- played on the DVD screen.
“Menu Skip” key DVD menus are automatically configured and the contents will be played directly when
this item is turned on. Note that some discs may not be played directly even if this item is
turned on.
“DOWN MIX” key When this item is turned on, a multi-channel recording will be converted to a traditional two channel (stereo) recording.
“DVD Language” key Enter the language code of the preferred language.
“Language” key Changeable items will vary depending on the type of DVD.
For DVD-V:
Audible language can be changed by touching the “<” or “>” keys.
For Video CD:
Select the sound setting from Main audio, Sub audio and Main/Sub audio.
For DVD VR:
Select the sound setting from Main audio 1, Sub audio 1, Main/Sub audio 1, Main audio
2, Sub audio 2, and Main/Sub audio 2.
“Subtitle” key The subtitle language can be changed by touching the “<” or “>” keys.
“DVD Screen Settings” key Touch to adjust the DVD aspect ratio.
“PG/PL Mode” key Touch to switch the PG/PL mode setting.
INFO:
The available setting items differ depending on the DVD.
Monitor, climate, audio, phone and voice recognition systems4-93
