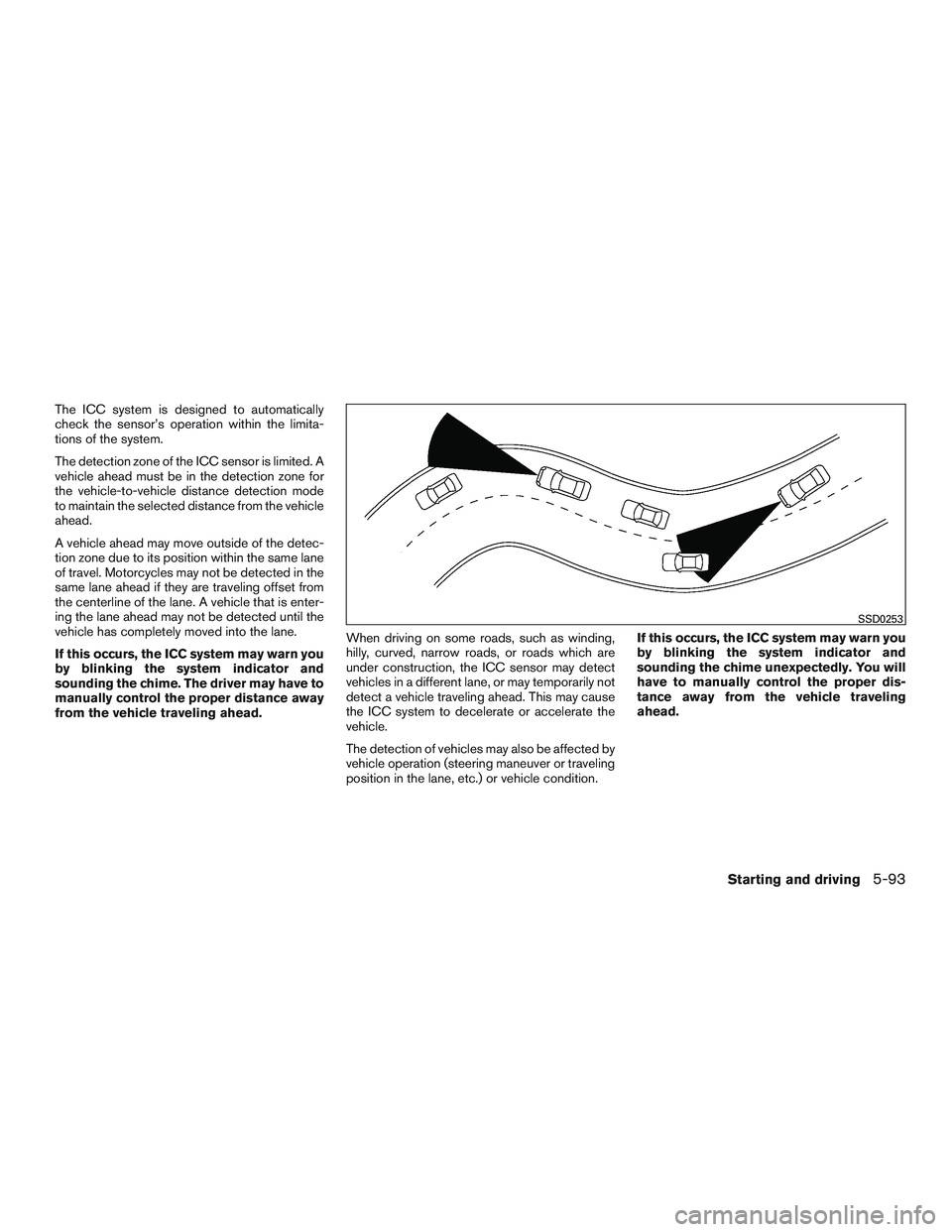

The ICC system is designed to automatically
check the sensor’s operation within the limita-
tions of the system.
The detection zone of the ICC sensor is limited. A
vehicle ahead must be in the detection zone for
the vehicle-to-vehicle distance detection mode
to maintain the selected distance from the vehicle
ahead.
A vehicle ahead may move outside of the detec-
tion zone due to its position within the same lane
of travel. Motorcycles may not be detected in the
same lane ahead if they are traveling offset from
the centerline of the lane. A vehicle that is enter-
ing the lane ahead may not be detected until the
vehicle has completely moved into the lane.
If this occurs, the ICC system may warn you
by blinking the system indicator and
sounding the chime. The driver may have to
manually control the proper distance away
from the vehicle traveling ahead.When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the ICC sensor may detect
vehicles in a different lane, or may temporarily not
detect a vehicle traveling ahead. This may cause
the ICC system to decelerate or accelerate the
vehicle.
The detection of vehicles may also be affected by
vehicle operation (steering maneuver or traveling
position in the lane, etc.) or vehicle condition.If this occurs, the ICC system may warn you
by blinking the system indicator and
sounding the chime unexpectedly. You will
have to manually control the proper dis-
tance away from the vehicle traveling
ahead.
SSD0253
Starting and driving5-93

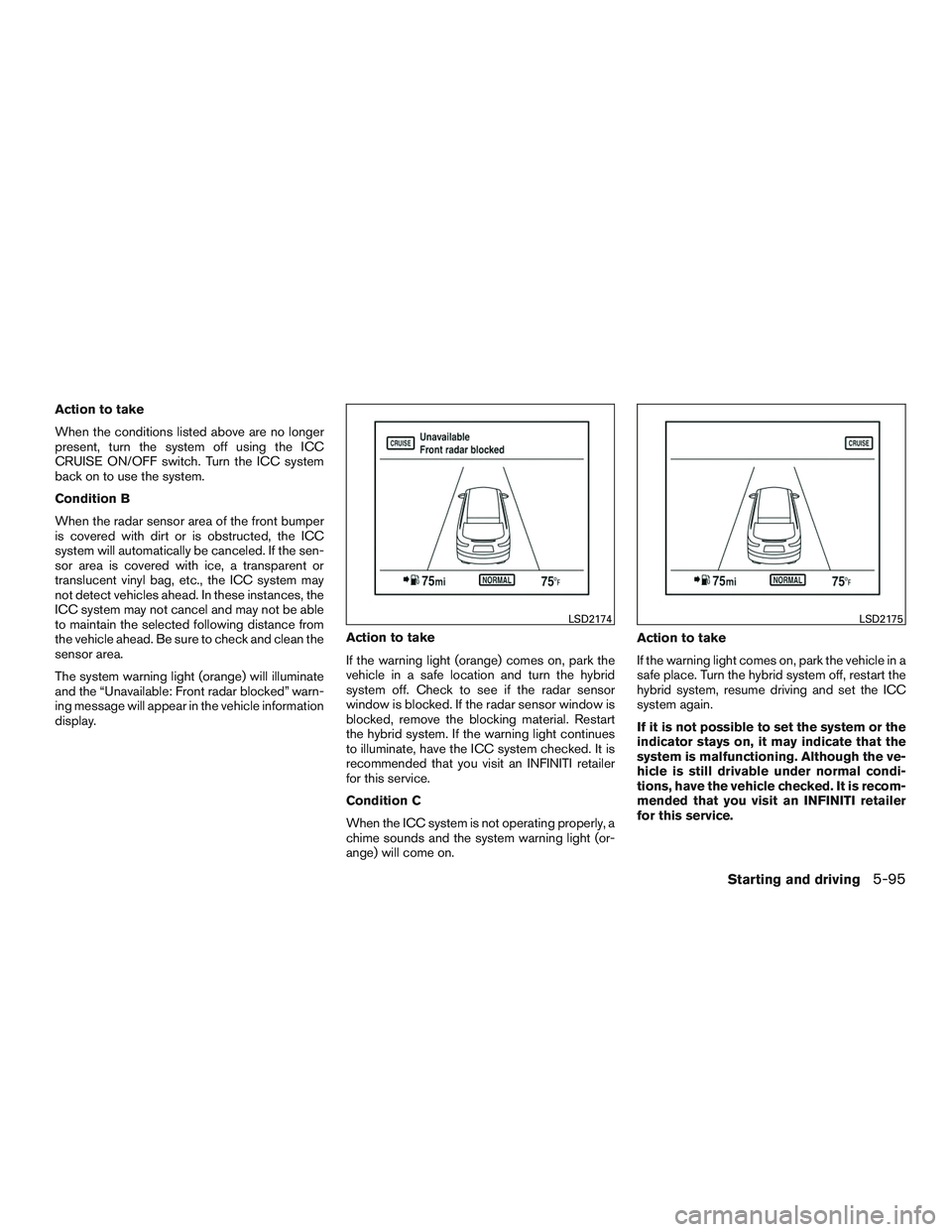

Action to take
When the conditions listed above are no longer
present, turn the system off using the ICC
CRUISE ON/OFF switch. Turn the ICC system
back on to use the system.
Condition B
When the radar sensor area of the front bumper
is covered with dirt or is obstructed, the ICC
system will automatically be canceled. If the sen-
sor area is covered with ice, a transparent or
translucent vinyl bag, etc., the ICC system may
not detect vehicles ahead. In these instances, the
ICC system may not cancel and may not be able
to maintain the selected following distance from
the vehicle ahead. Be sure to check and clean the
sensor area.
The system warning light (orange) will illuminate
and the “Unavailable: Front radar blocked” warn-
ing message will appear in the vehicle information
display.Action to take
If the warning light (orange) comes on, park the
vehicle in a safe location and turn the hybrid
system off. Check to see if the radar sensor
window is blocked. If the radar sensor window is
blocked, remove the blocking material. Restart
the hybrid system. If the warning light continues
to illuminate, have the ICC system checked. It is
recommended that you visit an INFINITI retailer
for this service.
Condition C
When the ICC system is not operating properly, a
chime sounds and the system warning light (or-
ange) will come on.Action to take
If the warning light comes on, park the vehicle in a
safe place. Turn the hybrid system off, restart the
hybrid system, resume driving and set the ICC
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal condi-
tions, have the vehicle checked. It is recom-
mended that you visit an INFINITI retailer
for this service.
LSD2174LSD2175
Starting and driving5-95

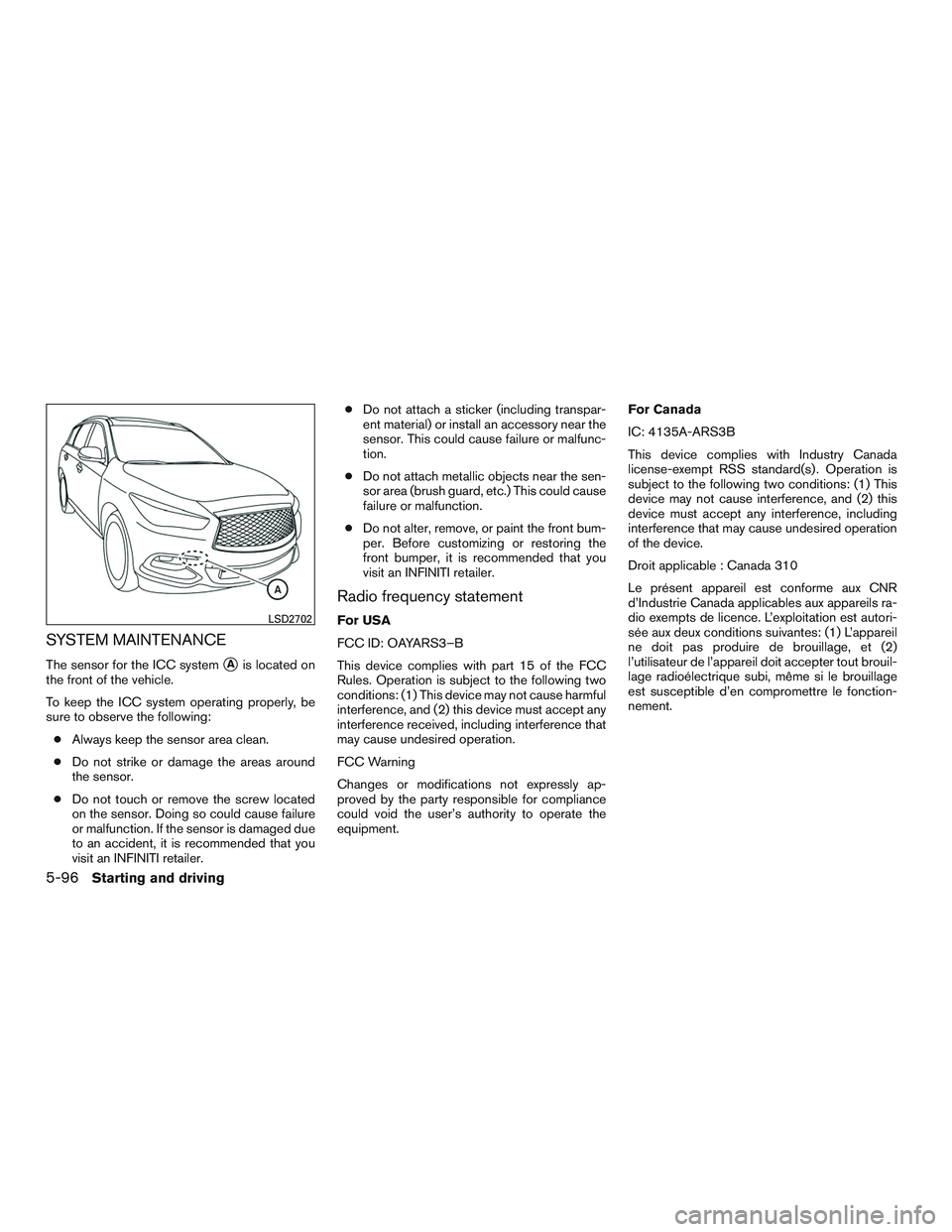

SYSTEM MAINTENANCE
The sensor for the ICC systemAis located on
the front of the vehicle.
To keep the ICC system operating properly, be
sure to observe the following:
● Always keep the sensor area clean.
● Do not strike or damage the areas around
the sensor.
● Do not touch or remove the screw located
on the sensor. Doing so could cause failure
or malfunction. If the sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer. ●
Do not attach a sticker (including transpar-
ent material) or install an accessory near the
sensor. This could cause failure or malfunc-
tion.
● Do not attach metallic objects near the sen-
sor area (brush guard, etc.) This could cause
failure or malfunction.
● Do not alter, remove, or paint the front bum-
per. Before customizing or restoring the
front bumper, it is recommended that you
visit an INFINITI retailer.
Radio frequency statement
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment. For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
license-exempt RSS standard(s) . Operation is
subject to the following two conditions: (1) This
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation
of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils ra-
dio exempts de licence. L’exploitation est autori-
sée aux deux conditions suivantes: (1) L’appareil
ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouil-
lage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonction-
nement.LSD2702
5-96Starting and driving

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the DCA system
could result in serious injury or death.
●DCA helps maintain a distance to the
vehicle in front under certain condi-
tions. It is not a collision avoidance sys-
tem. Failure to apply the brakes could
result in an accident.
● Always drive carefully and attentively
when using the DCA system. Read and
understand the Owner’s Manual thor-
oughly before using the DCA system.
Do not use the DCA system except in
appropriate road and traffic conditions.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill
within the limitations of the system. The
system will cancel once it judges that
the vehicle has come to a standstill with
a warning chime. To prevent the vehicle
from moving, the driver must depress
the brake pedal.
● The DCA system will not apply brake
control while the driver’s foot is on the
accelerator pedal. The DCA system brakes and moves the accelera-
tor pedal upward according to the distance from
and the relative speed of the vehicle ahead to
help assist the driver to maintain a following dis-
tance.
DCA SYSTEM OPERATION
Always pay attention to the operation of the ve-
hicle and be ready to manually decelerate to
maintain the proper following distance. The DCA
system may not be able to decelerate the vehicle
under some circumstances.
The DCA system uses a sensor
Alocated be-
hind the front bumper of the vehicle to detect
vehicles traveling ahead. The sensor generally
detects the signals returned from the vehicle
ahead. Therefore, if the sensor cannot detect the
reflection from the vehicle ahead, the DCA sys-
tem may not operate.
LSD2702
DISTANCE CONTROL ASSIST (DCA)
(if so equipped)
Starting and driving5-97

The system is intended to assist the driver to
keep a following distance from the vehicle ahead
traveling in the same lane and direction.
The distance sensor is located behind the front
bumper
A. If the distance sensorAdetects a
slower moving vehicle ahead, the system will
reduce the vehicle speed to help assist the driver
to maintain a following distance.
The system automatically controls the throttle
and applies the brakes (up to 40% of vehicle
braking power) if necessary.
The detection range of the sensor is approxi-
mately 490 ft (150 m) ahead.
The distance sensor will not detect the following
objects.
● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane The display is located between the speedometer
and tachometer.
1. DCA system switch indicator: Indicates that the dynamic driver assistance
switch is on. 2. Vehicle ahead detection indicator:
Indicates whether it detects a vehicle in front
of you.
WARNING
The DCA system automatically deceler-
ates your vehicle to help assist the driver
to maintain a following distance from the
vehicle ahead. Manually brake when de-
celeration is required to maintain a safe
distance upon sudden braking by the ve-
hicle ahead or when a vehicle suddenly
appears in front of you. Always stay alert
when using the DCA system.
DCA Indicators
LSD2068LIC2889
5-98Starting and driving

Setting DCA system to ON/OFF:
The DCA can be turned on/off in the vehicle
information display using the buttons on the
steering wheel.1. Press the
button until “Settings” dis-
plays in the vehicle information display and
then press the ENTER button. Use
the
button to select “Driver Assis-
tance.” Then press the ENTER button.
2. Select “Driving Aids”, and press the ENTER button.
3. Select “Forward”, and press the ENTER but- ton.
4. To turn on the “Assistance (DCA)” check the box using the ENTER button.
If the LDP, BSI and DCA systems are set to off on
the information display and the dynamic driver
assistance switch is pushed, the LDP ON indica-
tor light, BSI ON indicator light, and the DCA
system switch indicator light will blink for approxi-
mately 2 seconds.
For additional information on LDP and BSI, refer
to “Lane Departure Prevention (LDP)” and “Blind
Spot Intervention® (BSI)” in this section.
DCA SYSTEM LIMITATIONS
WARNING
● This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
● This system will not adapt automatically
to road conditions.
● As there is a performance limit to the
distance control function, never rely
solely on the DCA system. This system
does not correct careless, inattentive or
absent-minded driving, or overcome
poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed
by depressing the brake pedal, depend-
ing on the distance to the vehicle ahead
and the surrounding circumstances in
order to maintain a safe distance be-
tween vehicles.
● The system may not detect the vehicle
in front of you in certain road or weather
conditions. To avoid accidents, never
use the DCA system under the following
conditions: – On roads with sharp curves
– On slippery road surfaces such as on
ice or snow, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the sensor area of the front bumper
– On steep downhill roads (frequent braking may result in overheating the
brakes)
– On repeated uphill and downhill roads
● Do not use the DCA system if you are
towing a trailer. The system may not
detect a vehicle ahead.
● In some road or traffic conditions, a
vehicle or object can unexpectedly
come into the sensor detection zone
and cause automatic braking. You may
need to control the distance from other
vehicles using the accelerator pedal. Al-
ways stay alert and avoid using the DCA
system where not recommended in this
warning section.
Starting and driving5-101

The following are some conditions in which the
sensor cannot detect the signals:● When the reflector of the vehicle ahead is
covered with dirt, snow and road spray
● When dense exhaust or other smoke (black
smoke) from vehicles reduces the sensor’s
detection
● When excessively heavy baggage is loaded
in the rear seat or the luggage room of your
vehicle
The DCA system is designed to automatically
check the sensor’s operation. When the front
bumper area around the distance sensor is cov-
ered with dirt or is obstructed, the system will
automatically cancel. If the front bumper area of
the distance sensor is covered with ice, a trans-
parent or translucent vinyl bag, etc., the DCA
system may not detect them. In these instances,
the vehicle-to-vehicle distance control mode may
not cancel and may not be able to maintain the
selected following distance from the vehicle
ahead. Be sure to check and clean the front
bumper area around the distance sensor regu-
larly. The DCA system is designed to help assist the
driver to maintain a following distance from the
vehicle ahead. The system will decelerate as nec-
essary and if the vehicle ahead comes to a stop,
the vehicle decelerates to a standstill. However,
the DCA system can only apply up to 40% of the
vehicle’s total braking power. If a vehicle moves
into the traveling lane ahead or if a vehicle travel-
ing ahead rapidly decelerates, the distance be-
tween vehicles may become closer because the
DCA system cannot decelerate the vehicle
quickly enough. If this occurs, the DCA system
will sound a warning chime and blink the system
display to notify the driver to take necessary
action.
For additional information, refer to “Approach
warning” in this section.
This system only brakes and moves the accelera-
tor pedal upward to help assist the driver to
maintain a following distance from the vehicle
ahead. Acceleration should be operated by the
driver.
The DCA system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead.
5-102Starting and driving

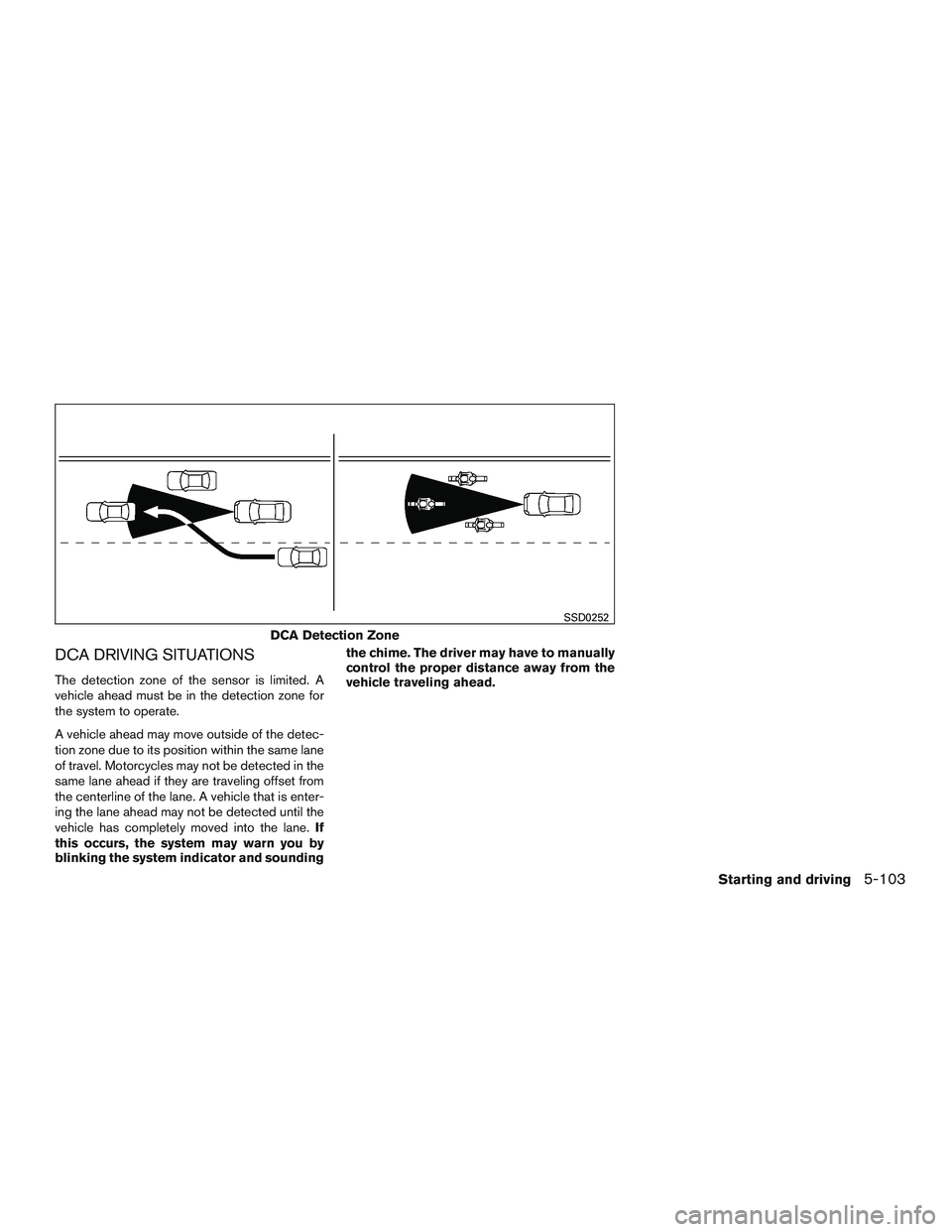

DCA DRIVING SITUATIONS
The detection zone of the sensor is limited. A
vehicle ahead must be in the detection zone for
the system to operate.
A vehicle ahead may move outside of the detec-
tion zone due to its position within the same lane
of travel. Motorcycles may not be detected in the
same lane ahead if they are traveling offset from
the centerline of the lane. A vehicle that is enter-
ing the lane ahead may not be detected until the
vehicle has completely moved into the lane.If
this occurs, the system may warn you by
blinking the system indicator and sounding the chime. The driver may have to manually
control the proper distance away from the
vehicle traveling ahead.
DCA Detection Zone
SSD0252
Starting and driving5-103

When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the sensor may detect ve-
hicles in a different lane, or may temporarily not
detect a vehicle traveling ahead. This may cause
the system to work inappropriately.
The detection of vehicles may also be affected by
vehicle operation (steering maneuver or traveling
position in the lane, etc.) or vehicle condition.If
this occurs, the system may warn you by
blinking the system indicator and sounding
the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.Approach warning
If your vehicle comes closer to the vehicle ahead
due to rapid deceleration of that vehicle or if
another vehicle cuts in, the system warns the
driver with the chime and DCA system display.
Decelerate by depressing the brake pedal to
maintain a safe vehicle distance if:
● The chime sounds.
● The vehicle ahead detection indicator blinks. The warning chime may not sound in some cases
when there is a short distance between vehicles.
Some examples are:
● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when your
vehicle approaches vehicles that are parked or
moving slowly.
DCA Detection Zones On Winding Roads
SSD0253
5-104Starting and driving

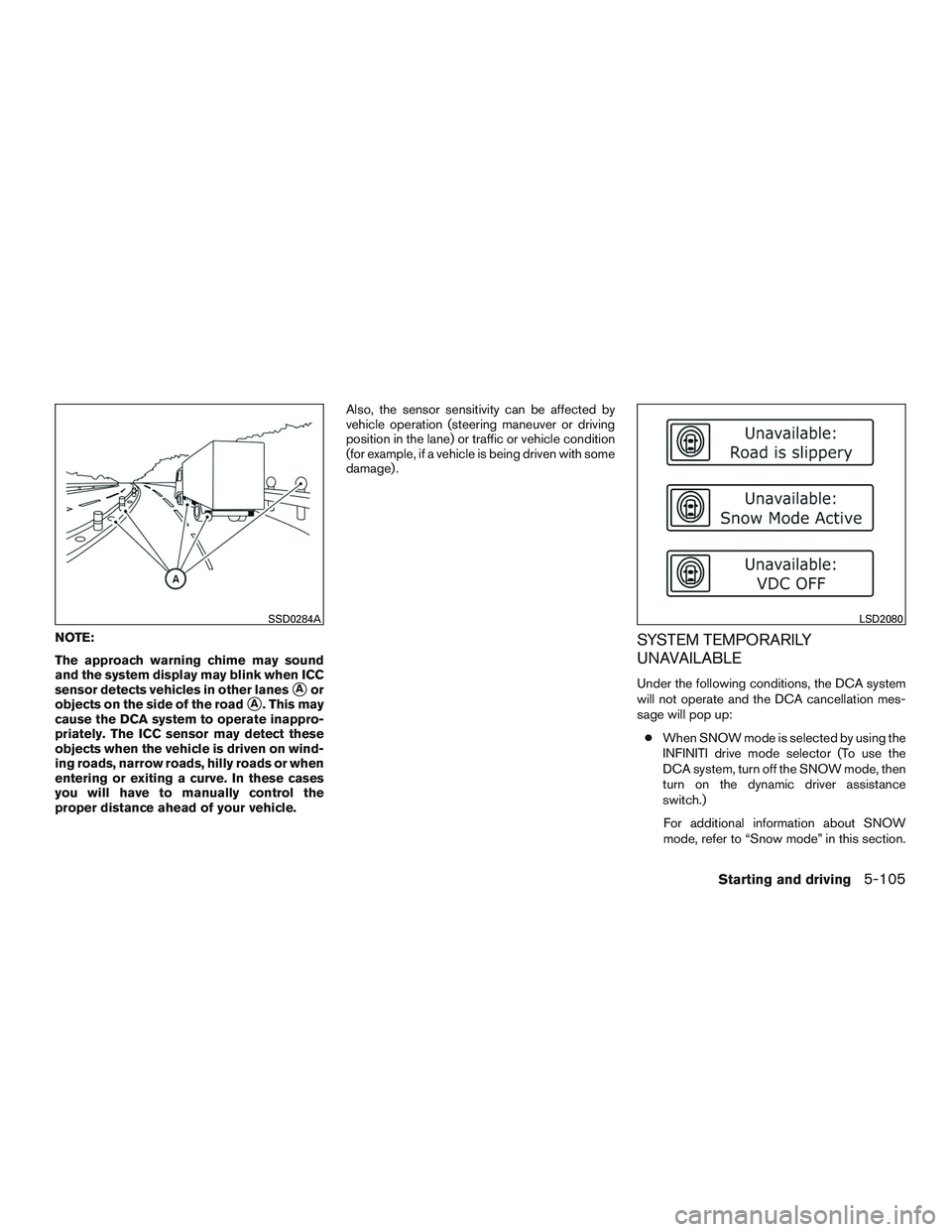

NOTE:
The approach warning chime may sound
and the system display may blink when ICC
sensor detects vehicles in other lanes
Aor
objects on the side of the road
A. This may
cause the DCA system to operate inappro-
priately. The ICC sensor may detect these
objects when the vehicle is driven on wind-
ing roads, narrow roads, hilly roads or when
entering or exiting a curve. In these cases
you will have to manually control the
proper distance ahead of your vehicle. Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condition
(for example, if a vehicle is being driven with some
damage) .
SYSTEM TEMPORARILY
UNAVAILABLE
Under the following conditions, the DCA system
will not operate and the DCA cancellation mes-
sage will pop up:
● When SNOW mode is selected by using the
INFINITI drive mode selector (To use the
DCA system, turn off the SNOW mode, then
turn on the dynamic driver assistance
switch.)
For additional information about SNOW
mode, refer to “Snow mode” in this section.
SSD0284ALSD2080
Starting and driving5-105
