VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4. I-Key System Error: See Owner’s Manual
5. Key Registration Complete
6. Push brake and start switch to drive
7. Shift to Park
8. Shift to Park Li-ion Battery Low
9. Hybrid System Overheated
10. HV System Warm up Please Wait in Park
11. Push Ignition to OFF
12. Engine start operation for Intelligent Key sys- tem (if I-Key battery level is low)
13. Release Parking Brake
14. Low Fuel
15. Loose Fuel Cap
16. Low Oil Pressure: See Owner’s Manual
17. Low Washer Fluid
18. Tire Pressure Low - Add Air 19. TPMS Error: See Owner’s Manual
20. AWD Error: See Owner’s Manual (if so
equipped)
21. AWD High Temp. Stop vehicle (if so equipped)
22. Tire Size Incorrect: See Owner’s Manual (if so equipped)
23. Door Open
24. Liftgate Open
25. Timer Alert – Have a break?
26. Low Outside Temperature
27. Power will turn off to save the battery
28. Turn off the lights
29. Parking Sensor Error: See Owner’s Manual
30. Predictive Forward Collision Warning (PFCW) indicator (if so equipped)
31. Lane Departure Warning (LDW) indicator (if so equipped)
32. Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) indicator (if so
equipped)
33. Malfunction: See Owner’s Manual (if so equipped) 34. Intelligent Cruise Control (ICC) indicators (if
so equipped)
35. Cruise control indicators (if so equipped)
36. INFINITI drive mode selector indicators
37. Distance Control Assist (DCA) indicators (if so equipped)
38. Unavailable: Front radar blocked (if so equipped)
39. Unavailable: Road is slippery (if so equipped)
40. Unavailable: Snow Mode Active (if so equipped)
41. Unavailable: VDC OFF (if so equipped)
42. Unavailable: High Cabin Temp. (if so equipped)
43. Unavailable: Side Radar Obstruction (if so equipped)
44. Unavailable: High Accelerator Temp. (if so equipped)
45. BCI OFF (if so equipped)
46. Shipping Mode On Push Storage Fuse
47. CVT Error: See Owner’s Manual
48. High Coolant Temp: See Owner’s Manual
Instruments and controls2-27

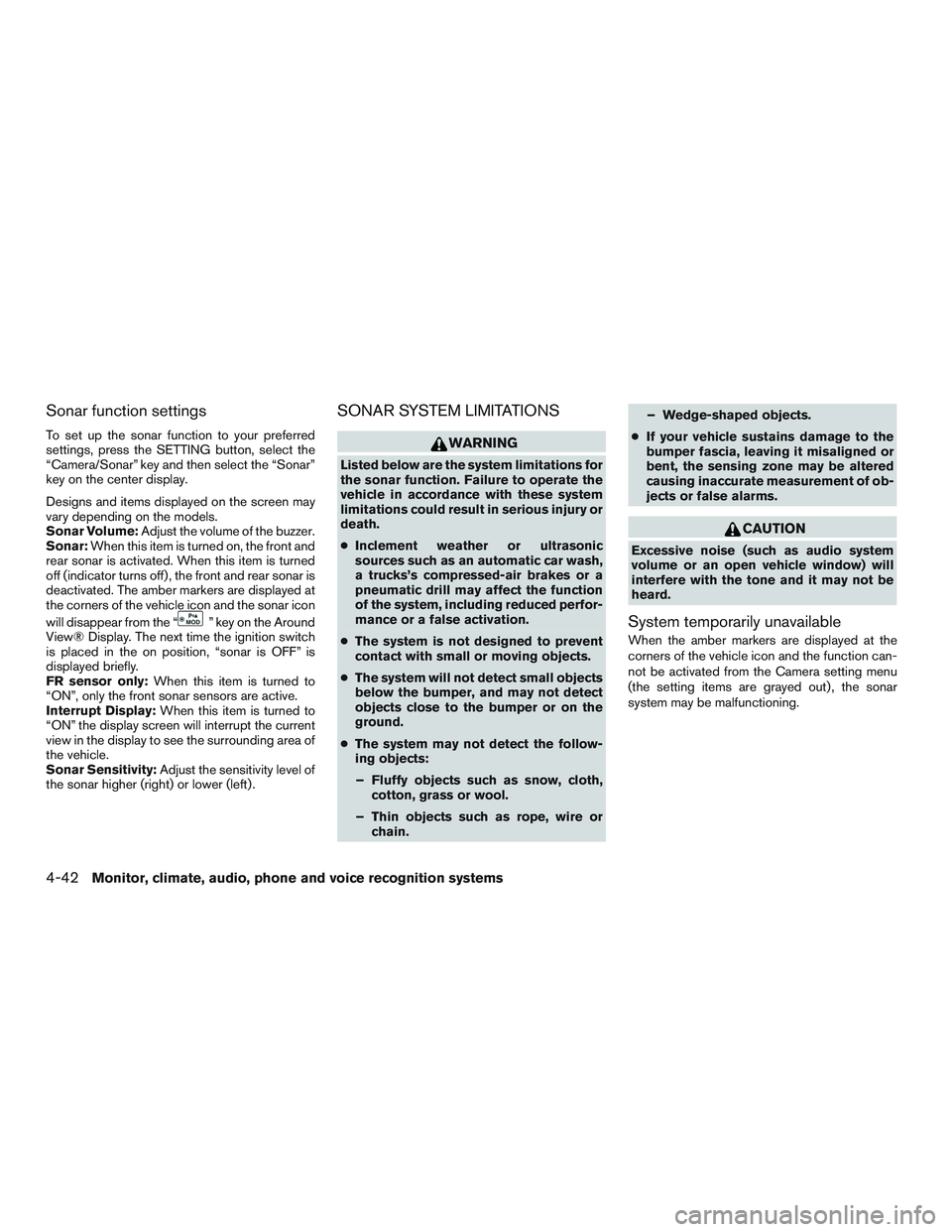

Sonar function settings
To set up the sonar function to your preferred
settings, press the SETTING button, select the
“Camera/Sonar” key and then select the “Sonar”
key on the center display.
Designs and items displayed on the screen may
vary depending on the models.
Sonar Volume:Adjust the volume of the buzzer.
Sonar: When this item is turned on, the front and
rear sonar is activated. When this item is turned
off (indicator turns off) , the front and rear sonar is
deactivated. The amber markers are displayed at
the corners of the vehicle icon and the sonar icon
will disappear from the “
” key on the Around
View® Display. The next time the ignition switch
is placed in the on position, “sonar is OFF” is
displayed briefly.
FR sensor only: When this item is turned to
“ON”, only the front sonar sensors are active.
Interrupt Display: When this item is turned to
“ON” the display screen will interrupt the current
view in the display to see the surrounding area of
the vehicle.
Sonar Sensitivity: Adjust the sensitivity level of
the sonar higher (right) or lower (left) .
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
● Inclement weather or ultrasonic
sources such as an automatic car wash,
a trucks’s compressed-air brakes or a
pneumatic drill may affect the function
of the system, including reduced perfor-
mance or a false activation.
● The system is not designed to prevent
contact with small or moving objects.
● The system will not detect small objects
below the bumper, and may not detect
objects close to the bumper or on the
ground.
● The system may not detect the follow-
ing objects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain. – Wedge-shaped objects.
● If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function can-
not be activated from the Camera setting menu
(the setting items are grayed out) , the sonar
system may be malfunctioning.
4-42Monitor, climate, audio, phone and voice recognition systems

FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s au-
thority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice

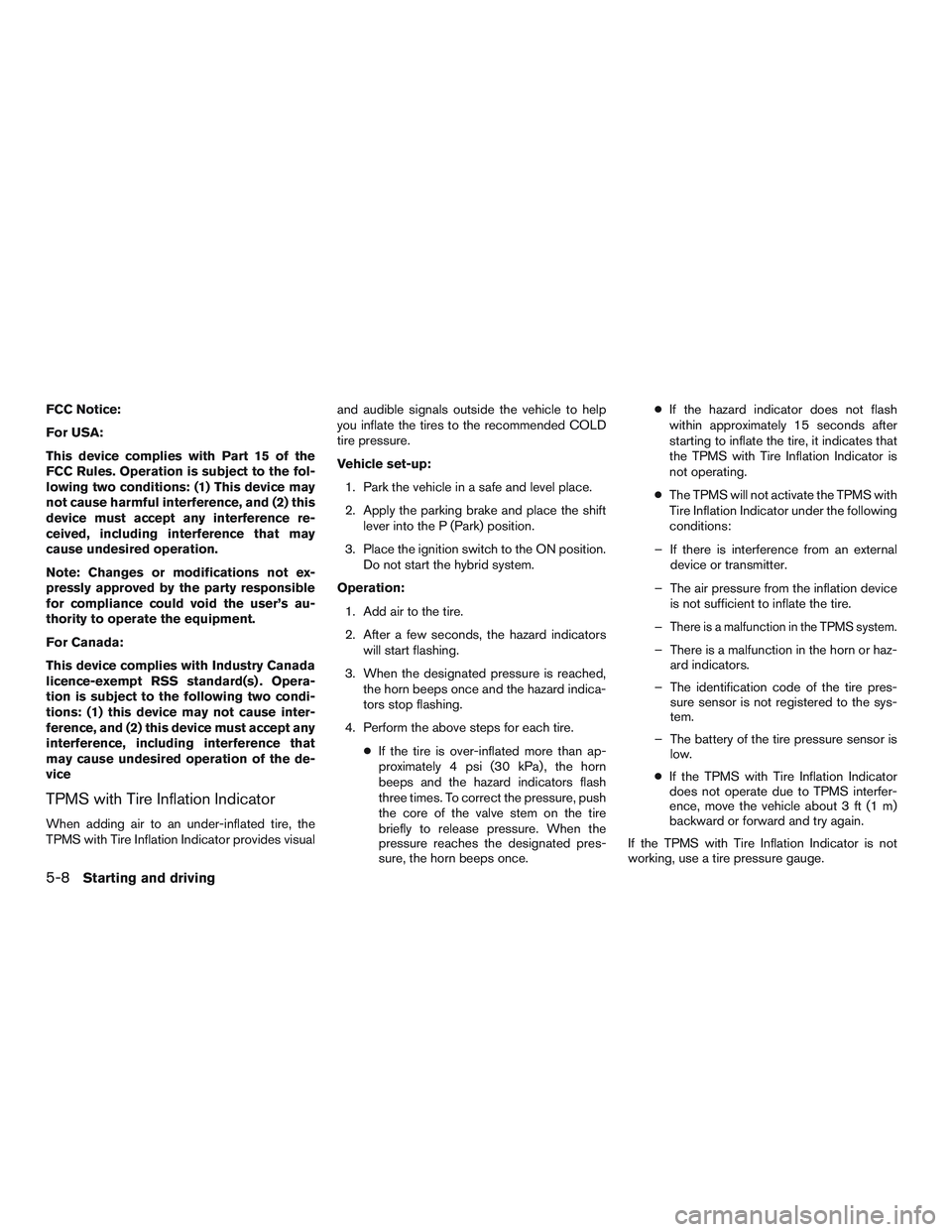

TPMS with Tire Inflation Indicator
When adding air to an under-inflated tire, the
TPMS with Tire Inflation Indicator provides visualand audible signals outside the vehicle to help
you inflate the tires to the recommended COLD
tire pressure.
Vehicle set-up:
1. Park the vehicle in a safe and level place.
2. Apply the parking brake and place the shift lever into the P (Park) position.
3. Place the ignition switch to the ON position. Do not start the hybrid system.
Operation: 1. Add air to the tire.
2. After a few seconds, the hazard indicators will start flashing.
3. When the designated pressure is reached, the horn beeps once and the hazard indica-
tors stop flashing.
4. Perform the above steps for each tire. ●If the tire is over-inflated more than ap-
proximately 4 psi (30 kPa) , the horn
beeps and the hazard indicators flash
three times. To correct the pressure, push
the core of the valve stem on the tire
briefly to release pressure. When the
pressure reaches the designated pres-
sure, the horn beeps once. ●
If the hazard indicator does not flash
within approximately 15 seconds after
starting to inflate the tire, it indicates that
the TPMS with Tire Inflation Indicator is
not operating.
● The TPMS will not activate the TPMS with
Tire Inflation Indicator under the following
conditions:
– If there is interference from an external device or transmitter.
– The air pressure from the inflation device is not sufficient to inflate the tire.
–
There is a malfunction in the TPMS system.
– There is a malfunction in the horn or haz- ard indicators.
– The identification code of the tire pres- sure sensor is not registered to the sys-
tem.
– The battery of the tire pressure sensor is low.
● If the TPMS with Tire Inflation Indicator
does not operate due to TPMS interfer-
ence, move the vehicle about 3 ft (1 m)
backward or forward and try again.
If the TPMS with Tire Inflation Indicator is not
working, use a tire pressure gauge.
5-8Starting and driving

Operation is subject to the following two condi-
tions: (1) This device may not cause interference,
and (2) this device must accept any interference,
including interference that may cause undesired
operation.
Frequency of operation: 24,05GHz — 24,25GHz
Field Strength: Not greater than 2.5V/m peak
(0.25V/m average) at a distance of 3m
Ce produit est en conformité avec le Standard
Industrie Canada RSS-310.
L’utilisation de ce dispositif est autorisée
seulement aux deux conditions suivantes : (1) Il
ne doit pas produire de brouillage, et (2)
l’utilisateur du dispositif doit être prêt à accepter
tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le
fonctionnement du dispositif.
Fréquence d’opération : 24,05GHZ - 24,25GHz
Puissance du champ électrique: Pas plus de
2,5V/m pique (0,25V/m moyenne) à une distance
de 3m.WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BSI system
could result in serious injury or death.
●The BSI system is not a replacement for
proper driving procedure and is not de-
signed to prevent contact with vehicles
or objects. When changing lanes, al-
ways use the side and rear mirrors and
turn and look in the direction you will
move to ensure it is safe to change
lanes. Never rely solely on the BSI
system.
● There is a limitation to the detection
capability of the radar or the sonar. Not
every moving object or vehicle will be
detected. Using the BSI system under
some road, ground, lane marker, traffic
or weather conditions could lead to im-
proper system operation. Always rely
on your own operation to avoid
accidents.
● The BSI system operates above ap-
proximately 37 mph (60 km/h).

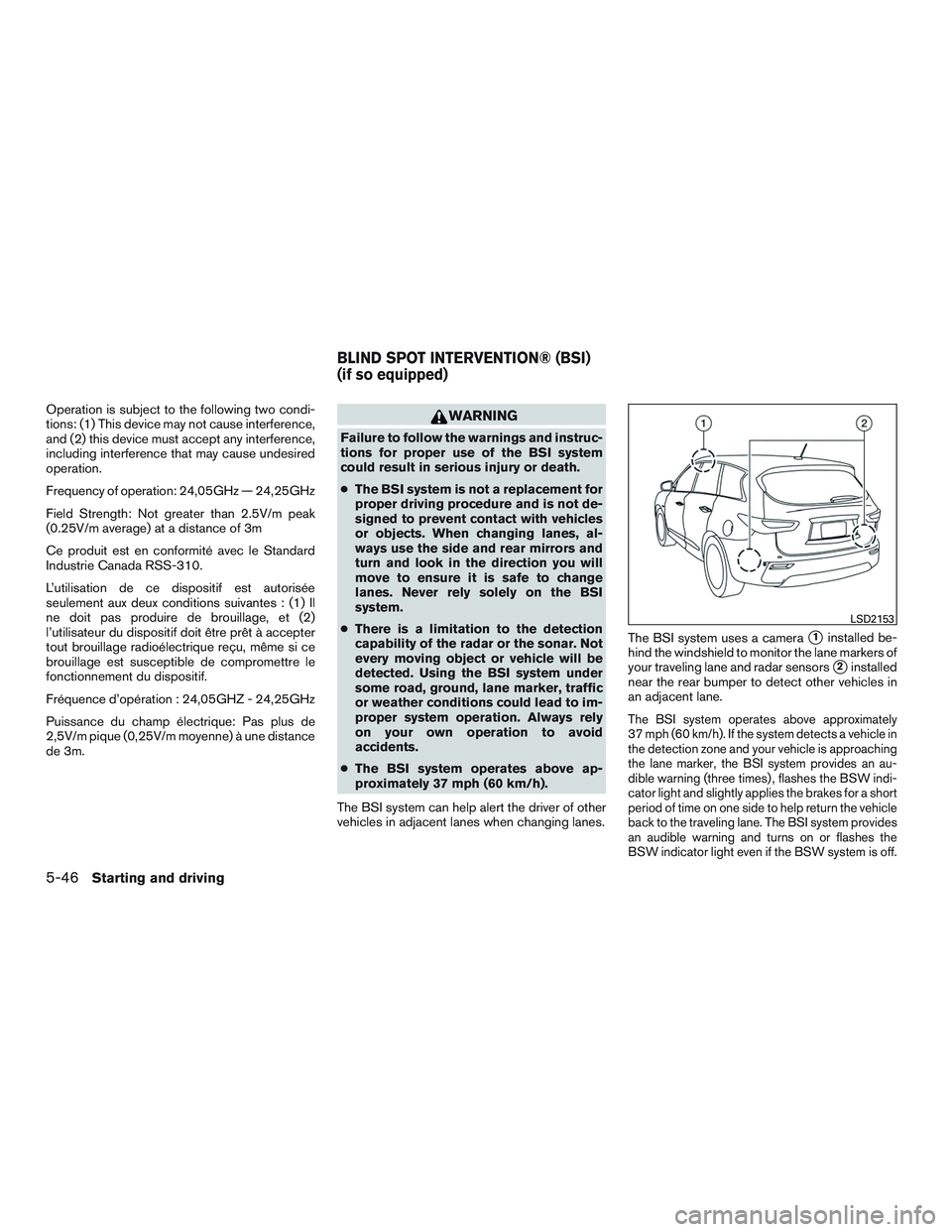

The BSI system can help alert the driver of other
vehicles in adjacent lanes when changing lanes. The BSI system uses a camera
1installed be-
hind the windshield to monitor the lane markers of
your traveling lane and radar sensors
2installed
near the rear bumper to detect other vehicles in
an adjacent lane.
The BSI system operates above approximately
37 mph (60 km/h). If the system detects a vehicle in
the detection zone and your vehicle is approaching
the lane marker, the BSI system provides an au-
dible warning (three times) , flashes the BSW indi-
cator light and slightly applies the brakes for a short
period of time on one side to help return the vehicle
back to the traveling lane. The BSI system provides
an audible warning and turns on or flashes the
BSW indicator light even if the BSW system is off.
LSD2153
BLIND SPOT INTERVENTION® (BSI)
(if so equipped)
5-46Starting and driving

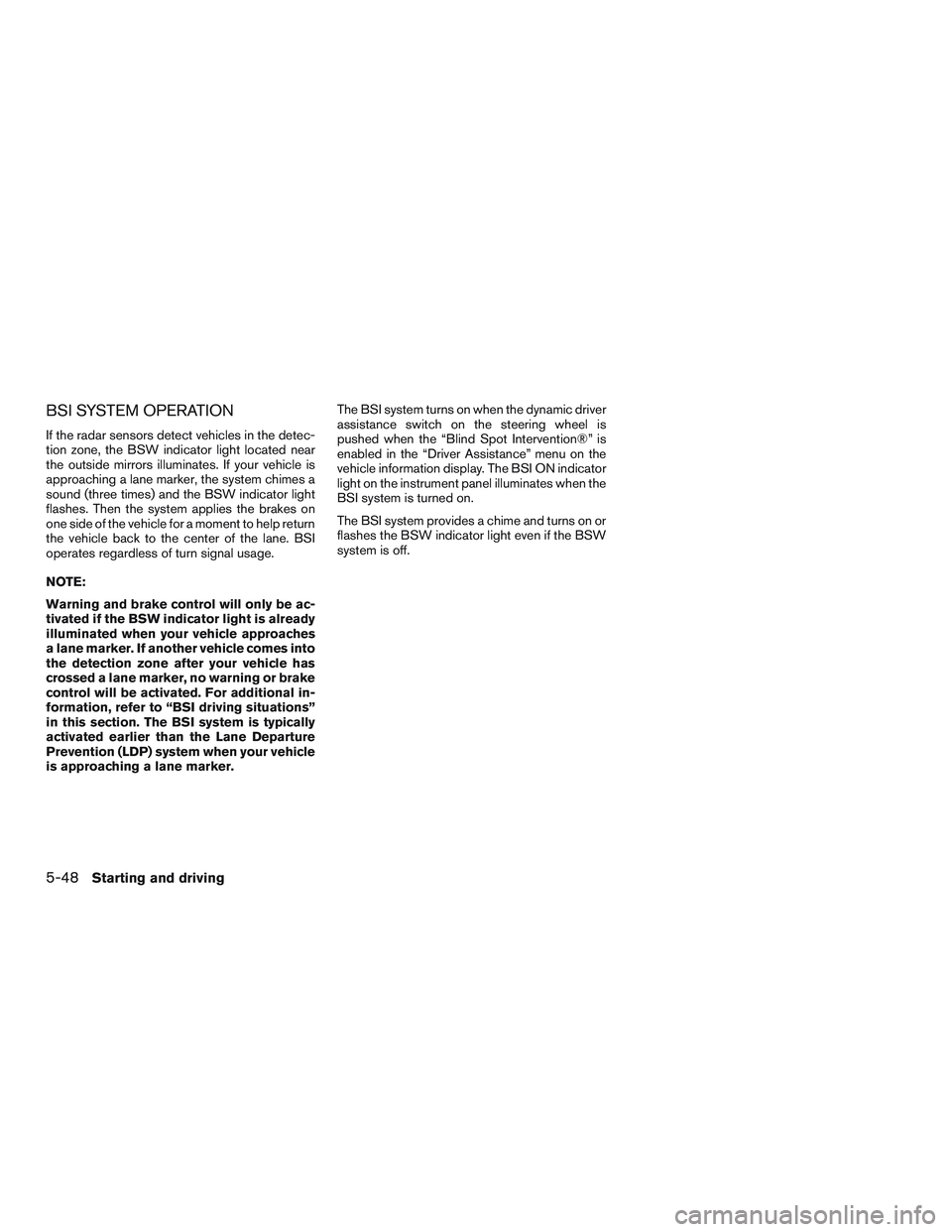

BSI SYSTEM OPERATION
If the radar sensors detect vehicles in the detec-
tion zone, the BSW indicator light located near
the outside mirrors illuminates. If your vehicle is
approaching a lane marker, the system chimes a
sound (three times) and the BSW indicator light
flashes. Then the system applies the brakes on
one side of the vehicle for a moment to help return
the vehicle back to the center of the lane. BSI
operates regardless of turn signal usage.
NOTE:
Warning and brake control will only be ac-
tivated if the BSW indicator light is already
illuminated when your vehicle approaches
a lane marker. If another vehicle comes into
the detection zone after your vehicle has
crossed a lane marker, no warning or brake
control will be activated. For additional in-
formation, refer to “BSI driving situations”
in this section. The BSI system is typically
activated earlier than the Lane Departure
Prevention (LDP) system when your vehicle
is approaching a lane marker.The BSI system turns on when the dynamic driver
assistance switch on the steering wheel is
pushed when the “Blind Spot Intervention®” is
enabled in the “Driver Assistance” menu on the
vehicle information display. The BSI ON indicator
light on the instrument panel illuminates when the
BSI system is turned on.
The BSI system provides a chime and turns on or
flashes the BSW indicator light even if the BSW
system is off.
5-48Starting and driving

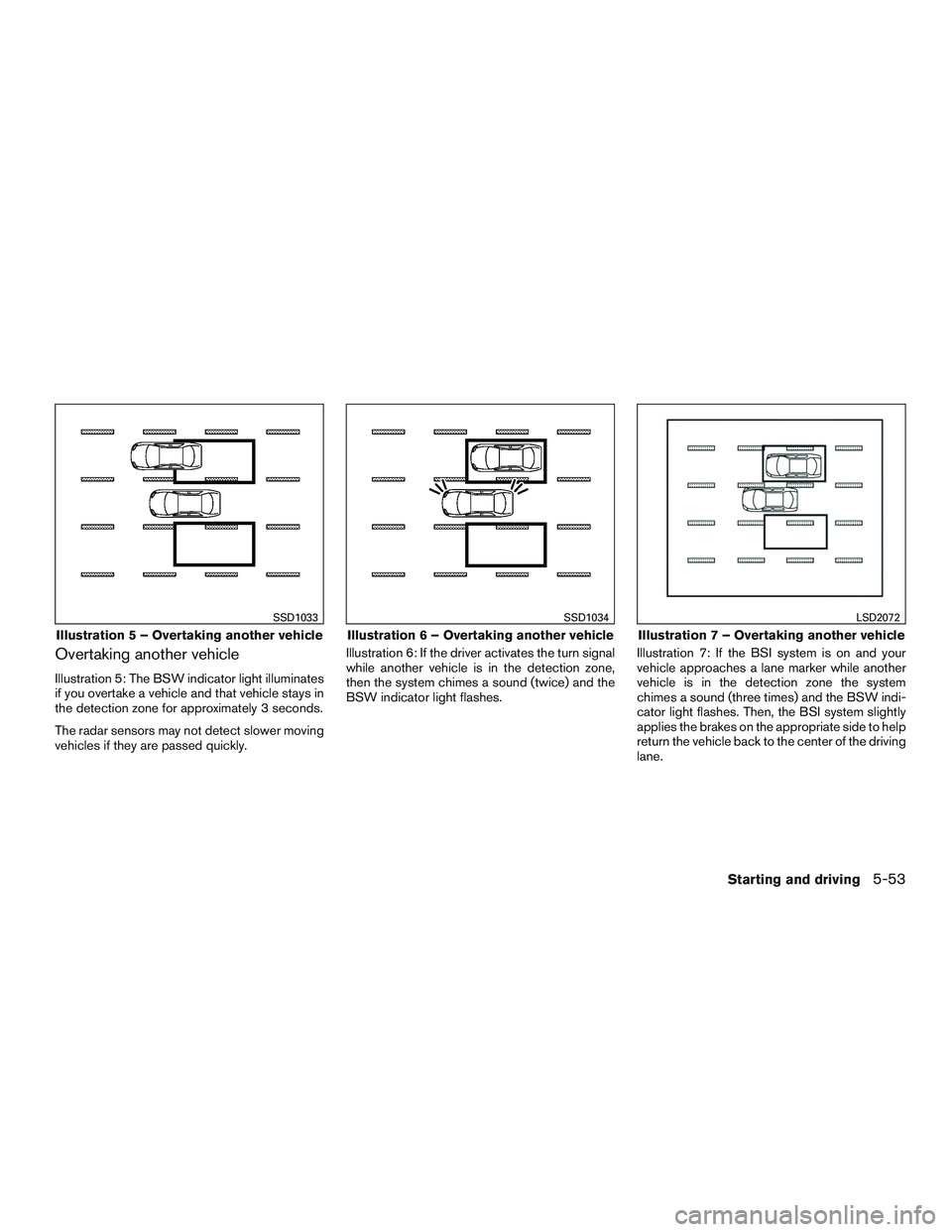

Overtaking another vehicle
Illustration 5: The BSW indicator light illuminates
if you overtake a vehicle and that vehicle stays in
the detection zone for approximately 3 seconds.
The radar sensors may not detect slower moving
vehicles if they are passed quickly.Illustration 6: If the driver activates the turn signal
while another vehicle is in the detection zone,
then the system chimes a sound (twice) and the
BSW indicator light flashes.
Illustration 7: If the BSI system is on and your
vehicle approaches a lane marker while another
vehicle is in the detection zone the system
chimes a sound (three times) and the BSW indi-
cator light flashes. Then, the BSI system slightly
applies the brakes on the appropriate side to help
return the vehicle back to the center of the driving
lane.
Illustration 5 – Overtaking another vehicle
SSD1033
Illustration 6 – Overtaking another vehicle
SSD1034
Illustration 7 – Overtaking another vehicle
LSD2072
Starting and driving5-53

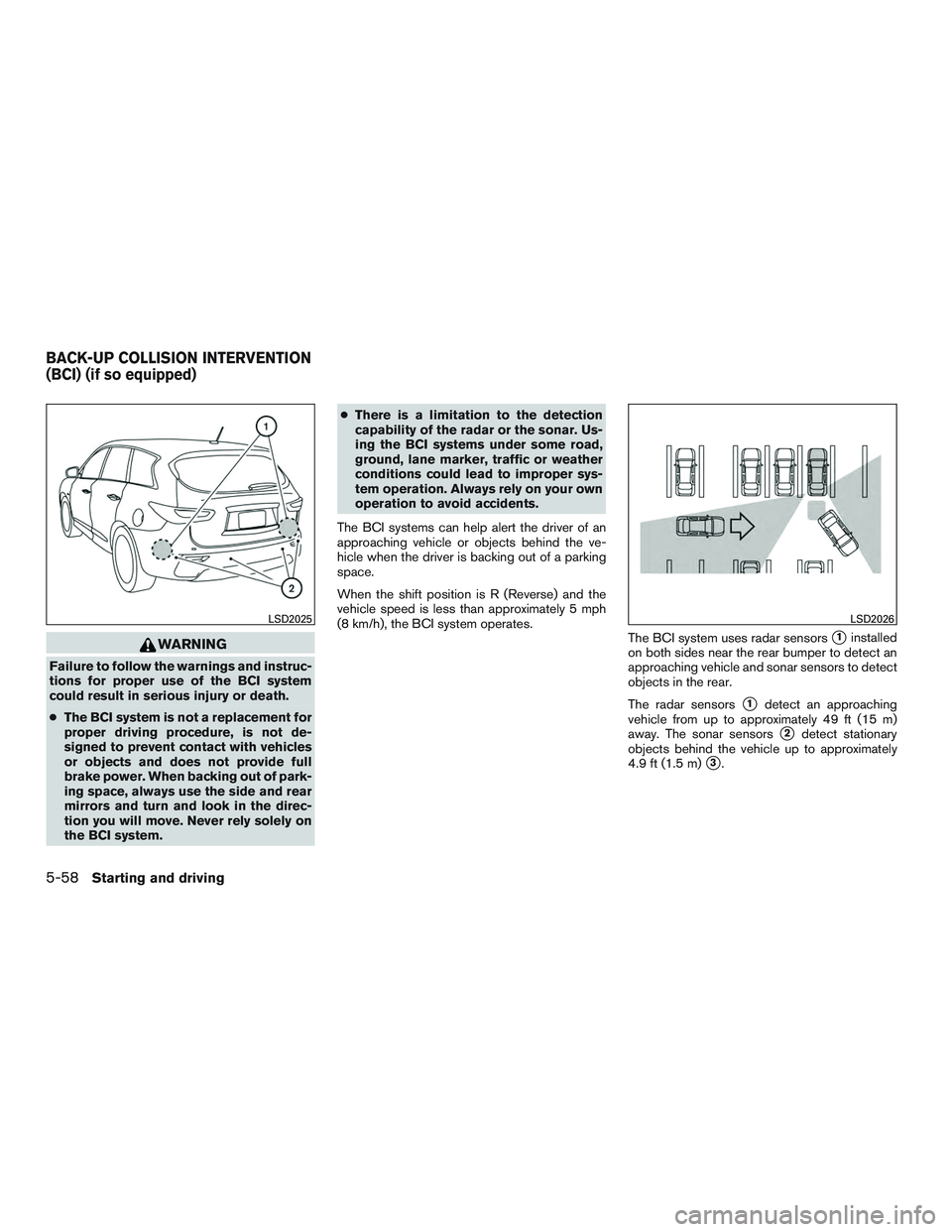

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the BCI system
could result in serious injury or death.
●The BCI system is not a replacement for
proper driving procedure, is not de-
signed to prevent contact with vehicles
or objects and does not provide full
brake power. When backing out of park-
ing space, always use the side and rear
mirrors and turn and look in the direc-
tion you will move. Never rely solely on
the BCI system. ●
There is a limitation to the detection
capability of the radar or the sonar. Us-
ing the BCI systems under some road,
ground, lane marker, traffic or weather
conditions could lead to improper sys-
tem operation. Always rely on your own
operation to avoid accidents.
The BCI systems can help alert the driver of an
approaching vehicle or objects behind the ve-
hicle when the driver is backing out of a parking
space.
When the shift position is R (Reverse) and the
vehicle speed is less than approximately 5 mph
(8 km/h), the BCI system operates. The BCI system uses radar sensors
1installed
on both sides near the rear bumper to detect an
approaching vehicle and sonar sensors to detect
objects in the rear.
The radar sensors
1detect an approaching
vehicle from up to approximately 49 ft (15 m)
away. The sonar sensors
2detect stationary
objects behind the vehicle up to approximately
4.9 ft (1.5 m)
3.
LSD2025LSD2026
BACK-UP COLLISION INTERVENTION
(BCI) (if so equipped)
5-58Starting and driving

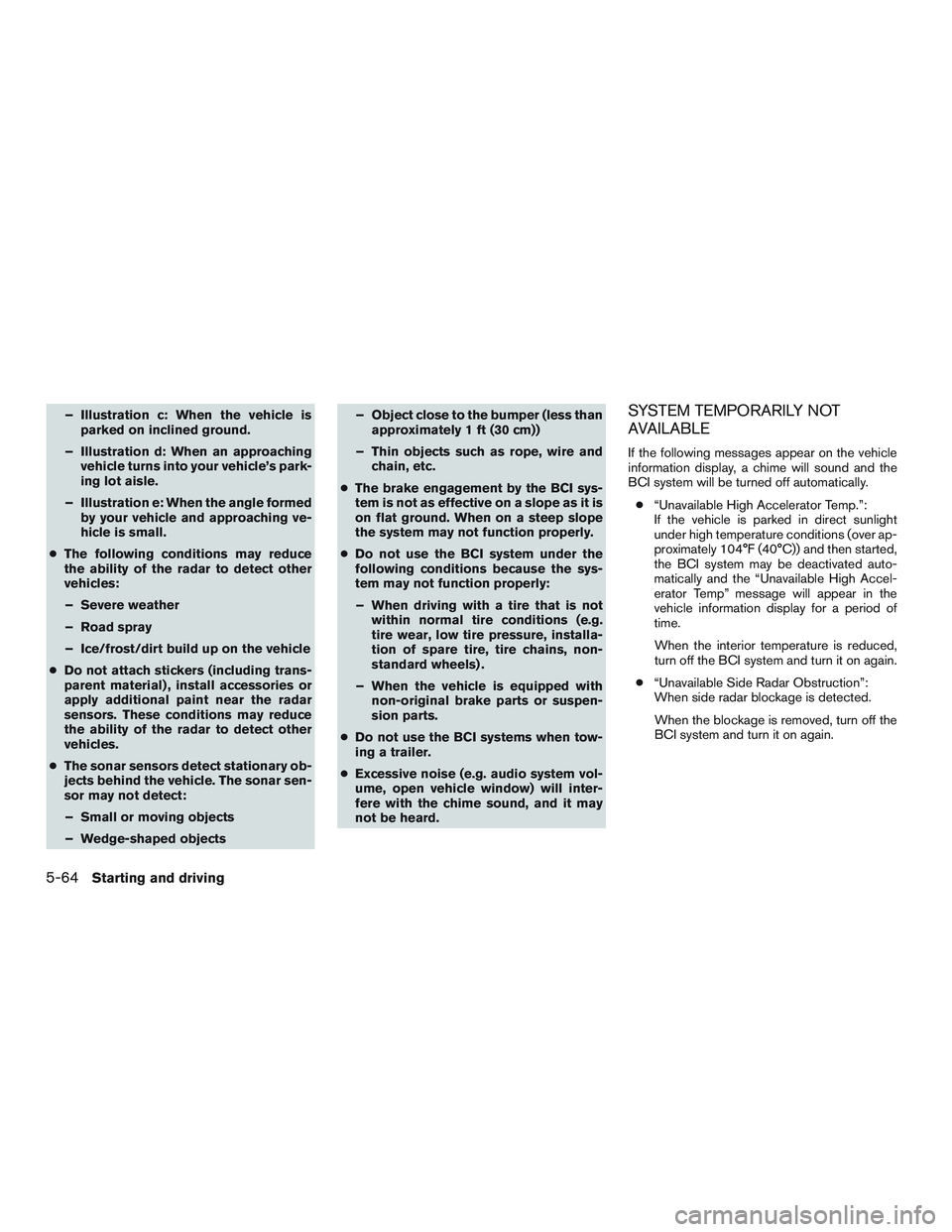

– Illustration c: When the vehicle isparked on inclined ground.
– Illustration d: When an approaching vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration e: When the angle formed by your vehicle and approaching ve-
hicle is small.
● The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/dirt build up on the vehicle
● Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles.
● The sonar sensors detect stationary ob-
jects behind the vehicle. The sonar sen-
sor may not detect:
– Small or moving objects
– Wedge-shaped objects – Object close to the bumper (less than
approximately 1 ft (30 cm))
– Thin objects such as rope, wire and chain, etc.
● The brake engagement by the BCI sys-
tem is not as effective on a slope as it is
on flat ground. When on a steep slope
the system may not function properly.
● Do not use the BCI system under the
following conditions because the sys-
tem may not function properly:
– When driving with a tire that is not within normal tire conditions (e.g.
tire wear, low tire pressure, installa-
tion of spare tire, tire chains, non-
standard wheels) .
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
● Do not use the BCI systems when tow-
ing a trailer.
● Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.SYSTEM TEMPORARILY NOT
AVAILABLE
If the following messages appear on the vehicle
information display, a chime will sound and the
BCI system will be turned off automatically.
● “Unavailable High Accelerator Temp.”:
If the vehicle is parked in direct sunlight
under high temperature conditions (over ap-
proximately 104°F (40°C)) and then started,
the BCI system may be deactivated auto-
matically and the “Unavailable High Accel-
erator Temp” message will appear in the
vehicle information display for a period of
time.
When the interior temperature is reduced,
turn off the BCI system and turn it on again.
● “Unavailable Side Radar Obstruction”:
When side radar blockage is detected.
When the blockage is removed, turn off the
BCI system and turn it on again.
5-64Starting and driving

For additional information, refer to “Approach
warning” in this section.

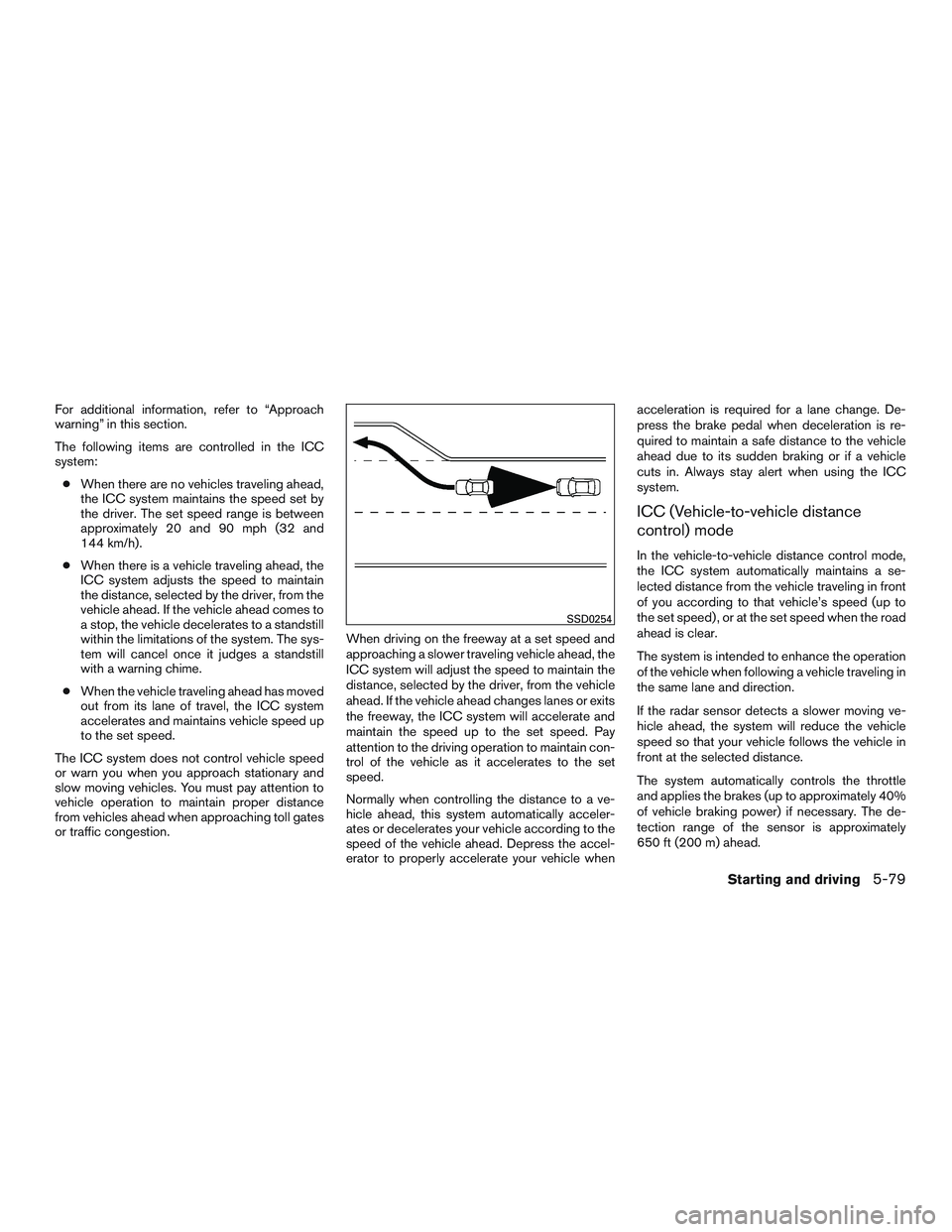

The following items are controlled in the ICC
system:● When there are no vehicles traveling ahead,
the ICC system maintains the speed set by
the driver. The set speed range is between
approximately 20 and 90 mph (32 and
144 km/h).
● When there is a vehicle traveling ahead, the
ICC system adjusts the speed to maintain
the distance, selected by the driver, from the
vehicle ahead. If the vehicle ahead comes to
a stop, the vehicle decelerates to a standstill
within the limitations of the system. The sys-
tem will cancel once it judges a standstill
with a warning chime.
● When the vehicle traveling ahead has moved
out from its lane of travel, the ICC system
accelerates and maintains vehicle speed up
to the set speed.
The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll gates
or traffic congestion. When driving on the freeway at a set speed and
approaching a slower traveling vehicle ahead, the
ICC system will adjust the speed to maintain the
distance, selected by the driver, from the vehicle
ahead. If the vehicle ahead changes lanes or exits
the freeway, the ICC system will accelerate and
maintain the speed up to the set speed. Pay
attention to the driving operation to maintain con-
trol of the vehicle as it accelerates to the set
speed.
Normally when controlling the distance to a ve-
hicle ahead, this system automatically acceler-
ates or decelerates your vehicle according to the
speed of the vehicle ahead. Depress the accel-
erator to properly accelerate your vehicle whenacceleration is required for a lane change. De-
press the brake pedal when deceleration is re-
quired to maintain a safe distance to the vehicle
ahead due to its sudden braking or if a vehicle
cuts in. Always stay alert when using the ICC
system.
ICC (Vehicle-to-vehicle distance
control) mode
In the vehicle-to-vehicle distance control mode,
the ICC system automatically maintains a se-
lected distance from the vehicle traveling in front
of you according to that vehicle’s speed (up to
the set speed) , or at the set speed when the road
ahead is clear.
The system is intended to enhance the operation
of the vehicle when following a vehicle traveling in
the same lane and direction.
If the radar sensor detects a slower moving ve-
hicle ahead, the system will reduce the vehicle
speed so that your vehicle follows the vehicle in
front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to approximately 40%
of vehicle braking power) if necessary. The de-
tection range of the sensor is approximately
650 ft (200 m) ahead.
SSD0254
Starting and driving5-79

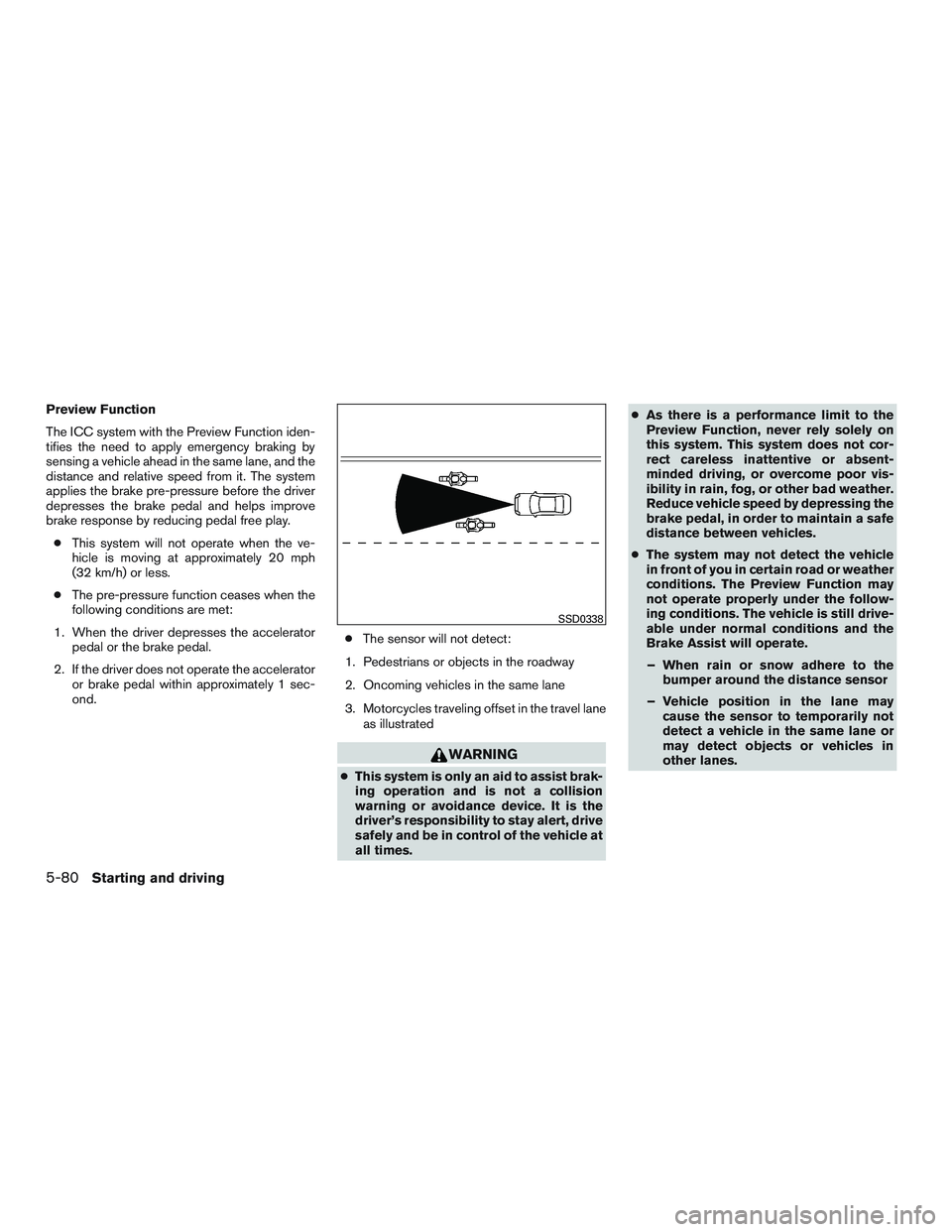

Preview Function
The ICC system with the Preview Function iden-
tifies the need to apply emergency braking by
sensing a vehicle ahead in the same lane, and the
distance and relative speed from it. The system
applies the brake pre-pressure before the driver
depresses the brake pedal and helps improve
brake response by reducing pedal free play.● This system will not operate when the ve-
hicle is moving at approximately 20 mph
(32 km/h) or less.
● The pre-pressure function ceases when the
following conditions are met:
1. When the driver depresses the accelerator pedal or the brake pedal.
2. If the driver does not operate the accelerator or brake pedal within approximately 1 sec-
ond. ●
The sensor will not detect:
1. Pedestrians or objects in the roadway
2. Oncoming vehicles in the same lane
3. Motorcycles traveling offset in the travel lane as illustrated
WARNING
●This system is only an aid to assist brak-
ing operation and is not a collision
warning or avoidance device. It is the
driver’s responsibility to stay alert, drive
safely and be in control of the vehicle at
all times. ●
As there is a performance limit to the
Preview Function, never rely solely on
this system. This system does not cor-
rect careless inattentive or absent-
minded driving, or overcome poor vis-
ibility in rain, fog, or other bad weather.
Reduce vehicle speed by depressing the
brake pedal, in order to maintain a safe
distance between vehicles.
● The system may not detect the vehicle
in front of you in certain road or weather
conditions. The Preview Function may
not operate properly under the follow-
ing conditions. The vehicle is still drive-
able under normal conditions and the
Brake Assist will operate.
– When rain or snow adhere to the bumper around the distance sensor
– Vehicle position in the lane may cause the sensor to temporarily not
detect a vehicle in the same lane or
may detect objects or vehicles in
other lanes.
SSD0338
5-80Starting and driving
