INFINITI QX80 2018 Quick Reference Guide
Manufacturer: INFINITI, Model Year: 2018, Model line: QX80, Model: INFINITI QX80 2018Pages: 24, PDF Size: 0.95 MB
Page 11 of 24
8
Wiper and Washer Switch
REAR WIPER AND WASHER
Intermittent (INT) — Rear wiper operates
intermittently.
Low ( ON) — Rear wiper operates at a continuous
low-speed.
Push the le
ver forward
3 to activate the
rear washer.
3
RAIN-SENSING AUTOMATIC WIPER SYSTEM
To set the Rain-Sensing Automatic Wiper System:
• Push the le ver down to the AUTO position 4.
The rain sensor sensitivity level can be adjusted by:
• Turning the knob toward the rear (Low) for Low Sensitive Operation
5.
• Turning the knob toward the front (High) for
High Sensitive Operation
6.
To turn the Rain-Sensing Automatic Wiper System
off, push the lever to the OFF position.
Please see your Owner’s Manual for important safety
information, system limitations, and additional operating and
feature information.
4
56
Move the lever 1 up or down to one of
the following positions to operate the
windshield wipers:
MIST
One sw
eep operation
OFF
Wipers ar
e OFF
AUTO
R
ain-sensing automatic wipe
LO
C
ontinuous wipe, slow
HI
C
ontinuous wipe, fast
To adjust the wiper sensitivity for the AUTO
setting, twist the control ring
2.
Pull the lever
1 toward you operate the
windshield washer.
1
2
3059068_18a_QX80_US_pQRG_101717.indd 810/17/17 1:15 PM
Page 12 of 24
9
Exterior Light Operation
6
7
3
4 5
1
2
1 Side lights, license plate lights and combination meter lighting
ON position
2 Headlight ON position
3 Automatic (AUTO) headlight mode ON position (headlights
switch on/off automatically depending on ambient light
conditions/daytime running light system)
4 OFF position
5 Front fog light switch
6 Push the headlight switch forward for the high beams.
F
or High Beam Auto-Dimming (Auto position):
• When the vehicle speed is less than 17 mph (27 km/h), the
headlight returns to low beam.
• To disable high beam auto-dimming, turn headlight switch
to Headlight ON position 2.
7 Pull the headligh t switch rearward to flash the high beams.
For normal headlight operation, leave the exterior light switch in the
AUTO position.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
To apply the parking brake, fully depress the parking brake pedal 1.
To release the parking brake:
• Firmly apply the foot brake 2.
• Depress the parking brake pedal 1 and the parking brake will
be released.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
Parking Brake
USB Connection Port
The USB port 1 is located on the
center console. Compatible audio and
video files stored on a USB device can
be played through the vehicle’s audio
system and front display.
Please see your InTouch™ Owner’s Manual for
important safety information, system limitations, and
additional operating and feature information.
2
1
1
3059068_18a_QX80_US_pQRG_101717.indd 910/17/17 1:16 PM
Page 13 of 24
10
Infiniti Mobile Entertainment System (MES) (if so equipped)
With this entertainment system, you can play video files on
both the front and rear display screens.
Watching a DVD:
• Insert a DVD into the DVD slot 1 and the DVD will play
automatically. The front display will only work when the
vehicle is in park and the parking brake is engaged.
• Press the DISC button 2 on the control panel to bring
up the DVD menu and display settings.
Watching videos from a USB device:
• Connect your compatible device to the USB connection
port or AUX jacks located inside the tray in the center
console box.
• The source can be changed on the rear displays using the remote by pressing the HOME button
6 .
4 POWER – Turn display screen on and off
5 DISPLAY SELECT – Change display
c ontrols between right and left screen
6 HOME – Change video source
7 MENU – Change menu display
8 ENTER /Selection Buttons – Control and
select buttons
9 BACK – Previous menu button
10 SETUP – Bring up display menu
11 Video Controls – Play, stop, fast forward
and rewind buttons
12 Volume – Control audio level
REAR DISPLAYS
To turn the rear displays on and off from the
front seats:
1.
Pr
ess the AUDIO button
3 on the
control panel.
2. Select the “Rear Display” key on the display.
2
1
Please see your InTouch™ Owner’s Manual for important
safety information, system limitations, and additional
operating and feature information.
3 4
11
8
7 6
5
9
12
10
3059068_18a_QX80_US_pQRG_101717.indd 1010/17/17 1:16 PM
Page 14 of 24
11

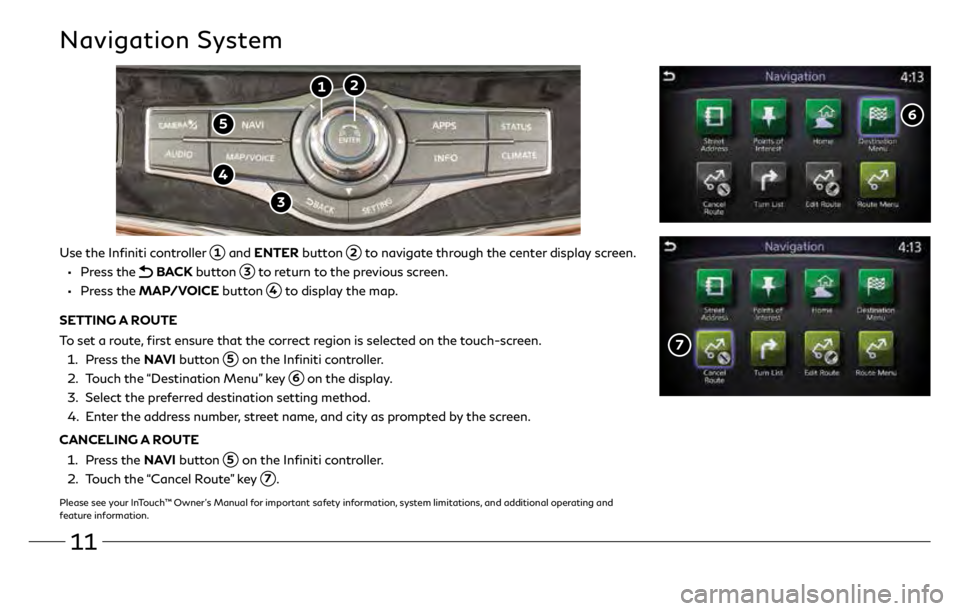

Navigation System
Use the Infiniti controller 1 and ENTER button 2 to navigate through the center display screen.
• Press the BACK button 3 to return to the previous screen.
• Press the MAP /VOICE button 4 to display the map.
SETTING A ROUTE
To set a route, first ensure that the correct region is selected on the touch-screen.
1.
Pr
ess the NAVI button
5 on the Infiniti controller.
2.
T
ouch the “Destination Menu” key
6 on the display.
3
.
Select the pr
eferred destination setting method.
4.
E
nter the address number, street name, and city as prompted by the screen.
CANCELING A ROUTE
1. Pr
ess the NAVI button
5 on the Infiniti controller.
2.
T
ouch the “Cancel Route” key
7.
Please see your InTouch™ Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
6
7
1 2
3
4
5
3059068_18a_QX80_US_pQRG_101717.indd 1110/17/17 1:16 PM
Page 15 of 24
12
Clock Set/Adjustment
2 3
SYSTEM OPERATING TIPS
• The interior of the vehicle should be as quiet as possible.
• Speak naturally. Speaking too fast, too slow, too soft, or
too loud makes voice recognition more difficult.
• Confirm that the correct voice commands are being used. Glance at the screen to see the currently
available commands.
USING THE VOICE RECOGNITION SYSTEM
• Press the button 1 on the steering wheel, and a list of
commands will appear on the screen.
• After the tone sounds, speak the command.
• To skip the voice prompt and give the command immediately, press the
button 1 on the steering wheel
to interrupt the system. Speak the next command after the
tone sounds.
• To cancel the command, press and hold the button 1 on
the steering wheel.
Please see your Owner’s Manual for important safety information, system
limitations, and additional operating and feature information.
Voice Recognition
1
To adjust the time and the appearance of the clock on the display:
Pr
ess the SETTING button on the control panel.
Locate and touch the “Clock” key to adjust “On-Screen Clock”, “Daylight
Savings Time”, “Clock Format (24h)”, and “Time Zone” on the display.
The time can be adjusted through “Offset Adjustment”
1 by adjusting the
minutes and/or hours forward or backward. The current clock time can be
set up to a difference of 12 hours and 59 minutes.
ANALOG CLOCK
To set the clock forward, press the button
2.
To set the clock backward, press the button
3.
Please see your Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
1
3059068_18a_QX80_US_pQRG_101717.indd 1210/17/17 1:16 PM
Page 16 of 24
13
Connecting your Cellular Phone
or Device via Bluetooth
®*
Using Bluetooth® technology, you can
connect (pair) your cellular phone with
the in-vehicle system for hands-free use
of your cellular phone.
1.
Pr
ess the SETTING button on the
control panel.
2.
Select the
“Phone/Mail” key.
3
.
Select
“Connect Device”.
4.
Select
“Add New (X/ 5
Free)”.
5.
I
f a PIN appears on the screen,
operate the Bluetooth
® device to
enter/confirm the PIN.
For any Bluetooth
® connectivity issues,
reboot your cellular phone or device.
* Some jurisdictions prohibit the use of cellular
telephones while driving.
Please see your InTouch™ Owner’s Manual for important safety information, system limitations, and additional
operating and feature information.
If you have a compatible Bluetooth® device with
streaming audio (A2DP and AVRCP profiles), you can
set up a wireless connection between your Bluetooth
®
device and the in-vehicle audio system, enabling you to
listen to the audio from your device through the vehicle’s
audio system.
After connecting your Bluetooth
® device, press the
MEDIA button
1 on the control panel to switch to
Bluetooth® Streaming Audio.
For any Bluetooth
® connectivity issues, reboot your
cellular phone or device.
Please see your InTouch™ Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
Bluetooth® Streaming Audio
1
3059068_18a_QX80_US_pQRG_101717.indd 1310/17/17 1:16 PM
Page 17 of 24
14
Sun Visors
1 Pull down the sun visor to block glare from the front.
2 Remove the sun visor from the center mount by
lifting it slightly and swing it to the side to block
glare from the side window.
3 Draw out the extension sun visor from the main sun
visor to block further glare.
Please see your Owner’s Manual for important safety information, system
limitations, and additional operating and feature information.
2
1
3
All power windows can be operated through the
main switch on the driver’s door.
1 Power windows open/close
2 Disable passengers ’ window operation
POWER WINDOW CONVENIENCE OPENING/
CLOSING FEATURE
To unlock the vehicle and open the windows
simultaneously, press and hold the
button 3 on
the Intelligent Key for about 3 seconds after the
door is unlocked.
To stop opening, release the
button 3.
The window cannot be closed using the Intelligent Key.
Using the mechanical key:
Insert the mechanical key and turn the driver’s door key cylinder
to the rear of the vehicle for longer than 1 second. The door is
unlocked and the window keeps opening while turning the key.
To close the windows, turn the driver’s door key cylinder to the
front of the vehicle for longer than 1 second. The door is locked
and the window keeps closing while turning the key.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
Windows
1
2
3
3059068_18a_QX80_US_pQRG_101717.indd 1410/17/17 1:17 PM
Page 18 of 24
15
• To slide the seat forward or backward, push the switch 1 forward
or backward.
• To recline the seatback, push the switch 2 forward or backward.
SEAT LIFTER
• To adjust the angle of the front portion or height of the seat, push the front or rear end of the
switch 1 up or down.
LUMBAR SUPPORT
• Push each side o f the adjusting switch 3 to adjust the seat lumbar area
until the desired position is achieved.
SEAT/STEERING POSITIONING ON EXIT
• The shift le ver must be in P (PARK) position with the
ignition switch in the OFF position.
• The entry/exit function can be activated or canceled by pushing and holding the SET switch
4, located on the
driver’s side door, for more than 10 seconds.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating
and feature information.
Seat Adjustments
2
3
1
4
Head Restraint Adjustment
To raise the head restraint: Pull the head restraint up.
To lower the head restraint: Push and hold the lock
knob
1 and push the head restraint down.
Make sure the head restraint is fully engaged in
position after any adjustment.
Please see your Owner’s Manual for important safety information,
system limitations, and additional operating and feature information.
1
3059068_18a_QX80_US_pQRG_101717.indd 1510/17/17 1:17 PM
Page 19 of 24
16
You can switch between the conventional rearview mirror mode and Smart Rear View Mirror
mode (camera view mode) by using the mode select lever
1.
• When the Smart R ear View Mirror mode is on, the settings menu can be selected by pressing
the menu button
2.
• Press the adjustment buttons 3 to adjust the following settings: •
Brightness • Down/Up • Indication
• Language • Rotation • Dimming Mirror
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
Smart Rear View Mirror (if so equipped)
1
2 3
Fuel-filler Door
To open the fuel-filler door, unlock the
vehicle and gently push the front side of
the fuel-filler door.
Please see your Owner’s Manual for important safety
information, system limitations, and additional operating
and feature information.
3059068_18a_QX80_US_pQRG_101717.indd 1610/17/17 1:17 PM
Page 20 of 24
17
Infiniti InTouch™ Services (if so equipped)
Available services include, but are not
limited to:
• Automatic Collision Notification
• Alarm Notification
• Maintenance Alert
• Scheduled Maintenance Notification
• Report Stolen Vehicle
• Emergency Call
• Remote Door Lock/Unlock
• Remote Engine Start/Stop
• Remote Horn/Lights
• My Schedule
• Destination Send-to-Vehicle
• Connected Search
• Drive Zone
• Maximum Speed Alert
• Mobile Information Service
• Valet Alert
The f ollowing services can also be accessed
by touching the
headset icon 4. • Infiniti Personal Assistant
• Enhanced Roadside Assistance
This servic e allows subscribers to receive
assistance for a non-emergency incident,
such as towing, or a third party response.
1
Infiniti InTouch ™ Services combine personalized
convenience settings and personal security features
to compliment the Total Ownership Experience
®. Fo r
more details on Infiniti InTouch Services or to enroll
your vehicle, please visit
usa.infinitiintouch.com or call 1-855-444-7244.
To access Infiniti InTouch Services:
1.
Press the SETTING button
1 on the
Infiniti controller.
2.
Select the
“InTouch Services” key
2 on
the display
.
•
I
n case of an emergency, press and release
the in-vehicle telematics SOS button
3,
located above the rearview mirror. A Response
Specialist will provide assistance based on the
situation described by the vehicle’s occupant.
INFINITI INTOUCH SERVICES ENROLLMENT
1.
Cr
eate an Infiniti Owner Portal account.
(https://owners.infinitiusa.com/iowners/)
2.
F
rom your Infiniti Owner Portal account, enroll
in Infiniti InTouch Services.
3
.
Do
wnload the Infiniti InTouch Services
companion app from the App store and
log in using your Infiniti Owner Portal ID
and Password.
3
4 2
Please see your InTouch™ Owner’s Manual for important safety information, system limitations, and additional operating and feature information.
3059068_18a_QX80_US_pQRG_101717.indd 1710/17/17 1:17 PM
