INFINITI QX80 2019 User Guide

JVC1126X
1. Hood (P.3-21)
2. Windshield wiper and washer— Switch operation (P.2-33)
— Rain-sensing auto wiper system
(P.2-35)
— Wiper blade replacement (P.8-16) — Window washer fluid (P.8-10)
3. Moonroof (P.2-64)
4. Power windows (P.2-61)
5. Roof rack (P.2-60)
6. Towing hook (P.6-18)
7. Front view camera (P.4-3) 8. Sensors
— Camera aiding sonar function
(P.4-16)
9. Headlight washers (if so equipped) (P.2-42)
10. Fog light (P.2-44)
11. Headlight (P.2-37) — Adaptive Front lighting System
(AFS) (if so equipped) (P.2-42)
12. Front parking light/daytime running light/front turn signal light (P.2-37)
13. Tires — Wheel and tires (P.8-27, P.10-9)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-15, P.5-5)
14. Outside mirrors (P.3-37) — Side view camera (P.4-3)
— Welcome light (P.2-65)
15. Side turn signal lights (P.8-23)
16. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-15)
— Remote engine start (if so equipped)
(P.3-19)
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
17. Child safety rear door locks (P.3-6)

JVC1127X
1. Fuel-filler door (P.3-26)— Fuel information (P.10-4)
2. Antenna (P.4-36)
3. Rear combination light (P.8-23)
4. Rear window defroster (P.2-36)
5. Satellite antenna (P.4-36) 6. Smart Rearview Mirror camera (if so
equipped) (P.3-31)
7. High-mounted stop light (P.8-23)
8. Liftgate (P.3-22) — Intelligent Key system (P.3-7) 9. Rear window wiper and washer
— Switch operation (P.2-36)
— Window washer fluid (P.8-10)
10. Spare tire (under the vehicle) (P.6-3)
11. Rear turn signal light — Switch operation (P.2-44)
12. Towing hook (P.6-18)
13. Sensors — Camera aiding sonar function
(P.4-16)
14. Rear view camera (P.4-3)
15. Trailer hitch (P.10-22)
Illustrated table of contents0-5
EXTERIOR REAR

0-6Illustrated table of contents
JVC1211X
1. Cargo light (P.2-68)
2. Cup holders (3rd row seat) (P.2-55)
3. Rear ventilators (P.4-25)
4. Coat hooks (P.2-59)
5. Rear personal lights (P.2-66)
6. Tray (P.2-58)7. Door armrest
— Power window controls (P.2-61)
— Power door lock switch (P.3-5)
— Outside rearview mirror remote con-
trol switch (driver’s side) (P.3-37) 8. Automatic drive positioner switch
(P.3-39)
9. Sun visors (P.3-30)
10. Map lights (P.2-66)
11. Moonroof switch (P.2-64)
12. SOS call switch (See INFINITI In- Touch
TMOwner’s Manual.)
13. Sunglasses holder (P.2-56)
14. Inside rearview mirror (P.3-30) — Smart Rearview Mirror (if so
equipped) (P.3-31)
— HomeLink
®universal transceiver
(P.2-69, P.2-73)
15. Cargo area — Power outlet (P.2-51)
— Cargo floor box (P.2-60)
— Luggage hooks (P.2-59)
— Jacking tools (P.6-5)
16. Rear console box (P.2-58) — Cup holders (2nd row seat) (if so
equipped) (P.2-54)
— Pocket (if so equipped) (P.2-58)
17. Cup holders (2nd row seat) (if so equipped) (P.2-54)
18. Mobile Entertainment System (MES) (if so equipped) (See INFINITI InTouch
TM
Owner’s Manual.)
PASSENGER COMPARTMENT

19. Console box (P.2-57)— Power outlet (P.2-51)
— USB charging connector (P.2-53)
— Rear Media Interface (See INFINITI
InTouch
TMOwner’s Manual.)
— Rear automatic air conditioning sys-
tem (P.4-31)
— Heated seat switch (if so equipped)
(P.2-46)
20. Front cup holders (P.2-54)/Tray (P.2-58)
Illustrated table of contents0-7

0-8Illustrated table of contents
JVC1128X

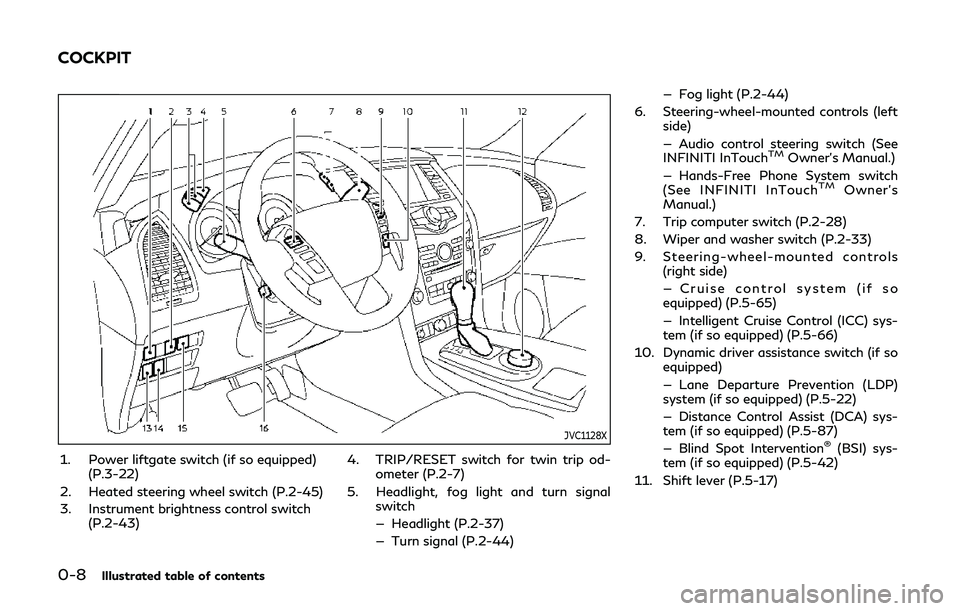

1. Power liftgate switch (if so equipped)(P.3-22)
2. Heated steering wheel switch (P.2-45)
3. Instrument brightness control switch (P.2-43) 4. TRIP/RESET switch for twin trip od-
ometer (P.2-7)
5. Headlight, fog light and turn signal switch
— Headlight (P.2-37)
— Turn signal (P.2-44) — Fog light (P.2-44)
6. Steering-wheel-mounted controls (left side)
— Audio control steering switch (See
INFINITI InTouch
TMOwner’s Manual.)
— Hands-Free Phone System switch
(See INFINITI InTouch
TMOwner’s
Manual.)
7. Trip computer switch (P.2-28)
8. Wiper and washer switch (P.2-33)
9. Steering-wheel-mounted controls (right side)
— Cruise control system (if so
equipped) (P.5-65)
— Intelligent Cruise Control (ICC) sys-
tem (if so equipped) (P.5-66)
10. Dynamic driver assistance switch (if so equipped)
— Lane Departure Prevention (LDP)
system (if so equipped) (P.5-22)
— Distance Control Assist (DCA) sys-
tem (if so equipped) (P.5-87)
— Blind Spot Intervention
®(BSI) sys-
tem (if so equipped) (P.5-42)
11. Shift lever (P.5-17)
COCKPIT

12. Four-Wheel Drive (4WD) shift switch(if so equipped) (P.5-120)/SNOW
mode switch (P.2-49)/TOW mode
switch (P.2-50)/Vehicle Dynamic Con-
trol (VDC) OFF switch (P.5-133)
13. Headlight aiming control (if so equipped) (P.2-41)
14. Power liftgate main switch (P.3-22)
15. Warning systems switch (if so equipped) (P.2-49)
— Lane Departure Warning (LDW) (if
so equipped) (P.5-22)
— Blind Spot Warning (BSW) (if so
equipped) (P.5-32)
16. Electric tilting/telescopic steering wheel switch (P.3-29)
Illustrated table of contents0-9

0-10Illustrated table of contents
JVC1129X
1. Side ventilator (P.4-25)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.6-2)
4. Center ventilator (P.4-25)
5. Center multi-function control panel(See INFINITI InTouch
TMOwner’s Manual.)
6. Center display (See INFINITI In- Touch
TMOwner’s Manual.)
— Around View®Monitor (P.4-3)
— Navigation system (See INFINITI
InTouch
TMOwner’s Manual.) 7. Clock (P.2-51)
8. Defroster switch (P.2-36)
9. Front passenger supplemental air bag
(P.1-52)
10. Fuse box (P.8-20)
11. Parking brake (P.5-22)
12. Hood release handle (P.3-21)
13. Steering wheel — Horn (P.2-45)
— Driver supplemental air bag (P.1-52)
— Power steering system (P.5-131)
14. Push-button ignition switch (P.5-12)
15. Climate controlled seat switch (if so equipped) (P.2-48)/Heated seat
switch (if so equipped) (P.2-46)
16. Remote tip-up 2nd row seat switch (if so equipped) (P.1-9)
17. Front passenger air bag status light (P.1-60)
18. Power outlet (P.2-51)
19. USB connection port (See Infiniti In- Touch Owner’s Manual.)
20. Cup holder (P.2-54)/Tray (P.2-58)
21. Automatic climate control system (P.4-26)
22. Audio system (See INFINITI InTouch
TM
Owner’s Manual.)
23. Glove box (P.2-56)
INSTRUMENT PANEL

SIC4450
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-11)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Voltmeter (P.2-10) 6. Vehicle information display (P.2-21)/
Odometer/twin trip odometer (P.2-7)
7. Engine oil pressure gauge (P.2-9)
8. Fuel gauge (P.2-9)
Illustrated table of contents0-11
METERS AND GAUGES

0-12Illustrated table of contents
JVC0976X
VK56VD ENGINE
1. Window washer fluid reservoir(P.8-10)
2. Fuse/fusible link holder (P.8-18)
3. Engine oil dipstick (P.8-6)
4. Power steering fluid reservoir (P.8-8) 5. Engine oil filler cap (P.8-6)
6. Brake fluid reservoir (P.8-10)
7. Fuse/fusible link holder (P.8-18)
8. Battery (P.8-11)
9. Radiator filler cap (P.8-4)
10. Engine coolant reservoir (P.8-4)11. Drive belts (P.8-13)
12. Air cleaner (P.8-15)
ENGINE COMPARTMENT
