5-82Starting and driving
System temporarily unavailable
Condition A:
Under the following conditions, the ICC
system is automatically canceled. The chime
will sound and the system will not be able to
be set.
.When the VDC is turned off
. When the ABS or VDC operates
. When a tire slips
. When the SNOW mode switch is pushed
on
. When the 4WD shift switch is in the 4H
or 4L position (for 4WD models)
. When the radar signal is temporarily
interrupted
Action to take:
When the conditions listed above are no
longer present, turn the system off using the
MAIN switch
. Turn the ICC system back
on to use the system.
JVS0481X
Condition B:
Under the following conditions, making it
impossible to detect a vehicle ahead, the ICC
system is automatically canceled.
The chime will sound, the ICC system
warning light (orange) will come on and the
“FRONT RADAR OBSTRUCTION” warning
message will appear in the vehicle informa-
tion display.
. When the radar sensor area of the front
bumper is covered with dirt or is ob-
structed. Action to take:
If the warning light (orange) comes on or
warning message appears, stop the vehicle
in a safe place, place the shift lever in the P
(Park) position and turn the engine off.
When the radar signal is temporarily inter-
rupted, clean the sensor area of the front
bumper and restart the engine. If the warn-
ing light (orange) stays on or warning
message continues to be displayed, have
the ICC system checked. It is recommended
you visit an INFINITI retailer for this service.
.
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)
Action to take:
When the above conditions no longer exist,
turn the ICC system back on to use the
system.

5-98Starting and driving
.When the VDC or ABS (including the
traction control system) operates
. When the SNOW mode switch is ON (To
use the DCA system, turn off the SNOW
mode switch, then turn on the dynamic
driver assistance switch
.)
For details about the SNOW mode
switch, see “SNOW mode switch” (P.2-
49).
. When the 4WD shift switch is in the 4H
or 4L position (for 4WD models)
. When the radar signal is temporarily
interrupted
Action to take:
When the conditions listed above are no
longer present, turn the system off with the
dynamic driver assistance switch
. Turn the
DCA system back on to use the system.
JVS0482X
Condition B:
Under the following conditions, making it
impossible to detect a vehicle ahead, the
DCA system is automatically canceled.
The chime will sound, the DCA system
warning light (orange) will come on and the
“FRONT RADAR OBSTRUCTION” warning
message will appear in the vehicle informa-
tion display.
. When the radar sensor area of the front
bumper is covered with dirt or is ob-
structed Action to take:
If the DCA system warning light (orange)
comes on and the warning message appears,
stop the vehicle in a safe place, place the
shift lever in the P (Park) position and turn
the engine off. When the radar signal is
temporarily interrupted, clean the sensor
area of the front bumper and restart the
engine. If the warning message continues to
be displayed, have the DCA system checked.
It is recommended you visit an INFINITI
retailer for this service.
.
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snow fields, driving next
to long walls)
Action to take:
When the above conditions no longer exist,
turn the DCA system back on to use the
system.

6-2In case of emergency
SIC2574
Push the switch on to warn other drivers
when you must stop or park under emer-
gency conditions. All turn signal lights will
flash.
WARNING
.If stopping for an emergency, be sure
to move the vehicle well off the road.
. Do not use the hazard warning
flashers while moving on the highway
unless unusual circumstances force
you to drive so slowly that your
vehicle might become a hazard to
other traffic. .
Turn signals do not work when the
hazard warning flasher lights are on.
The flasher can be actuated with the ignition
switch in any position.
When an impact that could activate the
supplemental air bags is detected, the
hazard warning flasher lights blink automa-
tically. If the hazard warning flasher switch is
pushed twice, the hazard warning flashers
will turn off.
WARNING
Do not turn the hazard warning flasher
switch to off until you can make sure
that it is safe to do so. Also, the hazard
flasher warning may not blink automa-
tically depending on the force of impact.
Some state laws may prohibit the use of the
hazard warning flasher switch while driving. In the event of a roadside emergency,
Roadside Assistance Service is available to
you. Please refer to your Warranty Informa-
tion Booklet (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada) for
details.
HAZARD WARNING FLASHER SWITCHROADSIDE ASSISTANCE PROGRAM

6-4In case of emergency
.Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions
below.
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the
P (Park) position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance
personnel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
WARNING
.Make sure the parking brake is
securely applied and the automatic transmission is in the P (Park) posi-
tion.
. Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
. Never change tires if oncoming traf-
fic is close to your vehicle. Wait for
professional road assistance.
MCE0001A
Blocking wheels
Place suitable blocksat both the front and
back of the wheel diagonally opposite the
flat tire to prevent the vehicle from moving
when it is jacked up.
WARNING
Be sure to block the wheel as the vehicle
may move and result in personal injury.

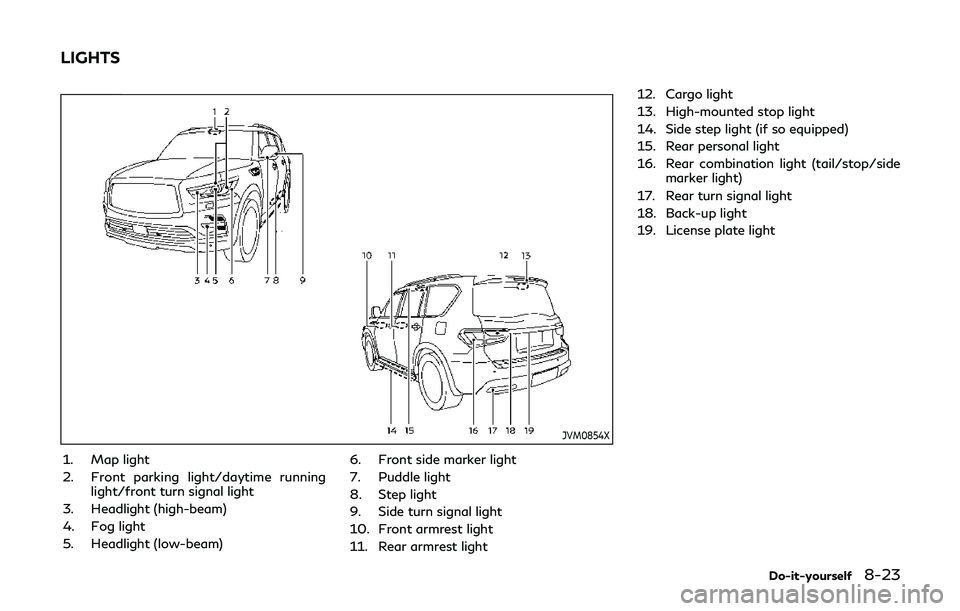

JVM0854X
1. Map light
2. Front parking light/daytime runninglight/front turn signal light
3. Headlight (high-beam)
4. Fog light
5. Headlight (low-beam) 6. Front side marker light
7. Puddle light
8. Step light
9. Side turn signal light
10. Front armrest light
11. Rear armrest light12. Cargo light
13. High-mounted stop light
14. Side step light (if so equipped)
15. Rear personal light
16. Rear combination light (tail/stop/side
marker light)
17. Rear turn signal light
18. Back-up light
19. License plate light
Do-it-yourself8-23
LIGHTS

8-24Do-it-yourself
HEADLIGHTS
If replacement is required, it is recommended
you visit an INFINITI retailer for this service.
EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight* High beams LED—
Low beams LED—
Front turn signal light* LED—
Fog light* LED—
Front parking light* LED—
Front side marker light* LED—
Rear combination light* tail LED—
back-up LED—
stop/tail LED—
side marker LED—
Rear turn signal light* 21PY21W
License plate light* 5W5W
Puddle light* LED—
Front and rear armrest light* LED—
Map light* LED—
Rear personal light 8—
Cargo light 8—
Vanity mirror light 2—
Step light* 5—
Side step light* (if so equipped) LED—
High-mounted stop light* LED—
*: It is recommended you visit an INFINITI retailer for replacement.

When driving in areas using road salt or
other corrosive materials, check lubrication
frequently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are
missing, and check for any loose wheel nuts.
Tighten if necessary.
Tire rotation*: Tires should be rotated every
5,000 miles (8,000 km).
Tires*: Check the pressure with a gauge
often and always prior to long distance trips.
If necessary, adjust the pressure in all tires,
including the spare, to the pressure speci-
fied. Check carefully for damage, cuts or
excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and
cap when the tires are replaced due to wear
or age.
Wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect
uneven or abnormal tire wear, there may be
a need for wheel alignment. If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the INFINITI Warranty Information Booklet.
Windshield:
Clean the windshield on a
regular basis. Check the windshield at least
every six months for cracks or other damage.
Have a damaged windshield repaired by a
qualified repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the shift lever in
the P (Park) position without applying any
brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, have your vehicle checked immediately.
It is recommended you visit an INFINITI
retailer for this service. Keep the floor mat
away from the pedal.
Brakes:
Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, it is recommended you
visit an INFINITI retailer for this service.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, anchors,
adjuster and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position. Check
that the head restraints/headrests move up
and down smoothly and that the locks (if so
equipped) hold securely in all latched posi-
tions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free
play, hard steering or strange noises.
Maintenance and schedules9-3

10-26Technical and consumer information
STI0745
Trailer lights
Your vehicle is equipped with a towing
package, which also includes the 7-pin trailer
harness connector located under the trailer
hitch cover on the rear bumper.
CAUTION
.When splicing into the vehicle elec-
trical system, a commercially avail-
able power-type module/converter
must be used to provide power for
all trailer lighting. This unit uses the
vehicle battery as a direct power
source for all trailer lights while using the vehicle tail light, stoplight and
turn signal circuits as a signal source.
The module/converter must draw no
more than 15 milliamps from the stop
and tail lamp circuits. Using a mod-
ule/converter that exceeds these
power requirements may damage
the vehicle’s electrical system. See a
reputable trailer retailer to obtain the
proper equipment and to have it
installed.
. Do not connect electrical devices that
draw more than 40 amps to the
vehicle. The fusible link may melt.
Trailer lights should comply with federal
and/or local regulations. For assistance in
hooking up trailer lights, contact an INFINITI
retailer or reputable trailer retailer.
Trailer brakes
When towing a trailer load of 3,500 lbs.
(1,587 kg) or more, trailers with a brake
system MUST be used. However, most
states require a separate braking system on
trailers with a loaded weight above a
specific amount. Make sure the trailer meets
the local regulations and the regulations
where you plan to tow.
Several types of braking systems are avail-
able. Surge Brakes -
The surge brake actuator is
mounted on the trailer tongue with a
hydraulic line running to each trailer wheel.
Surge brakes are activated by the trailer
pushing against the hitch ball when the tow
vehicle is braking. Hydraulic surge brakes are
common on rental trailers and some boat
trailers. In this type of system, there is no
hydraulic or electric connection for brake
operation between the tow vehicle and the
trailer.
Electric Trailer Brakes - Electric braking
systems are activated by an electronic signal
sent from a trailer brake controller (special
brake sensing module).
Have a professional supplier of towing
equipment make sure the trailer brakes are
properly installed and demonstrate proper
brake function testing.WARNING
Never connect a trailer brake system
directly to the vehicle brake system.
Pre-towing tips
. Be certain your vehicle maintains a level
position when a loaded or unloaded
trailer is hitched. Do not drive the vehicle
if it has an abnormal nose-up or nose-

Supplemental air bag warning light .... 1-69, 2-17
Supplemental restraint system ........................ 1-52Precautions on supplemental
restraint system ............................................. 1-52
Switch Autolight switch ............................................. 2-37
Fog light switch ............................................ 2-44
Hazard warning flasher switch .................... 6-2
Headlight aiming control ............................. 2-41
Headlight switch ............................................ 2-37
Ignition switch ................................................ 5-18
Power door lock switch ................................. 3-5
Snow mode switch ........................................ 2-49
Turn signal switch ........................................ 2-44
Vehicle dynamic control (VDC)
off switch ........................................................ 2-50
T
Tachometer ............................................................. 2-8
Temperature gauge, Engine coolant
temperature gauge ............................................... 2-8
Theft (INFINITI Vehicle Immobilizer System),
Engine start ........................................................... 2-32
Three-way catalyst ............................................... 5-4
Tilt/telescopic steering ...................................... 3-29
TirePressure, Low tire pressure
warning light ................................................... 2-15
Tire replacement indicator .......................... 2-27
Tires
Flat tire ............................................................... 6-3 Low tire pressure warning system ............. 5-5
Tire and Loading
information label ............................. 8-29, 10-13
Tire chains ........................................................ 8-33
Tire dressing ...................................................... 7-4
Tire pressure ................................................... 8-27
Tire pressure monitoring
system (TPMS) ........................................ 5-5, 6-3
Tire rotation ................................................... 8-34
Types of tires .................................................. 8-33
Uniform tire quality grading .................... 10-30
Wheel/tire size ............................................... 10-9
Wheels and tires ............................................ 8-27
Top Tether strap child restraints ....................... 1-36
TOW mode ......................................................... 5-130
TOW mode switch .............................................. 2-50
Towing Flat towing ................................................... 10-30
Tow truck towing .......................................... 6-15
Towing a trailer ........................................... 10-18
Towing safety .............................................. 10-22
TPMS, Tire pressure monitoring system ......... 5-5 TPMS with Tire Inflation Indicator ............. 5-7
TPMS, Tire pressure warning system .............. 6-3
Trailer towing .................................................... 10-18
Transceiver HomeLink
®
Universal Transceiver ....................... 2-69, 2-73
Transmission
Automatic Transmission Fluid (ATF) ......... 8-8 Driving with automatic transmission ....... 5-18
Transmission shift lever lock release ....... 5-21
Transmitter (See remote keyless
entry system) ........................................................ 3-15
Traveling or registering your vehicle in
another country ................................................. 10-11
Trip computer ....................................................... 2-28
Trip odometer ....................................................... 2-29
Turn signal switch ............................................... 2-44
U
Underbody cleaning ............................................... 7-3
Uniform tire quality grading .......................... 10-30
USB (Universal Serial Bus)
charging connector ............................................. 2-53
V
Vanity mirror ......................................................... 3-39
Vanity mirror lights ............................................. 2-68
Variable voltage control system ..................... 8-13
Vehicle Dimensions ................................................... 10-10
Identification number (VIN) ...................... 10-11
Loading information .................................. 10-14
Recovery (freeing a stuck vehicle) ............ 6-18
Security system .............................................. 2-31
Vehicle dynamic control (VDC)
off switch ........................................................ 2-50
Vehicle dynamic control
(VDC) system ................................................ 5-133
11-7
