tow INFINITI QX80 2020 Owner's Manual

JVC1126X
1. Hood (P.3-21)
2. Windshield wiper and washer— Switch operation (P.2-34)
— Rain-sensing auto wiper system
(P.2-36)
— Wiper blade replacement (P.8-15) — Window washer fluid (P.8-10)
3. Moonroof (P.2-66)
4. Power windows (P.2-64)
5. Roof rack (P.2-63)
6. Towing hook (P.6-18)
7. Front view camera (P.4-3) 8. Sensors
— Camera aiding sonar function
(P.4-16)
9. Headlight washers (if so equipped) (P.2-43)
10. Fog light (P.2-45)
11. Headlight (P.2-38) — Adaptive Front lighting System
(AFS) (if so equipped) (P.2-43)
12. Front parking light/daytime running light/front turn signal light (P.2-38)
13. Tires — Wheel and tires (P.8-27, P.10-9)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-14, P.5-5)
14. Outside mirrors (P.3-36) — Side view camera (P.4-3)
— Welcome light (P.2-68)
15. Side turn signal lights (P.8-23)
16. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-15)
— Remote engine start (if so equipped)
(P.3-18)
Illustrated table of contents0-3
EXTERIOR FRONT

JVC1127X
1. Fuel-filler door (P.3-26)— Fuel information (P.10-4)
2. Antenna (P.4-36)
3. Rear combination light (P.8-23)
4. Rear window defroster (P.2-37)
5. Satellite antenna (P.4-37) 6. Smart Rearview Mirror camera (if so
equipped) (P.3-31)
7. High-mounted stop light (P.8-23)
8. Liftgate (P.3-21) — Intelligent Key system (P.3-7) 9. Rear window wiper and washer
— Switch operation (P.2-37)
— Window washer fluid (P.8-10)
10. Spare tire (under the vehicle) (P.6-3)
11. Rear turn signal light — Switch operation (P.2-44)
12. Towing hook (P.6-18)
13. Sensors — Camera aiding sonar function
(P.4-16)
14. Rear view camera (P.4-3)
15. Trailer hitch (P.10-22)
Illustrated table of contents0-5
EXTERIOR REAR

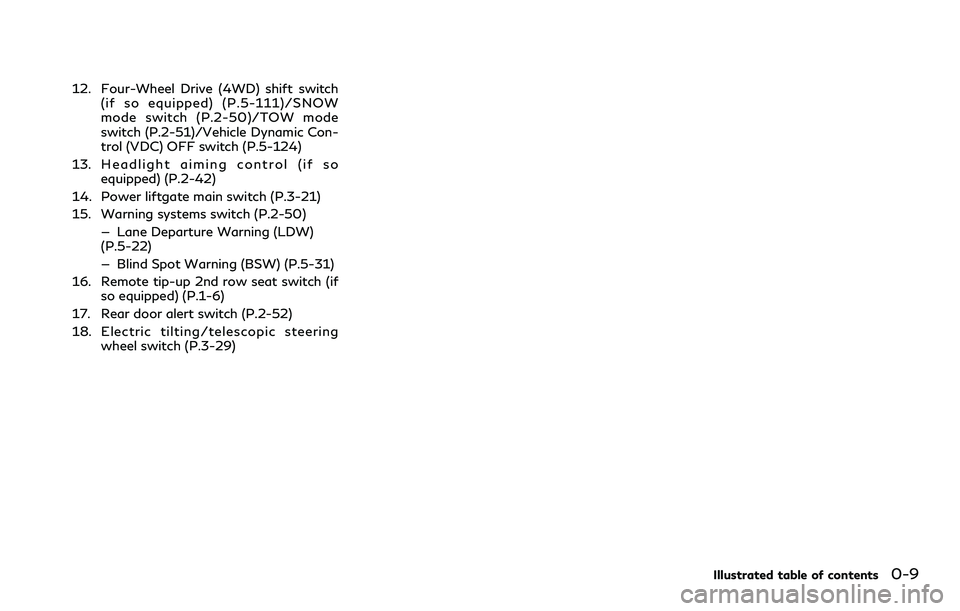

12. Four-Wheel Drive (4WD) shift switch(if so equipped) (P.5-111)/SNOW
mode switch (P.2-50)/TOW mode
switch (P.2-51)/Vehicle Dynamic Con-
trol (VDC) OFF switch (P.5-124)
13. Headlight aiming control (if so equipped) (P.2-42)
14. Power liftgate main switch (P.3-21)
15. Warning systems switch (P.2-50) — Lane Departure Warning (LDW)
(P.5-22)
— Blind Spot Warning (BSW) (P.5-31)
16. Remote tip-up 2nd row seat switch (if so equipped) (P.1-6)
17. Rear door alert switch (P.2-52)
18. Electric tilting/telescopic steering wheel switch (P.3-29)
Illustrated table of contents0-9

Warninglight Name Page
Anti-lock Braking System
(ABS) warning light
2-12
Automatic Transmission (AT)
check warning light2-12
Automatic Transmission (AT)
oil temperature warning light
2-12
Automatic Transmission (AT)
park warning light2-12
Brake warning light
2-13
Charge warning light 2-13
Engine oil pressure warning
light2-14
Four-Wheel Drive (4WD)
warning light (4WD models)
2-14
Forward Emergency Braking
(FEB) system warning light2-14
Low tire pressure warning
light
2-14
Master warning light 2-16
Seat belt warning light 2-16
Supplemental air bag warn-
ing light 2-16Warning
light Name Page
Vehicle Dynamic Control
(VDC) warning light 2-16Indicator
light Name PageAdaptive Front lighting Sys-
tem (AFS) indicator light (if so
equipped) 2-17
Check suspension indicator
light
2-17
Exterior light indicator
2-17
Front fog light indicator light2-17
Front passenger air bag sta-
tus light2-17
High beam assist indicator
light2-17
High beam indicator light
2-17
Malfunction Indicator Light
(MIL)2-17
Security indicator light 2-18
TOW mode indicator light 2-18
Turn signal/hazard indicator
lights
2-18
Vehicle Dynamic Control
(VDC) off indicator light2-18
Illustrated table of contents0-13
WARNING AND INDICATOR LIGHTS

killed.
. Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is in
a seat and using a seat belt properly.
. Do not fold down the rear seats when
occupants are in the rear seat area or
any cargo is on the rear seats.
. Head restraints should be adjusted
properly as they may provide signifi-
cant protection against injury in an
accident. Always replace and adjust
them properly if they have been
removed for any reason.
. If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to the
vehicle in case of sudden braking or
an accident.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured in
an accident or sudden stop.
. Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.
. When folding the bench seat seat-
back down for maximum storage,
make sure the seat base is in the
latched position by rocking the seat
base. If the seat base is not properly
secured, cargo stored on top of a
folded seatback may become a pro-
jectile causing personal injury or
vehicle damage.
CAUTION
.When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center
console of the captain’s seat (if so
equipped) to avoid possible damage
to the console.
. When folding or returning the seat(s)
to the upright position, to avoid
injury to yourself and others:
— Make sure that the seat path is clear before moving the seat.
— Be careful not to allow hands or feet to get caught or pinched in
the seat.
SSS1119
Stowing 2nd and 3rd row seats
To stow 2nd and 3rd row seats for maximum
cargo capacity:
Manual Operation:
1. Pull lever located on the 2nd row seat.
The seatback folds down and the seat
base will tip forward. See “Entry to 3rd
row seat” (P.1-6).
Power Operation:
1. Push and hold the corresponding switch located on the instrument panel below
the audio system. The seatback will fold
down and tip forward. See “Entry to 3rd
row seat” (P.1-6).
Safety — seats, seat belts and supplemental restraint system1-11

1-22Safety — seats, seat belts and supplemental restraint system
SSS0292
Fastening the seat belts
1. Adjust the seat. (See “Seats” (P.1-3).)
2. Slowly pull the seat belt out of theretractor and insert the tongue into the
buckle until you hear and feel the latch
engage.
.The retractor is designed to lockduring a sudden stop or on impact.
A slow pulling motion permits the
belt to move, and allows you some
freedom of movement in the seat.
.If the seat belt cannot be pulled from its fully retracted position, firmly pull
the belt and release it. Then smoothly
pull the belt out of the retractor.
SSS0290
3. Position the lap belt portion low and
snug on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure
the shoulder belt is routed over your
shoulder and across your chest.
The three-point type seat belts have two
modes of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR)
mode allows the seat belt to extend and
retract to allow the driver and passengers
some freedom of movement in the seat. The
ELR locks the seat belt when the vehicle
slows down rapidly or during impacts. The Automatic Locking Retractor (ALR)
mode (child restraint mode) locks the seat
belt for child restraint installation.
When the ALR mode is activated the seat
belt cannot be extended again until the seat
belt tongue is detached from the buckle and
fully retracted. The seat belt returns to the
ELR mode after the seat belt fully retracts.
For additional information, see “Child re-
straints” (P.1-30).
The ALR mode should be used only for child
restraint installation. During normal seat
belt use by an occupant, the ALR mode
should not be activated. If it is activated, it
may cause uncomfortable seat belt tension.
WARNING
When fastening the seat belts, be certain
that seatbacks are completely secured in
the latched position. If they are not
completely secured, passengers may be
injured in an accident or sudden stop.

Stowing 3rd row center seat belt:
When folding down the 3rd row seat, the
3rd center seat belt can be retracted into a
stowed position.
1. Hold the connector tongue
so that the
seat belt does not retract suddenly when
the tongue is released from the connec-
tor buckle. Release the connector tongue
by inserting a suitable tool such as key
into the connector buckle.
2. Store the seat belt tongue into the tongue holder
first.
3. Store the connector tongue into the retractor base
.
WARNING
Do not unfasten the 3rd center seat belt
connector except when folding down the
3rd seat.
SSS1078
Attaching 3rd row center seat belt:
Always be sure the 3rd center seat belt
connector tongue and connector buckle are
attached. Disconnect only when folding
down the 3rd row seat.
To connect the buckle:
1. Pull out the connector tongue from theretractor base
.
2. Pull out the seat belt tongue from the tongue holder
.
3. Pull the seat belt and fasten the con- nector buckle until it clicks
.
The center seat belt connector tongue and
buckle are identified by the
andmark.
The center seat belt connector tongue can
be attached only into the 3rd center seat belt
connector buckle.
To fasten the seat belt, see “Fastening the
seat belts” (P.1-22).
WARNING
. When attaching the 3rd center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the 3rd
center seat belt connector is comple-
tely secured.
Safety — seats, seat belts and supplemental restraint system1-25

1-50Safety — seats, seat belts and supplemental restraint system
booster seat fit, try another seating
position or a different booster seat.
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure
to follow the booster seat manufac-
turer’s instructions for adjusting the seat
belt routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up
extra slack. Be sure the shoulder belt is
positioned across the top, middle portion
of the child’s shoulder. Be sure to follow
the booster seat manufacturer’s instruc-
tions for adjusting the seat belt routing.
6. Follow the warnings, cautions and in- structions for properly fastening a seat
belt shown in “Seat belts” (P.1-17).
SSS1099
7. If the booster seat is installed in the frontpassenger seat, push the ignition switch
to the ON position. The front passenger
air bag status light
may or may not
illuminate depending on the size of the
child and the type of booster seat used.
See “Front passenger air bag and status
light” (P.1-59).

1-64Safety — seats, seat belts and supplemental restraint system
do not change the front seats by
placing material on the seat cushion
or by installing additional trim mate-
rial, such as seat covers, on the seat
that is not specifically designed to
assure proper air bag operation.
Additionally, do not stow any objects
under the front passenger seat or the
seat cushion and seatback. Such
objects may interfere with the proper
operation of the occupant classifica-
tion sensors.
. No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect
the front air bag system. Tampering
with the seat belt system may result
in serious personal injury.
. It is recommended you visit an
INFINITI retailer for work on and
around the front air bag. It is also
recommended you visit an INFINITI
retailer for installation of electrical
equipment. The Supplemental Re-
straint System (SRS) wiring har-
nesses* should not be modified or
disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the air bag
system. .
A cracked windshield should be re-
placed immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.
* The SRS wiring harness connectors are
yellow and orange for easy identifica-
tion.
When selling your vehicle, we request that
you inform the buyer about the front air bag
system and guide the buyer to the appro-
priate sections in this Owner’s Manual.
SSS1092
FRONT SEAT-MOUNTED SIDE-
IMPACT SUPPLEMENTAL AIR
BAG AND ROOF-MOUNTED
CURTAIN SIDE-IMPACT AND
ROLLOVER SUPPLEMENTAL AIR
BAG SYSTEMS
The side air bags are located in the outside
of the seatback of the front seats. The
curtain air bags are located in the side roof
rails. All of the information, cautions and
warnings in this manual apply and must be
followed. The side air bags and curtain air
bags are designed to inflate in higher
severity side collisions, although they may

2 Instruments and controls
Cockpit ........................................................................\
......... 2-3
Instrument panel ............................................................... 2-5
Meters and gauges .......................................................... 2-6Speedometer and odometer ..................................... 2-7
Tachometer ................................................................... 2-8
Engine coolant temperature gauge ....................... 2-8
Fuel gauge ..................................................................... 2-9
Engine oil pressure gauge ......................................... 2-9
Voltmeter ..................................................................... 2-10
Warning lights, indicator lights and
audible reminders ............................................................ 2-11 Checking lights ........................................................... 2-12
Warning lights ............................................................ 2-12
Indicator lights ........................................................... 2-17
Audible reminders ..................................................... 2-19
Vehicle information display .......................................... 2-19
Operational indicators ............................................. 2-22
Trip computer ............................................................. 2-29
Clock and outside air temperature ....................... 2-31
Security systems ............................................................. 2-32
Vehicle Security System .......................................... 2-32
INFINITI Vehicle Immobilizer System .................. 2-33
Wiper and washer switch ............................................. 2-34
Washer operation ..................................................... 2-35
Rain-sensing auto wiper system ........................... 2-36 Rear window wiper and washer operation ..... 2-37
Rear window and outside mirror
defroster switch ............................................................. 2-37
Rear window and outside mirror defroster ..... 2-37
Headlight and turn signal switch ............................... 2-38 Headlight switch ..................................................... 2-38
Headlight washer (if so equipped) ..................... 2-43
Instrument brightness control ............................ 2-44
Turn signal switch .................................................. 2-44
Fog light switch ....................................................... 2-45
Heated steering wheel ................................................. 2-45
Horn ........................................................................\
........... 2-46
Heated seats ................................................................... 2-46 Front ........................................................................\
... 2-47
Rear (if so equipped) ............................................. 2-48
Climate controlled seats (if so equipped) ............... 2-48
Warning systems switch ............................................. 2-50
SNOW mode switch .................................................... 2-50
TOW mode switch ......................................................... 2-51
Vehicle Dynamic Control (VDC) OFF switch ......... 2-51
Rear door alert ................................................................ 2-52 Turning the rear door alert
system ON/OFF ..................................................... 2-53
System operation .................................................... 2-53
