LIGHTING SYSTEM8A±15
TOD Switch Illumination Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the meter cluster (1).

Refer to
Instrument Panel Assembly in Body
Structure
section.
3. Remove the bulb (3).

Disconnect the TOD switch connector and cruise
control main switch connector.

Remove the TOD switch (2).
825R200033
Installation
To install, follow the removal steps in the reverse order.
Cruise Control Main Switch Illumination Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the meter cluster panel (4).

Refer to
Instrument Panel Assembly in Body
Structure
section.
3. Remove the bulb (1).

Disconnect the TOD switch connector and cruise
control main switch connector.

Remove the TOD switch (3).

Remove the cruise main switch (2).
825R200032
Installation
To install, follow the removal steps in the reverse order.

8A±16LIGHTING SYSTEM
Rear Wiper and Washer Switch Illumination Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the lower cover assembly (3).

Remove the dash side trim cover.
3. Remove the bulb (1).

Disconnect the connector.

Remove the rear wiper and washer switch (2).
825R200037
Installation
To install, follow the removal steps in the reverse order.
Seat Heater Switch Illumination Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the center consol assembly (3).

Refer to
Consol in Body Structure section.
3. Remove the bulb (2).

Disconnect the seat heater switch connector.

Remove the seat heater switch (1).
825R200034
Installation
To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM8A±17
Starter Switch
Removal and Installation
Refer to Lock Cylinder in Steering section.
Lighting Switch (Combination Switch)
Removal and Installation
Refer to Combination Switch in Steering section.
Dimmer´Passing Switch (Combination Switch)
Removal and Installation
Refer to Combination Switch in Steering section.
Front Door Switch
Removal
1. Disconnect the battery ground cable.
2. Remove the door switch (2).

Remove the screw (3).

Disconnect the connector (1).
825R200038
Installation
To install, follow the removal steps in the reverse order.

8A±18LIGHTING SYSTEM
Rear Door Switch
Removal
1. Disconnect the battery ground cable.
2. Remove the door switch (2).

Remove the screw (3).

Disconnect the connector (1).
825R200039
Installation
To install, follow the removal steps in the reverse order.
Tailgate Lock Switch
Removal
1. Disconnect the battery ground cable.
2. Remove the tailgate outside handle.

Refer to
Tail Gate Outside Handle in Security and
Locks
section.
3. Remove the tail gate lock switch (1).

Disconnect the switch connector (2) and lock
actuator connectors (3).
825R200031
Installation
To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM8A±19
Key Remind Switch (Starter Switch)
Removal and Installation
Refer to Lock Cylinder in Steering section.
Hazard Warning Light Switch
Removal
1. Disconnect the battery ground cable.
2. Remove the center cluster assembly (1).

Refer to
Instrument Panel Assembly in Body
Structure
section.
3. Remove the hazard warning switch (2).

Disconnect the switch connector.

To remove the switch, push the lock from the back
side of the center cluster assembly.
825R200026
Installation
To install, follow the removal steps in the reverse order.

8A±20LIGHTING SYSTEM
Stoplight Switch
Removal and Installation
Refer to Stoplight Switch in Brake section.
Turn Signal Light Switch (Combination Switch)
Removal and Installation
Refer to Combination Switch in Steering section.
Illumination Controller
Removal
1. Disconnect the battery ground cable.
2. Remove the meter cluster panel cover assembly (2).

Refer to
Instrument Panel Assembly in Body
Structure
section.
3. Remove the illumination controller (1).

Disconnect the controller connector.

Remove the controller knob (4).

Remove the nut (3).

Remove the controller from the back side of the
meter cluster panel assembly.
825R200027
Installation
To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM8A±21

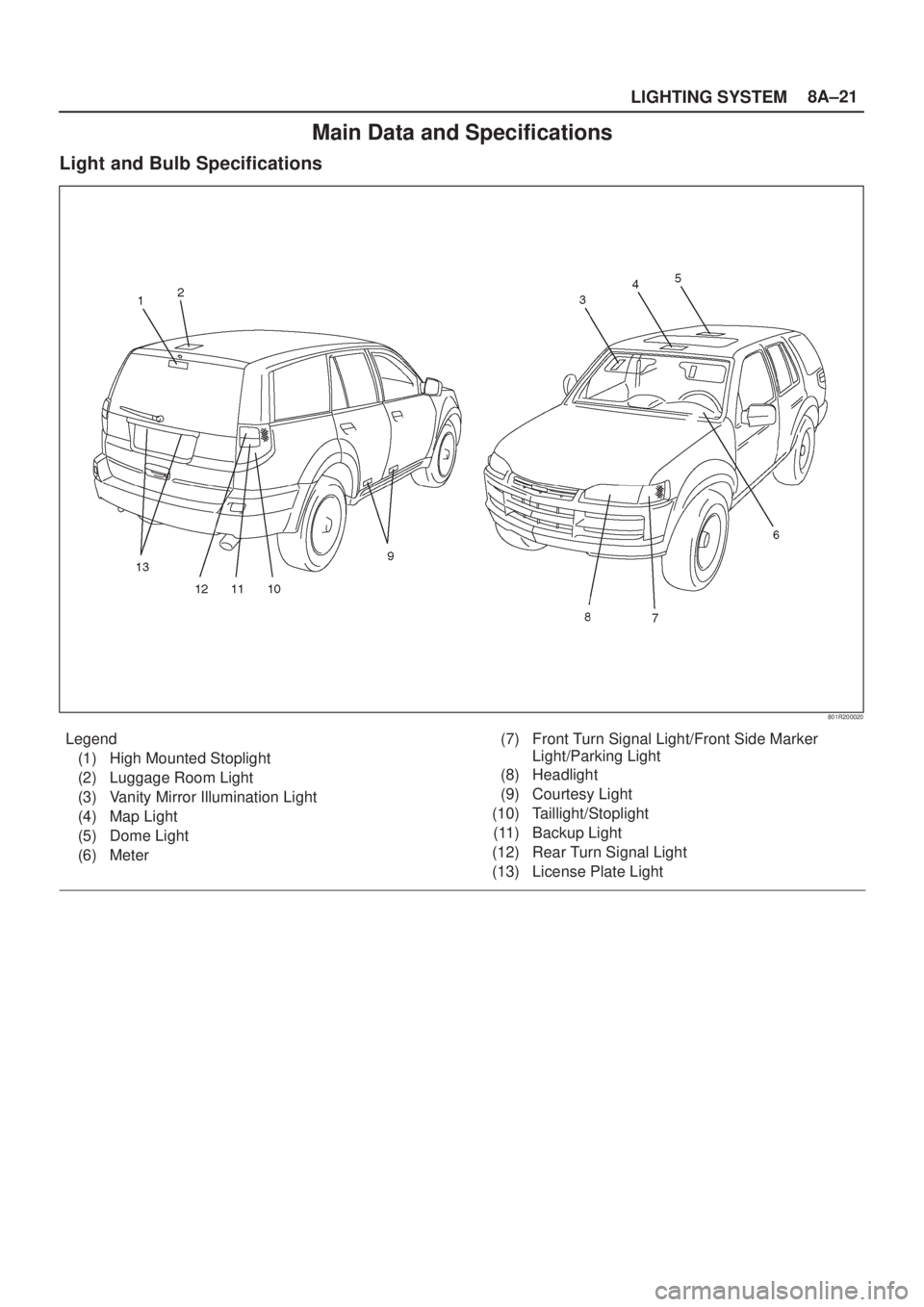

Main Data and Specifications
Light and Bulb Specifications
801R200020
Legend
(1) High Mounted Stoplight
(2) Luggage Room Light
(3) Vanity Mirror Illumination Light
(4) Map Light
(5) Dome Light
(6) Meter(7) Front Turn Signal Light/Front Side Marker
Light/Parking Light
(8) Headlight
(9) Courtesy Light
(10) Taillight/Stoplight
(11) Backup Light
(12) Rear Turn Signal Light
(13) License Plate Light

8A±22LIGHTING SYSTEM
Light NameBulb No.Rated
PowerNumber of
BulbsLens ColorRemarks
Headlight9005/900660w/51w2WhiteHalogen
Front Turn signal Light/
Front Side Marker Light/Parking Light1157NA27w/8w2Amber
Rear Turn Signal Light744021w2Amber
Backup Light92118w2White
Taillight/Stoplight744321w/5w2Red
High Mounted Stoplight92118w2Red
License Plate Light (Tailgate type)1685w2White
Map LightÐ8w2White
Dome LightÐ10w1White
Luggage Room LightÐ5w1White
Courtesy LightÐ3.4w4White
Check TransÐ1.4w1RedMeter
A/T Oil TempÐ1.4w1RedMeter
Cruise SetÐ1.4w1GreenMeter
Power DriveÐ1.4w1AmberMeter
Winter DriveÐ1.4w1GreenMeter
Turn SignalÐ1.4w2GreenMeter
Check TODÐ1.4w1RedMeter
High BeamÐ1.4w1BlueMeter
ABSÐ1.4w1AmberMeter
Seat BeltÐ2w1RedMeter
Indicator/Warning
Malfunction Indicator
(Check Engine)Ð1.4w1AmberMeter
Indicator/Warning
LightLow FuelÐ1.4w1AmberMeterg
Reduced PowerÐ1.4w1AmberMeter
Sports ModeÐ1.4w1GreenMeter
TOD FrontÐ1.1w1GreenMeter
TOD AutoÐ1.1w1GreenMeter
TOD RearÐ1.1w1GreenMeter
Oil PressureÐ1.4w1RedMeter
Brake SystemÐ1.4w1RedMeter
ChargeÐ1.4w1RedMeter
A/T Shift PositionÐ1.1w7
P,N,D,3,2,L
:Green
R: Amber
Meter
Air BagÐ2w1RedMeter
Illumination LightMeterÐ3.4w4Meter
Shift leverÐ1.4w1WhiteShift lever
Vanity MirrorÐ2w2WhiteSun Visor
Cigarette LighterÐ1.4w1WhiteCigarette
Lighter
AshtrayÐ1.4w1WhiteAshtray
