0B±1 MAINTENANCE AND LUBRICATION
AXIOM
GENERAL INFORMATION
Maintenance and Lubrication
CONTENTS
Maintenance Schedule List 0B±1. . . . . . . . . . . . . . .
Explanation of Complete Vehicle Maintenance
Schedule 0B±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Fluids and Lubricants 0B±8. . . .
Lubricant Viscosity Chart 0B±9. . . . . . . . . . . . . . . . . Recommended Liquid Gasket 0B±11. . . . . . . . . . .
Recommended Thread Locking Agents 0B±11. . .
Maintenance Service Data 0B±12. . . . . . . . . . . . . . . .
Maintenance Schedule List
Normal Vehicle Use
The maintenance instructions in this Maintenance
Schedule are based on the assumption that the vehicle
will be used as designed:
to carry passengers and cargo within the limitations
specified on the tire placard located on the inside of
the glove compartment door;
to be driven on reasonable road surfaces within legal
operating limits;
to be driven on a daily basis, as a general rule, for at
least several miles/kilometers;
to be driven on unleaded fuel
Unusual or severe operating conditions will require more
frequent vehicle maintenance, as specified in the
following sections.
Severe Driving Conditions
If the vehicle is usually operated under any of the severe
driving conditions listed below, it is recommended that the
applicable maintenance services be performed at the
specified interval shown in the chart below.
Severe driving conditions:
Towing a trailer, using a camper or car top carrier.
Repeated short trips of less than 8 Km (5 miles) with
outside temperature remaining below freezing.
Extensive idling and/or low speed driving for long
distances, such as police, taxi or door±to±door
delivery use.
Operating on dusty, rough, muddy or salt spread
roads.
ITEMS
INTERVAL
CHANGE ENGINE OIL AND OIL FILTEREvery 3,000 miles (4,800 km) or 3 months
CHANGE AUTOMATIC TRANSMISSION FLUIDEvery 20,000 miles (32,000 km)
CHANGE REAR AXLE OILEvery 15,000 miles (24,000 km)
REPLACE TIMING BELTEvery 75,000 miles (120,000 km)
REPLACE AIR CLEANER FILTERSee explanation of service, page 0B±5
CHANGE POWER STEERING FLUIDEvery 30,000 miles (48,000 km)
Page 109 of 2100
HEATING, VENTILATION AND AIR CONDITIONING (HVAC)
1A±83
Interior Temperature Control
When the temperature control switch is set to a specific
temperature, a signal is sent to the A/C control unit. Other
signals are sent to the control unit from the various
sensors. This data is analyzed by the control unit which
creates a composite data signal that is compared with the
signal received from the potentiometer. The result
determines the direction of mix actuator rotation.
The mix actuator reacts to the composite air mix door
opening angle signal. Opening angle is increased or
decreased to maintain the temperature at the selected
level.
When the compressor is off, the air mix door moves
toward the COOL side. When the compressor turns on,
the temperature of the air being discharged from the
outlet vents is regulated.
When the temperature control is set to 18C (65F), the
air mix door moves to the FULL COOL position. When the
control is set to 32C (90F), the door moves to the FULL
HOT position.
In the VENT position, the air mix door moves from FULL
COOL to a 60% aperture. This prevents hot air from being
discharged into the vehicle.
C01R200005
Air Flow Control
In the Auto Mode
Automatic operation
When the AUTO switch or the DEF switch is pressed, a
signal indicating the forced air volume is sent to the A/C
auto-control unit. Other signals are sent to the control
unit from the various sensors. This data is analyzed by
the control unit which creates a composite data signal.
Based on this signal, the base voltage of the power
transistor is varied to change the blower voltage. This
results in a non-stepped change in blower motor
speed.
When the temperature control switch is set to either
18C (65F) or 32C (90F), blower motor speed is in
the MAX-HI mode.
In the Manual Mode
Manual operation
When the fan switch is manually set to a specified air
volume, a signal is sent to the A/C auto-control-unit. In
response to this signal, the auto-control unit controls
the blower voltage.
When the fan switch is set to HI, the max-hi relay
operates to increase blower motor speed to the
MAX-HI mode.
C01R200001
Page 162 of 2100
POWER±ASSISTED STEERING SYSTEM2A±11
4. Bleed the system. Refer to Bleeding the Power
Steering System
in this section.
5. Start the engine and check the fluid level. Add power
steering fluid if required. When the engine is at
normal operating temperature, increase engine
speed to 1500 rpm.
CAUTION: Do not leave shutoff valve fully closed
for more than 5 seconds, as the pump could become
damaged internally.
6. Fully close the shutoff valve. Record the highest
pressures.
If the pressure recorded is within 9300±9800 kPa
(1350±1420 psi), the pump is functioning within its
specifications.
If the pressure recorded is higher than 9800 kPa
(1420 psi), the valve in the pump is defective.
If the pressure recorded is lower than 9300 kPa
(1350 psi), the valve or the rotating group in the
pump is defective.
7. If the pump pressures are within specifications, leave
the valve open and turn (or have someone else turn)
the steering wheel fully in both directions. Record the
highest pressures and compare with the maximum
pump pressure recorded in step 6. If this pressure
cannot be built in either side of the power steering
unit, the power steering unit is leaking internally and
must be replaced.
8. Shut the engine off, remove the testing gauge.
9. Reconnect the pressure hose, check the fluid level
and make the needed repairs.
10. If the problem still exists, the steering and front
suspension must be thoroughly examined.
Maintenance
The hydraulic system should be kept clean and fluid level
in the reservoir should be checked at regular intervals and
fluid added when required. Refer to
Recommended
Fluids and Lubricants in General Information
section for
the type of fluid to be used and the intervals for filling.
If the system contains some dirt, flush it as described in
this section. If it is exceptionally dirty, the pump must be
completely disassembled before further usage. (The
steering unit cannot be disassembled.)
All tubes, hoses, and fittings should be inspected for
leakage at regular intervals. Fittings must be tight. Make
sure the clips, clamps and supporting tubes and hoses
are in place and properly secured.
Power steering hoses and lines must not be twisted,
kinked or tightly bent. Air in the system will cause spongy
action and noisy operation. When a hose is disconnected
or when fluid is lost, for any reason, the system must be
bled after refilling. Refer to
Bleeding the Power Steering
System
in this section.
Inspect belt for tightness.
Inspect pulley for looseness or damage. The pulley
should not wobble with the engine running.
Inspect hoses so they are not touching any other
parts of the vehicle.
Inspect fluid level and fill to the proper level.
Fluid Level
1. Run the engine until the power steering fluid reaches
normal operating temperature, about 55C (130F),
then shut the engine off.
2. Check the level of fluid in the reservoir.
3. If the fluid level is low, add power steering fluid as
specified in General Information to the proper level
and install the receiver cap.
4. When checking the fluid level after the steering
system has been serviced, air must be bled from the
system. Refer to
Bleeding the Power Steering
System
in this section.
Bleeding The Power Steering System
When a power steering pump or unit has been installed,
or an oil line has been disconnected, the air that has
entered the system must be bled out before the vehicle is
operated. If air is allowed to remain in the power steering
fluid system, noisy and unsatisfactory operation of the
system may result.
Bleeding Procedure
When bleeding the system, and any time fluid is added to
the power steering system, be sure to use only power
steering fluid as specified in General Information.
1. Fill the pump fluid reservoir to the proper level and let
the fluid settle for at least two minutes.
2. Start the engine and let it run for a few seconds. Do
not turn the steering wheel. Then turn the engine off.
3. Add fluid if necessary.
4. Repeat the above procedure until the fluid level
remains constant after running the engine.
5. Raise and support the front end of the vehicle so that
the wheels are off the ground.
6. Start the engine. Slowly turn the steering wheel right
and left, lightly contacting the wheel stops.
7. Add power steering fluid if necessary.
8. Lower the vehicle, set the steering wheel at the
straight forward position after turning it to its full steer
positions 2 or 3 times, and stop the engine.
9. Check the fluid level and refill as required.
10. If the fluid is extremely foamy, allow the vehicle to set
a few minutes, then repeat the above procedure.
Flushing The Power Steering System
1. Raise and support the front end of the vehicle off the
ground until the wheels are free to turn.
2. Remove the fluid return line at the pump inlet
connector and plug the connector port on the pump.
Position the line toward a large container to catch the
draining fluid.
3. While running the engine at idle, fill the reservoir with
new power steering fluid. Turn the steering wheel in
both directions. Do not contact or hold the steering
wheel to the wheel stops. This will cause the pump to
go to pressure relief mode, which may cause a
sudden fluid overflow at the reservoir.
Page 164 of 2100
POWER±ASSISTED STEERING SYSTEM2A±13
Caster (1) is the vertical tilting of the wheel axis either
forward or backward (when viewed from the side of the
vehicle). A backward tilt is positive (+) and a forward tilt is
negative (-). On the short and long arm type suspension
you cannot see a caster angle without a special
instrument, but if you look straight down from the top of
the upper control arm to the ground, the ball joints do not
line up (fore and aft) when a caster angle other than 0
degree is present. With a positive angle, the lower ball
joint would be slightly ahead (toward the front of the
vehicle) of the upper ball joint center line.
Toe-in:
This illustration shows view from the top of the vehicle.
480RS003Toe-in is the measured amount the front wheels are
turned in. The actual amount of toe-in is normally a
fraction of a degree. Toe-in is measured from the center
of the tire treads or from the inside of the tires. The
purpose of toe-in is to insure parallel rolling of the front
wheels and to offset any small deflections of the wheel
support system which occurs when the vehicle is rolling
forward. Incorrect toe-in results in excessive toe-in and
unstable steering. Toe-in is the last alignment to be set in
the front end alignment procedure.
Inspection
Before making any adjustments affecting caster, camber
or toe-in, the following front end inspection should be
made.
1. Inspect the tires for proper inflation pressure. Refer to
Main Data and Specifications in Wheel and Tire
System
section.
2. Make sure that the vehicle is unladen condition (With
no passenger or loading).
3. Make sure that the spare tire is installed at the normal
position.
4. Inspect the front wheel bearings for proper
adjustment. Refer to
Front Hub and Disc Overhaul in
Suspension
section.
5. Inspect the ball joints and tie rod ends. If excessive
looseness is noted, correct before adjusting. Refer to
Steering Linkage in this section.6. Inspect the wheel and tires for run-out. Refer to
Wheel Replacement in Wheel and Tire System
section.
7. Inspect the trim height. If not within specifications, the
correction must be made before adjusting caster.
8. Inspect the steering unit for looseness at the frame.
9. Inspect shock absorbers for leaks or any noticeable
noise. Refer to
Shock Absorber in Suspension
section.
10. Inspect the control arms or stabilizer bar attachment
for looseness. Refer to
Suspension section.
11. Inspect the front end alignment using alignment
equipment. Follow the manufacturer's instructions.
12. Park the vehicle on a level surface.
Trim Height Adjustment
Adjust the trim height (1) by means of the adjusting bolt on
the height control arms.
CAUTION: When adjusting front end alignment, be
sure to begin with trim height first, as it may change
other adjusted alignments.
450RS003
410RS001
Page 172 of 2100
POWER±ASSISTED STEERING SYSTEM2A±21
Disassembly
NOTE: The valve housing is made of aluminum and care
should be exercised when clamping in a vise, etc. to
prevent distortion or damage.
1. Loosen lock nut and remove tie±rod end.
2. Remove clip (3) and band (5), then remove bellows
(4).
3. Remove tie-rod assembly.
To remove, move the boot toward the tie-rod end,
then remove tab washer.
4. Remove oil line, mounting rubber and dust cover.
Inspection and Repair
Inspect the following parts for wear, damage or any
abnormal conditions.
Tie-rod End
If looseness or play is found when checked by moving the
end of ball joint at tie-rod end, replace tie-rod end.
Tie-rod Assembly
If the resistance is insufficient or play is felt when checked
by moving the ball on the tie-rod, replace the tie-rod
assembly.
Rubber Parts
If wear or damage is found through inspection, replace
with new ones.
Reassembly
1. Install mounting rubber and dust cover (If removed).
2. Install oil line.
Torque: 13 N´ m (113 lb in)
3. Install tie-rod assembly with tab washer.
Apply grease to ball joint, install tie-rod and tab
washer, then tighten to specified torque.
Torque: 83 N´m (61 lb ft)
After tightening, bend tab washer against width
across flat of inner ball joint.
4. Apply a thin coat of grease to the shaft for smooth
installation. Then install bellows.
5. Install band and clip.
6. Install tie-rod end and tighten lock nut.
Torque: 98 N´m (72 lb ft)
Page 348 of 2100
DIFFERENTIAL (REAR)4A2±9
3. Install oil seal. Note direction.
4. Install bearing assembly, using installer and press.
420RS030
NOTE: Install bearing with cup towards inboard side.
420RS031
5. Install retainer ring, using installer and press.
420RS033
6. Install snap ring.
7. Install axle shaft assembly into housing.
8. Install bolts, lockwashers, and nuts.
Tighten the retainer nuts to the specified torque.
Torque : 75 N´m (55 lb ft)
Page 360 of 2100
DIFFERENTIAL (REAR)4A2±21
4. Assemble the differential case into the housing (less
pinion). Install bearing caps and finger tight bolts.
Mount a dial indicator with a magnetic base to the
housing and indicate on the flange or head of screw.
Force the differential assembly as far as possible in
the dirction towards the indicator.
With force still applied, set indicator at zero(0).
NOTE: Dial indicator set should be capable of a minimum
travel of 5.08 mm (0.2 in).
425RS107
5. Force the differetial assembly as far as it will go in the
opposite direction. Repeat these steps until the same
reading is obtained.
6. RECORD THE READING OF THE INDICATOR.
This amount, in shims, will be included in the final
assembly shim stack to establish side bearing
preload and ring gear and pinion backlash.
7. After marking sure the readings are correct, remove
the indicator and differetial assembly from the
housing.
Pinion Installation
The bearing cups should have been installed in Pinion
Depth Adjustment in this section.
1. Place the shim(1) and inner oil slinger(2) on the pinion
gear, then install the pinion inner bearing(3) using
installer J±42828.
425RW023
Drive the bearing until the bearing cone seats on the
pinion shims.
2. Install a new collapsible spacer.
Lubracate the pinion bearings with axle lublicant.
3. Install pinion to the axle housing.
4. Install outer pinion bearing onto the pinion.
Hold the pinion forward from inside the case while
driving the bearing onto the pinion.
5. Install oil seal slinger.
6. Install pinion oil seal using installer J±37263.
7. Install the pinion flange to the pinion by tapping it with
a rawhide hammer until a few threads show through
the pinion flange.
8. Install pinion washer and a new nut while holding the
pinion flange with flange holder J±8614±01.
Tighten the nut until the pinion end play is just taken
up. Rotate the pinion while tightening the nut to seat
the bearings.
Torque:217-678 N´m (160-500 lb ft)
Once there is no end play in the pinion, the preload
torque should be checked.
Remove flange holder J±8614±01. Using an
inch-pound torque wrench, check the pinion
preload by rotating the pinion with the wrench.
Page 366 of 2100

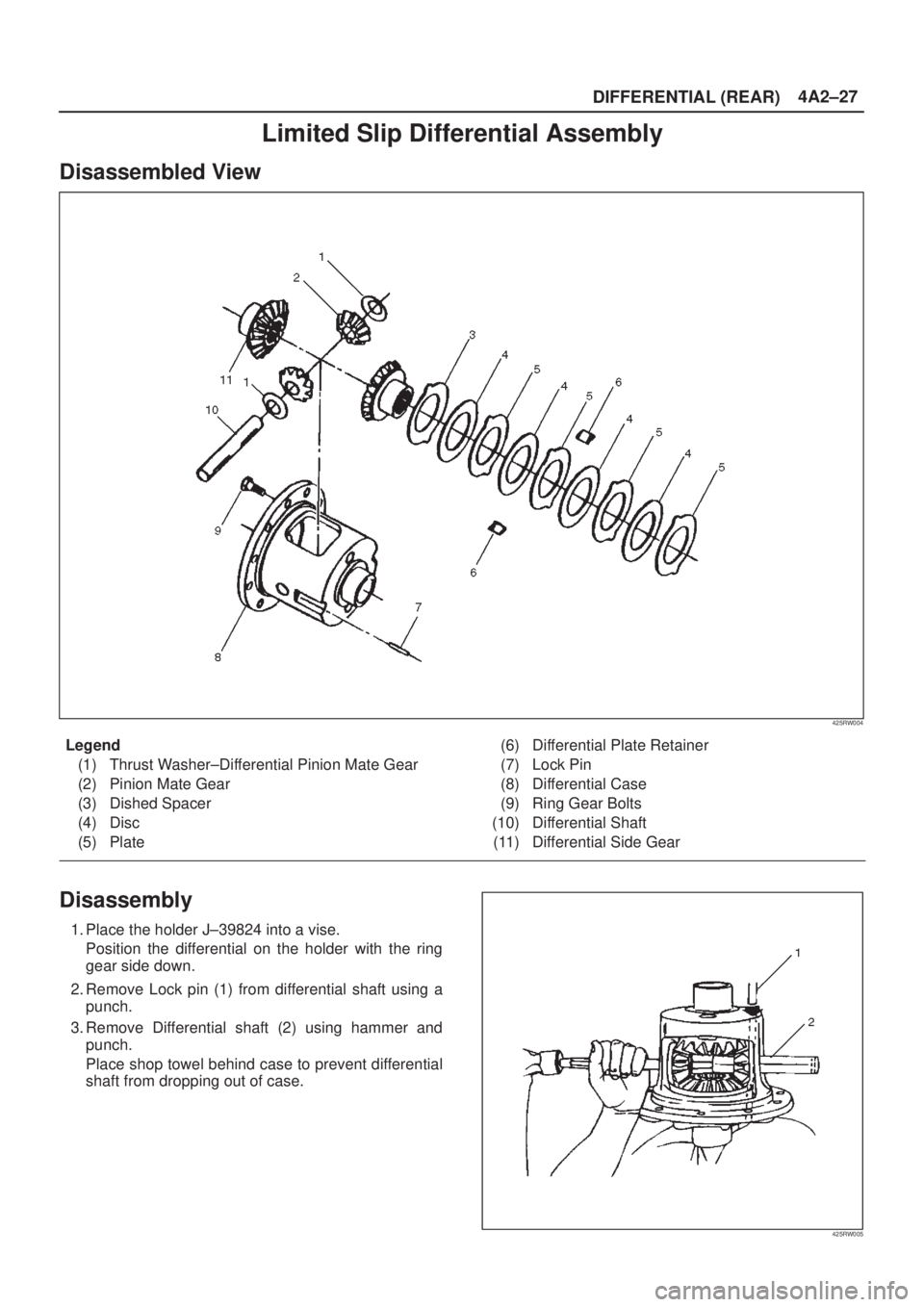

DIFFERENTIAL (REAR)4A2±27
Limited Slip Differential Assembly
Disassembled View
425RW004
Legend
(1) Thrust Washer±Differential Pinion Mate Gear
(2) Pinion Mate Gear
(3) Dished Spacer
(4) Disc
(5) Plate(6) Differential Plate Retainer
(7) Lock Pin
(8) Differential Case
(9) Ring Gear Bolts
(10) Differential Shaft
(11) Differential Side Gear
Disassembly
1. Place the holder J±39824 into a vise.
Position the differential on the holder with the ring
gear side down.
2. Remove Lock pin (1) from differential shaft using a
punch.
3. Remove Differential shaft (2) using hammer and
punch.
Place shop towel behind case to prevent differential
shaft from dropping out of case.
425RW005
Page 629 of 2100
5A±10BRAKE CONTROL SYSTEM
System Components
Electronic Hydraulic Control Unit (EHCU), three Wheel
Speed Sensors, Warning Light, and G-sensor.
Electronic Hydraulic Control Unit (EHCU)
The EHCU consists of ABS control circuits, fault detector,
and a fail-safe. The signal received from each sensor
activates the hydraulic unit accordingly and cancels the
ABS to return to normal braking if a malfunction occurs in
the ABS system.
The EHCU has a self-diagnosing function which can
indicate faulty circuits during diagnosis.
The EHCU is mounted on the engine compartment rear
right side. It consists of a Motor, Plunger Pump, Solenoid
Valves.
Solenoid Valves: Reduces or holds the caliper fluid
pressure for each front disc brake or both rear disc brakes
according to the signal sent from the EHCU.
Reservoir: Temporarily holds the brake fluid that returns
from the front and rear disc brake caliper so that pressure
of front disc brake caliper can be reduced smoothly.
Plunger Pump: Feeds the brake fluid held in the reservoir
to the master cylinder.
Motor: Drives the pump according to the signal from
EHCU.
Check Valve: Controls the brake fluid flow.
ABS Warning Light
821R200015Vehicles equipped with the Anti-lock Brake System have
an amber ªABSº warning light in the instrument panel.
The ªABSº warning light will illuminate if a malfunction in
the Anti-lock Brake System is detected by the Electronic
Hydraulic Control Unit (EHCU).In case of an electronic
malfunction, the EHCU will turn ªONº the ªABSº warning
light and disable the Anti-lock braking function.
The ªABSº light will turn ªONº for approximately three
seconds after the ignition switch is turned to the ªONº
position.If the ªABSº light stays ªONº after the ignition switch is
turned to the ªONº position, or comes ªONº and stays
ªONº while driving, the Anti-lock Brake System should be
inspected for a malfunction according to the diagnosis
procedure.
Wheel Speed Sensor
It consists of a sensor and a rotor. The sensor is attached
to the knuckle on the front wheels and to the rear axle
case on the rear differential.
The front sensor rotor is attached to the each brake rotor
by bolts.
The rear rotor is press-fit in the differential case.
The magnetic flux generated from electrodes magnetized
by a magnet in the sensor varies due to rotation of the
rotor, and the electromagnetic induction generates
alternating voltage in the coil. This voltage draws a ªsine
curveº with the frequency proportional to rotor speed and
it allows detection of wheel speed.
G-Sensor
The G-sensor installed inside the EHCU detects the
vehicle deceleration speed and sends a signal to the
EHCU. In 4WD operation, all four wheels may be
decelerated in almost the same phase, since all wheels
are connected mechanically.
This tendency is noticeable particularly on roads with low
friction coefficient, and the ABS control is adversely
affected.
The G-sensor judges whether the friction coefficient of
road surface is low or high, and changes the EHCU's
operating system to ensure ABS control.
Normal and Anti-lock Braking
Under normal driving conditions, the Anti-lock Brake
System functions the same as a standard power assisted
brake system. However, with the detection of wheel
lock-up, a slight bump or kick-back will be felt in the brake
pedal. This pedal ªbumpº will be followed by a series of
short pedal pulsations which occurs in rapid succession.
The brake pedal pulsation will continue until there is no
longer a need for the anti-lock function or until the vehicle
is stopped. A slight ticking or popping noise may be heard
during brake applications when the Anti-lock features is
being used.
When the Anti-lock feature is being used, the brake pedal
may rise even as the brakes are being applied. This is
also normal. Maintaining a constant force on the pedal
will provide the shortest stopping distance.
Brake Pedal Travel
Vehicles equipped with the Anti-lock Brake System may
be stopped by applying normal force to the brake pedal.
Although there is no need to push the pedal beyond the
point where it stops or holds the vehicle, by applying more
force the pedal will continue to travel toward the floor.
This extra brake pedal travel is normal.
Page 684 of 2100
5C±4
POWER±ASSISTED BRAKE SYSTEM
Disc Brake
Front Disc Brake
A05RW001
Rear Disc Brake (4y4 Model)
A05RW002
The disc brake assembly consists of a caliper, piston,
rotor, pad assembly and support bracket. The caliper
assembly has a single bore and is mounted to the support
bracket with two mounting bolts. The support bracket
allows the caliper to move laterally against the rotor. The
caliper is a one±piece casting with the inboard side
containing the piston bore. A square cut rubber seal is
located in a groove in the piston bore which provides the
hydraulic seal between the piston and the cylinder wall.
NOTE:
1. Replace all components included in repair kits used to
service this caliper.
2. Lubricate rubber parts with clean brake fluid to ease
assembly.3. If any hydraulic component is removed or
disconnected, it may be necessary to bleed all or part
of the brake system.
4. Replace pads in axle sets only.
5. The torque values specified are for dry, unlubricated
fasteners.
6. Perform the service operation on a clean bench free
from all mineral oil materials.
Operation
Hydraulic pressure, created by applying the brake pedal,
is converted by the caliper to a stopping force. This force
creates a clamping action of the piston pressing towards
the rotors (outward) and the caliper slides inward toward
the vehicle. This clamping action forces the linings
against the rotor, creating friction to stop the vehicle.
