6E±142
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0106 ± MAP System Performance


StepNo Ye s Value(s) Action
81. Check the 5 volt reference circuit for high
resistance, an open between the PCM and the MAP
sensor, or a poor connection at the PCM.
2. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairGo to Step 10
91. Ignition ªOFFº.
2. Disconnect the PCM, and check the MAP sensor
signal circuit for high resistance, an open, a short to
ground, or a short to the sensor ground circuit.
3. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairGo to Step 10
101. Check the MAP sensor signal circuit for a poor
connection at the PCM.
2. If a problem is found, repair as necessary.
Did the terminal require replacement?
ÐVerify repairGo to Step 14
111. Check for a poor connection at the MAP sensor.
2. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairGo to Step 12
12Replace the MAP sensor.
Is the action complete?
ÐVerify repairÐ
131. Ignition ªOFFº, disconnected the PCM.
2. Ignition ªONº, check the MAP signal circuit for a
short to voltage or a short to the 5 volt reference
circuit.
3. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairGo to Step 14
14Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±143
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0107 MAP Sensor Circuit Low Voltage
060R200051
Circuit Description
The manifold absolute pressure (MAP) sensor responds
to changes in intake manifold pressure (vacuum). The
MAP sensor signal voltage to the powertrain control
module (PCM) varies from below 2 volts at idle (high
vacuum) to above 4 volts with the ignition ªONº, engine
not running or at wide-open throttle (low vacuum).
The MAP sensor is used to determine manifold pressure
changes while the exhaust gas recirculation (EGR) flow
test diagnostic is being run (refer to
DTC P0401), to
determine engine vacuum level for some other
diagnostics and to determine barometric pressure
(BARO). The PCM monitors the MAP signals for voltages
outside the normal range of the MAP sensor. If the PCM
detects a MAP signal voltage that is excessively low, DTC
P0107 will be set.
Conditions for Setting the DTC

No TP sensor DTCs present.

Engine is running.

Throttle angle is above 1% if engine speed is less than
1000 RPM.

Throttle angle is above 2% if engine speed is above
1000 RPM.

The MAP sensor indicates manifold absolute pressure
at or below 11 kPa for a total of approximately 10
seconds over a 16-second period.

Ignition voltage more than 11 volts.
Action Taken When the DTC Sets

The PCM will ON the MIL after second trip with
detected fault.

The PCM will default to a BARO value of 79.3 kPa.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P0107 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P0107 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
Check for the following conditions:

Check for intermittent codes.

The MAP sensor shares a 5 Volt reference with the
Fuel Tank Pressure Sensor. If these codes are also
set, it could indicate a problem with the 5 Volt reference
circuit .

The MAP sensor shares a ground with the Fuel Tank
Pressure Sensor, the ECT sensor, and the
Transmission Fluid Temperature sensor.

Poor connection at PCM ± Inspect harness connectors
for backed-out terminals, improper mating, broken

6E±144
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
MAP display on the Tech 2 while moving connectors
and wiring harnesses related to the sensor. A change
in the display will indicate the location of the fault.If DTC P0107 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.
If it is determined that the DTC occurs intermittently,
performing the DTC P0107 Diagnostic Chart may isolate
the cause of the fault.
DTC P0107 ± MAP Sensor Circuit Low Voltage

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªONº, engine ªOFFº.
2. With the throttle closed, observe the MAP value
displayed on the Tech 2.
Is the MAP value near the specified value?
0 V 11 kPa
at sea level
Go to Step 4Go to Step 3
31. Ignition ªONº, engine ªOFFº.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor ªDTCº info for DTC P0107.
Does the Tech 2 indicate DTC P0107 failed?
ÐGo to Step 4
Refer to
Diagnostic
Aids
41. Ignition ªOFFº.
2. Disconnect the MAP sensor electrical connector.
3. Jumper the 5 volt reference circuit and the MAP
signal together at the MAP sensor harness
connector.
4. Ignition ªONº.
5. Observe the MAP value displayed on the Tech 2.
Is the MAP value near the specified value? (If no, start
with diagnosis chart for other sensors in the circuit and
see if 5V returns.)
5 V 104 kPaGo to Step 10Go to Step 5
51. Disconnect the jumper.
2. Connect a test light between B+ and the MAP
sensor signal circuit at the MAP sensor harness
connector.
3. Observe the MAP value displayed on the Tech 2.
Is the MAP value near the specified value.
5 V 104 kPaGo to Step 6Go to Step 8
61. Ignition ªOFFº.
2. Disconnect the PCM and check the 5 volt reference
circuit for an open or short to ground.
3. If the 5 volt reference circuit is open or shorted to
ground, repair it as necessary.
Was the 5 volt reference circuit open or shorted to
ground?
ÐVerify repairGo to Step 7
7Check the 5 volt reference circuit for a poor connection
at the PCM and replace the terminal if necessary.
Did the terminal require replacement?
ÐVerify repairGo to Step 11

6E±145
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0107 ± MAP Sensor Circuit Low Voltage


StepNo Ye s Value(s) Action
81. Ignition ªOFFº.
2. Disconnect the PCM, and check the MAP signal
circuit for an open, short to ground, or short to the
sensor ground circuit.
3. If the MAP sensor signal circuit is open or shorted to
ground, repair it as necessary.
Was the MAP signal circuit open or shorted to ground?
ÐVerify repairGo to Step 9
9Check the MAP sensor signal circuit for a poor
connection at the PCM and the MAP sensor; replace
the terminal if necessary.
Did the terminal require replacement?
ÐVerify repairGo to Step 11
10Replace the MAP sensor.
Is the action complete?
ÐVerify repairÐ
11Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±146
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0108 MAP Sensor Circuit High Voltage
060R200051
Circuit Description
The manifold absolute pressure (MAP) sensor responds
to changes in intake manifold pressure (vacuum). The
MAP sensor signal voltage to the powertrain control
module (PCM) varies from below 2 volts at idle (high
vacuum) to above 4 volts with the key ªONº, engine not
running or at wide-open throttle (low vacuum).
The MAP sensor is used to determine manifold pressure
changes while the linear EGR flow test diagnostic is being
run (refer to
DTC P0401), to determine engine vacuum
level for some other diagnostics and to determine
barometric pressure (BARO). The PCM monitors the
MAP signals for voltages outside the normal range of the
MAP sensor. If the PCM detects a MAP signal voltage
that is excessively high, DTC P0108 will be set.
Conditions for Setting the DTC

No TP sensor DTCs present.

Engine is running for more than 10 seconds.

Throttle position is below 3% if engine speed is below
1000 RPM.

Throttle position is below 10% if engine speed is above
1000 RPM.

The MAP sensor indicates an intermittent manifold
absolute pressure above 80 kPa for a total of
approximately 10 seconds over a 16-second period.
Action Taken When the DTC Sets

The PCM will ON the MIL after second trip with
detected fault.

The PCM will default to a BARO value of 79.3 kPa.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P0108 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P0108 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
Check for the following conditions:

The MAP sensor shares a 5 Volt reference with the
Fuel Tank Pressure Sensor (Vapor Pressure Sensor).
If these codes are also set, it could indicate a problem
with the 5 Volt reference circuit.

The MAP sensor shares a ground with the Fuel Tank
Pressure Sensor, the ECT sensor, and the
Transmission Fluid Temperature sensor.

Poor connection at PCM ± Inspect harness connectors
for backed-out terminals, improper mating, broken

6E±147
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
MAP display on the Tech 2 while moving connectors
and wiring harnesses related to the sensor. A change
in the display will indicate the location of the fault.If DTC P0108 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set. If
it is determined that the DTC occurs intermittently,
performing the DTC P1108 Diagnostic Chart may isolate
the cause of the fault.
DTC P0108 ± MAP Sensor Circuit High Voltage

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. If the engine idle is rough, unstable or incorrect,
repair the idle problem before using this chart. Refer
to
Symptoms section.
2. With the engine idling, note the MAP value on the
Tech 2.
Is the MAP reading above the specified value?
90 kPaGo to Step 4Go to Step 3
31. Ignition ªONº, engine ªOFFº.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor ªDTCº info for DTC P0108.
Does the Tech 2 indicate DTC P0108 failed this
ignition?
ÐGo to Step 4
Refer to
Diagnostic
Aids
41. Ignition ªOFFº.
2. Disconnect the MAP sensor electrical connector.
3. Ignition ªONº.
4. Note the MAP sensor voltage displayed on the Tech
2. (If no, start with diagnostic chart for other sensors
in the circuit and see if 5V returns.)
Is the MAP sensor voltage at the specified value?
11 kPa 0.0
V
Go to Step 5Go to Step 6
5Probe the sensor ground circuit with a test light to B+.
Is the test light ªONº?
ÐGo to Step 7Go to Step 9
61. Check the MAP signal circuit for a short to voltage or
a short to the 5 volt reference circuit.
2. If the MAP sensor signal circuit is shorted, repair
circuit as necessary.
Was the MAP sensor signal circuit shorted?
ÐVerify repairGo to Step 11
71. Check for a poor sensor ground terminal connection
at the MAP sensor electrical connector.
2. If a problem is found, replace the faulty terminal.
Did the terminal require replacement?
ÐVerify repairGo to Step 8
8Check for a plugged or leaking vacuum supply to the
MAP sensor.
Is the vacuum supply plugged or leaking?
ÐVerify repairGo to Step 12
91. Check for a poor sensor ground terminal connection
at the PCM.
2. If a problem is found, replace the faulty terminal.
Did the terminal require replacement?
ÐVerify repairGo to Step 10

6E±148
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

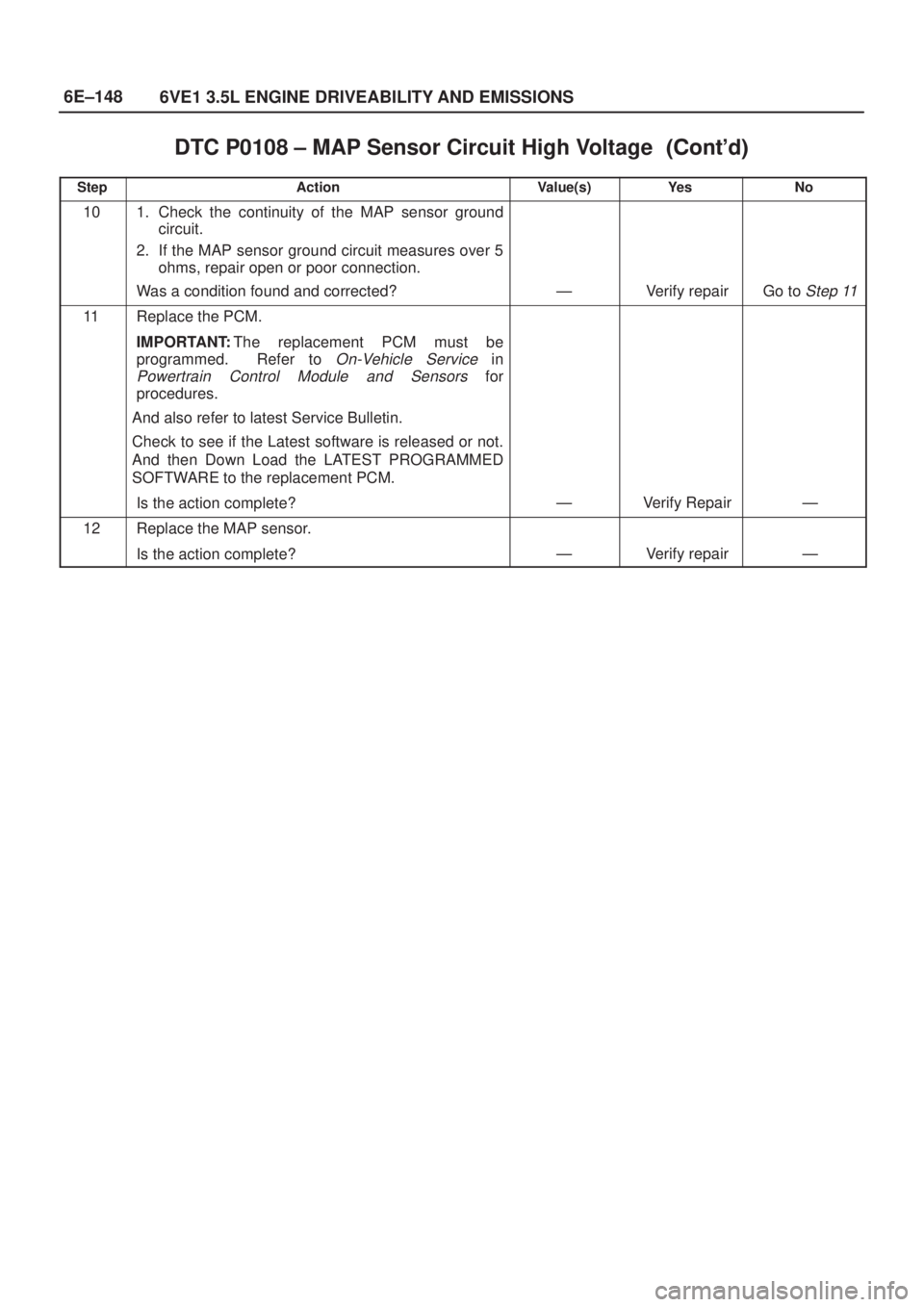

DTC P0108 ± MAP Sensor Circuit High Voltage


StepNo Ye s Value(s) Action
101. Check the continuity of the MAP sensor ground
circuit.
2. If the MAP sensor ground circuit measures over 5
ohms, repair open or poor connection.
Was a condition found and corrected?
ÐVerify repairGo to Step 11
11Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify RepairÐ
12Replace the MAP sensor.
Is the action complete?
ÐVerify repairÐ

6E±149
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0112 IAT Sensor Circuit Low Voltage
D06RY00147
Circuit Description
The intake air temperature (IAT) sensor is a thermistor
which measures the temperature of the air entering the
engine. The powertrain control module (PCM) applies 5
volts through a pull-up resistor to the IAT sensor. When
the intake air is cold, the sensor resistance is high and the
PCM will monitor a high signal voltage on the IAT signal
circuit. If the intake air is warm, the sensor resistance is
lower, causing the PCM to monitor a lower voltage. DTC
P0112 will set when the PCM detects an excessively low
signal voltage on the intake air temperature sensor signal
circuit.
Conditions for Setting the DTC

The engine has been running for over 15 seconds.

Vehicle speed is greater than 30 mph (48 km/h) .

IAT signal voltage indicates and intake air temperature
greater than 148
C (298
F) (about 5 volts) for a total
of 12.5 seconds over a 25-second period of time.
Action Taken When the DTC Sets

The PCM will ON the MIL after second trip with
detected fault.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P0112 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P0112 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
Check for the following conditions:

Poor connection at PCM ± Inspect harness connectors
for backed-bout terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
IAT display on the Tech 2 while moving connectors and
wiring harnesses related to the IAT sensor. A change
in the IAT display will indicate the location of the fault.
If DTC P0112 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.

6E±150
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Test Description
Number(s) below refer to the step number(s) on the
Diagnostic Chart:
2. Verifies that the fault is present.
3. If DTC P0112 can be repeated only by duplicating
the Failure Records condition, refer to the
Temperature vs. Resistance Value table. The table
may be used to test the IAT sensor at various
temperatures to evaluate the possibility of a
ªshiftedº sensor that may be stored above or below
a certain temperature. If this is the case, replace
the IAT sensor. If the IAT sensor appears to be OK,
the fault is intermittent; refer to
Diagnostic Aids.
Intake Air Temperature Sensor

C
FOHMS
Temperature vs. Resistance Values
(approximate)
100212177
80176332
60140667
4511 31188
35951802
25772796
15594450
5417280
±52312300
±15521450
±30±2252700
±40±40100700

6E±151
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0112±IAT Sensor Circuit Low Voltage

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªONº, engine ªOFFº.
2. Using a Tech 2, monitor the intake air temperature
(IAT).
Is the intake air temperature greater than the specified
value?
148
C
(283
F)
Go to Step 4Go to Step 3
31. Ignition ªONº, engine ªOFFº. Review and record
Tech 2 Failure Records data.
2. Operate the vehicle within Failure Records
conditions as noted.
3. Using a Tech 2, monitor the ªDTCº info for DTC
P0112.
Does the Tech 2 indicate DTC P0112 failed this
ignition?
Ð
Refer to Test
Description
Refer to
Diagnostic
Aids
41. Ignition ªOFFº.
2. Disconnect the IAT sensor electrical connector.
3. Ignition ªONº.
4. Observe the intake air temperature on the Tech 2.
Is the intake air temperature below the specified value?
±38
C
(±36
F)
Go to Step 6Go to Step 5
51. Ignition ªOFFº.
2. Disconnect the PCM electrical connectors.
3. Check the IAT sensor signal circuit for a short to
ground.
Is the IAT sensor signal circuit shorted to ground?
ÐVerify repairGo to Step 7
6Replace the IAT sensor.
Is the action complete?
ÐVerify repairÐ
7Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ
