engine ISUZU AXIOM 2002 Service Repair Manual

6G±13

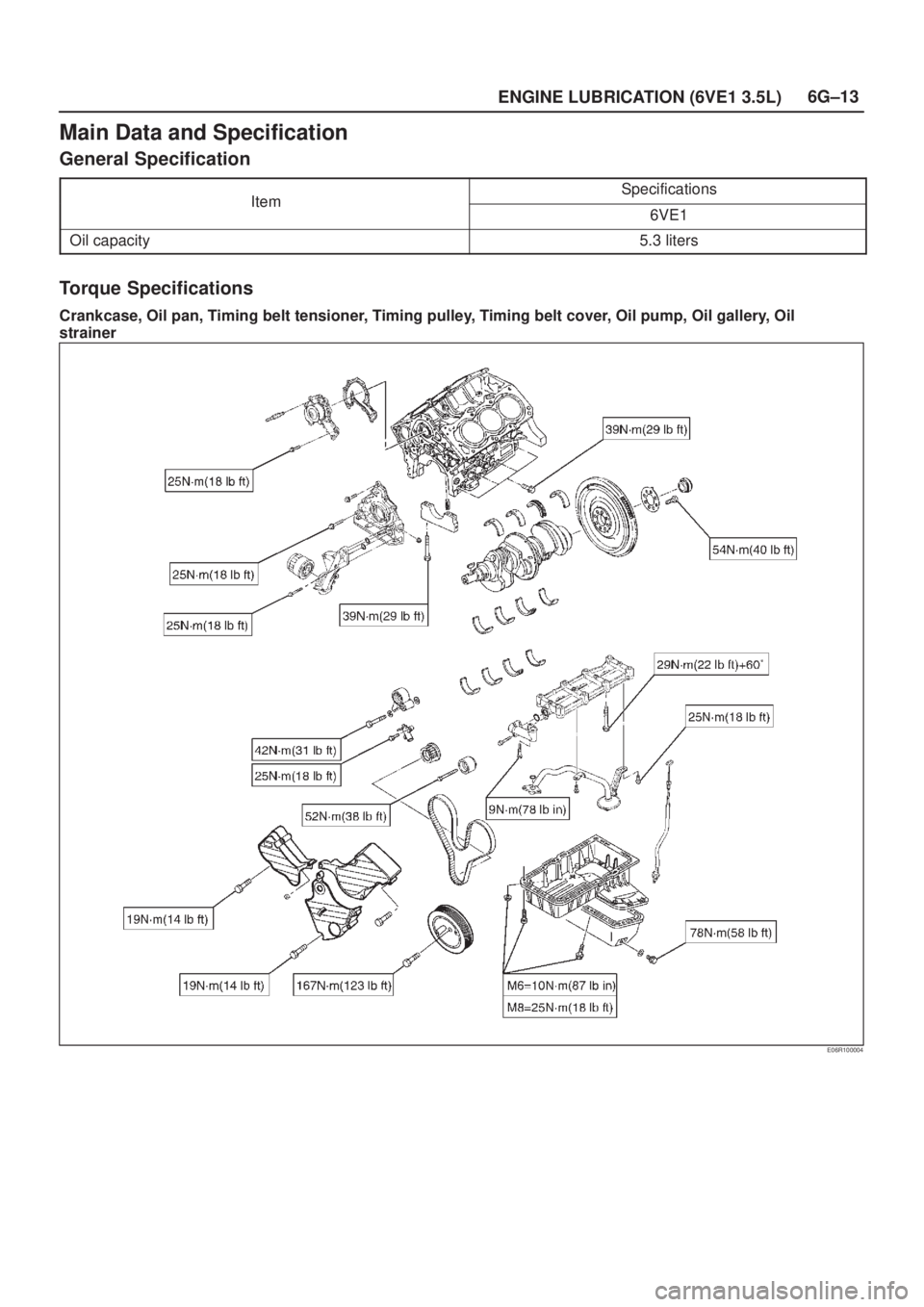

ENGINE LUBRICATION (6VE1 3.5L)
Main Data and Specification
General Specification
ItemSpecificationsItem6VE1
Oil capacity5.3 liters
Torque Specifications
Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt cover, Oil pump, Oil gallery, Oil
strainer
E06R100004

6H±1 ENGINE SPEED CONTROL SYSTEM (6VE1 3.5L)
AXIOM
ENGINE
ENGINE SPEED CONTROL SYSTEM
CONTENTS
Service Precaution 6H±1. . . . . . . . . . . . . . . . . . . . . .
Accelerator Pedal 6H±2. . . . . . . . . . . . . . . . . . . . . . .
Accelerator Pedal and Associated Parts 6H±2. . Removal 6H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

6H±2
ENGINE SPEED CONTROL SYSTEM (6VE1 3.5L)
Accelerator Pedal
Accelerator Pedal and Associated
Parts
101RY00006
Legend
(1) Accelerator Position Sensor
(2) Accelerator Pedal Assembly
Removal
1. Disconnect battery ground cable.
2. Disconnect Accelerator position (AP) sensor (1)
connector from Accelerator pedal assembly.
3. Remove Accelerator pedal assembly (2).
Installation
1. Install Accelerator pedal assembly (2).
2. Connect AP sensor (1) harness connector.
3. Connect battery ground cable.

INDUCTION (6VE1 3.5L)6J±1
AXIOM
ENGINE
INDUCTION (6VE1 3.5L)
CONTENTS
Service Precaution 6J±1. . . . . . . . . . . . . . . . . . . . . .
Air Cleaner Element 6J±2. . . . . . . . . . . . . . . . . . . . .
Removal 6J±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inspection 6J±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6J±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

7A±5 AUTOMATIC TRANSMISSION (4L30±E)
Normal Operation Of 2002 4L30±E
Transmission
Torque Converter Clutch (Electronically
Controlled Capacity Clutch : ECCC)
Application Conditions:
The clutch apply is controlled by moving the converter
clutch control valve by commanding Torque Converter
Clutch (TCC) solenoid using the PWM signal.
The TCC is normally applied in 2nd, 3rd and 4th gears
only when all of the following conditions exist:
Ð The engine coolant temperature is above 70
C
(158
F) and ATF temperature is above 18
C
(64.5
F).
Ð The shift pattern requests TCC apply.
Moreover, TCC is always applied in 2nd, 3rd and 4th
gears when the transmission oil temperature is above
135
C (275
F).
This mode should be canceled at 125
C (257
F).
ATF Warning Lamp
The ATF warning lamp will be constantly on (not flashing)
if the transmission oil temperature is above 145
C
(293
F).
The ATF warning lamp goes off again when the
transmission oil temperature is below 125
C (257
F).
Reverse Lock Out
With the selector lever in reverse position, the PCM will
not close the PWM solenoid until the vehicle is below 11
km/h (6.8 mph), thus preventing reverse engagement
above this speed.
Diagnosis
Introduction
The systematic troubleshooting information covered by
this Section offers a practical and systematic approach to
diagnosing 4L30±E transmission, using information that
can be obtained from road tests, electrical diagnosis, oil
pressure checks or noise evaluation.
The key to correcting a complaint is to make use of all of
the available symptoms and logically letting them direct
you to the cause.
When dealing with automatic transmission complaints, it
is best to gather as many symptoms as possible before
making the decision to remove the transmission from the
vehicle.
Frequently, the correction of the complaint does not
require removal of the transmission from the vehicle.
Driver Information
To analyze the problem fill out a complete description of
the owner's complaint.
Please draw a circle around the right information and
complete the following form. (The next page is an
example of a completed form). You can draw a circle
around many numbers if you are not sure.

7A±10
AUTOMATIC TRANSMISSION (4L30±E)
Checking Transmission Fluid Level
and Condition
Checking fluid level and condition (color and odor) at
regular intervals will provide early diagnosis information
about the transmission. This information may be used to
correct a condition that, if not detected early, could result
in major transmission repairs.
IMPORTANT:When new, automatic transmission fluid
is red in color. As the vehicle is driven, the transmission
fluid will begin to look darker in color. The color may
eventually appear light brown.
A dark brown color with burnt odor may indicate
excessive fluid deterioration and signal a need for fluid
change.
Fluid Level
When adding or changing fluid, use only DEXRON )±III.
Refer to
Maintenance and Lubrication in General
Information section for maintenance information and
servicing interval.
CAUTION: DO NOT OVERFILL.
Overfilling will cause foaming, loss of fluid, abnor-
mal shifting and possible damage to the transmis-
sion.
1. Park the vehicle on level ground and apply the parking
brake firmly.
2. Check fluid level with engine running at idle.
NOTE: Be sure that transmission fluid temperature is
below 30
C (86
F).
3. Move the selector lever through all gear ranges.
4. Move the selector lever to ªParkº.
5. Let engine idle for 3 minutes and open the overfill
screw (1).
6. Add released transmission fluid until it flows out over
the overfill screw opening.
7. Let engine idle until a fluid temperature between 32
C
(90
F) and 57
C (135
F) is reached, then close the
overfill screw (1).
Torque: 38 Nwm (28 lb ft)
NOTE: To prevent fluid leaks, the overfill screw and oil
drain screws gasket must be replaced each time these
screws are removed.NOTE: Check transmission fluid temperature with scan
tool.
Minimum fluid level " 57
C (135
F)
Maximum fluid level " 32
C (90
F)
242R200001
CAUTION: Do not open overfill screw with engine
stopped.
CAUTION: DO NOT CHECK FLUID LEVEL UNDER
THESE CONDITIONS:

Immediately after driving at sustained highway
speeds.

In heavy city traffic during hot weather.

If vehicle is towing a trailer.
If the vehicle has been operated under these conditions,
shut the engine off and allow the vehicle to ªcoolº for thirty
(30) minutes. After the cool down period, restart the
vehicle and continue from step 2 above.

7A±11 AUTOMATIC TRANSMISSION (4L30±E)
Fluid Condition
FLUID CONDITION
NORMAL*CONTAMINATED
COLORRED OR LIGHT
BROWNBROWNNON±TRANSPARENT
/ PINKBROWN
DRAIN
REQUIRED?NOYESYESYES
CONTAMINA±
TIONNONEVery small amount of
foreign material in
bottom of panContamination by cool-
ant or other sourceLarge pieces of metal
or other foreign
material in bottom of
pan
CORRECT
LEVEL AND
CONDITION
1. LOW LEVEL:
A. Add fluid to
obtain proper
level & check for
external leaks.
B. Correct cause of
leak.
2. HIGH LEVEL:
± Remove excess
fluid± Remove both pans
± Change filter
± Flush cooler
± Add new fluid
± Check level± Repair/replace
radiator cooler
± Transmission
overhaul required
± Check for:

Damaged plates
and seals

Contaminated
solenoids
± Flush cooler
± Add new fluid
± Check level± Transmission
overhaul required
± Flush cooler and
cooler lines
± Add new fluid
± Check level
*Fluid should be changed according to maintenance
schedule.
Test Driving
Some 4L30±E automatic transmission complaints will
require a test drive as a part of the diagnostic procedure.
Some codes will not set unless the vehicle is moving. The
purpose of the test drive is to duplicate the customer's
complaint condition and set a current Powertrain Control
Module (PCM) trouble code. Perform this procedure
before each 4L30±E automatic transmission repair, and
again after repairs are made.
IMPORTANT:

Duplicate the condition under which the customer's
complaint was observed.

Depending on the complaint, the line pressure gauge
and the scan tool may be required during the test
drive.

During the test drive, it is important to record all
necessary data from the areas being monitored, for
use in diagnosis. Also listen for and note any unusual
noises.
The following procedure should be used to test drive
4L30±E automatic transmission complaint vehicles:
1. Turn the ignition ON without starting the engine.
Check that the ªCHECK TRANSº lamp comes on for
approximately 2 seconds and then goes out and
remains out.

If the lamp is flashing, GO TO Check Trans
Indicator in Transmission Control System
(4L30±E) section.
If no serial data is present, GO TO OBD System
Check. Refer to
Driveability and Emissions in
Engine section.

If the lamp stays ON or stays OFF, GO TO ªCheck
Transº Check in Transmission Control System
(4L30±E) section.
2. Drive the vehicle. During the test drive, be sure that
the transmission achieves normal operating
temperature (approx. 20 minutes).
Allow the transmission to go through all of its gear
ranges, checking shift timing and firmness. Duplicate
the owner's complaint condition as closely as
possible during the test drive.
3. If, during the test drive, the ªCHECK TRANSº lamp
comes on, use the scan tool to check for trouble
codes.
4. If, during the test drive, a problem is felt, but the
ªCHECK TRANSº lamp does not come on and no
trouble codes are present, drive the vehicle with the
PCM disconnected (manually shifting the vehicle).

In Manual L, the vehicle operates in first gear.

In Manual 2, the vehicle operates in third gear.

In Manual 3 or ªDº, the vehicle operates in fourth
gear.
If the problem still exists with the PCM disconnected,
refer to
Mechanical/Hydraulic Diagnosis in this
section.
5. If no problem has been found at this point, check all
underhood connections that supply power to the PCM
and ignition fuses. Physically and visually inspect all
the PCM harness connectors for loose or corroded
terminals. Inspect the PCM ground points.

7A±12
AUTOMATIC TRANSMISSION (4L30±E)
Mechanical / Hydraulic Diagnosis Check Trans Indicator Chart
Perform Preliminary Inspection First!
F07RT013
When the ªCHECK TRANSº indicator is flashing, it
indicates that a problem related to the transmission, the
Powertrain Control Module (PCM), or the vehicle harness
has occurred.
The system is now operating in a ªBACKUP MODEº
where the risk of further damaging the transmission has
been reduced. The vehicle may be shifted manually.
If the initial problem is intermittent or seldom, switching
the engine OFF/ON might allow normal operation again
until the problem reoccurs.

7A±13 AUTOMATIC TRANSMISSION (4L30±E)
Mechanical / Hydraulic Diagnosis Symptoms Index
Perform Preliminary Inspection First!
CHART
SYMPTOMS
1NO ENGINE START IN NEUTRAL OR PARK
2NO FORWARD GEARS IN ANY RANGE/NO REVERSE
3NO ENGINE BRAKE IN ANY RANGE
4POOR SHIFTING IN ALL GEARS (ALL HARSH OR ALL SOFT)
5aDELAYS IN DRIVE AND REVERSE
5bDELAYS IN REVERSE ONLY
6DIAGNOSTIC TROUBLE CODE (DTC) P0730
7HARSH 1±2 SHIFT
8HARSH 3±4 SHIFT
9a3±2 DOWNSHIFT COMPLAINT
9bHARSH SHIFT WHEN SHIFTING INTO ªDº OR ACCELERATING FROM STOP
9cCOASTDOWN HARSH SHIFT OR CLUNK AT 3±2 DOWNSHIFT
10INTERMITTENT 4TH TO 2ND GEAR DOWNSHIFT AT STEADY SPEED
11ENGINE FLARE AT SHIFTING DURING TURNING ONLY (USUALLY WITH WARM ENGINE)
12ENGINE FLARE DURING 1±2 OR 2±3 SHIFT
13SHUDDER ONLY DURING TORQUE CONVERTER CLUTCH (TCC) APPLYING
14POSSIBLE CAUSES OF TRANSMISSION NOISE
15aPOSSIBLE CAUSES OF LOW LINE PRESSURE
15bPOSSIBLE CAUSES OF HIGH LINE PRESSURE
16POSSIBLE CAUSES OF TRANSMISSION FLUID LEAKS
NOTE: Numbers with parenthesis on the following charts
refer to
Parts List at end of this section.
Chart 1: No Engine Start In Neutral Or Park
StepActionYe sNo
1Does engine start when shift lever moved from drive to neutral
mostly in hot condition?
Go to Step 2Go to Step 3
2Does engine start in park at any condition?Re±test vehicleGo to Step 4
3Does engine also not start in neutral when shift lever moved from
park to neutral?
Go to Step 4Go to Step 5
4Check mode switch (63) setting. Readjust if necessary.
Problems fixed?
Re±test vehicleGo to Step 5
5Check start circuit of mode switch (63) open in neutral.
Was open found?Locate and repair
open(s)Replace mode
switch (63)

7A±14
AUTOMATIC TRANSMISSION (4L30±E)
Chart 2: No Forward Gears In Any Range/No Reverse
StepActionYe sNo
1Check line pressure. Refer to Line Pressure Test in this section.
Was line pressure normal?
Go to Step 2
Use Chart 15a:
Possible Causes
of Low Line
Pressure in this
section
21. Check internal linkage:
± Manual linkage (58) not moving manual valve (326).
2. Check for internal mechanical damage:
± Turbine shaft (506) broken loose.
± Overrun roller clutch (516) broken loose.
Was the problem found?
Repair or replaceÐ
Chart 3: No Engine Brake In Any Range
StepActionYe sNo
1Check line pressure. Refer to Line Pressure Test in this section.
Was line pressure normal?
Go to Step 2
Use Chart 15a:
Possible Causes
of Low Line
Pressure in this
section
21. Check for overrun clutch leaks caused by:
± Damaged piston lip (513)
± Check ball defective (504)
2. Check for overrun lockout valve (705) stuck by foreign
material.
3. Check for leaks at turbine shaft (506) caused by:
± Teflon seal rings damaged (508)
± Excessive wear of turbine shaft bearing surfaces.
Was the problem found?
Repair or replaceÐ
