6E–412 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
32 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Veri fy repai r—
33 Replace the injection pump assembly.
Is the action complete?—Veri fy repai r— Step Action Value(s) Yes No

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–417
21 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 22
22 Substitute a known good ECM and recheck.
Was the problem solved?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure. —Go to Step 24Go to Step 23
23 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Veri fy repai r—
24 Replace the injection pump assembly.
Is the action complete?—Veri fy repai r— Step Action Value(s) Yes No

6E–418 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
ON-VEHICLE SERVICE PROCEDURE
ENGINE CONTROL MODULE
(ECM)
Location
Under the left-hand side seat.
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the seat left-hand side.
3. Roll up the floor carpet.
4. Remove four bolts from the ECM cover.
5. Disconnect the two connectors from the ECM.
Installation Procedure
1. Connect the two connectors to the ECM.
2. Put on the ECM to the floor panel.
3. Tighten the ECM cover by four bolts with specifiedtightening torque.
Tightening torque
Bolts: 8.0 - 12.0 N·m (0.8 - 1.2 kgf·m)
4. Lay the floor carpet ex actly.
5. Put on the seat to the floor panel and tighten with
specified tightening torque.
Tightening torque
Bolts: 40.0 N·m (4.1 kgf·m)
6. Connect the negative battery cable.
NOTE: The replacement ECM must be programmed.
Refer to section of the Service Programming System
(SPS) in this manual.
Following ECM programming, the immobilizer system (if
equipped) must be linked to the ECM. Refer to section
11 “Immobilizer System-ECM replacement” for the
ECM/Immobilizer linking procedure.

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-3
DTC P0201 (FLASH CODE 31) INJECTOR 1
CONTROL CIRCUIT ........................................ 6E-226
DTC P0202 (FLASH CODE 31) INJECTOR 2
CONTROL CIRCUIT ........................................ 6E-226
DTC P0203 (FLASH CODE 31) INJECTOR 3
CONTROL CIRCUIT ........................................ 6E-226
DTC P0204 (FLASH CODE 31) INJECTOR 4
CONTROL CIRCUIT ........................................ 6E-226
DTC P0205 (FLASH CODE 31) INJECTOR 5
CONTROL CIRCUIT ........................................ 6E-226
DTC P0206 (FLASH CODE 31) INJECTOR 6
CONTROL CIRCUIT ........................................ 6E-226
DTC P0336 (FLASH CODE 29) CRANKSHAFT
POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE (58X) ...................... 6E-234
DTC P0337 (FLASH CODE 29) CRANKSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL
(58X) ................................................................. 6E-234
DTC P0341 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE ............................... 6E-243
DTC P0342 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL .... 6E-243
DTC P0351 (FLASH CODE 42) IGNITION 1
CONTROL CIRCUIT ........................................ 6E-249
DTC P0352 (FLASH CODE 42) IGNITION 2
CONTROL CIRCUIT ........................................ 6E-249
DTC P0353 (FLASH CODE 42) IGNITION 3
CONTROL CIRCUIT ........................................ 6E-249
DTC P0354 (FLASH CODE 42) IGNITION 4
CONTROL CIRCUIT ........................................ 6E-249
DTC P0355 (FLASH CODE 42) IGNITION 5
CONTROL CIRCUIT ........................................ 6E-249
DTC P0356 (FLASH CODE 42) IGNITION 6
CONTROL CIRCUIT ........................................ 6E-249
DTC P0404 (FLASH CODE 32) EGR CIRCUIT
RANGE/PERFORMANCE (OPEN VALVE)....... 6E-258
DTC P1404 (FLASH CODE 32) EGR CIRCUIT
RANGE/PERFORMANCE (CLOSED VALVE) .. 6E-258
DTC P0405 (FLASH CODE 32) EGR
CIRCUIT LOW.................................................. 6E-263
DTC P0406 (FLASH CODE 32) EGR
CIRCUIT HIGH ................................................. 6E-268
DTC P0444 EVAP PURGE SOLENOID
VALVE CIRCUIT LOW VOLTAGE ................... 6E-274
DTC P0445 EVAP PURGE SOLENOID
VALVE CIRCUIT HIGH VOLTAGE .................. 6E-274
DTC P0500 (FLASH CODE 24) VEHICLE
SPEED SENSOR (VSS) CIRCUIT
RANGE/PERFORMANCE ................................ 6E-279 DTC P0562 (FLASH CODE 66) SYSTEM
VOLTAGE LOW .............................................. 6E-288
DTC P0563 (FLASH CODE 66) SYSTEM
VOLTAGE HIGH .............................................. 6E-321
DTC P0601 (FLASH CODE 51) ENGINE
CONTROL MODULE (ECM) MEMORY
CHECKSUM ..................................................... 6E-293
DTC P0602 PROGRAMMING ERROR............. 6E-295
DTC P1508 (FLASH CODE 22) IDLE AIR
CONTROL SYSTEM LOW/CLOSED ............... 6E-296
DTC P1509 (FLASH CODE 22) IDLE AIR
CONTROL SYSTEM HIGH/OPEN ................... 6E-296
DTC P1601 (FLASH CODE 65) CAN BUS
OFF .................................................................. 6E-304
DTC U2104 (FLASH CODE 67) CAN BUS
RESET COUNTER OVER-RUN ...................... 6E-310
DTC P1626 IMMOBILIZER NO SIGNAL ........... 6E-317
DTC P1631 IMMOBILIZER WRONG
SIGNAL ............................................................ 6E-323
DTC P1648 IMMOBILIZER WRONG
SECURITY CODE ENTERED .......................... 6E-325
DTC P1649 IMMOBILIZER FUNCTION NOT
PROGRAMMED ................................................ 6E-327
SYMPTOM DIAGNOSIS ................................... 6E-329
PRELIMINARY CHECKS .............................. 6E-329
VISUAL/PHYSICAL CHECK .......................... 6E-329
INTERMITTENT ............................................. 6E-329
ENGINE CRANKS BUT WILL NOT RUN ......... 6E-331
HARD START SYMPTOM ................................ 6E-334
ROUGH, UNSTABLE, OR INCORRECT
IDLE, STALLING SYMPTOM ........................... 6E-337
SURGES AND/OR CHUGS SYMPTOM ........... 6E-341
HESITATION, SAG, STUMBLE SYMPTOM ..... 6E-345
CUTS OUT, MISSES SYMPTOM ..................... 6E-347
LACK OF POWER, SLUGGISH OR SPONGY
SYMPTOM ....................................................... 6E-352
DETONATION/SPARK KNOCK SYMPTOM..... 6E-356
POOR FUEL ECONOMY SYMPTOM ............... 6E-359
EXCESSIVE EXHAUST EMISSIONS OR
ODORS SYMPTOM ......................................... 6E-362
DIESELING, RUN-ON SYMPTOM .................... 6E-365
BACKFIRE SYMPTOM ..................................... 6E-366
ON-VEHICLE SERVICE PROCEDURE ........... 6E-368
ENGINE CONTROL MODULE (ECM) .............. 6E-368
CRANKSHAFT POSITION (CKP) SENSOR ..... 6E-369
CAMSHAFT POSITION (CMP) SENSOR ......... 6E-369
ENGINE COOLANT TEMPERATURE (ECT)
SENSOR .......................................................... 6E-370
MASS AIR FLOW (MAF) SENSOR & INTAKE AIR
TEMPERATURE (IAT) SENSOR ...................... 6E-370

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-27

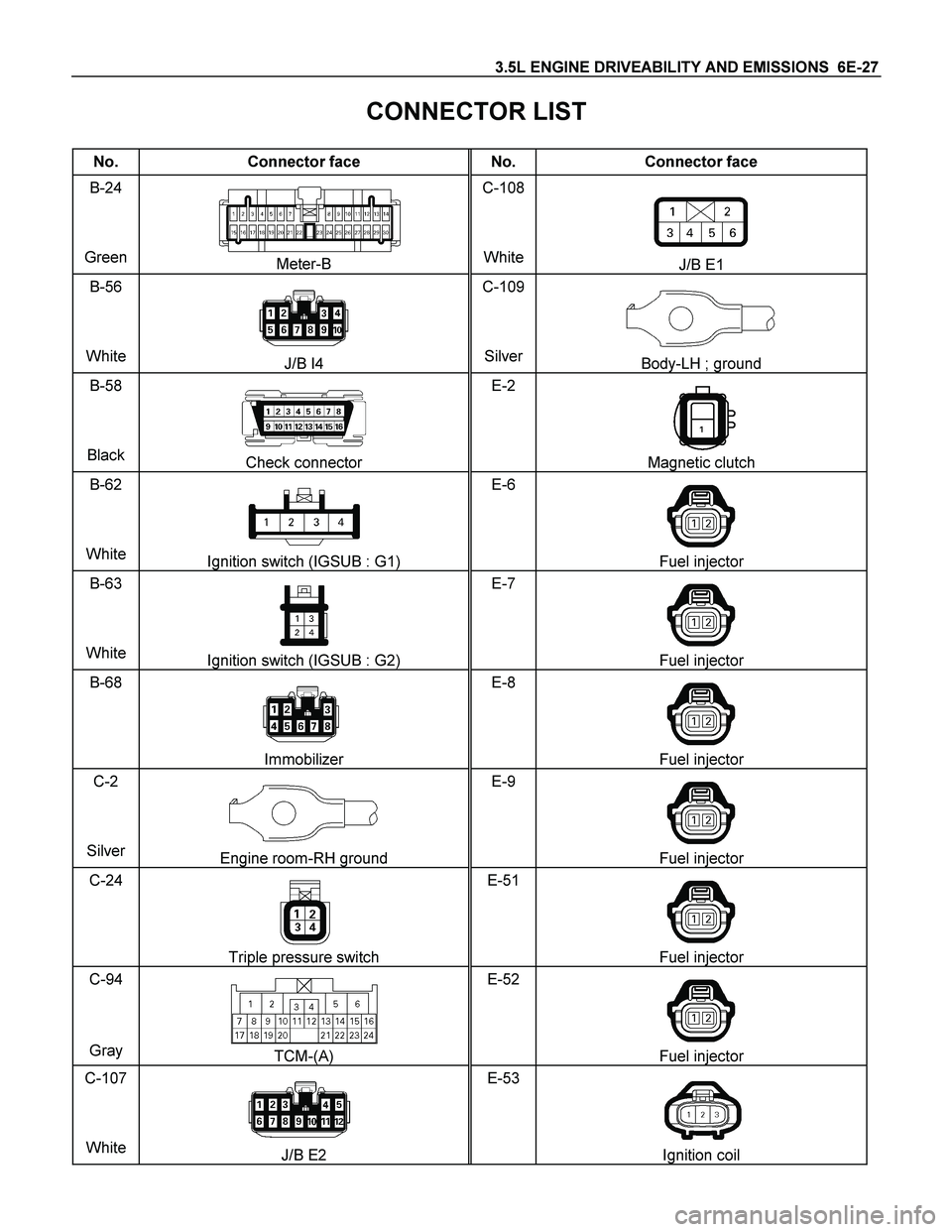

CONNECTOR LIST
No. Connector face No. Connector face
B-24
Green
Meter-B C-108
WhiteJ/B E1
B-56
White
J/B I4 C-109
SilverBody-LH ; ground
B-58
Black
Check connector E-2
Magnetic clutch
B-62
White
Ignition switch (IGSUB : G1) E-6

Fuel injector
B-63
White
Ignition switch (IGSUB : G2) E-7

Fuel injector
B-68


Immobilizer E-8

Fuel injector
C-2
Silver
Engine room-RH ground E-9

Fuel injector
C-24

Triple pressure switch E-51

Fuel injector
C-94

Gray TCM-(A) E-52

Fuel injector
C-107
White
J/B E2 E-53

Ignition coil

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-47
Signal or Continuity Tester Position Pin
No. B/Box
No. Pin Function Wire
Color
Key SW Off Key SW On Engine IdleEngine
2000rpm ECM
Connection Range (+) (-)
B16 B16 Idle Air Control
(IAC) Valve
Coil A Low BLU/
RED Less than 1V Less than 1V / 10-14V Connect DC V B16 GND
B17 B17 Idle Air Control
(IAC) Valve
Coil B Low BLU/
BLKLess than 1V Less than 1V / 10-14V Connect DC V B17 GND
B18 B18 Check Engine
Lamp
(Immobilizer
Control Unit
Terminal B7) BRN/
YELLess than 1V Less than 1VLamp is turned on:
Less than 1V
Lamp is turned off: 10-14VConnect DC V B18 GND
B19 B19 Fuel Pump
Relay GRN/
WHT Less than 1V While relay is
activated:
10-14V
Relay is not
activated:
Less than 1V10-14V Connect DC V B19 GND
B20 B20 Mass Air Flow
(MAF) Sensor BLK/
YELLess than 1V Approx. 0.47VApprox. 1.5V
at 750 rpmApprox. 2V Connect DC V B20 GND
B21 B21 Bank 1 Oxygen
Sensor Signal PNK Less than 1V Approx. 0.4V 0.1 - 0.9V Connect DC V B21 B22
B22 B22 Bank 1 Oxygen
Sensor Ground BLU/
YELContinuity
with ground - - - Connect Ohm B22 GND
B23 B23 Bank 2 Oxygen
Sensor Signal RED Less than 1V Approx. 0.4V 0.1 - 0.9V Connect DC V B23 B24
B24 B24 Bank 2 Oxygen
Sensor Ground BLU/
BLKContinuity
with ground - - - Connect Ohm B24 GND
B25 B25 To Data Link
Connector
No.6 BLK/
GRN - - - - - - - -
B26 B26 Throttle
Position
Sensor (TPS)
Signal BLU Less than 1V Approx. 0.5V Approx. 0.6V Connect DC V B26 B39
B27 B27 TPS & Cam
Position
Sensor +5V
Supply GRN Less than 1V Approx. 5V Connect DC V B27 B39
B28 B28 Camshaft
Position (CMP)
Sensor Signal BLU - - Wave form - - - -
B29 B29 Inhibitor Switch
(AT Only) BLK Less than 1V P or N range: Less than 1V
Other than P or N range: 10-14V Connect DC V B29 GND
B30 B30 Power Steering
Pressure
Switch GRN/
YELLess than 1V Pressure switch is turned on: Less than 1V
Pressure Switch is turned off: 10-14V Connect DC V B30 GND
B31 B31 A/C Thermo
Relay GRN/
BLKLess than 1V A/C request is activated: 10-14V
A/C request is not activated: Less than 1VConnect DC V B31 GND

6E-48 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Signal or Continuity Tester Position Pin
No. B/Box
No. Pin Function Wire
Color
Key SW Off Key SW On Engine IdleEngine
2000rpm ECM
Connection Range (+) (-)
B32 B32 Vehicle Speed
Signal
(Immobilizer
Control Unit
Terminal B8) WHT - - Wave form or approx. 6.5V at
20km/h Connect AC V B32 GND
B33 B33 Ignition Switch BLU/
YELLess than 1V 10-14V Connect DC V B33 GND
B34 B34 Back Up
Power Supply RED/
WHT 10-14V Connect DC V B34 GND
B35 B35 No Connection - - - - - - - - -
B36 B36 ECM Main
Relay RED/
BLUWhile main
relay is
activated:
10-14V
Main relay is
not activated:
Less than 1V 10-14V Connect DC V B36 GND
B37 B37 ECM Main
Relay RED/
BLUWhile main
relay is
activated:
10-14V
Main relay is
not activated:
Less than 1V 10-14V Connect DC V B37 GND
B38 B38 To Data Link
Connect to No.
2 GRN - - - - - - - -
B39 B39 TPS, MAF, IAT
& CMP Sensor
Ground RED Continuity
with ground - - - Connect Ohm B39 GND
B40 B40 No Connection - - - - - - - - -

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-49
Camshaft Position (CMP) Sensor Reference Wave Form









0V








Measurement Terminal: B28(+) B39(-)
Measurement Scale: 5V/div 10ms/div
Measurement Condition: Approximately 2000rpm
Crankshaft Position (CKP) Sensor Reference Wave Form









0V








Measurement Terminal: A23(+) A25(-)
Measurement Scale: 2.0V/div 5ms/div
Measurement Condition: Approximately 2000rpm
Crankshaft Position (CKP) Sensor & Camshaft Position (CMP)
Sensor Reference Wave Form







CH1
0V



CH2
0V




Measurement Terminal: CH1: A23(+) / CH2: B28(+) GND(-)
Measurement Scale: 2V/div / CH2: 5V/div 10ms/div
Measurement Condition: Approximately 2000rpm
Crankshaft Position (CKP) Sensor & Tacho Output Signal
Reference Wave Form







CH1
0V



CH2
0V




Measurement Terminal: CH1: A23(+) / CH2: B12(+) GND(-)
Measurement Scale: CH1: 2V/div / CH2: 10V/div 5ms/div
Measurement Condition: Approximately 2000rpm
Vehicle Speed Sensor (VSS) Reference Wave Form








CH1
0V


CH2
0V




Measurement Terminal: CH1: ECM B32(+) / CH2: VSS 3(+)
GND(-)
Measurement Scale: CH1: 10V/div / CH2: 10V/div 50ms/div
Measurement Condition: Approximately 20km/h
Note: The vehicle is without immobilizer system,
CH1 signal is same as CH2.
Heated Oxygen Sensor (HO2S) Reference Wave Form





CH1
0V





CH2
0V





Measurement Terminal: CH1: B21(+) / CH2: B23(+) GND(-)
Measurement Scale: CH1: 500mV/div / CH2: 500mV/div 1s/div
Measurement Condition: Approximately 2000rpm in Closed Loop

6E-80 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Tech 2
Parameter
Units Idle 2000rpm Definitions
23 A/C Request (Air
Conditioning) On/Off Off Off This displays the air conditioner request signal. This should display "On" when the air
conditioner switch is switched on.
24 A/C Clutch On/Off Off Off This displays whether the ECM has commanded the A/C compressor clutch "On" or
"Off".
25 EVAP Purge
Solenoid
(Evaporative
Emission) % 50
80 0 This displays the duty signal from the ECM to control the canister purge solenoid
valve.
26 Fuel Trim Cell 49
52 13
17 This displays dependent on engine speed and MAF sensor reading.
A plot of engine speed versus MAF amount is divided into the cells.
Fuel trim cell indicates which cell is currently active.
27 Fuel Pump On/Off On On This displays operating status for the fuel pump main relay.
This should display "On" when the key switch is turned on and while engine is
running.
28 Deceleration Fuel
Cutoff Active/ Inactive Inactive Inactive The ECM will command the deceleration fuel mode when it detects a closed throttle
position while the vehicle is traveling.
While in decreasing fuel mode, the ECM will decrease the amount of fuel delivered
by entering open loop and decreasing the injector pulse width.
29 Power Enrichment Yes/No No No The ECM will command power enrichment mode "Yes" when a large increase in
throttle position and load is detected.
While in power enrichment mode, the ECM will increase the amount of fuel delivered
by entering open loop and increasing the injector pulse width.
30 Vehicle Speed km/h or mph 0 0 This displays vehicle speed.
The vehicle speed is measured by ECM from the vehicle speed sensor.
31 Cam Signal Present/ Missing Present Present This displays input signal from the camshaft position sensor.
When the correct pulse is generated, signal is received.
32 PSP Switch
(Power Steering
Pressure) Normal Pressure /
High Pressure Normal PressureNormal PressureThis displays the power steering pressure signal.
This should display "High Pressure" when the steering is steered.
33 Security Code
Status Programmable/
Not
Programmable Programmable Programmable This should display "Programmable" when the correct security code & secret code
are programmed.
34 Security Code Okay/ Not Okay Okay Okay This should display "Okay" when the security code is correctly accepted.
35 Immobilizer
System Normal /
Abnormal Normal Normal This should display "Normal" when the immobilizer is correctly operated.
36 Malfunction
Indicator Lamp On/Off Off Off This displays operating status for the Check Engine Lamp.
This should display "On" when the Check Engine Lamp is turned on.
37 Time From Start   This displays the engine time elapsed since the engine was started.
If the engine is stopped, engine run time will be reset to 00:00:00

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E -91
SERVICE PROGRAMMING SYSTEM (SPS)
The procedure to program the control unit by using the
Service Programming System (SPS) software
contained in TIS2000 is explained below.
NOTE:






If the Engine Control Module (ECM) was
programmed, the Immobilizer System must be
linked to the ECM: Refer to section 11
"Immobilizer System-ECM replacement" for the
ECM/Immobilizer linking procedure.







Should Tech2 display "SPS Procedure was not
successful", engine will not start, but no DTCs
are present, low battery voltage or poo
r
electrical connections should be the primary
suspects. Perform the SPS procedure again
after rectifying the fault/s.


IMPORTANT:
Perform the following checks before attempting to
program the control unit:







The Tech2 PCMCIA card is programmed with
the latest software release.







The latest release of TIS2000 is loaded on the
PC.







The vehicle battery is fully charged.







The control unit to be programmed is
connected to the vehicle.
1. Preparations of TIS 2000
1.
Connect Tech 2 to P/C.
2.
Check to see if Hardware Key is plugged into Port.
3.
Activate TIS 2000 by P/C.
4.
On the activating screen of TIS2000, choose
"Service Programming System"




5.
On the screen of "Diagnostic Tester and
Processing Program Selection", choose the one
that will comply with the following.


Diagnostic Tech 2 in use


New programming by the existing module or new
programming by the replaced/new module.


Fixing position of the control unit.
6.
Upon completion of the selection, push the button
of "Next".
