10-64 CAB

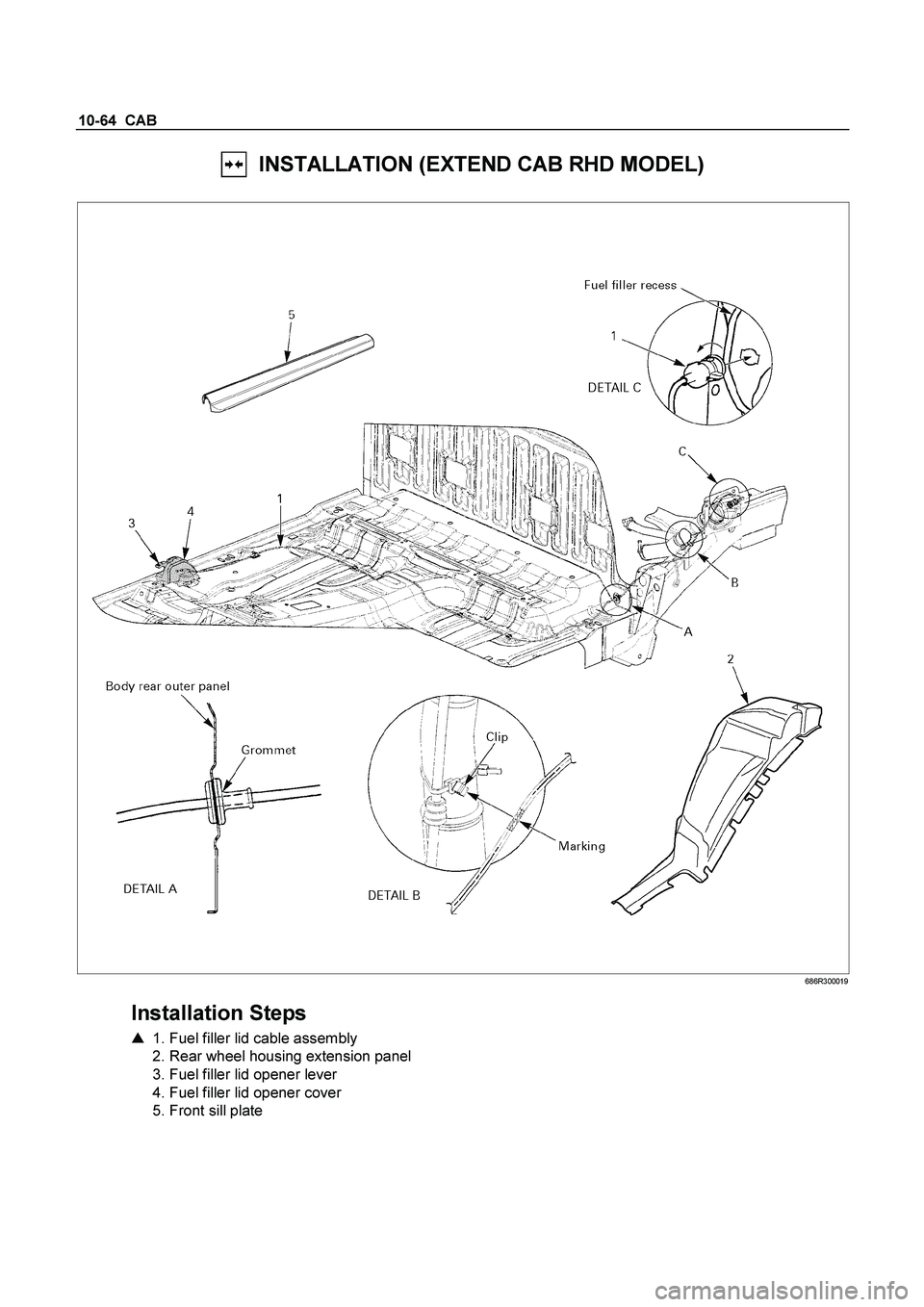

INSTALLATION (EXTEND CAB RHD MODEL)

686R300019

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate

CAB 10-65

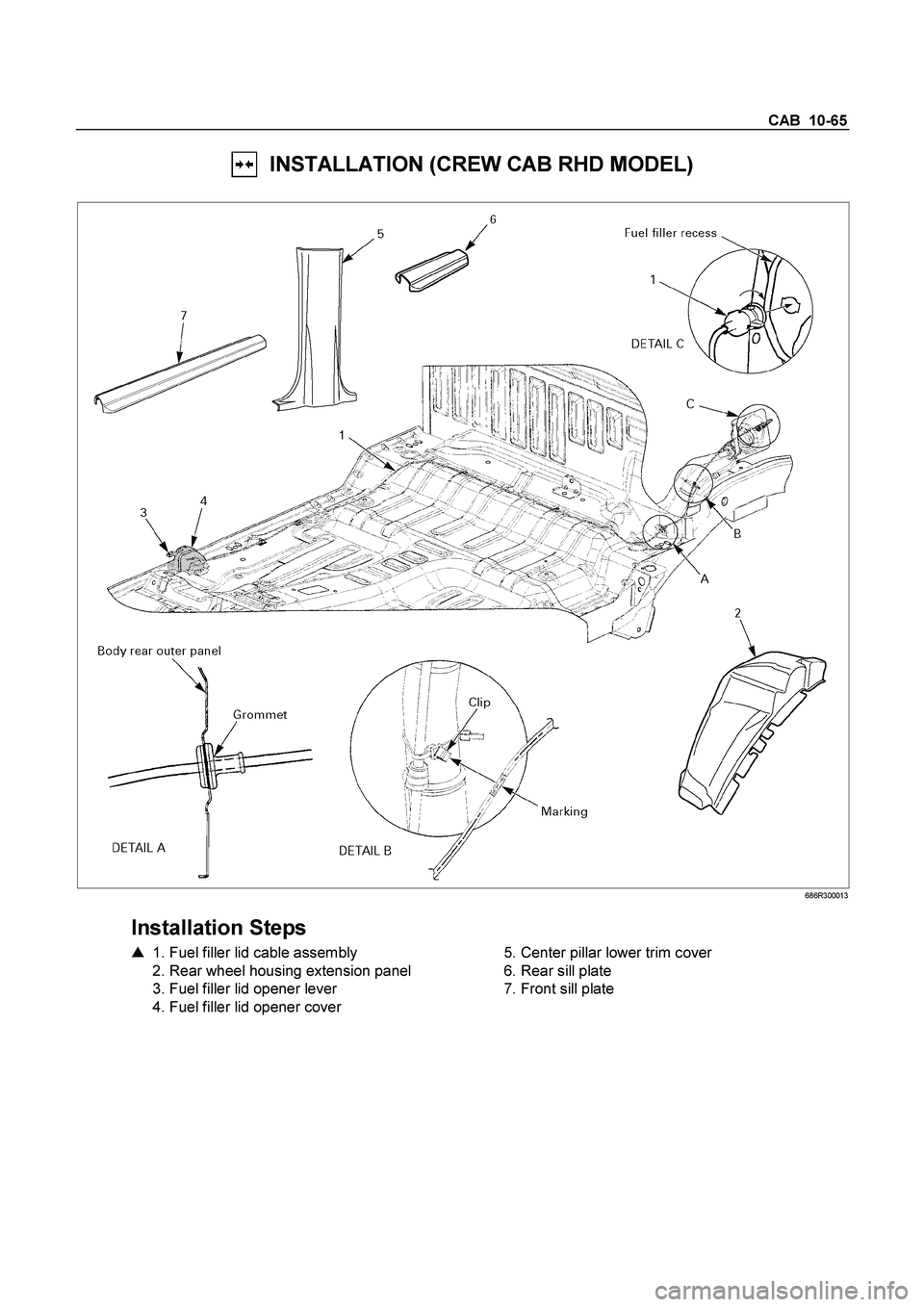

INSTALLATION (CREW CAB RHD MODEL)

686R300013

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover


5. Center pillar lower trim cover
6. Rear sill plate
7. Front sill plate

10-66 CAB

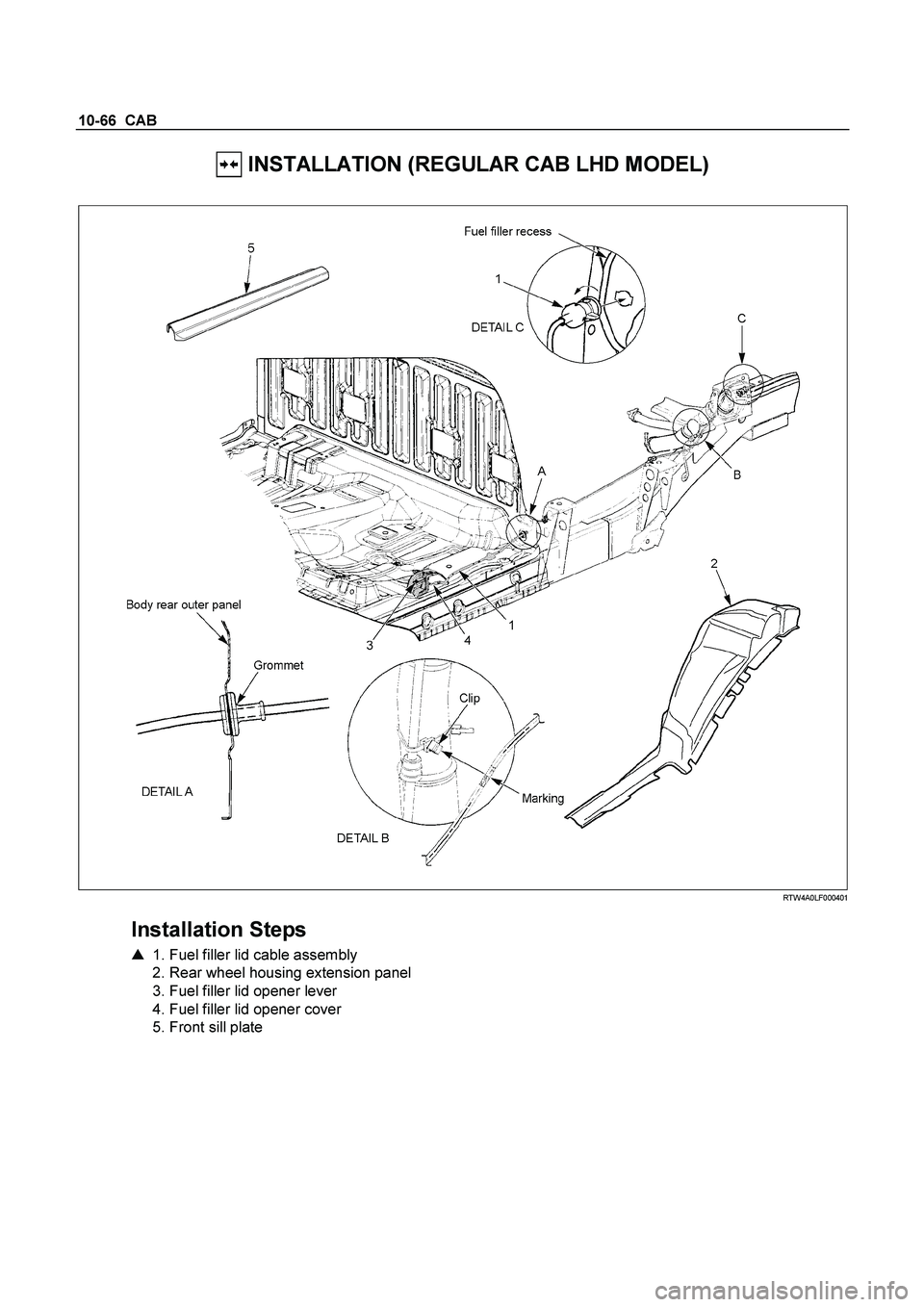

INSTALLATION (REGULAR CAB LHD MODEL)



RTW4A0LF000401

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate

CAB 10-67

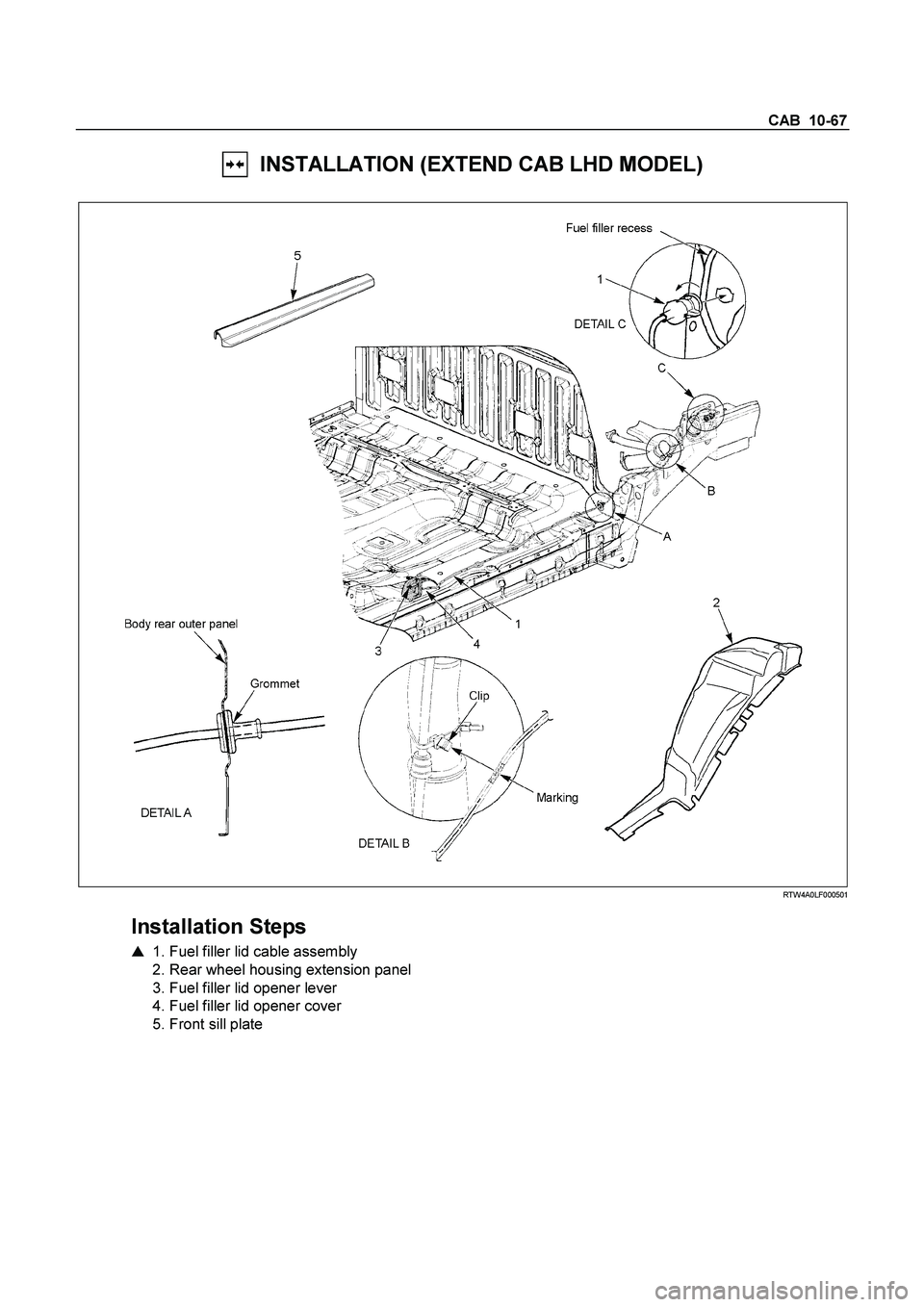

INSTALLATION (EXTEND CAB LHD MODEL)



RTW4A0LF000501

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover
5. Front sill plate

10-68 CAB

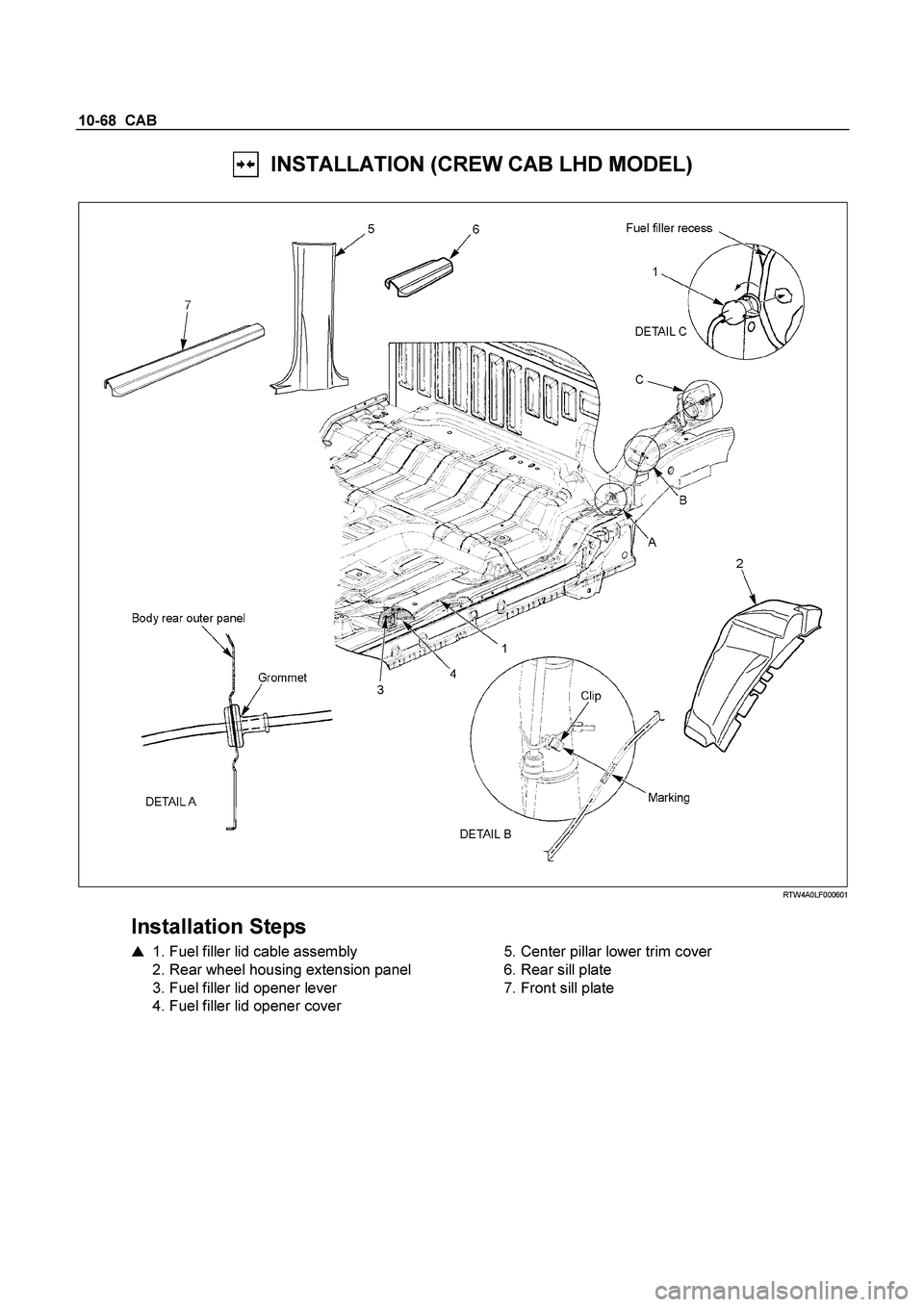

INSTALLATION (CREW CAB LHD MODEL)



RTW4A0LF000601

Installation Steps

1. Fuel filler lid cable assembly
2. Rear wheel housing extension panel
3. Fuel filler lid opener lever
4. Fuel filler lid opener cover


5. Center pillar lower trim cover
6. Rear sill plate
7. Front sill plate

CAB 10-69


Important Operation - Installation
1. Fuel Filler Lid Cable Assembly


Install the cable holder of cable assembly to the recess
and push the grommet in to the back panel. Fix the clips
to the pointed places.
Note:
To install, follow the removal steps in the reverse order,
noting the following points.





Do not make extreme curve on the cable.





Install the cable from inside of the cab.

8A-12 ELECTRICAL-BODY AND CHASSIS
ABBREVIATIONS
Abbreviation Meaning of abbreviation Abbreviation Meaning of abbreviation
A Ampere (S) LH Left hand
ABS Anti-lock brake system LWB Long wheel base
ASM Assembly MPI Multipart fuel injection
AC Alternating current M/T Manual transmission
A/C Air conditioner QOS Quick On Start system
ACC Accessories RH Right hand
CARB Carburetor RR Rear
C/B Circuit breaker RWAL Rear wheel anti-lock brake system
CSD Cold start device SRS Supplemental restraint system
DIS Direct ignition system ST Start
EBCM Electronic brake control module STD Standard
ECGI Electronic control gasoline injection SW Switch
ECM Engine control module SWB Short wheel base
ECU Electronic control unit TCM Transmission control module
EFE Early fuel evaporation V Volt
42 Two-wheel drive VSV Vacuum switching valve
44 Four-wheel drive W Watt (S)
FL Fusible link WOT Wide open throttle
FRT Front W/ With
H/L Headlight W/O Without
IC Integrated circuit
IG Ignition
kW Kilowatt

ELECTRICAL-BODY AND CHASSIS 8A-25
Light Name Rated Power
V-W Number of
Bulbs Lens
Color Remarks
W/O Tacho 5Illumination light 14-2
W/ Tacho 7White
Turn Signal 14-1.12 2 Green
High Beam 14-1.12 1 Blue
Low Fuel 14-1.12 1 Amber
A/T Oil Temp 14-1.12 1 Red
Brake system 14-1.12 1 Red
4WD 14-1.12 1 Green
Seat belt 14-1.12 1 Red
Oil pressure 14-1.12 1 Red
ABS 14-1.12 1 Amber
SEDIMENTER 14-1.12 1 Red
AIR BAG 14-1.12 1 Red
Brake 14-1.12 1 Red
Charge 14-1.12 1 Red
Check Trans 14-1.12 1 Red
Check 4WD 14-1.12 1 Red
Power drive 14-1.12 1 Amber
3rd start 14-1.12 1 Green
4L 14-1.12 1 Green
Cruise Set 14-1.12 1 Green
Check Engine 14-1.12 1 Amber
Front Fog 14-1.12 1 Green
Rear foglight 14-1. 12 1 Amber
Glow 14-1.12 1 Amber
P LED 1 Green
R LED 1 Green
N LED 1 Green
D LED 1 Green
3 LED 1 Green
2 LED 1 Green












Indicator/
Warning
light
A/T shift
indicator
L LED 1 Green

8A-28 ELECTRICAL-BODY AND CHASSIS

RELAY LOCATION (RELAY AND FUSE BOX)
RELAY & FUSE BOX
RHD





















NO. RELAY (C24SE) RELAY (6VE1) RELAY
(4JA1-TC/4JH1-TC)RELAY (4JA1-L)
X-1 RELAY; TAIL LIGHT

X-2 RELAY; FUEL PUMP
 RELAY; FRT FOG RELAY; FRT FOG
LIGHT
X-3 RELAY; HORN

X-4 RELAY; DIMMER

X-5 RELAY; FOG LIGHT
 RELAY; GLOW RELAY; GLOW
X-6 RELAY; STARTER
 RELAY; COND, FAN RELAY; CSD
X-7 RELAY; COND, FAN
 RELAY; RR FOG

X-8
  RELAY; STARTER RELAY; STARTER
X-9 RELAY; HAZARD-RH

X-10 RELAY; HAZARD-LH

X-11 RELAY; HEATER

X-12 RELAY; HEAD
LIGHT
X-13
 RELAY; ECM MAIN
 RELAY; COND, FAN
X-14 RELAY; A/C COMP

X-15 RELAY; THERMO


ELECTRICAL-BODY AND CHASSIS 8A-29

RELAY LOCATION (RELAY AND FUSE BOX)
RELAY & FUSE BOX
LHD





















NO. RELAY (C24SE) RELAY (6VE1) RELAY
(4JA1-TC 4JH1-TC)RELAY (4JA1-L)
X-1 RELAY; TAIL LIGHT

X-2 RELAY; FUEL PUMP
 RELAY; FRT FOG RELAY; FRT FOG
LIGHT
X-3 RELAY; HORN

X-4 RELAY; DIMMER

X-5 RELAY; FRT FOG
LIGHT RELAY; FOG LIGHT RELAY; GLOW RELAY; GLOW
X-6 RELAY; STARTER
 RELAY; COND, FAN RELAY; CSD
X-7 RELAY; COND, FAN
 RELAY; RR FOG

X-8
  RELAY; STARTER

X-9
  SHORT
CONNECTOR
(with cooler)
X-10

X-11 RELAY; HEATER

X-12 RELAY; HEAD
LIGHT
X-13
 RELAY; ECM MAIN
 RELAY; COND, FAN
X-14 RELAY; A/C COMP

X-15 RELAY; THERMO
