9A-44 SUPPLEMENTAL RESTRAINT SYSTEM

Passenger Air Bag Assembly
Service Precautions
WARNING: SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AI
R
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A
SMALL AMOUNT OF SODIUM HYDROXIDE, A BY–
PRODUCT OF THE DEPLOYMENT REACTION,
THAT IS IRRITATING TO THE SKIN AND EYES.
MOST OF THE POWER ON THE AIR BAG
ASSEMBLY IS HARMLESS. AS A PRECAUTION,
WEAR GLOVES AND SAFETY GLASSES WHEN
HANDLING A DEPLOYED AIR BAG ASSEMBLY,
AND WASH YOUR HANDS WITH MILD SOAP AND
WATER AFTERWARDS.
WARNING: WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVE
R
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE.
IN THE CASE OF AN ACCIDENTAL DEPLOYMENT,
THE BAG WILL THEN DEPLOY WITH MINIMAL
CHANCE OF INJURY. WHEN PLACING ALIVE AI
R
BAG ASSEMBLY ON A BENCH OR OTHER
SURFACE, ALWAYS FACE BAG AND RIM COVER
UP, AWAY FROM THE SURFACE. NEVER REST A
STEERING COLUMN ASSEMBLY ON THE
STEERING WHEEL WITH THE AIR BAG
ASSEMBLY FACE DOWN AND COLUMN
VERTICAL. THIS IS NECESSARY SO THAT A FREE
SPACE IS PROVIDED TO ALLOW THE AIR BAG
ASSEMBLY TO EXPAND IN THE UNLIKELY EVENT
OF ACCIDENTAL DEPLOYMENT. OTHERWISE,
PERSONAL INJURY COULD RESULT.
WARNING: IN THE EVENT DEPLOYMENT HAS
OCCURRED, INSPECT COIL ASSEMBLY WIRE
FOR ANY SIGNS OF SCORCHING, MELTING O
R
ANY OTHER DAMAGE DUE TO EXCESSIVE HEAT.
IF THE COIL HAS BEEN DAMAGED, REPLACE IT.

Removal
1. Disable the SRS. (Refer to “Disabling the SRS”in
this section)
2. Remove glove box.
3. Remove glove box cover.


4. Remove passenger air bag assembly fixing bolts
and nuts. Universal joint is used when removing a
nut.
060R300043
060R300044
5. Remove passenger air bag assembly.
6. Disconnect passenger air bag assembly harness
connector.

SUPPLEMENTAL RESTRAINT SYSTEM 9A-45

Installation
1. Connect passenger air bag assembly harness
connector.
2. Install passenger air bag assembly.
3. Install passenger air bag assembly fixing bolts and
nuts. Universal joint is used when removing a nut.
Torque: 8 N




m (0.8 kg




m/78 lb in)
060R300043

060R300044
4. Install glove box cover.
5. Install glove box.
6. Enable the SRS. (Refer to “Enabling the SRS” in
this section)

9A-48 SUPPLEMENTAL RESTRAINT SYSTEM

Special Tools
WARNING: TO AVOID DEPLOYMENT WHEN
TROUBLESHOOTING THE SRS, DO NOT USE
ELECTRICAL TEST EQUIPMENT SUCH AS A
BATTERY–POWERED OR AC–POWERED
VOLTMETER, OHMMETER, ETC., OR ANY TYPE
OF ELECTRICAL EQUIPMENT OTHER THAN THAT
SPECIFIED IN THIS MANUAL. DO NOT USE A
NONPOWERED PROBE–TYPE TESTER.
INSTRUCTIONS IN THIS MANUAL MUST BE
FOLLOWED CAREFULLY, OTHERWISE
PERSONAL INJURY MAY RESULT.

5-8840-2421-0 SRS Driver/Passenger Load
Tool
901RS146
The SRS Driver/Passenger Load Tool 5-8840-2421-0
is used only when called for in this section. It is used
as a diagnostic aid and safety device to prevent
inadvertent air bag assembly deployment.
The load tool has three yellow connectors attached to
its case.
The three small connectors are electrically functional
and serve as resistive load substitutions.
No more than two connectors are used at any time.
One of the small connectors is used to substitute for
the load of the driver air bag assembly when it is
connected at the top of the column to the SRS coil
assembly. Another small connector is used to
substitute for the load of the driver air bag assembly
and the SRS coil assembly when it is connected at the
base of the column to the SRS wiring harness. The
third small connector is used to substitute for the load
of the passenger air bag assembly when connected to
the passenger air bag assembly harness connector.
By substituting the resistance of the load tool when
called for, a determination can be made as to whether
an inflator circuit component is causing system
malfunction and which component is causing the
malfunction. The load tool should be used only when
specifically called for in the diagnostic procedures.

5-8840-0285-0 DVM
901RS163
The 5-8840-0285-0 DVM is the preferred DVM for use
in SRS diagnosis and repair. However, 5-8840-0366-
0 may be used if 5-8840-0285-0 is not available. No
other DVMs are approved for SRS diagnosis and
repair.

Scan Tool
901RW176

RESTRAINT CONTROL 9A1-3

Diagnostic Information
CAUTION: When fasteners are removed, always
reinstall them at the same location from which they
were removed. if a fastener needs to be replaced,
use the correct part number fastener for that
application. if the correct part number fastener is
not available, a fastener of equal size and strength
(or stronger) may be used. fasteners that are not
reused, and those requiring thread locking
compound will be called out. the correct torque
value must be used when installing fasteners that
require it. if the above conditions are not followed,
parts or system damage could result.


Diagnostic Procedures
WARNING: TO AVOID DEPLOYMENT WHEN
TROUBLESHOOTING THE SRS, DO NOT USE
ELECTRICAL TEST EQUIPMENT SUCH AS A
BATTERY-POWERED OR AC-POWERED
VOLTMETER, OHMMETER, ETC., OR ANY TYPE OF
ELECTRICAL EQUIPMENT OTHER THAN THAT
SPECIFIED IN THIS MANUAL. DO NOT USE A NON
POWERED, PROBE-TYPE TESTER.
INSTRUCTIONS IN THIS MANUAL MUST BE
FOLLOWED CAREFULLY, OTHERWISE PERSONAL
INJURY MAY RESULT.
The diagnostic procedures used in this section are
designed to aid in finding and repairing SRS problems.
Outlined below are the steps to find and repair SRS
problems quickly and effectively. Failure to carefully
follow these procedures may result in extended
diagnostic time, incorrect diagnosis and incorrect parts
replacement.
1. Perform The “SRS Diagnostic System Check”.
The “SRS Diagnostic System Check” should always
be the starting point of any SRS diagnostics. The
“SRS Diagnostic System Check” checks for prope
r
“AIR BAG” warning lamp operation and checks for
SRS trouble codes using both “Flash Code” and
“Scan Tool” Methods.
2. Refer To The Proper Diagnostic Chart As
Directed By The “SRS Diagnostic System
Check”.
The “SRS Diagnostic System Check” will lead you to
the correct chart to diagnose any SRS problems.
Bypassing these procedures may result in extended
diagnostic time, incorrect diagnosis and incorrect
parts replacement.

3. Repeat The “SRS Diagnostic System Check”
After Any Repair Or Diagnostic Procedures Have
Been Performed.
Preforming the “SRS Diagnostic System Check”
after all repair or diagnostic procedures will assure
that the repair has been made correctly and that no
other conditions exist.

Diagnostic Codes
The SRS control unit maintains a history record of all
diagnostic codes that have been detected since the
SRS codes were last cleared during service.
1. Active Codes - Faults that are presently detected this
ignition cycle. Active codes are stored in RAM
(Random Access Memory).
2. History Codes - All faults detected since the last time
the history fault memory was cleared. History codes
are stored in EEPROM. (Electronically Erasable
Programmable Read only Memory)

How To Read Trouble Codes
All codes (Active and history) can be read (or cleared)
by using a scan tool or equivalent.
If a PDT is not available, have the vehicle serviced by
HOLDEN dealer.

How To Clear Trouble Codes
Trouble codes can only be cleared by using a Scan
Tool. If a “scan tool” is not available then inform the
owner of the stored codes and suggest that the codes
are cleared upon the next visit to an Isuzu dealership.

Scan Tool Diagnostics
A scan tool can be used to read current and history
codes and to clear all history codes after a repair is
complete. The scan tool must be updated to
communicate with the SRS through a replaceable
cartridge or a manufacturer's update before it can be
used for SRS diagnostics. To use the scan tool,
connect it to the DLC connector and turn the ignition
switch “ON”. Then follow the manufacturer's directions
for communication with the SRS. The scan tool reads
serial data from the SRS control unitSRS control unit
“Serial Data” output (terminal 21) to the DLC connector
(terminal 2).

Basic Knowledge Required
Before using this section of the Service Manual, there is
some basic knowledge which will be required. Without
this knowledge, you will have trouble using the
diagnostic procedures in this section. Use care to
prevent harm or unwanted deployment. Read all

RESTRAINT CONTROL 9A1-7

System Schematic


RTW49JLF000101

SRS Diagnostic System Check
The diagnostic procedures used in this section are
designed to find and repair SRS malfunctions. To get
the best results, it is important to use the diagnostic
charts and follow the sequence listed below:
A
Perform the “SRS Diagnostic System Check.”

The “SRS Diagnostic System Check” must be the
starting point of any SRS diagnostics. The “SRS
Diagnostic System Check” checks for proper “AIR
BAG” warning lamp operation, the ability of the SRS
control unit to communicate through the “Serial
Data” line and whether SRS diagnostic trouble codes
exist.

B
Refer to the proper diagnostic chart as directed by
the “SRS Diagnostic System Check.”

The “SRS Diagnostic System Check” will lead you to
the correct chart to diagnose any SRS malfunctions.
Bypassing these procedures may result in extended
diagnostic time, incorrect diagnosis and incorrect
parts replacement.
C
Repeat the “SRS Diagnostic System Check” after
any repair or diagnostic procedures have been
preformed.

Performing the “SRS Diagnostic System Check”
after all repair or diagnostic procedures will ensure
that the repair has been made correctly and that no
other malfunctions exist

9A1-8 RESTRAINT CONTROL SYSTEM

Circuit Description
When the ignition switch is first turned “ON”, “Ignition 1”
voltage is applied from the “SRS” fuse to the SRS
control unit at the “Ignition 1” input terminals “35”. The
SRS control unit responds by flashing the “AIR BAG”
warning lamp seven times, while performing tests on
the SRS.

Notes On System Check Chart
1.
The “AIR BAG” warning lamp should flash seven
times after ignition is first turned “ON”.
2.
After the “AIR BAG” warning lamp flashes seven
times, it should turn “OFF”
3.
This test checks for the proper operation of the
“Serial Data” line. This test will also determine
whether history diagnostic trouble codes are stored
and, if so, identify them.
4.
Improper operation of the “AIR BAG” warning lamp
is indicated. This test differentiates a warning lamp
stays “ON” condition from a warning lamp does not
come “ON” condition.
5.
This test checks for proper operation of the “Serial
Data” line. This test will also identify the stored
diagnostic trouble codes and whether they are
current or history.
Diagnostic Aids
The order in which diagnostic trouble codes are
diagnosed is very important. Failure to diagnose the
diagnostic trouble codes in the order specified may
result in extended diagnostic time, incorrect diagnosis
and incorrect parts replacement.


SRS Diagnostic System Check
Step Action Yes No
1 Note the “Air Bag” warning lamp as ignition switch is turned “ON.”
Does the “AIR BAG” warning lamp flash seven 7 times? Go to Step 2 Go to Step 3
2 Note the “AIR BAG” warning lamp after it flashed 7 times.
Does the “AIR BAG” warning lamp go “OFF”? Go to Step 4 Go to Step 5
3 Note the “AIR BAG” warning lamp as ignition switch is turned
“ON”.
Does the “AIR BAG” warning lamp come “ON” steady? Go to Chart B. Go to Chart C.
4
1.
Note the “AIR BAG” warning lamp as that ignition switch is
turned “ON.”

Ignition switch “OFF.”

2.
Connect a scan tool to data link connector.

3.
Follow direction given in the scan tool instruction manual.

Ignition switch “ON.”

4.
Request the SRS diagnostic trouble code display, recode all
history diagnostic trouble code(s). specify as such, on repair
order
Is (are) diagnostic trouble code(s) displayed? Ignition switch
“OFF.”
When DTC B1000 is
set, go to DTC
B1000 Chart.
For all other history
codes refer to
“Diagnostic Aids”
For that specific
DTC.
A history DTC
indicates the
malfunction has
been repaired or is
intermittent. SRS is functional
and free of
malfuncitons, no
further diagnosis is
required.
If scan tool indicated
“NO DATA
RECEIVED,” refer to
chassis electrical
section 8.

RESTRAINT CONTROL 9A1-9

Step Action Yes No
5
1. Ignition switch “OFF.”
2. Connect a scan tool to data link connector.

3. Follow directions as given in the scan tool instruction
manual.

4. Ignition switch “ON.”
5. Request the SRS diagnostic trouble code display, Recode
all diagnostic trouble code(s), specifying as current or history
on repair order.
Is (are) diagnostic trouble code (s) displayed? Ignition switch
“OFF”.
When DTC B0053 is
set, go to DTC
B0053 chart.
When DTC B0051 is
set, go to DTC
B0051 chart.
When DTC B0018
is set, go to DTC
B0018 chart.
When DTC B0024
is set, go to DTC
B0024 chart.
Diagnose remaining
current DTCs from
lowest to highest.
When only history
DTCs exist, refer to
“Diagnostics Aids”
for that specific
DTC.
A history DTC
indicates the
malfunction has
been repaired or is
intermittent. If scan tool indicates
“No Data Received,”
refer to chassis
electrical section 8.

9A1-38 RESTRAINT CONTROL SYSTEM

DTC B0051 (Flash Code 51) Squib Circuit Activated (Crash Deteted)
WARNING: DURING SERVICE PROCEDURES. BE VERY CAREFUL WHEN HANDLING A SRS CONROL UNIT.
NEVER STRIKE OR JAR THE SRS CONTROL UNIT. NEVER POWER UP THE SRS WHEN THE SRS CONTROL
UNIT IS NOT RIGIDLY ATTACHED TO THE VEHICLE. ALL SRS CONTROL UNIT AND MOUNTING BRACKET
FASTENERS MUST BE CAREFULLY TORQUED AND THE ARROW MUST BE POINTING TOWARD THE
FRONT OF THE VEHICLE TO ENSURE PROPER OPERATION OF THE SRS. THE SRS CONTROL UNIT CAUSE
DEPLOYMENT AND RESULT IN PERSONAL INJURY.


Step Action Yes No
1 Was the “SRS Diagnostic System Check” performed? Go to Step 2. Go to the “SRS
Diagnostic System
Check”
2 Ignition switch “OFF.”
Have air bag assemblies deployed? Replace
components and
perform
inspections as
directed in
“repairs and
inspections
required after an
accident” in this
section.
clear diagnostic
trouble codes.
Repeat “SRS
Diagnostic System
Check” Go to Step 3
3 Inspect front of vehicle and undercarriage for sings of impact.
Were signs of impact found? Replace
components and
perform
inspections as
directed in
“Repairs and
Inspections
Required After An
Accident” in this
section.
Clear diagnostic
trouble codes.
Repeat “SRS
Diagnostic System
Check” Ignition switch
“OFF”.
Replace SRS
control unit.
Reconnect all SRS
system
components,
ensure all
components are
properly mounted.
Repeat “SRS
Diagnostic System
Check”

9A1-40 RESTRAINT CONTROL SYSTEM

DTC Chart Test Description
Number(s) below refer to step number(s) on the
diagnostic chart:
2.
If air bag assembly have not deployed, DTC B0053
may have falsely set.
3.
If DTC B0053 has set with no signs of frontal impact,
the diagnostic trouble code has falsely set.


DTC B0053 (Flash Code 53) Deployment Command Despite Present Trouble Code
WARNING: DURING SERVICE PROCEDURES. BE VERY CAREFUL WHEN HANDLING A SRS CONTROL
UNIT. NEVER STRIKE OR JAR THE SRS CONTROL UNIT. NEVER POWER UP THE SRS WHEN THE SRS
CONTROL UNIT IS NOT RIGIDLY ATTACHED TO THE VEHICLE. ALL SRS CONTROL UNIT AND MOUNTING
BRACKET FASTENERS MUST BE CAREFULLY TORQUED AND THE ARROW MUST BE POINTING TOWARD
THE FRONT OF THE VEHICLE TO ENSURE PROPER OPERATION OF THE SRS. THE SRS CONTROL UNIT
COULD BE ACTIVATED WHEN POWERED WHILE NOT RIGIDLY ATTACHED TO THE VEHICLE WHICH
COULD CAUSE DEPLOYMENT AND RESULT IN PERSONAL INJURY.


Step Action Yes No
1 Was the “SRS Diagnostic System Check” performed? Go to Step 2 Go to the “SRS
Diagnostic System
Check”
2 Ignition switch “OFF.”
Have air bag assembles deployed? Replace
components and
perform
inspections as
directed in
“Repairs And
Inspections
Required After An
Accident” in this
section.
Clear diagnostic
trouble codes.
Repeat the “SRS
Diagnostic System
Check” Go to Step 3
3 Inspect front of vehicle and undercarriage for signs of impact.
Were signs of impact found? Replace
components and
perform
inspections as
directed in
“Repairs And
Inspections
Required After An
Accident” in this
section.
Clear diagnostic
trouble codes.
Repeat “SRS
Diagnostic System
Check” Ignition switch
“OFF.”
Replace SRS
control unit.
Reconnect all SRS
system
components,
ensure all
components are
properly mounted.
Repeat the “SRS
Diagnostic System
Check”

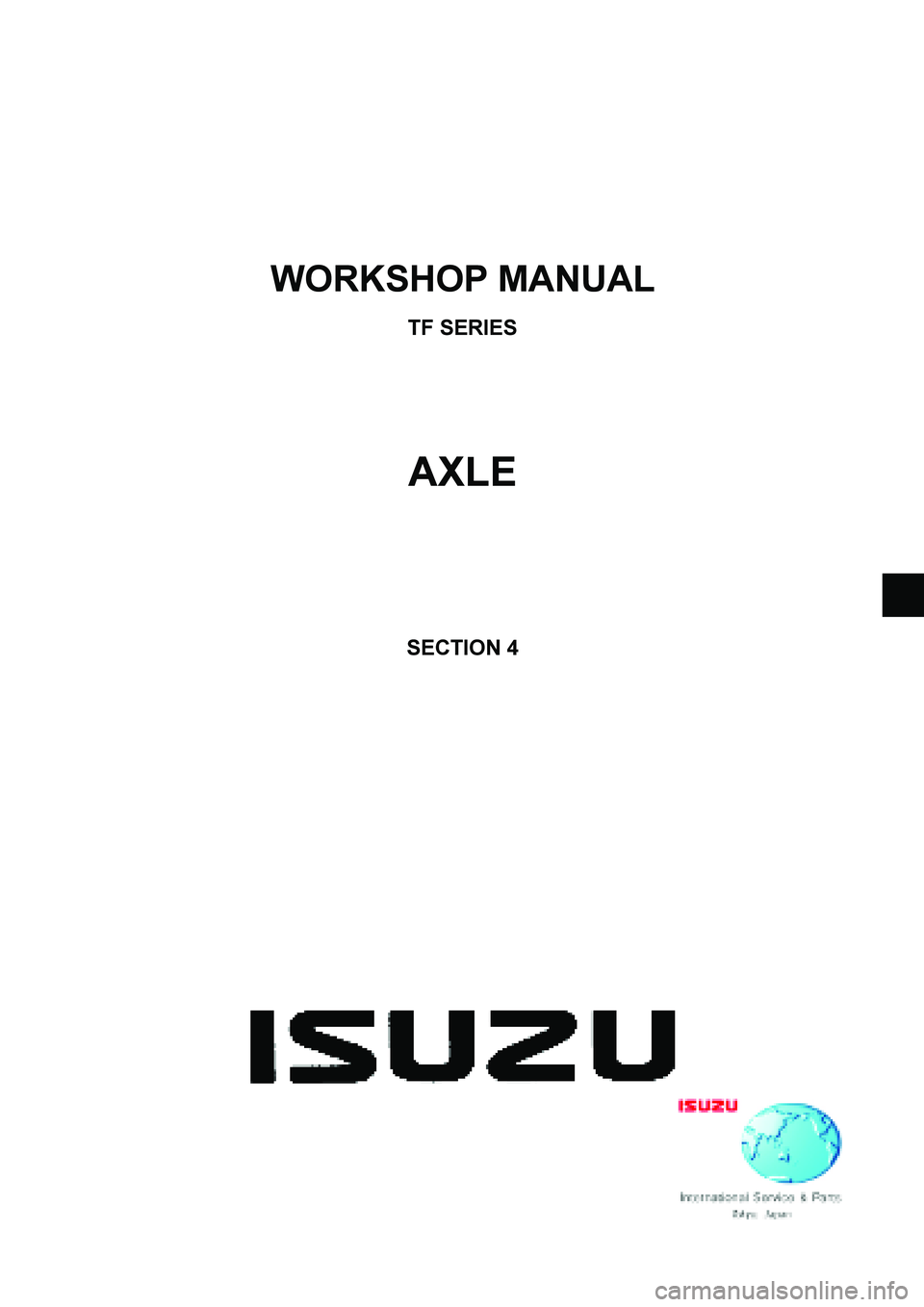

WORKSHOP MANUAL
TF SERIES
AXLE

SECTION 4
