wheel ISUZU TF SERIES 2004 Workshop Manual

6E–184 ENGINE DRIVEABILITY AND EMISSIONS
9 Using the DVM and check the CKP sensor circuit.
1. Ignition “On”, engine “Off”.
2. Disconnect the CKP sensor connector.
3. Check the circuit for short to power supply circuit.
If the DVM indicated out of specified value, repair
faulty harness and verify repair.
Is the action complete?
Less than 1V Verify repair—
10 Using the DVM and check the CKP sensor signal.
1. Ignition “On”, engine “On”.
2. Measure the CKP output voltage at the sensor
and ECM.
Does the tester indicate standard voltage?
If a oscilloscope is available, monitor the CKP sensor
signal. Does the oscilloscope indicate correct wave
form?
Go to Step 13Go to Step 11
11 Remove the CKP sensor from the flywheel housing
and visually check.
Check for the following conditions.
Objects sticking the CKP sensor.
Objects sticking the CKP sensor pulser.
If a problem is found, repair as necessary.
Was the problem found? —Verify repair Go to Step 12
12 Check the CKP sensor shield wire for open or short
circuit.
Was the problem found?—Repair faulty
harness and
verify repair Go to Step 13 Step A ction Value(s) Yes No
VV
E-59
21
Measurement Point Voltage (V) (AC Range)
At CKP sensor terminal 1 & 2 Approx. 3.7V in engine idle
Appro x . 7.8V at 2000rpm
At ECM E60 (J1) connector 21 & 6
Crankshaft Position (CKP) Sensor Reference Wa ve Form









0V









Measurem ent Term ina l: J1-21(+) J1-6(-)
Measurement Scale: 10V/div 5ms/div
Measurement Condition: Approximately 2000rpm

2A-2 FRAME AND BUMPER
FRONT BUMPER
REMOVAL AND INSTALLATION


RTW42ALF000101

Removal Steps



1. Radiator grille


2. Front bumper fascia

3. Bezel (W/O Fog light)

4. Fog light

5. Front bumper flare assembly (W/ Front
wheel extention)

6. Front bumper inpact support assembly

7. Front bumper inpact bar assembly
(Except Europe equipment)
8. Front bumper inpact bar assembly (For
Europe equipment)

9. Fascia support side bracket

10. Fascia support lower bracket

Installation Steps

10. Fascia support lower bracket

9. Fascia support side bracket


8. Front bumper inpact bar assembly (For
Europe equipment)


7. Front bumper inpact bar assembly
(Except Europe equipment)

6. Front bumper inpact support assembly


5. Front bumper flare assembly (W/ Front
wheel extention)



4. Fog light

3. Bezel (W/O Fog light)

2. Front bumper fascia

1. Radiator grille

SHEET METAL 2B-7
FRONT FENDER PANEL
REMOVAL AND INSTALLATION


RTW42BLF000201

Removal Steps
Installation Steps


1. Radiator grille


7. Front fender panel
2. Mud guard (W/O Front wheel extention)
6. Side turn signal light
3. Front wheel extention (W/ Front wheel
extention)
5. Front bumper facia


4. Inner liner
4. Inner liner

5. Front bumper facia
3. Front wheel extention (W/ Front wheel
extention)
6. Side turn signal light
2. Mud guard (W/O Front wheel extention)


7. Front fender panel
1. Radiator grille

SHEET METAL 2B-11
REAR BODY
REMOVAL AND INSTALLATION
RTW32MF000301

Removal Steps
Installation Steps

1. Battery ground cable
7. Rear body assembly
2. Rear combination lamp & license lamp
harness connector


6. Bolt; frame to rear body
3. Rear wheel house extension panel
5. Fuel filler pipe and evaporator hose
4. Fuel filler door release cable assembly
4. Fuel filler door release cable assembly


5. Fuel filler pipe and evaporator hose
3. Rear wheel house extension panel
6. Bolt; frame to rear body
2. Rear combination lamp & license lamp
connector


7. Rear body assembly
1. Battery ground cable


NOTE:
The rear body must be empty before removal.

0A-2 GENERAL INFORMATION
GENERAL REPAIR INSTRUCTIONS
1. Park the vehicle on level ground and chock the front or rear wheels before lifting the vehicle.
2. Raise the vehicle with a jack set against the axle or the frame.
3. Support the vehicle on chassis stands.
4. Use covers on the vehicle body, seats, and floor to prevent damage and/or contamination.
5. Disconnect the grounding cable from the battery before performing service operations.

This will prevent cable damage or burning due to short circuiting.
6. Handle brake fluid and antifreeze solution with great care.

Spilling these liquids on painted surfaces will damage the paint.
7. The use of the proper tool(s) and special tool(s) where specified is essential to efficient, reliable, and safe
service operations.
8. Always use genuine ISUZU replacement parts.
9. Discard used cotter pins, gaskets, O-rings, oil seals, lock washers, and self-locking nuts at disassembly.
Normal function of these parts cannot be guaranteed if they are reused.
10. Prepare new cotter pins, gaskets, O-rings, oil seals, lock washers, and self-locking nuts for installation.
11. Keep the disassembled parts neatly in groups.
This will facilitate smooth and correct reassembly.
12. Keep fixing nuts and bolts separate.
Fixing nuts and bolts vary in hardness and design according to installation position.
13. Clean all parts before inspection or reassembly.
14. Clean the oil ports and other openings with compressed air to make certain that they are free from dirt and
obstructions.
15. Lubricate the rotating and sliding faces of all moving parts with oil or grease before installation.
16. Use the recommended liquid gasket to prevent leakage.
17. Carefully observe all nut and bolt torque specifications.
18. When removing or replacing parts that require refrigerant to the discharged from the Air conditioning system, be
sure to use the Vehicle Refrigerant Recovery and Recycling Equipment (VRRRE) to recover and recycle R134a,
to promote the movement for the protection of the ozone layer covering the earth.
19. Check and recheck your work. No service operation is complete until you have done this.

GENERAL INFORMATION 0A-5

7. Measurement criteria are defined by the terms "standard" and "limit".

A measurement falling within the "standard" range indicates that the applicable part or parts are serviceable.
"Limit" is an absolute value.

A measurement falling outside the "limit" indicates that the applicable part or parts must be repaired or replaced.
8. Components are parts are listed in the singular form throughout the Workshop Manual.
9. The following directional criteria are used throughout the Workshop Manual:

Front:

The cooling fan side of the engine.
Right:

The right-hand side of the engine viewed from the flywheel.

Left:
The left-hand side of the engine viewed from the flywheel.

Rear:

The flywheel side of the engine.
Cylinder numbers are counted from the front of the engine towards the rear.

The engine's rotation is clockwise viewed from the front of the engine.

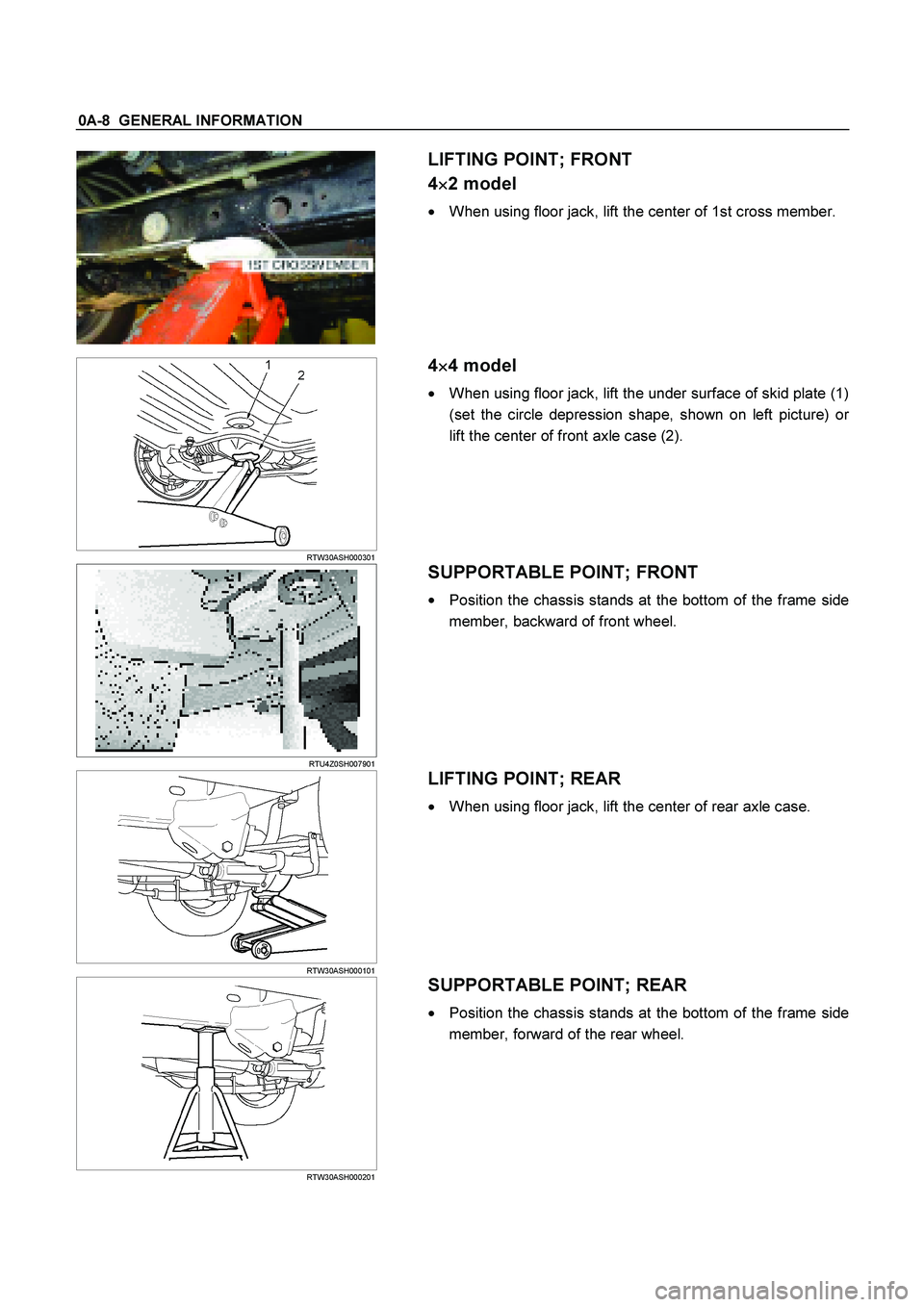

0A-8 GENERAL INFORMATION

LIFTING POINT; FRONT
4




2 model


When using floor jack, lift the center of 1st cross member.
RTW30ASH000301

4




4 model


When using floor jack, lift the under surface of skid plate (1)
(set the circle depression shape, shown on left picture) o
r
lift the center of front axle case (2).


RTU4Z0SH007901

SUPPORTABLE POINT; FRONT


Position the chassis stands at the bottom of the frame side
member, backward of front wheel.

RTW30ASH000101

LIFTING POINT; REAR


When using floor jack, lift the center of rear axle case.

RTW30ASH000201

SUPPORTABLE POINT; REAR


Position the chassis stands at the bottom of the frame side
member, forward of the rear wheel.

MAINTENANCE AND LUBRICATION 0B-3
SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading

1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60or months whichever
comes fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
TRANSMISSION OR TRANSMISSION
WITH TRANSFER CASE


* AT Automatic transmission fluid - - - I - - - I - - - I - - - I - - - I * AT Transfer case oil - R - I - - - R - - - I - - - R - - - I * Manual transmission fluid - R - I - - - R - - - I - - - R - - - I * Transfer case oil - - - I - - - | - - - I - - - | - - - I Oil leakage I I I I I I I I I I I I I I I I I I I I Gear control mechani sm for
looseness - - - I - - - I - - - I - - - I - - - I
PROPELLER SHAFT Loose connections - I - I - I - I - I - I - I - I - I - I * Universal joints and splines for wear
- I - I - I - I - I - I - I - I - I - I
4WD Universal joints and splines - L - L - L - L - L - L - L - L - L - L FRONT AND REAR AXLE * Differential gear oil (Front and rear) - R - I - - - R - - - I - - - R - - - I Oi l l eakage I I I I I I I I I I I I I I I I I I I I Shift on the fly system gear oil I - - I - - - I - - - I - - - I - - - I Front axle shaft rubber boot for
damage - - - I - - - I - - - I - - - I - - - I
Axle shafts for distortion or damage - - - I - - - I - - - I - - - I - - - I Axle case for distortion or damage - - - I - - - I - - - I - - - I - - - I STEERING Power steering fl ui d I I I I I I R I I I I I I R I I I I I I Oil leakage I I I I I I I I I I I I I I I I I I I I * Steering system for looseness or
damage - I - I - I - I - I - I - I - I - I - I
Power steering hose - I - I - I - I - I - I - R - I - I - I Steering wheel play I I I I I I I I I I I I I I I I I I I I Steeri ng function I I I I I I I I I I I I I I I I I I I I Right and left turning radius - - - I - - - I - - - I - - - I - - - I Wheel alignment - - - I - - - I - - - I - - - I - - - I Joint ball for oil leakage or damage - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage - I - I - I - I - I - I - I - I - I - I

0B-4 MAINTENANCE AND LUBRICATION




I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading
1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60or months whichever
comes fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
SERVICE BRAKES Brake fluid I - - I - - - I - - - I - - - I - - - I Brake sy stem for fluid l eakage I I I I I I I I I I I I I I I I I I I I Brake functi on I I I I I I I I I I I I I I I I I I I I * Rear brake lining and drum wear - I - I - I - I - I - I - I - I - I - I * Front disc brake pads and discs - I - I - I - I - I - I - I - I - I - I Brake pedal travel and free play I I I I I I I I I I I I I I I I I I I I Pipes and hoses loose connections
or damage I I - I - I - I - I - I - I - I - I - I
PARKING BRAKE Parki ng brake functi on I I I I I I I I I I I I I I I I I I I I Parki ng brake l ever travel I I I I I I I I I I I I I I I I I I I I Cables for looseness or damage
and guide for damage I I I I I I I I I I I I I I I I I I I I
Ratchet for wear or damage - I - I - I - I - I - I - I - I - I - I SUSPENSION Leaf / Coil / Torsion bar springs for
damage I I - I - I - I - I - I - I - I - I - I
Mount for l ooseness or damage I I - I - I - I - I - I - I - I - I - I Shock absorbers for oil leakage - I - I - I - I - I - I - I - I - I - I Shock absorbers mount for
looseness - I - I - I - I - I - I - I - I - I - I
Rubber bushes of suspension wear
or damage - I - I - I - I - I - I - I - I - I - I
Spring action for loss of balance
due to weakening - - - I - - - I - - - I - - - I - - - I
Joint ball rubber boot for damage - I - I - I - I - I - I - I - I - I - I WHEELS Wheel nuts T T - T - T - T - T - T - T - T - T - T Wheel disc for damage I I - I - I - I - I - I - I - I - I - I Hub bearing grease - - - - - R - - - - - R - - - - - R - - Front and rear hub bearing for
looseness - I - I - I - I - I - I - I - I - I - I
Tire pressure and damage I I - I - I - I - I - I - I - I - I - I Tire rotation (Rotate as required) OTHERS Bolts and nuts on chassis and body I I - I - I - I - I - I - I - I - I - I Lube front free – wheding hubs - - - - - L - - - - - L - - - - - L - -

0B-6 MAINTENANCE AND LUBRICATION




I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or
1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
PROPELLER SHAFT Loose connections (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Loose connections (4JA1-TC) - - I - - I - - I - - I - - I - - I - - * Universal joints and splines for wear (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Universal joints and splines for wear (4JA1-TC) - - I - - I - - I - - I - - I - - I - - 4WD Universal joints and sliding
sleeve (4JH1-TC) - L - L - L - L - L - L - L - L - L - L FRONT AND REAR AXLE * Differential gear oil (Front and rear) (4JH1-TC) - R - I - - - R - - - I - - - R - - - I * Differential gear oil (Front and rear) (4JA1-TC) - - R - - I - - R - - I - - R - - I - - Oil leakage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Oil leakage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Shift on the fly system Gear oil (4JH1-TC) I - - I - - - I - - - I - - - I - - - I Gear oil (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Front axle shaft rubber boot for
damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Front axle shaft rubber boot for
damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Axle case for distortion or damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Axle case for distortion or damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Axle shafts for distortion or damage (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Axle shafts for distortion or damage (4JA1-TC) - - - - - - - - I - - - - - - - - I - - STEERING Power steering fluid (4JH1-TC) I I I I I I R I I I I I I R I I I I I I Power steering fluid (4JA1-TC) - - - - - - - - - - - I - - - - - - - - Oil leakage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Oil leakage (4JA1-TC) - - I - - R - - I - - R - - I - - R - - * Steering system for looseness or
damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Steering system for looseness or
damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Power steering hose (4JH1-TC) - I - I - I - I - I - I - R - I - I - I Power steering hose (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Steering wheel play (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Steering wheel play (4JA1-TC) - - I - - I - - I - - R - - I - - I - - Steering function (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Steering function (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Right and left turning radius (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Right and left turning radius (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Wheel alignment (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Wheel alignment (4JA1-TC) - - - - - - - - I - - - - - - - - I - - Joint ball for oil leakage or damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Joint ball for oil leakage or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Joint ball rubber boot for damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - -
