differential ISUZU TF SERIES 2004 Service Manual

FRONT WHEEL DRIVE 4C1-33
MAJOR COMPONENTS


Reassembly Steps
1. Diff. carrier


2. Outer bearing outer race


3. Inner bearing outer race


4. Adjust shim


5. Inner bearing


6. Collapsible spacer
7. Pinion gear
8. Outer bearing


9. Oil seal
10. Dust cover


11. Flange


12. Flange nut and washer


13. Adjust shim


14. Side bearing
15. Bearing outer race
16. Diff. cage assembly


17. Bearing cap


18. Bolt
19. Axle case


20. Differential assembly
21. Bolt

FRONT WHEEL DRIVE 4C1-37
(7) Select the shim using the chart;

mm(i n)
Pi ni on
marki ng

+10 +8 +6 +4 +2 0 -2 -4 -6 -8 -10 Dial indicator
reading (inches)
0.081 2.18 (0.0858)0.082 2.18 (0.0858) 2.20 (0.0866)0.083 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882)0.084 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890)0.085 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898)0.086 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914)0.087 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921)0.088 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929)0.089 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937)0.090 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937)2.42 (0.0953)0.091 2.18 (0.0858) 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961)0.092 2.20 (0.0866) 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969)0.093 2.24 (0.0882) 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977)0.094 2.26 (0.0890) 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992)0.095 2.28 (0.0898) 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000)0.096 2.32 (0.0914) 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008)0.097 2.34 (0.0921) 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.098 2.36 (0.0929) 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.099 2.38 (0.0937) 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0 2.42 (0.0953) 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.001 2.44 (0.0961) 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.002 2.46 (0.0969) 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.003 2.48 (0.0977) 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.004 2.52 (0.0992) 2.54 (0.1000) 2.56 (0.1008) 0.005 2.54 (0.1000) 2.56 (0.1008) 0.006 2.56 (0.1008)
Note :
When ordering shims, find the part number in the Parts Catalog by using the thickness of the shims listed
in the above table.







5. Inner Bearing
Place the shim on the drive pinion, with the chamfered side
turned towards the pinion head then install the inner bearing on
to the pinion using an installer and a press.
Installer : 9-8522-1165-0 (J-6133-01)
Note:
Do not apply pressure to the roller cage.
Apply pressure only to the inner race.



6. Collapsible Spacer
Discard the used collapsible spacer and install a new one.







9. Oil Seal
Use oil seal installer to install a new oil seal that has been
soaked in rear axle lubricant.
Installer : 9-8522-1275-0 (J-24250)
Note :
Take care not to use a rear differential oil seal instead of
the front differential oil seal.

4C1-38 FRONT WHEEL DRIVE

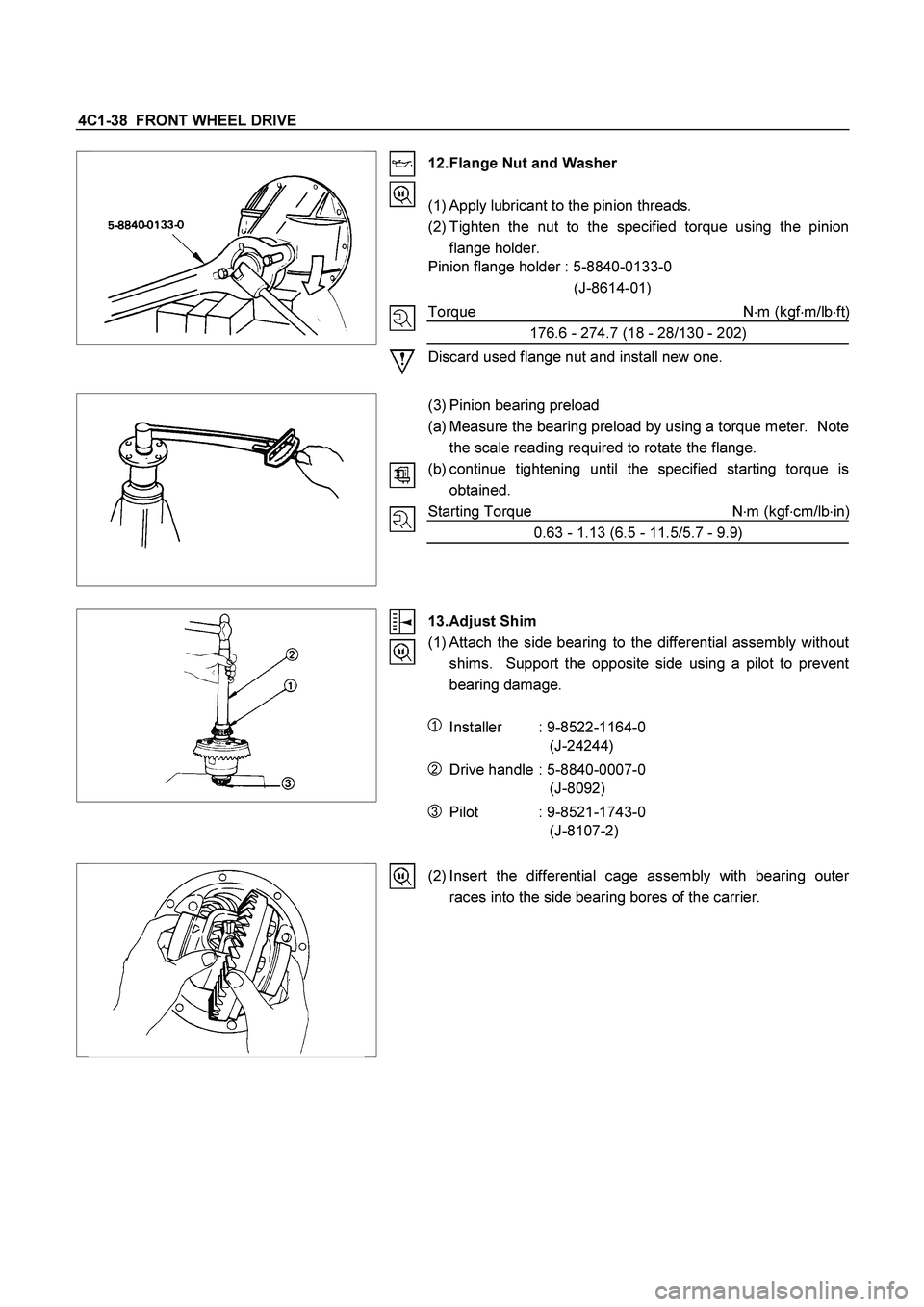

12. Flange Nut and Washer

(1) Apply lubricant to the pinion threads.
(2) Tighten the nut to the specified torque using the pinion
flange holder.
Pinion flange holder : 5-8840-0133-0
(J-8614-01)
Torque N

m (kgf

m/lb

ft
)
176.6 - 274.7 (18 - 28/130 - 202)
Discard used flange nut and install new one.






(3) Pinion bearing preload
(a) Measure the bearing preload by using a torque meter. Note
the scale reading required to rotate the flange.
(b) continue tightening until the specified starting torque is
obtained.
Starting Torque N

m (kgf

cm/lb

in
)
0.63 - 1.13 (6.5 - 11.5/5.7 - 9.9)


13. Adjust Shim
(1)
Attach the side bearing to the differential assembly without
shims. Support the opposite side using a pilot to prevent
bearing damage.

1 Installer : 9-8522-1164-0
(J-24244)
2 Drive handle : 5-8840-0007-0
(J-8092)
3 Pilot : 9-8521-1743-0
(J-8107-2)



(2) Insert the differential cage assembly with bearing oute
r
races into the side bearing bores of the carrier.

FRONT WHEEL DRIVE 4C1-41














20. Differential Assembly
(1) Clean the faces of the front axle case and differential
carrier.

Apply the recommended liquid gasket or its equivalent to
the sealing side of the axle case and the carrier.
(2) Attach the differential case and the carrier assembly to the
front axle case and tighten the nuts and bolts. The axle
case bolt is used for drainage.
Torque N

m (kgf

m/lb

ft)
26
5 (2.6
0.5/18.8
3.6)
(3) Install the axle shaft assemblies as instructed earlier in this
section under “Axle Shaft Replacement”.
(4) Fill the axle case with hypoid gear lubricant, to just belo
w
the filler hole.
Lubricant capacity liter (US/UK gal)

1.4 (0.37/0.31)

FRONT WHEEL DRIVE 4C1-71
4. NOISES IN FRONT AXLE

Checkpoint Trouble Cause Countermeasure

Replenish the gear oilInsufficient gear oil NG
Replace the wheel bearing
Replace the pinion shaft
bearing
Replace the ring gear pinion
gear or side gear
Replace the gear oil
Wheel bearingWorn
Pinion shaft bearingWorn
Worn or chipped
Wrong or poor grade gear oil
Ring gear, pinion gear or side
gear
Adjust the backlashDrive pinion to ring gear
backlashToo much or too little backlash
NG NG NG NG NG
OK OK
OK
OK
Oil level
Tighten or replaceDifferential bearingLoose or worn NG OK

SHIFT ON THE FLY SYSTEM 4C2-9


RTW440SH000601








RTW440SH000801
Dimension Check
Measure illustration sized A, B, and C
Limit mm (in)

A 64.3 (2.53)
B 6.7 (0.26)
C 6.7 (0.26)













RTW440SH000701




REASSEMBLY
15. Oil seal
Install the new oil seal which has been immersed in
differential gear oil, by using an oil seal installer.
Installer 5-8840-2407-0 (J-41693)
Grip 5-8840-0007-0 (J-8092)
























412RS051



14. Needle Bearing
Force a new needle bearing into inner shaft by using a
special tool.
Installer : 5-8840-2408-0 (J-41694)
Grip : 5-8840-0007-0 (J-8092)

4C2-10 SHIFT ON THE FLY SYSTEM



412RS044





















13. Inner Shaft Bearing


Place a new snap ring in inner shaft.


Force a new inner shaft bearing into the inner shaft.
Installer : 5-8840-2197-0 (J-37452)


12. Snap Ring
NOTE;
Be careful not to damage the inner shaft.

11.inner Shaft


Clean the housing contact surface of the front axle
case.


Insert inner shaft assembly into the front axle case.
NOTE:
Be careful not to damage oil seal.




412RW017

10. Snap Ring
Install snap ring in the groove of front axle case.
NOTE:
Be sure to install the snap ring properly.


9. Clutch Gear
Apply differential gear oil to clutch oil.
8. Sleeve
Apply differential gear oil to sleeve.




412RW023


7. Housing


Clean contact surface with the front axle and sctuator
mounting surface.

Apply liquid gasket to the contact surface on the front
axle case and install in the housing.

6. Bolt
Tighten bolts to specified tightening torque.
Housing Bolt Torque N m (kg m/lb ft)
75 (7.6/55)

SHIFT ON THE FLY SYSTEM 4C2-11






5. Actuator


Clean the actuator contact surface with the housing.


Apply liquid gasket to the contact surface on the
actuator side.


Align shift arm with the groove of sleeve and install the
actuator.

4. Bolt
Tighten bolts to specified torque.
Actuator Bolt Torque N m (kg m/lb ft)
9 (0.95/78)














3. Front Axle Drive Shaft (LH side)
2. Bolt


Install front axle drive shaft and mounting bracket.


Tighten fitting bolts to specified tightening torque.
Bolt Torque N m (kg m/lb ft)
116 (11.8/85)
1. Filler Plug


Pour specified amount of differential gear oil.
Front Differential Oil Capacity liter (US/UK gal)
1.4 (0.37/0.31)
Actuator Housing Oil Capacity liter (US/UK gal)
0.12 (0.03/0.03)


Install filler plug through packing and tighten to
specified torque.
Filler Plug Torque Nm (kgm/lbft)
78 (8.0/58)

5A-68 BRAKE CONTROL SYSTEM

DTC C0238 (Flash Code 38) Tire Diameter Error

Step Action
Value(s) Yes No
1 Was the “Basic Diagnostic Flow Chart” performed?
- Go to Step 2 Go to Basic
Diagnostic
Flow Chart
2 1. Check for the tire size of each wheels.
2. If the tire size is different, replace the tire.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 3
3 1. Check for the gear ratio of a front axle differential
gear and a rear axle differential gear.
2. If the gear ratio is different, repair the gear ratio.
3. If a problem is found, repair as necessary.
Was a problem found?
- Verify repair Go to Step 4
4 Select “Display DTCs” with the Tech 2.
Note : Perform the various tests (actuator test, test
run, brake test, etc.) then observe the DTC with a
Tech2.
Are any DTCs stored? - Go to Step 5 Verify repair
5 Replace EHCU.
Note : Check the EHCU type for specification, when
the EHCU is replaced.
(Specification ; 2WD model or 4WD model)
Was the action complete? - Verify repair -

ENGINE MECHANICAL 6A – 37

REMOVAL AND INSTALLATION
Read this section carefully before performing any removal and installation procedure. This section gives
you important points as well as the order of operation. Be sure that you understand everything in this section before
you begin.


Removal

P1010011
1. Battery
1) Disconnect the battery cable and the grounding cable from the battery terminals.
2) Remove the battery clamp. Take care not to accidentally short the battery with the wrench or some
other tool.
3) Remove the battery.
4) Disconnect the battery cable at the starter motor and the ground cable at the cylinder body.



2. Engine Hood Apply setting marks to the engine hood and the engine
hood hinges before removing the engine hood. This will
facilitate reinstallation of the engine hood to its original
position.



3. Supporting the Vehicle 1) Jack up the vehicle.
2) Place chassis stands at the front and the rear of the vehicle.


4. Under cover (for 4x4 model) 5. Rear propeller shaft 1) Remove the propeller shaft flange yoke at the rear differential.
2) Remove the center bearing retainer bolts.
3) Remove the propeller shaft together with the center bearing from the transmission mainshaft spline.


F06R300006 P1010002
