engine ISUZU TF SERIES 2004 Workshop Manual

6E–334 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
9 Using the DVM and check the ECM and immobilizer
control unit communication circuit.
Breaker box is available:
1. Ignition “Off”, engine “Off”.
2. Install the breaker box as type A. (ECM
disconnected) Ref. Page 6E-103
3. Disconnect the immobilizer control unit connector.
4. Check the circuit for open or short to ground
circuit.
Was the problem found?
Breaker box is not available:
1. Ignition “Off”, engine “Off”.
2. Disconnect the the immobilizer control unit
connector and ECM connector.
3. Check the circuit for open or short to ground
circuit.
Was the problem found?
—Repair faulty
harness and
verify repair Go to Step 10
10 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 11
11 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair— Step Action Value(s) Yes No
B-6835Breaker Box





35
8
C-56
B-68

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–335
DIAGNOSTIC TROUBLE CODE (DTC) P1614 (SYMPTOM CODE A)
(FLASH CODE 56) WRONG TRANSPONDER KEY
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The ECM decides whether that is an abnormality in the
immobilizer control system. DTC P1614 (Symptom
Code A) is recorded when received immobilizer
response signal was not correct from the transponder
key.
Diagnostic Aids
Check for the following conditions:
Poor connection at ECM and immobilizer control unit-
Inspect harness connectors for backed out terminals,
improper mating, broken locks, improperly formed or
damaged terminals, and poor terminal to wire
connection.
Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the DTC P1614 display on the Tech2 while moving
connectors and wiring harnesses.
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
56 P1614 A - Wrong Transponder Key Received response signal is
not correct from the transpon-
der key.1. Engine does not start.
2. Check e ngine lamp fla sh.

6E–336 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P1614 (Symptom Code A) (Flash Code 56)
Wrong Transponder Key
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1614 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1614 (Symptom Code A) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “Immobilizer” in the system selection menu
“Body”.
3. Select “Read DTC Info Ordered By Priority” in the
“Diagnostic Trouble Code”.
Was the any DTC's B**** stored in this ignition cycle?—Refer to
“Immobilizer
Workshop
Manual” & Go
to DTC Chart
B**** Go to Step 5
5 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 6
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must e
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–337
DIAGNOSTIC TROUBLE CODE (DTC) P1625 (SYMPTOM CODE A)
(FLASH CODE 76) ECM MAIN RELAY SWITCHED OFF TOO EARLY
DIAGNOSTIC TROUBLE CODE (DTC) P1625 (SYMPTOM CODE B)
(FLASH CODE 76) ECM MAIN RELAY SWITCHED OFF TOO LATE
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The ECM switches ECM main relay to operate ECM
and other sensors or controller.
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
76 P1625 A OFF ECM Main Relay Switche d
Off Too Ea rlyWhen ignition switch was
turne d off, timing of the ECM
main re la y turning off is to o
early.No fa il-sa fe fun ctio n.
B OFF ECM Main Relay Switched
Off Too LateWhen ignition switch was
turne d off, timing of the ECM
main re la y turning off is to o
late or does not off.

6E–338 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
Broken wire inside the insulation.
Check for the following conditions:
Poor connection at ECM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the “Main Relay” display on the Tech2 while moving
connectors and wiring harnesses. A change in the
display will indicate the location of the fault.
Diagnostic Trouble Code (DTC) P1625 (Symptom Code A) (Flash Code 76)
ECM Main Relay Switched Off Too Early
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1625 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1625 (Symptom Code A) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 5
5 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–339
Diagnostic Trouble Code (DTC) P1625 (Symptom Code B) (Flash Code 76)
ECM Main Relay Switched Off Too Late
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1625 (Symptom Code B) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1625 (Symptom Code B) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Using the DVM and check the ECM main relay.
1. Ignition “Off”, engine “Off”.
2. Remove the ECM main relay from the relay box .
3. Check the relay switch.
Was the DVM indicated specified value?
No continuitly Go to Step 5Replace ECM
main relay and
verify repair
5 Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?—Verify repair Go to Step 6
6 Replace the ECM.
Is the action complete?
IMPORTANT: The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.—Verify repair—
ECM Main Relay

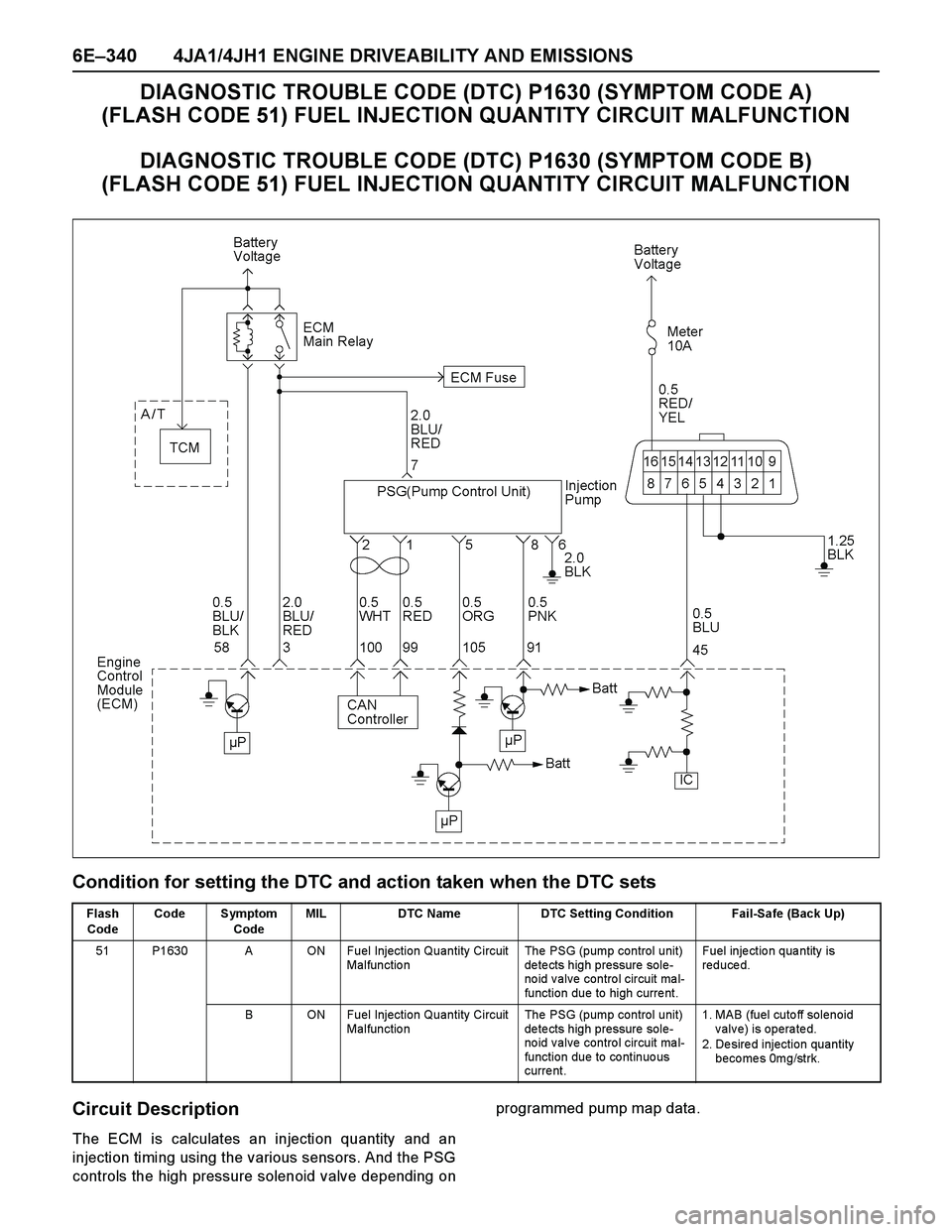

6E–340 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P1630 (SYMPTOM CODE A)
(FLASH CODE 51) FUEL INJECTION QUANTITY CIRCUIT MALFUNCTION
DIAGNOSTIC TROUBLE CODE (DTC) P1630 (SYMPTOM CODE B)
(FLASH CODE 51) FUEL INJECTION QUANTITY CIRCUIT MALFUNCTION
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The ECM is calculates an injection quantity and an
injection timing using the various sensors. And the PSG
controls the high pressure solenoid valve depending onprogrammed pump map data.
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
51 P1630 A ON Fuel Injection Quantity Circuit
Malfunctio nThe PSG (pump control unit)
de te cts high pressure sole-
no id v alve contro l circuit ma l-
function due to high curre nt.Fuel inje ctio n qua ntity is
reduced.
B ON Fuel Injection Quantity Circuit
Malfunctio nThe PSG (pump control unit)
de te cts high pressure sole-
no id v alve contro l circuit ma l-
function due to co ntinuo us
curre nt.1. MAB (fuel cutoff solenoid
valve) is operated.
2. Desired injection quantity
becomes 0mg/strk.

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–341
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.Broken wire inside the insulation.
Check for the following conditions:
Poor connection at ECM and PSG-Inspect harness
connectors for backed out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal to wire connection.
Diagnostic Trouble Code (DTC) P1630 (Sy mptom Code A) (Flash Code 51) Fuel
Injection Quantity Circuit Malfunction
Diagnostic Trouble Code (DTC) P1630 (Sy mptom Code B) (Flash Code 51) Fuel
Injection Quantity Circuit Malfunction
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1630 (Symptom Code A) or P1630
(symptom Code B) stored as “Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1630 (Symptom Code A) or P1630
(symptom Code B) stored in this ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
4 Replace the injection pump assembly.
Is the action complete?—Verify repair—

6E–342 4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P1650 (SYMPTOM CODE A)
(FLASH CODE 44) CAN DEVICE OFFLINE
DIAGNOSTIC TROUBLE CODE (DTC) P1650 (SYMPTOM CODE B)
(FLASH CODE 44) CAN DEVICE HANG-UP
Condition for setting the DTC and action taken when the DTC sets
Circuit Description
The interchange of data between the engine control
module (ECM) and the pump control unit (PSG) is
performed via a CAN-bus system. The individual CAN-
bus systems are connected via two interfaces and can
ex change information and data. This allows control
modules that are connected to different CAN-bus
systems to communicate.
Diagnostic Aids
An intermittent may be caused by the following:
Poor connections.
Misrouted harness.
Rubbed through wire insulation.
Broken wire inside the insulation.
Check for the following conditions:
Flash
CodeCode Symptom
CodeMIL DTC Name DTC Setting Condition Fail-Safe (Back Up)
44 P1650 A ON CAN Dev ice Offl in eCAN co ntroller de te cts Bus-
off or ca nceling.MAB (fue l cutoff so le no id
valve) is operated.
B ON CAN Dev ice Hang-up CAN co ntrolle r doe s not re act
under engine running.

4JA1/4JH1 ENGINE DRIVEABILITY AND EMISSIONS 6E–343
Poor connection at ECM and PSG-Inspect harness
connectors for backed out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal to wire connection.Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe
the DTC P1650 display on the Tech2 while moving
connectors and wiring harnesses.
Diagnostic Trouble Code (DTC) P1650 (Symptom Code A) (Flash Code 44)
CAN Device Offline
Step Action Value(s) Yes No
1Was the “On-Board Diagnostic (OBD) System Check”
performed?
—Go to Step 2Go to On Board
Diagnostic
(OBD) System
Check
2 1. Connect the Tech 2.
2. Review and record the failure information.
3. Select “F0: Read DTC Infor As Stored By ECU” in
“F0: Diagnostic Trouble Codes”.
Is the DTC P1650 (Symptom Code A) stored as
“Present Failure”?—Go to Step 3Refer to
Diagnostic Aids
and Go to Step
3
3 1. Using the Tech 2, ignition “On” and engine “Off”.
2. Select “F1: Clear DTC Information” in “F0:
Diagnostic Trouble Codes” with the Tech 2 and
clear the DTC information.
3. Operate the vehicle and monitor the “F0: Read
DTC Infor As Stored By ECU” in the “F0:
Diagnostic Trouble Codes”.
Was the DTC P1650 (Symptom Code A) stored in this
ignition cycle?—Go to Step 4Refer to
Diagnostic Aids
and Go to Step
4
4 Check for poor/faulty connection at the ECM or PSG
(pump control unit) connector. If a poor/faulty
connection is found, repair as necessary.
Was the problem found?
—Verify repair Go to Step 5
5 Visually check the PSG (pump control unit).
Was the problem found? —Go to Step 18Go to Step 6
6 Using the DVM and check the CAN high circuit.
1. Ignition “Off”, engine “Off”.
2. Disconnect the ECM connector and PSG (pump
control unit) connector.
3. Check the circuit for short to CAN low circuit.
Was the DVM indicated specified value?
No continuity Go to Step 7Repair faulty
harness and
verify repair
1009912
C-57 E-6
2
1E-6
