3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-3
DTC P0201 (FLASH CODE 31) INJECTOR 1
CONTROL CIRCUIT ........................................ 6E-226
DTC P0202 (FLASH CODE 31) INJECTOR 2
CONTROL CIRCUIT ........................................ 6E-226
DTC P0203 (FLASH CODE 31) INJECTOR 3
CONTROL CIRCUIT ........................................ 6E-226
DTC P0204 (FLASH CODE 31) INJECTOR 4
CONTROL CIRCUIT ........................................ 6E-226
DTC P0205 (FLASH CODE 31) INJECTOR 5
CONTROL CIRCUIT ........................................ 6E-226
DTC P0206 (FLASH CODE 31) INJECTOR 6
CONTROL CIRCUIT ........................................ 6E-226
DTC P0336 (FLASH CODE 29) CRANKSHAFT
POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE (58X) ...................... 6E-234
DTC P0337 (FLASH CODE 29) CRANKSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL
(58X) ................................................................. 6E-234
DTC P0341 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE ............................... 6E-243
DTC P0342 (FLASH CODE 41) CAMSHAFT
POSITION SENSOR CIRCUIT NO SIGNAL .... 6E-243
DTC P0351 (FLASH CODE 42) IGNITION 1
CONTROL CIRCUIT ........................................ 6E-249
DTC P0352 (FLASH CODE 42) IGNITION 2
CONTROL CIRCUIT ........................................ 6E-249
DTC P0353 (FLASH CODE 42) IGNITION 3
CONTROL CIRCUIT ........................................ 6E-249
DTC P0354 (FLASH CODE 42) IGNITION 4
CONTROL CIRCUIT ........................................ 6E-249
DTC P0355 (FLASH CODE 42) IGNITION 5
CONTROL CIRCUIT ........................................ 6E-249
DTC P0356 (FLASH CODE 42) IGNITION 6
CONTROL CIRCUIT ........................................ 6E-249
DTC P0404 (FLASH CODE 32) EGR CIRCUIT
RANGE/PERFORMANCE (OPEN VALVE)....... 6E-258
DTC P1404 (FLASH CODE 32) EGR CIRCUIT
RANGE/PERFORMANCE (CLOSED VALVE) .. 6E-258
DTC P0405 (FLASH CODE 32) EGR
CIRCUIT LOW.................................................. 6E-263
DTC P0406 (FLASH CODE 32) EGR
CIRCUIT HIGH ................................................. 6E-268
DTC P0444 EVAP PURGE SOLENOID
VALVE CIRCUIT LOW VOLTAGE ................... 6E-274
DTC P0445 EVAP PURGE SOLENOID
VALVE CIRCUIT HIGH VOLTAGE .................. 6E-274
DTC P0500 (FLASH CODE 24) VEHICLE
SPEED SENSOR (VSS) CIRCUIT
RANGE/PERFORMANCE ................................ 6E-279 DTC P0562 (FLASH CODE 66) SYSTEM
VOLTAGE LOW .............................................. 6E-288
DTC P0563 (FLASH CODE 66) SYSTEM
VOLTAGE HIGH .............................................. 6E-321
DTC P0601 (FLASH CODE 51) ENGINE
CONTROL MODULE (ECM) MEMORY
CHECKSUM ..................................................... 6E-293
DTC P0602 PROGRAMMING ERROR............. 6E-295
DTC P1508 (FLASH CODE 22) IDLE AIR
CONTROL SYSTEM LOW/CLOSED ............... 6E-296
DTC P1509 (FLASH CODE 22) IDLE AIR
CONTROL SYSTEM HIGH/OPEN ................... 6E-296
DTC P1601 (FLASH CODE 65) CAN BUS
OFF .................................................................. 6E-304
DTC U2104 (FLASH CODE 67) CAN BUS
RESET COUNTER OVER-RUN ...................... 6E-310
DTC P1626 IMMOBILIZER NO SIGNAL ........... 6E-317
DTC P1631 IMMOBILIZER WRONG
SIGNAL ............................................................ 6E-323
DTC P1648 IMMOBILIZER WRONG
SECURITY CODE ENTERED .......................... 6E-325
DTC P1649 IMMOBILIZER FUNCTION NOT
PROGRAMMED ................................................ 6E-327
SYMPTOM DIAGNOSIS ................................... 6E-329
PRELIMINARY CHECKS .............................. 6E-329
VISUAL/PHYSICAL CHECK .......................... 6E-329
INTERMITTENT ............................................. 6E-329
ENGINE CRANKS BUT WILL NOT RUN ......... 6E-331
HARD START SYMPTOM ................................ 6E-334
ROUGH, UNSTABLE, OR INCORRECT
IDLE, STALLING SYMPTOM ........................... 6E-337
SURGES AND/OR CHUGS SYMPTOM ........... 6E-341
HESITATION, SAG, STUMBLE SYMPTOM ..... 6E-345
CUTS OUT, MISSES SYMPTOM ..................... 6E-347
LACK OF POWER, SLUGGISH OR SPONGY
SYMPTOM ....................................................... 6E-352
DETONATION/SPARK KNOCK SYMPTOM..... 6E-356
POOR FUEL ECONOMY SYMPTOM ............... 6E-359
EXCESSIVE EXHAUST EMISSIONS OR
ODORS SYMPTOM ......................................... 6E-362
DIESELING, RUN-ON SYMPTOM .................... 6E-365
BACKFIRE SYMPTOM ..................................... 6E-366
ON-VEHICLE SERVICE PROCEDURE ........... 6E-368
ENGINE CONTROL MODULE (ECM) .............. 6E-368
CRANKSHAFT POSITION (CKP) SENSOR ..... 6E-369
CAMSHAFT POSITION (CMP) SENSOR ......... 6E-369
ENGINE COOLANT TEMPERATURE (ECT)
SENSOR .......................................................... 6E-370
MASS AIR FLOW (MAF) SENSOR & INTAKE AIR
TEMPERATURE (IAT) SENSOR ...................... 6E-370

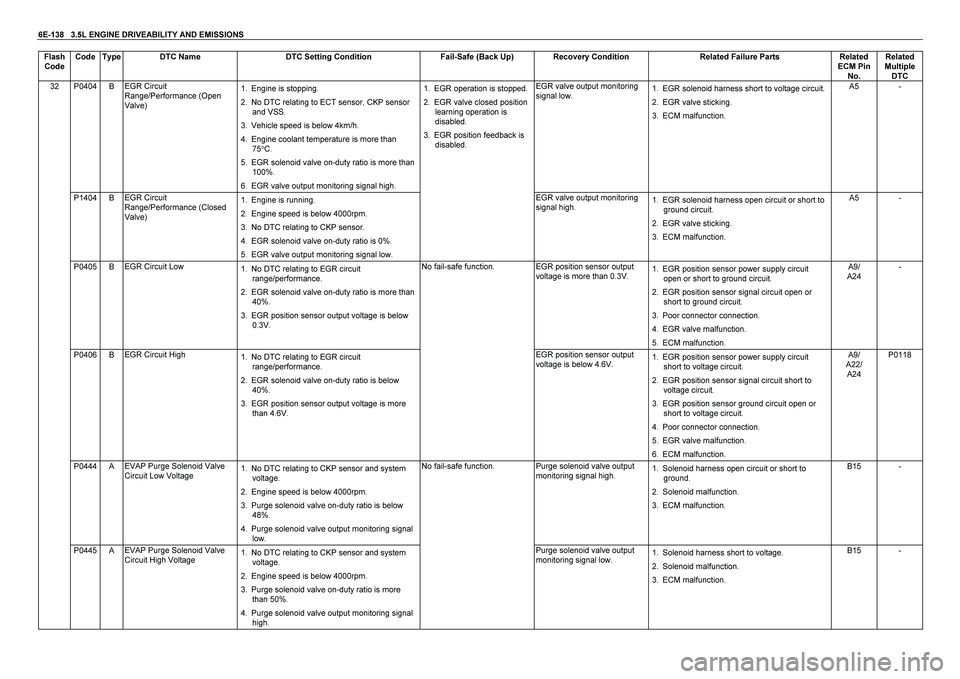

6E-138 3.5L ENGINE DRIVEABILITY AND EMISSIONS Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up) Recovery Condition Related Failure Parts Related
ECM Pin
No. Related
Multiple
DTC
P0404 B EGR Circuit
Range/Performance (Open
Valve) 1. Engine is stopping.
2. No DTC relating to ECT sensor, CKP sensor
and VSS.
3. Vehicle speed is below 4km/h.
4. Engine coolant temperature is more than
75
C.
5. EGR solenoid valve on-duty ratio is more than
100%.
6. EGR valve output monitoring signal high. EGR valve output monitoring
signal low. 1. EGR solenoid harness short to voltage circuit.
2. EGR valve sticking.
3. ECM malfunction. A5 - P1404 B EGR Circuit
Range/Performance (Closed
Valve) 1. Engine is running.
2. Engine speed is below 4000rpm.
3. No DTC relating to CKP sensor.
4. EGR solenoid valve on-duty ratio is 0%.
5. EGR valve output monitoring signal low. 1. EGR operation is stopped.
2. EGR valve closed position
learning operation is
disabled.
3. EGR position feedback is
disabled.

EGR valve output monitoring
signal high. 1. EGR solenoid harness open circuit or short to
ground circuit.
2. EGR valve sticking.
3. ECM malfunction. A5 - P0405 B EGR Circuit Low
1. No DTC relating to EGR circuit
range/performance.
2. EGR solenoid valve on-duty ratio is more than
40%.
3. EGR position sensor output voltage is below
0.3V. EGR position sensor output
voltage is more than 0.3V. 1. EGR position sensor power supply circuit
open or short to ground circuit.
2. EGR position sensor signal circuit open or
short to ground circuit.
3. Poor connector connection.
4. EGR valve malfunction.
5. ECM malfunction. A9/
A24 - P0406 B EGR Circuit High
1. No DTC relating to EGR circuit
range/performance.
2. EGR solenoid valve on-duty ratio is below
40%.
3. EGR position sensor output voltage is more
than 4.6V. No fail-safe function.

EGR position sensor output
voltage is below 4.6V. 1. EGR position sensor power supply circuit
short to voltage circuit.
2. EGR position sensor signal circuit short to
voltage circuit.
3. EGR position sensor ground circuit open or
short to voltage circuit.
4. Poor connector connection.
5. EGR valve malfunction.
6. ECM malfunction. A9/
A22/
A24 P0118 P0444 A EVAP Purge Solenoid Valve
Circuit Low Voltage 1. No DTC relating to CKP sensor and system
voltage.
2. Engine speed is below 4000rpm.
3. Purge solenoid valve on-duty ratio is below
48%.
4. Purge solenoid valve output monitoring signal
low. Purge solenoid valve output
monitoring signal high. 1. Solenoid harness open circuit or short to
ground.
2. Solenoid malfunction.
3. ECM malfunction. B15 -
32
P0445 A EVAP Purge Solenoid Valve
Circuit High Voltage 1. No DTC relating to CKP sensor and system
voltage.
2. Engine speed is below 4000rpm.
3. Purge solenoid valve on-duty ratio is more
than 50%.
4. Purge solenoid valve output monitoring signal
high. No fail-safe function.

Purge solenoid valve output
monitoring signal low. 1. Solenoid harness short to voltage.
2. Solenoid malfunction.
3. ECM malfunction. B15 -

6E-274 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DIAGNOSTIC TROUBLE CODE (DTC) P0444 EVAP PURGE SOLENOID
VALVE CIRCUIT LOW VOLTAGE
DIAGNOSTIC TROUBLE CODE (DTC) P0445 EVAP PURGE SOLENOID
VALVE CIRCUIT HIGH VOLTAGE



RTW46EMF000301

Condition For Setting The DTC and Action Taken When The DTC Sets
Flash
Code Code Type DTC Name DTC Setting Condition Fail-Safe (Back Up)
P0444 A EVAP Purge Solenoid
Valve Circuit Low
Voltage 1. No DTC relating to CKP sensor and system voltage.
2. Engine speed is below 4000rpm.
3. Purge solenoid valve on-duty ratio is below 48%.
4. Purge solenoid valve output monitoring signal low. No fail-safe function. 32
P0445 A EVAP Purge Solenoid
Valve Circuit High
Voltage 1. No DTC relating to CKP sensor and system voltage.
2. Engine speed is below 4000rpm.
3. Purge solenoid valve on-duty ratio is more than 50%.
4. Purge solenoid valve output monitoring signal high. No fail-safe function.

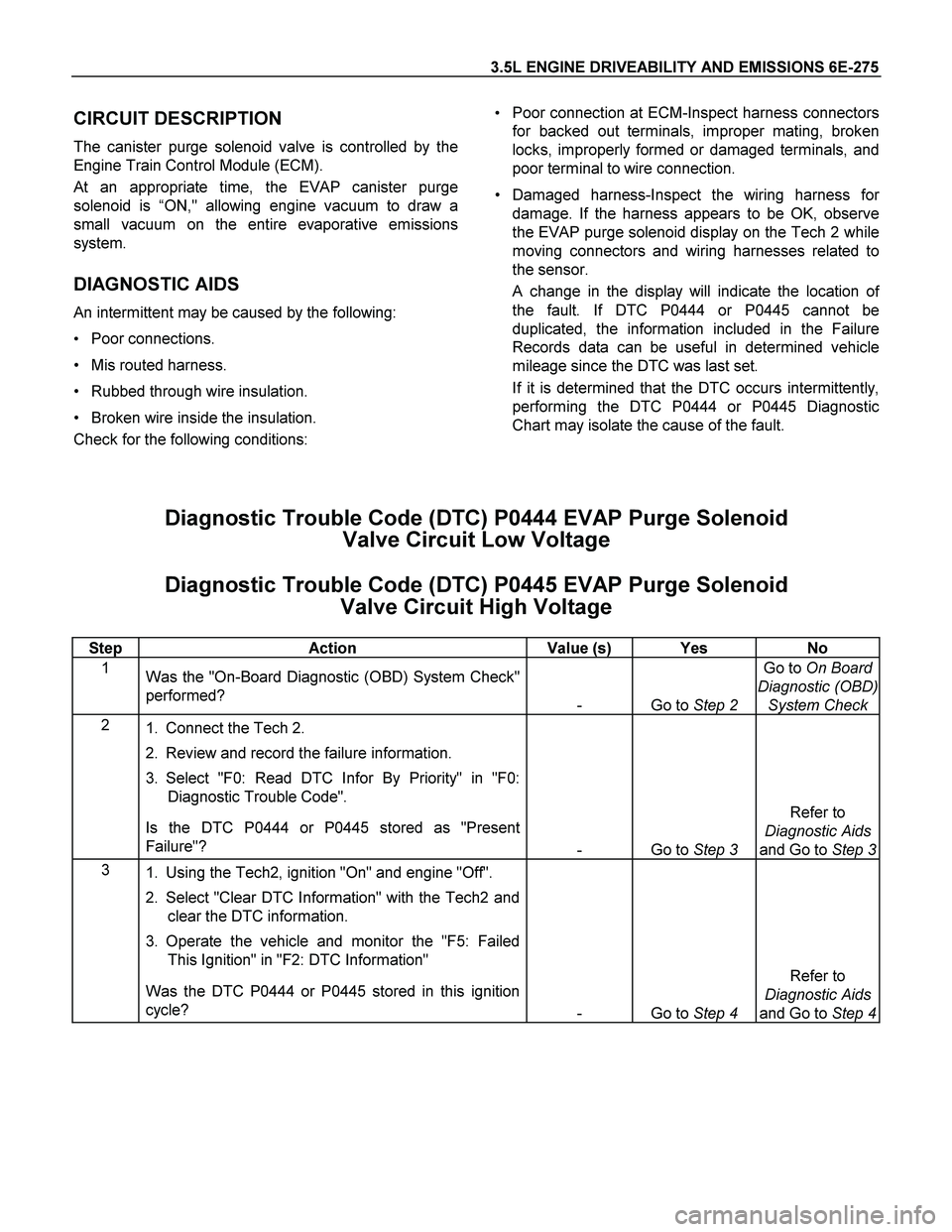

3.5L ENGINE DRIVEABILITY AND EMISSIONS 6E-275
CIRCUIT DESCRIPTION
The canister purge solenoid valve is controlled by the
Engine Train Control Module (ECM).
At an appropriate time, the EVAP canister purge
solenoid is “ON," allowing engine vacuum to draw a
small vacuum on the entire evaporative emissions
system.
DIAGNOSTIC AIDS
An intermittent may be caused by the following:
 Poor connections.
 Mis routed harness.
 Rubbed through wire insulation.
 Broken wire inside the insulation.
Check for the following conditions:

 Poor connection at ECM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.
 Damaged harness-Inspect the wiring harness fo
r
damage. If the harness appears to be OK, observe
the EVAP purge solenoid display on the Tech 2 while
moving connectors and wiring harnesses related to
the sensor.
A change in the display will indicate the location o
f
the fault. If DTC P0444 or P0445 cannot be
duplicated, the information included in the Failure
Records data can be useful in determined vehicle
mileage since the DTC was last set.
If it is determined that the DTC occurs intermittently,
performing the DTC P0444 or P0445 Diagnostic
Chart may isolate the cause of the fault.


Diagnostic Trouble Code (DTC) P0444 EVAP Purge Solenoid
Valve Circuit Low Voltage
Diagnostic Trouble Code (DTC) P0445 EVAP Purge Solenoid
Valve Circuit High Voltage

Step Action Value (s) Yes No
1
Was the "On-Board Diagnostic (OBD) System Check"
performed?
- Go to Step 2 Go to On Board
Diagnostic (OBD)
System Check
2
1. Connect the Tech 2.
2. Review and record the failure information.
3. Select "F0: Read DTC Infor By Priority" in "F0:
Diagnostic Trouble Code".
Is the DTC P0444 or P0445 stored as "Present
Failure"?
- Go to Step 3 Refer to
Diagnostic Aids
and Go to Step 3
3
1. Using the Tech2, ignition "On" and engine "Off".
2. Select "Clear DTC Information" with the Tech2 and
clear the DTC information.
3. Operate the vehicle and monitor the "F5: Failed
This Ignition" in "F2: DTC Information"
Was the DTC P0444 or P0445 stored in this ignition
cycle?
- Go to Step 4 Refer to
Diagnostic Aids
and Go to Step 4
