4C1-46 FRONT WHEEL DRIVE
Important Operations
1. Wheel Pin
(1) Place hub on a wood workbench or a block of wood,
approx. 6” by 6” to protect the wheel stud ends and threads.
(2) Install wheel stud using a hammer.
Be sure wheel stud is started squarely and seats
completely.
(3) Align index marks and install hub to disc.
2. Bolt
Torque N
m (kgfm/lbft)
103
5 (10.5 1/75.9 7.2)
3. Inner Bearing and Outer Race
4. Oil Seal
Outer Bearing Outer Race
(1) Install the bearing outer race by driving into the hub.
Installer (Outer) : 5-8822-0053-0 (J-29016)
Installer (Inner) : 5-8822-0054-0 (J-29015)
Drive handle : 5-8840-0007-0 (J-8092)
(2) Install the outer and inner bearing into the hub with fingers.

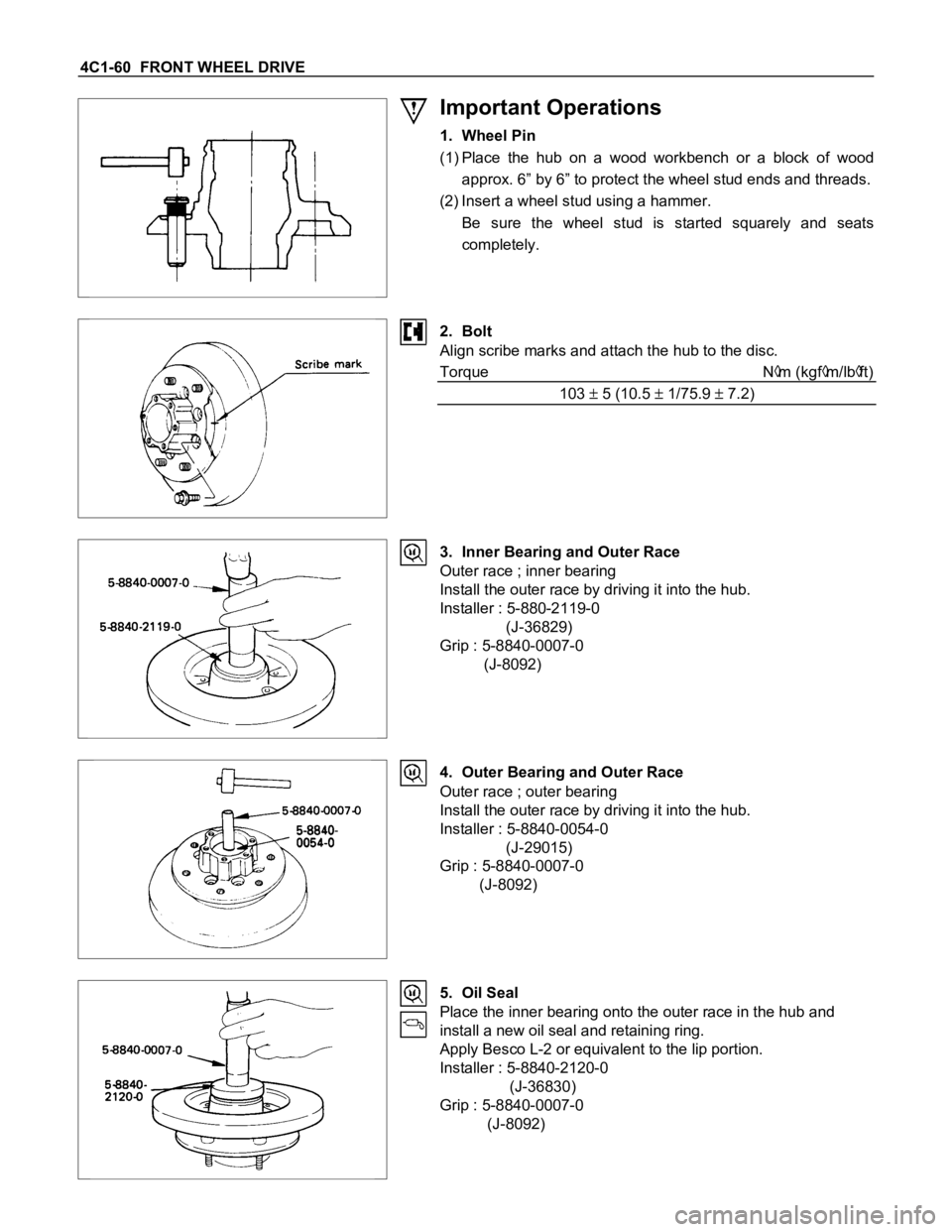

4C1-60 FRONT WHEEL DRIVE
Important Operations
1. Wheel Pin
(1) Place the hub on a wood workbench or a block of wood
approx. 6” by 6” to protect the wheel stud ends and threads.
(2) Insert a wheel stud using a hammer.
Be sure the wheel stud is started squarely and seats
completely.
2. Bolt
Align scribe marks and attach the hub to the disc.
Torque N
m (kgfm/lbft)
103
5 (10.5 1/75.9 7.2)
3. Inner Bearing and Outer Race
Outer race ; inner bearing
Install the outer race by driving it into the hub.
Installer : 5-880-2119-0
(J-36829)
Grip : 5-8840-0007-0
(J-8092)
4. Outer Bearing and Outer Race
Outer race ; outer bearing
Install the outer race by driving it into the hub.
Installer : 5-8840-0054-0
(J-29015)
Grip : 5-8840-0007-0
(J-8092)
5. Oil Seal
Place the inner bearing onto the outer race in the hub and
install a new oil seal and retaining ring.
Apply Besco L-2 or equivalent to the lip portion.
Installer : 5-8840-2120-0
(J-36830)
Grip : 5-8840-0007-0
(J-8092)
