6E±298
ENGINE DRIVEABILITY AND EMISSIONS
4. Remove the MAP sensor from the mounting bracket.
055RW002
Installation Procedure
1. Install the MAP sensor in the mounting bracket.
055RW002
2. Install the mounting bracket retaining bolt on the
common chamber.
3. Connect the MAP electrical connector.
055RW005
4. Connect the negative battery cable.
Malfunction Indicator Lamp
(MIL)
Removal and Installation Procedure
Refer to Warning light bulb, indicator light valve,
illumination light bulb, A/T indicator light bulb in Meter and
Gauge.
Powertrain Control Module
(PCM)
Service Precaution
NOTE: To p r e ve n t p ossible electrostatic discharge
damage to the PCM, do not touch the connector pins or
soldered components on the circuit board.
Electrostatic Discharge (ESD)
Damage
Electronic components used in the control systems are
often designed to carry very low voltage. Electronic
components are susceptible to damage caused by
electrostatic discharge. Less than 100 volts of static
electricity can cause damage to some electronic
components. By comparison, it takes as much as 4,000
volts for a person to even feel the zap of a static
discharge.
There are several ways for a person to become statically
charged. The most common methods of charging are by
friction and by induction. An example of charging by
friction is a person sliding across a car seat.
Charging by induction occurs when a person with well
insulated shoes stands near a highly charged object and
momentarily touches ground. Charges of the same
polarity are drained off leaving the person highly charged
with the opposite polarity. Static charges can cause

6E±339 ENGINE DRIVEABILITY AND EMISSIONS
0005
PCM Components
The PCM is designed to maintain exhaust emission levels
to government mandated standards while providing
excellent driveability and fuel efficiency. The PCM
monitors numerous engine and vehicle functions via
electronic sensors such as the throttle position (TP)
sensor, heated oxygen sensor (HO2S), and vehicle
speed sensor (VSS). The PCM also controls certain
engine operations through the following:

Fuel injector control

Ignition control module

Knock sensor

Automatic transmission shift functions

Cruise control

A/C clutch control
PCM Voltage Description
The PCM supplies a buffered voltage to various switches
and sensors. It can do this because resistance in the
PCM is so high in value that a test light may not illuminate
when connected to the circuit. An ordinary shop
voltmeter may not give an accurate reading because the
voltmeter input impedance is too low. Use a 10-megohm
input impedance digital voltmeter (such as J 39200) to
assure accurate voltage readings.
The input/output devices in the PCM include
analog-to-digital converters, signal buffers, counters,
and special drivers. The PCM controls most components
with electronic switches which complete a ground circuit
when turned ªON.º These switches are arranged in
groups of 4 and 7, called either a surface-mounted quad
driver module (QDM), which can independently control up
to 4 output terminals, or QDMs which can independently
control up to 7 outputs. Not all outputs are always used.
PCM Input/Outputs
Inputs ± Operating Conditions Read

Air Conditioning ªONº or ªOFFº
Engine Coolant Temperature

Crankshaft Position

Exhaust Oxygen Content

Electronic Ignition

Manifold Absolute Pressure

Battery Voltage

Throttle Position

Vehicle Speed

Fuel Pump Voltage

Power Steering Pressure

Intake Air Temperature

Mass Air Flow

Engine Knock

Camshaft Position
Outputs ± Systems Controlled

Exhaust Gas Recirculation (EGR)

Ignition Control

Fuel Control

Idle Air Control

Electric Fuel Pump

Air Conditioning

Diagnostics
± Malfunction Indicator Lamp (Service Engine Soon
lamp)
± Data Link Connector (DLC)
± Data Output

Transmission Control Module

Alternator Gain Control
PCM Service Precautions
The PCM is designed to withstand normal current draws
associated with vehicle operation. Avoid overloading any
circuit. When testing for opens and shorts, do not ground
or apply voltage to any of the PCM's circuits unless
instructed to do so. These circuits should only be tested
Tech-2. The PCM should remain connected to the PCM
or to a recommended breakout box.
Reprogramming The PCM
The Trooper allow reprogramming of the PCM without
removing it from the vehicle . This provides a flexible and
cost-effective method of making changes in software
calibrations.
The service programming system (SPS) will not allow
incorrect software programming or incorrect calibration
changes.
Refer to the UBS 98model year Immobilizer Workshop
Manual.
Throttle Position (TP) Sensor
The throttle position (TP) sensor is a potentiometer
connected to the throttle shaft on the throttle body. The
PCM monitors the voltage on the signal line and
calculates throttle position. As the throttle valve angle is
changed (accelerator pedal moved), the TP sensor signal
also changes. At a closed throttle position, the output of

SERVICE INFORMATION 00 Ð 5
Idling improperly adjusted Adjust the idling Idling system
Checkpoint Possible cause Correction
Defective fast idling speed control device Repair or replace the fast idling
speed control device Fast idling speed
control device
Accelerator control system improperly
adjustedAdjust the accelerator control
system Accelerator control
system
2. UNSTABLE IDLING
4. QUICK-ON START SYSTEM (QOS III)
PREPARATION
1. Disconnect the thermoswitch connector.
2. Determine whether or not the glow plugs are receiving power.
a) Make sure that the starter switch is "OFF"
b) Connect a voltmeter between one of the glow plugs and the cylinder wall.
c) Move the starter switch to the "ON" position.
The voltmeter needle will show the souse voltage (12V) if the glow plugs are receiving power.
If the voltmeter needle does not move, the glow plugs are not receiving power.
3. Perform the troubleshooting procedure.
1.
2.
3.Replace the fusible link wire
Replace the indicator light fuse
Replace the indicator light bulb Glow plug indicator
light does not turn
on.Defective Fusible link wire
Broken indicator light fuse
Defective indicator light bulb
1.
2.
3.
4.Replace the fusible link wire
Replace or Repair glow plug relay
connector
Replace or Repair glow plug
connector
Replace or Repair quick-on start
timer connector Preheating system
does not workDefective Fusible link wire shorted
Defective glow plug relay connector
Defective glow plug connector
Defective quick-on start timer connector
1.
2.
3.Replace thermo sensor or repair
wiring harness.
Replace glow plug
Replace timer unit Preheating time to
long or to shortDefective thermo sensor include
defective wiring harness
Defective glow plug
Defective timer unit

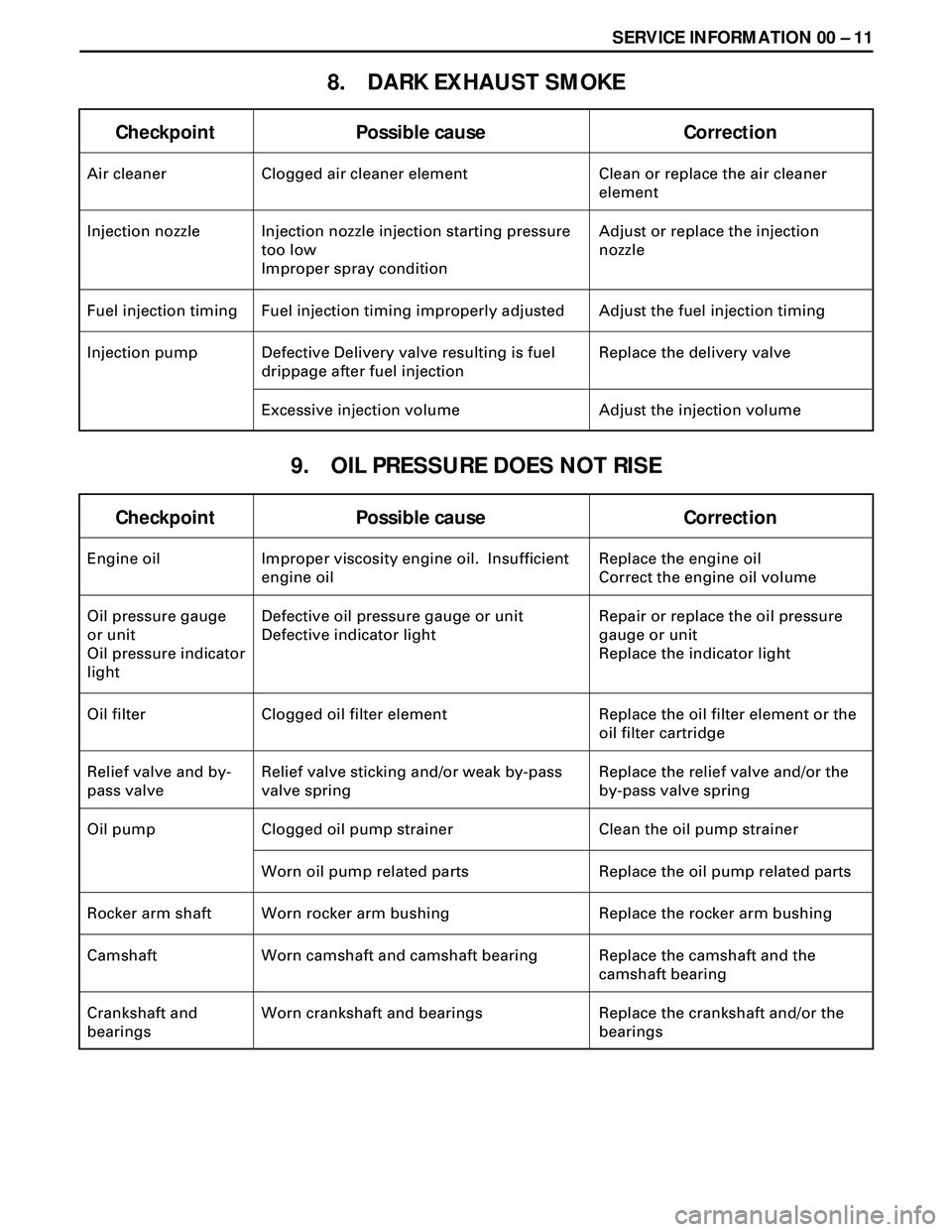

SERVICE INFORMATION 00 Ð 11
8. DARK EXHAUST SMOKE
Checkpoint Possible cause Correction
Air cleaner Clogged air cleaner element Clean or replace the air cleaner
element
Injection nozzle Injection nozzle injection starting pressure
too low
Improper spray conditionAdjust or replace the injection
nozzle
Fuel injection timing Fuel injection timing improperly adjusted Adjust the fuel injection timing
Injection pump Defective Delivery valve resulting is fuel
drippage after fuel injectionReplace the delivery valve
Excessive injection volume Adjust the injection volume
9. OIL PRESSURE DOES NOT RISE
Checkpoint Possible cause Correction
Engine oil Improper viscosity engine oil. Insufficient
engine oilReplace the engine oil
Correct the engine oil volume
Oil pressure gauge
or unit
Oil pressure indicator
lightDefective oil pressure gauge or unit
Defective indicator lightRepair or replace the oil pressure
gauge or unit
Replace the indicator light
Oil filter Clogged oil filter element Replace the oil filter element or the
oil filter cartridge
Relief valve and by-
pass valveRelief valve sticking and/or weak by-pass
valve springReplace the relief valve and/or the
by-pass valve spring
Oil pump Clogged oil pump strainer Clean the oil pump strainer
Worn oil pump related parts Replace the oil pump related parts
Rocker arm shaft Worn rocker arm bushing Replace the rocker arm bushing
Camshaft Worn camshaft and camshaft bearing Replace the camshaft and the
camshaft bearing
Crankshaft and
bearingsWorn crankshaft and bearings Replace the crankshaft and/or the
bearings

SERVICE INFORMATION 00 Ð 17
MAGNETIC SWITCH DOES NOT OPERATE THOUGH
STARTER SWITCH IS TURNED TO “START (ST)”
CHECK IF VOLTAGE IS PRESENT AT MAGNETIC
SWITCH TERMINAL “S” WHEN STARTER SWITCH
IS TURNED TO “START (ST)”
YESNO
CHECK IF INDICATOR LAMP ON
METER COMES ON NORMALLY
CHECK CONTINUITY
STARTER SWITCH AND
MAGNETIC SWITCH
TERMINAL “S”DISCONNECTION OR
FAULTY CONNECTION
BETWEEN BATTERY
AND STARTER SWITCH
YESNO
CHECK GROUND CABLE
YESNO
PINION
SLIDING
PART DOES
NOT MOVEMAGNETIC SWITCH
OR COIL IS
DISCONNECTED
OR BURNED OUT
REPAIR
REPAIR OR REPLACE STARTER
REPAIR
CHECK STARTER
RELAYFAULTY CONNECTION
OR STARTER SWITCH
CHECK CLUTCH
START SWITCHREPLACE STARTER
SWITCH
OR

00 Ð 30 SERVICE INFORMATION
Fuel Filter Water Draining Procedure
The indicator light will come on when the water level in the
water separator exceeds the specified level.
Drain the water and foreign material from the water separa-
tor with the following procedure.
1. Find a safe place to park the vehicle.
2. Open the engine hood and place a container (Approxi-
mately 0.2 liter capacity) at the end of the vinyl hose
beneath the drain plug on the separator.
3. Loosen the drain plug by turning it counterclockwise
(Approximately 5 turns) and operate the priming pump
up and down about 10 times until water is drained
approximately 0.1 liter.
4. After draining, securely tighten the drain plug by turn-
ing it clockwise and operate the priming pump manu-
ally up and down several times.
5. After starting the engine, check to see that there is no
fuel leak from the drain plug.
Also check to see that the fuel filter water indicator light
has turned off.
If water separator requires frequent draining, have the
fuel tank drained for removal of water at your Isuzu
Dealer.
Air Bleeding
1. Loosen the bleeder screw on the injection pump over-
flow valve.
2. Operate the priming pump until fuel mixed with foam
flows from the bleeder screw.
3. Tighten the bleeder screw.
4. Operate the priming pump several times and check for
fuel leakage.
COOLING SYSTEM
Coolant Level
Check the coolant level and replenish the radiator reserve
tank as necessary.
If the coolant level falls below the ÒMINÓ line, carefully check
the cooling system for leakage. Then add enough coolant to
bring the level up to the ÒMAXÓ line.
NOTE:
Do not overfill the reserve tank.

ENGINE ELECTRICAL 6D – 1
ENGINE ELECTRICAL
CONTENTS
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6D–1
General Description . . . . . . . . . . . . . . . . 6D–1
Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . 6D–1
On Vehicle Service . . . . . . . . . . . . . . . . . 6D–3
Main Data and Specification . . . . . . . . . . 6D–4
Starting System . . . . . . . . . . . . . . . . . . . . . 6D–5
General Description . . . . . . . . . . . . . . . . 6D–5
On Vehicle Service . . . . . . . . . . . . . . . . . 6D–7
Starter . . . . . . . . . . . . . . . . . . . . . . . . . . 6D–7
Unit Repair . . . . . . . . . . . . . . . . . . . . . . . 6D–8Charging System . . . . . . . . . . . . . . . . . . . . 6D–15
General Description . . . . . . . . . . . . . . . . 6D–15
Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . 6D–16
Unit Repair . . . . . . . . . . . . . . . . . . . . . . . 6D–17
Main Data and Specification . . . . . . . . . . 6D–22
QOS4 Preheating System . . . . . . . . . . . . . . 6D–23
General Description . . . . . . . . . . . . . . . . 6D–23
System Diagram . . . . . . . . . . . . . . . . . . . 6D–23
Inspection of QOS4 System Operation . . 6D–24
BATTERY
GENERAL DESCRIPTION
DIAGNOSIS
There are six battery fluid caps at the top of the battery.
These are covered by a paper label.
The battery is completely sealed except for the six
small vent holes at the side. These vent holes permit
the escape of small amounts of gas generated by the
battery.
This type of battery has the following advantages over
conventional batteries:1. There is no need to add water during the entire
service life of the battery.
2. The battery protects itself against overcharging.
The battery will refuse to accept an excessive
charge.
(A conventional battery will accept an excessive
charge, resulting in gassing and loss of battery
fluid.)
3. The battery is much less vulnerable to self-
discharge than a conventional type battery.
1. VISUAL INSPECTION (Step 1)
Inspect the battery for obvious physical damage, such
as a cracked or broken case, which would permit
electrolyte loss.
Replace the battery if obvious physical damage is
discovered during inspection.
Check for any other physical damage and correct it as
necessary. If not, proceed to Step 2.
2. HYDROMETER CHECK (Step 2)
There is a built-in hydrometer (Charge test indicator) at
the top of the battery. It is designed to be used during
diagnostic procedures.
Before trying to read the hydrometer, carefully clean the
upper battery surface.
If your work area is poorly lit, additional light may be
necessary to read the hydrometer.
a. BLUE RING OR DOT VISIBLE – Go to Step 4.
b. BLUE RING OR DOT NOT VISIBLE – Go to
Step 3.3. FLUID LEVEL CHECK (Step 3)
The fluid level should be between the upper level line
and lower level line on side of the battery.
a. CORRECT FLUID LEVEL – Charge the battery.
b. BELOW LOWER LEVEL – Replace battery.
4. VOLTAGE CHECK (Step 4)
(1) Put voltmeter test leads to battery terminals.
a. VOLTAGE IS 12.4V OR ABOVE – Go to Step 5.
b. VOLTAGE IS UNDER 12.4V – Go to procedure
(2) below.
(2) Determine fast charge amperage from
specification. (See Main Data and Specifications in
this section.)
Fast charge battery for 30 minutes at amperage
rate no higher than specified value.
Take voltage and amperage readings after charge.
a. VOLTAGE IS ABOVE 16V AT BELOW 1/3 OF
AMPERAGE RATE – Replace battery.

6E±1 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
4JX1±TC 3.0L ENGINE
DRIVEABILITY AND EMISSIONS
CONTENTS
Specification 6E±7. . . . . . . . . . . . . . . . . . . . . . . . . .
Tightening Specifications 6E±7. . . . . . . . . . . . . . .
Diagrams and Schematics 6E±8. . . . . . . . . . . . . . . .
ECM Wiring Diagram (1 of 6) 6E±8. . . . . . . . . . . .
ECM Wiring Diagram (2 of 6) 6E±9. . . . . . . . . . . .
ECM Wiring Diagram (3 of 6) 6E±10. . . . . . . . . . . .
ECM Wiring Diagram (4 of 6) 6E±11. . . . . . . . . . . .
ECM Wiring Diagram (5 of 6) 6E±12. . . . . . . . . . . .
ECM Wiring Diagram (6 of 6) 6E±13. . . . . . . . . . . .
ECM Pinouts 6E±14. . . . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J1
RED ± Upper 6E±14. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J1
RED ± Lower 6E±15. . . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J2
BLUE ± Upper 6E±16. . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 32-Way Connector ± J2
BLUE ± Lower 6E±17. . . . . . . . . . . . . . . . . . . . . . . .
ECM Pinout Table, 5-Way Connector ± J3 6E±18
Component Locator 6E±19. . . . . . . . . . . . . . . . . . . . .
Sensors and Miscellaneous Component
Locators 6E±21. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Abbreviations Charts 6E±23. . . . . . . . . . . . . . . . . . . .
Diagnosis 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±24. . . . . . . . . . . . .
Strategy-Based Diagnostics 6E±24. . . . . . . . . . . . .
DTC Stored 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . .
No DTC 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
No Matching Symptom 6E±24. . . . . . . . . . . . . . . . .
Intermittents 6E±24. . . . . . . . . . . . . . . . . . . . . . . . . .
No Trouble Found 6E±24. . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±24. . . . . . . . . . . . . . . .
General Service Information 6E±25. . . . . . . . . . . . . .
Serviceability Issues 6E±25. . . . . . . . . . . . . . . . . . .
Visual/Physical Engine Compartment
Inspection 6E±25. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Basic Knowledge of Tools Required 6E±25. . . . . .
Serial Data Communications 6E±25. . . . . . . . . . . . . .
Class II Serial Data Communications 6E±25. . . . .
On-Board Diagnostic (OBD) 6E±25. . . . . . . . . . . . . .
On-Board Diagnostic Tests 6E±25. . . . . . . . . . . . .
Comprehensive Component Monitor
Diagnostic Operation 6E±25. . . . . . . . . . . . . . . . . .
Common OBD Terms 6E±26. . . . . . . . . . . . . . . . . .
The Diagnostic Executive 6E±26. . . . . . . . . . . . . . .
DTC Types 6E±26. . . . . . . . . . . . . . . . . . . . . . . . . . .
Verifying Vehicle Repair 6E±27. . . . . . . . . . . . . . . . Reading Flash Diagnostic Trouble Codes 6E±27.
Reading Diagnostic Trouble Codes Using
a TECH 2 6E±28. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tech 2 Scan Tool 6E±29. . . . . . . . . . . . . . . . . . . . . .
Getting Started 6E±30. . . . . . . . . . . . . . . . . . . . . . . .
DTC Modes 6E±32. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC Information Mode 6E±32. . . . . . . . . . . . . . . . .
Injector Test 6E±32. . . . . . . . . . . . . . . . . . . . . . . . . .
EGR Valve Test 6E±32. . . . . . . . . . . . . . . . . . . . . . .
Rail Pressure Control Valve Test 6E±32. . . . . . . . .
Injector Balance Test 6E±32. . . . . . . . . . . . . . . . . . .
Data Programming in Case of ECM Change 6E±32
Rail Pressure Sensor Programming 6E±33. . . . . .
Injector Group Sign Programming
(Injector Change) 6E±33. . . . . . . . . . . . . . . . . . . . .
On-Board Diagnostic (OBD) System Check 6E±35.
Circuit Description 6E±37. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±37. . . . . . . . . . . . . . . . . . . . . . . .
Engine Control Module ECM Diagnosis 6E±39. . . .
Multiple ECM Information Sensor DTCS Set 6E±39
Circuit Description 6E±39. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±39. . . . . . . . . . . . . . . . . . . . . . . .
EGR (Exhaust Gas Recirculation) Diagnosis 6E±41
Tech 2 Data Definitions and Ranges 6E±41. . . . . . .
Typical Scan Data Values 6E±41. . . . . . . . . . . . . . . .
Test Conditions 6E±41. . . . . . . . . . . . . . . . . . . . . . . .
4JX1-TC Engine (Automatic and Manual
Transmission) 6E±42. . . . . . . . . . . . . . . . . . . . . . . .
No Malfunction Indicator Lamp (MIL) 6E±44. . . . . . .
Circuit Description 6E±44. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±44. . . . . . . . . . . . . . . . . . . . . . . .
Malfunction Indicator Lamp (MIL) ªONº
Steady 6E±47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit description 6E±47. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±47. . . . . . . . . . . . . . . . . . . . . . . .
Engine Cranks But Will Not Run 6E±49. . . . . . . . . . .
Circuit Description 6E±49. . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 6E±49. . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Gas Recirculation (EGR) System
Check 6E±52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±52. . . . . . . . . . . . . . . . . . . . .
ECM Diagnostic Trouble Codes 6E±54. . . . . . . . . . .
ECM Diagnostic Trouble Codes 6E±54. . . . . . . . .
Diagnostic Trouble Code (DTC) P0107
(Flash DTC 34)
MAP Sensor Circuit Low Voltage 6E±56. . . . . . . . . .

6E±5 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
Conditions for Clearing the MIL/DTC 6E±159. . . . .
Diagnostic Aids 6E±159. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1562
(Flash DTC 35) System Voltage Too Low
at Cranking 6E±160. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±160. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±160. . . . . . .
Conditions for Clearing the MIL/DTC 6E±160. . . . .
Diagnostic Aids 6E±160. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1587
(Flash DTC 25) Brake SW Malfunction 6E±161. . . .
Circuit Description 6E±161. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±161. . . . . . .
Conditions for Clearing the MIL/DTC 6E±161. . . . .
Diagnostic Aids 6E±161. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1588
(Flash DTC 25) Brake SW Malfunction 6E±163. . . .
Circuit Description 6E±163. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±163. . . . . . .
Conditions for Clearing the MIL/DTC 6E±163. . . . .
Diagnostic Aids 6E±163. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0601
(Flash DTC 55) ECM Checksum Error 6E±165. . . . .
Action Taken When the DTC Sets 6E±165. . . . . . .
Conditions for Clearing the MIL/DTC 6E±165. . . . .
Diagnostic Aids 6E±165. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0650
(Flash DTC 77) Check Engine Lam Circuit
Open/Short 6E±166. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±166. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±166. . . . . . .
Conditions for Clearing the MIL/DTC 6E±166. . . . .
Diagnostic Aids 6E±166. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P0654
(Flash DTC 27) Tachometer Circuit
Open/Short 6E±168. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±168. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±168. . . . . . .
Conditions for Clearing the MIL/DTC 6E±168. . . . .
Diagnostic Aids 6E±168. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1655
(Flash DTC 17) Thermo Relay Circuit
Open/Short 6E±170. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±170. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±170. . . . . . .
Conditions for Clearing the MIL/DTC 6E±170. . . . .
Diagnostic Aids 6E±170. . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Code (DTC) P1657
(Flash DTC 76) ECM Main Relay Circuit
Open/Short 6E±172. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±172. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±172. . . . . . .
Conditions for Clearing the MIL/DTC 6E±172. . . . .
Diagnostic Aids 6E±172. . . . . . . . . . . . . . . . . . . . . . . . Diagnostic Trouble Code (DTC) P1589
(Flash DTC 47) Transmission SW Circuit
Open/Short 6E±174. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Circuit Description 6E±174. . . . . . . . . . . . . . . . . . . . .
Action Taken When the DTC Sets 6E±174. . . . . . .
Conditions for Clearing the MIL/DTC 6E±174. . . . .
Diagnostic Aids 6E±174. . . . . . . . . . . . . . . . . . . . . . . .
Symptom Diagnosis 6E±176. . . . . . . . . . . . . . . . . . . . .
Default Matrix Table 6E±199. . . . . . . . . . . . . . . . . . . . .
On±Vehicle Service Camshaft Position
(CMP) Sensor 6E±201. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E±201. . . . . . . . . . . . . . . . . . . .
Inspection Procedure 6E±201. . . . . . . . . . . . . . . . . .
Installation Procedure 6E±201. . . . . . . . . . . . . . . . . .
Crankshaft Position (CKP) Sensor 6E±202. . . . . . . . .
Removal Procedure 6E±202. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±202. . . . . . . . . . . . . . . . . .
Engine Coolant Temperature (ECT) Sensor 6E±203.
Removal Procedure 6E±203. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±203. . . . . . . . . . . . . . . . . .
Intake Air Temperature (IAT) Sensor 6E±203. . . . . . .
Removal Procedure 6E±203. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±204. . . . . . . . . . . . . . . . . .
Manifold Absolute Pressure (MAP) Sensor 6E±204.
Removal Procedure 6E±204. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±205. . . . . . . . . . . . . . . . . .
Oil Temperature (OT) Sensor 6E±205. . . . . . . . . . . . .
Removal Procedure 6E±205. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±206. . . . . . . . . . . . . . . . . .
Malfunction Indicator Lamp (MIL) 6E±206. . . . . . . . . .
Removal and Installation Procedure 6E±206. . . . . .
Engine Control Module (ECM) 6E±206. . . . . . . . . . . .
Service Precaution 6E±206. . . . . . . . . . . . . . . . . . . .
Electrostatic Discharge (ESD) Damage 6E±206. . .
Removal Procedure 6E±207. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±208. . . . . . . . . . . . . . . . . .
EEPROM 6E±208. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 6E±208. . . . . . . . . . . . . . . . . . . .
Functional Check 6E±208. . . . . . . . . . . . . . . . . . . . . .
Intake Throttle Position (ITP) Sensor 6E±208. . . . . . .
Removal Procedure 6E±208. . . . . . . . . . . . . . . . . . . .
Function Check 6E±209. . . . . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±209. . . . . . . . . . . . . . . . . .
Vehicle Speed Sensor (VSS) 6E±210. . . . . . . . . . . . .
Removal Procedure 6E±210. . . . . . . . . . . . . . . . . . . .
Inspection Procedure 6E±210. . . . . . . . . . . . . . . . . .
Installation Procedure 6E±210. . . . . . . . . . . . . . . . . .
Air Cleaner/Air Filter 6E±211. . . . . . . . . . . . . . . . . . . . .
Removal Procedure 6E±211. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±211. . . . . . . . . . . . . . . . . .
Accel Position (AP) Sensor 6E±211. . . . . . . . . . . . . . .
Removal Procedure 6E±211. . . . . . . . . . . . . . . . . . . .
Installation Procedure 6E±212. . . . . . . . . . . . . . . . . .
Accelerator Pedal Replacement 6E±212. . . . . . . . . . .

6E±41 4JX1±TC ENGINE DRIVEABILITY AND EMISSIONS
EGR (Exhaust Gas Recirculation)
Diagnosis

A diagnosis of the EGR system is covered by DTC
P1403.

EGR VSV circuit diagnosis is covered by DTC P1404.

EGR pressure sensor diagnosis is covered by DTC
P405 and/or P406.

EGR EVRV circuit diagnosis is covered by DTC
P1405. Refer to the DTC charts.
Tech 2 Data Definitions and Ranges
A/C CLUTCH±Tech 2 Displays ON or OFF±
Indicates whether the A/C has commanded the A/C
clutch ON.
MAP kPa Ð Tech 2 Range 10-105 kPa/0.00-5.00
Volts Ð
The manifold absolute pressure reading is determined
from the MAP sensor signal monitored during key up and
wide open throttle (WOT) conditions. The manifold
absolute pressure is used to compensate for altitude
differences and is normally displayed around ª61-104º
depending on altitude and manifold absolute pressure.
CMP ACT. COUNTER ±Cam Position
DESIRED IDLE Ð Tech 2 Range 0-3187 RPM Ð
The idle speed that the ECM is commanding. The ECM
will compensate for various engine loads based on engine
coolant temperature, to keep the engine at the desired
speed.
ECT Ð (Engine Coolant Temperature) Tech 2
Range ±40
C to 151
C (±40
F to 304
F) Ð
The engine coolant temperature (ECT) is mounted in the
coolant stream and sends engine temperature
information to the ECM. The ECM applies 5 volts to the
ECT sensor circuit. The sensor is a thermistor which
changes internal resistance as temperature changes.
When the sensor is cold (high resistance), the ECM
monitors a high signal voltage and interprets that as a cold
engine. As the sensor warms (decreasing resistance),
the voltage signal will decrease and the ECM will interpret
the lower voltage as a warm engine.
ENGINE RUN TIME Ð Tech 2 Range
00:00:00-99:99:99 Hrs:Min:Sec Ð
Indicates the time elapsed since the engine was started.
If the engine is stopped, engine run time will be reset to
00:00:00.
ENGINE SPEED Ð Range 0-9999 RPM Ð
Engine speed is computed by the ECM from the 57X
reference input. It should remain close to desired idle
under various engine loads with engine idling.Air Intake Valve meter POSITION Ð Tech 2 Range
0-100 % Ð
IAT (INTAKE AIR TEMPERATURE)Ð Tech 2 Range
±40
C to 151
C (±40
F to 304
F) Ð
The ECM converts the resistance of the intake air
temperature sensor to degrees. Intake air temperature
(IAT) is used by the ECM to adjust fuel delivery and spark
timing according to incoming air density.
MAP Ð Tech 2 Range 10-105 kPa (0.00-4.97 Volts)Ð
The manifold absolute pressure (MAP) sensor measures
the change in the boost pressure.
MIL Ð Tech 2 Displays ON or OFF Ð
Indicates the ECM commanded state of the malfunction
indicator lamp.
AP Ð Tech 2 Range 0%-100% Ð
AP (Accelerator position) angle is computed by the ECM
from the AP sensor voltage. AP angle should display
ª0%º at idle and ª100%º at wide open throttle.
AP SENSOR Ð Tech 2 Range 0.00-5.00 Volts Ð
The voltage being monitored by the ECM on the AP
sensor signal circuit.
VEHICLE SPEEDÐTech 2 Range 0-255 km/h (0-155
mph)±
The vehicle speed sensor signal is converted into km/h
and mph for display.
Typical Scan Data Values
Use the Typical Scan Data Values Table only after the
On-Board Diagnostic System Check has been
completed, no DTC(s) were noted, and you have
determined that the on-board diagnostics are functioning
properly. Tech 2 values from a properly-running engine
may be used for comparison with the engine you are
diagnosing. The typical scan data values represent
values that would be seen on a normally-running engine.
NOTE: A Tech 2 that displays faulty data should not be
used, and the problem should be reported to the Tech 2
manufacturer. Use of a faulty Tech 2 can result in
misdiagnosis and unnecessary replacement of parts.
Only the parameters listed below are referred to in this
service manual for use in diagnosis. For further
information on using the Tech 2 to diagnose the ECM and
related sensors, refer to the applicable reference section
listed below. If all values are within the typical range
described below, refer to the
Symptoms section for
diagnosis.
Test Conditions
Engine running, lower radiator hose hot, transmission in
park or neutral, accessaries off, brake not applied and air
conditioning off.
