RESTRAINT CONTROL SYSTEM 9J1±32

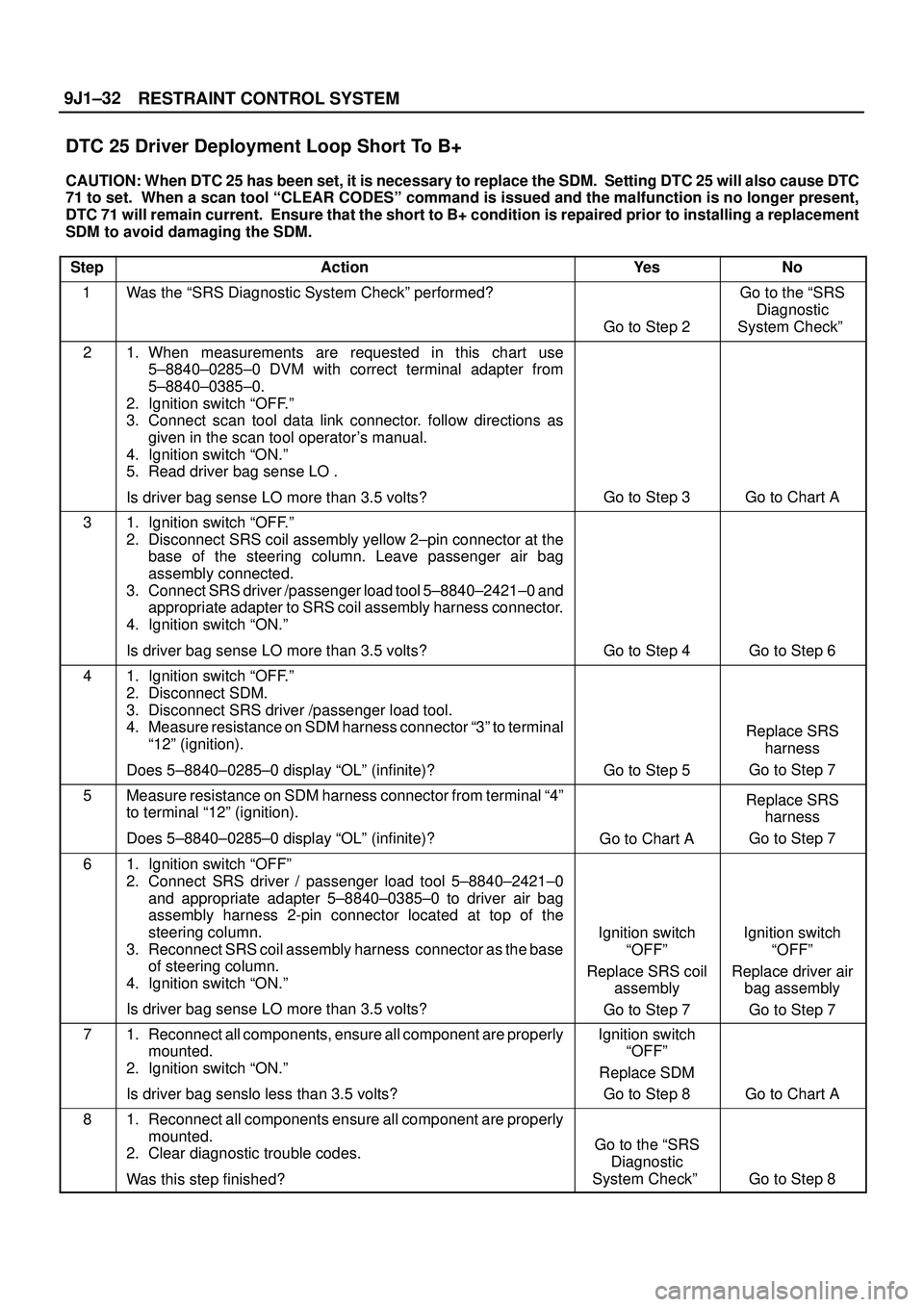

DTC 25 Driver Deployment Loop Short To B+
CAUTION: When DTC 25 has been set, it is necessary to replace the SDM. Setting DTC 25 will also cause DTC
71 to set. When a scan tool ªCLEAR CODESº command is issued and the malfunction is no longer present,
DTC 71 will remain current. Ensure that the short to B+ condition is repaired prior to installing a replacement
SDM to avoid damaging the SDM.
Step
ActionYe sNo
1Was the ªSRS Diagnostic System Checkº performed?
Go to Step 2
Go to the ªSRS
Diagnostic
System Checkº
21. When measurements are requested in this chart use
5±8840±0285±0 DVM with correct terminal adapter from
5±8840±0385±0.
2. Ignition switch ªOFF.º
3. Connect scan tool data link connector. follow directions as
given in the scan tool operator's manual.
4. Ignition switch ªON.º
5. Read driver bag sense LO .
Is driver bag sense LO more than 3.5 volts?
Go to Step 3Go to Chart A
31. Ignition switch ªOFF.º
2. Disconnect SRS coil assembly yellow 2±pin connector at the
base of the steering column. Leave passenger air bag
assembly connected.
3. Connect SRS driver /passenger load tool 5±8840±2421±0 and
appropriate adapter to SRS coil assembly harness connector.
4. Ignition switch ªON.º
Is driver bag sense LO more than 3.5 volts?
Go to Step 4Go to Step 6
41. Ignition switch ªOFF.º
2. Disconnect SDM.
3. Disconnect SRS driver /passenger load tool.
4. Measure resistance on SDM harness connector ª3º to terminal
ª12º (ignition).
Does 5±8840±0285±0 display ªOLº (infinite)?
Go to Step 5
Replace SRS
harness
Go to Step 7
5Measure resistance on SDM harness connector from terminal ª4º
to terminal ª12º (ignition).
Does 5±8840±0285±0 display ªOLº (infinite)?
Go to Chart A
Replace SRS
harness
Go to Step 7
61. Ignition switch ªOFFº
2. Connect SRS driver / passenger load tool 5±8840±2421±0
and appropriate adapter 5±8840±0385±0 to driver air bag
assembly harness 2-pin connector located at top of the
steering column.
3. Reconnect SRS coil assembly harness connector as the base
of steering column.
4. Ignition switch ªON.º
Is driver bag sense LO more than 3.5 volts?
Ignition switch
ªOFFº
Replace SRS coil
assembly
Go to Step 7Ignition switch
ªOFFº
Replace driver air
bag assembly
Go to Step 7
71. Reconnect all components, ensure all component are properly
mounted.
2. Ignition switch ªON.º
Is driver bag senslo less than 3.5 volts?Ignition switch
ªOFFº
Replace SDM
Go to Step 8
Go to Chart A
81. Reconnect all components ensure all component are properly
mounted.
2. Clear diagnostic trouble codes.
Was this step finished?
Go to the ªSRS
Diagnostic
System Checkº
Go to Step 8

9J1±33
RESTRAINT CONTROL SYSTEM

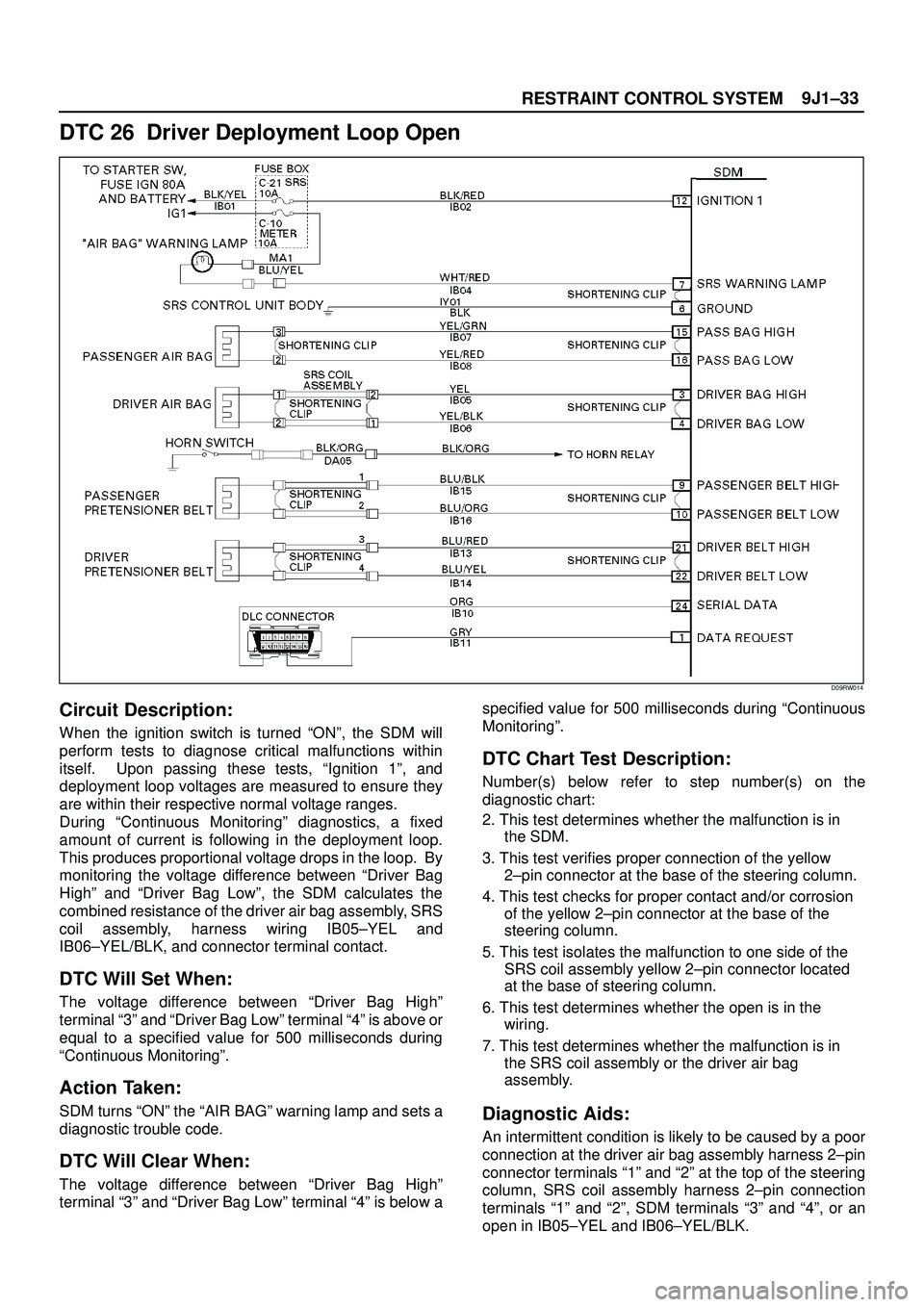

DTC 26 Driver Deployment Loop Open
D09RW014
Circuit Description:
When the ignition switch is turned ªONº, the SDM will
perform tests to diagnose critical malfunctions within
itself. Upon passing these tests, ªIgnition 1º, and
deployment loop voltages are measured to ensure they
are within their respective normal voltage ranges.
During ªContinuous Monitoringº diagnostics, a fixed
amount of current is following in the deployment loop.
This produces proportional voltage drops in the loop. By
monitoring the voltage difference between ªDriver Bag
Highº and ªDriver Bag Lowº, the SDM calculates the
combined resistance of the driver air bag assembly, SRS
coil assembly, harness wiring IB05±YEL and
IB06±YEL/BLK, and connector terminal contact.
DTC Will Set When:
The voltage difference between ªDriver Bag Highº
terminal ª3º and ªDriver Bag Lowº terminal ª4º is above or
equal to a specified value for 500 milliseconds during
ªContinuous Monitoringº.
Action Taken:
SDM turns ªONº the ªAIR BAGº warning lamp and sets a
diagnostic trouble code.
DTC Will Clear When:
The voltage difference between ªDriver Bag Highº
terminal ª3º and ªDriver Bag Lowº terminal ª4º is below aspecified value for 500 milliseconds during ªContinuous
Monitoringº.
DTC Chart Test Description:
Number(s) below refer to step number(s) on the
diagnostic chart:
2. This test determines whether the malfunction is in
the SDM.
3. This test verifies proper connection of the yellow
2±pin connector at the base of the steering column.
4. This test checks for proper contact and/or corrosion
of the yellow 2±pin connector at the base of the
steering column.
5. This test isolates the malfunction to one side of the
SRS coil assembly yellow 2±pin connector located
at the base of steering column.
6. This test determines whether the open is in the
wiring.
7. This test determines whether the malfunction is in
the SRS coil assembly or the driver air bag
assembly.
Diagnostic Aids:
An intermittent condition is likely to be caused by a poor
connection at the driver air bag assembly harness 2±pin
connector terminals ª1º and ª2º at the top of the steering
column, SRS coil assembly harness 2±pin connection
terminals ª1º and ª2º, SDM terminals ª3º and ª4º, or an
open in IB05±YEL and IB06±YEL/BLK.

RESTRAINT CONTROL SYSTEM 9J1±34
DTC 26 Driver Deployment Loop Open
StepActionYe sNo
1Was the ªSRS Diagnostic System Checkº performed?
Go to Step 2
Go to the ªSRS
Diagnostic
System Checkº
21. When measurements are requested in this chart use
5±8840±0285±0 DVM with correct terminal adapter from
5±8840±0385±0.
2. Use scan tool data list function, read and record the driver
differential voltage.
Is driver VDIF more than 4.25 volts?
Go to Step 3Go to Chart A
31. Ignition switch ªOFF.º
2. Make sure the SRS coil assembly yellow 2±pin connector
located at the base of steering column is seated properly.
Is the yellow 2±pin connector connected properly?
Go to Step 4
Seat driver air
bag assembly
2±pin connector
Go to Step 8
41. Disconnect and inspect the SRS coil assembly yellow 2±pin
connector located base of steering column.
2. If ok, reconnect the SRS coil assembly yellow 2±pin
connector.
3. Ignition switch ªON.º
Is DTC 26 current?
Go to Step 5Go to Step 8
51. Ignition switch ªOFFº.
2. Disconnect SRS coil and passenger air bag assembly, yellow
2±pin connectors located at the base of steering column and
behind the glove box assembly.
3. Connect SRS driver/passenger load tool 5±8840±2421±0 and
appropriate adapter to SRS coil and passenger air bag
assembly harness connectors.
4. Ignition switch ªON.º
Is DTC 26 current?
Go to Step 6Go to Step 7
61. Ignition switch ªOFF.º
2. There has been an open circuit in the driver inflator
deployment loop.
3. Use the high resolution ohmmeter mode of the DVM while
checking IB05±YEL and IB06±YEL/BLK, and SDM connector
terminal ª3º and ª4º to locate the root cause.
Was a fault found?
Replace SRS
harness
Go to Step 8
Go to Chart A
71. Ignition switch ªOFF.º
2. Disconnect SRS driver / passenger load tool from SRS coil
assembly harness connector.
3. Connect SRS driver / passenger load tool 5±8840±2421±0 on
steering column 2±pin connector.
4. Reconnect SRS coil assembly harness connector at the base
of steering column.
5. Ignition switch ªON.º
Is DTC 26 current?
Ignition switch
ªOFFº
Replace SRS coil
assembly
Go to Step 8Ignition switch
ªOFFº
Replace driver air
bag assembly
Go to Step 8
81. Reconnect all components ensure all component are properly
mounted.
2. Clear diagnostic trouble codes.
Was this step finished?
Repeat the ªSRS
Diagnostic
System Checkº
Go to Step 8
