8DÐ300 WIRING SYSTEM

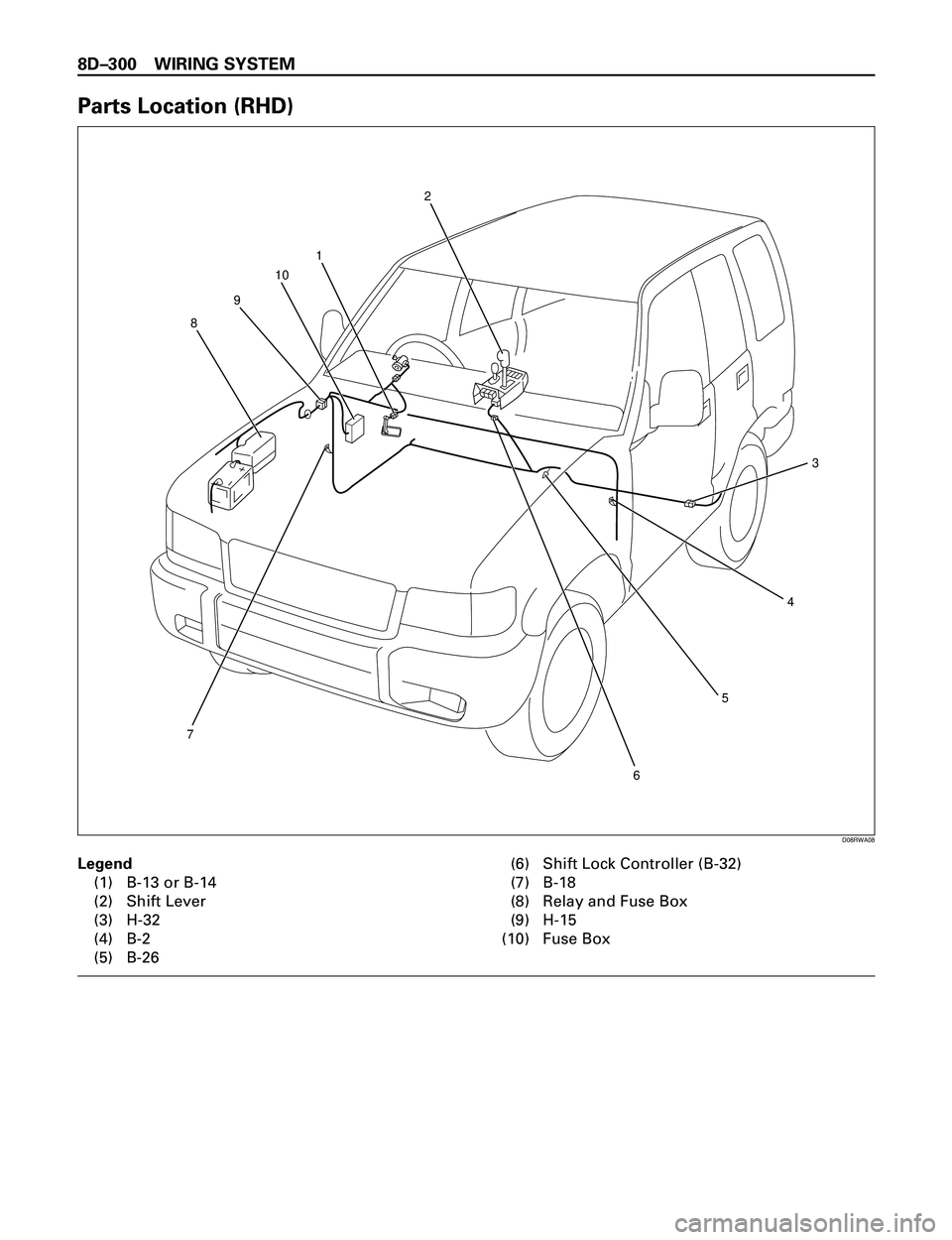

Parts Location (RHD)
Legend
(1) B-13 or B-14
(2) Shift Lever
(3) H-32
(4) B-2
(5) B-26(6) Shift Lock Controller (B-32)
(7) B-18
(8) Relay and Fuse Box
(9) H-15
(10) Fuse Box
3
4
5
6
78
9
10
1
2
D08RWA08

8DÐ302 WIRING SYSTEM

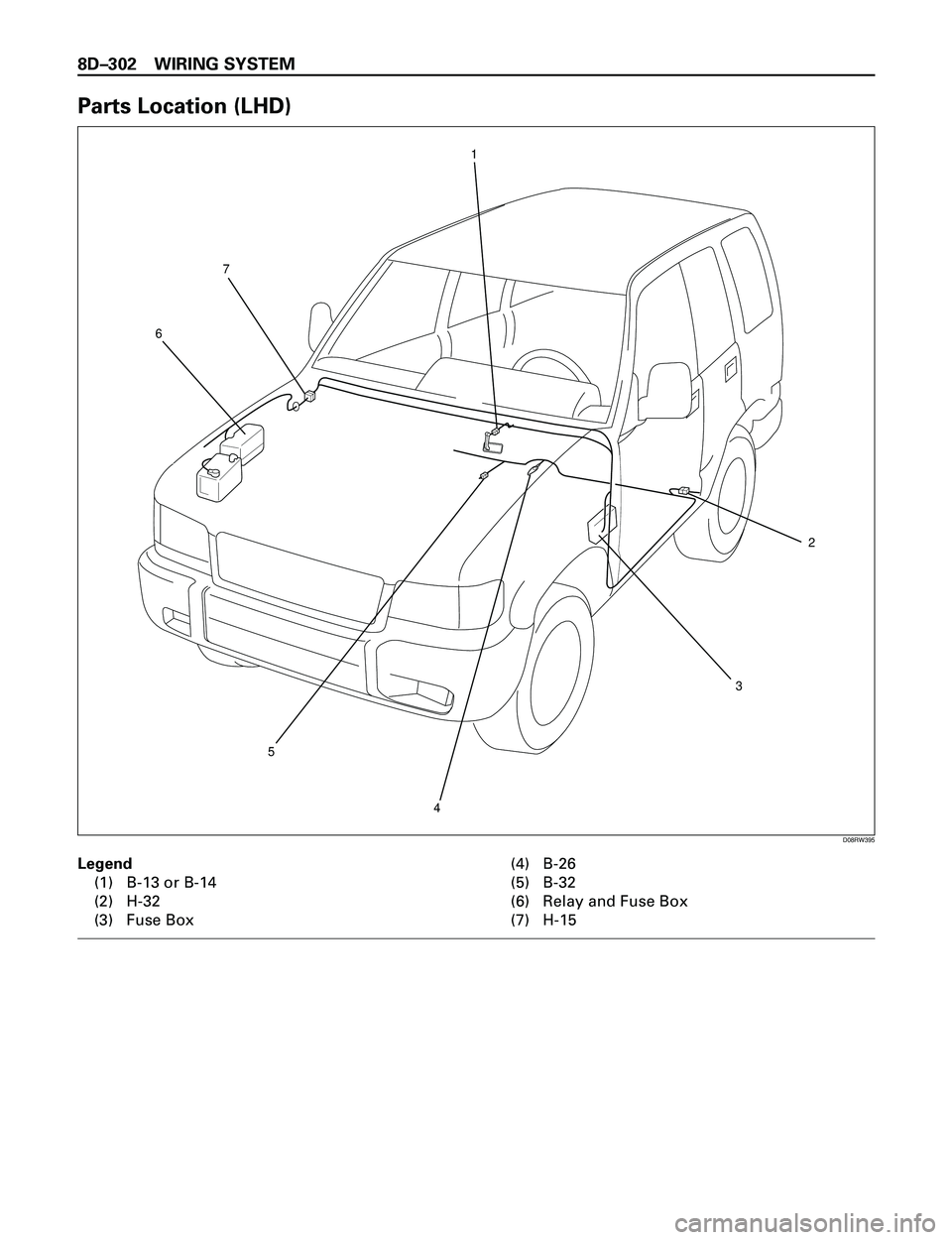

Parts Location (LHD)
4
1
7
6
2
3
5
D08RW395
Legend
(1) B-13 or B-14
(2) H-32
(3) Fuse Box(4) B-26
(5) B-32
(6) Relay and Fuse Box
(7) H-15

WIRING SYSTEM 8DÐ303
Windshield Wiper/Washer
General Description
The circuit consists of windshield wiper/washer
switch, windshield wiper motor, windshield washer
motor and alarm & relay control unit.
When windshield wiper/washer switch is turned on
with starter switch on, battery voltage is applied to
windshield wiper motor to activate wipers.
When windshield washer switch is turned on with
starter switch on, battery voltage is applied to
windshield washer motor.
Windshield washer motor squirts glass cleaning
fluid while windshield washer switch is pushed and
at the same time, alarm & relay control unit activates
windshield wiper motor to wipe glass cleaning fluid
at low speed.

8DÐ304 WIRING SYSTEM

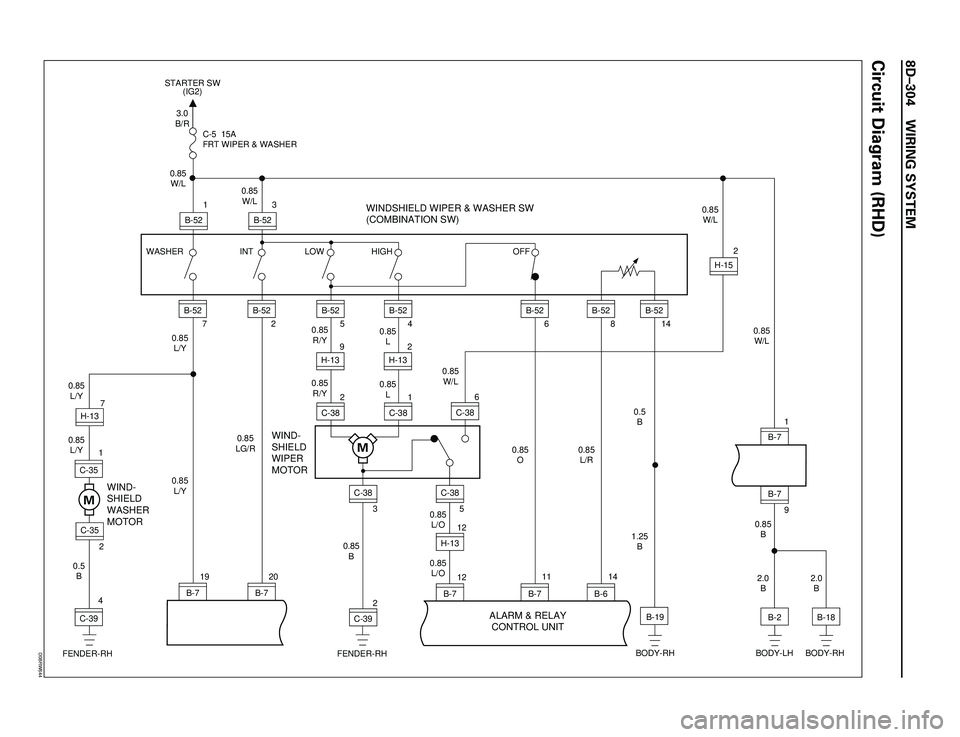

Circuit Diagram (RHD)
3.0
B/R
0.85
W/L
0.85
W/L
0.85
L/Y
0.85
L/Y
0.85
L/Y
0.5
B0.85
L/YC-5 15A
FRT WIPER & WASHERSTARTER SW
(IG2)
B-52B-52B-77
19
1
0.85
LG/R
B-52B-52B-72
20
0.85
O 0.85
W/L
B-52B-76
11
0.85
L/R
B-52B-68
14
B-71
0.5
B0.85
W/L 0.85
W/L
1.25
B0.85
B
2.0
B2.0
BB-52
14B-19
3
H-1390.85
R/Y
0.85
R/Y
0.85
BB-52
5C-382
H-13C-35C-3947C-35
2
1
M
WIND-
SHIELD
WASHER
MOTORWIND-
SHIELD
WIPER
MOTORWINDSHIELD WIPER & WASHER SW
(COMBINATION SW)
FENDER-RH FENDER-RHWASHER INT LOW
H-1320.85
L
0.85
LB-52
4C-381
HIGH OFF
MC-392C-38
3
0.85
L/O
0.85
L/O
H-1312B-712C-38
5
B-7
9
C-386
ALARM & RELAY
CONTROL UNIT
BODY-LH BODY-RH BODY-RH
B-2
B-18
H-152
D08RW644

WIRING SYSTEM 8DÐ305

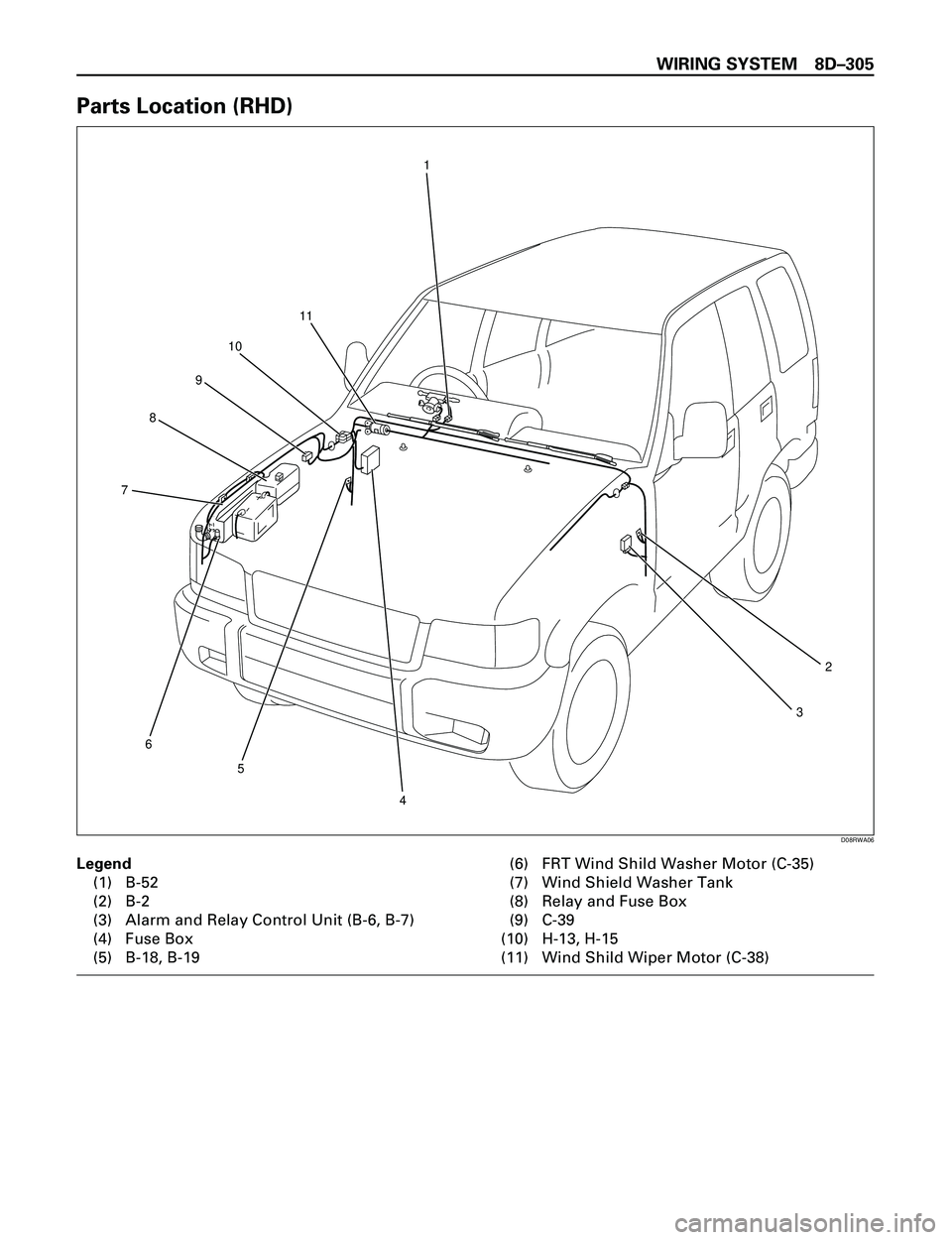

Parts Location (RHD)
Legend
(1) B-52
(2) B-2
(3) Alarm and Relay Control Unit (B-6, B-7)
(4) Fuse Box
(5) B-18, B-19(6) FRT Wind Shild Washer Motor (C-35)
(7) Wind Shield Washer Tank
(8) Relay and Fuse Box
(9) C-39
(10) H-13, H-15
(11) Wind Shild Wiper Motor (C-38)
2
3
4
5
6
7
8
9
10111
D08RWA06

8DÐ306 WIRING SYSTEM

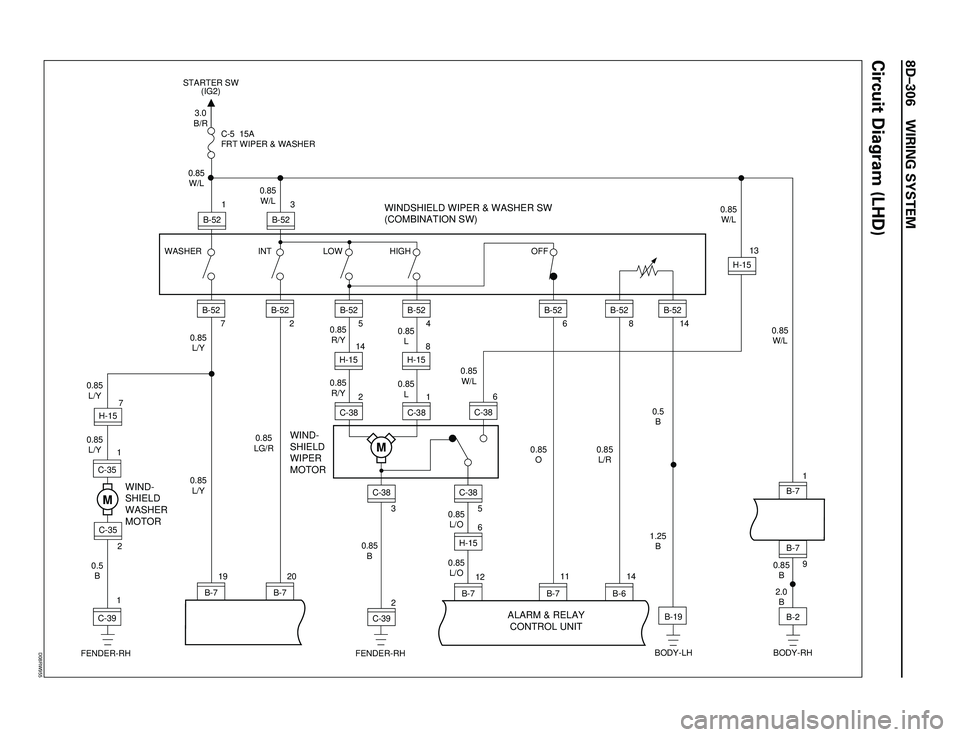

Circuit Diagram (LHD)
3.0
B/R
0.85
W/L
0.85
W/L
0.85
L/Y
0.85
L/Y
0.85
L/Y
0.5
B0.85
L/YC-5 15A
FRT WIPER & WASHERSTARTER SW
(IG2)
B-52B-52B-77
19
1
0.85
LG/R
B-52B-52B-72
20
0.85
O 0.85
W/L
B-52B-76
11
0.85
L/R
B-52B-68
14
B-71
0.5
B0.85
W/L 0.85
W/L
1.25
B
0.85
B
2.0
BB-52
14B-19
3
H-15140.85
R/Y
0.85
R/Y
0.85
BB-52
5C-382
H-15C-35C-3917C-35
2
1
M
WIND-
SHIELD
WASHER
MOTORWIND-
SHIELD
WIPER
MOTORWINDSHIELD WIPER & WASHER SW
(COMBINATION SW)
FENDER-RH FENDER-RHWASHER INT LOW
H-1580.85
L
0.85
LB-52
4C-381
HIGH OFF
MC-392C-38
3
0.85
L/O
0.85
L/O
H-156B-712C-38
5
B-7
9
C-386
ALARM & RELAY
CONTROL UNIT
BODY-RH BODY-LH
B-2
H-1513
D08RW955

WIRING SYSTEM 8DÐ307

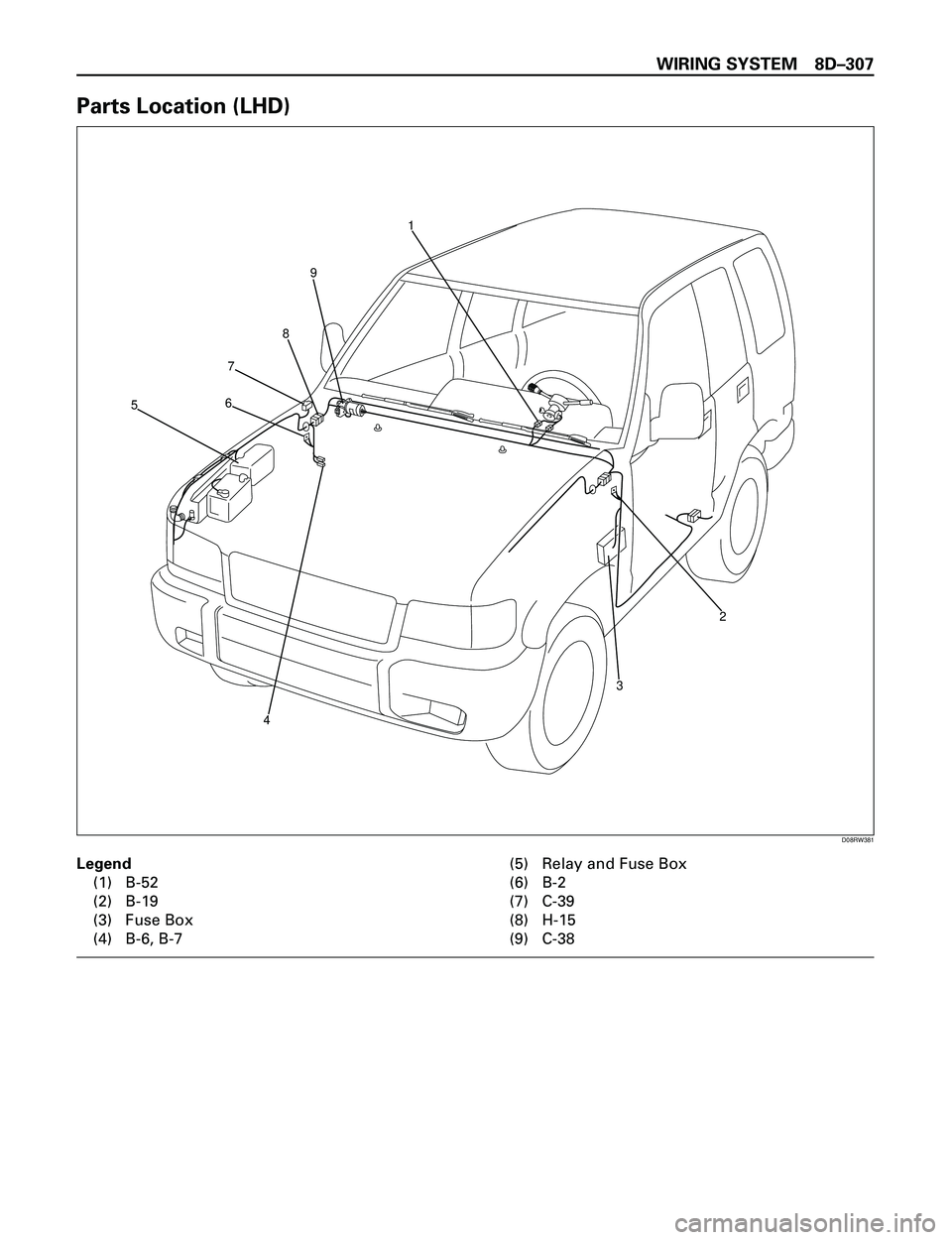

Parts Location (LHD)
Legend
(1) B-52
(2) B-19
(3) Fuse Box
(4) B-6, B-7(5) Relay and Fuse Box
(6) B-2
(7) C-39
(8) H-15
(9) C-38
1
9
6
5
7
8
2
3
4
D08RW381

8DÐ308 WIRING SYSTEM

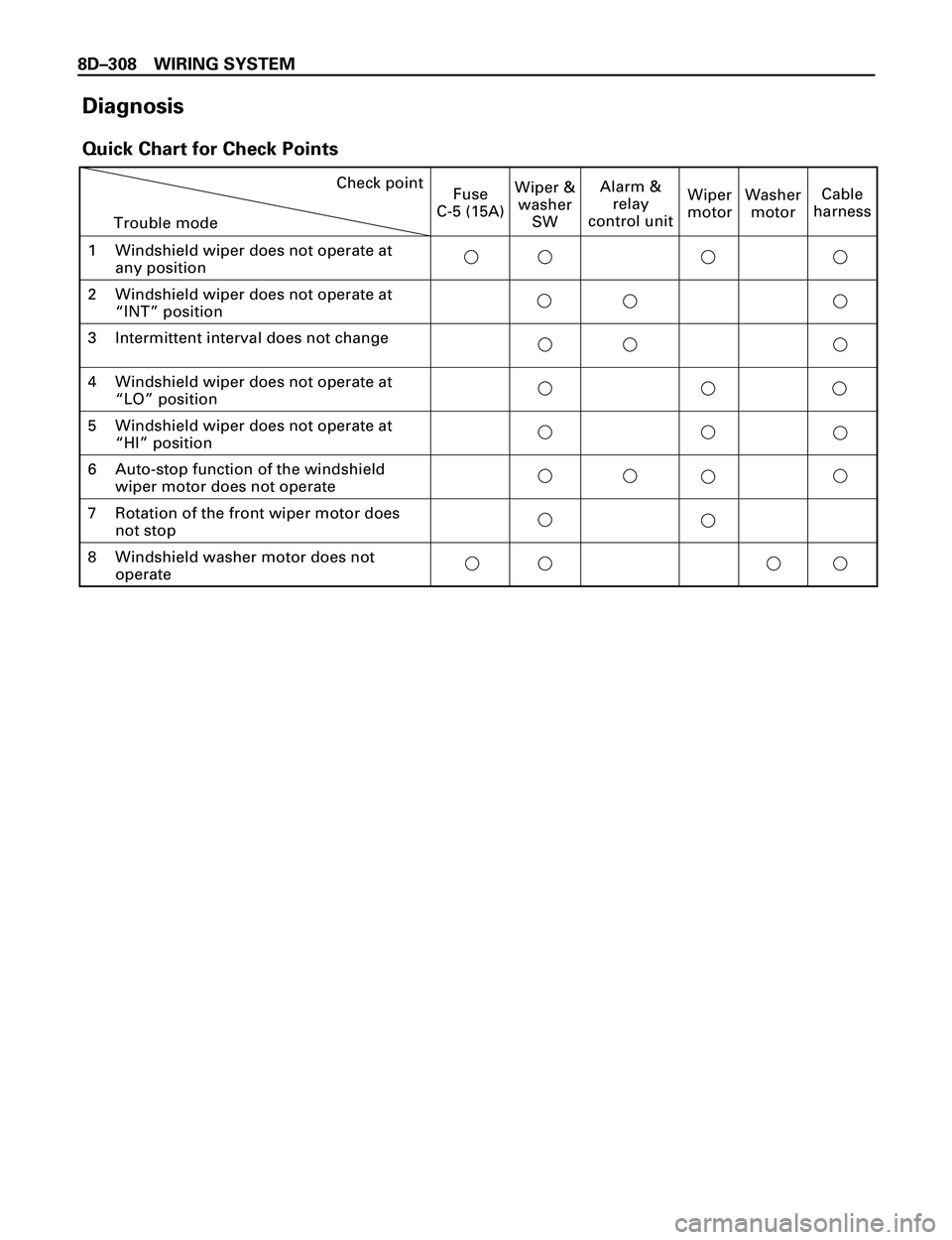

Diagnosis
Quick Chart for Check Points
Check pointFuse
C-5 (15A)Wiper &
washer
SWAlarm &
relay
control unitWiper
motorCable
harness
1 Windshield wiper does not operate at
any position Trouble mode
2 Windshield wiper does not operate at
“INT” position
3 Intermittent interval does not change
4 Windshield wiper does not operate at
“LO” position
5 Windshield wiper does not operate at
“HI” position
6 Auto-stop function of the windshield
wiper motor does not operate
7 Rotation of the front wiper motor does
not stop
Washer
motor
8 Windshield washer motor does not
operate

8DÐ310 WIRING SYSTEM

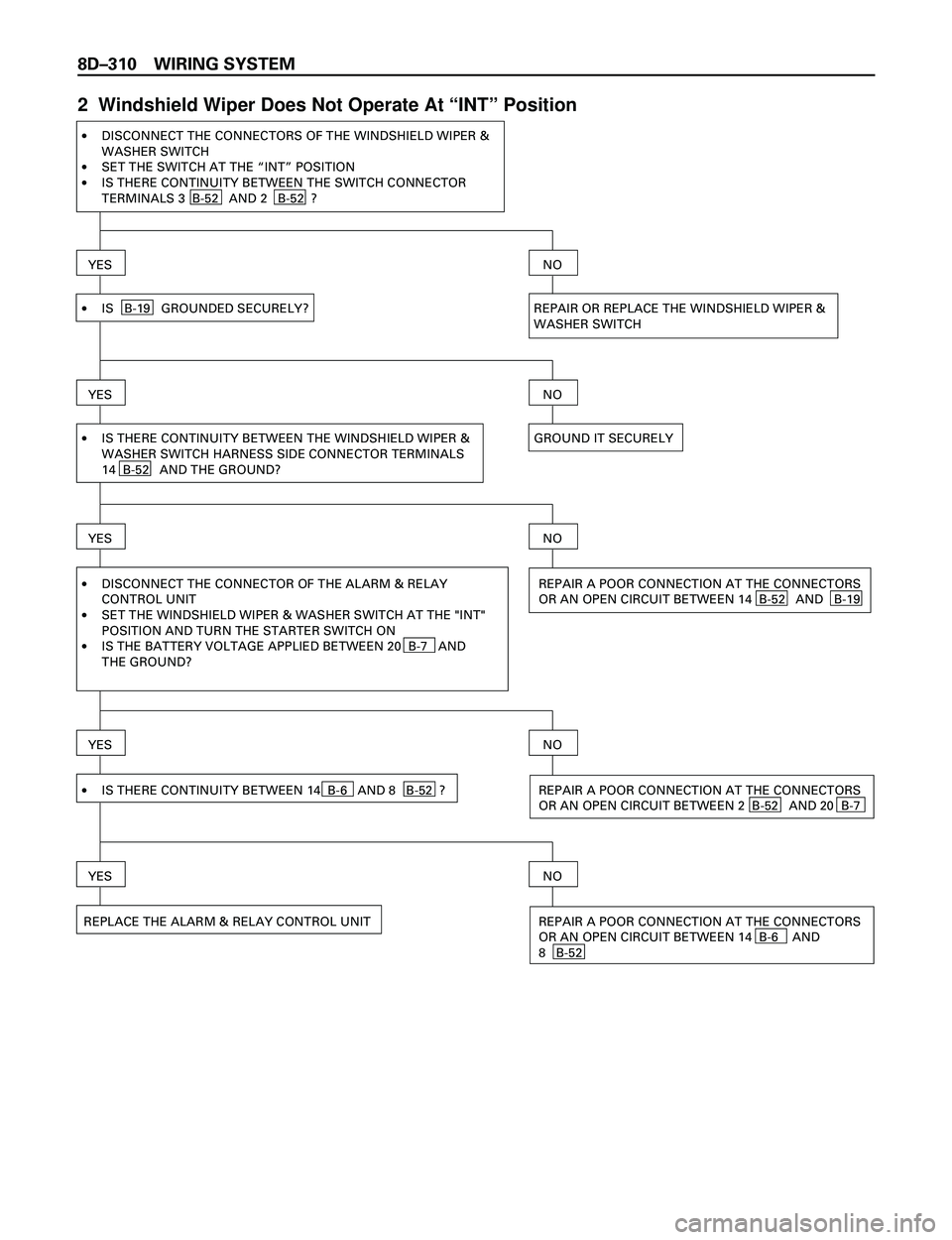

2 Windshield Wiper Does Not Operate At ÒINTÓ Position
·
·
·DISCONNECT THE CONNECTORS OF THE WINDSHIELD WIPER &
WASHER SWITCH
SET THE SWITCH AT THE “INT” POSITION
IS THERE CONTINUITY BETWEEN THE SWITCH CONNECTOR
TERMINALS 3 B-52 AND 2 B-52 ?
YESNO
·
·
·DISCONNECT THE CONNECTOR OF THE ALARM & RELAY
CONTROL UNIT
SET THE WINDSHIELD WIPER & WASHER SWITCH AT THE "INT"
POSITION AND TURN THE STARTER SWITCH ON
IS THE BATTERY VOLTAGE APPLIED BETWEEN 20 B-7 AND
THE GROUND?REPAIR A POOR CONNECTION AT THE CONNECTORS
OR AN OPEN CIRCUIT BETWEEN 14 B-52 AND B-19
YESNO
·IS B-19 GROUNDED SECURELY?REPAIR OR REPLACE THE WINDSHIELD WIPER &
WASHER SWITCH
YESNO
GROUND IT SECURELY ·IS THERE CONTINUITY BETWEEN THE WINDSHIELD WIPER &
WASHER SWITCH HARNESS SIDE CONNECTOR TERMINALS
14 B-52 AND THE GROUND?
YESNO
REPAIR A POOR CONNECTION AT THE CONNECTORS
OR AN OPEN CIRCUIT BETWEEN 2 B-52 AND 20 B-7·IS THERE CONTINUITY BETWEEN 14 B-6 AND 8 B-52 ?
YESNO
REPAIR A POOR CONNECTION AT THE CONNECTORS
OR AN OPEN CIRCUIT BETWEEN 14 B-6 AND
8 B-52 REPLACE THE ALARM & RELAY CONTROL UNIT

WIRING SYSTEM 8DÐ311

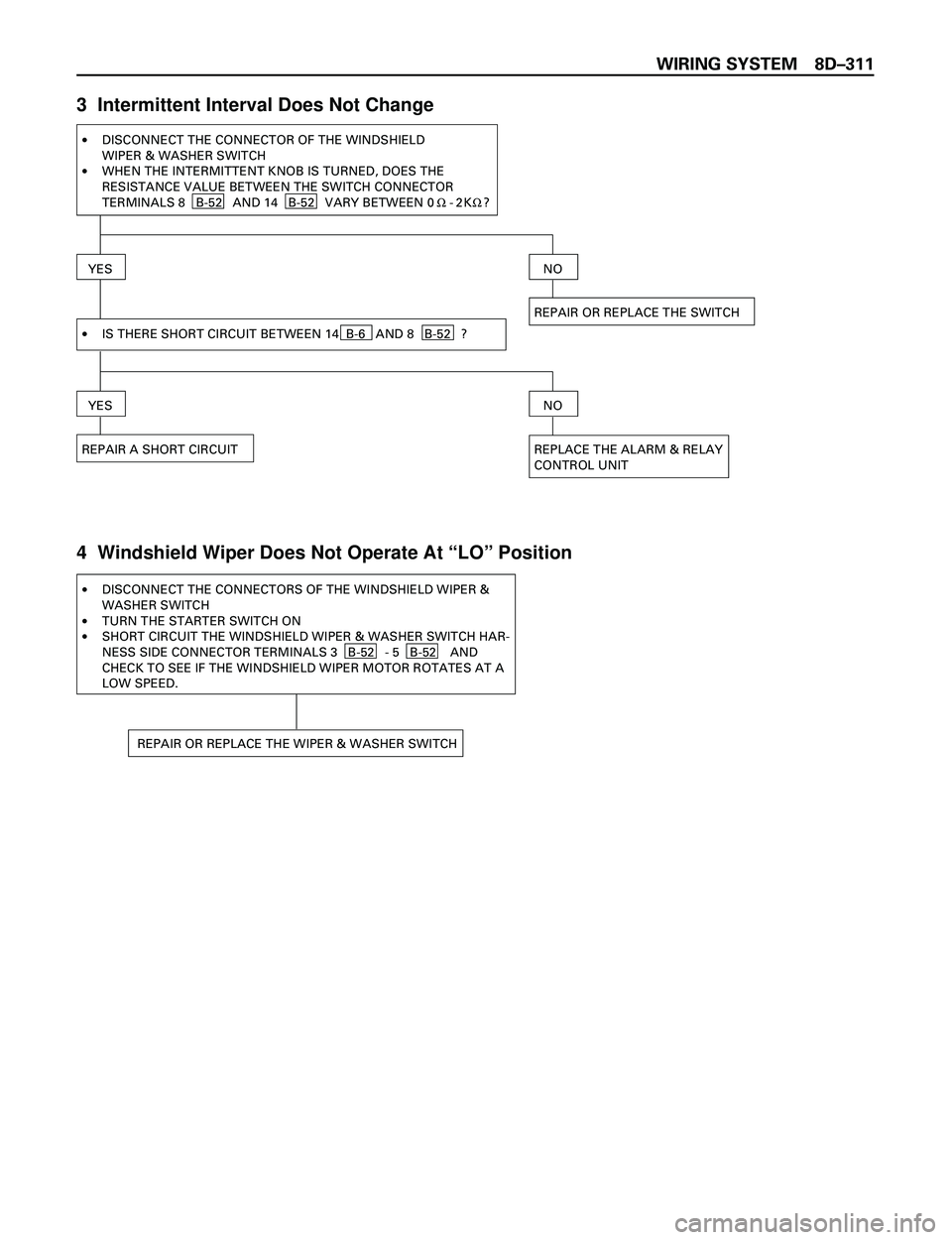

3 Intermittent Interval Does Not Change
·
·DISCONNECT THE CONNECTOR OF THE WINDSHIELD
WIPER & WASHER SWITCH
WHEN THE INTERMITTENT KNOB IS TURNED, DOES THE
RESISTANCE VALUE BETWEEN THE SWITCH CONNECTOR
TERMINALS 8 B-52 AND 14 B-52 VARY BETWEEN 0W- 2 KW?
YESNO
REPAIR OR REPLACE THE SWITCH
IS THERE SHORT CIRCUIT BETWEEN 14 B-6 AND 8 B-52 ?·
YESNO
REPAIR A SHORT CIRCUIT REPLACE THE ALARM & RELAY
CONTROL UNIT
4 Windshield Wiper Does Not Operate At ÒLOÓ Position
·
·
·DISCONNECT THE CONNECTORS OF THE WINDSHIELD WIPER &
WASHER SWITCH
TURN THE STARTER SWITCH ON
SHORT CIRCUIT THE WINDSHIELD WIPER & WASHER SWITCH HAR-
NESS SIDE CONNECTOR TERMINALS 3 B-52 - 5 B-52 AND
CHECK TO SEE IF THE WINDSHIELD WIPER MOTOR ROTATES AT A
LOW SPEED.
REPAIR OR REPLACE THE WIPER & WASHER SWITCH
