ISUZU TROOPER 1998 Service Repair Manual

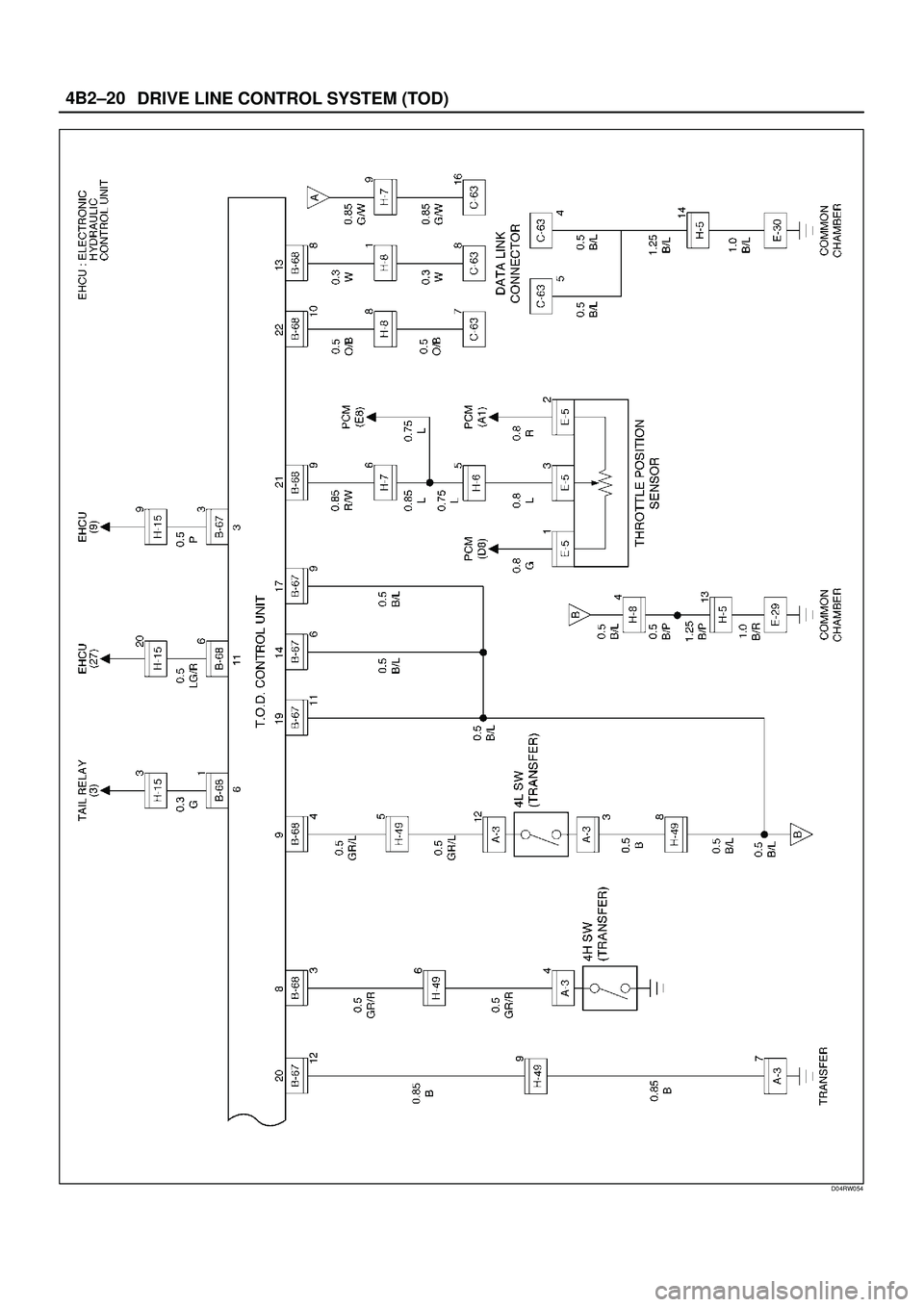

DRIVE LINE CONTROL SYSTEM (TOD) 4B2±20
D04RW054

4B2±21 DRIVE LINE CONTROL SYSTEM (TOD)

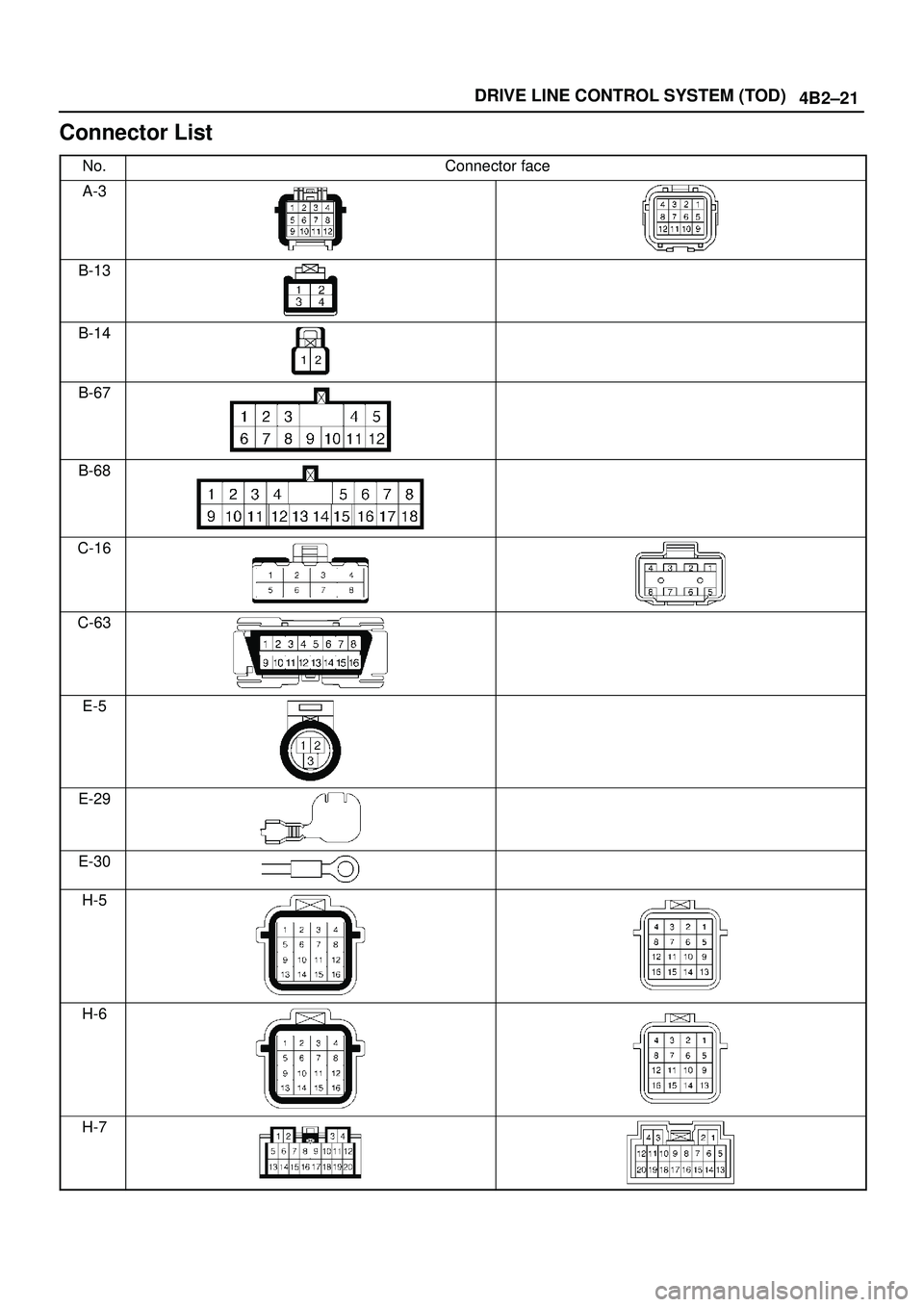

Connector List
No.Connector face
A-3
B-13
B-14
B-67
B-68
C-16
C-63
E-5
E-29
E-30
H-5
H-6
H-7

DRIVE LINE CONTROL SYSTEM (TOD) 4B2±22
No.Connector face
H-8
H-10
H-12
H-15
H-25
H-26
H-27
H-32
H-49
I-9
I-12
M-22
M-23
M-24

4B2±23 DRIVE LINE CONTROL SYSTEM (TOD)

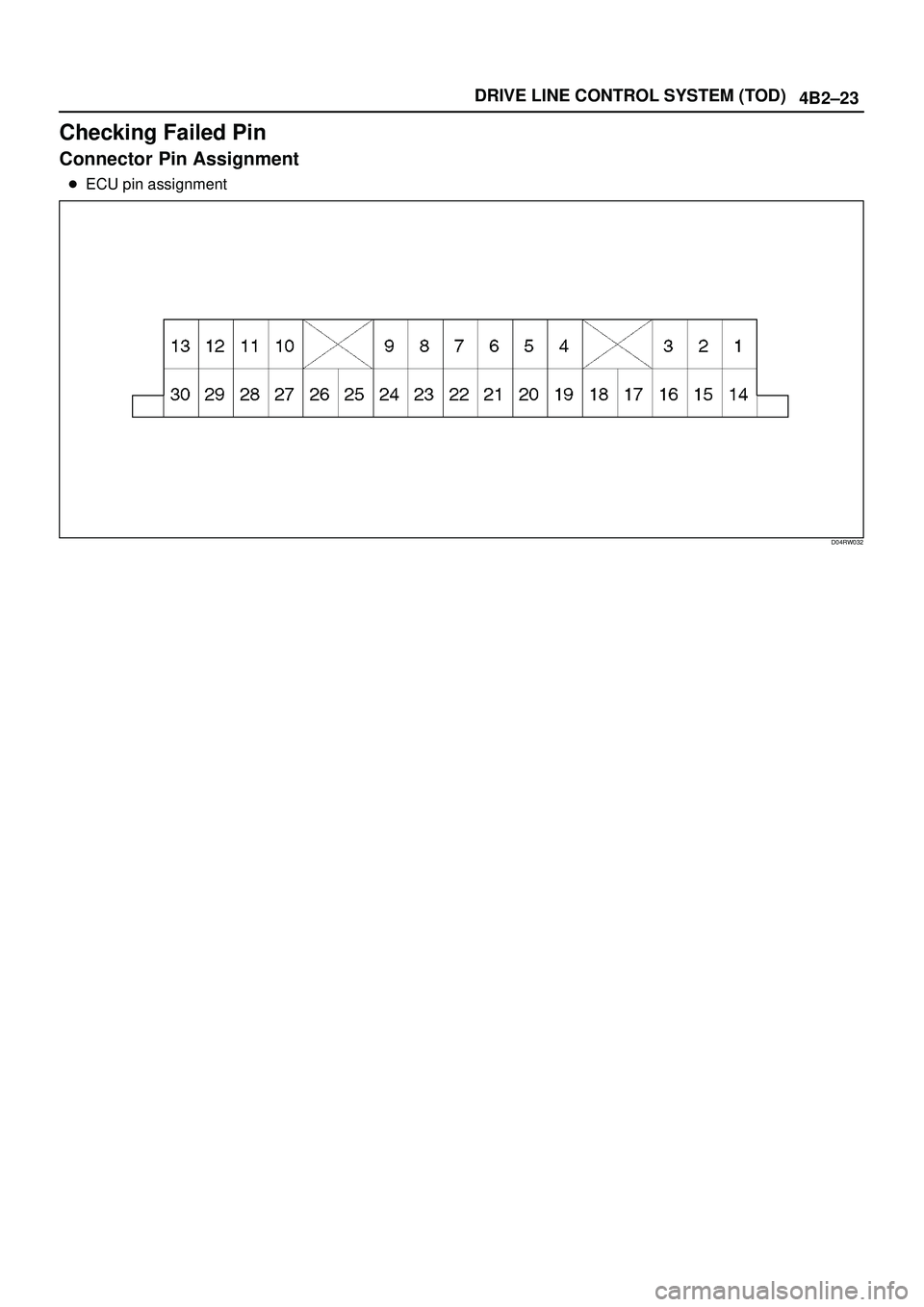

Checking Failed Pin
Connector Pin Assignment

ECU pin assignment
D04RW032

DRIVE LINE CONTROL SYSTEM (TOD) 4B2±24
No.NAMECONTENTS
1VIGPower supply (IG)
2N.CNot used
34WD OUT4WD signal output
4SOL (+)Electromagnetic solenoid
5ADC (+)Axle disconnect output
6LIGHTING SWLighting SW input
7BRAKEBrake SW input
84H SW4H SW input
94L SW4L SW input
10AXEL SWAXEL SW input
11ABS INOperation signal input
12TOD SWTOD SW input
13DIAGSelf-diagnosis input
14D-G MAPD-G MAP recognition input (Only V6 engine)
15Ref.Vehicle speed sensor supply
16N.CNot used
17US/JAPDestination recognition input
18COM (±)Vehicle speed sensor GND
19S-GNDSensor GND
20P-GNDPower GND
21TPSThrottle position sensor
22TECH 2TECH 2 output
23Rer. SigRear vehicle speed sensor input
24Frt. SigFront vehicle speed sensor input
25IND.a4WD disply signal a
26IND.b4WD display signal b
27IND.c4WD display signal c
28IND.AUTOAUTO display output
29IND RrRear display output
30CHECKTOD warning lamp

4B2±25 DRIVE LINE CONTROL SYSTEM (TOD)
Reference

Transfer connector pin assignment (connector on the
transfer case)
for inspection of transfer pins.
810RW310
No.NAMECONTENTS
1Ref. (Rer. )Rear speed sensor reference output
2Ref. (Frt. )Front speed sensor reference output
3SW GNDSW GND
44H SW (+)4H SW plus terminal
5Rer. (+)Rear speed sensor plus
6Frt. (+)Front speed sensor plus
7POWER GNDPower GND
8SOL (+)Electromagnetic solenoid
9COM (±) (Rer. )Rear speed sensor GND
10COM (±) (Frt. )Front speed sensor GND
11NCNot used
124L SW (+)4L SW plus terminal

DRIVE LINE CONTROL SYSTEM (TOD) 4B2±26
Checking Failed TOD Control Unit Pin
NOTE:
1. Unplug the ECU connector and the pins, unless
otherwise specified.2. Before removing the ECU, turn off the ignition switch.
3. If the standard values are not observed, check the
pins with other testers.
Check
Pin
No.Circuit to be
testedIgnition
Switch
PositionEngine
StateMultimeter
Scale/
RangeMeasure
between Pin
NumberStandard ValveNote
14D-G MAPOFFSTOP
14, 19Continuity : OK
(Gasoline)
20P-GNDOFFSTOP
20, 19Continuity : OK
19GNDOFFSTOP
19, GNDContinuity : OK
84H SWOFFSTOP
8, 19No continuity (high,
4L) and continuity
(N) : OK
94L SWOFFSTOP
9, 19No continuity (high)
and continuity (4L,
N) : OK
10AXLE SWONRUN
10, 19Continuity : OKRemove ECU and start the engine. Move
the vehicle forth and back to connect axle
surely.
13DIAGOFFSTOP
13 (TOD), 8
(DLC Con-
nector)Continuity : OKDLC connector terminal 8
25IND.aONSTOPDCV25 (+), 19 (±)8.0 ~14.5 VLighting SW ON : 0V
Lighting SW OFF : 8.0 ~14.5 V
26IND.bONSTOPDCV26 (+), 19 (±)8.0 ~14.5 V
27IND.cONSTOPDCV27 (+), 19 (±)8.0 ~14.5 V
30CHECK
LAMPONSTOPDCV30 (+), 19 (±)8.0 ~14.5 V
11ABS INONSTOPDCV11 (+), 19 (±)11.5 ~14.5 V
15Ref.ONSTOPDCV15 (+), 19 (±)5 ~9 VConnect ECU
24Ft.(+)ONSTOPDCV24 (+), 19 (±)0.7 ~6 VConnect ECU (off one tooth of speed
sensor ring) and move the vehicle making
sure of voltage change.
23Rr.(+)ONSTOPDCV23 (+), 19 (±)0.7 ~6 VConnect ECU (off one tooth of speed
sensor ring) and move the vehicle making
sure of voltage change.
18COM(-)ONSTOPDCV18 (+), 19 (±)0VConnect ECU
1VigONSTOPDCV1 (+), 19 (±)8 ~14.5 V
7BRAKEOFFSTOPDCV7 (+), 19 (±)8 ~14.5 VPress brake pedal
21TPSONSTOPDCV21 (+), 19 (±)0.2 ~4.6 VStep on the accelerator pedal and make
sure that voltage changes.
34WD OUTOFFSTOP
3, 197 ~12 k
Disconnect battery GND terminal
5ADC(+)OFFSTOP
5, 1910 ~30
Disconnect battery GND terminal
4SOL(+)OFFSTOP
4, 191.0 ~5.0
Disconnect battery GND terminal
12TOD SWONSTOPDCV12 (+), 19 (±)SW OFF : 0 V
SW ON : 8.0 ~14.5 VSW OFF : Contact point open
SW ON : Contact point close
6LIGHTINGONSTOPDCV6 (+), 19 (±)SW OFF : 8.0 ~14.5
V
SW ON : 0 V
28AUTO INDIONSTOPDCV28 (+), 19 (±)TOD : 0 V
2H & 4L : 8.0 ~14.5
VLighting SW ON : 0V
Lighting SW OFF : 8.0 ~14.5 V
29RR INDIONSTOPDCV29 (+), 19 (±)0 V
17US/JAPOFFSTOP
17 (+), 19 (±)No continuity : OK

4B2±27 DRIVE LINE CONTROL SYSTEM (TOD)

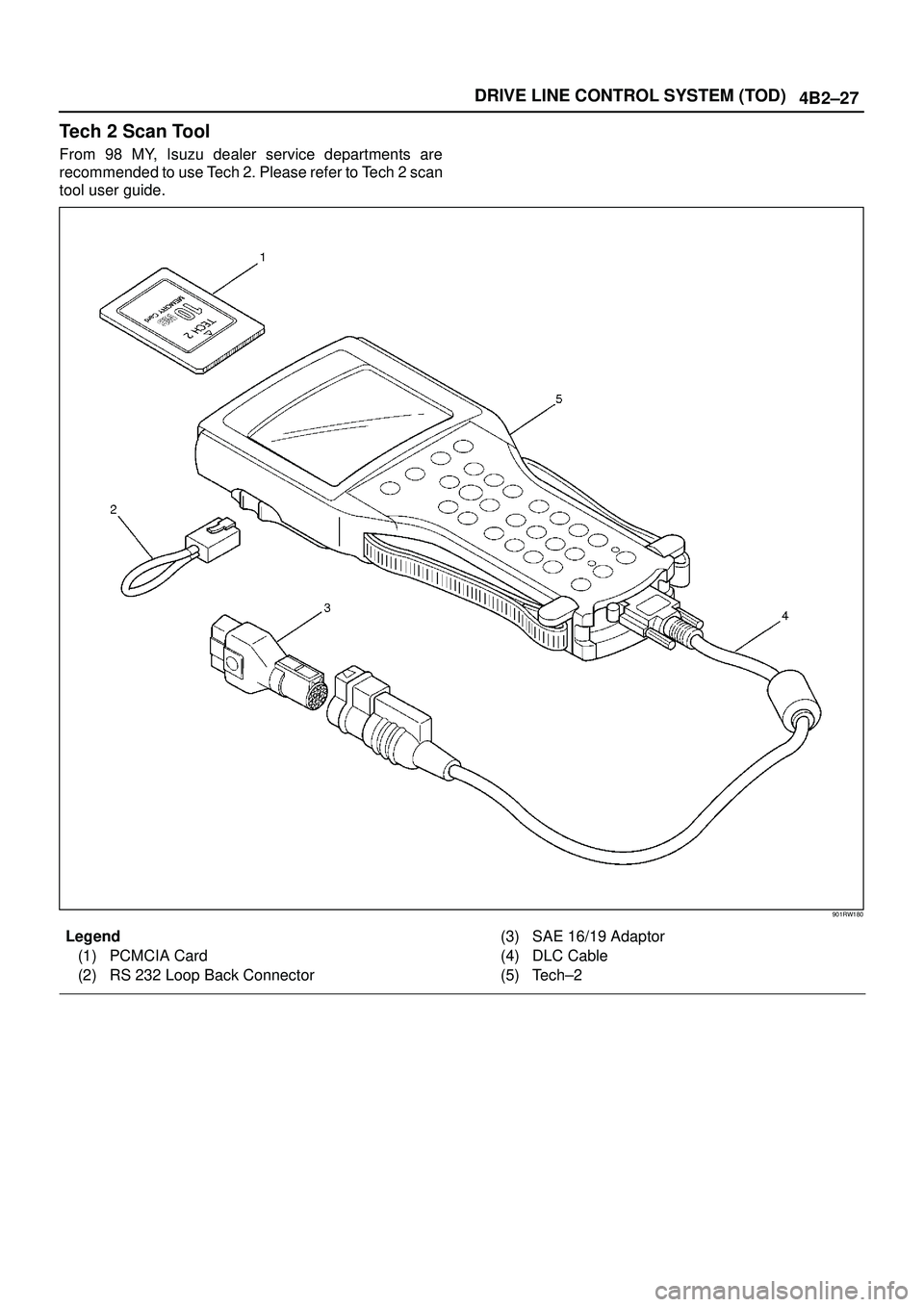

Tech 2 Scan Tool
From 98 MY, Isuzu dealer service departments are
recommended to use Tech 2. Please refer to Tech 2 scan
tool user guide.
901RW180
Legend
(1) PCMCIA Card
(2) RS 232 Loop Back Connector(3) SAE 16/19 Adaptor
(4) DLC Cable
(5) Tech±2

DRIVE LINE CONTROL SYSTEM (TOD) 4B2±28
Getting Started

Before operating the Isuzu PCMCIA card with the
Tech 2, the following steps must be performed:
1. The Isuzu 98 System PCMCIA card (1) inserts into
the Tech 2 (5).
2. Connect the SAE 16/19 adapter (3) to the DLC cable
(4).
3. Connect the DLC cable to the Tech 2 (5)
4. Mark sure the vehicle ignition is off.
5. Connect the Tech 2 SAE 16/19 adapter to the vehicle
ALDL/DLC connector.
810RW308
6. The vehicle ignition turns on.
7. Verify the Tech 2 power up display.
060RW009
NOTE: The RS232 Loop back connector is only to use for
diagnosis of Tech 2 and refer to user guide of the Tech 2.
Operating Procedure
The power up screen is displayed when you power up the
tester with the Isuzu systems PCMCIA card. Follow the
operating procedure below.
060RW014

4B2±29 DRIVE LINE CONTROL SYSTEM (TOD)
D04RW029
