Occupant safety
23
Occupant safety
SEAT BELT SAFETY
Care should be taken to avoid
contamination of the webbing with
polishes, oils and chemicals, and
particularly battery acid. Cleaning
may safely be carried out using mild
soap and water.
The belt should be replaced if
webbing becomes frayed,
contaminated or damaged.
It is essential to replace the entire
assembly after it has been worn in a
severe impact, even if damage to the
assembly is not obvious.
Do not carry hard, fragile or sharp
items between your person and the
seat belt.
Seat belts should be worn by all
vehicle occupants, for every journey,
no matter how short.
When using seat belts to restrain
items other than occupants, take care
to ensure that t he belts are not
damaged, or exposed to sharp edges.
The use of comfort clips, or devices
that would create slackness in the
seat belt system, is not advised.
SEAT BELT CHECKS
Note: If the vehicle is parked on an incline, the
seat belt mechanism may lock. This is a safety
feature and the belt shoul d be gently eased out
from the upper anchorage.
The seat belts should be inspected regularly to
check for fraying, cuts or wear to the webbing,
and the condition and security of the mechanism, buckles, ad
justers, and mounting
points.
• With the seat belt fastened, give the
webbing near the buckle a quick upward
pull. The buckle must remain securely
locked.
• With the seat belt unfastened, unreel the
seat belt to the limit of its travel. Check that
it unreels smoothly with no snatches or
snags. Allow the belt to fully retract, again
checking for smooth operation.
• Partially unreel the se at belt, then hold the
tongue plate and give a quick forward pull.
The mechanism must lock and prevent any
further unreeling.
If any of the seat belts fail to meet those
criteria, immediately contact your Dealer/
Authorised Repairer.
Page 149 of 225
R
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Tyre repair kit
149
USING THE TYRE REPAIR KIT
Avoid skin contact with the sealant
which contains natural rubber latex.
If the tyre inflation pressure does not
reach 1.8 bar (26 psi, 180 kPa) within
seven minutes, the tyre may have
suffered excessive damage. A
temporary repair will not be possible,
and the vehicle should not be driven
until the tyre has been replaced.
Before attempting a tyre repair, ensure
that the vehicle is parked safely, as far
away from passing traffic as possible.
Ensure that the parking brake is applied
and P (Park) is selected.
Do not attempt to remove foreign
objects such as nails, screws, etc. from
the tyre.
Always run the engine when using the
compressor, unless the vehicle is in an
enclosed or poorly ventilated space, as
this may cause asphyxiation.
To prevent overheatin g, do not operate
the compressor continuously for longer
than ten minutes.
Note: All vehicle drivers and occupants should
be made aware that a temporary repair has
been made to a tyre fitt ed to the vehicle. They
should also be made aware of the special
driving conditions im posed when using a
repaired tyre.
REPAIR PROCEDURE
Check the tyre sidewall prior to
inflation. If there are any cracks,
bumps or similar damage, do not
attempt to inflate the tyre. Do not
stand directly besi de the tyre while
the compressor is pumping. Watch the
tyre sidewall. If any cracks, bumps or
similar damage appear, turn off the
compressor and let the air out by
means of the pressure relief valve. Do
not continue to use the tyre.
1. Open the tyre repair kit and peel off the
maximum speed label. Attach the label to
the facia in the driver's field of vision. Take
care not to obstruct an y of the instruments
or warning lights.
2. Uncoil the compressor power cable and
the inflation hose.
3. Unscrew the orange cap from the sealant
bottle receiver and the sealant bottle cap.
4. Screw the sealant bottle into the receiver
(clockwise) until tight.
•Screwing the bottle onto the receiver
will pierce the bottle's seal. Once the
receiver has been fitted, a ratchet
prevents it from being removed.
5. Remove the valve cap from the damaged
tyre.
6. Remove the protective cap from the
inflation hose and connect the inflation
hose to the tyre valve. Ensure that the hose
is screwed on firmly.
7. Ensure that the compressor switch is in the
off ( 0) position.
8. Insert the power cable connector into the
auxiliary power socket.
9. Unless the vehicle is in an enclosed area,
start the engine.
Page 158 of 225
L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Maintenance
158
MaintenanceDISABILITY MODIFICATIONS
Occupants with disabilities which may require
modification of the vehicle, must contact a
Dealer/Authorised Repairer before any
modifications are made.
PARTS AND ACCESSORIES
Do not fit non-approved parts and
accessories or carry out non-approved
alterations or conversions.
Your vehicle is not designed for use
with a roof rack. Do not fit a roof rack to
the vehicle, as damage may result.
AIRBAG SYSTEM
The components that make up the
airbag system are sensitive to
electrical or phys ical interference,
either of which could easily damage
the system and cause inadvertent
operation or a malfunction of the
airbag module.
To prevent malfunction of the airbag system
always consult your Dealer/Authorised
Repairer before fitting any of the following:
• Electronic equipment such as a mobile
phone, two-way radio or in-car
entertainment system.
• Accessories attached to the front of the
vehicle.
• Any modification to the front of the vehicle.
• Any modification involving the removal or
repair of any wiring or component in the
vicinity of any of the airbag system
components, including the steering wheel,
steering column, instrument or facia
panels.
• Any modification to th e fascia panels or
steering wheel.
ANTI-THEFT SYSTEM
No modifications or additions should
be made to the anti- theft system. Such
changes could cause the system to
malfunction.
OWNER MAINTENANCE
Any significant or sudden drop in fluid
levels, or uneven ty re wear, should be
reported to a qualified technician
without delay.
In addition to the routine services and
inspections, a number of simple checks must
be carried out more fr equently. These checks
can be carried out by th e owner and advice is
given on the pages that follow.
DAILY CHECKS
• Operation of lamps, horn, direction
indicators, wipers, washers and warning
indicators.
• Operation of seat belts and brakes.
• Look for fluid deposits underneath the
vehicle that might indicate a leak.
Condensation drips from the air
conditioning are normal.
WEEKLY CHECKS
•Engine oil level.
• Engine coolant level.
• Brake fluid level.
• Power steering fluid level.
• Screen washer fluid level.
• Tyre pressures and condition.
• Operate air conditioning.
Note: The engine oil leve l should be checked
more frequently if the vehicle is driven for
prolonged periods at high speeds.
Page 160 of 225
L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Maintenance
160
FUEL SYSTEM
Under no circumst ances should any
part of the fuel system be dismantled
or replaced by anyone other than a
suitably qualified vehi cle technician.
Ensure sparks and naked lights are
kept away from the engine
compartment.
Wear protective clothing, including,
where practicable, gloves made from
an impervious material.
USED ENGINE OIL
Prolonged contact with engine oil may cause
serious skin disorders, including dermatitis
and cancer of the skin. Always wash
thoroughly after contact.
OPENING THE BONNET
Do not attempt to open the bonnet if the
pedestrian protec tion system has
deployed.
1. Pull the bonnet release handle located in
the left-hand front footwell.
2. Lift the bonnet safety catch lever located
below the centre point of the bonnet, and
raise the bonnet.
CLOSING THE BONNET
Do not drive with the bonnet retained
by the safety catch alone.
1. Lower the bonnet until the safety catch
engages. Using bot h hands, press the
bonnet down until the catches click.
2. Check that both catche s are fully engaged
by attempting to lift both sides of the front
edge of the bonnet. This should be free
from all movement.
Page 168 of 225
L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fluid level checks
168
Fluid level checksCHECKING THE ENGINE OIL LEVEL
Check the engine oil weekly. If any
significant or sudden drop in oil level is
noted, seek qualified assistance.
If the message ENGINE OIL PRESSURE
LOW is displayed, stop the engine as
soon as it is safe to do so and seek
qualified assistance. Do not start the
engine until the cause has been
rectified.
Prior to checking the oil level ensure that the
vehicle is on level ground.
All except V6 petrol engines
Ensure that:
• The engine oil has reached working
temperature (oil is hot).
• The engine has been switched off for ten
minutes, as the syst em will not give an
accurate reading until the oil level has
stabilised.
The oil level can then be checked as follows:
1. Switch on the ignition (do not start the
engine).
2. Ensure Park (P ) is selected.
3. Press the trip button (on the end of the
lighting control stalk) repeatedly until the
oil can icon, along with the current oil level
status and topping-up ad vice is displayed
in the message centre, as follows. A.
Oil level at recommended level. No top-up
required.
B. Add 0.5 litres (0.9 pints) of oil.
C. Add 1 litre (1.8 pints) of oil.
D. Oil level above maximum for safe
operation. Do not drive the vehicle. Seek
qualified assistance.
E. Oil level below mi nimum for safe
operation. Add 1.5 litres (2.6 pints) of oil,
then recheck the level.
F. Oil level stabilising, oil level not available.
Wait 10 minutes, then recheck the oil level
display.
If this display is accompanied by the
warning message ENGINE OIL LEVEL
MONITOR SYSTEM FAULT , seek qualified
assistance.
Page 169 of 225
R
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fluid level checks
169
V6 petrol engines
Note: If it is necessary to check the oil level
when the engine is hot, switch off the engine
and let stand for five minutes to allow the oil to
drain into the sump. Do not start the engine.

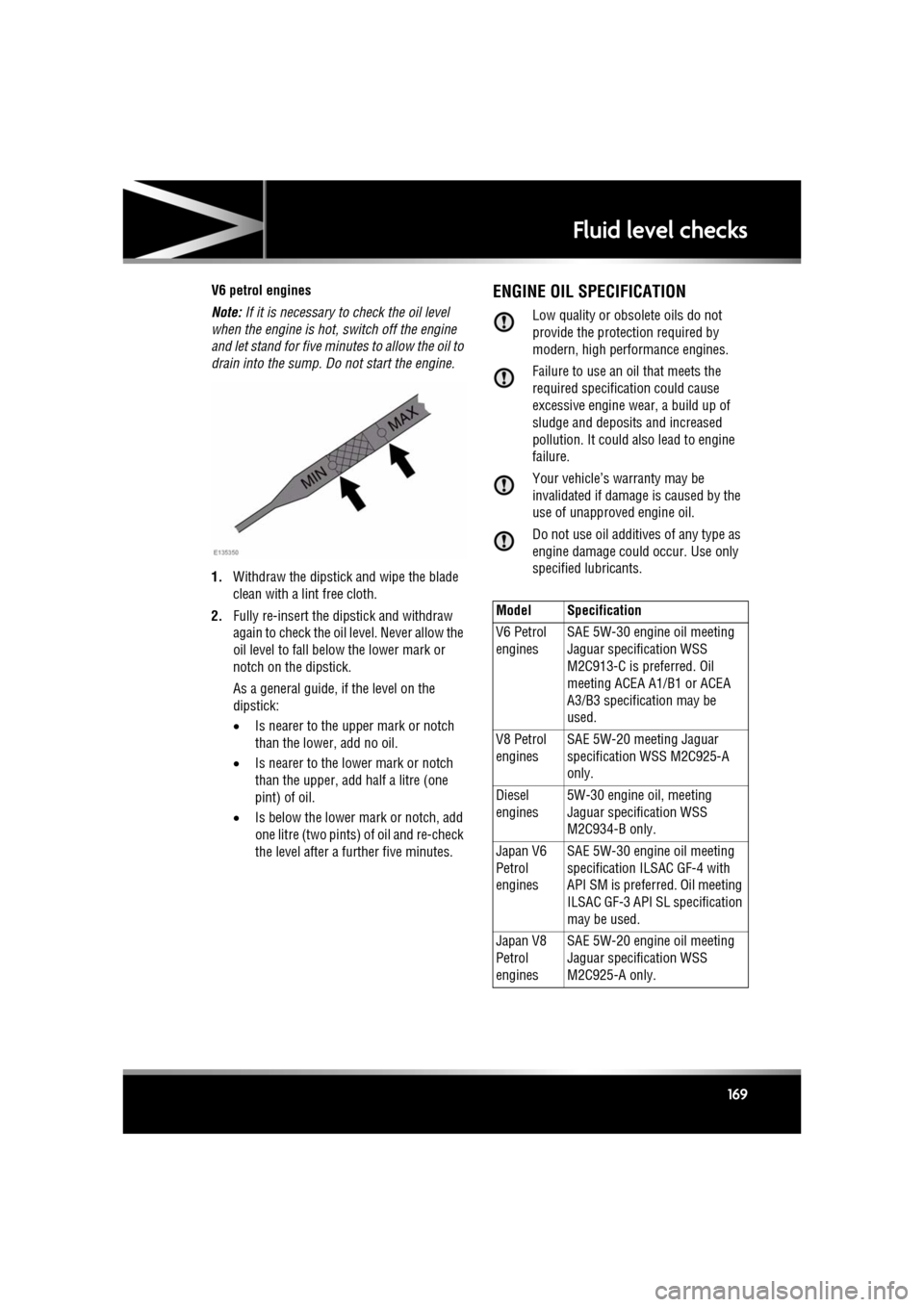

1. Withdraw the dipstick and wipe the blade
clean with a lint free cloth.
2. Fully re-insert the dipstick and withdraw
again to check the oil level. Never allow the
oil level to fall below the lower mark or
notch on the dipstick.
As a general guide, if the level on the
dipstick:
•Is nearer to the upper mark or notch
than the lower, add no oil.
• Is nearer to the lower mark or notch
than the upper, add half a litre (one
pint) of oil.
• Is below the lower mark or notch, add
one litre (two pints) of oil and re-check
the level after a further five minutes.ENGINE OIL SPECIFICATION
Low quality or obsolete oils do not
provide the protection required by
modern, high perfor mance engines.
Failure to use an oil that meets the
required specification could cause
excessive engine wear, a build up of
sludge and deposit s and increased
pollution. It could also lead to engine
failure.
Your vehicle’s warranty may be
invalidated if damage is caused by the
use of unapproved engine oil.
Do not use oil additives of any type as
engine damage could occur. Use only
specified lubricants.
Model Specification
V6 Petrol
engines SAE 5W-30 engine oil meeting
Jaguar specification WSS
M2C913-C is preferred. Oil
meeting ACEA A1/B1 or ACEA
A3/B3 specification may be
used.
V8 Petrol
engines SAE 5W-20 meeting Jaguar
specification WSS M2C925-A
only.
Diesel
engines 5W-30 engine oil, meeting
Jaguar specification WSS
M2C934-B only.
Japan V6
Petrol
engines SAE 5W-30 engine oil meeting
specification ILSAC GF-4 with
API SM is prefe
rred. Oil meeting
ILSAC GF-3 API SL specification
may be used.
Japan V8
Petrol
engines SAE 5W-20 engine oil meeting
Jaguar specification WSS
M2C925-A only.
Page 170 of 225
L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fluid level checks
170
Jaguar recommends:
TOPPING UP THE OIL
Overfilling with oil could result in severe
engine damage.
1. Unscrew the oil filler cap.
2. Add oil as indicated by the message centre
display.
3. Wait five minutes fo r the oil level to
stabilise then re-check.
It is essential to use the correct specification
oil, and to ensure it is suitable for the climatic
conditions in which the vehicle is to be
operated.
ENGINE OIL CONSUMPTION
A certain amount of oil consumption is normal.
The rate of consumpt ion will depend on the
following:
• The quality and viscosity of the oil.
• Climatic conditions.
• The speed at which the engine is being
operated.
• Road conditions.
Drivers should expect above normal
consumption when the engi ne is new, and after
running-in if high speeds are sustained.
CHECKING THE COOLANT LEVEL
Running the engine without coolant will
cause serious engine damage.
If persistent coolant loss is noticed,
seek qualified assistance immediately.
The coolant level in the expansion tank should
be checked at least weekly (more frequently in
high mileage or severe operating conditions).
Always check the level when the system is
cold.
Ensure the coolant level is maintained between
the level indicator marks, as shown in the
illustrations.
Diesel engines
Petrol engines
Page 179 of 225
R
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Technical specifications
179
CAPACITIES
The quoted capacities are approximate and
provided as a guide only. All levels must be
checked using the level marks or information
displayed in the message centre, as applicable. Item Variant Capacity
Fuel tank (usable) Diesel
68.1 litres (15 gallons)
Petrol 69.5 litres (15.3 gallons)
Fuel capacity (when the fuel gauge
indicates empty) Diesel 64 litres (14.1 gallons)
Petrol 64 litres (14.1 gallons)
Reserve capacity (when the fuel
gauge indicates empty) Diesel 5.5 litres (1.2 gallons)
Petrol 5.5 litres (1.2 gallons)
Engine oil refill and filter change I4 Diesel 5.86 litres (10.3 pints)
V6 Diesel 6.4 litres (11.3 pints)
V6 Petrol 6.5 litres (11.4 pints)
V8 Petrol 7.25 litres (12.8 pints)
Washer reservoir With headlamp wash 5.5 litres (9.7 pints)
Without headlamp wash 4.4 litres (7.7 pints)
Cooling system (fill from dry) I4 Diesel 11.56 litres (20.3 pints)
V6 Diesel 12.5 litres (22 pints)
V6 Petrol 9.25 litres (16.3 pints)
V8 Petrol (Normally Aspi rated) 12.5 litres (22 pints)
V8 Petrol (Supercharged ) 12.3 litres (21.6 pints)
Cooling system (service fill) I 4 Diesel8.2 litres (14.4 pints)
V6 Diesel 9.7 litres (17.1 pints)
V6 Petrol 7.42 litres (13.1 pints)
V8 Petrol (Normally Aspira ted) 7.5 litres (13.2 pints)
V8 Petrol (Supercharged) - both
drain points used 8.6 litres (15.1 pints)
Page 209 of 225
R
english-en (10, 18, 21 & 25)
Index
209
warning lampactive . . . . . . . . . . . . . . . . . . . . . . . . . 53
off . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
warning lamps . . . . . . . . . . . . . . . . . . . . 84
DVDs loading. . . . . . . . . . . . . . . . . . . . . . . . . 125
Dynamic mode . . . . . . . . . . . . . . . . . . . . . 83
E
EBA (Emergency brake assist). . . . . . . . . . 87
EBD (Electronic brake fo rce distribution) . 87
ECO Stop/Start . . . . . . . . . . . . . . . . . . . . . 79
Electric seats
front. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electronic brake force distribution (EBD) . 87
Electronic data . . . . . . . . . . . . . . . . . . . . . 199
Electronic parking brake (EPB) . . . . . . . . . 88
Emergency brake assist (EBA). . . . . . . . . 101
Engine
compartmentcleaning . . . . . . . . . . . . . . . . . . . . . . 165
fuse box . . . . . . . . . . . . . . . . . . . . . . 189
opening . . . . . . . . . . . . . . . . . . . . . . 160
overview . . . . . . . . . . . . . . . . . . . . . 161
coolant level checking . . . . . . . . . . . . . 170
diesel . . . . . . . . . . . . . . . . . . . . . . 153, 154 starting the engine . . . . . . . . . . . . . . . 74
DPF (Diesel particulate filter) . . . . . . . . 159
engine compartment . . . . . . . . . . . . . . 161
engine malfunction warning lamp . . . . . 52
failure to start . . . . . . . . . . . . . . . . . . . . 76
malfunction warning lamp . . . . . . . . . . . 52
Number . . . . . . . . . . . . . . . . . . . . . . . . 201
oil consumption . . . . . . . . . . . . . . . . . . 170
oil level check . . . . . . . . . . . . . . . . . . . 168
oil level consumption. . . . . . . . . . . . . . 170
oil specification . . . . . . . . . . . . . . . . . . 169
petrol starting the engine . . . . . . . . . . . . . . . 74
specifications. . . . . . . . . . . . . . . . . . . . 175
starting petrol . . . . . . . . . . . . . . . . . . . . . . . . . 77 switching off . . . . . . . . . . . . . . . . . . . . . . 75
Ensembles (DAB radio). . . . . . . . . . . . . . . 112
Entering a destination . . . . . . . . . . . . . . . . 138 by town . . . . . . . . . . . . . . . . . . . . . . . . . 141
Entering the vehicle entry and exit mode . . . . . . . . . . . . . . . . 22
keyless entry . . . . . . . . . . . . . . . . . . . . . . . 6
Entertainment CD
controls . . . . . . . . . . . . . . . . . . . . . . . 120
DAB radio controls . . . . . . . . . . . . . . . . . . . . . . . 111
navigation all softkey . . . . . . . . . . . . . . . . . . . . . 142
coordinates . . . . . . . . . . . . . . . . . . . . 140
list . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
menu . . . . . . . . . . . . . . . . . . . . . . . . . 135
motorway . . . . . . . . . . . . . . . . . . . . . 141
POI categories. . . . . . . . . . . . . . . . . . 141
POI (Points of interest) . . . . . . . 139, 141
postcode . . . . . . . . . . . . . . . . . . . . . . 140
previous . . . . . . . . . . . . . . . . . . . . . . 140
restore defaults . . . . . . . . . . . . . . . . . 140
TMC . . . . . . . . . . . . . . . . . . . . . . . . . 142
TMC display . . . . . . . . . . . . . . . . . . . 142
TMC icons . . . . . . . . . . . . . . . . . . . . . 143
portable media
automatic reconnection. . . . . . . . . . . 118
changing device . . . . . . . . . . . . . . . . 118
connecting devices . . . . . . . . . . . . . . 113
connecting multiple de vices . . . . . . . 117
connections. . . . . . . . . . . . . . . . . . . . 113
controls . . . . . . . . . . . . . . . . . . . . . . . 115
lost connection . . . . . . . . . . . . . . . . . 118
pairing . . . . . . . . . . . . . . . . . . . . 117, 118
playing . . . . . . . . . . . . . . . . . . . . . . . 117
radio controls . . . . . . . . . . . . . . . . . . . . . . . 109
RDS (Radio data system) . . . . . . . . . 110
RSE (Rear screen entertainment) screen settings . . . . . . . . . . . . . . . . . . 60
telephone
last 10 . . . . . . . . . . . . . . . . . . . . . . . . 133
Page 210 of 225
L
english-en (10, 18, 21 & 25)
Index
210
pairing . . . . . . . . . . . . . . . . . . . . . . . 130
phonebook . . . . . . . . . . . . . . . . . . . . 132
settings . . . . . . . . . . . . . . . . . . . . . . 133
television
analogue/digital option. . . . . . . . . . . 123
controls . . . . . . . . . . . . . . . . . . . . . . 122
touch screen . . . . . . . . . . . . . . . . . . . . 166 display icons . . . . . . . . . . . . . . . . . . . 59
home menu . . . . . . . . . . . . . . . . . . . . 58
operating . . . . . . . . . . . . . . . . . . . . . . 59
setup . . . . . . . . . . . . . . . . . . . . . . . . . 59
system settings . . . . . . . . . . . . . . . . . 60
touch screen care . . . . . . . . . . . . . . . 59
video media player controls . . . . . . . . . . . . . . . . . . . . . . 124
Entry and exit mode. . . . . . . . . . . . . . . . . . 22
EPB (Electric parking brake) . . . . . . . . . . . 88
Ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . 152
EU conformity (navigati on system) . . . . . 146
Event data recording . . . . . . . . . . . . . . . . 199
Exiting the vehicle
door locks and release levers. . . . . . . . . . 9
global closing . . . . . . . . . . . . . . . . . . . . 10
keyless locking . . . . . . . . . . . . . . . . . . . 10
Exterior cleaning . . . . . . . . . . . . . . . . . . . 164
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . 44
External temperature display . . . . . . . . . . . 65
Extinguisher . . . . . . . . . . . . . . . . . . . . . . 164
F
Faulty alarm sensors . . . . . . . . . . . . . . . . . 11
Fire extiguisher . . . . . . . . . . . . . . . . . . . . 164
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . 164
Flat spots . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fluids brakecheck . . . . . . . . . . . . . . . . . . . . . . . . 171
specification. . . . . . . . . . . . . . . . . . . 172
top up . . . . . . . . . . . . . . . . . . . . . . . 172
capacities. . . . . . . . . . . . . . . . . . . . . . . 179
coolant specification. . . . . . . . . . . . . . . . . . . 171 top up . . . . . . . . . . . . . . . . . . . . . . . . 171
engine oil check. . . . . . . . . . . . . . . . . . . . . . . . . 168
specification . . . . . . . . . . . . . . . . . . . 169
fuel tank capacity . . . . . . . . . . . . . . . . . 156
power steering check. . . . . . . . . . . . . . . . . . . . . . . . . 173
specification . . . . . . . . . . . . . . . . . . . 173
specifications . . . . . . . . . . . . . . . . . . . . 175
washer specification . . . . . . . . . . . . . . . . . . . 174
top up . . . . . . . . . . . . . . . . . . . . . . . . 174
Fog lamps warning lamp . . . . . . . . . . . . . . . . . . . . . 53
Follow mode
entering. . . . . . . . . . . . . . . . . . . . . . . . . . 97
gap change . . . . . . . . . . . . . . . . . . . . . . . 98
override. . . . . . . . . . . . . . . . . . . . . . . . . . 98
resume . . . . . . . . . . . . . . . . . . . . . . . . . . 99
suspending . . . . . . . . . . . . . . . . . . . . . . 103
Forward alert. . . . . . . . . . . . . . . . . . . . . . . 100
Front parking aid operation. . . . . . . . . . . . . . . . . . . . . . . . . 92
system fault . . . . . . . . . . . . . . . . . . . . . . 93
Fuel and refuelling consumption . . . . . . . . . . . . . . . . . . . . . 157 extra-urban cycle. . . . . . . . . . . . . . . . 157
urban cycle . . . . . . . . . . . . . . . . . . . . 157
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . 153 sulphur content . . . . . . . . . . . . . . . . . 153
ethanol . . . . . . . . . . . . . . . . . . . . . . . . . 152
Filler flap . . . . . . . . . . . . . . . . . . . . . . . . 155
filler flap . . . . . . . . . . . . . . . . . . . . . . . . 154
fuel consumption urban cycle . . . . . . . . . . . . . . . . . . . . 157
fuel specification . . . . . . . . . . . . . . . . . . 156
fuel system . . . . . . . . . . . . . . . . . . . . . . 160
methanol . . . . . . . . . . . . . . . . . . . . . . . . 152
misfuel device . . . . . . . . . . . . . . . . . . . . 155
MTBE (Methyl tertiary butyl ether) . . . . 153
octane rating . . . . . . . . . . . . . . . . . . . . . 152
running out . . . . . . . . . . . . . . . . . . . . . . 153
safety precautions . . . . . . . . . . . . . . . . . 152
