NOTE: Idle mixture adjustment is not possible on TBI models.
COLD (FAST) IDLE RPM
NOTE: Fast idle is not adjustable on TBI models.
SERVICING
EMISSION CONTROL
See EMISSIONS section.
SPECIFICATIONS
IGNITION
Distributor
All models are equipped with Renix solid state ignition.
IGNITION COIL RESISTANCE - OHMS @ 75
F (24C) \
\
\
\
\
\
\
Application Primary Secondary
2.5L ........................ .4-.8 .................... 2500-4000
\
\
\
\
\
\
\
FUEL SYSTEM
FUEL INJECTION \
\
\
\
\
\
\
Application Model
2.5L ..................................................... Renix TBI
\
\
\
\
\
\
\
Fuel Pump
The 2.5L engine with TBI uses an electric fuel pump located
in the tank.
FUEL PUMP SPECIFICATIONS
\
\
\
\
\
\
\
Application Pressure: psi (kg/cm) Volume: Pts. (L)
2.5L (TBI) .............. 14.5 (1.0) ......................... N\
/A
\
\
\
\
\
\
\
BATTERY
BATTERY SPECIFICATIONS \
\
\
\
\
\
\
Application Cold Cranking Reserve Capacity
** ( 1) Amps Minutes
Standard ..................... 421 ............................ 75
Optional ..................... 452 ............................ 81
( 1) - At 0
F (-18C). \
\
\
\
\
\
\
STARTER
Page 1292 of 1378
![JEEP CHEROKEE 1988 Service Repair Manual All 2.5L engines use a Bosch positive engagement starter.
STARTER SPECIFICATIONS
\
\
\
\
\](/img/16/57037/w960_57037-1291.png "JEEP CHEROKEE 1988 Service Repair Manual All 2.5L engines use a Bosch positive engagement starter.
STARTER SPECIFICATIONS
\
\
\
\
\")
All 2.5L engines use a Bosch positive engagement starter.
STARTER SPECIFICATIONS
\
\
\
\
\
\
\
Application Volts Amps Test RPM
2.5L .................. 12 ............ 75 ................ 2900
\
\
\
\
\
\
\
ALTERNATOR
All 2.5L engines use a Delco-Remy 10SI or 12SI alternator
with integral regulator.
ALTERNATOR SPECIFICATIONS
\
\
\
\
\
\
\
Application Field Current Rated Amp
** Draw @ 12 Volts Output
Standard ................ 4.0-5.0 Amps ........................ 56
Optional ................ 4.0-5.0 Amps ........................ 66
Optional ................ 4.0-5.0 Amps ........................ 78
\
\
\
\
\
\
\
ALTERNATOR REGULATOR
All 2.5L models use Delco-Remy nonadjustable regulators,
integral with alternator.
REGULATOR OPERATING VOLTAGE @ 80
F (27C) \
\
\
\
\
\
\
Application Voltage
2.5L ..................................................... 13.9-14.9
\
\
\
\
\
\
\
BELT ADJUSTMENT
BELT ADJUSTMENT - TENSION IN LBS. (KG) USING STRAND TENSION GAUGE \
\
\
\
\
\
\
Application New Belt Used Belt
"V" Belts ( 1) .......... 125-155 (57-70) .......... 90-115 (41-52)
Serpentine ............. 180-200 (82-91) ......... 140-150 (64-68\
)
( 1) - Adjust new P/S belt to 120-140 lbs. (54-64 kg).
\
\
\
\
\
\
\
SERVICE INTERVALS
REPLACEMENT INTERVALS \
\
\
\
\
\
\
Component Interval (Miles)\
Air Filter .................................................. 30,000
Fuel Filter ................................................. 30,000
Engine Oil & Filter ........................................... 7500
PCV Valve ................................................... 30,000
Spark Plugs ................................................. 30,000
\
\
\
\
\
\
\
Page 1293 of 1378
![JEEP CHEROKEE 1988 Service Repair Manual CAPACITIES
FLUID CAPACITIES \
\
\
\
\
\
\
Applicatio](/img/16/57037/w960_57037-1292.png "JEEP CHEROKEE 1988 Service Repair Manual CAPACITIES
FLUID CAPACITIES \
\
\
\
\
\
\
Applicatio")
CAPACITIES
FLUID CAPACITIES \
\
\
\
\
\
\
Application Quantity
Auto. Trans. (Dexron II)
Wrangler ......................................... 8.0 qts. (7.6L)\
All Others ....................................... 8.5 qts. (8.0L)\
Cooling System
Wrangler ......................................... 9.0 qts. (8.5L)\
All Others ...................................... 10.0 qts. (9.5L)\
Crankcase (Includes Filter) ........................ 4.0 qts. (3.8L\
)
Drive Axle
Front ............................................ 2.5 pts. (1.2L)\
Rear
Commanche
Standard Capacity ............................ 2.5 pts. (1.2L)\
Metric Ton Axle .............................. 4.8 pts. (2.3L)\
All Others ..................................... 2.5 pts. (1.2L)\
Fuel Tank
Cherokee & Wagoneer
Standard ...................................... 13.5 gals. (51L)\
Optional ........................................ 20 gals. (76L)\
Comanche
Standard ........................................ 16 gals. (60L)\
Optional ...................................... 23.5 gals. (89L)\
Wrangler
Standard ........................................ 15 gals. (57L)\
Optional ........................................ 20 gals. (75L)\
Manual Transmission
AX4 .............................................. 7.8 pts. (3.7L)\
AX5 .............................................. 7.4 pts. (3.5L)\
BA 10/5 .......................................... 3.5 pts. (1.6L)\
Transfer Case (Dexron II)
Wrangler ........................................ 3.25 pts. (1.5L)\
All Others
Command Trac ................................... 2.2 pts. (1.0L)\
Select Trac .................................... 3.0 pts. (1.4L)\
\
\
\
\
\
\
\
SYSTEM REFRIGERANT CAPACITIES \
\
\
\
\
\
\
Application Ozs.
All Models ...................................................... 36
\
\
\
\
\
\
\
Page 1294 of 1378
\003
TU NE-U P - 6 -C YL
1988 J e ep C hero ke e
1987-88 TUNE-UP
Jeep 6 Cylinder Tune-Up
Cherokee, Comanche, Wagoneer, Wrangler
IDENTIFICATION
ENGINE IDENTIFICATION
Engine can be identified by the fourth character of engine
Build Date Code number, located on a tag attached to right side of
block between No. 2 and 3 cylinders.
The same code letter is also the fourth character in the
Vehicle Identification Number (VIN), located at top left corner of
dashboard.
ENGINE CODE TABLE
\
\
\
\
\
\
Engine Code
4.0L (242") MPFI ....................................... M
4.2L (258") 2-Bbl. ..................................... C
\
\
\
\
\
\
TUNE-UP NOTES
NOTE: When performing tune-up procedures described in this
article, these notes and precautions must be followed.
Due to late changes and corrections, always refer to Emission
Control Label in engine compartment before attempting tune-up. If
manual and label specifications differ, use label specifications.
When performing tune-up on vehicles equipped with a catalytic
converter, do not allow or create an engine misfire in one or more
cylinders for an extended period of time. Damage to converter from
overheating may occur due to loading with unburned fuel.
TESTING
ENGINE COMPRESSION
Check compression pressure with engine at normal operating
temperature, all spark plugs removed, throttle and choke valves wide
open and engine at cranking speed.
COMPRESSION SPECIFICATIONS TABLE
\
\
\
\
\
\
Application Specification
Compression Ratio .................................. 9.2:1
Compression Pressure ....... 120-150 psi (8.4-10.5 kg/cm
)
Maximum Variation Between Cylinders .. 30 psi (2.1 kg/cm) \
\
\
\
\
\
HIGH TENSION WIRE RESISTANCE
Do not puncture spark plug wires with any type of probe.
Remove spark plug wire and check resistance using an ohmmeter.
Page 1295 of 1378
![JEEP CHEROKEE 1988 Service Repair Manual SPARK PLUGS
SPARK PLUG TYPE TABLE \
\
\
\
\
\
Application](/img/16/57037/w960_57037-1294.png "JEEP CHEROKEE 1988 Service Repair Manual SPARK PLUGS
SPARK PLUG TYPE TABLE \
\
\
\
\
\
Application")
SPARK PLUGS
SPARK PLUG TYPE TABLE \
\
\
\
\
\
Application Champion No.
All Models ....................................... RFN14LY
\
\
\
\
\
\
SPARK PLUG SPECIFICATIONS TABLE \
\
\
\
\
\
Gap: In. (mm) Torque: Ft. Lbs. (N.m)
0.035 (0.89) ................................ 7-15 (10-20)
\
\
\
\
\
\
FUEL PUMP
4.0L
1) Remove the cap from the pressure test port located in the
fuel rail. See Fig. 1. Connect Fuel Pressure Gauge (J-34730-1) to the
pressure fitting.
2) Start vehicle. Pressure should be approximately 31 psi (2.\
1 kg/cm
) with the vacuum hose connected to the pressure regulator and
39 psi (2.6 kg/cm) with the vacuum hose removed from the pressure
regulator. See FUEL PUMP SPECIFICATIONS TABLE .
3) Check the fuel pump flow rate. A good fuel pump will
deliver at least one liter of fuel per minute with the fuel return
line pinched off. If the fuel pump does not pump adequately, inspect
the fuel system for a plugged fuel filter or filter sock.
4) Fuel pump flow rate can be checked by connecting one end
of an old A/C gauge hose to the fuel test port on the fuel rail and
inserting the other end of the hose into a container of at least one
liter or more capacity.

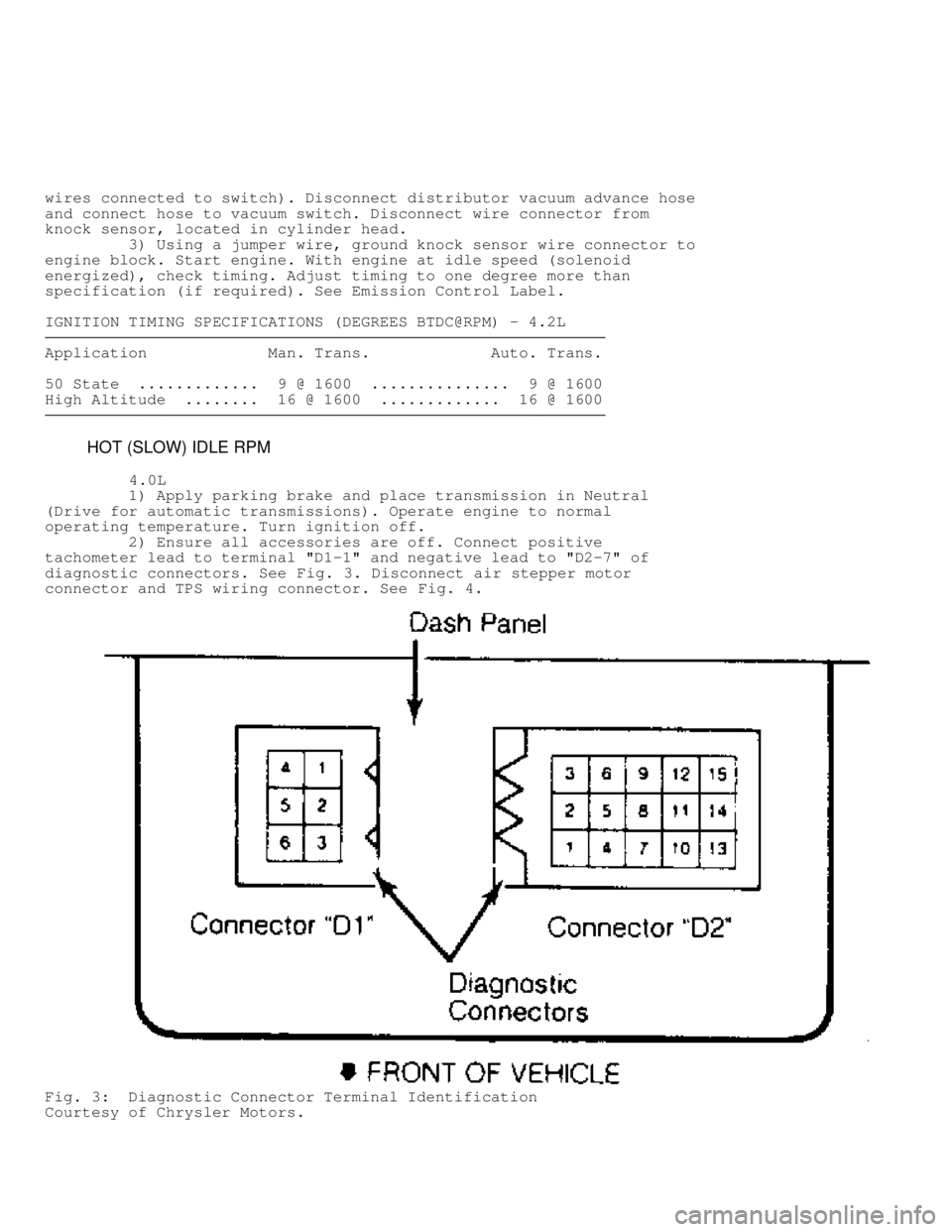

5) Run the fuel pump by installing a jumper wire into
diagnostic connector terminals D1-5 and D1-6. Be sure to pinch off the
fuel return line or most of the fuel will be returned to the fuel
tank.
Fig. 1: Fuel System Pressure Test Components
Courtesy of American Motors/Jeep Corp.
4.2L
Perform fuel pump test with air cleaner removed and fuel
Page 1296 of 1378
inlet line or filter disconnected at carburetor. Disconnect fuel
return line at fuel filter and plug nipple on filter. Make all tests
at idle speed. See FUEL PUMP SPECIFICATIONS TABLE .
FUEL PUMP SPECIFICATIONS TABLE
\
\
\
\
\
\
\
Application Pressure Volume
** psi (kg/cm) ( 1) Pts. (L)
4.0L .................... ( 2) 31 (2.1) ............ 1.0 (.47)
4.0L .................... ( 3) 39 (2.6) ............ 1.0 (.47)
4.2L .................. 4.0-5.0 (.28-.35) ......... 1.0 (.47)
( 1) - Volume per 30 seconds.
( 2) - With the vacuum hose connected to the pressure regulator.
( 3) - With the vacuum hose removed from the pressure regulator.
\
\
\
\
\
\
ADJUSTMENTS
VALVE ARRANGEMENT
* E-I-I-E-I-E-E-I-E-I-I-E (Front-to-rear).
VALVE CLEARANCE
All engines are equipped with hydraulic lifters. Valve
clearance is not adjustable.
IGNITION COIL WIRE
Remove ignition coil wire from coil and distributor cap.
Check terminals for corrosion and clean (if necessary). Check coil
wire resistance. Replace wire if resistance is excessive.
HIGH TENSION WIRE RESISTANCE (OHMS) TABLE
\
\
\
\
\
\
Wire Length Minimum Maximum
0-15" .................. 3000 ................... 10,000
15-25" ................. 4000 ................... 15,000
25-35" ................. 6000 ................... 20,000
Over 35" ............... 8000 ................... 25,000
\
\
\
\
\
\
DISTRIBUTOR
4.0L
Information not available from manufacturer.
4.2L
All models are equipped with Motorcraft Solid State Ignition
(SSI) systems. No adjustments are required.
Page 1297 of 1378

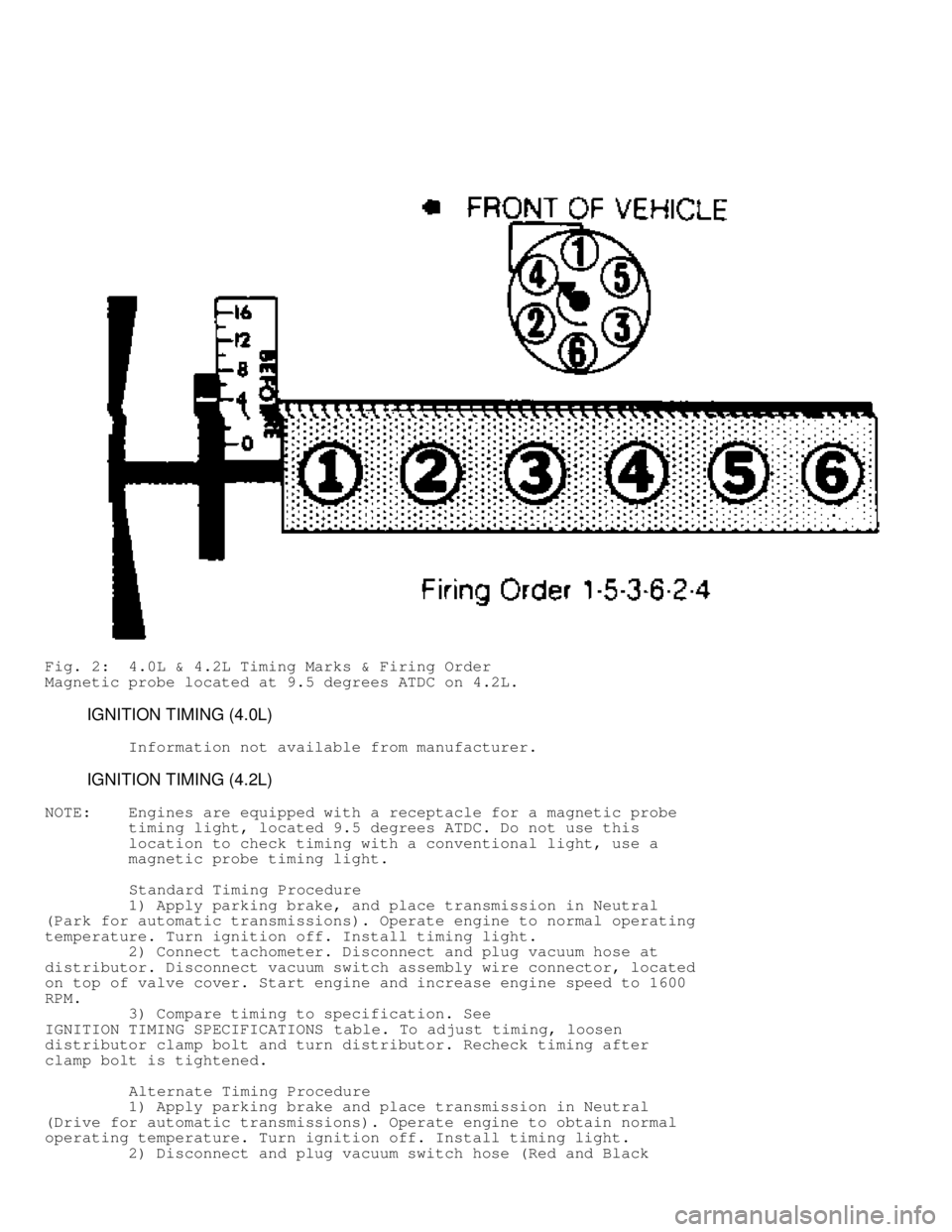

Fig. 2: 4.0L & 4.2L Timing Marks & Firing Order
Magnetic probe located at 9.5 degrees ATDC on 4.2L.
IGNITION TIMING (4.0L)
Information not available from manufacturer.
IGNITION TIMING (4.2L)
NOTE: Engines are equipped with a receptacle for a magnetic probe
timing light, located 9.5 degrees ATDC. Do not use this
location to check timing with a conventional light, use a
magnetic probe timing light.
Standard Timing Procedure
1) Apply parking brake, and place transmission in Neutral
(Park for automatic transmissions). Operate engine to normal operating\
temperature. Turn ignition off. Install timing light.
2) Connect tachometer. Disconnect and plug vacuum hose at
distributor. Disconnect vacuum switch assembly wire connector, located
on top of valve cover. Start engine and increase engine speed to 1600
RPM.
3) Compare timing to specification. See
IGNITION TIMING SPECIFICATIONS table. To adjust timing, loosen
distributor clamp bolt and turn distributor. Recheck timing after
clamp bolt is tightened.
Alternate Timing Procedure
1) Apply parking brake and place transmission in Neutral
(Drive for automatic transmissions). Operate engine to obtain normal
operating temperature. Turn ignition off. Install timing light.
2) Disconnect and plug vacuum switch hose (Red and Black
Page 1298 of 1378
wires connected to switch). Disconnect distributor vacuum advance hose
and connect hose to vacuum switch. Disconnect wire connector from
knock sensor, located in cylinder head.
3) Using a jumper wire, ground knock sensor wire connector to
engine block. Start engine. With engine at idle speed (solenoid
energized), check timing. Adjust timing to one degree more than
specification (if required). See Emission Control Label.
IGNITION TIMING SPECIFICATIONS (DEGREES BTDC@RPM) - 4.2L
\
\
\
\
\
\
Application Man. Trans. Auto. Trans.
50 State ............. 9 @ 1600 ............... 9 @ 1600
High Altitude ........ 16 @ 1600 ............. 16 @ 1600
\
\
\
\
\
\
HOT (SLOW) IDLE RPM
4.0L
1) Apply parking brake and place transmission in Neutral
(Drive for automatic transmissions). Operate engine to normal
operating temperature. Turn ignition off.
2) Ensure all accessories are off. Connect positive
tachometer lead to terminal "D1-1" and negative lead to "D2-7" of
diagnostic connectors. See Fig. 3. Disconnect air stepper motor
connector and TPS wiring connector. See Fig. 4.
Fig. 3: Diagnostic Connector Terminal Identification
Courtesy of Chrysler Motors.
Page 1299 of 1378
![JEEP CHEROKEE 1988 Service Repair Manual Fig. 4: Installing Air Stepper Motor Exerciser
Courtesy of Chrysler Motors.
3) Install Air Stepper Motor Exerciser (Ele.CT01) on the air\
stepper motor connector. See Fig. 4. Install the Re](/img/16/57037/w960_57037-1298.png "JEEP CHEROKEE 1988 Service Repair Manual Fig. 4: Installing Air Stepper Motor Exerciser
Courtesy of Chrysler Motors.
3) Install Air Stepper Motor Exerciser (Ele.CT01) on the air\
stepper motor connector. See Fig. 4. Install the Re")

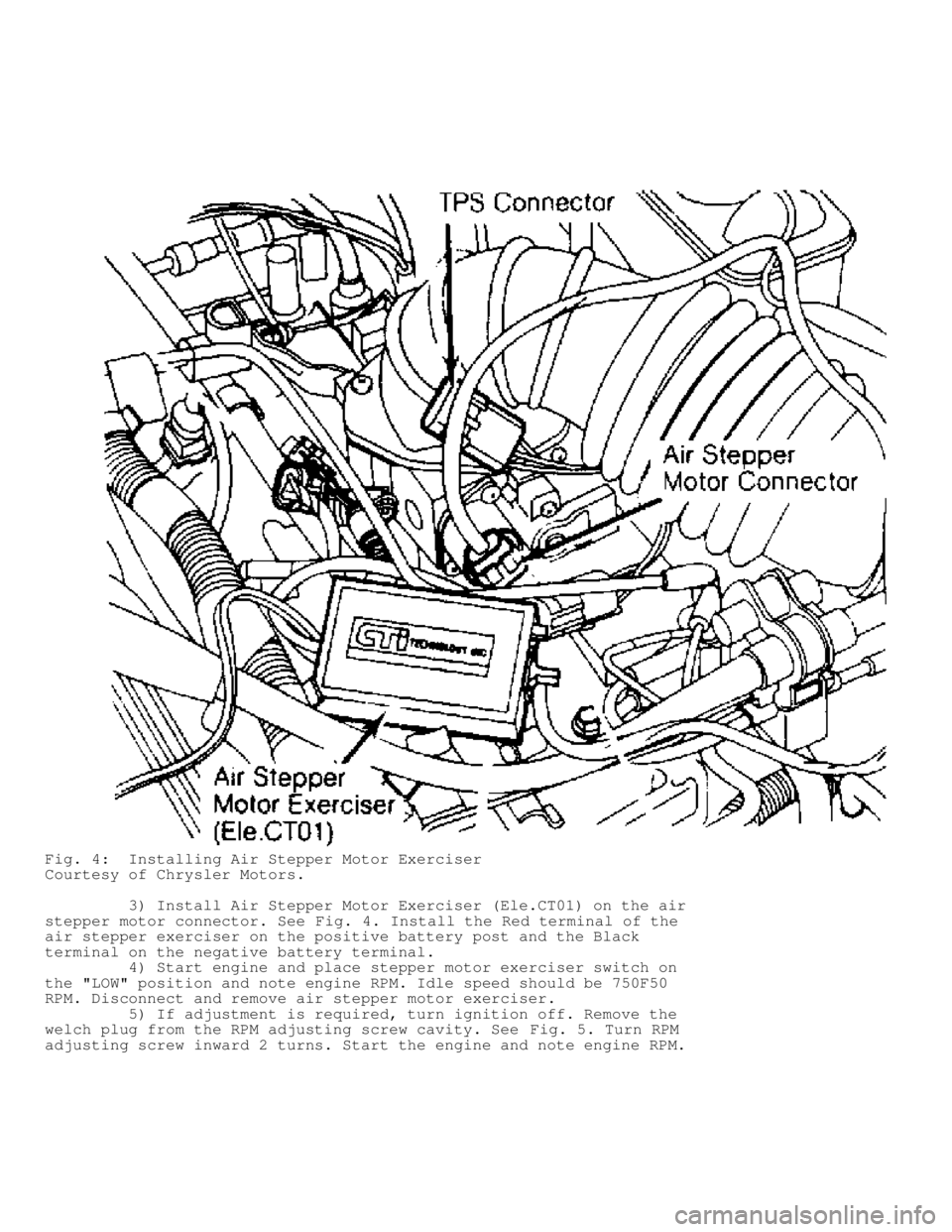

Fig. 4: Installing Air Stepper Motor Exerciser
Courtesy of Chrysler Motors.
3) Install Air Stepper Motor Exerciser (Ele.CT01) on the air\
stepper motor connector. See Fig. 4. Install the Red terminal of the
air stepper exerciser on the positive battery post and the Black
terminal on the negative battery terminal.
4) Start engine and place stepper motor exerciser switch on
the "LOW" position and note engine RPM. Idle speed should be 750F50
RPM. Disconnect and remove air stepper motor exerciser.
5) If adjustment is required, turn ignition off. Remove the
welch plug from the RPM adjusting screw cavity. See Fig. 5. Turn RPM
adjusting screw inward 2 turns. Start the engine and note engine RPM.
Page 1300 of 1378

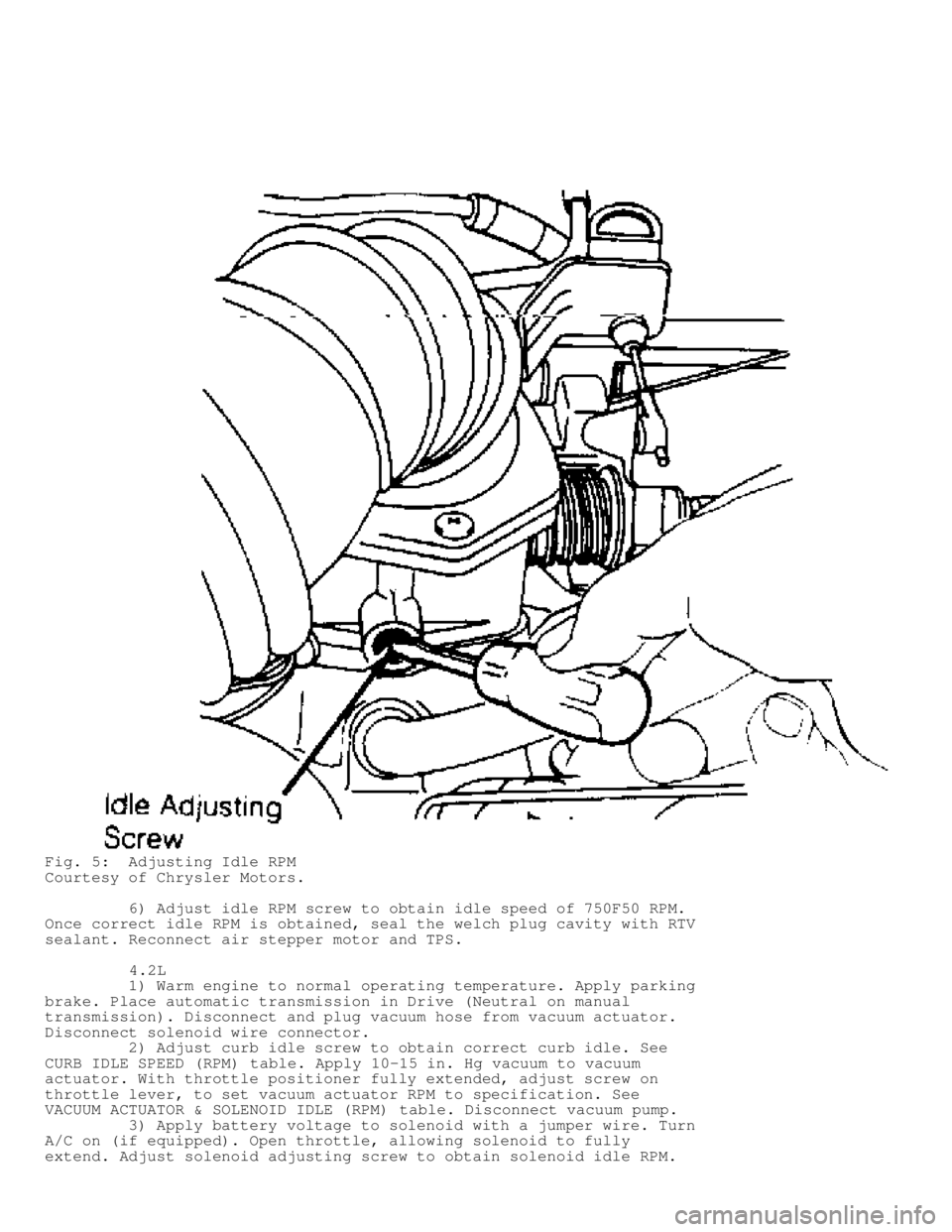

Fig. 5: Adjusting Idle RPM
Courtesy of Chrysler Motors.
6) Adjust idle RPM screw to obtain idle speed of 750F50 RPM.
Once correct idle RPM is obtained, seal the welch plug cavity with RTV
sealant. Reconnect air stepper motor and TPS.
4.2L
1) Warm engine to normal operating temperature. Apply parking
brake. Place automatic transmission in Drive (Neutral on manual
transmission). Disconnect and plug vacuum hose from vacuum actuator.
Disconnect solenoid wire connector.
2) Adjust curb idle screw to obtain correct curb idle. See
CURB IDLE SPEED (RPM) table. Apply 10-15 in. Hg vacuum to vacuum
actuator. With throttle positioner fully extended, adjust screw on
throttle lever, to set vacuum actuator RPM to specification. See
VACUUM ACTUATOR & SOLENOID IDLE (RPM) table. Disconnect vacuum pump.
3) Apply battery voltage to solenoid with a jumper wire. Turn
A/C on (if equipped). Open throttle, allowing solenoid to fully
extend. Adjust solenoid adjusting screw to obtain solenoid idle RPM.
