A/C S YSTE M D IA G NO SIS

1988 J e ep C hero ke e
1988 AIR CONDITIONING & HEAT
A/C General Servicing
Diagnostic Procedures
Jeep; All Models
DIAGNOSTIC PROCEDURES
Diagnosis is an important first step in A/C system servicing.
To save time and effort, systems should be carefully checked to
identify the causes of poor performance. By using the following
diagnostic charts, defective components or system damage can be
quickly located. To identify problems that are specific to one system,
refer to the repair section of this manual. The charts in this section
apply to all systems.
PREPARATION FOR TESTING
1) Attach Low and High side gauges.
2) Start engine and allow it to warm up.
3) Set system to COOL and blower to HIGH.
4) Open car doors and hood.
5) Run at fast idle for 2-3 minutes.
ALTITUDE PRESSURE VARIATIONS TABLE
ALTITUDE PRESSURE VARIATIONS TABLE








\









\









\









\









\









\









\







Altitude Absolute Gauge Altitude
(Ft.Above Pressure Of Correction
Sea Level) Atmosphere (psi) (1) (psi)
0 .......................... 14.7 .............................. 0
1000 ....................... 14.2 ............................ 0.5
2000 ....................... 13.7 ............................ 1.0
3000 ....................... 13.2 ............................ 1.5
4000 ....................... 12.7 ............................ 2.0
5000 ....................... 12.2 ............................ 2.5
6000 ....................... 11.7 ............................ 3.0
7000 ....................... 11.3 ............................ 3.4
8000 ....................... 10.9 ............................ 3.8
9000 ....................... 10.5 ............................ 4.2
10,000 ..................... 10.1 ............................ 4.6
( 1) - Add correction shown from gauge readings









\









\









\









\









\









\









\







ALTITUDE VACUUM VARIATIONS TABLE
ALTITUDE VACUUM VARIATIONS TABLE








\









\









\









\









\









\









\







Altitude Complete Gauge Altitude
(Ft.Above Vacuum Correction
Sea Level) (In. Hg) (1) (In. Hg)
0 .......................... 29.92 ............................. 0
1000 ....................... 28.92 ........................... 1.0

Fig. 3: Assembling Ford Spring-Coupling Fitting
3) Lubricate both sides of fitting with clean refrigeration
oil. Assemble the fitting by pushing together with a slight twisting
motion. Check to make sure spring is over flared end of female
fitting.
PLACING SYSTEM IN OPERATION
After component replacement and/or system servicing has been
completed and all connections have been made, proceed as follows:
1) Evacuate the system using vacuum pump.
2) Charge the system with R-12. See REFRIGERANT CAPACITY in
the A/C SYSTEM SERVICE SPECIFICATIONS in this article.
3) Leak test the system, with particular attention to all new
connections and components.
4) Make a performance test of the system. Never assume that a
recharging has automatically corrected a problem.
DIAGNOSTIC PROCEDURES
Diagnosis is an important first step in A/C system servicing.
To save time and effort, systems should be carefully checked to
identify the causes of poor performance. By using the following
diagnostic charts, defective components or system damage can be
quickly located. To identify problems that are specific to one system,
refer to the repair sections of this article. The charts in this
article apply to all systems.
PREPARATION FOR TESTING
1) Attach Low and High side gauges.
2) Start engine and allow it to warm up.
3) Set system to COOL and blower to HIGH.
4) Open car doors and hood.
5) Run at fast idle for 2-3 minutes.

\003
EN G IN E R EM OVA L - 6 -C YL

1988 J e ep C hero ke e
1988 ENGINES
Jeep - Engine Removal - 6-Cylinder
Cherokee, Comanche, Wagoneer, Wrangler
6-CYLINDER ENGINES
4.0L
1) Scribe hinge locations, remove engine compartment light
(if equipped) and remove hood. Disconnect battery cables and remove
battery. Drain cooling system.
2) Disconnect wire connectors from alternator, ignition coil
and distributor. Disconnect oil pressure sender wire, starter wires
and fuel injector wiring harness (if equipped). Detach 2 fuel pipe
quick connect couplings at left inner fender panel. Disconnect engine
ground strap and remove air cleaner.
3) Disconnect the vacuum purge hose at fuel vapor canister
tee. Disconnect wire from idle speed actuator and oxygen sensor.
Detach throttle cable from bracket and disconnect throttle valve rod
at bellcrank. Remove upper and lower radiator hoses.
4) On automatic transmission models, disconnect the
transmission fluid cooler tubing. On all models, remove fan shroud and
radiator. Remove fan and spacer or Tempatrol fan assembly. Hold fan
pulley to water pump flange using 5/16" x 1/2" SAE capscrew while
crankshaft is rotated.
5) Disconnect cruise control cable (if equipped). Disconnect\
wires from starter motor solenoid and disconnect CEC system harness.
Remove power brake vacuum check valve from booster (if equipped).
6) Disconnect power steering hoses from steering gear (if
equipped). Drain power steering pump reservoir and plug end of hoses.
Cap all fittings on steering gear and hoses. Raise and support
vehicle. Remove starter. Remove flywheel housing access cover.
7) Remove upper and loosen lower bellhousing-to-engine bolts.
Attach lifting equipment to engine. Raise engine off front mounts.
Place support under bellhousing. Remove remaining bellhousing-to-
engine bolts. Lift engine out of engine compartment.
4.2L
1) Remove battery and drain cooling system. Remove air
cleaner and engine compartment light from hood. Scribe hinge location
and remove hood. Disconnect and plug front fuel line at pump and fuel
return line at frame.
2) Disconnect heater hoses at heater. Label and disconnect
all wiring, lines, linkage and hoses at engine. Remove vacuum switch
assembly bracket from cylinder head cover. Remove both radiator hoses
and automatic transmission oil lines (if equipped) at radiator. Remove\
radiator and shroud.
3) Remove fan and spacer. Use 5/16" x 1/2" SAE bolt to hold
fan pulley to water pump flange. Remove starter and disconnect engine
ground strap. Remove engine mount-to-bracket nuts. Disconnect exhaust
pipe at manifold.
4) Discharge A/C system (if equipped). Disconnect and plug
hose or port openings at compressor. Disconnect hoses at power
steering gear and drain reservoir. Remove power brake vacuum check
valve. Remove bracket bolt for automatic transmission filler tube (if
equipped).
5) Lift and support vehicle. On models with automatic

Fig. 3: Ignition Control Module Connector Identification
Courtesy of Chrysler Motors.
Terminal "B" of Connector No. 1 is grounded at the engine oil
dipstick bracket along with the ECU ground wire and Oxygen (O2) sensor\
ground.
The tachometer output signal wire of the ICM is connected to
Pin No. 1 of the "D1" Diagnostic connector. The wire is routed to the
diagnostic connector through a short section of the ECU harness, the
engine, and the instrument panel harness. This type of routing
eliminates any potential electrical interference from occurring in the
various ECU circuitry.
Ignition firing signals from ECU terminal "27" are
transmitted through terminal "B" of Connector No. 2 on the ICM. the
ignition signal from the ECU is received by the ICM in the form of a 5
volt square wave. As the leading edge of the wave contacts the
ignition circuitry in the ICM, the ICM charges the coil primary
windings.
When coil saturation occurs, the module circuitry opens the
primary windings to collapse the magnetic field in the windings. This
induces the coil secondary windings which is then transmitted to the
spark plug via the coil wire, distributor cap, and rotor.
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
The MAP sensor reacts to absolute pressure in the intake
manifold and provides an input signal to the ECU. As the engine load
changes, manifold pressure varies, which causes the MAP sensor
resistance to change, resulting in a different input voltage to the
ECU. The input voltage level supplies the ECU with information
relating to ambient barometric pressure during engine start-up or
regarding engine load while the engine is running. The ECU calculates
this information and adjusts the air-fuel mixture accordingly.
The MAP sensor is mounted under the hood on the firewall and
is connected to the throttle body with a vacuum hose. See Fig. 4.

EXAMPLE #2 - VOLTAGE CONTROLLED DRIVER
This time we will look at a GM 3.1L V6 VIN [T]. Fig. 8 shows
the 1, 3, 5 (odd) injector bank with the current waveform indicating
about a 2.6 amp draw at idle. This pattern, taken from a known good
vehicle, correctly stays at or below the maximum 2.6 amps current
range. Ideally, the current for each bank should be very close in
comparison.
Notice the small dimple on the current flow's rising edge.
This is the actual injector opening or what engineers refer to as the
"set point." For good idle quality, the set point should be uniform
between the banks.
When discussing Ohm's Law as it pertains to this parallel
circuit, consider that each injector has specified resistance of 12.2
ohms. Since all three injectors are in parallel the total resistance
of this parallel circuit drops to 4.1 ohms. Fourteen volts divided by
four ohms would pull a maximum of 3.4 amps on this bank of injectors.
However, as we discussed in EXAMPLE #1 above, other factors knock this
value down to roughly the 2.6 amp neighborhood.
Now we are going to take a look at the even bank of
injectors; injectors 2, 4, and 6. See Fig. 9. Notice this bank peaked
at 1.7 amps at idle as compared to the 2.6 amps peak of the odd bank (
Fig. 8 ). Current flow between even and odd injectors banks is not
uniform, yet it is not causing a driveability problem. That is because
it is still under the maximum amperage we figured out earlier. But be
aware this vehicle could develop a problem if the amperage flow
increases any more.
Checking the resistance of this even injector group with a
DVOM yielded 6.2 ohms, while the odd injector group in the previous
example read 4.1 ohms.

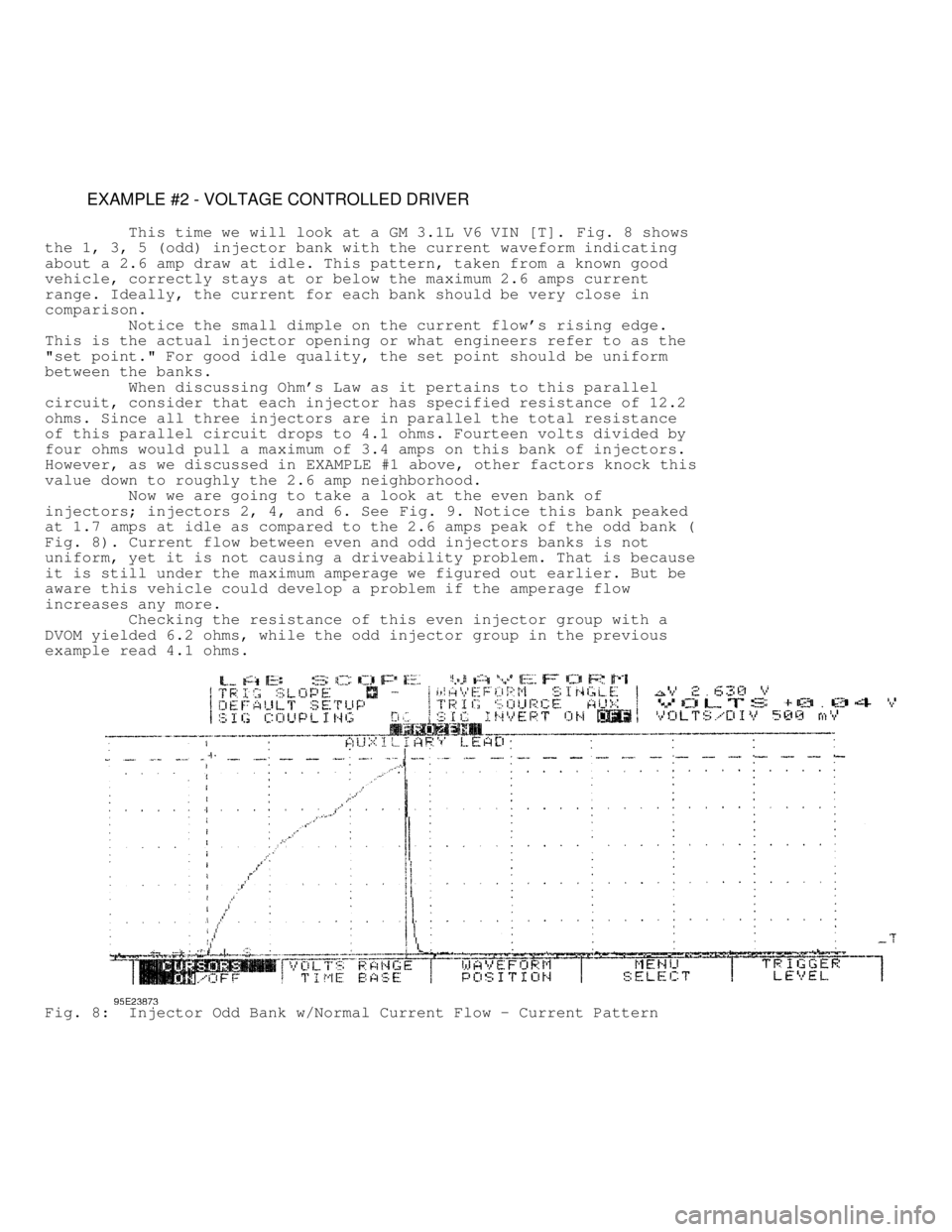

Fig. 8: Injector Odd Bank w/Normal Current Flow - Current Pattern
