JEEP CHEROKEE 1994 Service Repair Manual

8W - 58 SPLICE LOCATIONSJ

XJ SPLICE LOCATIONS
Caption Fig.
117 ......................................7
205 ......................................9
235 ......................................8
236 ......................................9
A3 .......................................6
A11 ......................................8
A11-1.....................................2
A11-2.....................................2
A14 ......................................8
A21 ......................................8
A21-1.....................................6
A38 ......................................6
A142 2.5L.................................10
A142 4.0L.................................12
A142-1....................................8
A142-2 2.5L................................10
A142-2 4.0L................................11
C7 .......................................5
C15 ......................................6
C43 ......................................5
C90 ......................................6
E2 .......................................5
F12 ......................................8
F34 ......................................5
F85 ......................................5
F87 ......................................4
G7 .......................................8
K4 2.5L...................................10
K4 4.0L...................................12
K4-1.....................................8
K6 .......................................8
K7 2.5L...................................10Caption Fig.
K7 4.0L...................................12
K22 ......................................8
K29 ......................................8
L10 ......................................2
L39 ......................................7
L50 ......................................2
L60 ......................................2
L90 ......................................2
L90-1.....................................7
M1 ......................................4
M1-1.....................................5
M2 ......................................5
M2-1.....................................6
M2-2.....................................2
M2-3.....................................4
P2 .......................................2
P34 ......................................2
P79 ......................................3
Q1 .......................................3
Z1 .......................................4
Z1-1......................................2
Z1-2......................................5
Z1-3......................................6
Z1-4......................................9
Z1-5......................................1
Z1-10.....................................7
Z1-11.....................................8
Z1-12.....................................8
Z1-13.....................................3
Z11 ......................................9
Z12 ......................................8
Z12-1.....................................8
JSPLICE LOCATIONS 8W - 59

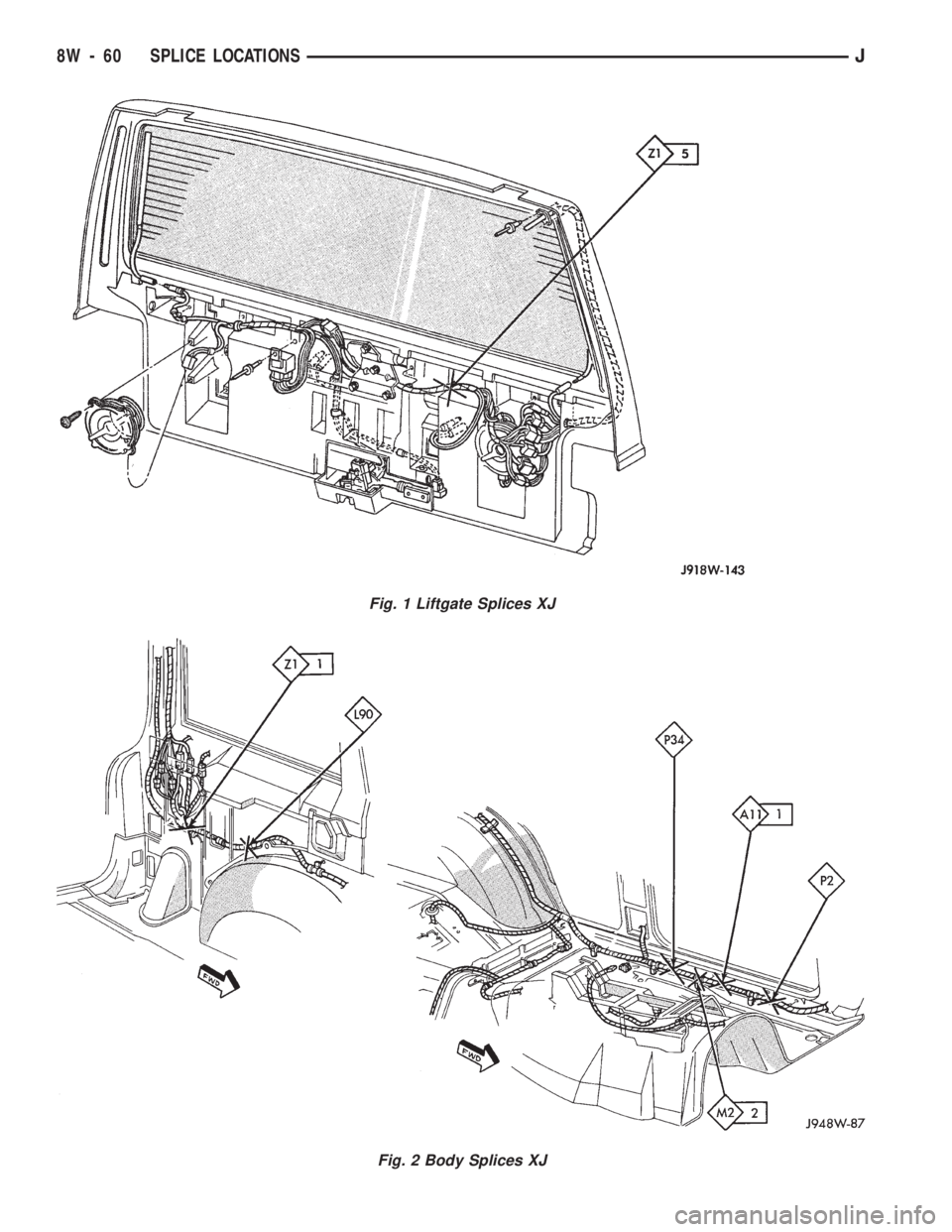

Fig. 1 Liftgate Splices XJ
Fig. 2 Body Splices XJ
8W - 60 SPLICE LOCATIONSJ

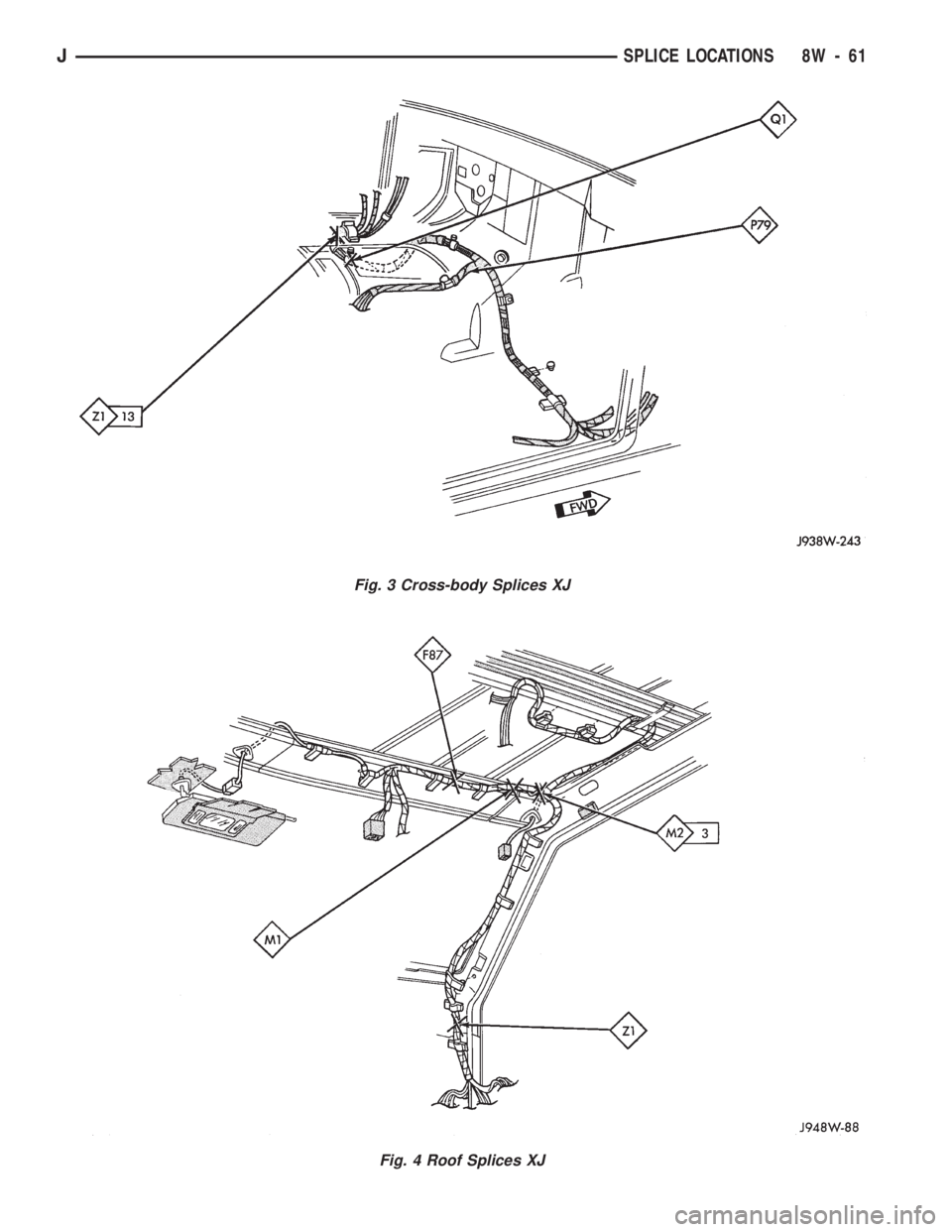

Fig. 3 Cross-body Splices XJ
Fig. 4 Roof Splices XJ
JSPLICE LOCATIONS 8W - 61

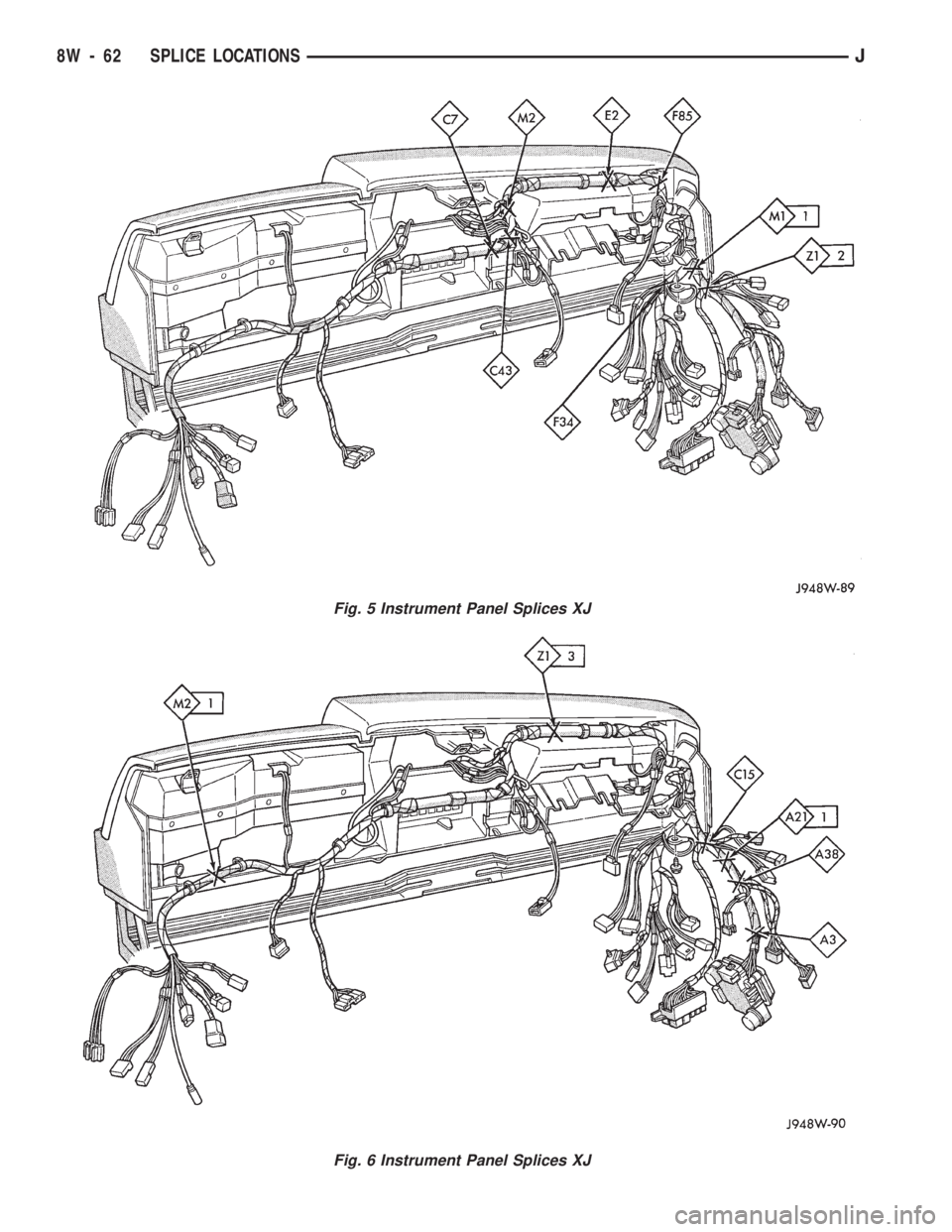

Fig. 5 Instrument Panel Splices XJ
Fig. 6 Instrument Panel Splices XJ
8W - 62 SPLICE LOCATIONSJ

Fig. 7 Front End Splices XJ
Fig. 8 Engine Compartment Splices XJ
JSPLICE LOCATIONS 8W - 63

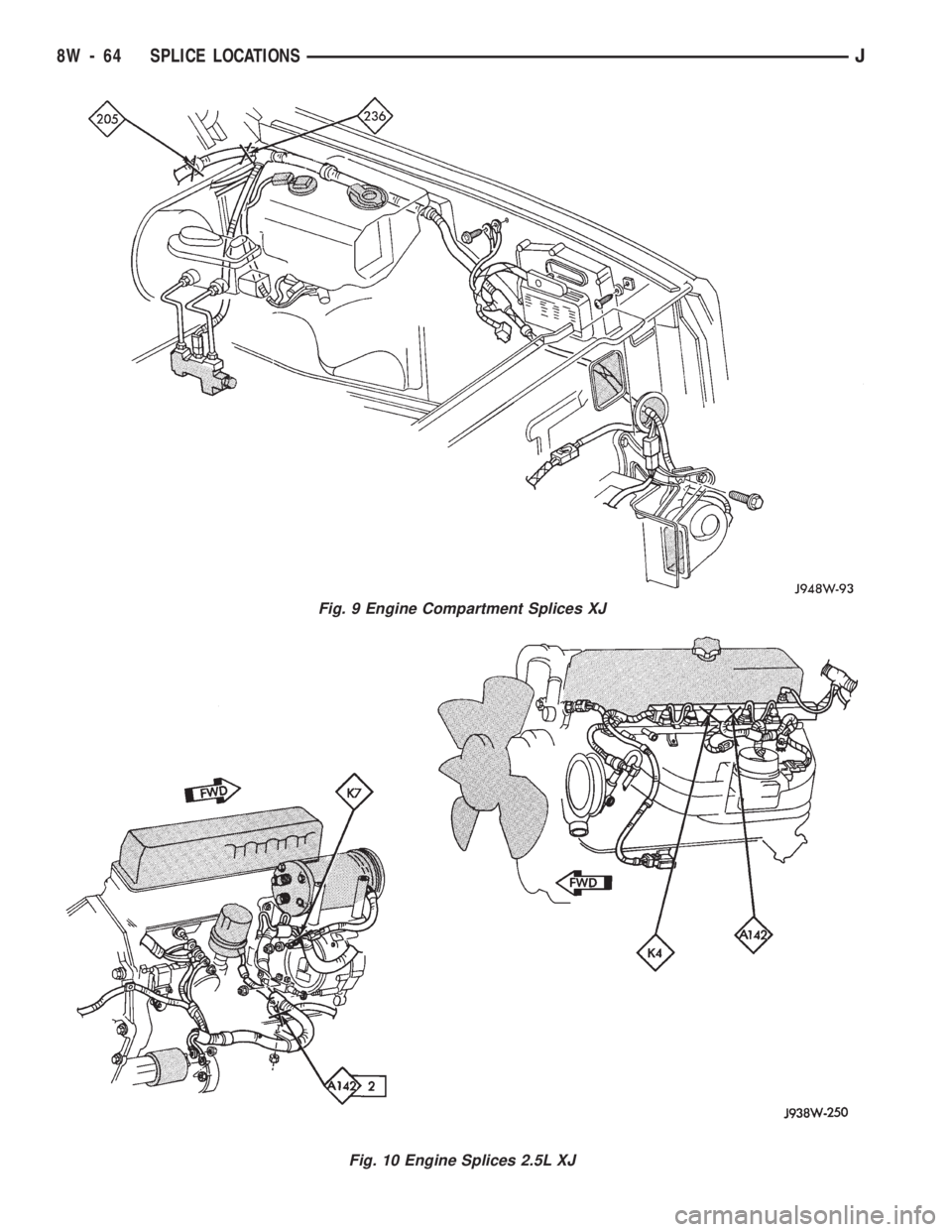

Fig. 9 Engine Compartment Splices XJ
Fig. 10 Engine Splices 2.5L XJ
8W - 64 SPLICE LOCATIONSJ

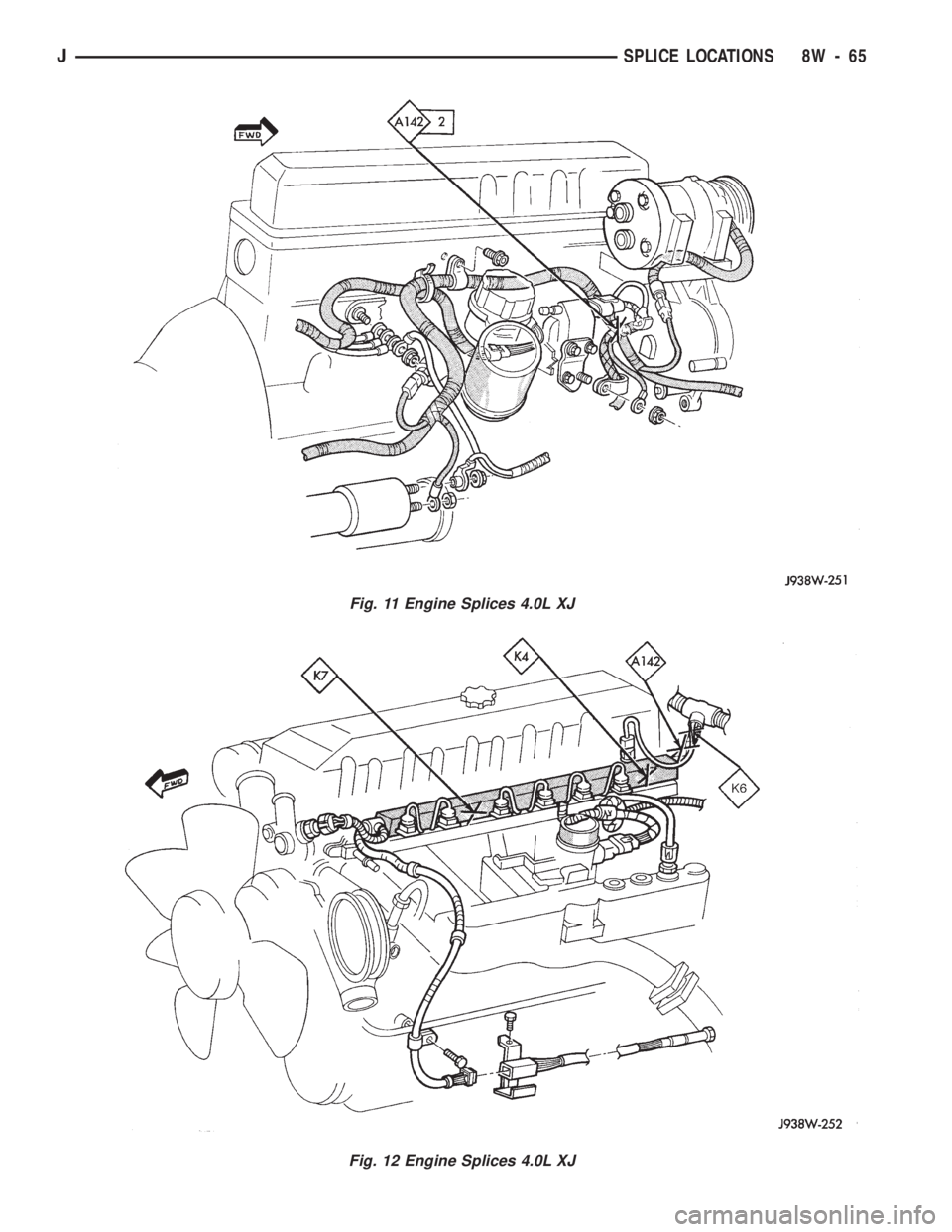

Fig. 11 Engine Splices 4.0L XJ
Fig. 12 Engine Splices 4.0L XJ
JSPLICE LOCATIONS 8W - 65

8W - 66 SPLICE LOCATIONSJ

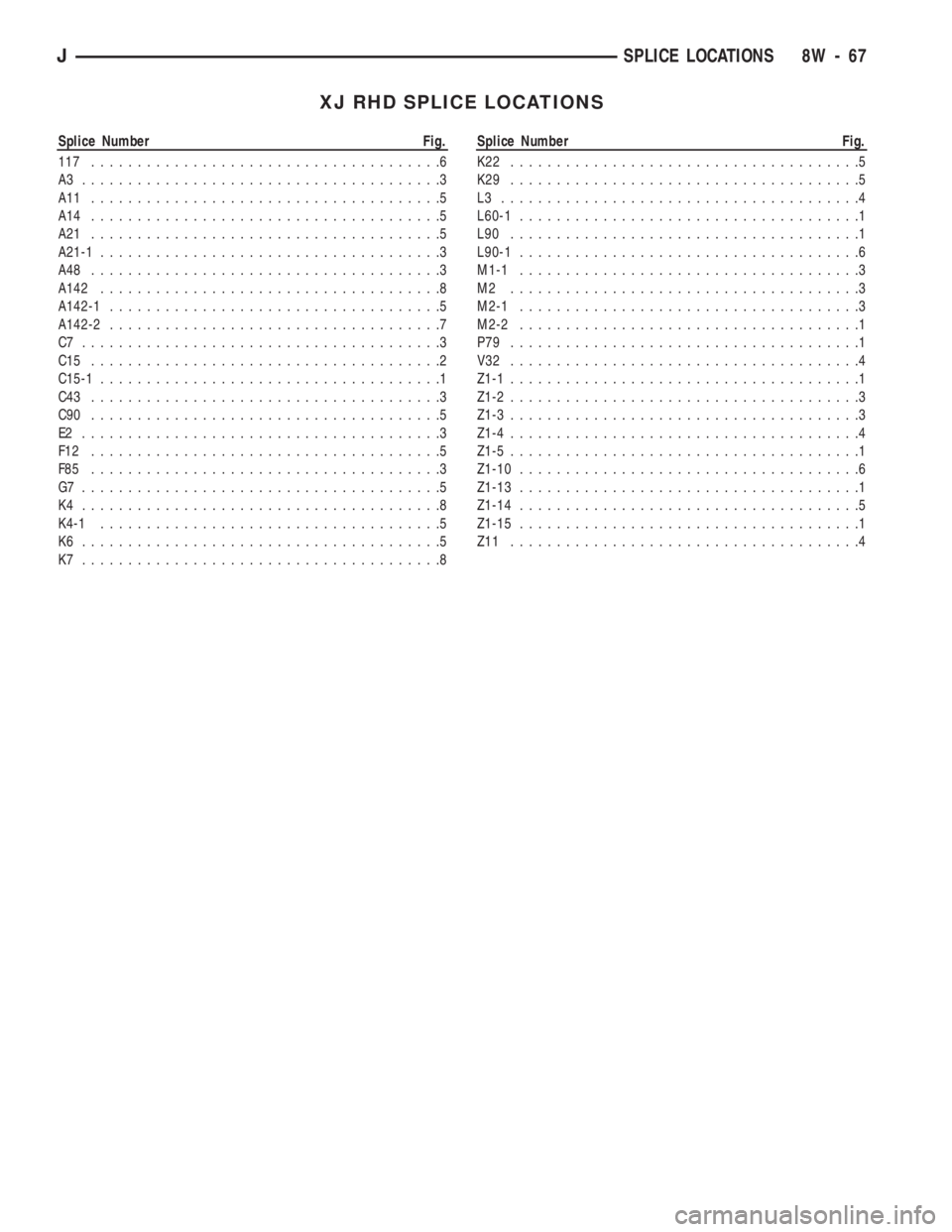

XJ RHD SPLICE LOCATIONS
Splice Number Fig.
117 ......................................6
A3 .......................................3
A11 ......................................5
A14 ......................................5
A21 ......................................5
A21-1.....................................3
A48 ......................................3
A142.....................................8
A142-1....................................5
A142-2....................................7
C7 .......................................3
C15 ......................................2
C15-1.....................................1
C43 ......................................3
C90 ......................................5
E2 .......................................3
F12 ......................................5
F85 ......................................3
G7 .......................................5
K4 .......................................8
K4-1.....................................5
K6 .......................................5
K7 .......................................8Splice Number Fig.
K22 ......................................5
K29 ......................................5
L3 .......................................4
L60-1.....................................1
L90 ......................................1
L90-1.....................................6
M1-1.....................................3
M2 ......................................3
M2-1.....................................3
M2-2.....................................1
P79 ......................................1
V32 ......................................4
Z1-1......................................1
Z1-2......................................3
Z1-3......................................3
Z1-4......................................4
Z1-5......................................1
Z1-10.....................................6
Z1-13.....................................1
Z1-14.....................................5
Z1-15.....................................1
Z11 ......................................4
JSPLICE LOCATIONS 8W - 67
