JEEP CHEROKEE 2014 KL / 5.G Owners Manual

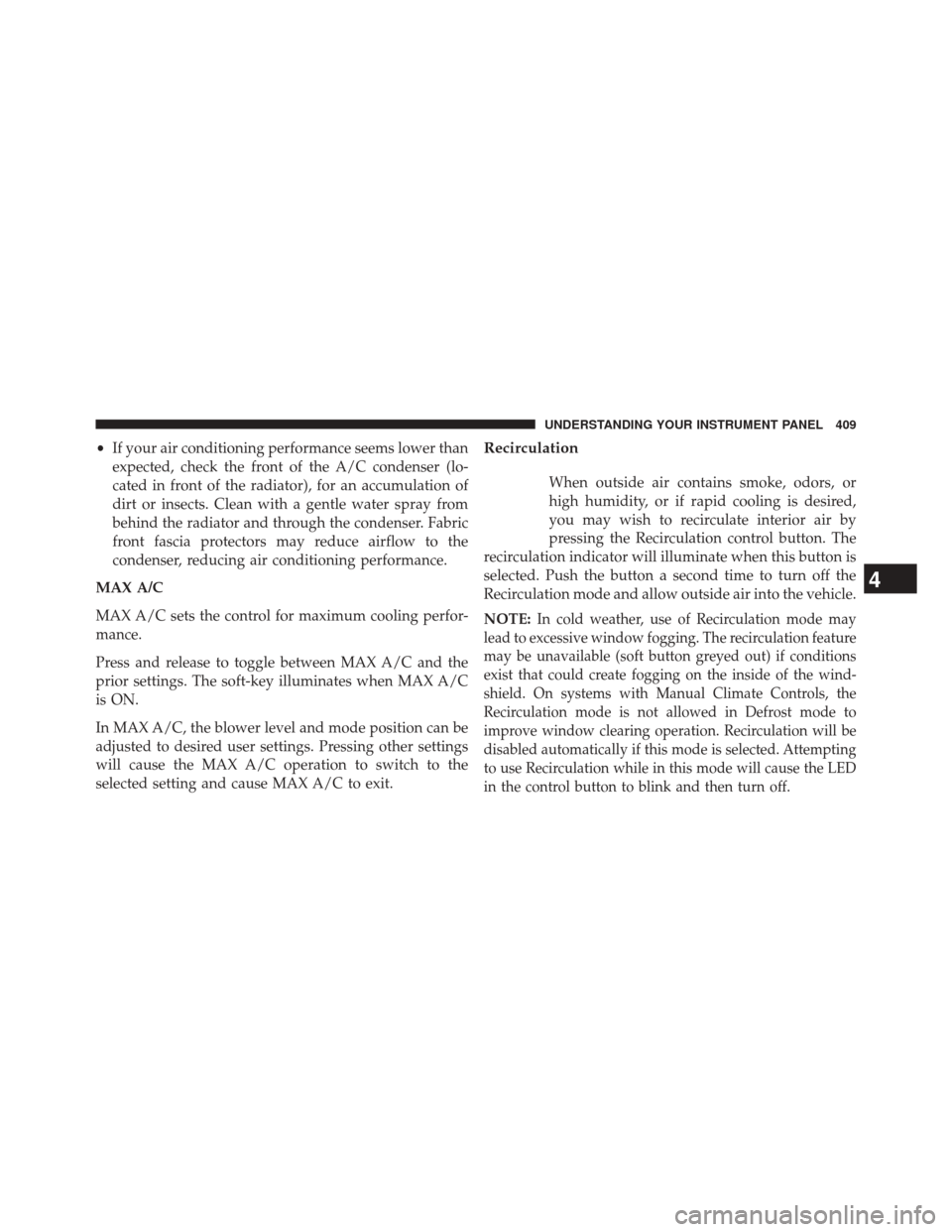

•If your air conditioning performance seems lower than
expected, check the front of the A/C condenser (lo-
cated in front of the radiator), for an accumulation of
dirt or insects. Clean with a gentle water spray from
behind the radiator and through the condenser. Fabric
front fascia protectors may reduce airflow to the
condenser, reducing air conditioning performance.
MAX A/C
MAX A/C sets the control for maximum cooling perfor-
mance.
Press and release to toggle between MAX A/C and the
prior settings. The soft-key illuminates when MAX A/C
is ON.
In MAX A/C, the blower level and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the
selected setting and cause MAX A/C to exit.Recirculation
When outside air contains smoke, odors, or
high humidity, or if rapid cooling is desired,
you may wish to recirculate interior air by
pressing the Recirculation control button. The
recirculation indicator will illuminate when this button is
selected. Push the button a second time to turn off the
Recirculation mode and allow outside air into the vehicle.
NOTE:
In cold weather, use of Recirculation mode may
lead to excessive window fogging. The recirculation feature
may be unavailable (soft button greyed out) if conditions
exist that could create fogging on the inside of the wind-
shield. On systems with Manual Climate Controls, the
Recirculation mode is not allowed in Defrost mode to
improve window clearing operation. Recirculation will be
disabled automatically if this mode is selected. Attempting
to use Recirculation while in this mode will cause the LED
in the control button to blink and then turn off.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 409

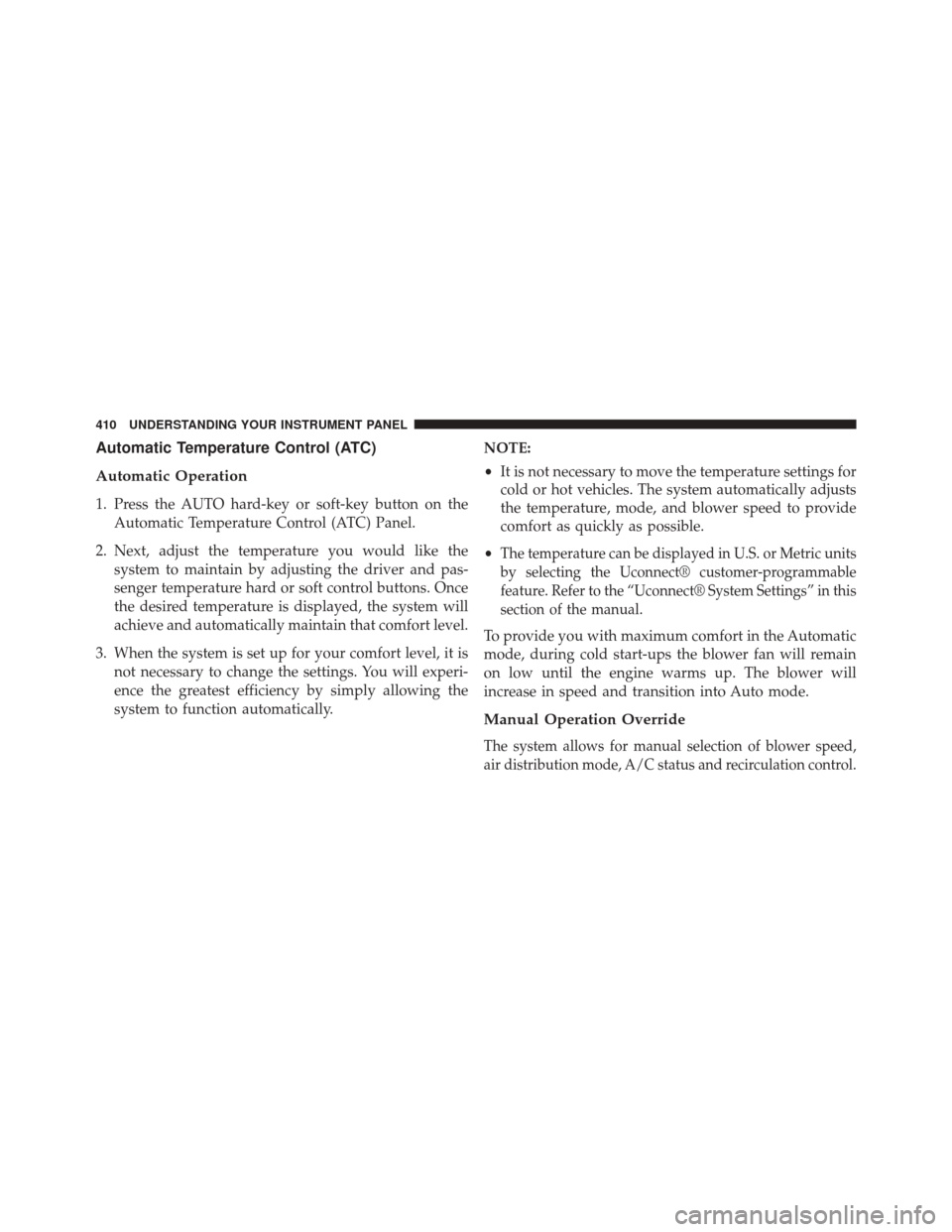

Automatic Temperature Control (ATC)
Automatic Operation
1. Press the AUTO hard-key or soft-key button on theAutomatic Temperature Control (ATC) Panel.
2. Next, adjust the temperature you would like the system to maintain by adjusting the driver and pas-
senger temperature hard or soft control buttons. Once
the desired temperature is displayed, the system will
achieve and automatically maintain that comfort level.
3. When the system is set up for your comfort level, it is not necessary to change the settings. You will experi-
ence the greatest efficiency by simply allowing the
system to function automatically. NOTE:
•
It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.
•
The temperature can be displayed in U.S. or Metric units
by selecting the Uconnect® customer-programmable
feature. Refer to the “Uconnect® System Settings” in this
section of the manual.
To provide you with maximum comfort in the Automatic
mode, during cold start-ups the blower fan will remain
on low until the engine warms up. The blower will
increase in speed and transition into Auto mode.
Manual Operation Override
The system allows for manual selection of blower speed,
air distribution mode, A/C status and recirculation control.
410 UNDERSTANDING YOUR INSTRUMENT PANEL

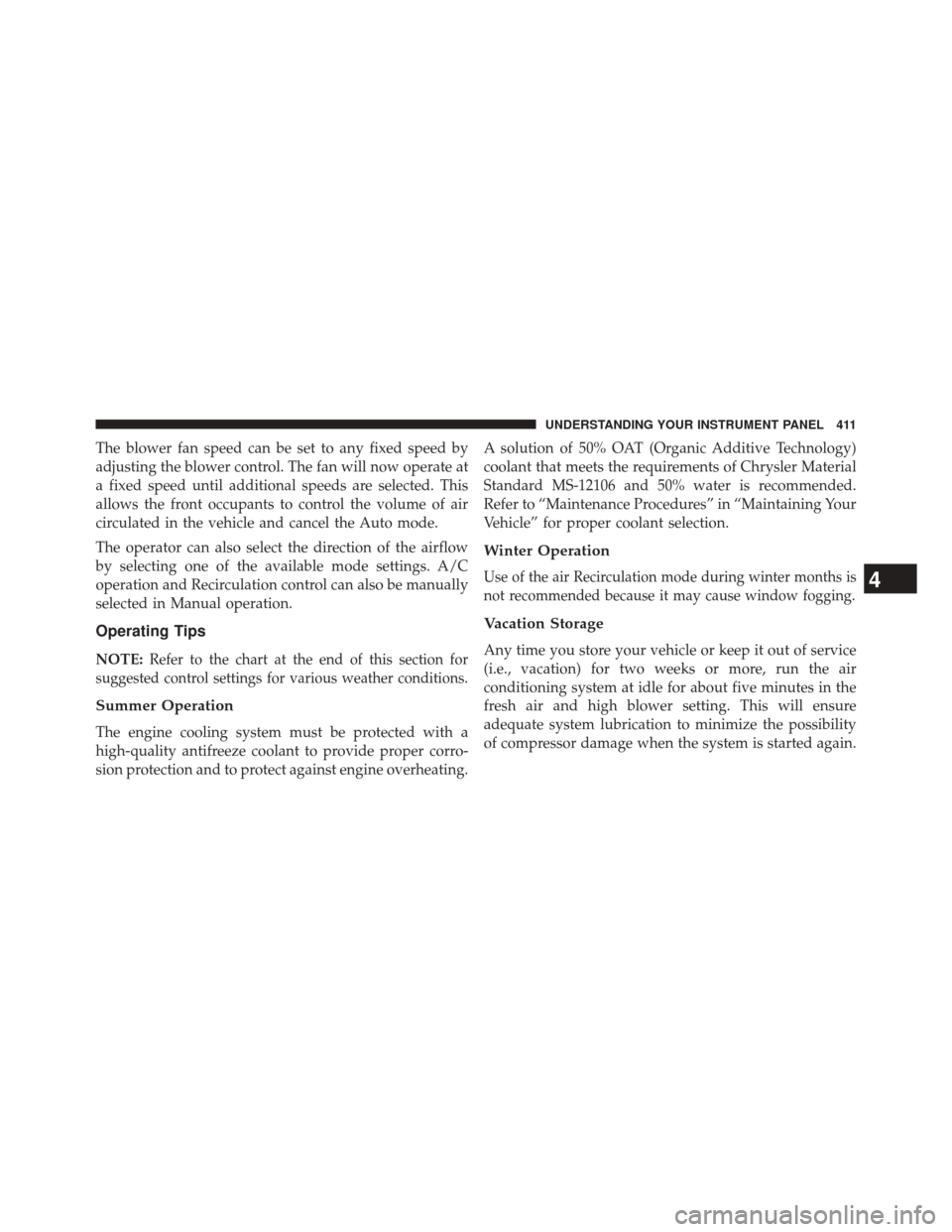

The blower fan speed can be set to any fixed speed by
adjusting the blower control. The fan will now operate at
a fixed speed until additional speeds are selected. This
allows the front occupants to control the volume of air
circulated in the vehicle and cancel the Auto mode.
The operator can also select the direction of the airflow
by selecting one of the available mode settings. A/C
operation and Recirculation control can also be manually
selected in Manual operation.
Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather conditions.
Summer Operation
The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corro-
sion protection and to protect against engine overheating. A solution of 50% OAT (Organic Additive Technology)
coolant that meets the requirements of Chrysler Material
Standard MS-12106 and 50% water is recommended.
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for proper coolant selection.
Winter Operation
Use of the air Recirculation mode during winter months is
not recommended because it may cause window fogging.
Vacation Storage
Any time you store your vehicle or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 411

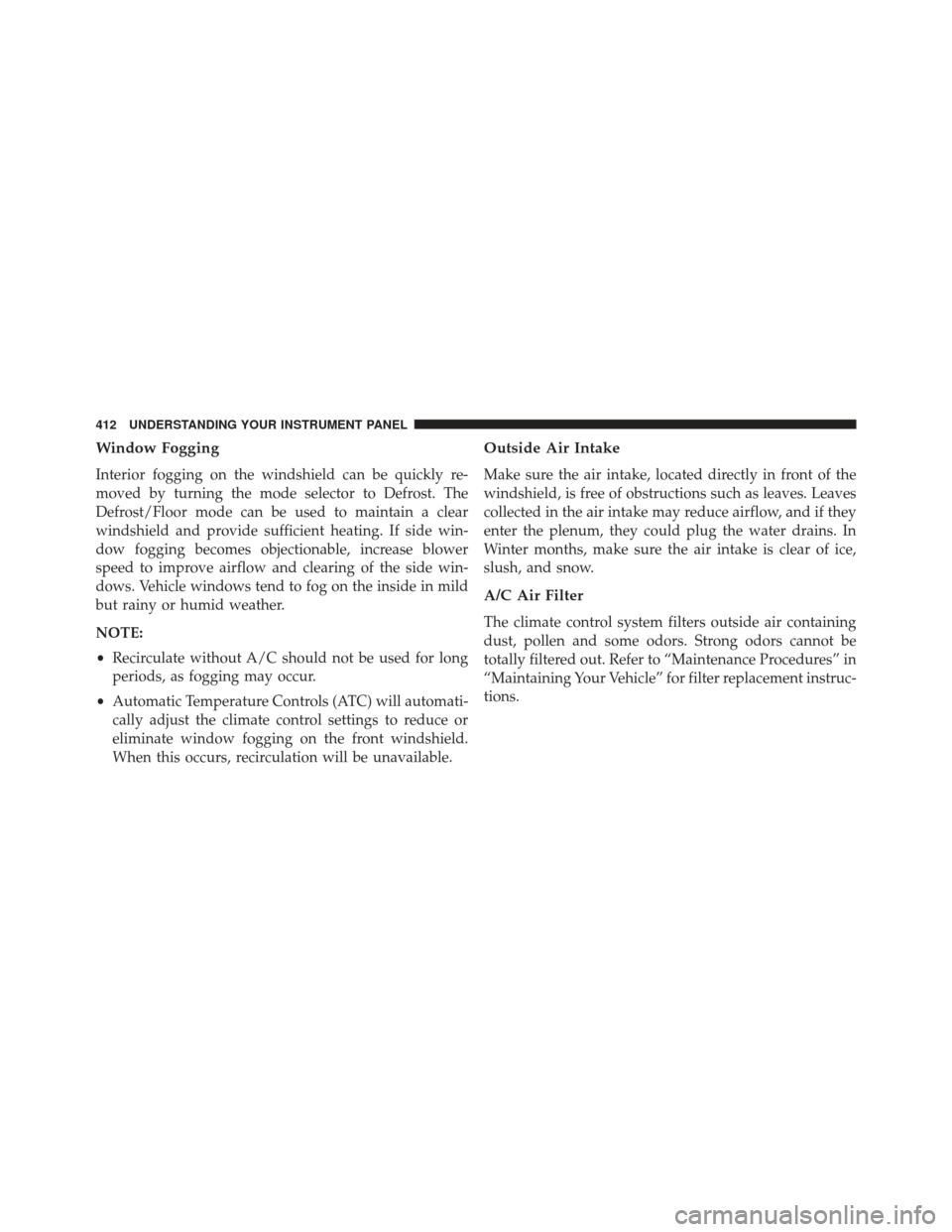

Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The
Defrost/Floor mode can be used to maintain a clear
windshield and provide sufficient heating. If side win-
dow fogging becomes objectionable, increase blower
speed to improve airflow and clearing of the side win-
dows. Vehicle windows tend to fog on the inside in mild
but rainy or humid weather.
NOTE:
•Recirculate without A/C should not be used for long
periods, as fogging may occur.
• Automatic Temperature Controls (ATC) will automati-
cally adjust the climate control settings to reduce or
eliminate window fogging on the front windshield.
When this occurs, recirculation will be unavailable.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
Winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter
The climate control system filters outside air containing
dust, pollen and some odors. Strong odors cannot be
totally filtered out. Refer to “Maintenance Procedures” in
“Maintaining Your Vehicle” for filter replacement instruc-
tions.
412 UNDERSTANDING YOUR INSTRUMENT PANEL

Control Setting Suggestions For Various Weather Conditions
4
UNDERSTANDING YOUR INSTRUMENT PANEL 413

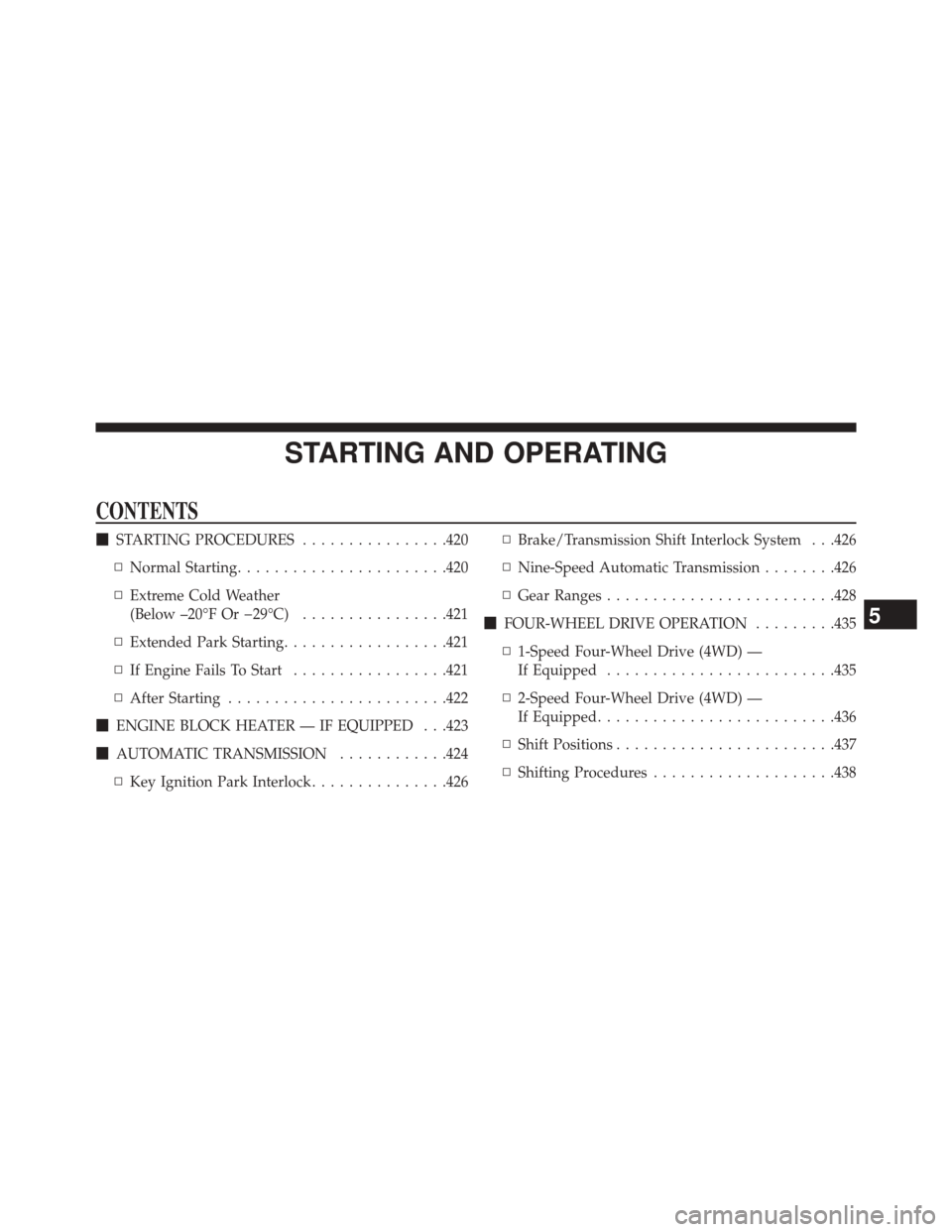

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................420
▫ Normal Starting ...................... .420
▫ Extreme Cold Weather
(Below –20°F Or 29°C) ................421
▫ Extended Park Starting ..................421
▫ If Engine Fails To Start .................421
▫ After Starting ....................... .422
 ENGINE BLOCK HEATER — IF EQUIPPED . . .423
 AUTOMATIC TRANSMISSION ............424
▫ Key Ignition Park Interlock ...............426 ▫
Brake/Transmission Shift Interlock System . . .426
▫ Nine-Speed Automatic Transmission ........426
▫ Gear Ranges ........................ .428
 FOUR-WHEEL DRIVE OPERATION .........435
▫ 1-Speed Four-Wheel Drive (4WD) —
If Equipped ........................ .435
▫ 2-Speed Four-Wheel Drive (4WD) —
If Equipped ......................... .436
▫ Shift Positions ....................... .437
▫ Shifting Procedures ....................438
5

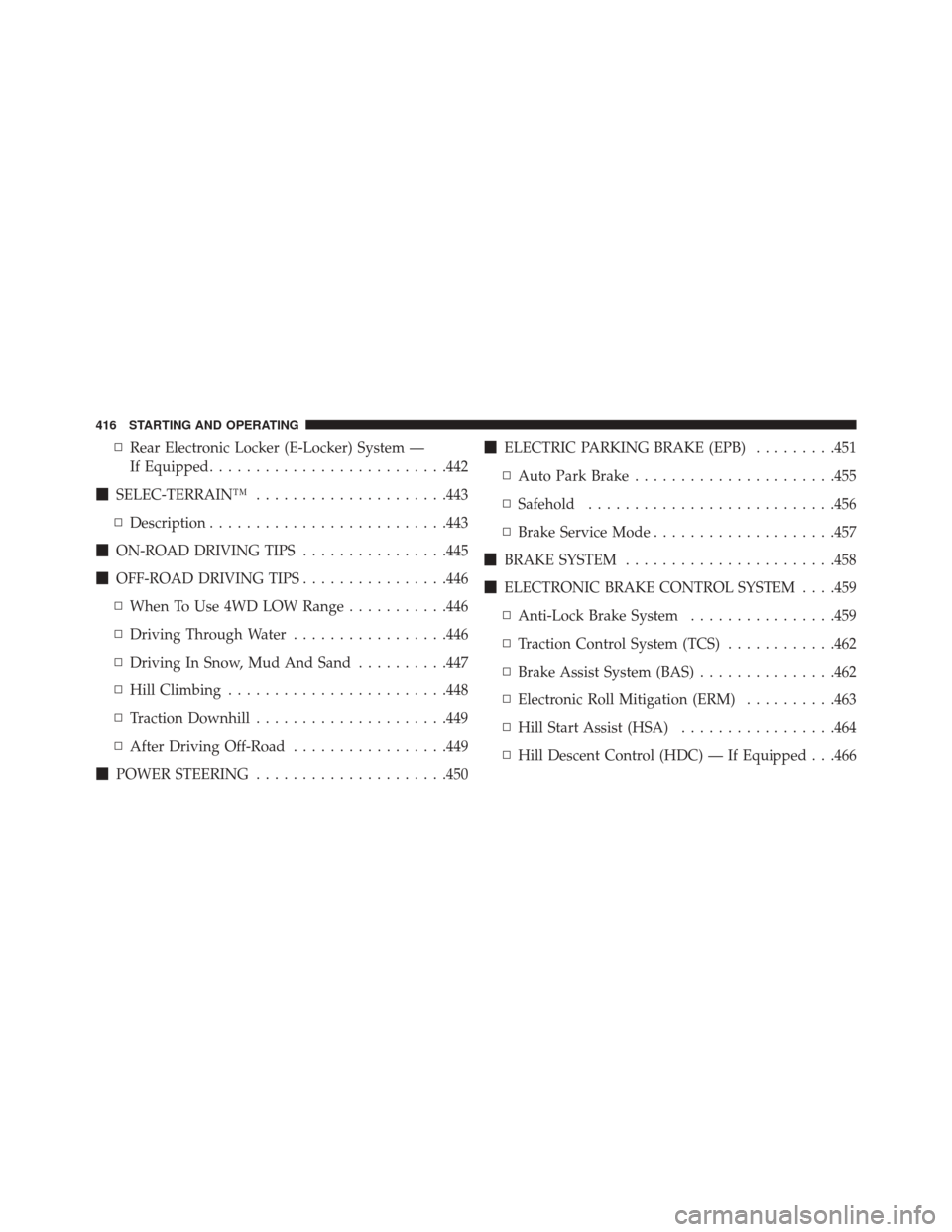

▫Rear Electronic Locker (E-Locker) System —
If Equipped ......................... .442
 SELEC-TERRAIN™ .....................443
▫ Description ......................... .443
 ON-ROAD DRIVING TIPS ................445
 OFF-ROAD DRIVING TIPS ................446
▫ When To Use 4WD LOW Range ...........446
▫ Driving Through Water .................446
▫ Driving In Snow, Mud And Sand ..........447
▫ Hill Climbing ....................... .448
▫ Traction Downhill .....................449
▫ After Driving Off-Road .................449
 POWER STEERING .....................450
ELECTRIC PARKING BRAKE (EPB) .........451
▫ Auto Park Brake ..................... .455
▫ Safehold .......................... .456
▫ Brake Service Mode ....................457
 BRAKE SYSTEM ...................... .458
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .459
▫ Anti-Lock Brake System ................459
▫ Traction Control System (TCS) ............462
▫ Brake Assist System (BAS) ...............462
▫ Electronic Roll Mitigation (ERM) ..........463
▫ Hill Start Assist (HSA) .................464
▫ Hill Descent Control (HDC) — If Equipped . . .466
416 STARTING AND OPERATING

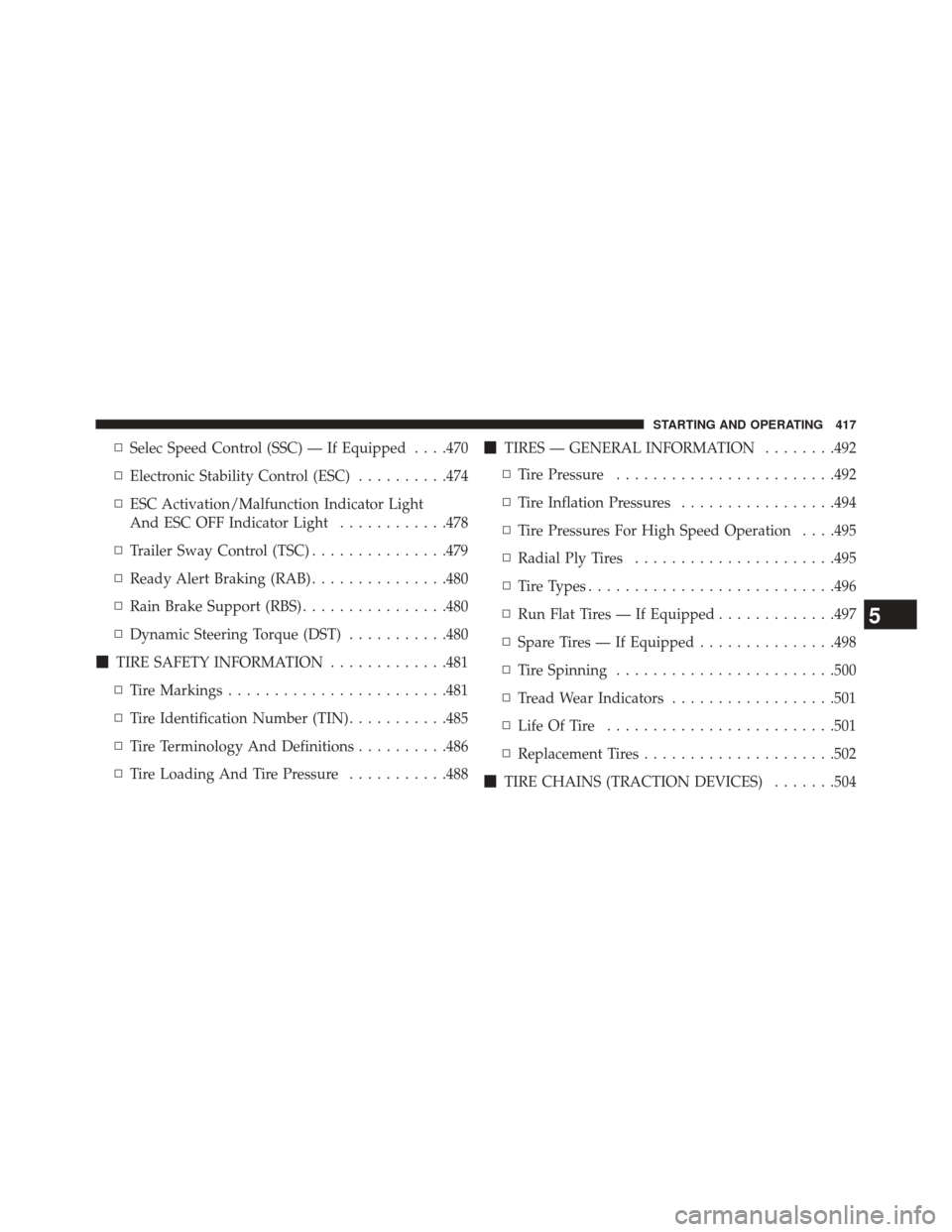

▫Selec Speed Control (SSC) — If Equipped . . . .470
▫ Electronic Stability Control (ESC) ..........474
▫ ESC Activation/Malfunction Indicator Light
And ESC OFF Indicator Light ............478
▫ Trailer Sway Control (TSC) ...............479
▫ Ready Alert Braking (RAB) ...............480
▫ Rain Brake Support (RBS) ................480
▫ Dynamic Steering Torque (DST) ...........480
 TIRE SAFETY INFORMATION .............481
▫ Tire Markings ....................... .481
▫ Tire Identification Number (TIN) ...........485
▫ Tire Terminology And Definitions ..........486
▫ Tire Loading And Tire Pressure ...........488
TIRES — GENERAL INFORMATION ........492
▫ Tire Pressure ....................... .492
▫ Tire Inflation Pressures .................494
▫ Tire Pressures For High Speed Operation . . . .495
▫ Radial Ply Tires ..................... .495
▫ Tire Types .......................... .496
▫ Run Flat Tires — If Equipped .............497
▫ Spare Tires — If Equipped ...............498
▫ Tire Spinning ....................... .500
▫ Tread Wear Indicators ..................501
▫ Life Of Tire ........................ .501
▫ Replacement Tires .....................502
 TIRE CHAINS (TRACTION DEVICES) .......504
5
STARTING AND OPERATING 417

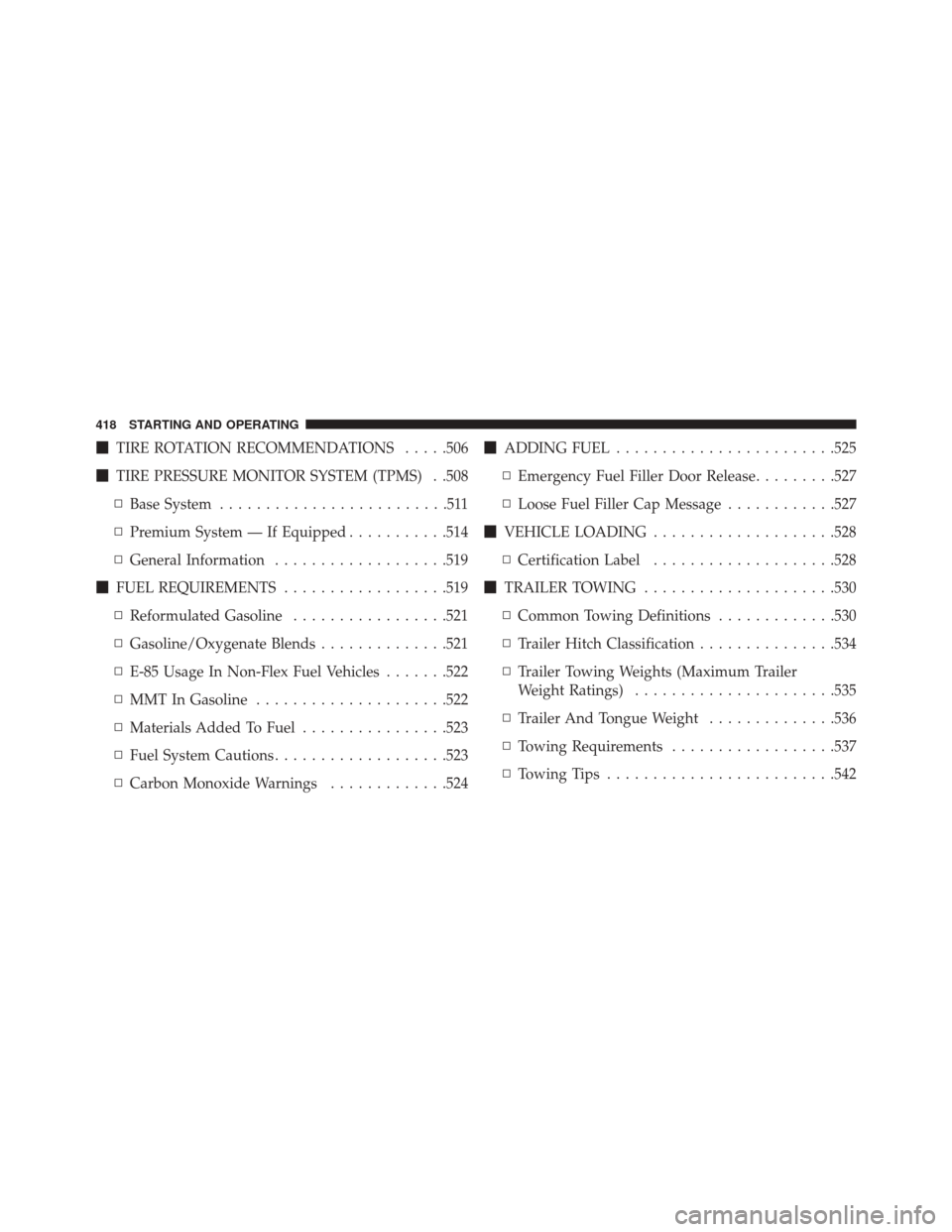

TIRE ROTATION RECOMMENDATIONS .....506
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .508
▫ Base System .........................511
▫ Premium System — If Equipped ...........514
▫ General Information ...................519
 FUEL REQUIREMENTS ..................519
▫ Reformulated Gasoline .................521
▫ Gasoline/Oxygenate Blends ..............521
▫ E-85 Usage In Non-Flex Fuel Vehicles .......522
▫ MMT In Gasoline .....................522
▫ Materials Added To Fuel ................523
▫ Fuel System Cautions ...................523
▫ Carbon Monoxide Warnings .............524
ADDING FUEL ....................... .525
▫ Emergency Fuel Filler Door Release .........527
▫ Loose Fuel Filler Cap Message ............527
 VEHICLE LOADING ....................528
▫ Certification Label ....................528
 TRAILER TOWING .....................530
▫ Common Towing Definitions .............530
▫ Trailer Hitch Classification ...............534
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ..................... .535
▫ Trailer And Tongue Weight ..............536
▫ Towing Requirements ..................537
▫ Towing Tips ........................ .542
418 STARTING AND OPERATING
