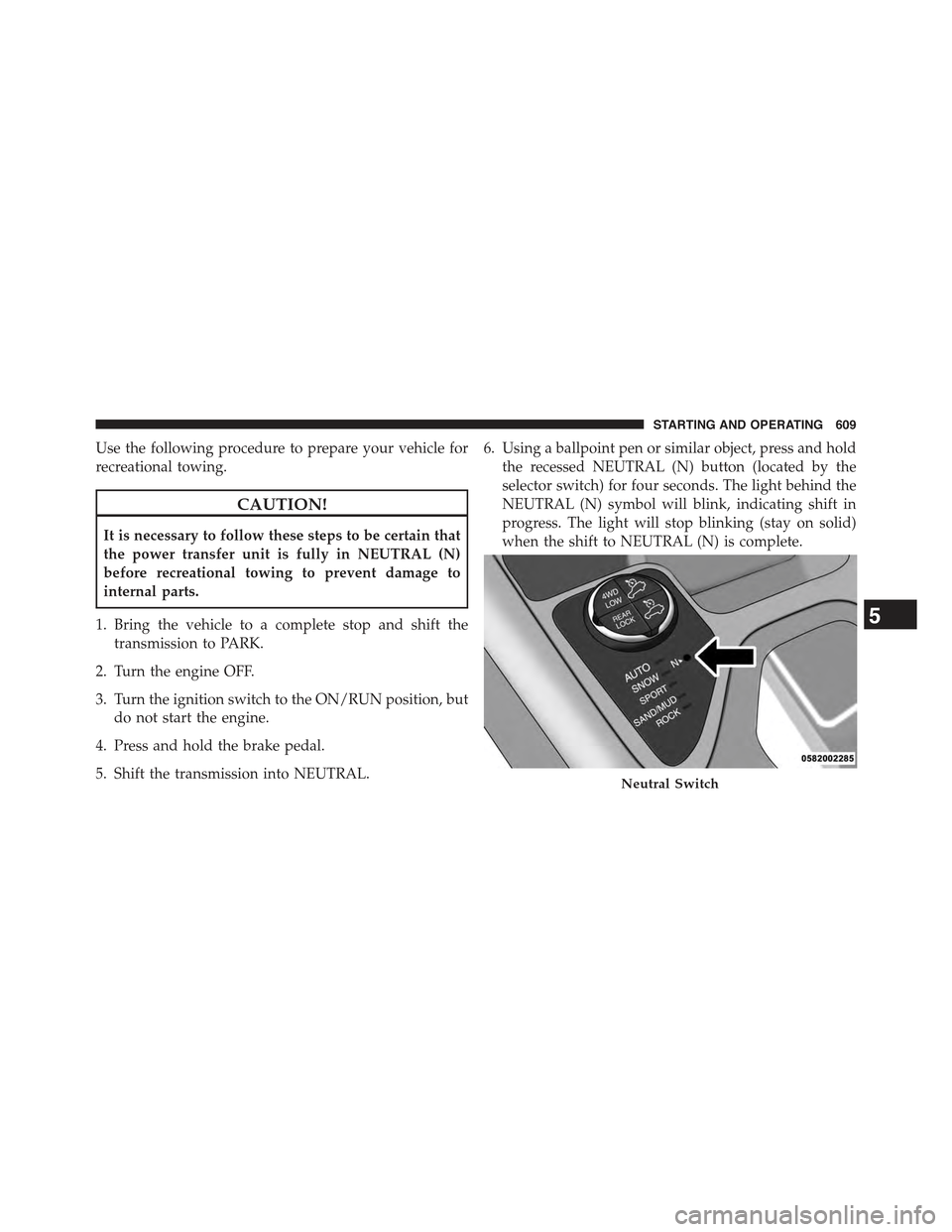

Use the following procedure to prepare your vehicle for
recreational towing.
CAUTION!
It is necessary to follow these steps to be certain that
the power transfer unit is fully in NEUTRAL (N)
before recreational towing to prevent damage to
internal parts.
1. Bring the vehicle to a complete stop and shift the
transmission to PARK.
2. Turn the engine OFF.
3. Turn the ignition switch to the ON/RUN position, but
do not start the engine.
4. Press and hold the brake pedal.
5. Shift the transmission into NEUTRAL.
6. Using a ballpoint pen or similar object, press and hold
the recessed NEUTRAL (N) button (located by the
selector switch) for four seconds. The light behind the
NEUTRAL (N) symbol will blink, indicating shift in
progress. The light will stop blinking (stay on solid)
when the shift to NEUTRAL (N) is complete.
Neutral Switch
5
STARTING AND OPERATING 609

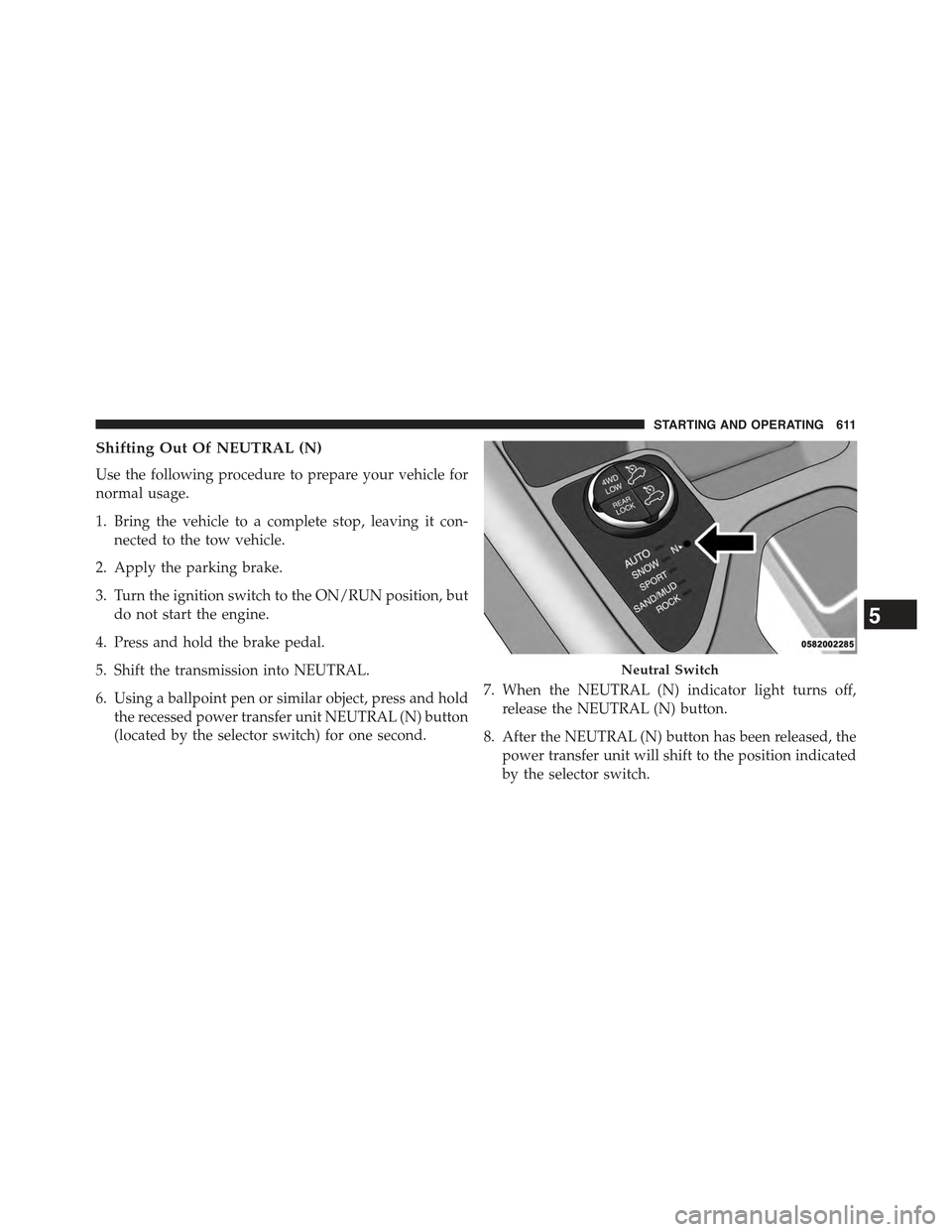

Shifting Out Of NEUTRAL (N)
Use the following procedure to prepare your vehicle for
normal usage.
1. Bring the vehicle to a complete stop, leaving it con-
nected to the tow vehicle.
2. Apply the parking brake.
3. Turn the ignition switch to the ON/RUN position, but
do not start the engine.
4. Press and hold the brake pedal.
5. Shift the transmission into NEUTRAL.
6. Using a ballpoint pen or similar object, press and hold
the recessed power transfer unit NEUTRAL (N) button
(located by the selector switch) for one second.
7. When the NEUTRAL (N) indicator light turns off,
release the NEUTRAL (N) button.
8. After the NEUTRAL (N) button has been released, the
power transfer unit will shift to the position indicated
by the selector switch.
Neutral Switch
5
STARTING AND OPERATING 611

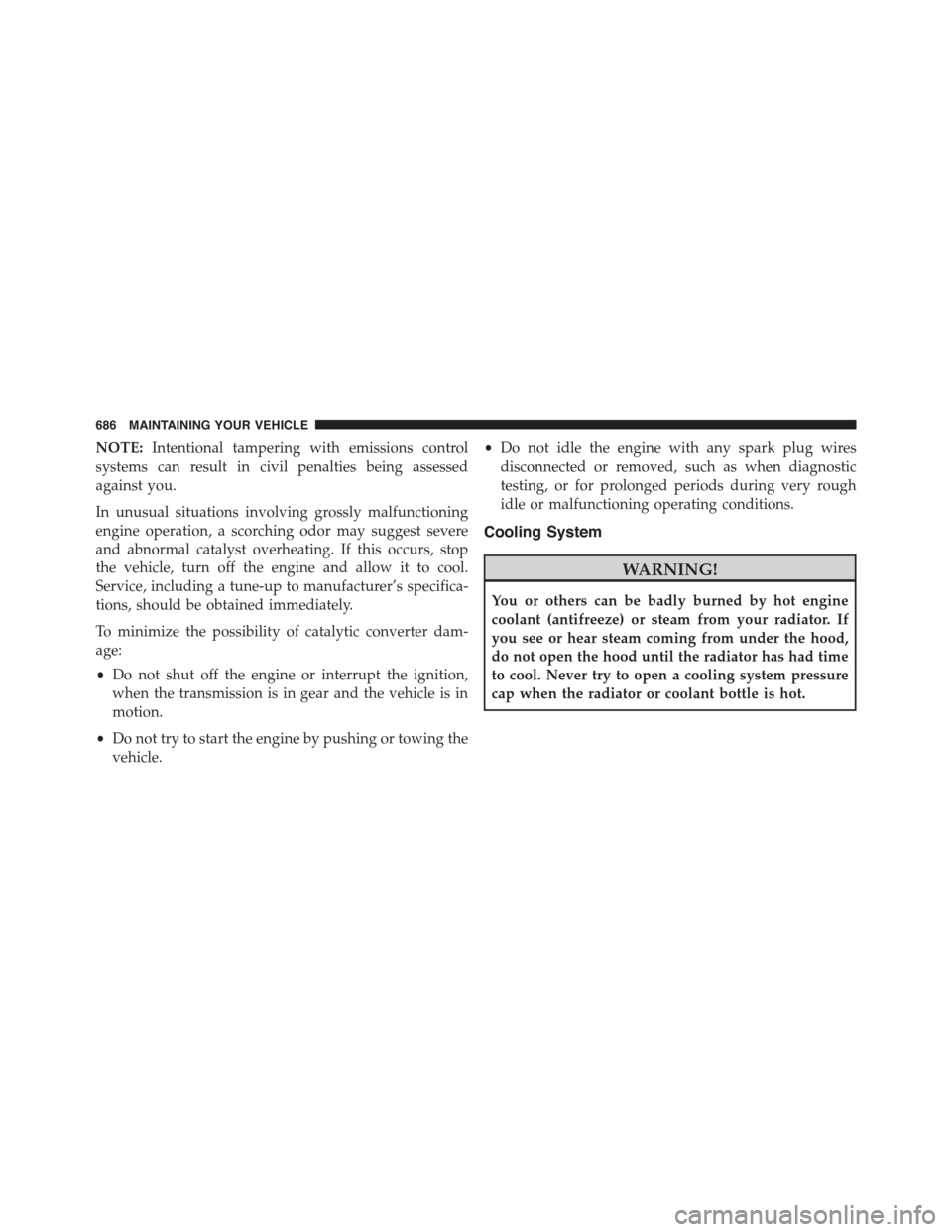

NOTE:Intentional tampering with emissions control
systems can result in civil penalties being assessed
against you.
In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe
and abnormal catalyst overheating. If this occurs, stop
the vehicle, turn off the engine and allow it to cool.
Service, including a tune-up to manufacturer’s specifica-
tions, should be obtained immediately.
To minimize the possibility of catalytic converter dam-
age:
•Do not shut off the engine or interrupt the ignition,
when the transmission is in gear and the vehicle is in
motion.
•Do not try to start the engine by pushing or towing the
vehicle.
•Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idle or malfunctioning operating conditions.
Cooling System
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
686 MAINTAINING YOUR VEHICLE

CavityBlade FuseCartridge FuseDescription
F1620 Amp Yellow–Powertrain
F17––Not Used
F18––Not Used
F19–40 Amp GreenStarter Solenoid
F2010 Amp Red–A/C Compressor Clutch
F21––Not Used
F225 Amp Tan–Radiator Fan
F2370 Amp Tan–Body Controller Module (BCM)
- Feed 2
F2350 Amp Red–Voltage Stability Module (VSM)
Feed #2 - If Equipped with
Stop/Start Engine Option
F2420 Amp Yellow–Rear Wiper — If Equipped
with Stop/Start Engine Option

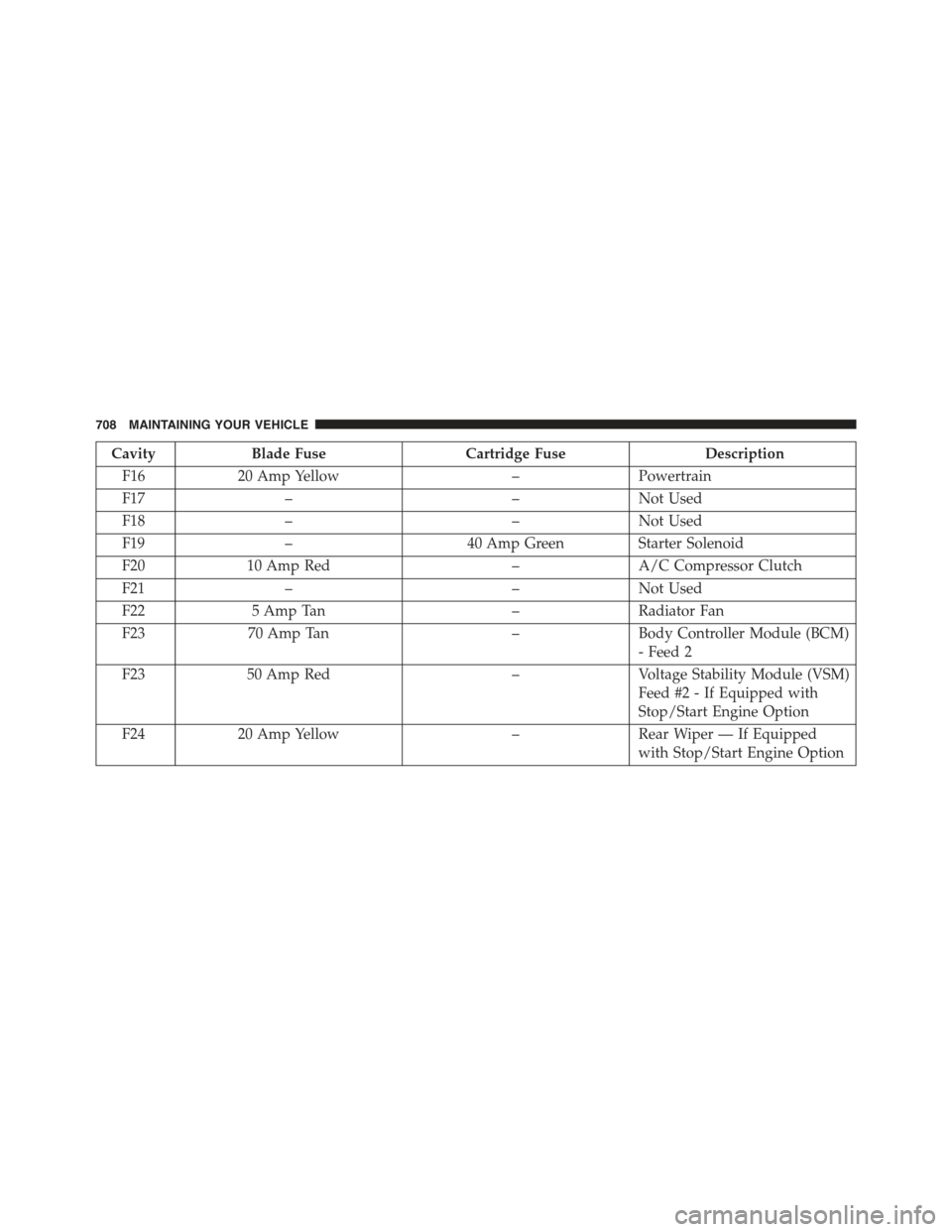

708 MAINTAINING YOUR VEHICLE

CavityBlade FuseCartridge FuseDescription
F25B20 Amp Yellow–Front Washer — If Equipped
with Stop/Start Engine Option
F26–30 Amp PinkFuel Heater - Diesel Only
F27––Not Used
F2815 Amp Blue–Transmission Control Module
(TCM)
F29––Not Used
F3010 Amp Red–Engine Control Module
(ECM)/(EPS)/(PCM)
F31––Not Used
F32––Not Used
F33––Not Used
F34––Not Used
F35––Not Used
F36––Not Used
7
MAINTAINING YOUR VEHICLE 709

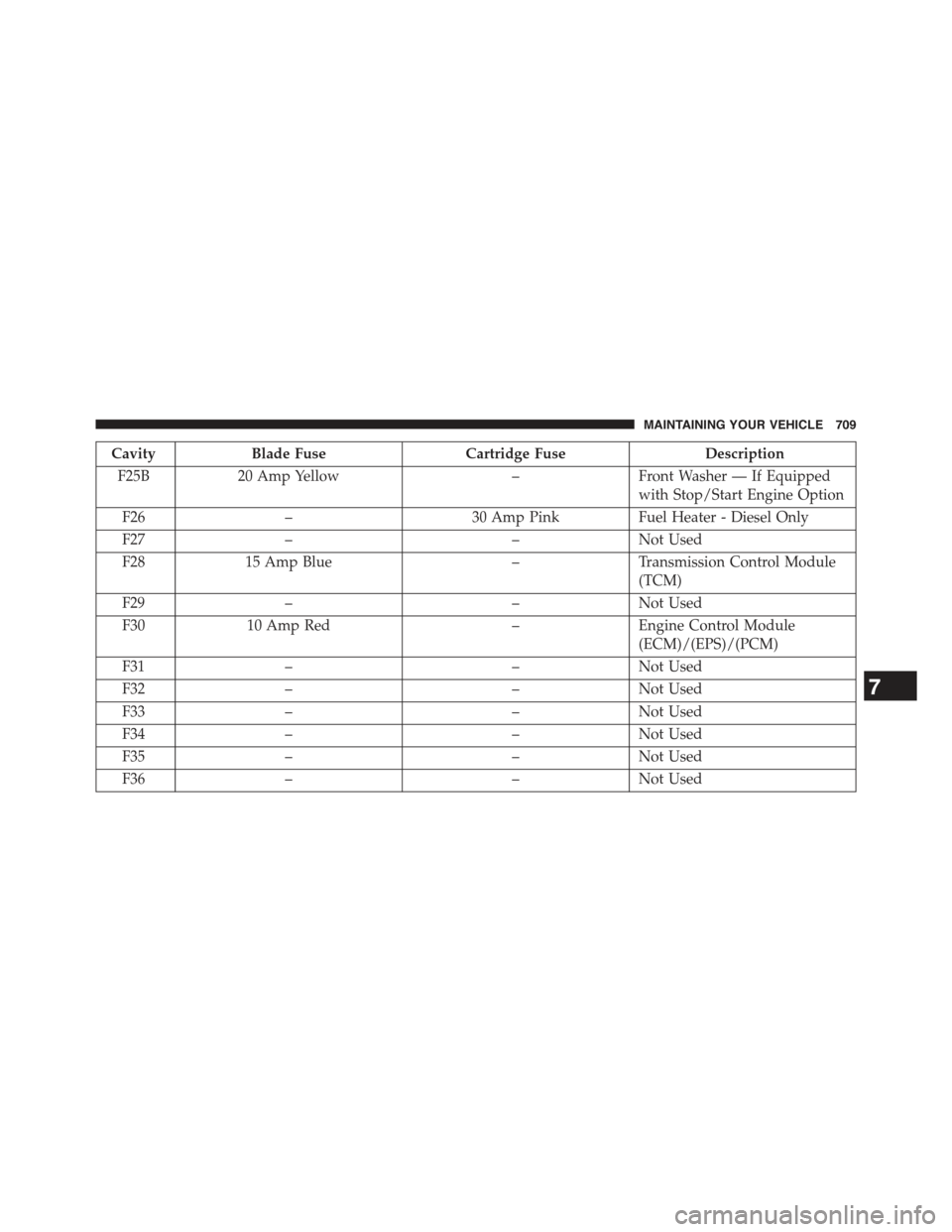

CavityBlade FuseCartridge FuseDescription
F37––Not Used
F38––Not Used
F38–60 Amp Yellow Glow Plugs (Diesel Only) - If
Equipped
F39–40 Amp GreenHVAC Blower Motor
F40–20 Amp BlueTrailer Tow Park Light - If
Equipped
F40–30 Amp PinkHeadlamp Washer Pump - If
Equipped
F41–60 Amp Yellow Body Controller Module (BCM)
- Feed 1
F41–50 Amp RedVoltage Stability Module - Feed
1 - If Equipped with Stop/Start
Engine Option
F42–30 Amp PinkTrailer Tow Electric Brake Mod-
ule
710 MAINTAINING YOUR VEHICLE

CavityBlade FuseCartridge FuseDescription
F52–30 Amp PinkFront Wipers - If Equipped
with Stop/Start Engine Option
F53–30 Amp PinkBrake System Module & Valves
F54–30 Amp PinkBody Control Module (BCM)
Feed 3
F5510 Amp Red–Blind Spot Sensors / Compass
/ Rearview Camera / Trunk
Lamp With Flashlamp Charger
- If Equipped
F5615 Amp Blue–Ignition Node Module
(IGNM)/KIN/RF Hub/Electric
Steering Column Lock (ESL)
F5720 Amp Yellow–Trailer Tow Lights Left - If
Equipped
F5810 Amp Red–Occupant Classification Module
712 MAINTAINING YOUR VEHICLE

CavityBlade FuseCartridge FuseDescription
F6510 Amp Red–In Car Temperature Sensor /
Humidity Sensor / Driver As-
sist System Module (DASM) /
Park Assist (PAM) - If
Equipped With Stop/Start
option
F6615 Amp Blue–HVAC (ECC) / Instrument
Panel Cluster (IPC)
F6710 Amp Red–In Car Temperature Sensor /
Humidity Sensor / Driver As-
sist System Module (DASM) /
Park Assist (PAM) - If Not
Equipped With Stop/Start
Option
F68––Not Used

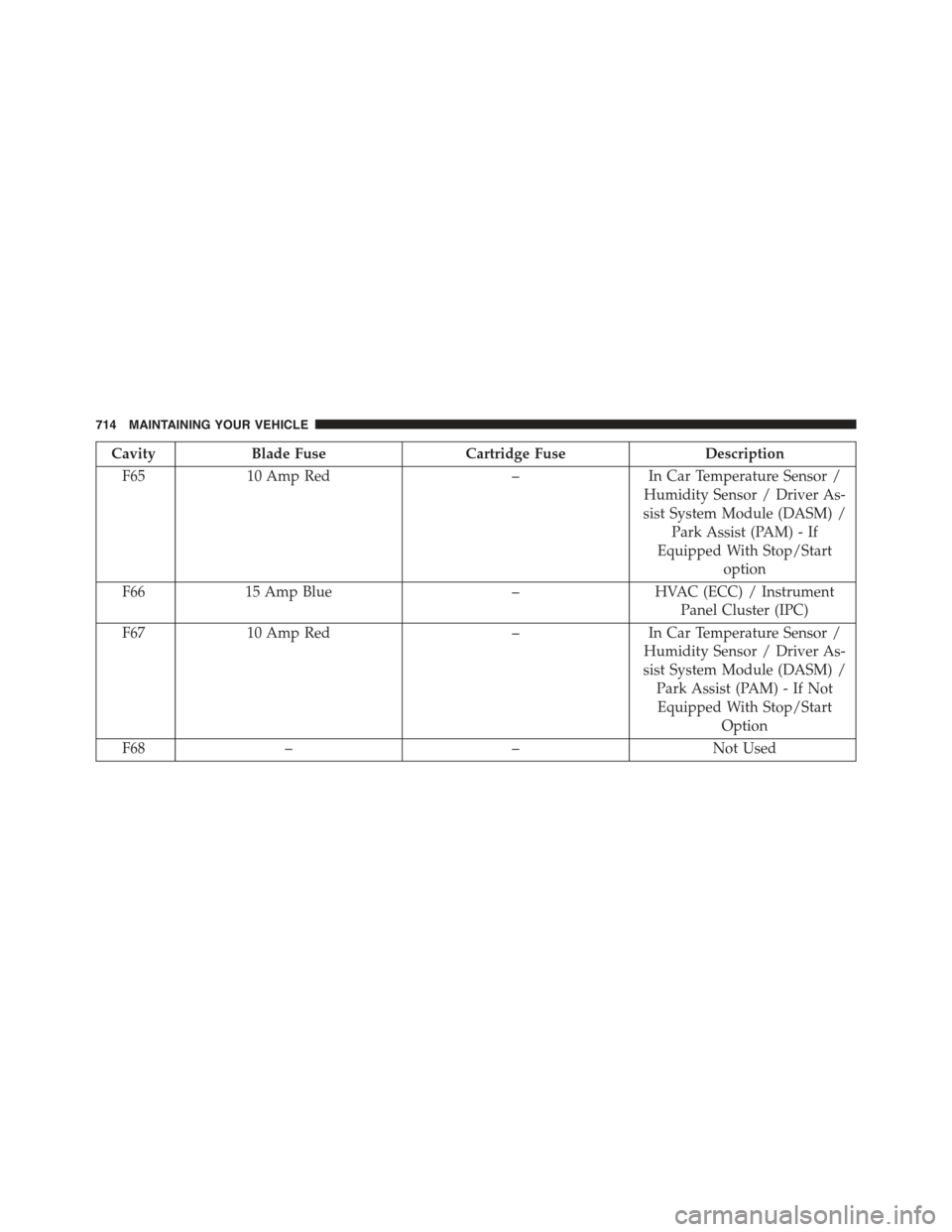

714 MAINTAINING YOUR VEHICLE

CavityBlade FuseCartridge FuseDescription
F6910 Amp Red–Power Transfer Unit Switch
(TSBM) / Active Grill Shutter
(AGS) - If Equipped
F705 Amp Tan–Intelligent Battery Sensor If
Equipped with Stop/Start
Engine Option
F7120 Amp Yellow–HID Headlamp Right if
Equipped with Stop/Start
Engine Option
F7210 Amp Red–Heated Mirrors - If Equipped
F73–20 Amp BlueTrailer Tow Back Up - If
Equipped
F74–30 Amp PinkRear Defroster
F7520 Amp Yellow–Cigar Lighter
F7620 Amp Yellow–Rear Differential Module
(RDM) - If Equipped
7

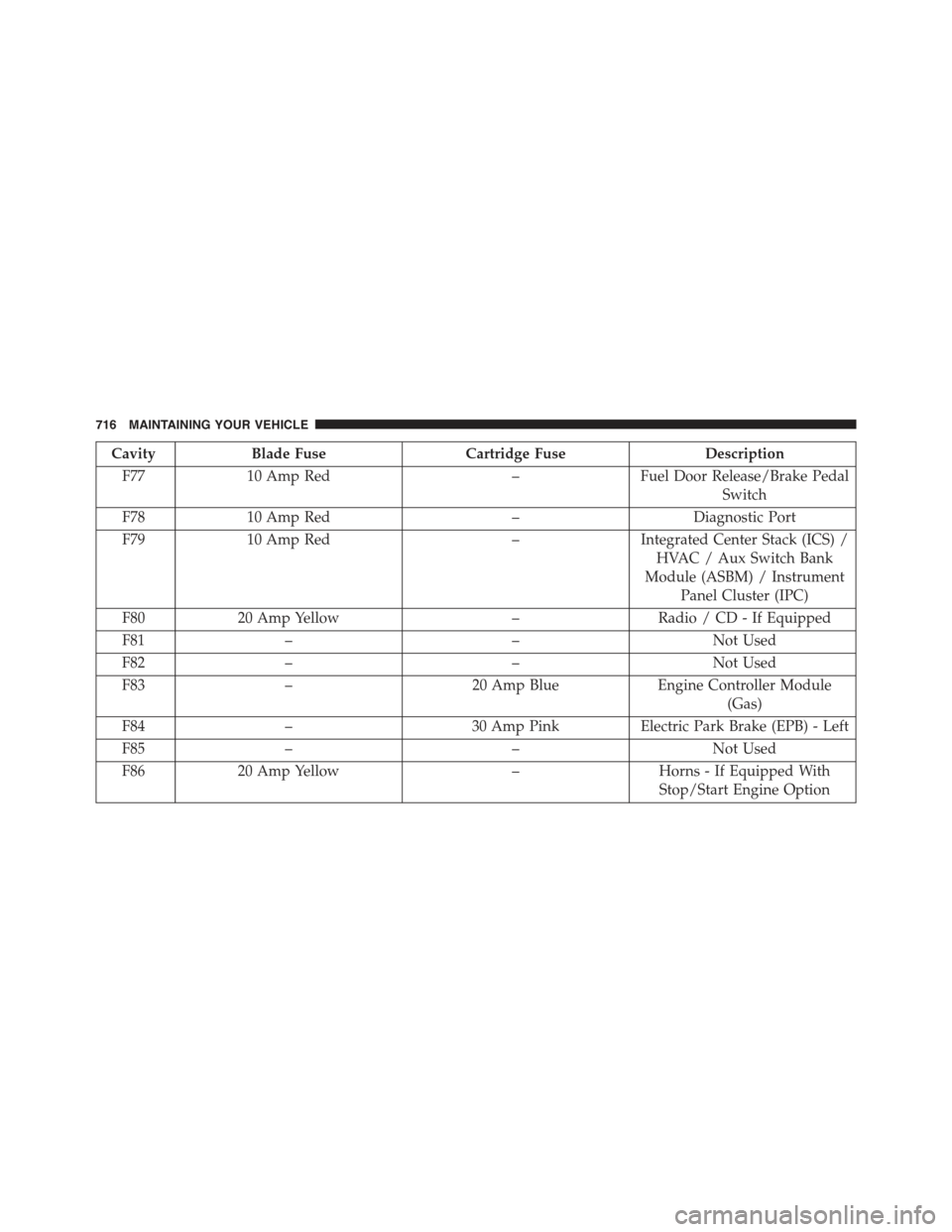

MAINTAINING YOUR VEHICLE 715

CavityBlade FuseCartridge FuseDescription
F7710 Amp Red–Fuel Door Release/Brake Pedal
Switch
F7810 Amp Red–Diagnostic Port
F7910 Amp Red–Integrated Center Stack (ICS) /
HVAC / Aux Switch Bank
Module (ASBM) / Instrument
Panel Cluster (IPC)
F8020 Amp Yellow–Radio / CD - If Equipped
F81––Not Used
F82––Not Used
F83–20 Amp BlueEngine Controller Module
(Gas)
F84–30 Amp PinkElectric Park Brake (EPB) - Left
F85––Not Used
F8620 Amp Yellow–Horns - If Equipped With
Stop/Start Engine Option
