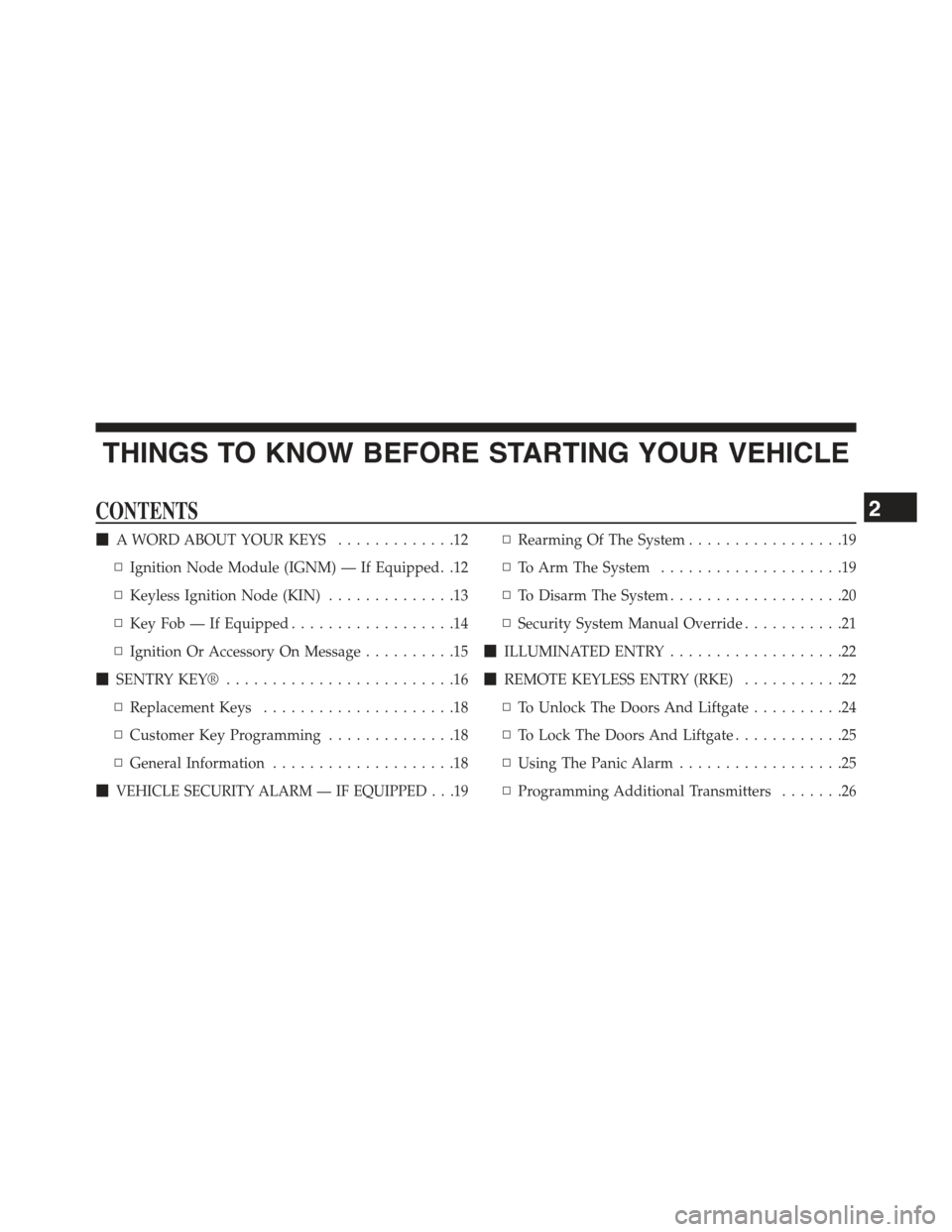

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
!A WORD ABOUT YOUR KEYS.............12
▫Ignition Node Module (IGNM) — If Equipped. .12
▫Keyless Ignition Node (KIN)..............13
▫Key Fob — If Equipped..................14
▫Ignition Or Accessory On Message..........15
!SENTRY KEY®.........................16
▫Replacement Keys.....................18
▫Customer Key Programming..............18
▫General Information....................18
!VEHICLE SECURITY ALARM — IF EQUIPPED . . .19
▫Rearming Of The System.................19
▫To Arm The System....................19
▫To Disarm The System...................20
▫Security System Manual Override...........21
!ILLUMINATED ENTRY...................22
!REMOTE KEYLESS ENTRY (RKE)...........22
▫To Unlock The Doors And Liftgate..........24
▫To Lock The Doors And Liftgate............25
▫Using The Panic Alarm..................25
▫Programming Additional Transmitters.......26
2

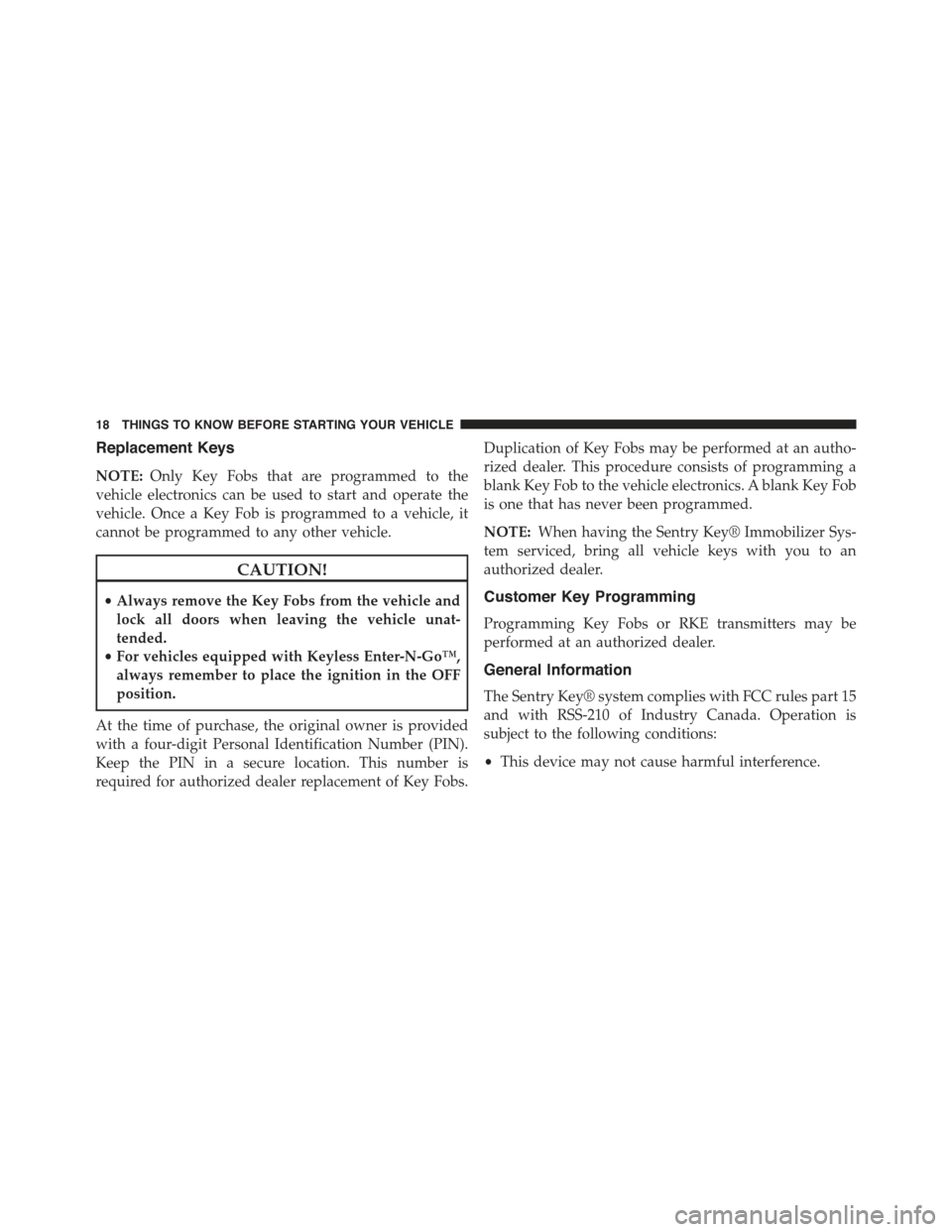

Replacement Keys
NOTE:Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
•For vehicles equipped with Keyless Enter-N-Go™,
always remember to place the ignition in the OFF
position.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer. This procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE:When having the Sentry Key® Immobilizer Sys-
tem serviced, bring all vehicle keys with you to an
authorized dealer.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The Sentry Key® system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

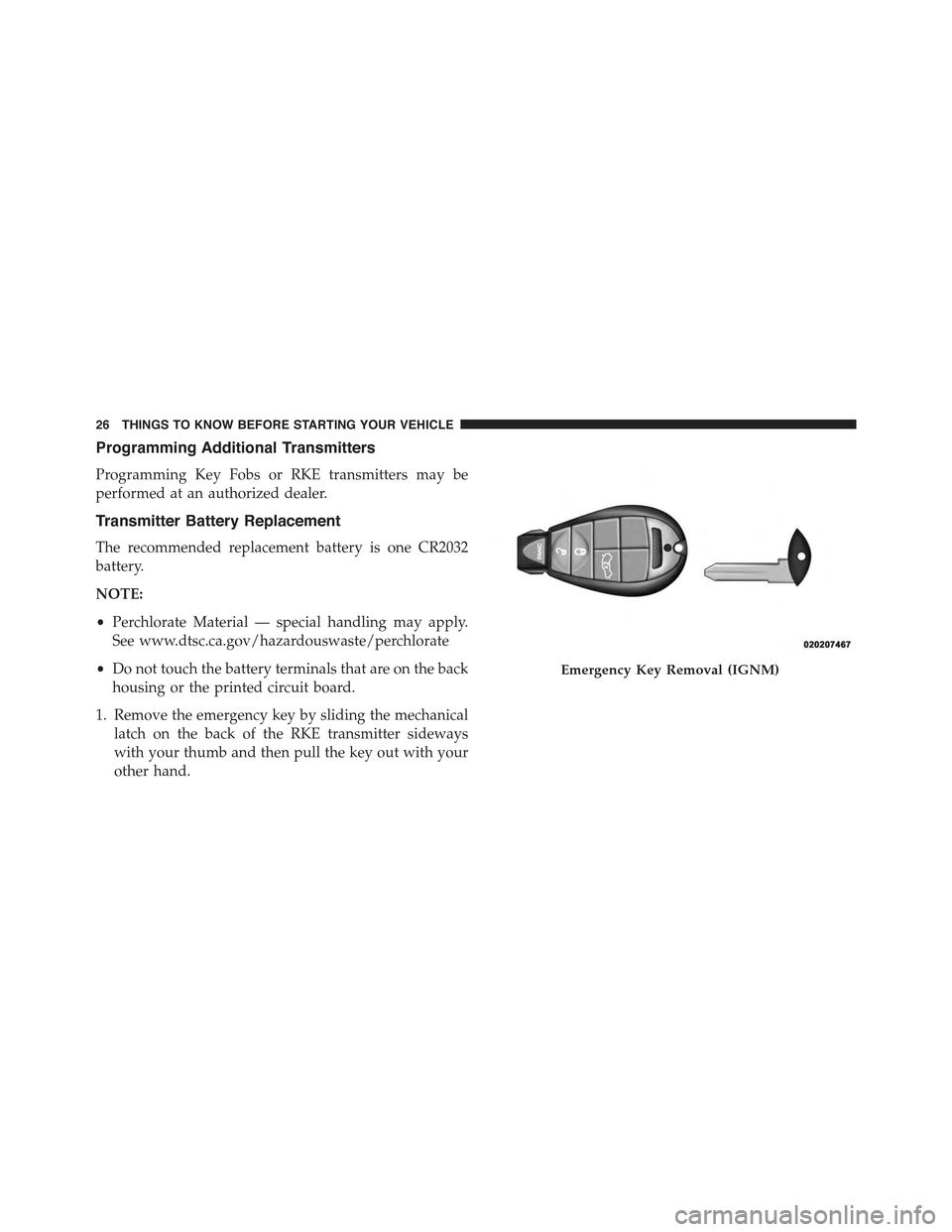

Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
Transmitter Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by sliding the mechanical
latch on the back of the RKE transmitter sideways
with your thumb and then pull the key out with your
other hand.
Emergency Key Removal (IGNM)
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

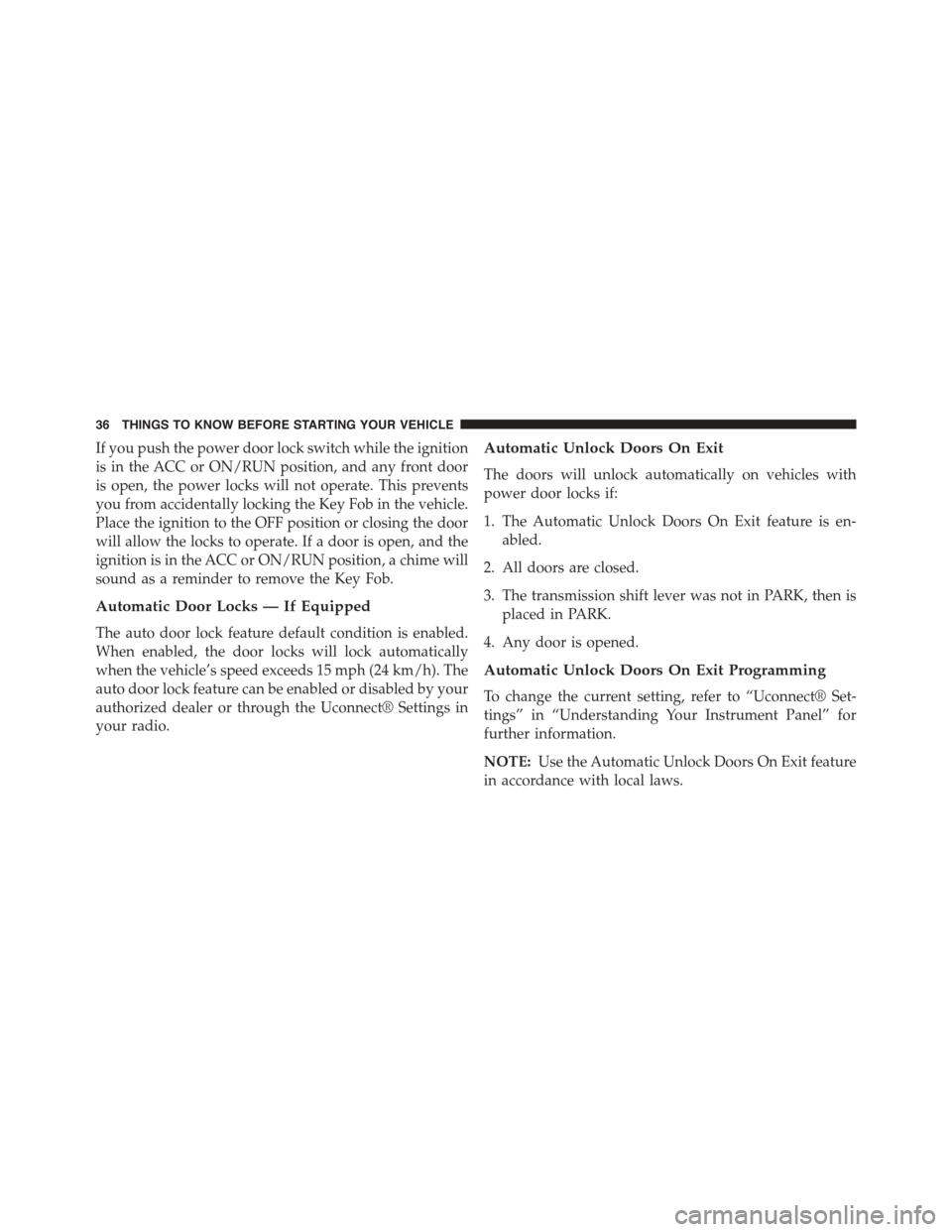

If you push the power door lock switch while the ignition
is in the ACC or ON/RUN position, and any front door
is open, the power locks will not operate. This prevents
you from accidentally locking the Key Fob in the vehicle.
Place the ignition to the OFF position or closing the door
will allow the locks to operate. If a door is open, and the
ignition is in the ACC or ON/RUN position, a chime will
sound as a reminder to remove the Key Fob.
Automatic Door Locks — If Equipped
The auto door lock feature default condition is enabled.
When enabled, the door locks will lock automatically
when the vehicle’s speed exceeds 15 mph (24 km/h). The
auto door lock feature can be enabled or disabled by your
authorized dealer or through the Uconnect® Settings in
your radio.
Automatic Unlock Doors On Exit
The doors will unlock automatically on vehicles with
power door locks if:
1. The Automatic Unlock Doors On Exit feature is en-
abled.
2. All doors are closed.
3. The transmission shift lever was not in PARK, then is
placed in PARK.
4. Any door is opened.
Automatic Unlock Doors On Exit Programming
To change the current setting, refer to “Uconnect® Set-
tings” in “Understanding Your Instrument Panel” for
further information.
NOTE:Use the Automatic Unlock Doors On Exit feature
in accordance with local laws.
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

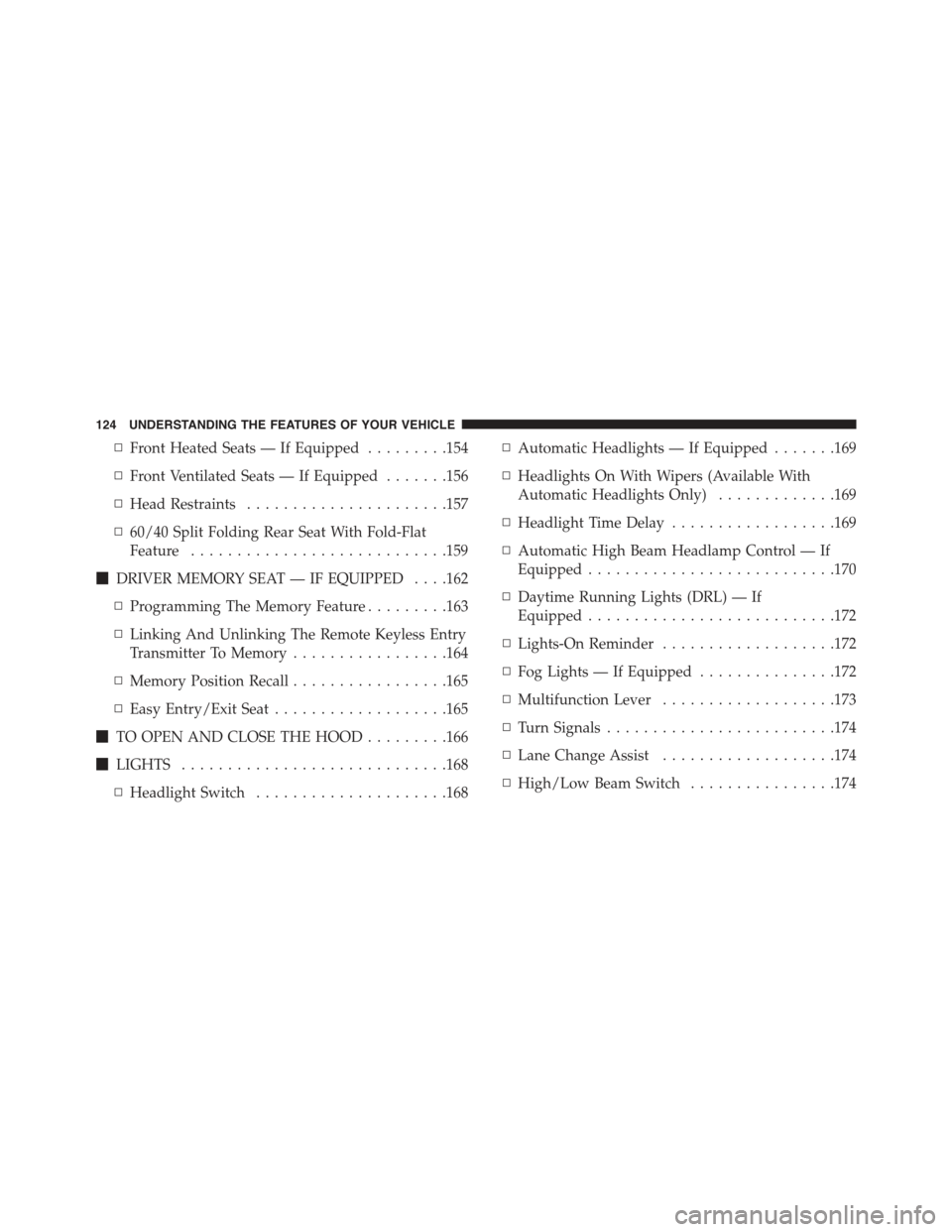

▫Front Heated Seats — If Equipped.........154
▫Front Ventilated Seats — If Equipped.......156
▫Head Restraints......................157
▫60/40 Split Folding Rear Seat With Fold-Flat
Feature............................159
!DRIVER MEMORY SEAT — IF EQUIPPED . . . .162
▫Programming The Memory Feature.........163
▫Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory.................164
▫Memory Position Recall.................165
▫Easy Entry/Exit Seat...................165
!TO OPEN AND CLOSE THE HOOD.........166
!LIGHTS.............................168
▫Headlight Switch.....................168
▫Automatic Headlights — If Equipped.......169
▫Headlights On With Wipers (Available With
Automatic Headlights Only).............169
▫Headlight Time Delay..................169
▫Automatic High Beam Headlamp Control — If
Equipped...........................170
▫Daytime Running Lights (DRL) — If
Equipped...........................172
▫Lights-On Reminder...................172
▫Fog Lights — If Equipped...............172
▫Multifunction Lever...................173
▫Turn Signals.........................174
▫Lane Change Assist...................174
▫High/Low Beam Switch................174
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

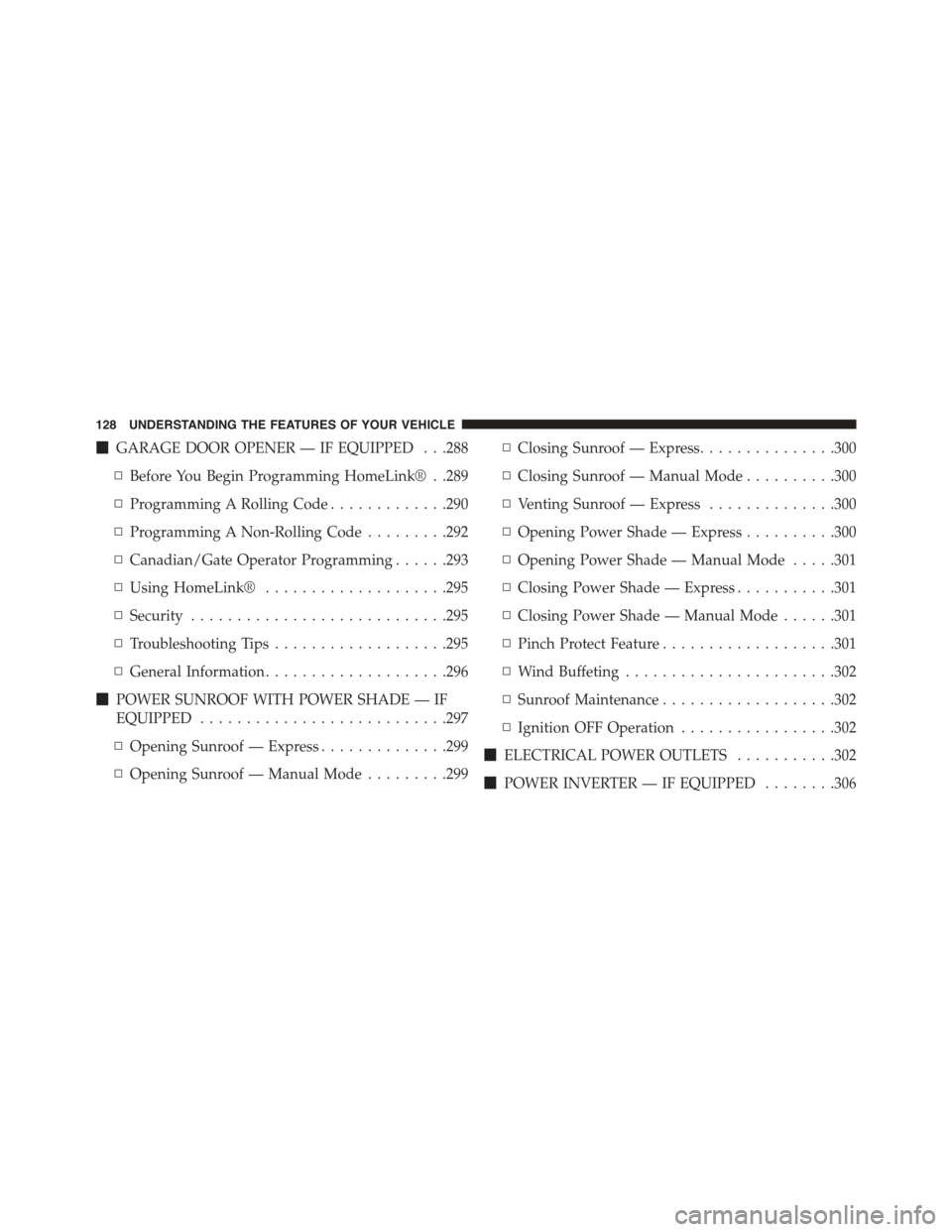

!GARAGE DOOR OPENER — IF EQUIPPED . . .288
▫Before You Begin Programming HomeLink® . .289
▫Programming A Rolling Code.............290
▫Programming A Non-Rolling Code.........292
▫Canadian/Gate Operator Programming......293
▫Using HomeLink®....................295
▫Security............................295
▫Troubleshooting Tips...................295
▫General Information....................296
!POWER SUNROOF WITH POWER SHADE — IF
EQUIPPED...........................297
▫Opening Sunroof — Express..............299
▫Opening Sunroof — Manual Mode.........299
▫Closing Sunroof — Express...............300
▫Closing Sunroof — Manual Mode..........300
▫Venting Sunroof — Express..............300
▫Opening Power Shade — Express..........300
▫Opening Power Shade — Manual Mode.....301
▫Closing Power Shade — Express...........301
▫Closing Power Shade — Manual Mode......301
▫Pinch Protect Feature...................301
▫Wind Buffeting.......................302
▫Sunroof Maintenance...................302
▫Ignition OFF Operation.................302
!ELECTRICAL POWER OUTLETS...........302
!POWER INVERTER — IF EQUIPPED........306
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

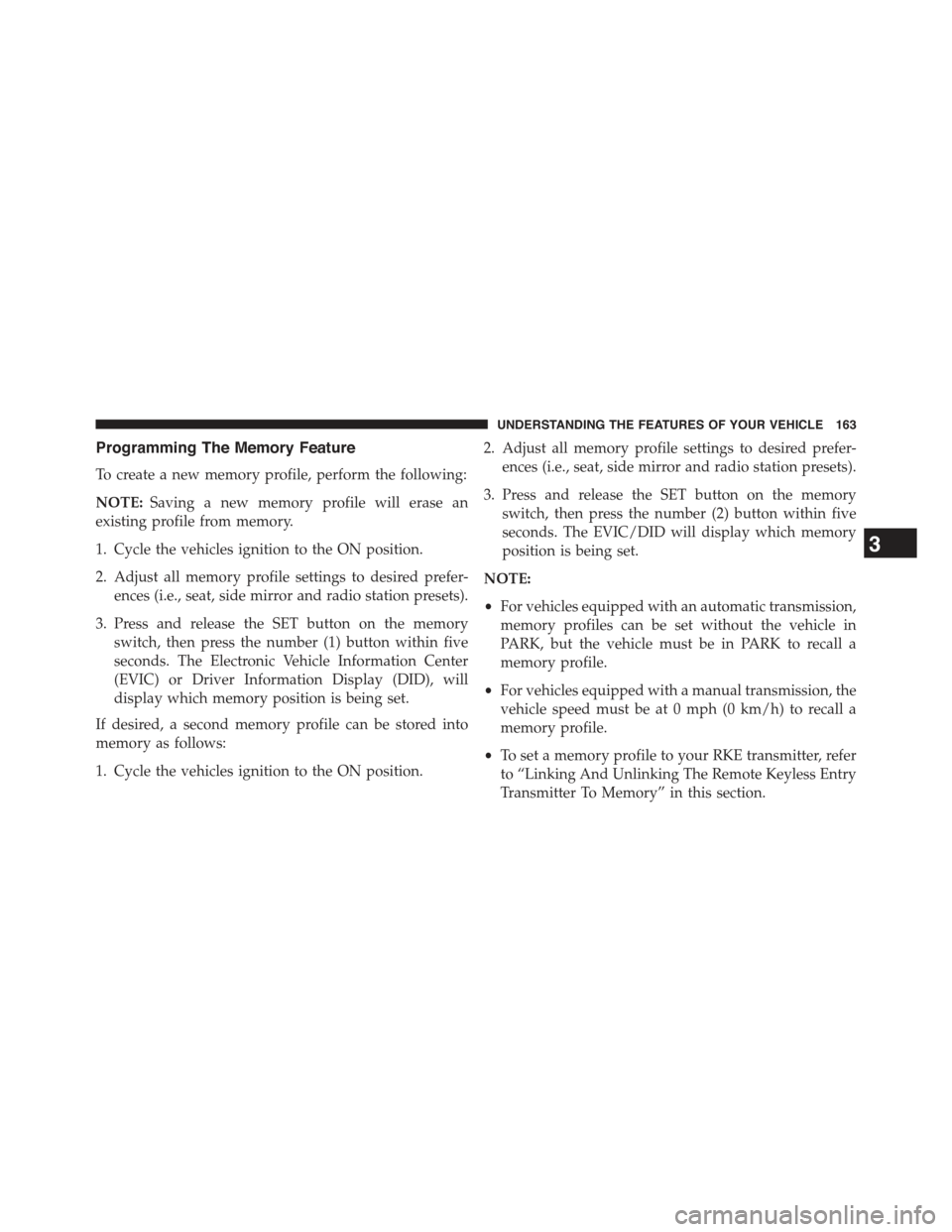

Programming The Memory Feature
To create a new memory profile, perform the following:
NOTE:Saving a new memory profile will erase an
existing profile from memory.
1. Cycle the vehicles ignition to the ON position.
2. Adjust all memory profile settings to desired prefer-
ences (i.e., seat, side mirror and radio station presets).
3. Press and release the SET button on the memory
switch, then press the number (1) button within five
seconds. The Electronic Vehicle Information Center
(EVIC) or Driver Information Display (DID), will
display which memory position is being set.
If desired, a second memory profile can be stored into
memory as follows:
1. Cycle the vehicles ignition to the ON position.
2. Adjust all memory profile settings to desired prefer-
ences (i.e., seat, side mirror and radio station presets).
3. Press and release the SET button on the memory
switch, then press the number (2) button within five
seconds. The EVIC/DID will display which memory
position is being set.
NOTE:
•For vehicles equipped with an automatic transmission,
memory profiles can be set without the vehicle in
PARK, but the vehicle must be in PARK to recall a
memory profile.
•For vehicles equipped with a manual transmission, the
vehicle speed must be at 0 mph (0 km/h) to recall a
memory profile.
•To set a memory profile to your RKE transmitter, refer
to “Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory” in this section.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

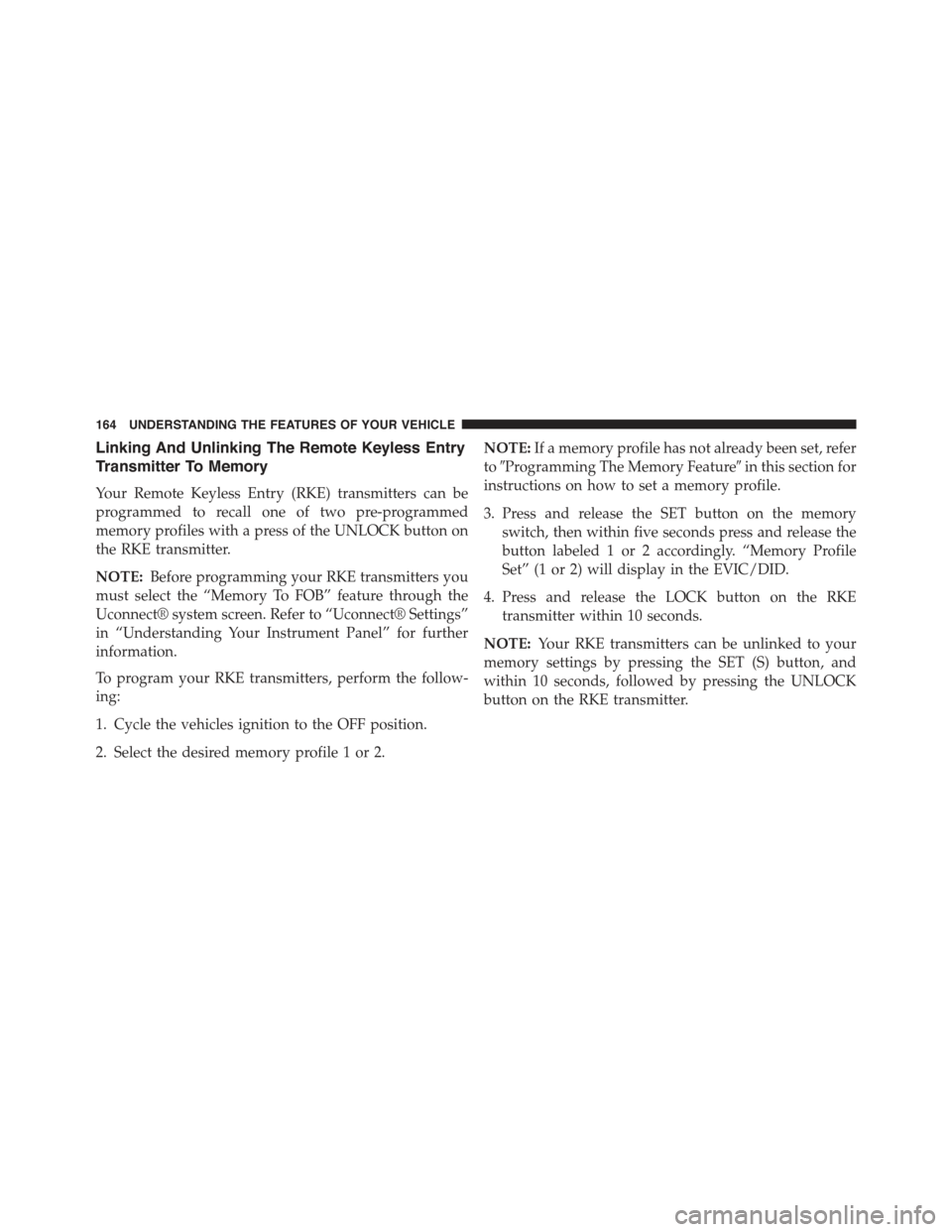

Linking And Unlinking The Remote Keyless Entry
Transmitter To Memory
Your Remote Keyless Entry (RKE) transmitters can be
programmed to recall one of two pre-programmed
memory profiles with a press of the UNLOCK button on
the RKE transmitter.
NOTE:Before programming your RKE transmitters you
must select the “Memory To FOB” feature through the
Uconnect® system screen. Refer to “Uconnect® Settings”
in “Understanding Your Instrument Panel” for further
information.
To program your RKE transmitters, perform the follow-
ing:
1. Cycle the vehicles ignition to the OFF position.
2. Select the desired memory profile 1 or 2.
NOTE:If a memory profile has not already been set, refer
to#Programming The Memory Feature#in this section for
instructions on how to set a memory profile.
3. Press and release the SET button on the memory
switch, then within five seconds press and release the
button labeled 1 or 2 accordingly. “Memory Profile
Set” (1 or 2) will display in the EVIC/DID.
4. Press and release the LOCK button on the RKE
transmitter within 10 seconds.
NOTE:Your RKE transmitters can be unlinked to your
memory settings by pressing the SET (S) button, and
within 10 seconds, followed by pressing the UNLOCK
button on the RKE transmitter.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:HomeLink® is disabled when the Vehicle Secu-
rity Alarm is active.
Before You Begin Programming HomeLink®
Ensure your vehicle is parked outside of the garage
before you begin programming.
For more efficient programming and accurate transmis-
sion of the radio-frequency signal it is recommended that
a new battery be placed in the hand-held transmitter of
the device that is being programmed to the HomeLink®
system.
To erase the channels place the ignition in the ON/RUN
position and push and hold the two outside HomeLink®
buttons (I and III) for up 20 seconds, or until the red
indicator flashes.
NOTE:
•Erasing all channels should only be performed when
programming HomeLink® for the first time. Do not
erase channels when programming additional buttons.
•If you have any problems, or require assistance, please
call toll-free 1-800-355-3515 or, on the Internet at
HomeLink.com for information or assistance.
HomeLink® Buttons/Sunvisor/Headliner
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 289

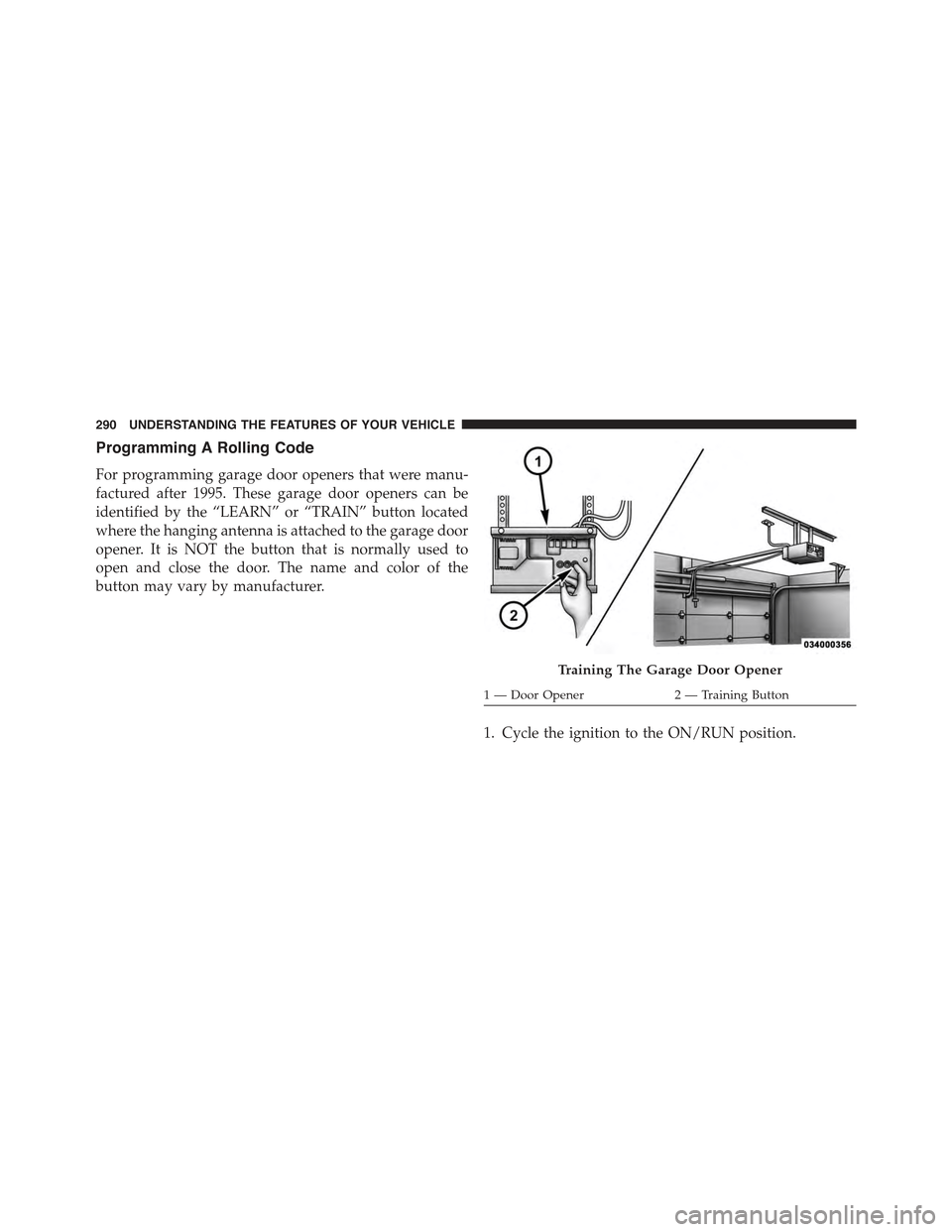

Programming A Rolling Code
For programming garage door openers that were manu-
factured after 1995. These garage door openers can be
identified by the “LEARN” or “TRAIN” button located
where the hanging antenna is attached to the garage door
opener. It is NOT the button that is normally used to
open and close the door. The name and color of the
button may vary by manufacturer.
1. Cycle the ignition to the ON/RUN position.
Training The Garage Door Opener
1—DoorOpener2—TrainingButton
290 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
