JEEP CHEROKEE 2016 KL / 5.G Owners Manual

NOTE:Make sure that objects inside the bin do not
interfere with the latch before closing the seat. Push the
seat cushion downward after closing it to make sure it
latches to the base.
WARNING!
Be certain that the seat cushion is locked securely
into position before using the seat. Otherwise, the
seat will not provide the proper stability for passen-
gers. An improperly latched seat cushion could cause
serious injury.
CARGO AREA FEATURES
Cargo Load Floor
The cargo load floor system has a load capacity of 400 lbs
(181 kg).
To provide additional storage area, each rear seat can be
folded flat. This allows for extended cargo space and still
maintains some rear seating room. Refer to “Seats” in this
section for further information.Passenger Seat Cushion Storage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 309

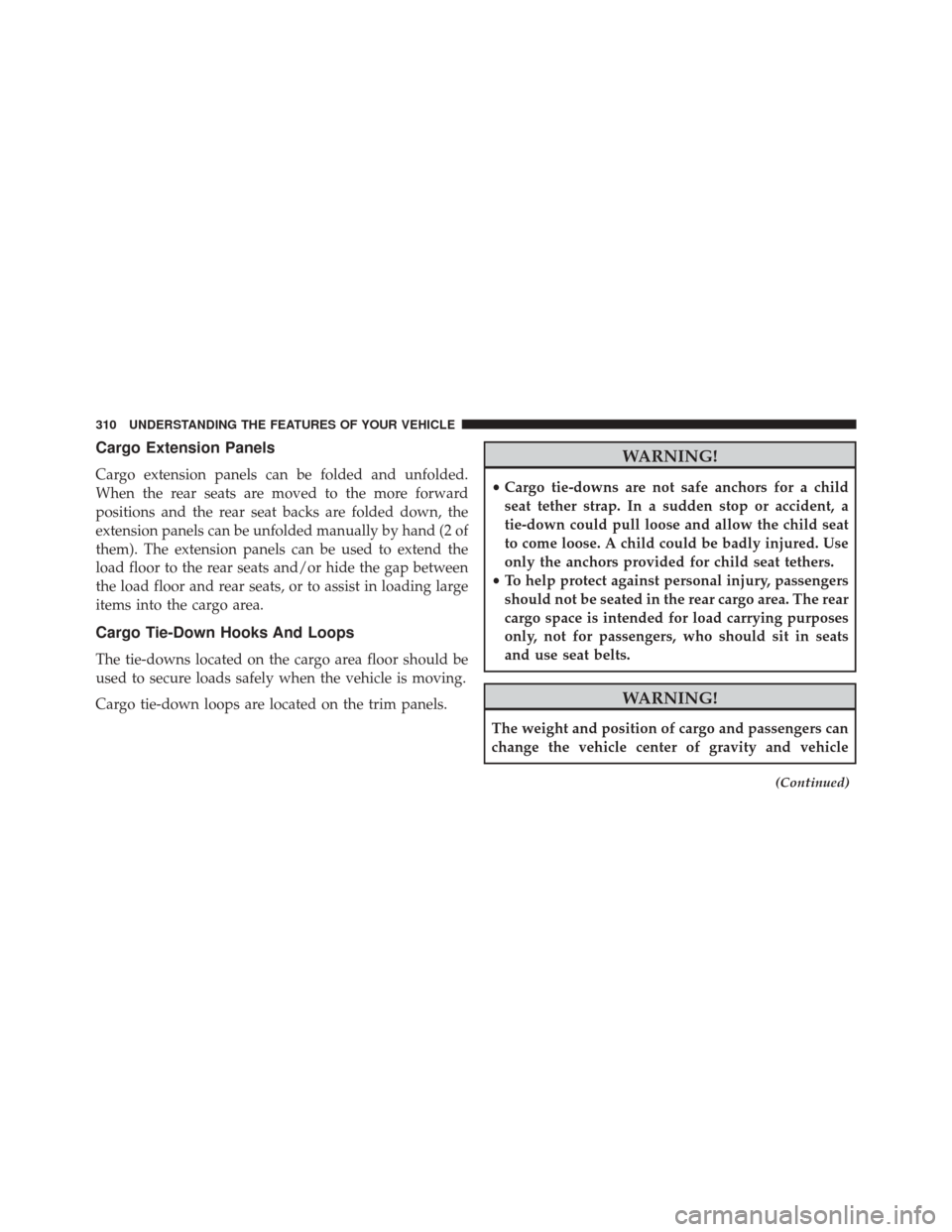

Cargo Extension Panels
Cargo extension panels can be folded and unfolded.
When the rear seats are moved to the more forward
positions and the rear seat backs are folded down, the
extension panels can be unfolded manually by hand (2 of
them). The extension panels can be used to extend the
load floor to the rear seats and/or hide the gap between
the load floor and rear seats, or to assist in loading large
items into the cargo area.
Cargo Tie-Down Hooks And Loops
The tie-downs located on the cargo area floor should be
used to secure loads safely when the vehicle is moving.
Cargo tie-down loops are located on the trim panels.
WARNING!
•Cargo tie-downs are not safe anchors for a child
seat tether strap. In a sudden stop or accident, a
tie-down could pull loose and allow the child seat
to come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.
• To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats
and use seat belts.
WARNING!
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
(Continued)
310 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!(Continued)
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
•Do not carry loads that exceed the load limits
described on the label attached to the left door or
left door center pillar.
• Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as pos-
sible.
• Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the vehicle to
sway.
• Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
accident.
Rear Storage Bins
The rear storage bins are located in the rear of the vehicle
on the sides of the load floor.
Rear Storage Bins
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 311

REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear wiper/washer controls are located on the wind-
shield wiper/washer lever on the right side of the
steering column. The rear wiper/washer is operated by
rotating a switch, located at the middle of the lever.Rotate the center portion of the lever upward to
the first detent for intermittent operation and to
the second detent for continuous rear wiper operation.
Rear Wiper/Washer Control
312 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

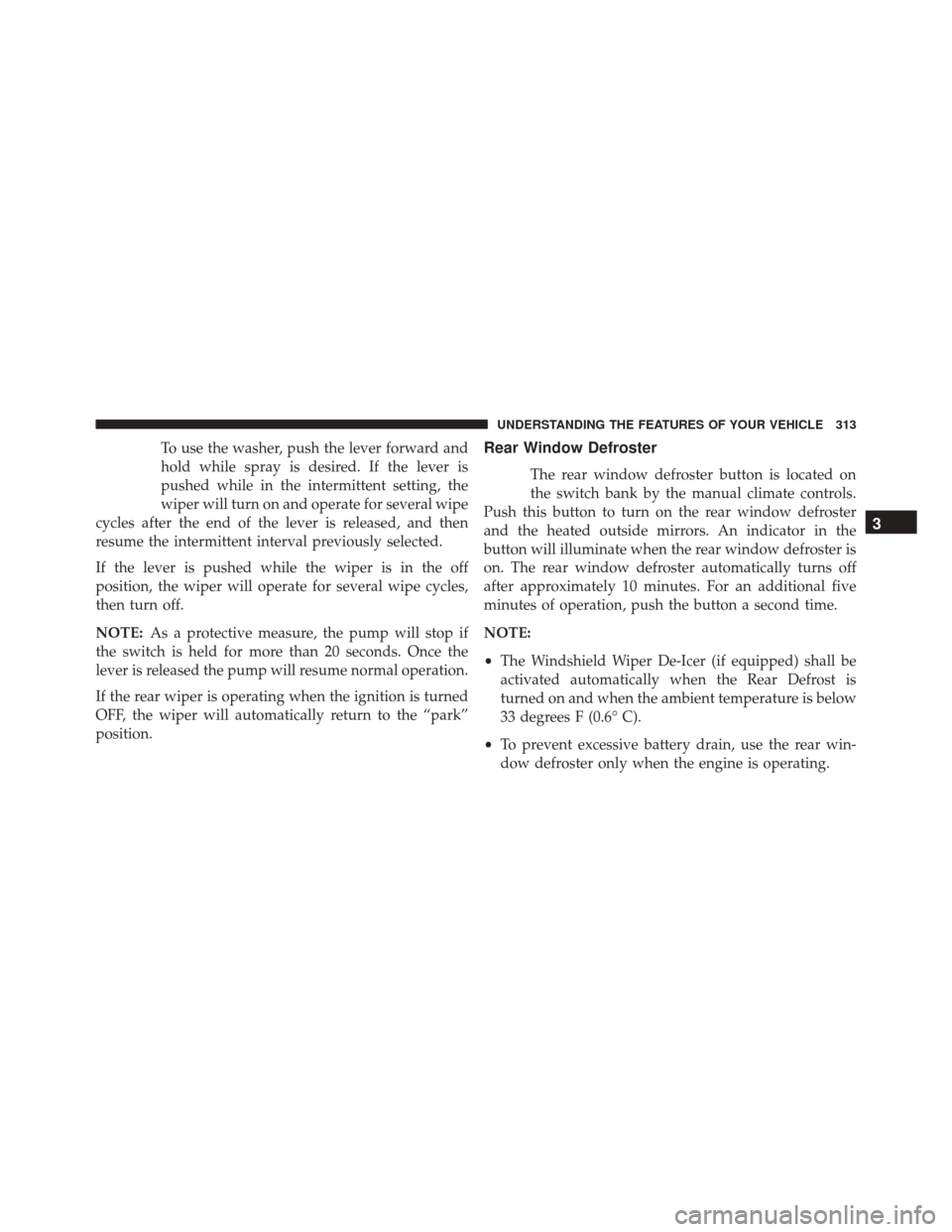

To use the washer, push the lever forward and
hold while spray is desired. If the lever is
pushed while in the intermittent setting, the
wiper will turn on and operate for several wipe
cycles after the end of the lever is released, and then
resume the intermittent interval previously selected.
If the lever is pushed while the wiper is in the off
position, the wiper will operate for several wipe cycles,
then turn off.
NOTE: As a protective measure, the pump will stop if
the switch is held for more than 20 seconds. Once the
lever is released the pump will resume normal operation.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “park”
position.Rear Window Defroster
The rear window defroster button is located on
the switch bank by the manual climate controls.
Push this button to turn on the rear window defroster
and the heated outside mirrors. An indicator in the
button will illuminate when the rear window defroster is
on. The rear window defroster automatically turns off
after approximately 10 minutes. For an additional five
minutes of operation, push the button a second time.
NOTE:
• The Windshield Wiper De-Icer (if equipped) shall be
activated automatically when the Rear Defrost is
turned on and when the ambient temperature is below
33 degrees F (0.6° C).
• To prevent excessive battery drain, use the rear win-
dow defroster only when the engine is operating.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 313

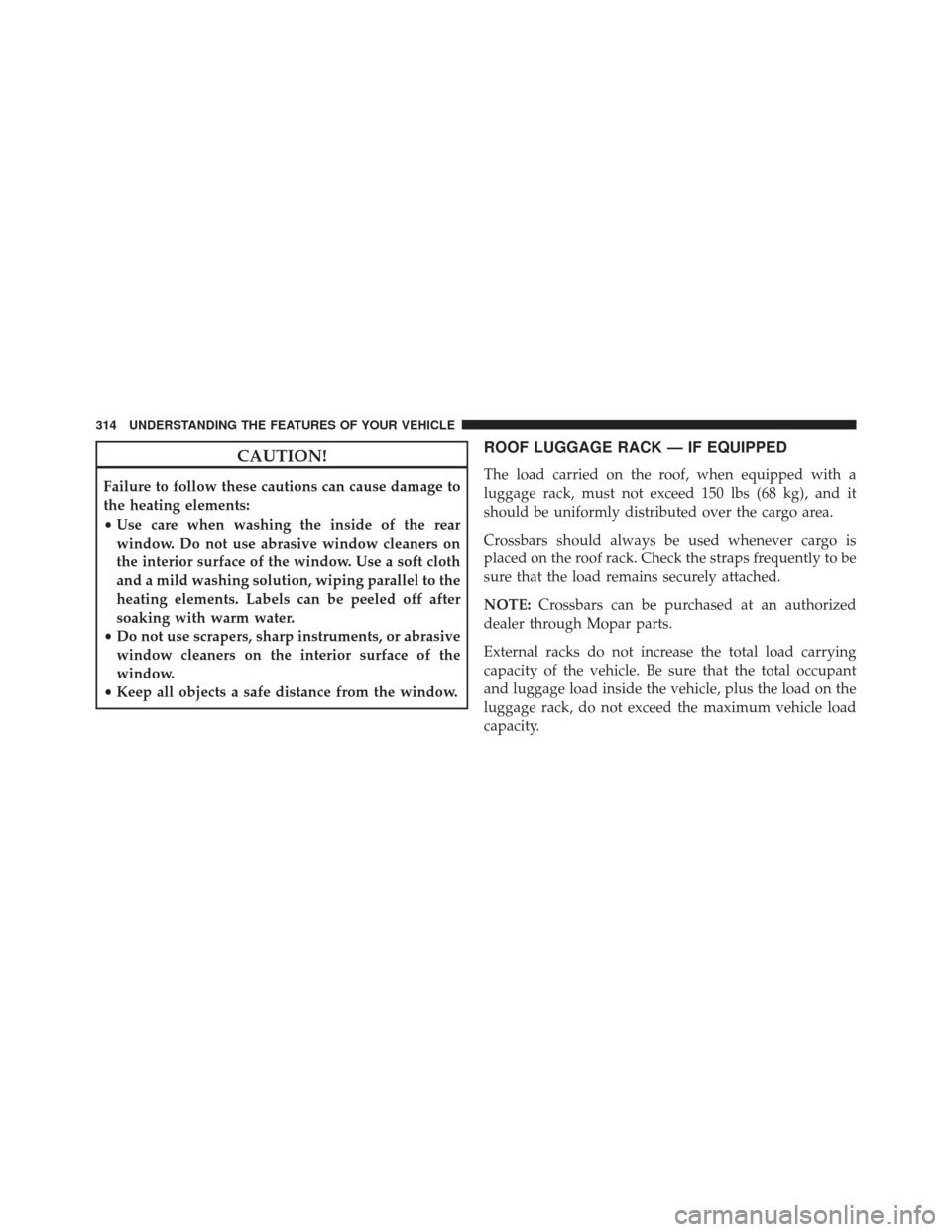

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
• Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it
should be uniformly distributed over the cargo area.
Crossbars should always be used whenever cargo is
placed on the roof rack. Check the straps frequently to be
sure that the load remains securely attached.
NOTE: Crossbars can be purchased at an authorized
dealer through Mopar parts.
External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant
and luggage load inside the vehicle, plus the load on the
luggage rack, do not exceed the maximum vehicle load
capacity.
314 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

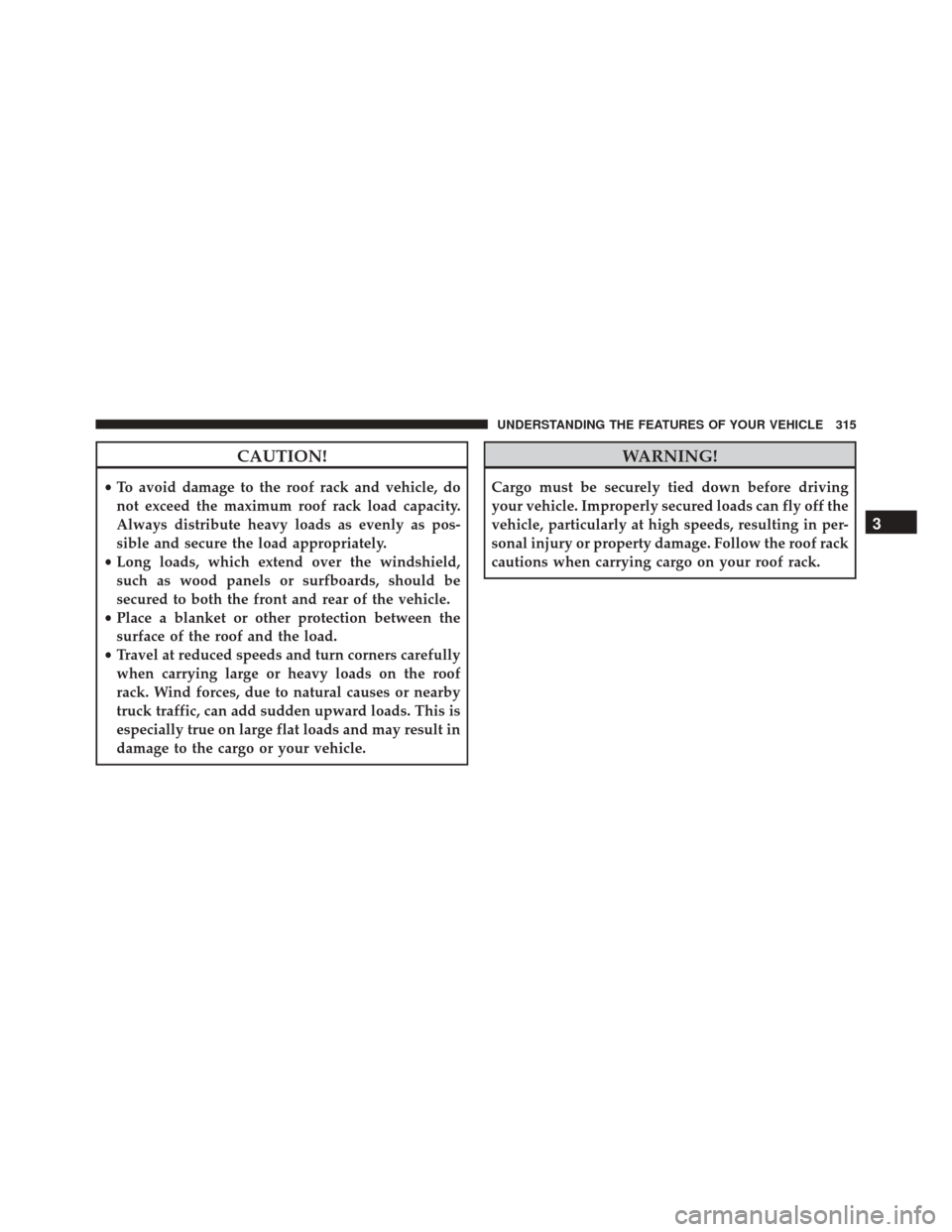

CAUTION!
•To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity.
Always distribute heavy loads as evenly as pos-
sible and secure the load appropriately.
• Long loads, which extend over the windshield,
such as wood panels or surfboards, should be
secured to both the front and rear of the vehicle.
• Place a blanket or other protection between the
surface of the roof and the load.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward loads. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied down before driving
your vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 315

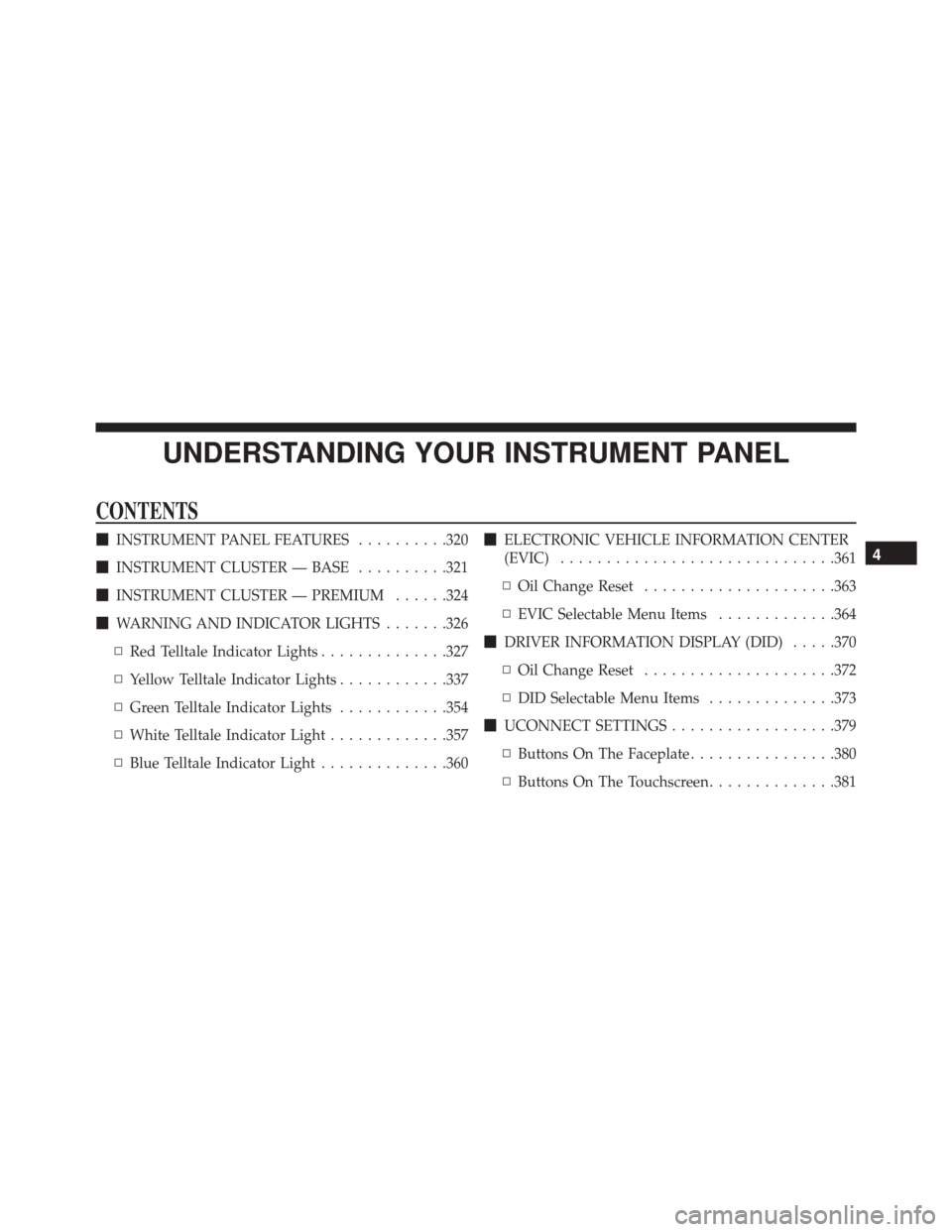

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........320
 INSTRUMENT CLUSTER — BASE ..........321
 INSTRUMENT CLUSTER — PREMIUM ......324
 WARNING AND INDICATOR LIGHTS .......326
▫ Red Telltale Indicator Lights ..............327
▫ Yellow Telltale Indicator Lights ............337
▫ Green Telltale Indicator Lights ............354
▫ White Telltale Indicator Light .............357
▫ Blue Telltale Indicator Light ..............360
ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) ............................. .361
▫ Oil Change Reset .....................363
▫ EVIC Selectable Menu Items .............364
 DRIVER INFORMATION DISPLAY (DID) .....370
▫ Oil Change Reset .....................372
▫ DID Selectable Menu Items ..............373
 UCONNECT SETTINGS ..................379
▫ Buttons On The Faceplate ................380
▫ Buttons On The Touchscreen ..............3814

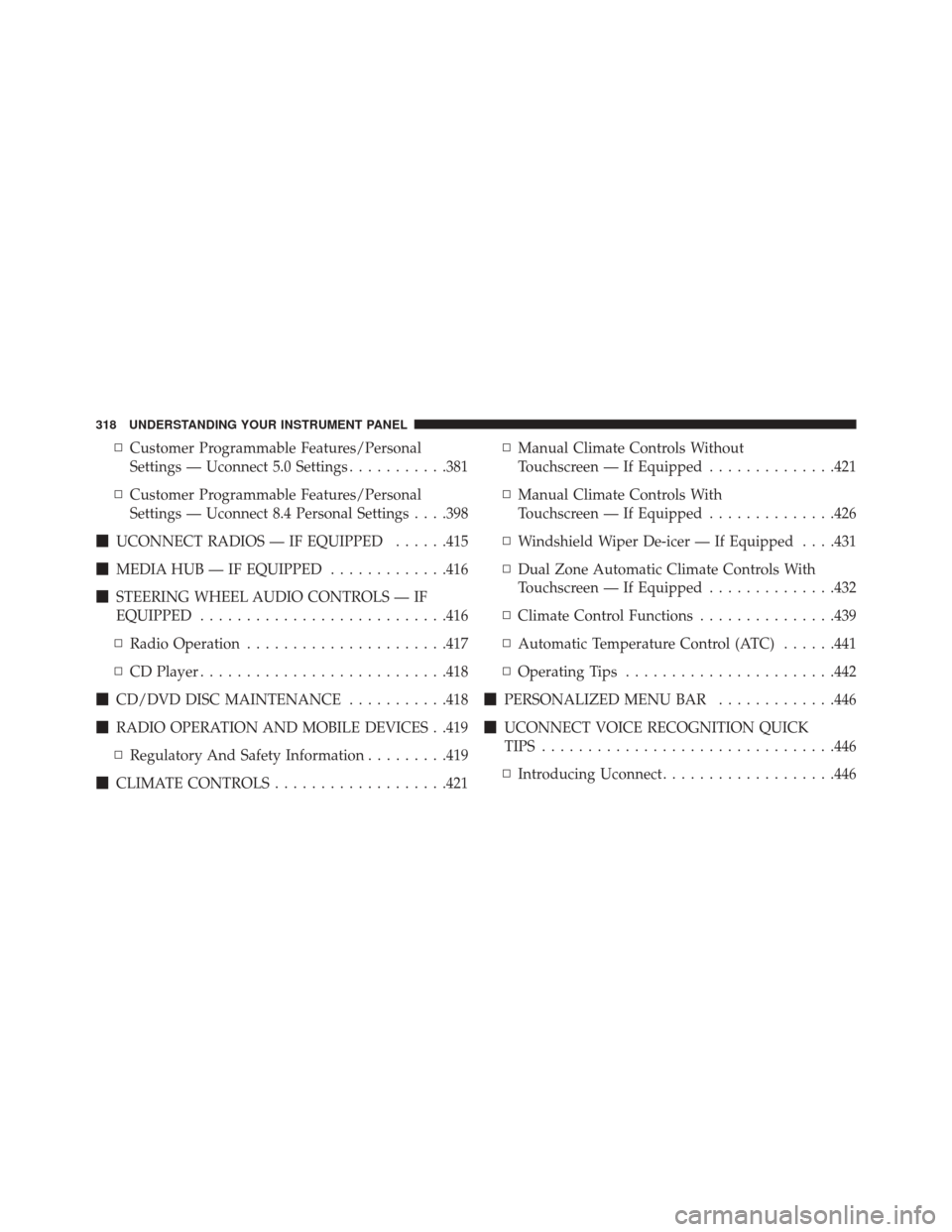

▫Customer Programmable Features/Personal
Settings — Uconnect 5.0 Settings ...........381
▫ Customer Programmable Features/Personal
Settings — Uconnect 8.4 Personal Settings . . . .398
 UCONNECT RADIOS — IF EQUIPPED ......415
 MEDIA HUB — IF EQUIPPED .............416
 STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED .......................... .416
▫ Radio Operation ..................... .417
▫ CD Player .......................... .418
 CD/DVD DISC MAINTENANCE ...........418
 RADIO OPERATION AND MOBILE DEVICES . .419
▫ Regulatory And Safety Information .........419
 CLIMATE CONTROLS ...................421 ▫
Manual Climate Controls Without
Touchscreen — If Equipped ..............421
▫ Manual Climate Controls With
Touchscreen — If Equipped ..............426
▫ Windshield Wiper De-icer — If Equipped . . . .431
▫ Dual Zone Automatic Climate Controls With
Touchscreen — If Equipped ..............432
▫ Climate Control Functions ...............439
▫ Automatic Temperature Control (ATC) ......441
▫ Operating Tips ...................... .442
 PERSONALIZED MENU BAR .............446
 UCONNECT VOICE RECOGNITION QUICK
TIPS ............................... .446
▫ Introducing Uconnect ...................446
318 UNDERSTANDING YOUR INSTRUMENT PANEL
