JEEP CHEROKEE 2016 KL / 5.G Owners Manual

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
Power Outlet Fuse Locations
1 — F75 Fuse 20A Yellow Front Power Outlet/Cigar Lighter Con-
sole Bin
2 — F91 Fuse 20A Yellow Rear Power Outlet (powered when the
ignition switch is in the ON or ACC position)
3 — F81 Fuse 20A Yellow Rear Power Outlet (battery powered at
all times)
4 — F60 Fuse 20A Yellow Power Outlet Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 299

CAUTION!
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.

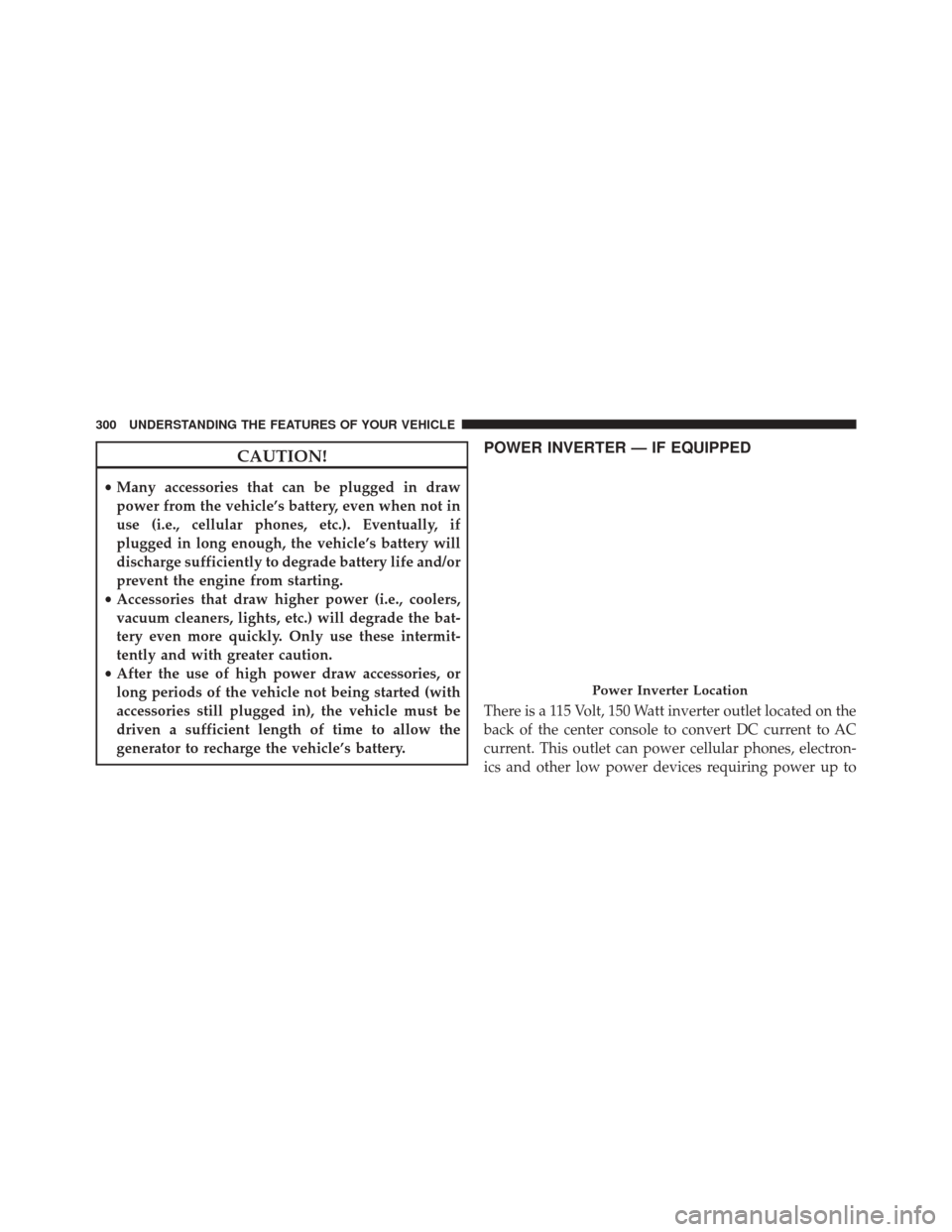

POWER INVERTER — IF EQUIPPED
There is a 115 Volt, 150 Watt inverter outlet located on the
back of the center console to convert DC current to AC
current. This outlet can power cellular phones, electron-
ics and other low power devices requiring power up to
Power Inverter Location
300 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

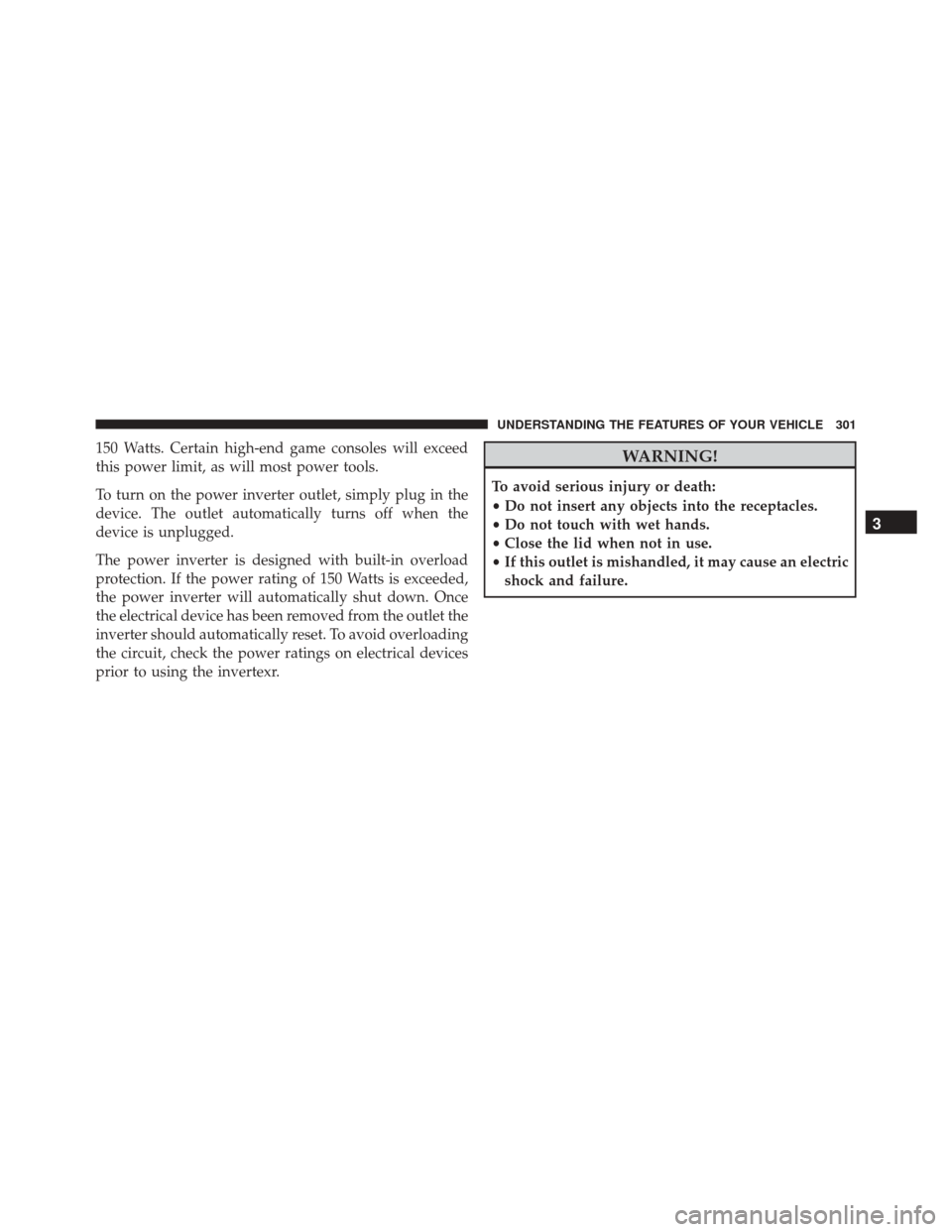

150 Watts. Certain high-end game consoles will exceed
this power limit, as will most power tools.
To turn on the power inverter outlet, simply plug in the
device. The outlet automatically turns off when the
device is unplugged.
The power inverter is designed with built-in overload
protection. If the power rating of 150 Watts is exceeded,
the power inverter will automatically shut down. Once
the electrical device has been removed from the outlet the
inverter should automatically reset. To avoid overloading
the circuit, check the power ratings on electrical devices
prior to using the invertexr.WARNING!
To avoid serious injury or death:
•Do not insert any objects into the receptacles.
• Do not touch with wet hands.
• Close the lid when not in use.
• If this outlet is mishandled, it may cause an electric
shock and failure.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 301

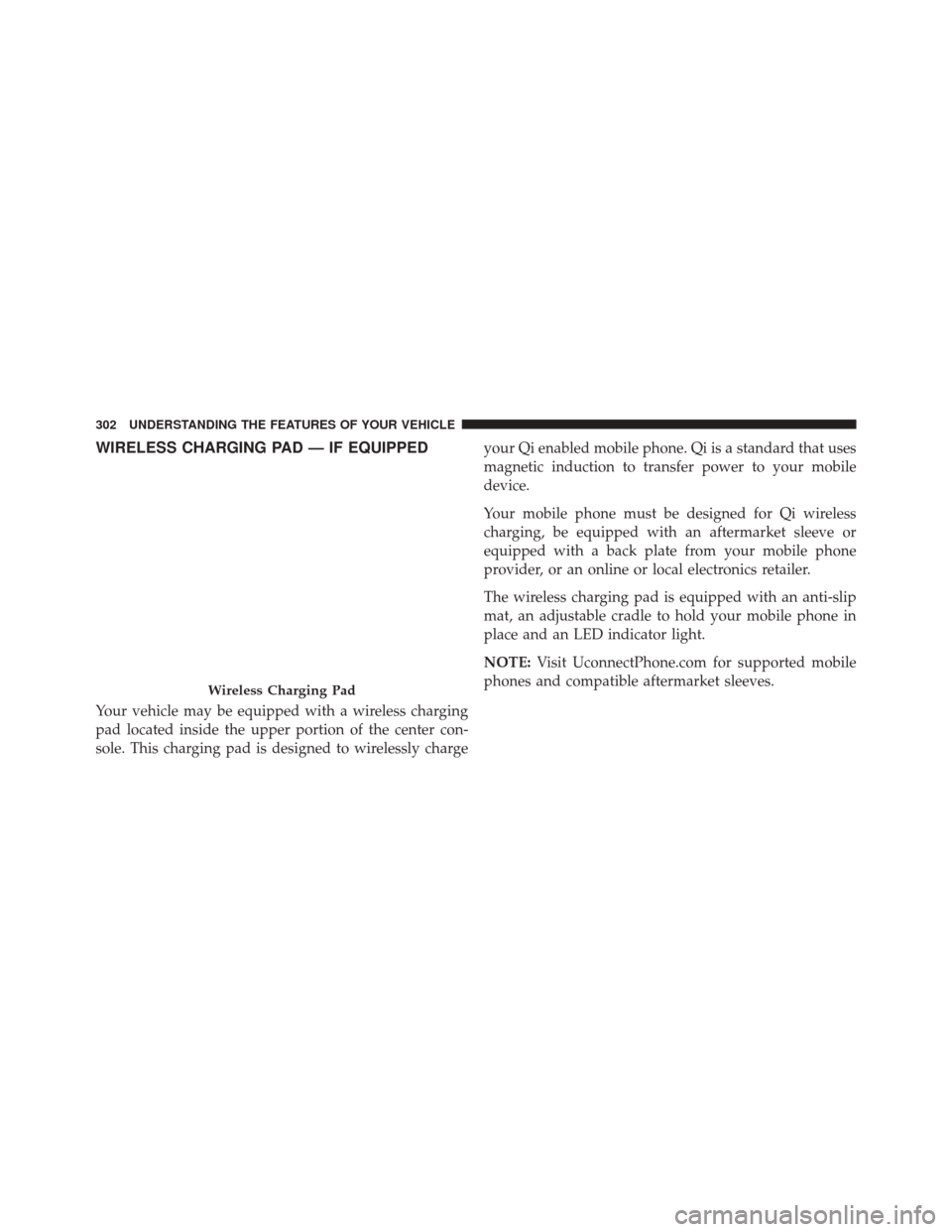

WIRELESS CHARGING PAD — IF EQUIPPED
Your vehicle may be equipped with a wireless charging
pad located inside the upper portion of the center con-
sole. This charging pad is designed to wirelessly chargeyour Qi enabled mobile phone. Qi is a standard that uses
magnetic induction to transfer power to your mobile
device.
Your mobile phone must be designed for Qi wireless
charging, be equipped with an aftermarket sleeve or
equipped with a back plate from your mobile phone
provider, or an online or local electronics retailer.
The wireless charging pad is equipped with an anti-slip
mat, an adjustable cradle to hold your mobile phone in
place and an LED indicator light.
NOTE:
Visit UconnectPhone.com for supported mobile
phones and compatible aftermarket sleeves.
Wireless Charging Pad
302 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

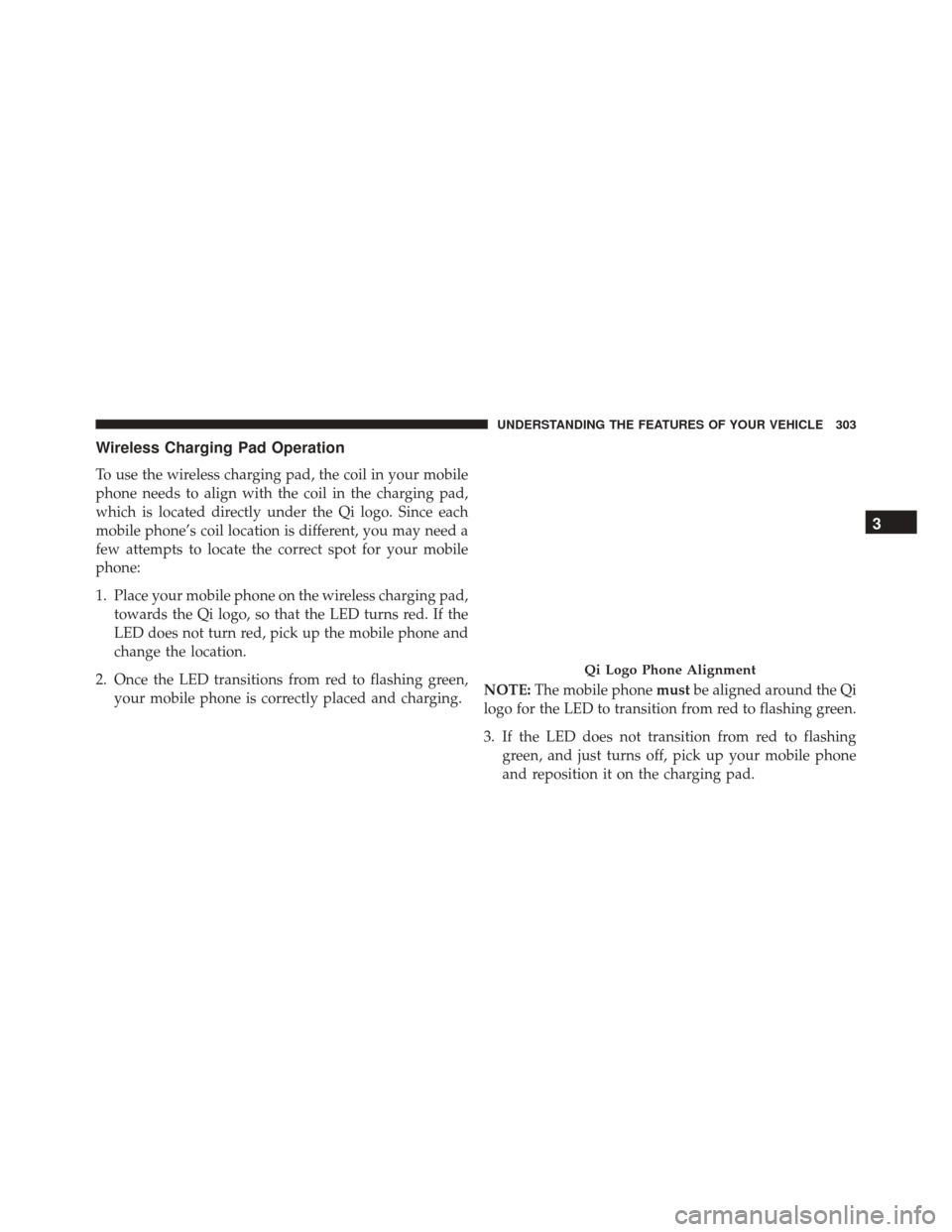

Wireless Charging Pad Operation
To use the wireless charging pad, the coil in your mobile
phone needs to align with the coil in the charging pad,
which is located directly under the Qi logo. Since each
mobile phone’s coil location is different, you may need a
few attempts to locate the correct spot for your mobile
phone:
1. Place your mobile phone on the wireless charging pad,towards the Qi logo, so that the LED turns red. If the
LED does not turn red, pick up the mobile phone and
change the location.
2. Once the LED transitions from red to flashing green, your mobile phone is correctly placed and charging. NOTE:
The mobile phone mustbe aligned around the Qi
logo for the LED to transition from red to flashing green.
3. If the LED does not transition from red to flashing green, and just turns off, pick up your mobile phone
and reposition it on the charging pad.
Qi Logo Phone Alignment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 303

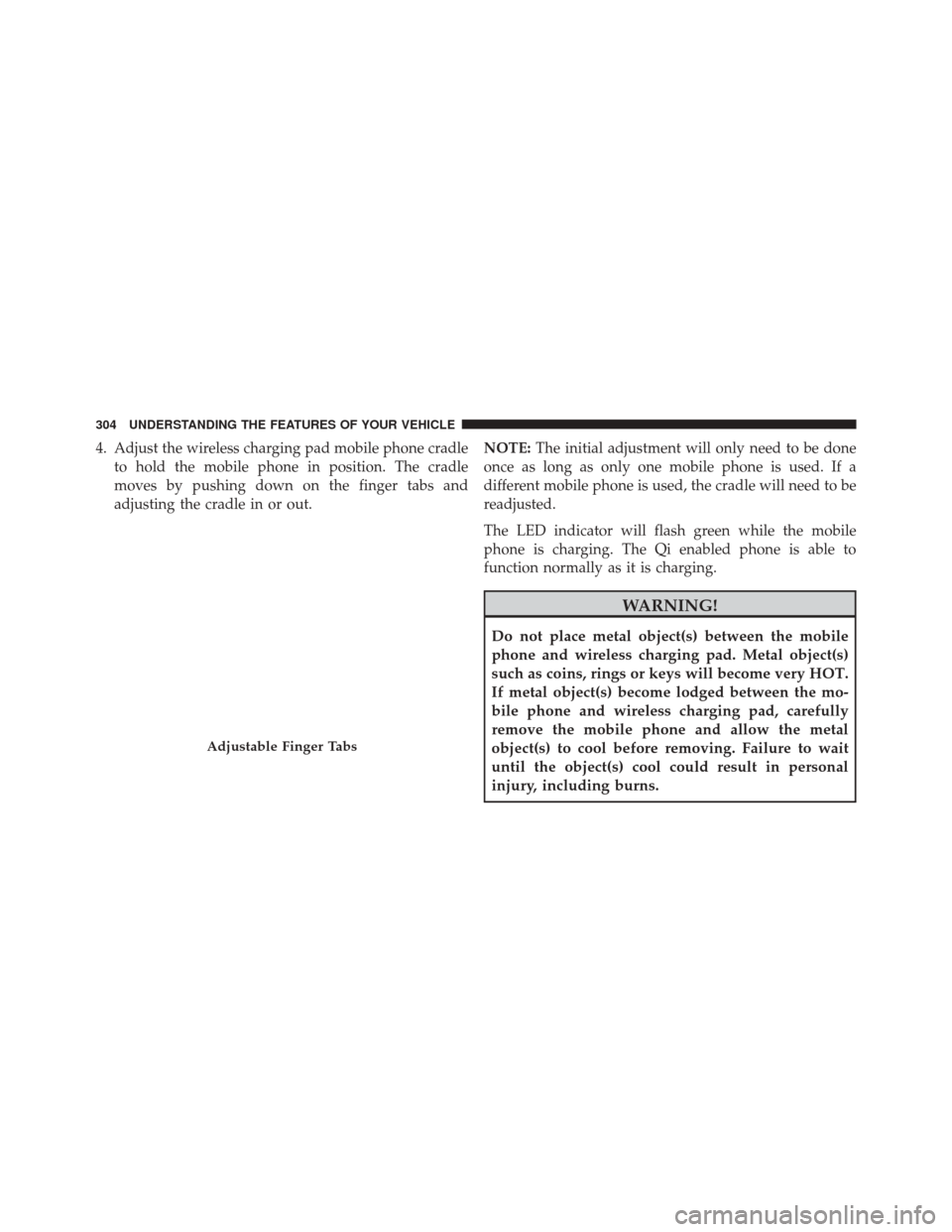

4. Adjust the wireless charging pad mobile phone cradleto hold the mobile phone in position. The cradle
moves by pushing down on the finger tabs and
adjusting the cradle in or out. NOTE:
The initial adjustment will only need to be done
once as long as only one mobile phone is used. If a
different mobile phone is used, the cradle will need to be
readjusted.
The LED indicator will flash green while the mobile
phone is charging. The Qi enabled phone is able to
function normally as it is charging.
WARNING!
Do not place metal object(s) between the mobile
phone and wireless charging pad. Metal object(s)
such as coins, rings or keys will become very HOT.
If metal object(s) become lodged between the mo-
bile phone and wireless charging pad, carefully
remove the mobile phone and allow the metal
object(s) to cool before removing. Failure to wait
until the object(s) cool could result in personal
injury, including burns.
Adjustable Finger Tabs
304 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

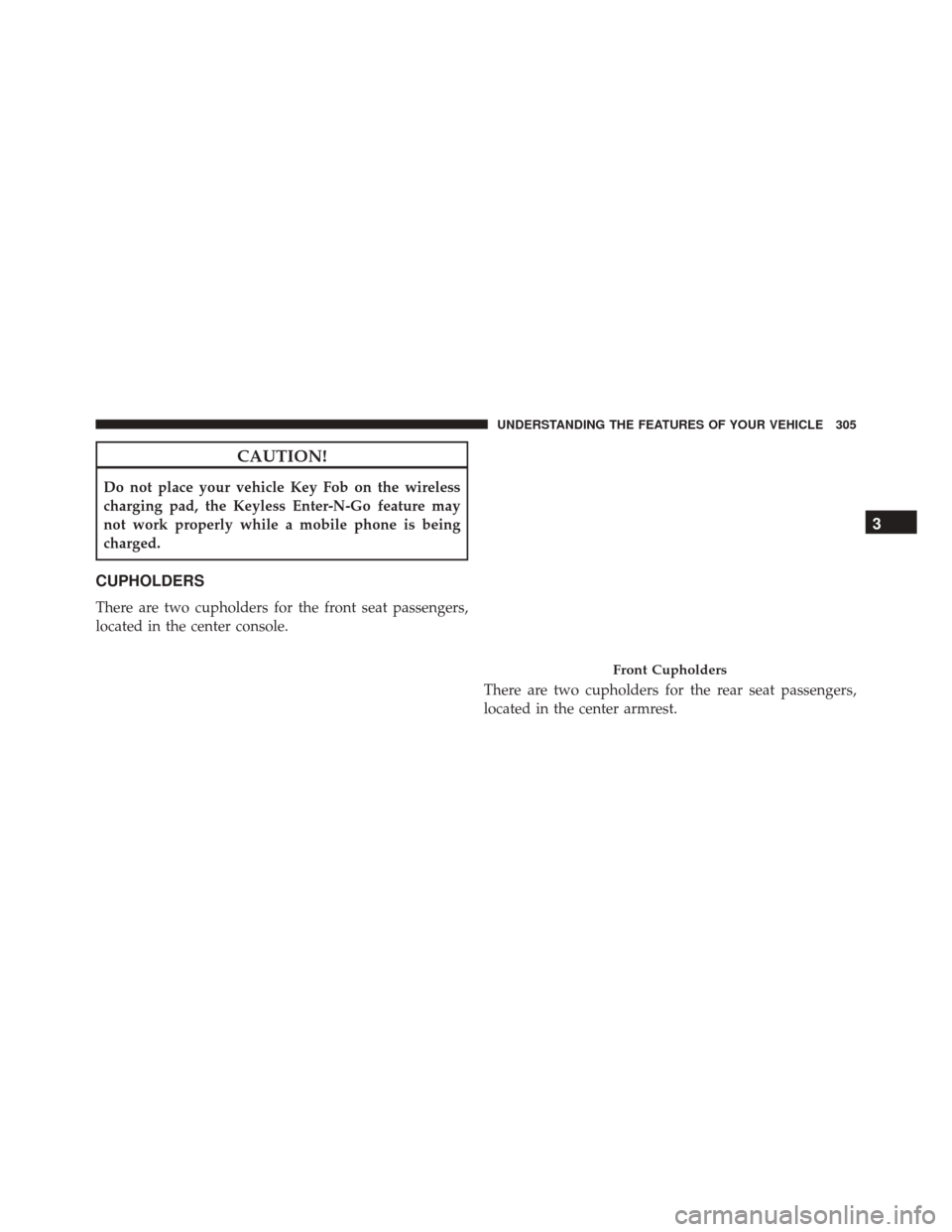

CAUTION!
Do not place your vehicle Key Fob on the wireless
charging pad, the Keyless Enter-N-Go feature may
not work properly while a mobile phone is being
charged.
CUPHOLDERS
There are two cupholders for the front seat passengers,
located in the center console.There are two cupholders for the rear seat passengers,
located in the center armrest.
Front Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 305

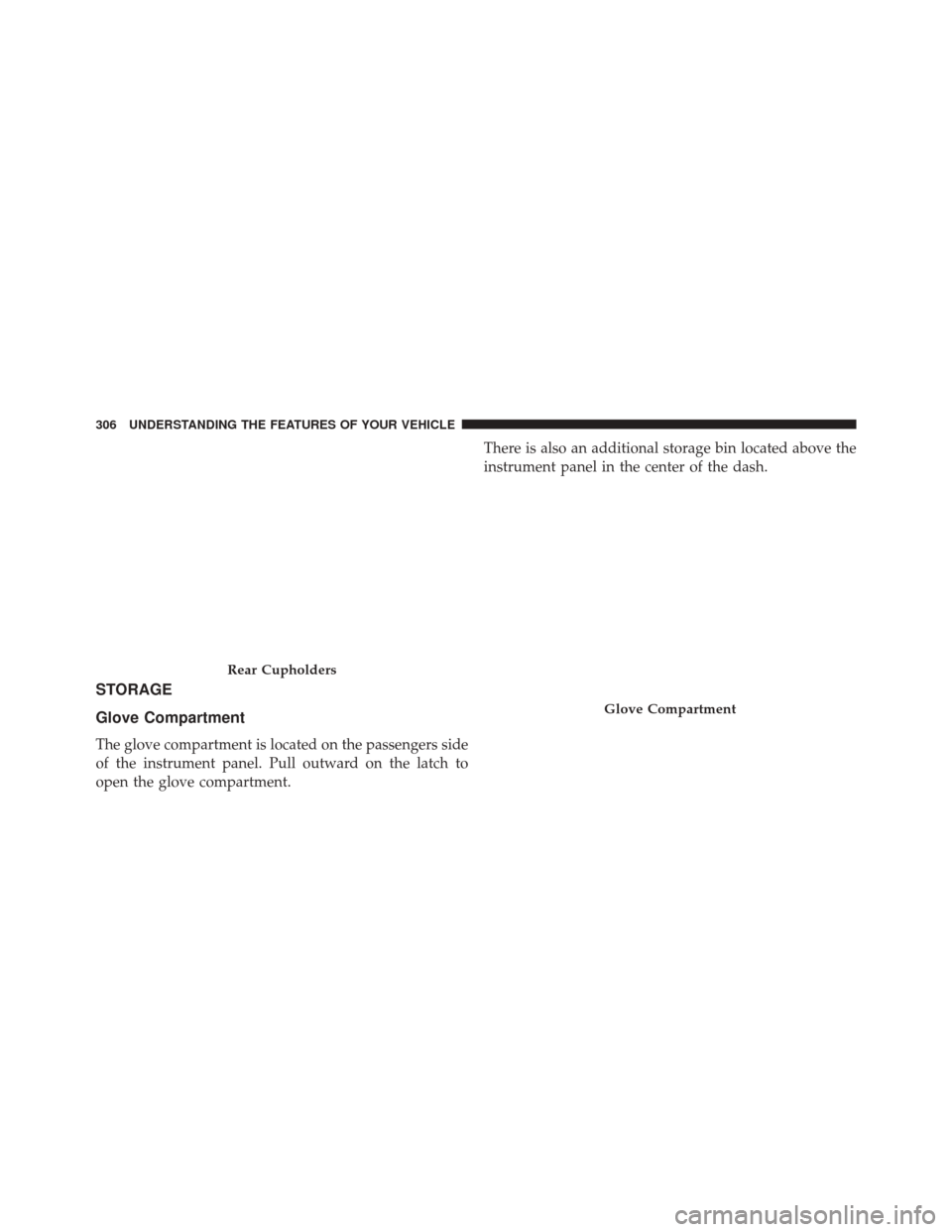

STORAGE
Glove Compartment
The glove compartment is located on the passengers side
of the instrument panel. Pull outward on the latch to
open the glove compartment.There is also an additional storage bin located above the
instrument panel in the center of the dash.
Rear Cupholders
Glove Compartment
306 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

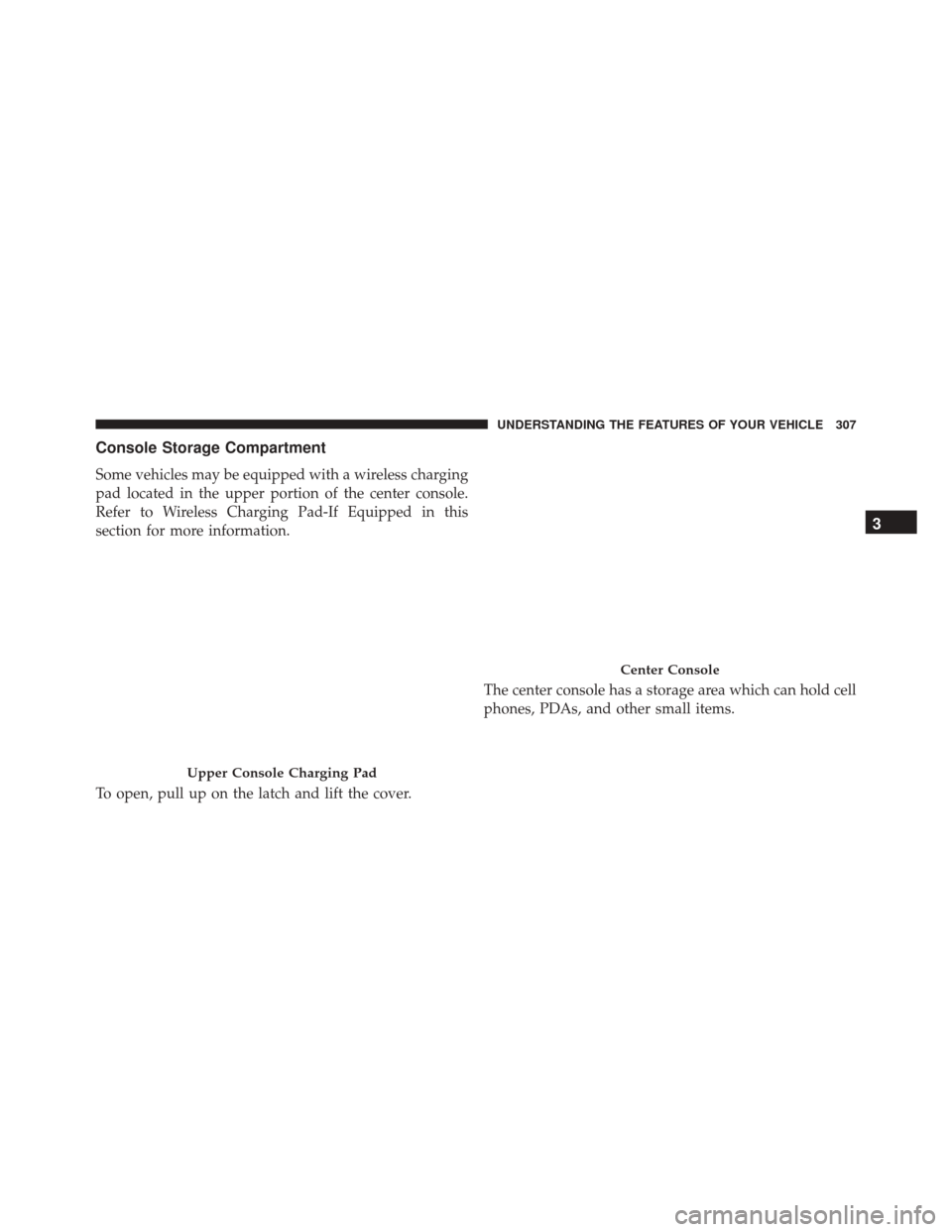

Console Storage Compartment
Some vehicles may be equipped with a wireless charging
pad located in the upper portion of the center console.
Refer to Wireless Charging Pad-If Equipped in this
section for more information.
To open, pull up on the latch and lift the cover.The center console has a storage area which can hold cell
phones, PDAs, and other small items.
Upper Console Charging Pad
Center Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 307

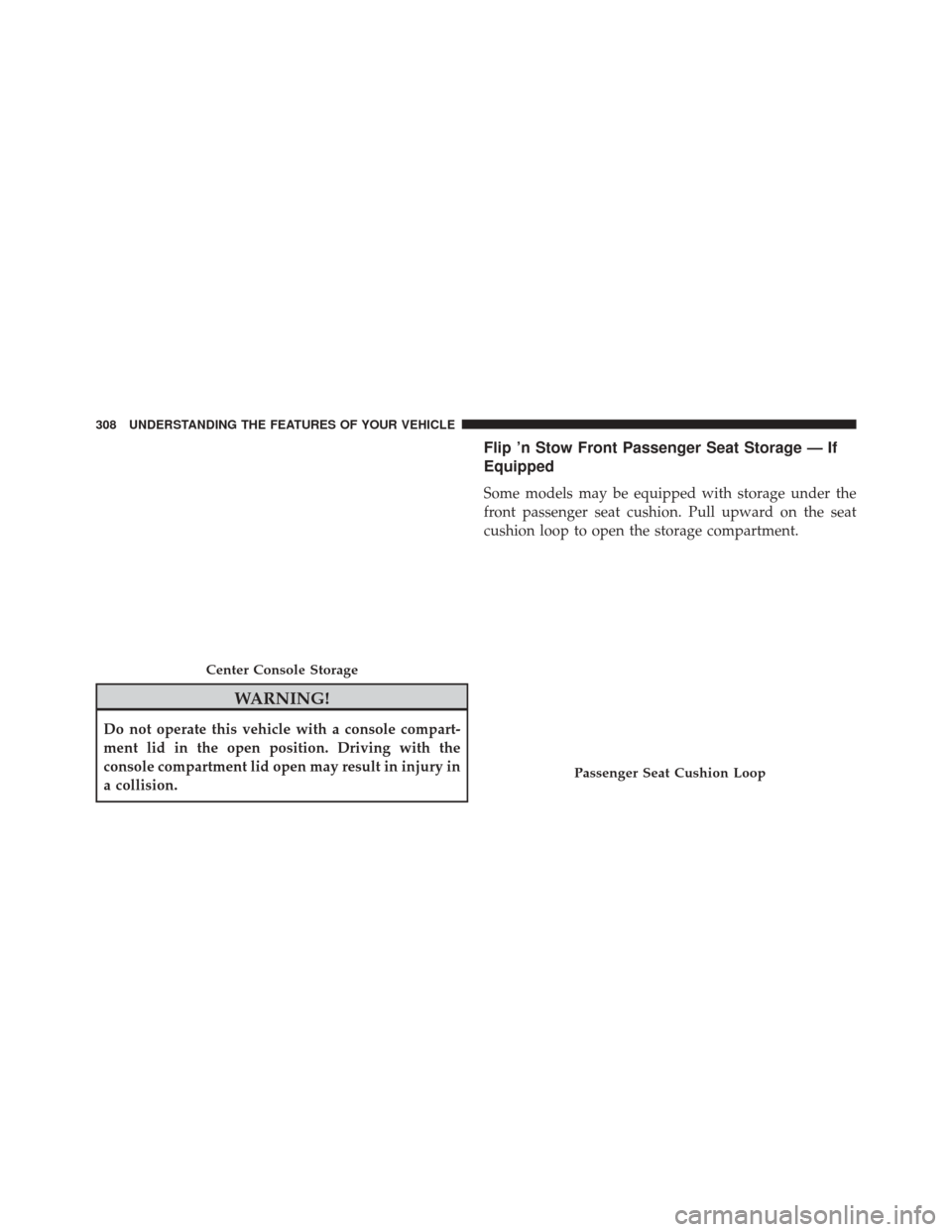

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
Flip ’n Stow Front Passenger Seat Storage — If
Equipped
Some models may be equipped with storage under the
front passenger seat cushion. Pull upward on the seat
cushion loop to open the storage compartment.
Center Console Storage
Passenger Seat Cushion Loop
308 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
