JEEP CHEROKEE 2016 KL / 5.G Owners Manual

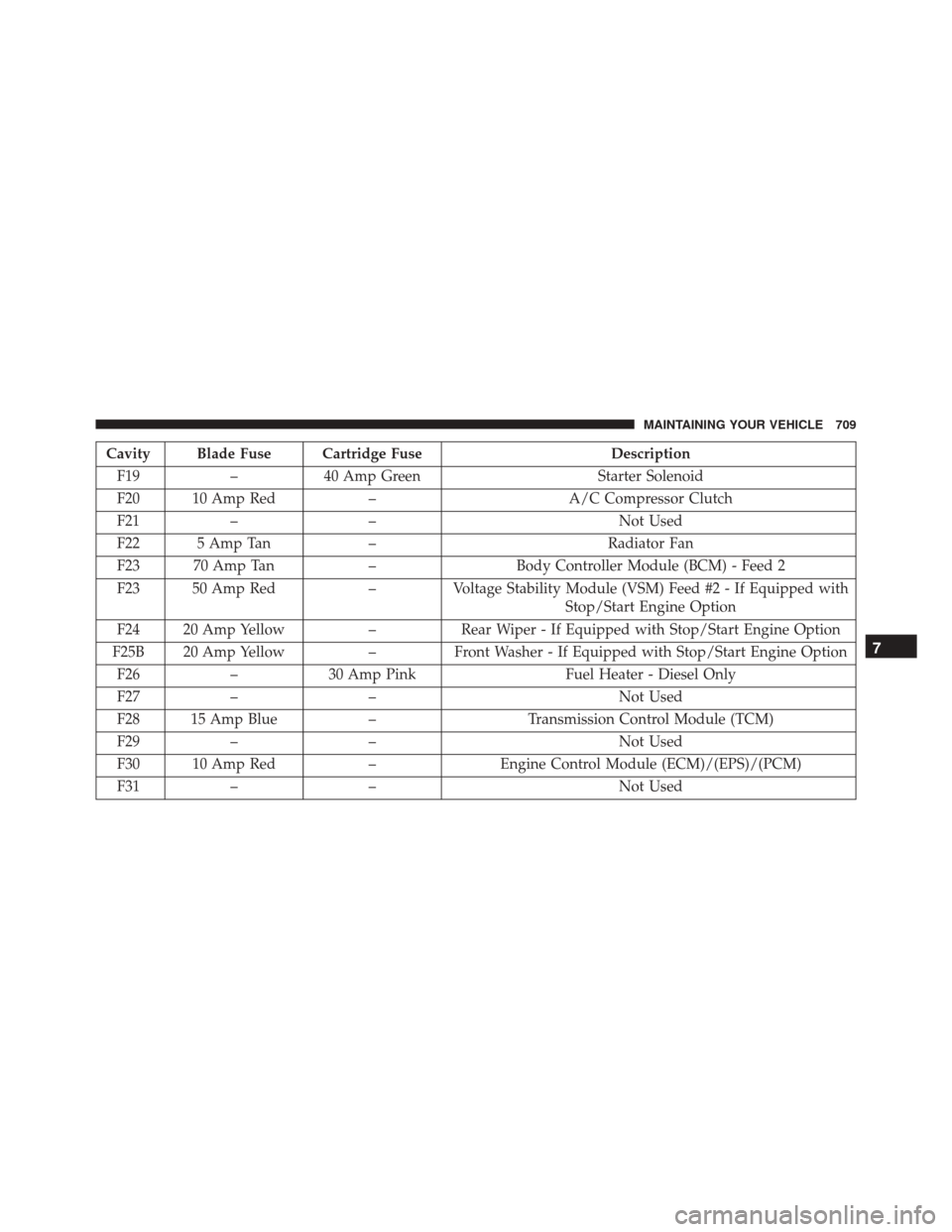

Cavity Blade Fuse Cartridge FuseDescription
F19 –40 Amp Green Starter Solenoid
F20 10 Amp Red –A/C Compressor Clutch
F21 – – Not Used
F22 5 Amp Tan –Radiator Fan
F23 70 Amp Tan –Body Controller Module (BCM) - Feed 2
F23 50 Amp Red –Voltage Stability Module (VSM) Feed #2 - If Equipped with
Stop/Start Engine Option
F24 20 Amp Yellow –Rear Wiper - If Equipped with Stop/Start Engine Option
F25B 20 Amp Yellow –Front Washer - If Equipped with Stop/Start Engine Option
F26 –30 Amp Pink Fuel Heater - Diesel Only
F27 – – Not Used
F28 15 Amp Blue –Transmission Control Module (TCM)
F29 – – Not Used
F30 10 Amp Red –Engine Control Module (ECM)/(EPS)/(PCM)
F31 – – Not Used
7
MAINTAINING YOUR VEHICLE 709

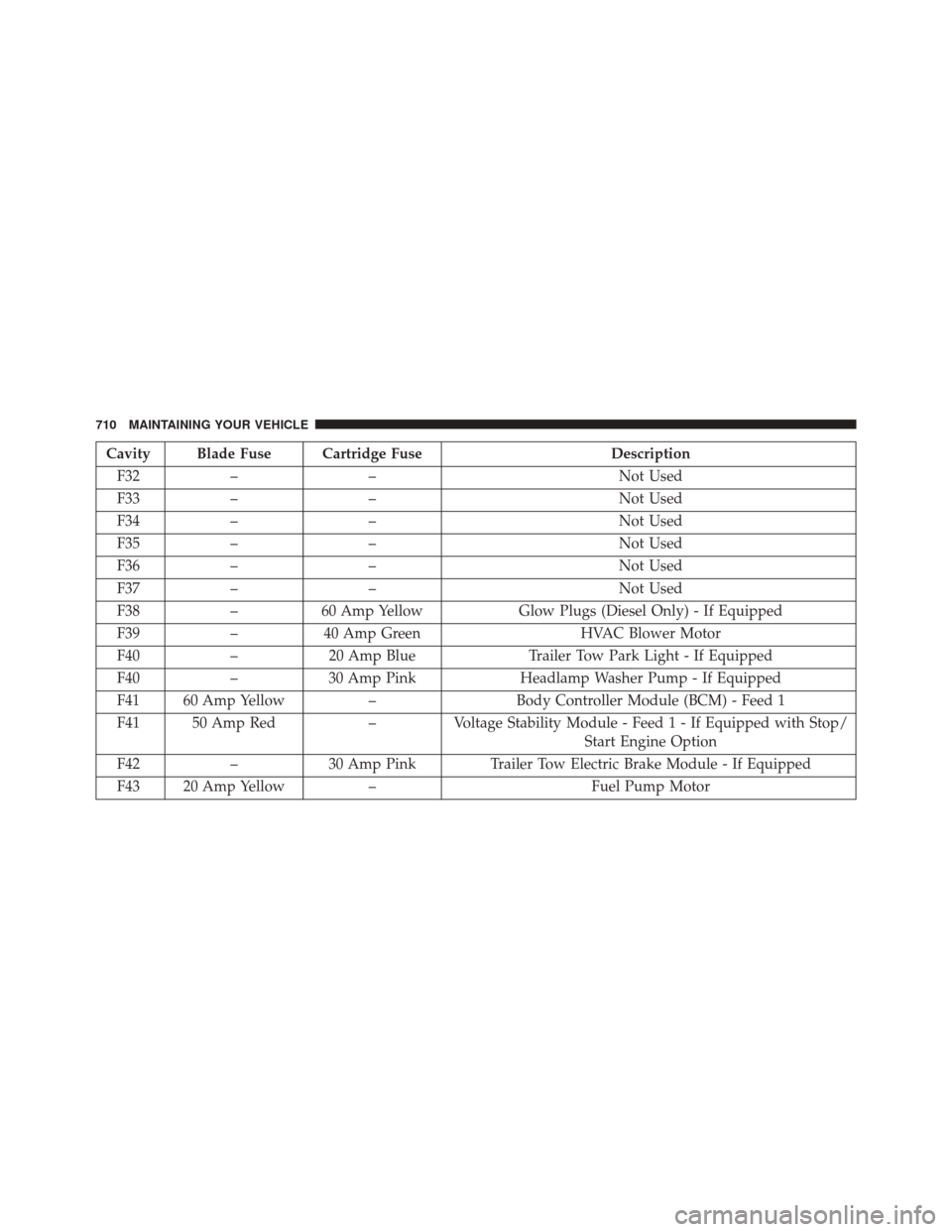

Cavity Blade Fuse Cartridge FuseDescription
F32 – – Not Used
F33 – – Not Used
F34 – – Not Used
F35 – – Not Used
F36 – – Not Used
F37 – – Not Used
F38 –60 Amp Yellow Glow Plugs (Diesel Only) - If Equipped
F39 –40 Amp Green HVAC Blower Motor
F40 –20 Amp Blue Trailer Tow Park Light - If Equipped
F40 –30 Amp Pink Headlamp Washer Pump - If Equipped
F41 60 Amp Yellow –Body Controller Module (BCM) - Feed 1
F41 50 Amp Red –Voltage Stability Module - Feed 1 - If Equipped with Stop/
Start Engine Option
F42 –30 Amp Pink Trailer Tow Electric Brake Module - If Equipped
F43 20 Amp Yellow –Fuel Pump Motor
710 MAINTAINING YOUR VEHICLE

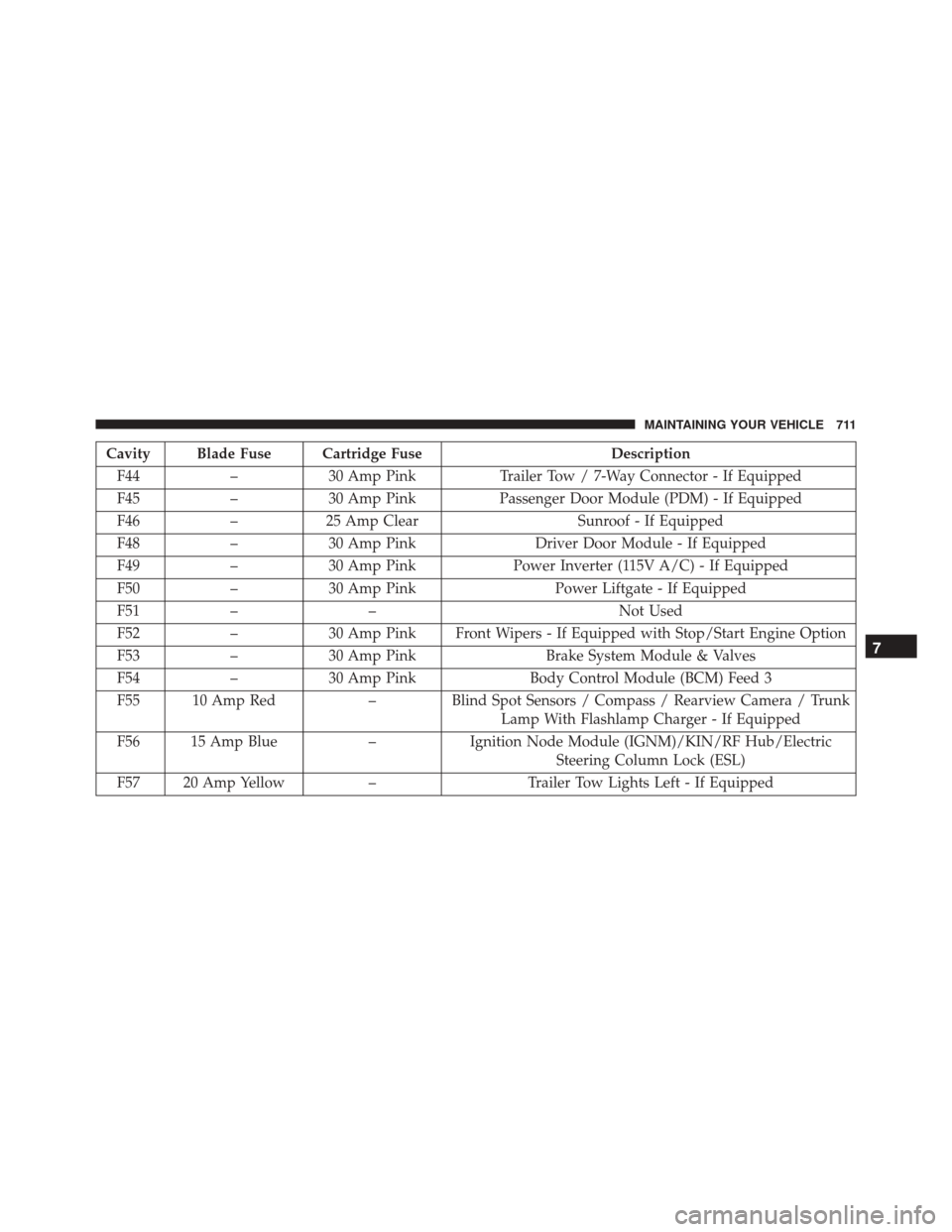

Cavity Blade Fuse Cartridge FuseDescription
F44 –30 Amp Pink Trailer Tow / 7-Way Connector - If Equipped
F45 –30 Amp Pink Passenger Door Module (PDM) - If Equipped
F46 –25 Amp Clear Sunroof - If Equipped
F48 –30 Amp Pink Driver Door Module - If Equipped
F49 –30 Amp Pink Power Inverter (115V A/C) - If Equipped
F50 –30 Amp Pink Power Liftgate - If Equipped
F51 – – Not Used
F52 –30 Amp Pink Front Wipers - If Equipped with Stop/Start Engine Option
F53 –30 Amp Pink Brake System Module & Valves
F54 –30 Amp Pink Body Control Module (BCM) Feed 3
F55 10 Amp Red –Blind Spot Sensors / Compass / Rearview Camera / Trunk
Lamp With Flashlamp Charger - If Equipped
F56 15 Amp Blue –Ignition Node Module (IGNM)/KIN/RF Hub/Electric
Steering Column Lock (ESL)
F57 20 Amp Yellow –Trailer Tow Lights Left - If Equipped
7
MAINTAINING YOUR VEHICLE 711

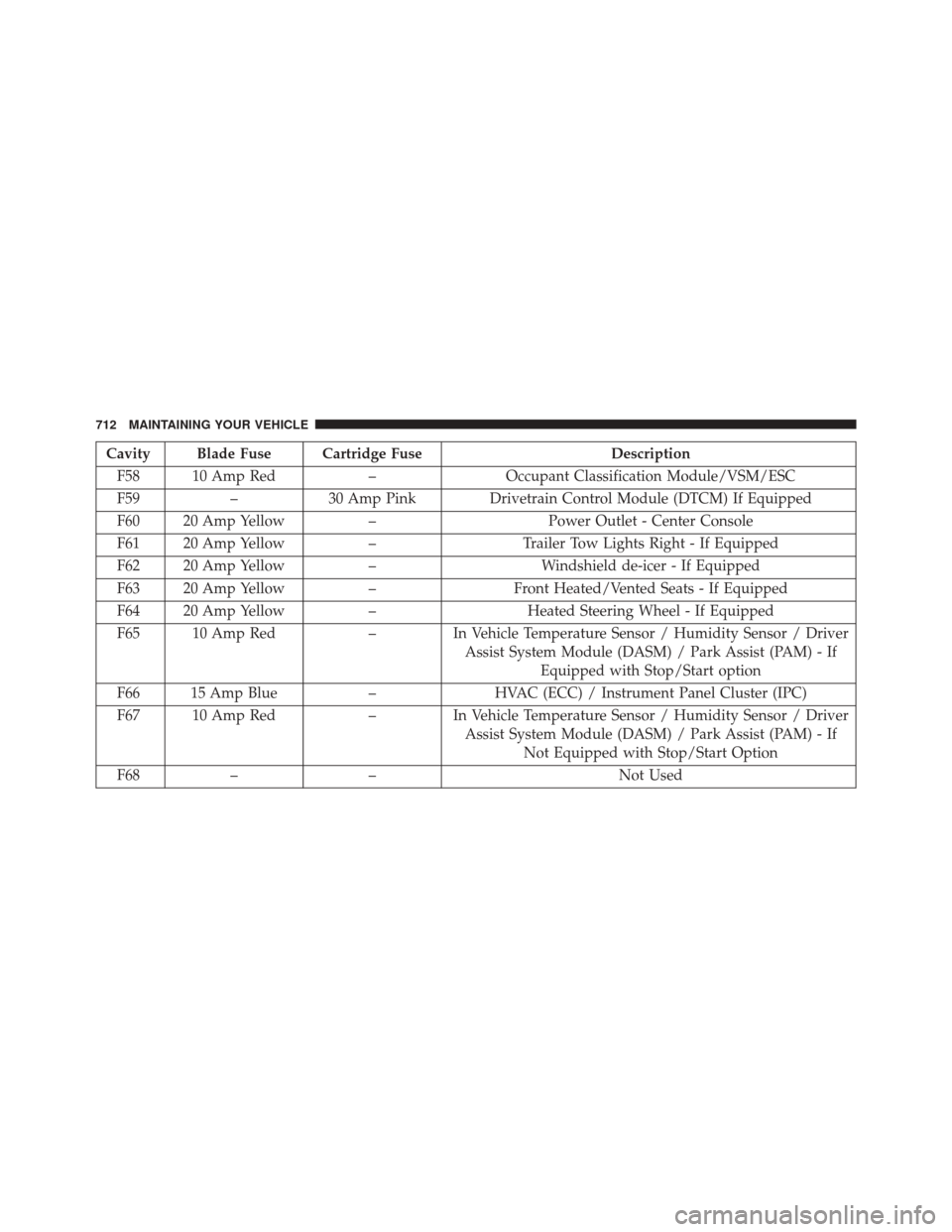

Cavity Blade Fuse Cartridge FuseDescription
F58 10 Amp Red –Occupant Classification Module/VSM/ESC
F59 –30 Amp Pink Drivetrain Control Module (DTCM) If Equipped
F60 20 Amp Yellow –Power Outlet - Center Console
F61 20 Amp Yellow –Trailer Tow Lights Right - If Equipped
F62 20 Amp Yellow –Windshield de-icer - If Equipped
F63 20 Amp Yellow –Front Heated/Vented Seats - If Equipped
F64 20 Amp Yellow –Heated Steering Wheel - If Equipped
F65 10 Amp Red –In Vehicle Temperature Sensor / Humidity Sensor / Driver
Assist System Module (DASM) / Park Assist (PAM) - If Equipped with Stop/Start option
F66 15 Amp Blue –HVAC (ECC) / Instrument Panel Cluster (IPC)
F67 10 Amp Red –In Vehicle Temperature Sensor / Humidity Sensor / Driver
Assist System Module (DASM) / Park Assist (PAM) - If Not Equipped with Stop/Start Option
F68 – – Not Used
712 MAINTAINING YOUR VEHICLE

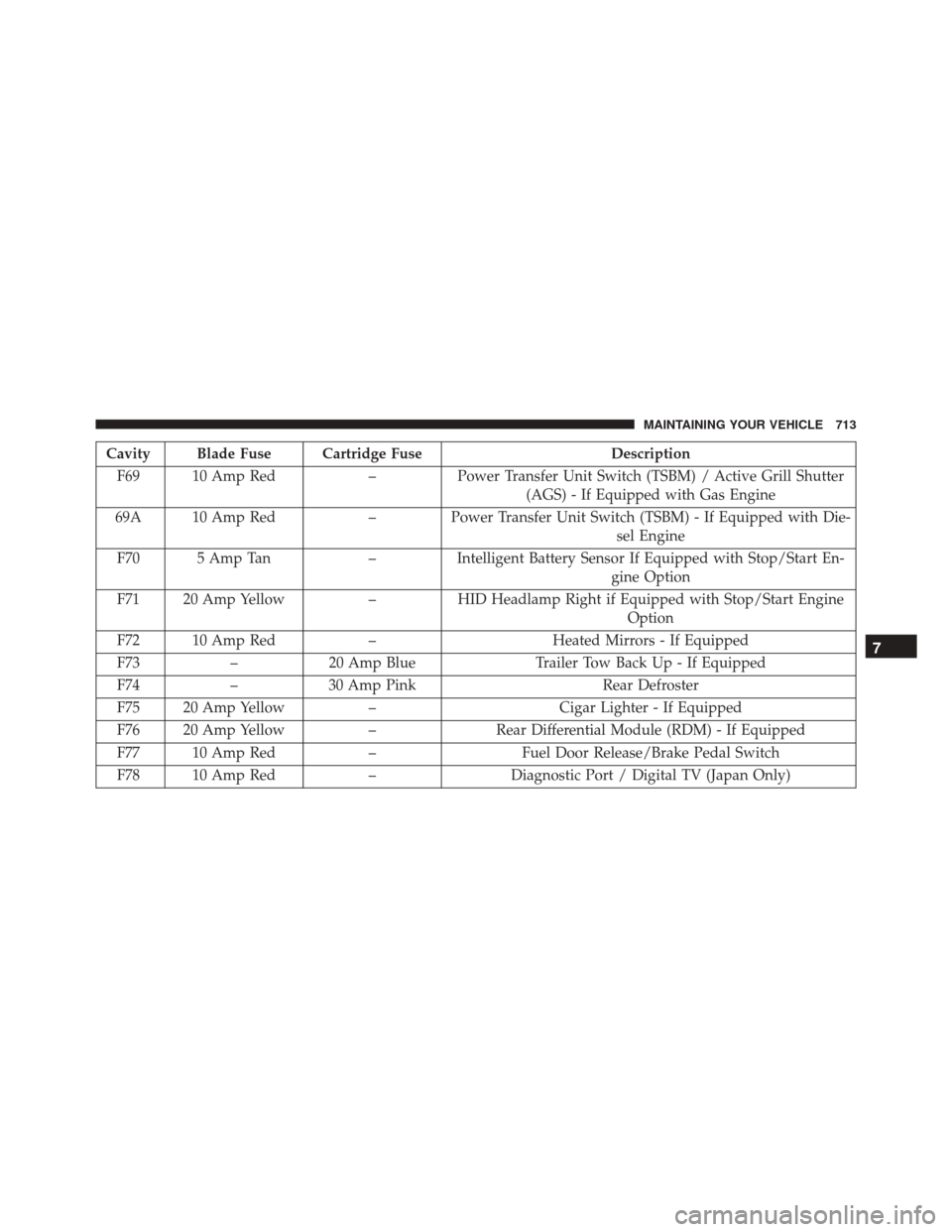

Cavity Blade Fuse Cartridge FuseDescription
F69 10 Amp Red –Power Transfer Unit Switch (TSBM) / Active Grill Shutter
(AGS) - If Equipped with Gas Engine
69A 10 Amp Red –Power Transfer Unit Switch (TSBM) - If Equipped with Die-
sel Engine
F70 5 Amp Tan –Intelligent Battery Sensor If Equipped with Stop/Start En-
gine Option
F71 20 Amp Yellow –HID Headlamp Right if Equipped with Stop/Start Engine
Option
F72 10 Amp Red –Heated Mirrors - If Equipped
F73 –20 Amp Blue Trailer Tow Back Up - If Equipped
F74 –30 Amp Pink Rear Defroster
F75 20 Amp Yellow –Cigar Lighter - If Equipped
F76 20 Amp Yellow –Rear Differential Module (RDM) - If Equipped
F77 10 Amp Red –Fuel Door Release/Brake Pedal Switch
F78 10 Amp Red –Diagnostic Port / Digital TV (Japan Only)
7
MAINTAINING YOUR VEHICLE 713

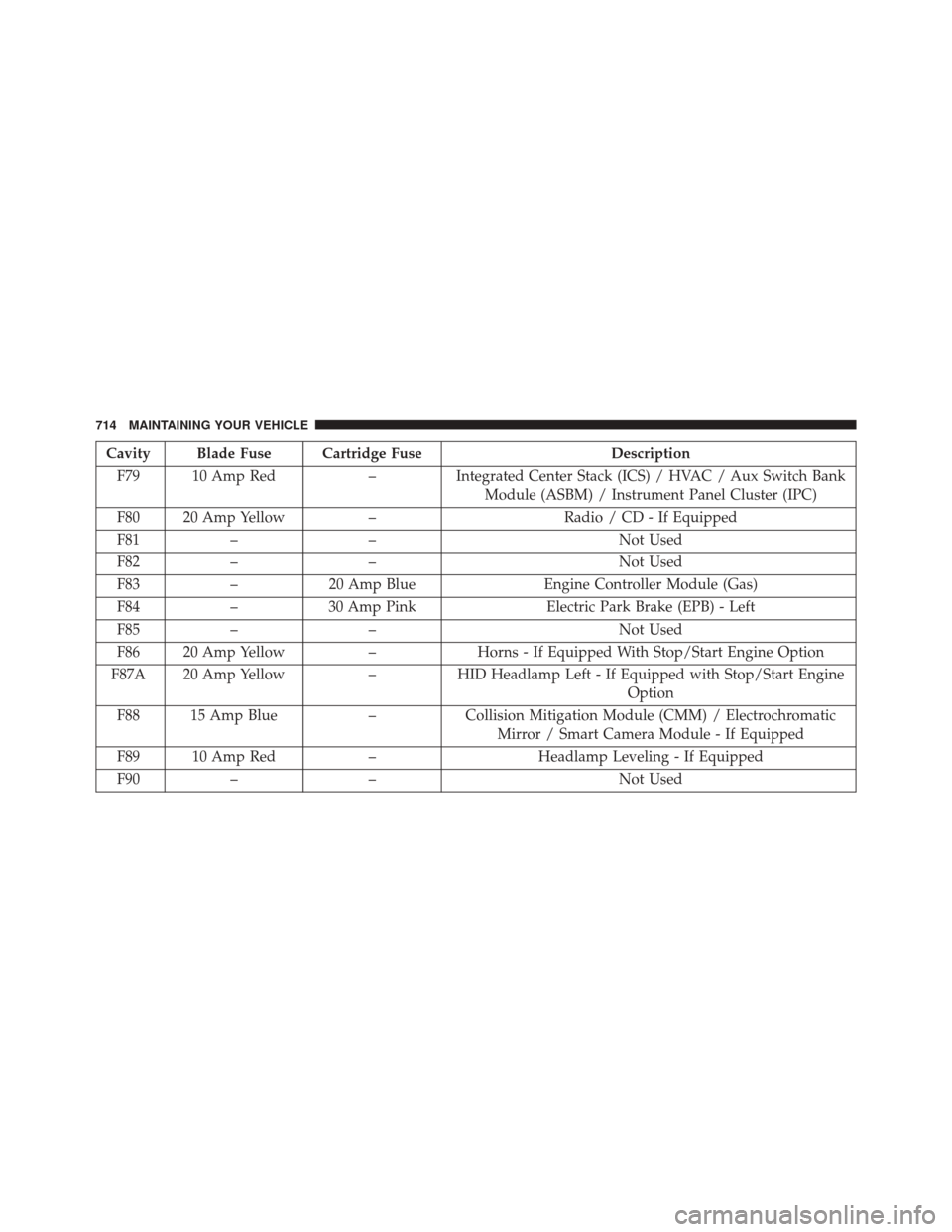

Cavity Blade Fuse Cartridge FuseDescription
F79 10 Amp Red –Integrated Center Stack (ICS) / HVAC / Aux Switch Bank
Module (ASBM) / Instrument Panel Cluster (IPC)
F80 20 Amp Yellow –Radio / CD - If Equipped
F81 – – Not Used
F82 – – Not Used
F83 –20 Amp Blue Engine Controller Module (Gas)
F84 –30 Amp Pink Electric Park Brake (EPB) - Left
F85 – – Not Used
F86 20 Amp Yellow –Horns - If Equipped With Stop/Start Engine Option
F87A 20 Amp Yellow –HID Headlamp Left - If Equipped with Stop/Start Engine
Option
F88 15 Amp Blue –Collision Mitigation Module (CMM) / Electrochromatic
Mirror / Smart Camera Module - If Equipped
F89 10 Amp Red –Headlamp Leveling - If Equipped
F90 – – Not Used
714 MAINTAINING YOUR VEHICLE

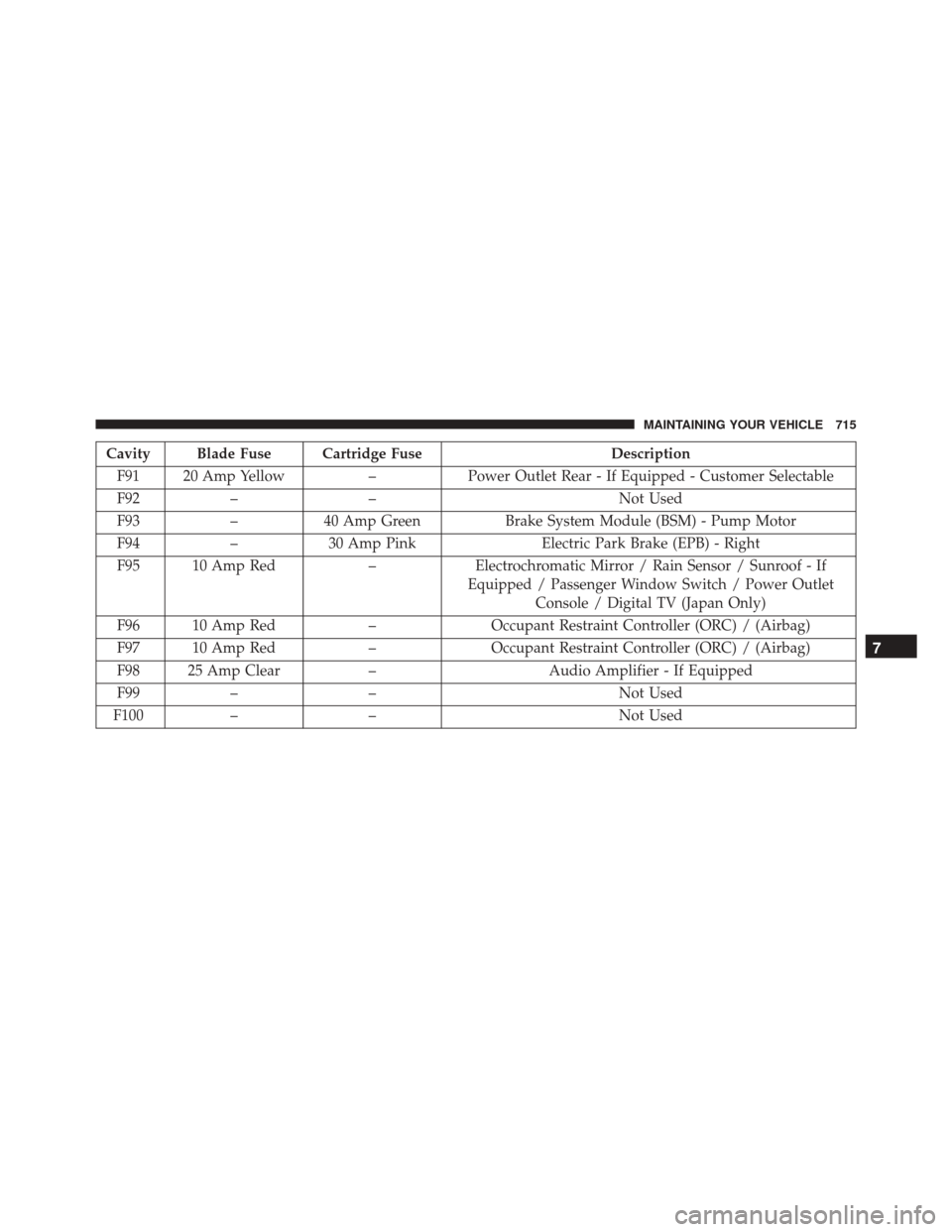

Cavity Blade Fuse Cartridge FuseDescription
F91 20 Amp Yellow –Power Outlet Rear - If Equipped - Customer Selectable
F92 – – Not Used
F93 –40 Amp Green Brake System Module (BSM) - Pump Motor
F94 –30 Amp Pink Electric Park Brake (EPB) - Right
F95 10 Amp Red –Electrochromatic Mirror / Rain Sensor / Sunroof - If
Equipped / Passenger Window Switch / Power Outlet Console / Digital TV (Japan Only)
F96 10 Amp Red –Occupant Restraint Controller (ORC) / (Airbag)
F97 10 Amp Red –Occupant Restraint Controller (ORC) / (Airbag)
F98 25 Amp Clear –Audio Amplifier - If Equipped
F99 – – Not Used
F100 – – Not Used
7
MAINTAINING YOUR VEHICLE 715

Interior Fuses
The interior fuse panel is located in the passenger com-
partment on the left side dash panel under the instru-
ment panel.
CavityBlade Fuse Description
F13 15 Amp Blue Low Beam Left
F32 10 Amp Red Interior Lighting
F36 10 Amp Red Intrusion Module/Siren – If Equipped
F38 20 Amp Yellow Deadbolt All Unlock
F43 20 Amp Yellow Washer Pump Front
F48 25 Amp Clear Fog Lamp Rear Left/Right – If Equipped
F49 7.5 Amp Brown Lumbar Support
F50 7.5 Amp Brown Wireless Charging Pad – If Equipped
F51 10 Amp Red Driver Window Switch/Power Mirrors – If Equipped
F53 7.5 Amp Brown UCI Port (USB & AUX)
716 MAINTAINING YOUR VEHICLE

CavityBlade Fuse Description
F89 10 Amp Red Door Locks – Driver Unlock
F91 7.5 Amp Brown Fog Lamp Front Left
F92 7.5 Amp Brown Fog Lamp Front Right
F93 10 Amp Red Low Beam Right
7
MAINTAINING YOUR VEHICLE 717

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
•Disconnect the negative cable from the battery. •
Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Cargo Lamp TL212–2
Overhead Console Lamp PLW214–2A
Reading Lamp WL212–2
