TABLE OF CONTENTS

WARNING!
• Side Air Bags need room to inflate. Do not lean against the door or window. Situpright in the center of the seat.
• Being too close to the Side Air Bags during deployment could cause you to be
severely injured or killed.
• Relying on the Side Air Bags alone could lead to more severe injuries in a
collision. The Side Air Bags work with your seat belt to restrain you properly. In
some collisions, Side Air Bags won’t deploy at all. Always wear your seat belt
even though you have Side Air Bags.
• This vehicle is equipped with left and right Supplemental Side Air Bag
Inflatable Curtains (SABICs). Do not stack luggage or other cargo up high
enough to block the deployment of the SABICs. The trim covering above the
side windows where the SABIC and its deployment path are located should
remain free from any obstructions.
• This vehicle is equipped with SABICs. In order for the SABICs to work as
intended, do not install any accessory items in your vehicle which could alter
the roof. Do not add an aftermarket sunroof to your vehicle. Do not add roof
racks that require permanent attachments (bolts or screws) for installation on
the vehicle roof. Do not drill into the roof of the vehicle for any reason.
• Do not use accessory seat covers or place objects between you and the Side Air
Bags; the performance could be adversely affected and/or objects could be
pushed into you, causing serious injury.
Enhanced Accident Response System
In the event of an impact, if the communication network remains intact, and the
power remains intact, depending on the nature of the event, the ORC will determine
whether to have the Enhanced Accident Response System perform the following
functions:
• Cut off fuel to the engine.
•
Flash hazard lights as long as the battery has power or until the hazard light button
is pushed. The hazard lights can be deactivated by pushing the hazard light button.
• Turn on the interior lights, which remain on as long as the battery has power.
• Unlock the power door locks.
Enhanced Accident Response System Reset Procedure
In order to reset the Enhanced Accident Response System functions after an event,
the ignition switch must be changed from ignition START or ON/RUN to ignition OFF.
Carefully check the vehicle for fuel leaks in the engine compartment and on the
ground near the engine compartment and fuel tank before resetting the system and
starting the engine.
GETTING STARTED
23

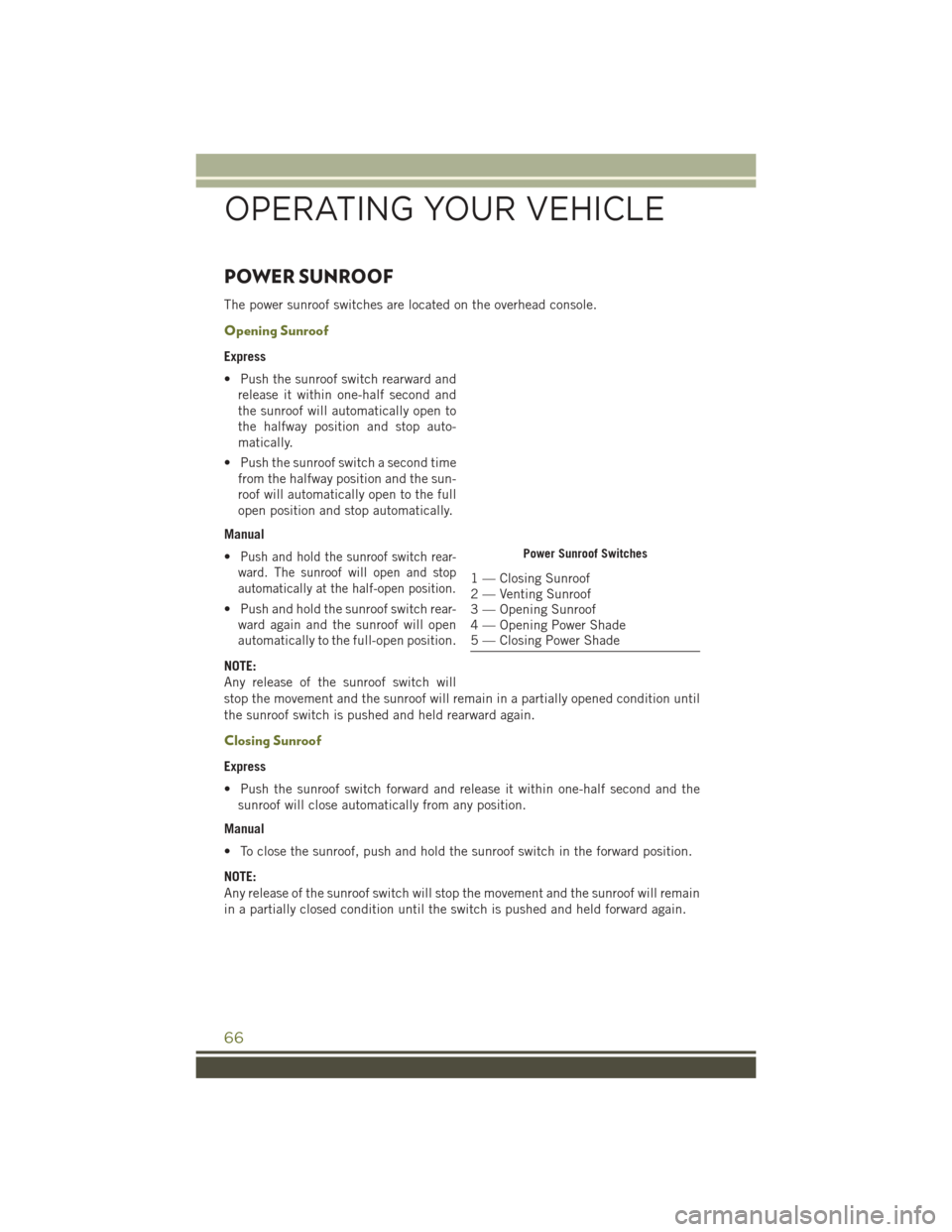

POWER SUNROOF
The power sunroof switches are located on the overhead console.
Opening Sunroof
Express
• Push the sunroof switch rearward andrelease it within one-half second and
the sunroof will automatically open to
the halfway position and stop auto-
matically.
• Push the sunroof switch a second time from the halfway position and the sun-
roof will automatically open to the full
open position and stop automatically.
Manual
•
Push and hold the sunroof switch rear-
ward. The sunroof will open and stop
automatically at the half-open position.
• Push and hold the sunroof switch rear- ward again and the sunroof will open
automatically to the full-open position.
NOTE:
Any release of the sunroof switch will
stop the movement and the sunroof will remain in a partially opened condition until
the sunroof switch is pushed and held rearward again.
Closing Sunroof
Express
• Push the sunroof switch forward and release it within one-half second and the sunroof will close automatically from any position.
Manual
• To close the sunroof, push and hold the sunroof switch in the forward position.
NOTE:
Any release of the sunroof switch will stop the movement and the sunroof will remain
in a partially closed condition until the switch is pushed and held forward again.
Power Sunroof Switches
1 — Closing Sunroof
2 — Venting Sunroof
3 — Opening Sunroof
4 — Opening Power Shade
5 — Closing Power Shade
OPERATING YOUR VEHICLE
66

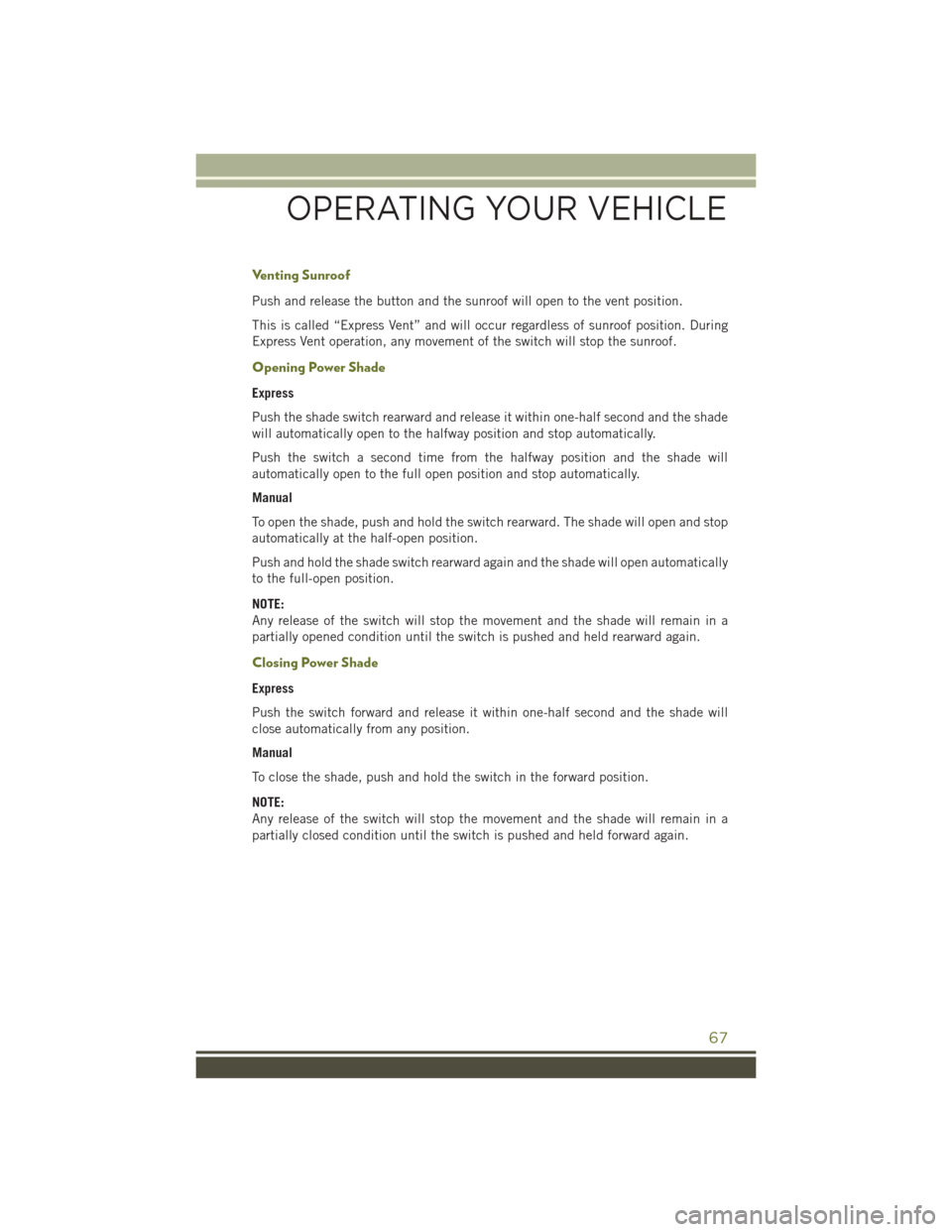

Venting Sunroof
Push and release the button and the sunroof will open to the vent position.
This is called “Express Vent” and will occur regardless of sunroof position. During
Express Vent operation, any movement of the switch will stop the sunroof.
Opening Power Shade
Express
Push the shade switch rearward and release it within one-half second and the shade
will automatically open to the halfway position and stop automatically.
Push the switch a second time from the halfway position and the shade will
automatically open to the full open position and stop automatically.
Manual
To open the shade, push and hold the switch rearward. The shade will open and stop
automatically at the half-open position.
Push and hold the shade switch rearward again and the shade will open automatically
to the full-open position.
NOTE:
Any release of the switch will stop the movement and the shade will remain in a
partially opened condition until the switch is pushed and held rearward again.
Closing Power Shade
Express
Push the switch forward and release it within one-half second and the shade will
close automatically from any position.
Manual
To close the shade, push and hold the switch in the forward position.
NOTE:
Any release of the switch will stop the movement and the shade will remain in a
partially closed condition until the switch is pushed and held forward again.
OPERATING YOUR VEHICLE
67

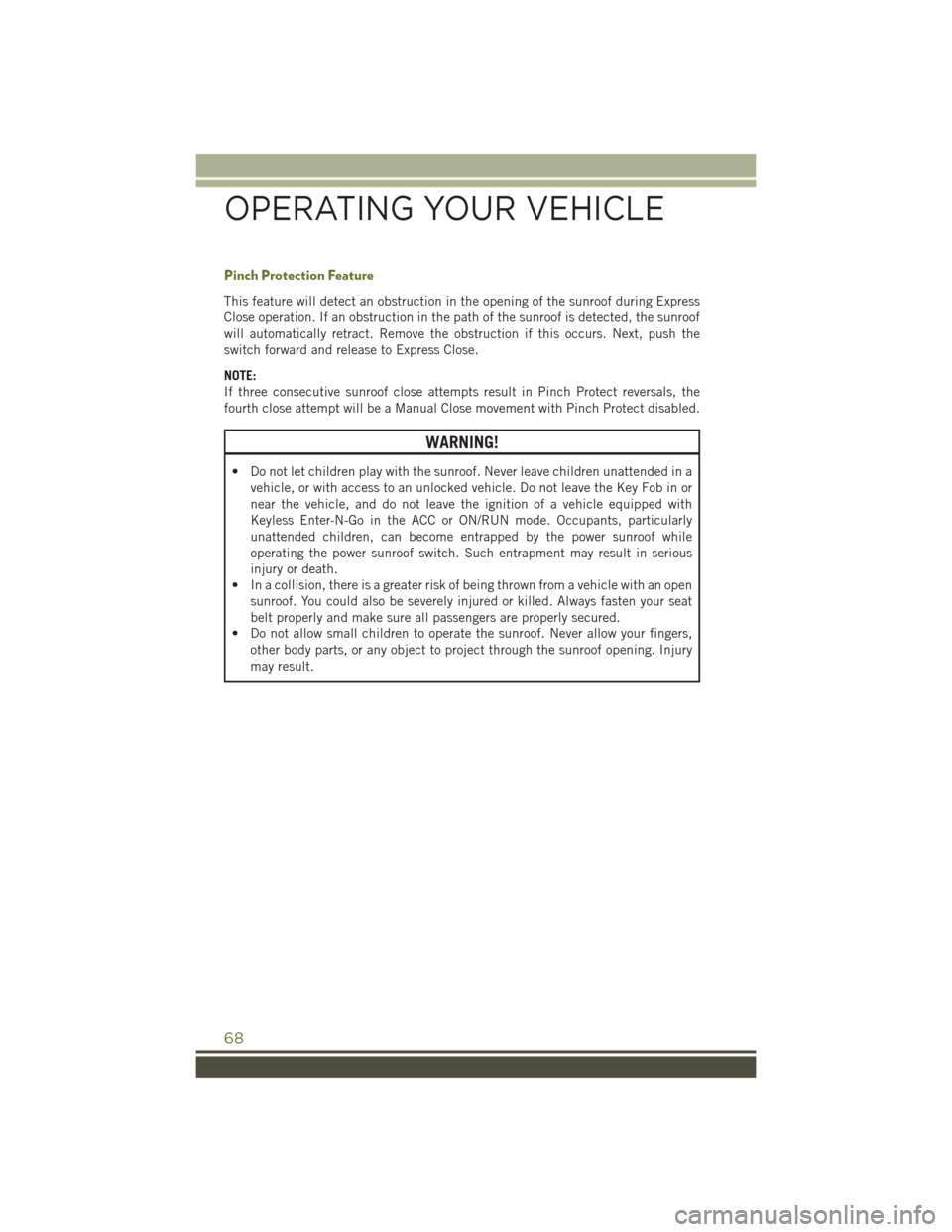

Pinch Protection Feature
This feature will detect an obstruction in the opening of the sunroof during Express
Close operation. If an obstruction in the path of the sunroof is detected, the sunroof
will automatically retract. Remove the obstruction if this occurs. Next, push the
switch forward and release to Express Close.
NOTE:
If three consecutive sunroof close attempts result in Pinch Protect reversals, the
fourth close attempt will be a Manual Close movement with Pinch Protect disabled.
WARNING!
• Do not let children play with the sunroof. Never leave children unattended in avehicle, or with access to an unlocked vehicle. Do not leave the Key Fob in or
near the vehicle, and do not leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode. Occupants, particularly
unattended children, can become entrapped by the power sunroof while
operating the power sunroof switch. Such entrapment may result in serious
injury or death.
• In a collision, there is a greater risk of being thrown from a vehicle with an open
sunroof. You could also be severely injured or killed. Always fasten your seat
belt properly and make sure all passengers are properly secured.
• Do not allow small children to operate the sunroof. Never allow your fingers,
other body parts, or any object to project through the sunroof opening. Injury
may result.
OPERATING YOUR VEHICLE
68

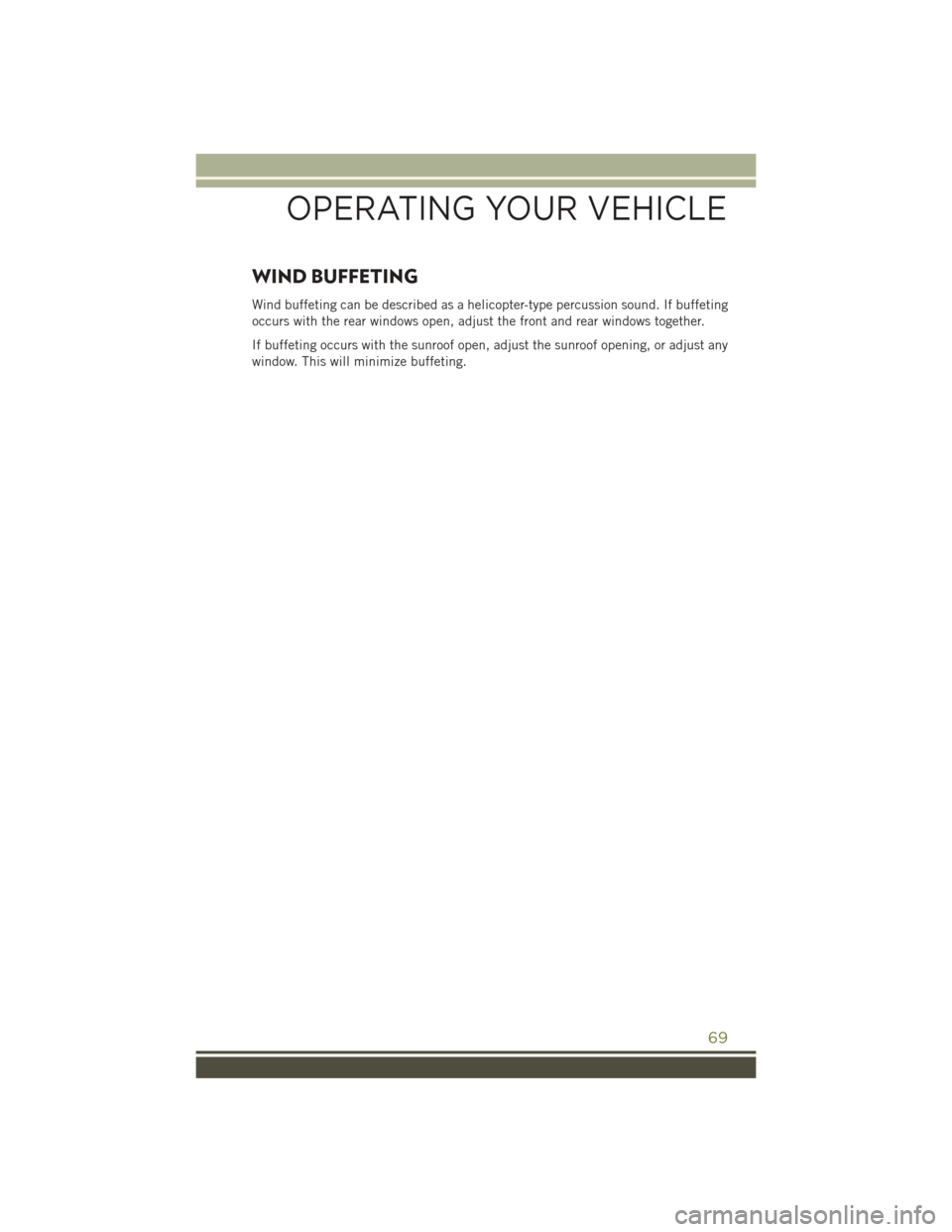

WIND BUFFETING
Wind buffeting can be described as a helicopter-type percussion sound. If buffeting
occurs with the rear windows open, adjust the front and rear windows together.
If buffeting occurs with the sunroof open, adjust the sunroof opening, or adjust any
window. This will minimize buffeting.
OPERATING YOUR VEHICLE
69

Cavity Blade Fuse Cartridge FuseDescription
F42 –30 Amp Pink Trailer Tow Electric Brake
Module - If Equipped
F43 20 Amp Yellow –Fuel Pump Motor
F44 –30 Amp Pink Trailer Tow / 7-Way Connector -
If Equipped
F45 –30 Amp Pink Passenger Door Module (PDM) -
If Equipped
F46 –25 Amp Clear Sunroof - If Equipped
F48 –30 Amp Pink Driver Door Module -
If Equipped
F49 –30 Amp Pink Power Inverter (115V A/C) -
If Equipped
F50 –30 Amp Pink Power Liftgate - If Equipped
F51 – – Not Used
F52 –30 Amp Pink Front Wipers - If Equipped with
Stop/Start Engine Option
F53 –30 Amp Pink Brake System Module & Valves
F54 –30 Amp Pink Body Control Module (BCM)
Feed 3
F55 10 Amp Red – Blind Spot Sensors / Compass /
Rearview Camera / Trunk LampWith Flashlamp Charger - If Equipped
F56 15 Amp Blue – Ignition Node Module (IGNM)/
KIN/RF Hub/Electric SteeringColumn Lock (ESL)
F57 20 Amp Yellow –Trailer Tow Lights Left -
If Equipped
F58 10 Amp Red –Occupant Classification
Module/VSM/ESC
F59 –30 Amp Pink Drivetrain Control Module
(DTCM) If Equipped
F60 20 Amp Yellow –Power Outlet - Center Console
F61 20 Amp Yellow –Trailer Tow Lights Right -
If Equipped
F62 20 Amp Yellow –Windshield de-icer -
If Equipped
F63 20 Amp Yellow –Front Heated/Vented Seats -
If Equipped
F64 20 Amp Yellow –Heated Steering Wheel -
If Equipped
MAINTAINING YOUR VEHICLE
206

Cavity Blade Fuse Cartridge FuseDescription
F82 – – Not Used
F83 –20 Amp Blue Engine Controller Module (Gas)
F84 –30 Amp Pink Electric Park Brake (EPB) - Left
F85 – – Not Used
F86 20 Amp Yellow –Horns - If Equipped With
Stop/Start Engine Option
F87A 20 Amp Yellow –HID Headlamp Left -
If Equipped with Stop/Start Engine Option
F88 15 Amp Blue –Collision Mitigation Module
(CMM) / Electrochromatic
Mirror / Smart Camera Module - If Equipped
F89 10 Amp Red –Headlamp Leveling -
If Equipped
F90 – – Not Used
F91 20 Amp Yellow – Power Outlet Rear - If Equipped
- Customer Selectable
F92 – – Not Used
F93 –40 Amp Green Brake System Module (BSM) -
Pump Motor
F94 –30 Amp Pink Electric Park Brake (EPB) -
Right
F95 10 Amp Red – Electrochromatic Mirror / Rain
Sensor / Sunroof - If Equipped /Passenger Window Switch /
Power Outlet Console / Digital TV (Japan Only)
F96 10 Amp Red –Occupant Restraint Controller
(ORC) / (Airbag)
F97 10 Amp Red –Occupant Restraint Controller
(ORC) / (Airbag)
F98 25 Amp Clear –Audio Amplifier - If Equipped
F99 – – Not Used
F100 – – Not Used
MAINTAINING YOUR VEHICLE
208

Lap/Shoulder Belts...........16
Latches Hood ...............193
LightBulbs ..............215
Lights AirBag ...............24
BulbReplacement ........215
Engine Temperature Warning . .166
Fog ................170
Headlights .............41
HighBeamIndicator ......170
Hill Descent Control Indicator .172
LowFuel .............163
Security Alarm ..........170
Service ..............215
TurnSignal .............40
Load Floor, Cargo ...........157
Lower Anchors And Tether For CHildren (LATCH) ..........26
Lubrication, Body ...........200
Maintenance Free Battery ......200
Maintenance,General ........200
MaintenanceProcedures.......200
Maintenance Record .........203
MaintenanceSchedule........200
Malfunction Indicator Light (CheckEngine) ..........168
Master Cylinder (Brakes) .......200
MediaCenterRadio ..........94
MediaHub...............116
Mirrors Heated ..........51,54,58
MOPAR Accessories .........218
Navigation ........ 107, 110, 123
New Vehicle Break-In Period .....40
Octane Rating, Gasoline (Fuel) . . .198
OilChangeIndicator.........169
Oil Change Indicator, Reset .....169
Oil,Engine ........... 198, 200
Capacity ..............198
Change Interval .........200
Checking .............200
Disposal ..............200
Filter ............ 198, 200 Filter Disposal
..........200
Materials Added To .......200
Recommendation .....198, 200
Viscosity .......... 198, 200
Oil Filter, Selection ..........200
Outlet Power ...............148
Overheating, Engine .........173
PaintCare...............200
Panic Alarm ...............11
Parking Brake ..............60
ParkSense................62
ParkSense Active Park Assist .....63
ParkSense System, Front And Rear .................62
ParkSense System, Rear ........62
Personalized Menu Bar ........99
Phone, Hands-Free (Uconnect) . . .131
Phone (Pairing) .........112, 133
Phone (Uconnect) .....95,117, 131
Placard, Tire And Loading Information .............212
Power Glass Sunroof ...........66
Inverter ..............147
Outlet (Auxiliary
Electrical Outlet) .........148
Power Shade Close .................67
O

pen.................67
Preparation For Jacking .......181
Programmable Electronic Features ..............143
Purchase Apps UconnectAccess ......76,126
Radio.............85,93,115 Balance and Fade .........86
Equalizer ..............86
Operation ..............87
Presets ...............100
Setting the Clock ..........85
Radio Screens .............97
Radio(SoundSystems)......85,93
Rain Sensitive Wiper System .....42
RearCamera ..............64
INDEX
223

Rear Park Assist System........62
Rear ParkSense System ........62
RearSeat,Folding...........35
RecreationalTowing .........158 Shifting Into Power Transfer
Unit Neutral (N) .........160
Shifting Into Transfer Case
Neutral (N) ............160
Shifting Out Of Power Transfer
Unit Neutral (N) .........162
Shifting Out Of Transfer Case
Neutral (N) ............162
Refrigerant ...............200
Release, Hood .............193
Remote Keyless Entry (RKE) Arm The Alarm ...........12
Disarm The Alarm .........13
Remote Starting System ........12
ReplacementBulbs..........215
Reporting Safety Defects .......217
Restraint, Head .............30
RollOverWarning ............5
Schedule, Maintenance .......200
SDCardPort...........89,104
Seat Belt Seat Belt Pretensioner ......17
SeatBeltMaintenance........200
Seat Belts ................16
AdjustableShoulderBelt .....16
Pretensioners ...........16
Seats................32,37 Adjustment .............34
Head Restraints ..........30
Heated ...............37
RearFolding ............35
Seatback Release .......34,35
Tilting ................34
Vented................38
Ventilated .............38
Security Alarm ............170
Arm The System ..........12
Disarm The System ........13
Security Alarm ...........12
Selec-Terrain .............156
Selection Of Coolant
(Antifreeze).............198 Shifting
Power Transfer Unit, Shifting
Into Power Transfer Unit
Neutral (N) ......... 160, 162
Transfer Case, Shifting Into
Transfer Case Neutral (N) ....160
Transfer Case, Shifting Out Of
Transfer Case Neutral (N) ....162
Shift Lever Override .........190
Signals, Turn ...........40,170
Siri................ 118, 119
Sirius Satellite Radio ......88,101
Traffic & Weather .........110
SIRIUS Travel Link ..........111
Sound Systems (Radio) .........85, 104, 107
SpareTire............ 213, 214
SparkPlugs..............198
Specifications Fuel (Gasoline) ..........198
Oil .................198
Speed Control Accel/Decel ............43
Accel/Decel (ACC Only) ......45
Distance Setting
(ACC Only) ...........44,47
Mode Setting (ACC Only) .....47
Speed Control (Cruise Control) ....43
Starting Remote ...............12
Steering TiltColumn .............39
Wheel, Heated ...........38
Wheel, Tilt .............39
Steering Wheel Audio Controls . . .142
Stuck, Freeing .............189
Sunroof Venting ...............67
SunRoof ................66
Supplemental Restraint System - AirBag................17
Telescoping Steering Column .....39
Temperature Control, Automatic (ATC).................55
Tether Anchor, Child Restraint ....28
Text Messaging ......96,121, 127,
138, 139
INDEX
224
